HYBRID APPROACH FOR INCOHERENCE DETECTION BASED

ON NEURO-FUZZY SYSTEMS AND EXPERT KNOWLEDGE

Susana Martin-Toral

, Gregorio I. Sainz-Palmero

1,2

CARTIF Centro Tecnol´ogico, Parque Tecnol´ogico de Boecillo, parcela 205. 47151 Boecillo, Valladolid, Spain

Department of Systems Engineering and Control, School of Industrial Engineering

University of Valladolid, 47011 Valladolid, Spain

Yannis Dimitriadis

GSIC, Group of Intelligent and Cooperative Systems, School of Telecommunications Engineering

University of Valladolid, 47011 Valladolid, Spain

Keywords:

Incoherence, Document corpus, N-tuple, Information retrieval, Neuro-fuzzy system, Expert knowledge, Deci-

sion making system.

Abstract:

The way in which document collections are generated, modiﬁed or updated generates problems and mistakes

in the information coherency, leading to legal, economic and social problems. To tackle this situation, this

paper proposes the development of an intelligent virtual domain expert, based on summarization, matching

and neuro-fuzzy systems, able to detect incoherences about concepts, values, or references, in technical docu-

mentation. In this scope, an incoherence is seen as the lack of consistency between related documents. Each

document is summarized in the form of 4-tuples terms, describing relevant ideas or concepts that must be

free of incoherences. These representations are then matched using several well-known algorithms. The ﬁnal

decision about the real existence of an incoherence, and its relevancy, is obtained by training a neuro-fuzzy

system with expert knowledge, based on the previous knowledge of the activity area and domain experts. The

ﬁnal system offers a semi-automatic solution for incoherence detection and decision support.

1 INTRODUCTION

Documents, on paper or in electronic format, are base

element for the society’s activities. It is the most usual

way to store, save and exchange information in a wide

range of human activity contexts, so the information

and knowledge contained in it has to be right and

clear, with no possibility of confusion or contradic-

tion. But this goal is not trivial due to several facts.

Some public and private sectors handle documenta-

tion that is not-methodologically generated, suffers

changes and grows in volume and versions.

It is very difﬁcult to ﬁnd organizations working

with heterogeneous sets of connected documents that

manage this movement in a suitable and formal way,

with a unique formulation in their generation, man-

agement and control, so the problem of incoherences

in related documentation appears: mistakes in the

cross references, redundant, contradictory, missing or

wrong information, or, in general, rules for quality do-

cumentation are not achieved (Mart´ın et al., 2008).

The impact of all these problems in an organiza-

tion, both in its internal and external relationships,

could cause economic, legal, technical, even serious

social consequences; so when this happens there is

a great interest in detecting and eliminating them.

Thus, some sectors show a growing interest in solving

this kind of problem: healthcare services (Mingshan

and Ching-to, 2002; Afantenos et al., 2005), soft-

ware companies (Arango, 2003), the legal and law

sector (Ruiz, 2002), civil engineering (Mart´ın et al.,

2008), etc.

Documentation free of incoherences improves a

coherent management of it and a better quality of the

products and services generated. But when any solu-

tion aims to deal with this problem, other important

difﬁculties appear: How/What is a document incoher-

ence? Does every incoherence have the same rele-

vancy? In both cases the answer is subjective and de-

pends on the industrial and economic sector and the

408

Martin-Toral S., I. Sainz-Palmero G. and Dimitriadis Y. (2010).

HYBRID APPROACH FOR INCOHERENCE DETECTION BASED ON NEURO-FUZZY SYSTEMS AND EXPERT KNOWLEDGE.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Artiﬁcial Intelligence and Decision Support Systems, pages

408-413

DOI: 10.5220/0002966804080413

 SciTePress

know-how of the domain experts.

This paper deals with incoherences in documents

by summarizing and matching techniques, then the

expert and subjective knowledge is incorporated by

a supervised learning based on the neuro-fuzzy sys-

tem FasArt. In this way, it is possible to detect in-

coherences in documents, so their classiﬁcation and

the learnt knowledge can be extracted by fuzzy rules,

explaining the way in which the expert takes his de-

cisions about the case. These fuzzy rules can be a

support for a decision taking system. An early study

of these ideas have been applied in previous works of

the authors (Martin et al., 2009). In this paper a new

stage in the research and experimentation is shown,

presenting advanced results and conclusions.

The organization of the rest of the paper is as fol-

lows: ﬁrst of all, a tentative deﬁnition and classiﬁca-

tion of the detected incoherences in the case involved

are presented. Next, the proposal of this paper to deal

with document incoherences is introduced, describ-

ing its several phases. Then, the experimental proce-

dure done to test the proposal is shown in Section 4.

Finally, the most interesting results obtained are dis-

cussed and the main conclusions of this work are put

forward.

2 INCOHERENCE DEFINITION

The approach introduced in this paper combines gen-

eral concepts and techniques with heuristics about in-

coherences and their contexts. This can, in general,

be a very practical approach, due to the difﬁculties in

deﬁning when an incoherency appears in a document

and its importance, which depends greatly on the do-

main and experts. At this point it is necessary to give

some type of description of what is considered to be

an incoherence in this work: an incoherence is seen

as the weakness of consistency amongst related docu-

ments, or amongst different pieces of the same docu-

ment, or the lack or excess of information in it (Mart´ın

et al., 2008).

This description introduces subjectivity about

what can be considered an incoherence and its ef-

fects/relevancy, thus its importance. From the docu-

ment collection involved in this work, about the elec-

tric domain, some interesting types of incoherences

cause negative effects in this domain, in accordance

with the domain experts (Martin et al., 2009):

• Numerical and Attribute incoherences concern the

numerical values and technical attributes (such as

colours, shapes, states, etc.) contained in a doc-

ument that must agree with the values indicated

in the norm, standard or document of reference.

A contradiction between documents for the same

concept is not allowed.

• Conceptual incoherences happen when an impor-

tant concept is denominated in different ways in

the same document, or even in different ones. It is

very important to use concepts in a suitable way

for the context involved.

• Reference incoherences happen when documents

use references to other documents, norms or stan-

dards, to support the document content or to avoid

describing any aspect explained in the references.

The incoherence appears when this reference is

not adequate, does not exist, or is not referenced.

In the technical context involved, each of these in-

coherences has a different relevance and effect, which

is usually deﬁned by the domain expert. Generally,

for each type of incoherence to be detected automati-

cally, it will benecessary to apply differenttechniques

for information processing.

In technical and scientiﬁc literature, the formu-

lation of the problem involved in this paper is not

very usual, at least with the same meaning, but there

are well-known techniques that can be applied in the

detection of document incoherences: text data min-

ing, pattern recognition, semantic analysis, etc. In

general, most of them, mainly for extraction and re-

trieval techniques, are based on the use of heuristic

solutions, with similar criteria as in (Krulwich and

Burkey, 1997).

3 AN APPROACH FOR

INCOHERENCE DETECTION

The main goal to be reached in this approach is to

detect when an inconsistency is contained in a docu-

ment. With this aim, the procedure shown in Fig. 1

is carried out: the documents involved are summa-

rized by a set of key terms and concepts that are very

relevant in the domain, and in accordance with the in-

coherence types described in section 2. In this way,

documents are summarized by a set of N-tuples (see

section 3.1). At the moment, this is a semi-automatic

procedure based on extraction techniques.

The next step focuses on the use of matching tech-

niques to establish the level of similarity between the

elements of every two N-tuples, to decide, in a subse-

quent step, if there are incoherences in the document

contents or amongst documents. Here, well-known

techniques, such as the Levenshtein distance (Co-

hen et al., 2003) or the Cosine similarity (Chapman,

2006), are used.

At this point, a critical aspect is to decide when

HYBRID APPROACH FOR INCOHERENCE DETECTION BASED ON NEURO-FUZZY SYSTEMS AND EXPERT

KNOWLEDGE

409

two document pieces are incoherent, or even the

incoherency degree. This decision concerns the

experts of the document domain in most of the

cases. This aspect is approached by a supervised

learning in which the knowledge of the expert is

taken into account. Here a neuro-fuzzy system

based on FasArt (Cano Izquierdo et al., 2001) is

used. Although other solutions could be used, this

type of systems have been used in previous works

for pattern recognition and knowledge extraction

(Sainz Palmero and Dimitriadis, 1999; Sainz Palmero

et al., 2000; Sainz et al., 2004) with reasonable re-

sults.

The ﬁnal goal obtained is the detection, and clas-

siﬁcation, of incoherences amongst document pieces.

An inconsistency degree for each case is provided by

the fuzzy approach. On the other hand, it is possi-

ble to generate a further result using this approach: a

knowledge base using fuzzy rules about the way in

which incoherences are detected, that will be used,

for example, to generate a free incoherences editor

for technical documents.

Figure 1: Approach based on neuro-fuzzy system for detec-

tion of document incoherences.

3.1 Summarizing Documents by

4-tuples

In this work, information extraction tech-

niques (Berry, 2004) are used to obtain repre-

sentations that summarize each document of the

corpus. Here, the information extraction is based on

heuristics (Krulwich and Burkey, 1997), according to

the information patterns detected inside the document

corpora that are relevant for the experts in the electri-

cal domain. An example of this is the summarization

of a document by its technical data terms. Each one

is represented by an “N-tuple”, here N = 4:

< Term ; Operator ; Value ; Units >

Where Term is the word, or set of words, repre-

senting a relevant concept, Operator can indicate that

a term is bigger, smaller than, or equal to a speciﬁc

value/attribute, Value/Attribute represents the numer-

ical value, or an attribute (colour, state, shape) of the

term, and ﬁnally, Units is only used when the value

is numerical and with units. Then the document is

summarized by a set of this type of N-tuple. These

N-tuples have been generated by similar approaches

to Episode Rule Mining techniques (ERM) (Mannila

et al., 1997).

An example of real 4-tuples are:

wire CCX-56-D section ; = ; 54,6 ;

cover of wire CCX-56-D colour ; = ; green ;

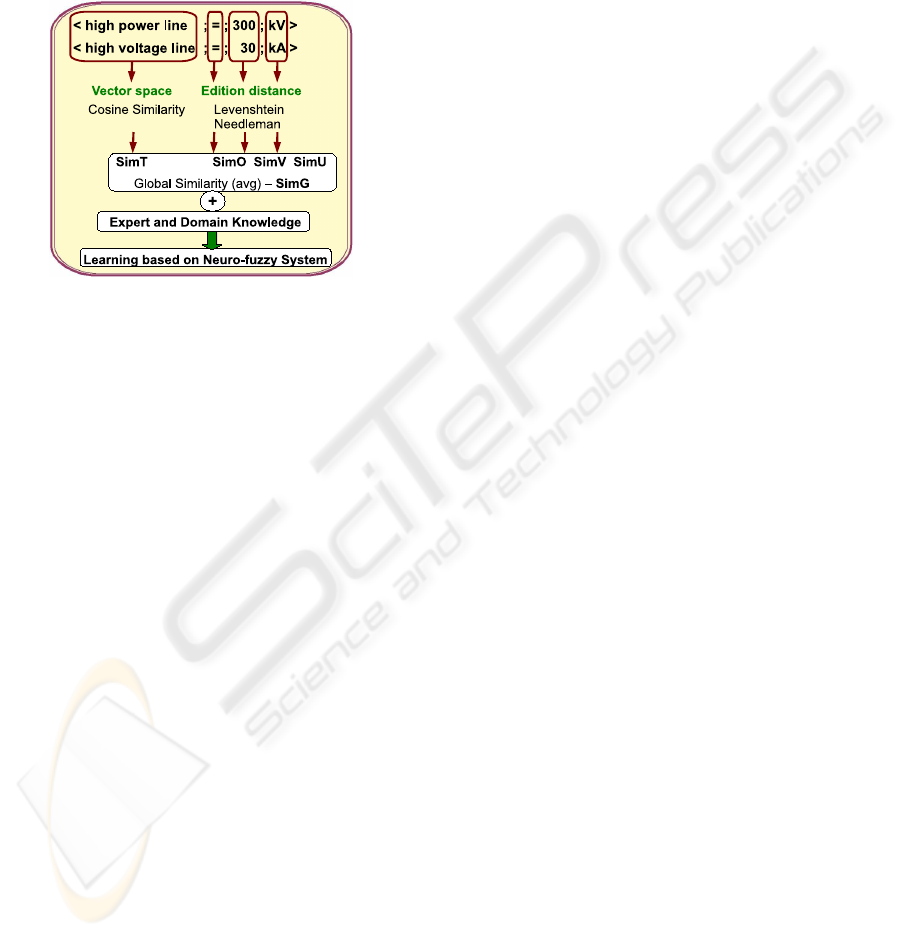

This representation facilitates the detection of nu-

merical, measure and attribute incoherences, applying

suitable matching techniques, such as those used in

this work, by their relevance in the domain involved

in this paper. If two 4-tuples present the same infor-

mation in all their elements but different values, then

a numerical incoherence exists. In the rest of the sit-

uations, the domain and expert knowledge is needed

to deﬁne the existence or not of incoherences and its

relevance. Similarity measures are used to technically

deﬁne every situation.

3.2 Similarity Measures for

Tuple-elements

Two approaches have been considered for similarity

measures amongst n-tuple elements: based on edition

distance and vector space. The ﬁrst group is based

on how many changes and which type of changes

are necessary for turning a character string into an-

other one. Three main operations are identiﬁed within

this topic: insertion, deletion and substitution. The

relevance of each one is tuned by the user. Within

this group of measures, the following can be found:

Levenshtein distance (Cohen et al., 2003; Chapman,

2006) and Needleman distance (Chapman, 2006).

The result is zero whenever two strings are iden-

tical. If differences exist, the distance is an integer

number greater than zero.

The second group is oriented in token-based

distances, which computes distances between two

groups of words (tokens). Within this group, the fol-

lowing can be found: Cosine similarity (Garcia, ;

Chapman, 2006), Jaccard similarity (Cohen et al.,

2003; Chapman, 2006), Dice coefﬁcient and Overlap

coefﬁcient (Chapman, 2006).

In this work, documents contain tuples made of

four terms (see section 3.1). Taking this into account,

cosine similarity has been proposed to establish term

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

410

similarities. This approach is also supported in works

such as (Koudas et al., 2005) and (Cohen et al., 2003),

where different methods for string matching are eval-

uated in other contexts. On the other hand, operators,

numeric values and units are short-length strings of

characters of one-word size, thus being better to ap-

ply edition distances, as what is to be measured is the

difference between two of them.

Figure 2: Similarity matching procedure.

The aim of comparing two tuples is to detect the

existence of incoherences amongst the contents ex-

pressed in them. These results are the input for

the neuro-fuzzy system, FasArt. Expert and domain

knowledge is needed along with similarity measures

for generating a supervised system incorporating this

expert but no objective knowledge (see Fig. 2).

3.3 Neuro Fuzzy System FasArt

The FasArt model (Cano Izquierdo et al., 2001;

Sainz Palmero et al., 2000) is a neuro-fuzzy sys-

tem based on the Adaptive Resonance Theory (ART):

Fuzzy ARTMAP. FasArt introduces an equivalence

between the activation function of each FasArt neu-

ron and a membership function. In this way, FasArt

is equivalent to a Mamdani fuzzy rule-based sys-

tem with: Fuzziﬁcation by single point, Inference by

product, Defuzziﬁcation by average of fuzzy set cen-

ters. A full description of this model can be found

in (Cano Izquierdo et al., 2001; Sainz Palmero et al.,

2000).

The FasArt system has been used in several pre-

vious works (Sainz Palmero and Dimitriadis, 1999;

Sainz et al., 2004) for modeling, fault detection, pat-

tern recognition, etc. with reasonable results when its

accuracy as a fuzzy model is involved. Knowledge

extraction of the knowledge learnt can be done using

this neuro-fuzzy system by a set of fuzzy rules, that

can be used to generate the virtual expert for auto-

matic incoherence detection.

4 EXPERIMENTAL

METHODOLOGY

Documents involved in this work have been summa-

rized in 4-tuples by a semiautomatic procedure. Two

sets of documents containing 4-tuples were generated

as follows:

1. A representative sample of documents from a

company of the electric domain containing nor-

mative, protocols and operating manuals about

usual tasks to be carried out by the company and

its partners. This collection consists of 11 docu-

ments: 1 main project document referring to the

10 most used normative documents. All these

documents were summarized by N-tuples with the

most relevant terms or concepts.A total of 3.265

tuples are within this group.

2. Set of synthetic documents containing 5 docu-

ments generated by a manual procedure with 29

ideal tuples and several versions of them with dif-

ferent levels of incoherency. A total of 1.185 tu-

ples compose this group.

Once experimental data is ready, matching techniques

have been applied element by element to calculate

similarity measures (see Fig. 2). Each case has been

evaluated by a domain expert, who decides whether

if there is incoherence or not, labeling every pattern

in a supervised way. The result of the matching stage

generates a total of 25 ﬁles containing similarity mea-

sures for synthetic documents organized in 5 groups

(every group with more than 100.000 measures as the

input of the system), and 242 ﬁles containing simi-

larity measures for real documents organized in 11

groups (every group with more than 1 million mea-

sures).

The neuro-fuzzy FasArt system has been used in

this case to learn this knowledge about incoherences

contained in the 4-tuples documents. The system out-

put is the presence of incoherence regarding the sim-

ilarity measures between two tuples as its input. The

FasArt system has been tuned with respect to vigi-

lance factor ρ and fuzziﬁcation rate γ.

On the other hand, the system has been trained and

tested by cross validation, using one synthetic or real

group for training and the rest synthetic or real groups

for testing, and calculating the mean quadraticerror of

the total trials. Different experiments has been done:

a) Training and testing using synthetic documents; b)

Training and testing using real documents; c) Train-

ing with synthetic and testing with real documents;

d) Training with real and testing with synthetic docu-

ments.

Each experimentation alternative has been evalu-

HYBRID APPROACH FOR INCOHERENCE DETECTION BASED ON NEURO-FUZZY SYSTEMS AND EXPERT

KNOWLEDGE

411

ated by analyzing the detection error and complexity

of the system, through the number of fuzzy rules from

the neuro-fuzzy system. This aspect is very relevant

because this knowledge base could be used to gener-

ate a decision-taking system about document incoher-

ences, i.e, a free-incoherences document editor.

5 EXPERIMENTAL RESULTS

In Table 1 and Table 2 classiﬁcation results are shown.

Attending to the error rate and the system complex-

ity, two alternatives are possible: 1) Interesting results

of classiﬁcation are obtained when the FasArt system

is trained using synthetic tuples and it is tested using

real tuples, with an error of 3.58% using Levenshtein

distance and 4.44% using Needleman distance. This

seems to be coherent, as synthetic tuples have a larger

coverage than the real ones, so the synthetic set rep-

resents an ideal and theoretical model in the exper-

imentation. 2) Training and testing the system with

real tuples offers also good results. The error is by

4.37% using Levenshtein distance, and 2.55% using

Needleman distance, and the complexity of the sys-

tem is smaller than in the previous case. In this situ-

ation the system works properly with the documenta-

tion of this speciﬁc domain and context. But this so-

lution is not general enough to be applied with other

documentation and in other context.

Comparing both cases, the ﬁrst solution seems to

be more general, and could work better in more gen-

eral cases than in the second one, and with a complex-

ity slightly bigger than in the ﬁrst case. This com-

plexity indicates the number of fuzzy rules we need

to collect the expert knowledge, so it is necessary to

equilibrate the complexity of the system and the error

to obtain a proper solution. This expert knowledge

will be reused in order to obtain the virtual expert for

incoherence detection. But as the number of rules is

high in all the cases, it should be simplify for an ade-

quate use in the expert system.

Table 1: Mean values for the best results for incoherence

detection using a FasART classiﬁer.

Similarity Train Test N# Rules Error

Lev. Syn. Syn. 883 6.07%

Lev. Syn. Real 799 3.58%

Lev. Real Syn. 767 18.12%

Lev. Real Real 767 4.37%

Need. Syn. Syn. 904 5.92%

Need. Syn. Real 800 4.44%

Need. Real Syn. 735 78.61%

Need. Real Real 735 2.55%

Table 2: Mean values for the worst results for incoherence

detection using a FasART classiﬁer.

Similarity Train Test N# Rules Error

Lev. Syn. Syn. 780 15.78%

Lev. Syn. Real 914 15.89%

Lev. Real Syn. 743 70.90%

Lev. Real Real 800 34.97%

Need. Syn. Syn. 786 13.45%

Need. Syn. Real 873 23.40%

Need. Real Syn. 721 85.89%

Need. Real Real 721 19.97%

Checking Table 2, the minimum error rate for the

worst cases of classiﬁcation is obtained when the sys-

tems are trained and tested using synthetic tuples, a

coherent result considering this experimentation as a

synthetic scenario.

On the contrary, the maximum error rate of classi-

ﬁcation is obtained, in all the cases, when real tuples

are used to train the system and synthetic tuples are

used to test it, with an error near 85% in the worst

case. This result is feasible, as only one group of real

tuples for training in every trial do not cover the same

cases as the synthetic ones.

In the rest of the cases an error rate around 5.5%

is obtained for the best cases of classiﬁcation, validat-

ing the experimental stage with a success rate of 95%

in most of the situations. This means that the neuro-

fuzzy classiﬁer works properly for most of the cases,

where both incoherences and coherences take place

within the numeric information expressed in 4-tuples.

6 CONCLUSIONS

This work introduces the problem of content inco-

herences in document collection, in which connected

documents can contain mistakes, wrong or confused

cross-contents and the effects of this non coherent

documentation are relevant for companies: economic,

legal, technical and social damages.

The detection of this type of problem involves ex-

tra difﬁculties with respect to the usual pattern recog-

nition problem: when an incoherence happens in a

document this depends on the domain documentation

and its experts. It is not an objective question, so ex-

pert knowledge is needed if success is to be achieved.

Here, this expert knowledge is incorporated through a

supervised learning procedure supported by a neuro-

fuzzy system in an automatic way.

A global approach is introduced for processing

these documents, to detect incoherences: summariza-

tion and description of documents is based on heuris-

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

412

tics, matching of document contents based on well-

known techniques such as the Levenshtein distance or

the Cosine similarity, and a supervised learning pro-

cedure based on a neuro-fuzzy system.

Synthetic and real documents summarized by 4-

tuples, and matching using the similarity criterion de-

scribed in the previous section, were used as inputs of

the neuro-fuzzy system for detecting incoherences.

The experiments have shown that the system is

able to cope with most cases of coherences and in-

coherences that can feasibly take place within a docu-

ments set, with a success rate higher than 94% in most

of the cases. Tests with both synthetically-created

cases and real ones have shown that the system is able

to learn and detect incoherences by means of the sim-

ilarities of two 4-tuples holding numerical informa-

tion.

At present the work is underway concerning the

specialization of the FasArt system to be able, not

only to detect the existence or not of an incoherence,

but also to determine incoherence categories, using

the summarization by 4-tuples. On the other hand,

using this fuzzy approach, it is possible to extract

the learnt and subjective expert knowledge from the

neuro-fuzzy system, through a set of fuzzy rules that

can support a decision making system about this com-

plex and non objective problem.

ACKNOWLEDGEMENTS

This work has been supported in part by the Spanish

Industry, Tourism and Commerce Ministry through

the project TSI-020302-2008-73.

REFERENCES

Afantenos, S. D., Karkaletsis, V., and Stamatopoulos, P.

(2005). Summarization from medical documents: a

survey. Artiﬁcial Intelligence in Medicine, 33(2):157–

177.

Arango, F. (2003). Gestion de inconsistencias en la evolu-

cion e interoperacion de los esquemas conceptuales

OO, en el marco formal de OASIS. PhD thesis, Univ.

Politecnica de Valencia, Valencia, Spain.

Berry, M. W. (2004). Survey of Text Mining : Clustering,

Classiﬁcation, and Retrieval. Springer.

Cano Izquierdo, J. M., Dimitriadis, Y. A., G´omez S´anchez,

E., and Coronado L´opez, J. (2001). Learnning from

noisy information in FasArt and fasback neuro-fuzzy

systems. Neural Networks, 14(4-5):407–425.

Chapman, S. (2006). Sam’s String Metrics page. Available

at http://www.dcs.shef.ac.uk/ sam/stringmetrics.html

(Accessed Dec.09).

Cohen, W. W., Ravikumar, P., and Fienberg, S. E. (2003).

A comparison of string metrics for matching names

and records. In Proceedings of the KDD-2003 Work-

shop on Data Cleaning, Record Linkage, and Object

Consolidation, pages 13–18, Washington DC, USA.

Garcia, E. Cosine Similarity and Term Weight

Tutorial. Mi Islita, Oct 2006. Available at

http://www.miislita.com/information-retrieval-

tutorial/cosine-similarity-tutorial.html (Accessed

Dec.09).

Koudas, N., Marathe, A., and Srivastava, D. (2005). SPI-

DER: ﬂexible matching in databases. In SIGMOD

’05: Proceedings of the 2005 ACM SIGMOD interna-

tional conference on Management of data, pages 876–

878, New York, NY, USA. ACM.

Krulwich, B. and Burkey, C. (1997). The infoﬁnder agent:

Learning user interests through heuristic phrase ex-

traction. IEEE Expert: Intelligent Systems and Their

Applications, 12(5):22–27.

Mannila, H., Toivonen, H., and Verkamo, A. I. (1997). Dis-

covery of frequent episodes in event sequences. Data

Min. Knowl. Discov., 1(3):259–289.

Martin, S., Arribas, V., and Sainz, G. (2009). Detection of

incoherences in a document corpus based on the ap-

plication of a neuro-fuzzy system. In Tenth Int. Conf.

on Document Analysis and Recognition.

Mart´ın, S., Sainz, G., and Dimitriadis, Y. (2008). Detec-

tion of incoherences in a technical and normative doc-

ument corpus. In Tenth ICEIS’08, volume Artﬁcial In-

telligence and Decission Support Systems, pages 282–

287, Barcelona, Spain.

Mingshan, L. and Ching-to, A. M. (2002). Consistency in

performance evaluation reports and medical records.

The Journal of Mental Health Policy and Economics,

5(4):191–192.

Ruiz, M. (2002). Sistemas jur´ıdicos y conﬂictos normativos.

Dykinson, Universidad Carlos III de Madrid, Instituto

de Derechos Humanos Bartolom´e de las Casas.

Sainz, G. I., Fuente, M. J., and Vega, P. (2004). Recur-

rent neuro-fuzzy modelling of a wastewater treatment

plant. European Journal of Control, 10:83–95.

Sainz Palmero, G., Dimitriadis, Y., Cano Izquierdo, J.,

G´omez S´anchez, E., and Parrado Hern´andez, E.

(2000). ART based model set for pattern recogni-

tion: FasArt family. In Bunke, H. and Kandel, A.,

editors, Neuro-fuzzy pattern recognition, pages 147–

177. World Scientiﬁc Pub. Co.

Sainz Palmero, G. I. and Dimitriadis, Y. A. (1999). Struc-

tured document labeling and rule extraction using a

new recurrent fuzzy-neural system. In Fifth Int. Conf.

on Document Analysis and Recognition, ICDAR’ 99,

page 3181.

HYBRID APPROACH FOR INCOHERENCE DETECTION BASED ON NEURO-FUZZY SYSTEMS AND EXPERT

KNOWLEDGE

413
