COLOURED PETRI NETS WITH PARALLEL COMPOSITION

TO SEPARATE CONCERNS

Ella Roubtsova

Open University of the Netherlands, Heerlen, Netherlands

Ashley McNeile

Metamaxim Ltd, London, U.K.

Keywords:

Concerns, Modeling, Coloured Petri nets, Protocol modeling, CSP composition, Observational consistency,

Local reasoning.

Abstract:

We deﬁne a modeling language based on combining Coloured Petri Nets with Protocol Modeling semantics.

This language combines the expressive power of Coloured Petri Nets in describing behavior with the ability

provided by Protocol Modeling to compose partial behavioral descriptions. The resultant language can be

considered as a domain speciﬁc Coloured Petri Net based language for deterministic and constantly evolving

systems.

1 INTRODUCTION

Conquering complexity of business models inevitably

stimulates the work on separation of concerns.

The problem of separation of concerns is central

to all modern modeling approaches. Mahoney et

al (M.Mahoney, A.Bader, T.Elrad and O. Aldawud:,

2004) use the semantics of statecharts deﬁned by

D. Harel (D. Harel, M. Politi, 1998) and exploit

the ”AND-composition” of several independent

(orthogonal) statecharts. ”The key feature of orthog-

onal statecharts that events from every composed

statechart are broadcast to all others and can cause

transitions in two or more orthogonal statecharts

simultaneously”. But this semantics does not deﬁne

what happens if one of orthogonal statecharts is in a

such a state where it cannot accept the broadcasted

event. As the result of this semantics, the composition

of orthogonal statecharts is a computation tree that

represents partial behaviour of the system when the

orthogonal statecharts are in the suitable states to

accept broadcasted events.

Several approaches (T.Elrad, O.Algawud,

A.Baber, 2002; G.Zhang, M.Hlzl, A.Knapp, 2007)

try to separate concerns in the UML statecharts. The

approach High-Level Aspects (HiLA) (G.Zhang,

M.Hlzl, A.Knapp, 2007) uses the UML State

Machines with declarative speciﬁcation of concerns

such as synchronization of orthogonal regions or

history-based behaviors. The authors use the Behav-

ioral State Machines (BSM) semantics deﬁned in the

UML Superstructure document v.2.1 and v2.2 (OMG,

2009). (The UML State Machine package deﬁnes two

behavioral semantics for ﬁnite state transition sys-

tems: Behavioral State Machines (BSM) and Protocol

State Machines (PSM).) The authors of HiLA notice

that the ”UML state machines work ﬁne as long as the

only form of communication among states is the acti-

vation of the subsequent state via a transition. More

often than not, however, an active state has to know

how often some other state has already been active

and/or if other states (in other regions) are also active.

Unfortunately, behavior that depends on such infor-

mation cannot be modeled modularly in UML state

machines.”

Separation of concerns is actual for Coloured Petri

Nets (CPN). If a CPN model with conventional se-

mantics becomes complex it is either cut into sub-

models by duplicating places (for linear merging of

sub-models), or transformed by replaced sub-nets

with hierarchical transitions (K. Jensen, 1997). Both

composition mechanisms in CPN demand a function

deﬁnition. The concerns that crosscut other function-

ality in several places cannot be presented by a one-

to-one relation and cannot be separated in CPN mod-

els. Neither linear merging nor hierarchical transi-

501

Roubtsova E. and McNeile A. (2010).

COLOURED PETRI NETS WITH PARALLEL COMPOSITION TO SEPARATE CONCERNS.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

501-504

DOI: 10.5220/0002971005010504

 SciTePress

tions preserve the initial functionality as the model

evolves. Separation of concerns in Coloured Petri

Nets has been investigated, for example, in work of

Palanque et al. (P. Palanque, R. Bastide, L. Dourte,

C. Sibertin-Blanc, 1993) and Elkoutbi and Keller (M.

Elkoutbi, R. Keller, 1998). But both works use con-

ventional CPN semantics and does not provide a se-

mantic basis for composition of concerns. The se-

curity and operability concerns in workﬂow systems

have been modeled in work of Jacob et al. (T. Ja-

cob, O. Kimmer, D. Moldt, U. Ultes-Nitsche, 2002).

They discuss the Renew (REference NEt Workshop)

tool for executing reference nets. ”Reference nets are

high-level Petri nets that implement the net-within-

nets concept and incorporate Java annotations. Java

annotations control enabling a transition and can cre-

ate side effects when a transition is ﬁred. Firing a

transition can also create a new instance of a subnet

in such a way that a reference to the new net instance

will be put as a token into a place. Communication of

subnets occurs through synchronous channels associ-

ated with transition. A net instance can also commu-

nicate with the net whose subnet it is. The complex

composition rules of this approach allow for compos-

ing of aspects but the behavior of a subnet that mod-

els an aspect can only be determined by an analysis of

whole composed net.

In this paper we propose another solution for sep-

aration of concerns in Coloured Petri Nets. In order

to enrich CPN with ability to model interaction and

compose partial behaviour we propose to apply some

elements of Protocol Modelling (A. McNeile, N. Si-

mons, 2006) semantics to CPN. The PM approach it-

self does not pre- or pro-scribe any particular nota-

tion for the components of a model. This suggests

that it may be possible to extend CPN with the event

handling semantics (in particular, to include event re-

fusal) so that PM models (allowing parallel compo-

sition) can be built using CPN notation. The pro-

posed notation PM-CPN can be successfully applied

to modeling and evolution of event-drivendeterminis-

tic systems, both embedded and business information

systems.

2 DEFINITION OF PM-CPN

In this section we explain the extensions to conven-

tional CPN and some restrictions on conventional

CPN required in PM-CPN, and illustrate this by the

account example and its logging and security exten-

sions.

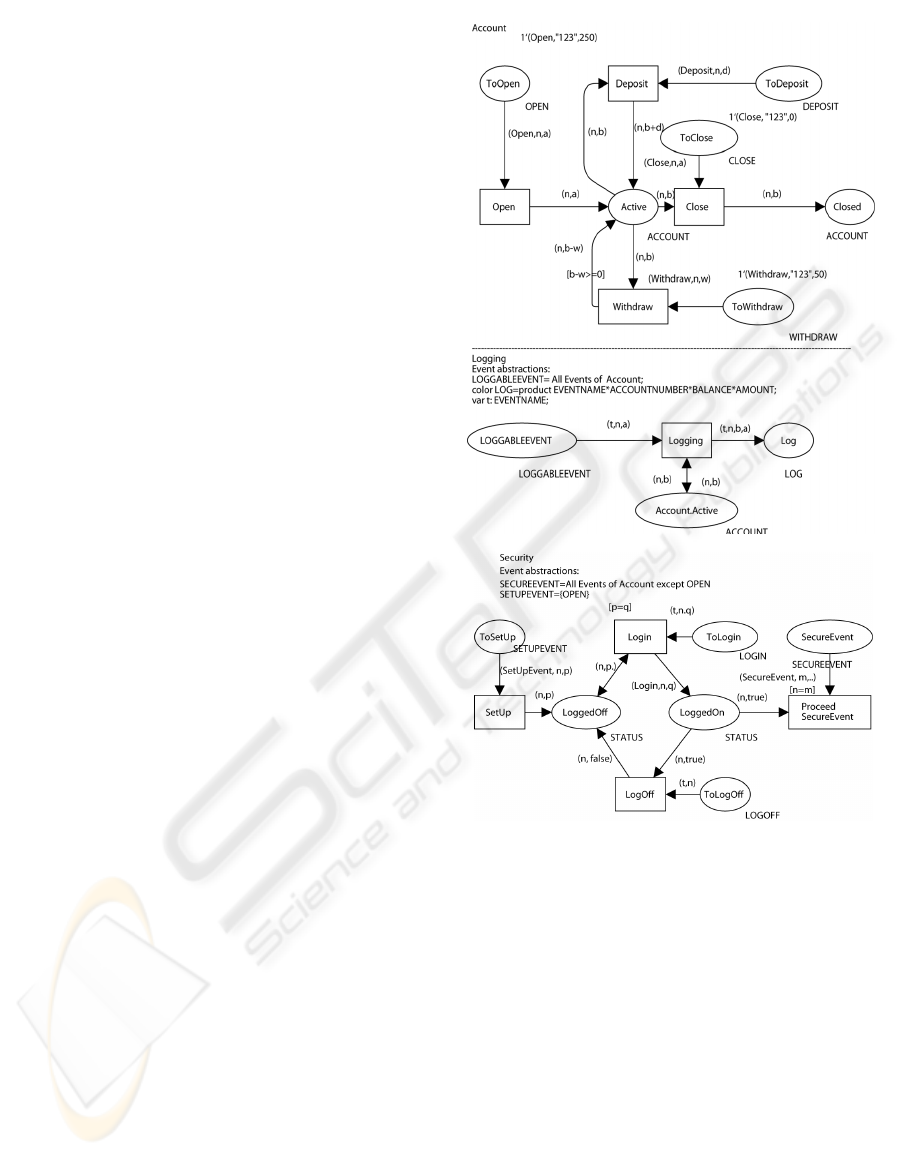

Figure 1: PM-CPN of a bank account with logging and se-

curity concerns.

Interface Places. First of all we deﬁne distin-

guished interface places in PM-CPN. An interface

place is a place of a CPN that has no input arcs,

and its purpose is to receive events that are presented

to the model by its environment. Places

ToOpen,

ToDeposit, ToClose

and

ToWithdraw

in Figure 1

are

interface places.

Each interface place has a

color. The color of an interface place speciﬁes the

attributes (attribute schema) of events that it can re-

ceive. In other words, the color of an interface place

represents an event type.

Event Tokens. In PM-CPN, an event instance is

represented as a token with the color corresponding

to its event type. Figure 1 shows event

"Withdraw

from account "123" 50 Euro"

presented by to-

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

502

ken

1‘(Withdraw, "123", 50).

Local Storage. The local storage of a PM-CPN ma-

chine is represented by its marking. A PM-CPN ma-

chine can read tokens from places of the local storage

of another PM-CPN, but cannot modify them. This

situation is presented by shared places. A shared

place is a place owned by one machine, from which

other machines can take a token and put it back to ob-

tain read-only access to the value of the token. If one

PM-CPN uses a place of another PM-CPN, the name

of this place includes the name of PM-CPN owner.

For example, the PM-CPN

LOGGING

(Figure 1) shares

place

Account.Active

of the PM-CPN

ACCOUNT

The semantics of shared places is different from

semantics of fused places in CPN.

- Only the owner of the shared place (

Account

our example) can change the value of the tokens it

contains.

- Access to the token (or tokens) on the shared

place is serialized, so that each machines puts token(s)

back before the next has use of them. (Otherwise one

process might fail as the token on the shared place is

currently being used by another).

- The PM-CPN machine that owns the shared

place is the last to get use of the token(s) it contains

and can change the token(s). Other machines there-

fore see the values of the tokens in there state before

update for the current event (as in PM, machines ac-

cessing the local storage of composed machines see

the values before the current event).

In our example, during a

Deposit

event (a

LoggableEvent

), ﬁrst the

Logging

machine takes a

token from shared place

Account.Active

and puts

it back. Then the

Account

machine takes the to-

ken from this place and modiﬁes it as a result of the

Deposit

event.

Alphabet. The alphabet of a PM-CPN machine is

the set of event-types it recognizes: i.e., for which

it has interface places. The alphabet of the Account

(Figure 1) is: {

Open

Withdraw

Deposit

Behavior. A PM-CPN machine is quiescent when

no transition is enabled. A PM-CPN machine accepts,

ignores or refuses events presented to it as follows:

- An PM-CPN machine ignores an event iff the type

does not belong to its alphabet. This corresponds to

the conventional semantics of CPN.

- An event is refused by a PM-CPN machine iff the

event belongs to the alphabet but, when placed on

the machine’s interface place, makes no transition en-

abled. A refused event then disappears from the in-

terface place because it cannot be handled. This se-

mantics is different from the conventional semantics

of CPN as, in conventional CPN, a token stays in a

place in it even if it does not enable any transition.

Event

(Withdraw ,"123",50)

in Figure 1 is refused

and disappears, because the account 123 is empty and

(0− 50) < 0 and so no transitions are enabled.

- An event is accepted by a PM-CPN machine iff,

when placed on its interface place, it causes a tran-

sition in the machine to become enabled. In Figure 1

event

(Open,"123",250)

is accepted because it en-

ables transition

Open

. The acceptance semantics of

PM-CPN completely corresponds to the conventional

semantics of CPN.

The local storage of a PM-CPN machine can be

changed only in response to acceptance of an event.

For example, in response to event

(Open,"123",250

)

the local storage of the PM-CPN in Figure 1 will be

changed to:

{(ToOpen,

0), (Active, (”123”, 250)),

(Closed,

0), (ToDeposit,

0),

(ToClose,

0), (ToWithdraw,

0))}.

PM behavioral rules of ignoring, accepting and re-

fusing events make PM-CPN suitable for speciﬁca-

tion of interactive behavior.

Abstractions of Events and States. An event ab-

straction is a new abstract event type presented as a

bag of different colors. Such an abstract event corre-

sponds to some subset of the alphabet of events in the

model. An interface place for this abstract event type

is capable of receiving any event in the subset. The

protocol rules (for acceptance or refusal) are identical

for all the events of the abstract.

For example, all event types of the PM-CPN

Account

form the event abstraction for the PM-CPN

Logging

(Figure 1):

LoggableEvent

= {

Open,Close,Deposit,Withdraw

Any event that belongs to this set that is ac-

cepted by the model as a whole will be logged by the

LOGGING

machine. Because an event will only be ac-

cepted by the model if accepted by both the

ACCOUNT

machine and the

LOGGING

machine, and because the

LOGGING

machine itself cannot refuse any event pre-

sented to it, every

LoggableEvent

that is accepted by

the

ACCOUNT

will be logged.

Two event abstractions are used in the

SECURITY

machine (Figure 1):

SetupEvent

= {

Open

}

SecureEvent

= {

Deposit, Withdraw, Close

}

The ﬁrst of these only contains a single event, and

therefore simply renames it. However, when reusing

the

SECURITY

machine in another context, there may

be more than one event that plays the role of setting

up the password.

COLOURED PETRI NETS WITH PARALLEL COMPOSITION TO SEPARATE CONCERNS

503

3 PROPERTIES OF PM-CPN

Local Reasoning. PM-CPN modeling allows local

reasoning about the behavior of the model as a whole

based on the deﬁnition of the composed machines,

as proven in (A. McNeile, E. Roubtsova, 2008).

Consider, for instance, the following sequence of

events:

S =

<("Open","123",250) ("Login","123","fish")

("Withdraw","123",300) ("Logoff","123")

("Logoff","123")>

It is possible to determine that S is not a trace of

the model based on examination of the Account

machine alone, as follows: The subset S restricted to

the alphabet of

ACCOUNT

is:

<("Open","123",250)

("Withdraw","123",300)>

This would not be accepted by the

ACCOUNT

machine as it would fail the guard condition on the

Withdraw

transition, as 300 > 250. This reasoning

is based on the

ACCOUNT

machine alone, and remains

true whatever other machines are composed with it.

It is also possible to determine that S cannot be a

trace of the model based on the

SECURITY

machine,

which does not allow two

LogOff

events without an

intervening

LogOn

Determinism. The basis of the PM semantics is that

the machines being composed have deterministic be-

havior. To achieve this requires that certain rules be

observed in the formation of the model.

(1) A PM-CPN should contain only one interface

place for each event type. If there were more than one

interface place in a PM-CPN for a given event type,

there would be potential indeterminism in the behav-

ior based on which is chosen to receive an event.

(2) Nets should be constructed so that, if a transition

ever has a choice of tokens to consume, the result of

the transition is independent of which is chosen.

There is no assumption that non-determinism

will not need to be introduced at physical design time.

4 CONCLUSIONS

In this paper we have extended the semantics of

Coloured Petri Nets with Protocol Modeling seman-

tics, and proposed the PM-CPN modeling language

for deterministic and constantly evolved systems. We

have demonstrated that PM-CPN is suitable for sep-

arate modeling of concerns, their composition and

modular reasoning about system behavior using com-

posed descriptions. Moreover, PM-CPN enables

modeling of interactive behavior. PM-CPN produces

scalable models. The CSP composition built into the

PM-CPN supports evolution of PM-CPNs by adding

or deleting models of new concerns without redraw-

ing and rewriting of previous models. The traces of

sub-models a preserved in the result of model compo-

sition. Applying the PM semantics to Coloured Petri

Nets we aimed to extend the applicability of Coloured

Petri nets for evolving systems.

REFERENCES

A. McNeile, E. Roubtsova (2008). CSP parallel composi-

tion of aspect models. AOM’08: Proceedings of the

2008 AOSD Workshop on Aspect-Oriented Modeling,

Brussels, Belgium, pages 13–18.

A. McNeile, N. Simons (2006). Protocol Modelling.

A modelling approach that supports reusable be-

havioural abstractions. Software and System Model-

ing, 5(1):91–107.

D. Harel, M. Politi (1998). Modeling Reactive Systems with

Statecharts: The STATEMATE Approach. McGraw-

Hill.

G.Zhang, M.Hlzl, A.Knapp (2007). Inhancing UML State

Machines with Aspects. In, G. Engels, B. Opdyke,

D. C. Schmidt, and F. Weil, editors. Proc. 10th Int.

Conf. Model Driven Engineering Languages and Sys-

tems (MoDELS’07). LNCS 4735, pages 529–543.

K. Jensen (1997). Coloured Petri Nets. Springer.

M. Elkoutbi, R. Keller (1998). Modeling Interactive Sys-

tems with Hierarchical Colored Petri Nets. Proc. of

the Conference on High Performance Computing.

M.Mahoney, A.Bader, T.Elrad and O. Aldawud: (2004).

Using Aspects to Abstract and Modularize State-

charts. In the 5th Aspect-Oriented Modeling Work-

shop In Conjunction with UML 2004.

OMG (2009). Uniﬁed Modeling Language, Superstructure,

v2.2. OMG Document formal/09-02-02 Minor revi-

sion to UML, v2.1.2. Supersedes formal 2007-11-02.

P. Palanque, R. Bastide, L. Dourte, C. Sibertin-Blanc

(1993). Design of User-Driven Interfaces Using Petri

Nets and Objects. LNCS 685.

T. Jacob, O. Kimmer, D. Moldt, U. Ultes-Nitsche (2002).

Implementation of Workﬂow Systems using Refer-

ence Nets. Security and Operability aspects. Proc. of

the workshop CPN02.

T.Elrad, O.Algawud, A.Baber (2002). Aspect-oriented

modelling-Briging the gap Between Design and Im-

plementation. Proceedings of the First ACM Interna-

tional Conference on Generative PRogramming and

Component Engineering GPCE), pages 189–202.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

504
