FLEXIBLE DATA ACCESS IN ERP SYSTEMS

Vadym Borovskiy

, Wolfgang Koch

and Alexander Zeier

Hasso-Plattner-Institute, Potsdam, Germany

SAP AG, Walldorf, Germany

Keywords:

ERP data access, Business object query language, Navigation in ERP systems, Enterprise composite applica-

tions, UI customization.

Abstract:

Flexible data access is a necessary prerequisite to satisfy a number of acute needs of ERP system users and

application developers. However, currently available ERP systems do not provide the ability to access and

manipulate ERP data at any granularity level. This paper contributes with the concept of query-like service

invocation implemented in the form of a business object query language (BOQL). Essentially, BOQL provides

on-the-ﬂy orchestration of CRUD-operations of business objects in an ERP system and allows to achieve

both the ﬂexibility of SQL and encapsulation of SOA. To demonstrate the power of the suggested concept

navigation, conﬁguration and composite application development scenarios are presented in the paper. All

suggestions have been prototyped with Microsoft .Net platform.

1 INTRODUCTION

Flexible data access is essential for Enterprise Re-

source Planning (ERP) systems. Efﬁcient retrieval

and manipulation of data are required to address a

number of acute needs of ERP systems users and ap-

plication developers. By interviewing users of ERP

systems we found out that two the most common re-

quirements of every-day system users are: (i) efﬁcient

navigation among ERP data and (ii) user-speciﬁc con-

ﬁguration. The ﬁrst one means dynamic and fully

automatic discovery of information semantically rel-

evant to a given user in a given context. For example,

when a sales manager views customer details the sys-

tem provides a list of links to invoices not paid by the

customer or a list of links to products ordered over

the last six months by this customer. By clicking the

provided links (basically shortcuts) the manager can

navigate to relevant data with minimum effort. The

second requirement means that a pre-packaged sys-

tem must support user-speciﬁc views on top of stan-

dard data structures. For example, a sales order in

SAP R/3 has hundreds of ﬁelds, most of which are

never used. Despite this all ﬁelds are displayed at the

sales order entry form. This complicates the form and

slows down order processing.

To satisfy these requirements an ERP system must

support data retrieval and manipulation at any granu-

larity level. Indeed, if an ERP system had applica-

tion programming interface (API) allowing to query

any piece of data and assemble dispersed data piece

in a single result set, the two requirements would be

feasible to fulﬁll. In fact, a solution to the second

one would become trivial. A personal conﬁguration

would be nothing else but a set of queries return-

ing/processing only relevant attributes. The naviga-

tion challenge could also be resolved in the same way:

the list of links could be constructed based on the re-

sult set of queries. More details on that can be found

in the Section 3.

In addition to the user needs ﬂexible data access

is relevant for ERP application developers in a num-

ber of use cases. A series of interviews conducted

by the authors revealed the need for an API as dis-

cuss above for integration and extension scenarios. In

the ﬁrst case, the lack of a convenient API prevents

application developers from exchanging data between

an ERP system and other software used by an enter-

prise. In the second case, current poor APIs signiﬁ-

cantly complicate the development of enterprise com-

posite applications (ECAs) on top of ERP systems.

Enterprise composite applications have become a pri-

mary tool of extension and adaptation of enterprise

software. They allow application developers to add

features to ERP systems and, thus, view an ERP sys-

tem not as a product but as a platform exposing data

and functionality, which can be reused/recombined in

new ways. Turning an ERP system into such a plat-

Borovskiy V., Koch W. and Zeier A. (2010).

FLEXIBLE DATA ACCESS IN ERP SYSTEMS.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages 96-104

DOI: 10.5220/0002976700960104

 SciTePress

form inevitably requires a quite high degree of system

openness and, thus, appropriate API.

The current work contributes with the concept

of query-like service invocation implemented in the

form of a business object query language (BOQL).

BOQL is the corner stone of the API offering both

the ﬂexibility of SQL and encapsulation of SOA. Sec-

tion 2 of the paper presents this concept along with

a prototype demonstrating the idea in practice. Sec-

tion 3 demonstrates the application of BOQL to the

challenges and needs discussed above. Section 4 con-

cludes the paper.

2 FLEXIBLE DATA ACCESS

Data access API of an ERP system highly depends on

internal details of the system. Not all architectures

can efﬁciently support data access from outside of the

system. In fact, most of the systems never allow such

access. Data accessibility means an ability to access

the data model (or metadata) and actual data storage.

In other words, users need to know how their business

data is structured and how they can retrieve the data.

2.1 State of the Art

A straightforward approach to data access can be

to use SQL. Since ERP systems rely on relational

databases, issue SQL statements could be issued di-

rectly against the databases to retrieve required data.

Although SQL is natively supported by the underly-

ing databases, this approach is unlikely to deliver the

expected results. SQL statements need to be written

against an actual schema of a database. The schema of

an ERP system is very complex and is not intended to

be directly used by customers. In fact, it is considered

to be private and therefore is hidden from users. ERP

vendors can use the concept of views on top of the in-

ternal database. On one hand views can hide data or-

ganization and internals. On the other hand views can

reduce the essential complexity of the schema from a

customer’s perspective by exposing only a subset of

the schema relevant to a given customer or a group of

customers. So why not to use SQL against views as a

data accessing API?

The problem with this approach is that it vio-

lates the data encapsulation principle. Basically SQL

against views exposes too much of control over the

underlying database and greatly increases the risk of

corrupting data in the system. An ERP system is not

only a collection of structured data, but also a set

of business rules that apply to the data. Generally

these rules are not a part of the system’s database.

Direct access to the database circumvents the rules

and implies data integrity violation. Therefore, to en-

force the rules the direct access to data by any means

is strictly prohibited. To enforce business rules and

further increase the encapsulation semantically re-

lated pieces of data are grouped together with busi-

ness logic (expressed in a programming language)

to form a monolithic construct called business ob-

ject. This allows to hide actual data storage behind

an object-oriented layer. Grouping data and business

logic in business objects simpliﬁes the consumption

of data from a programming language. For these

reasons ERP systems can be seen as object-oriented

databases. In this case SQL against views as data ac-

cess API is inappropriate.

An alternative to SQL against views can be data

as a service approach. In this case a system ex-

poses a number of Web services with strictly de-

ﬁned semantics. By calling operations of these ser-

vices required data is retrieved. For example by call-

ing ReadSalesOrder(soId) operation of SalesOrder-

Management service full information on a sales order

given its ID can be retrieved. This approach has an

advantage of hiding internal organization of data. In-

stead of a data schema a set of operations that return

data are exposed by a system. By choosing opera-

tions and calling them in an appropriate sequence re-

quired data can be retrieved. Because of using Web

services this approach is platform independent. In

fact, the data as a service approach has been very pop-

ular. SAP, for instance, has deﬁned hundreds of Web

service operations that access data in Business Suite.

Amazon Electronic Commerce service is another ex-

ample of such approach. However, this method has

two serious disadvantages: lack of ﬂexibility and high

cost of change. Although an ERP system vendor

can deﬁne many data accessing operations, they will

never cover all possible combinations of data pieces

of an ERP system. Often these operations are lim-

ited to one business object. ECAs on the other hand

address very speciﬁc or ﬁne-granular needs and de-

liver value by assembling information coming from

different locations of a system. Therefore, the granu-

larity of data services does not match the granularity

of ECAs’ operations and the services cannot provide

adequate support for the ECAs. For this reason ECAs

need to issue multiple service calls and combine a re-

sult set on their own. This greatly complicates the

development of ECAs and undermines their perfor-

mance. This situation clearly demonstrates the advan-

tage of the SQL against views approach. The ability

to construct ﬁne-granular queries that fully match the

information needs of ECAs makes SQL a much more

ﬂexible API than data as a service.

FLEXIBLE DATA ACCESS IN ERP SYSTEMS

High cost of change has to do with evolution.

Over its lifecycle an ERP system will go through a

number of changes. If these changes affect internal

data organization most probably all data services that

work with affected data structures will need revision.

In the worst case a subset of data service operations

may become irrelevant and require full substitution.

Revising these operations is costly. The situation ex-

acerbates if changes to service operations make their

new versions incompatible to previous ones. This im-

plies failures in ECAs that already consume previ-

ous versions. The SQL against views approach has

less cost of change. A set of views that map the

old schema to the new one localizes changes on the

database level and does not require the revision of all

outstanding ECAs.

As one can see both approaches have advantages

and disadvantages. SQL as a data access API gives

great ﬂexibility by allowing to construct queries that

match the granularity of a user’s information needs.

However, SQL exposes too much control over the

database, circumvents business logic rules and binds

ECAs to a speciﬁc implementation platform. The data

as a service approach on the other hand enforces busi-

ness rules by exposing a set of Web operations which

encapsulate data access and hide data organization.

However, the granularity of the exposed operations

does not match that of a user’s needs, which creates

inﬂexibility and hits performance. Furthermore, data

as a service approach has high cost of changes.

2.2 Business Object Query Language

In this subsection we contribute with an idea of

how to combine the advantages of discussed ap-

proaches while eliminating their disadvantages and

propose a concept called business object query lan-

guage (BOQL).

It is clear that accessing raw data directly and

circumventing business logic contradicts with data

encapsulation. For this reason business objects ap-

peared. They fully control the access to the data and

protect the integrity of data. From external perspec-

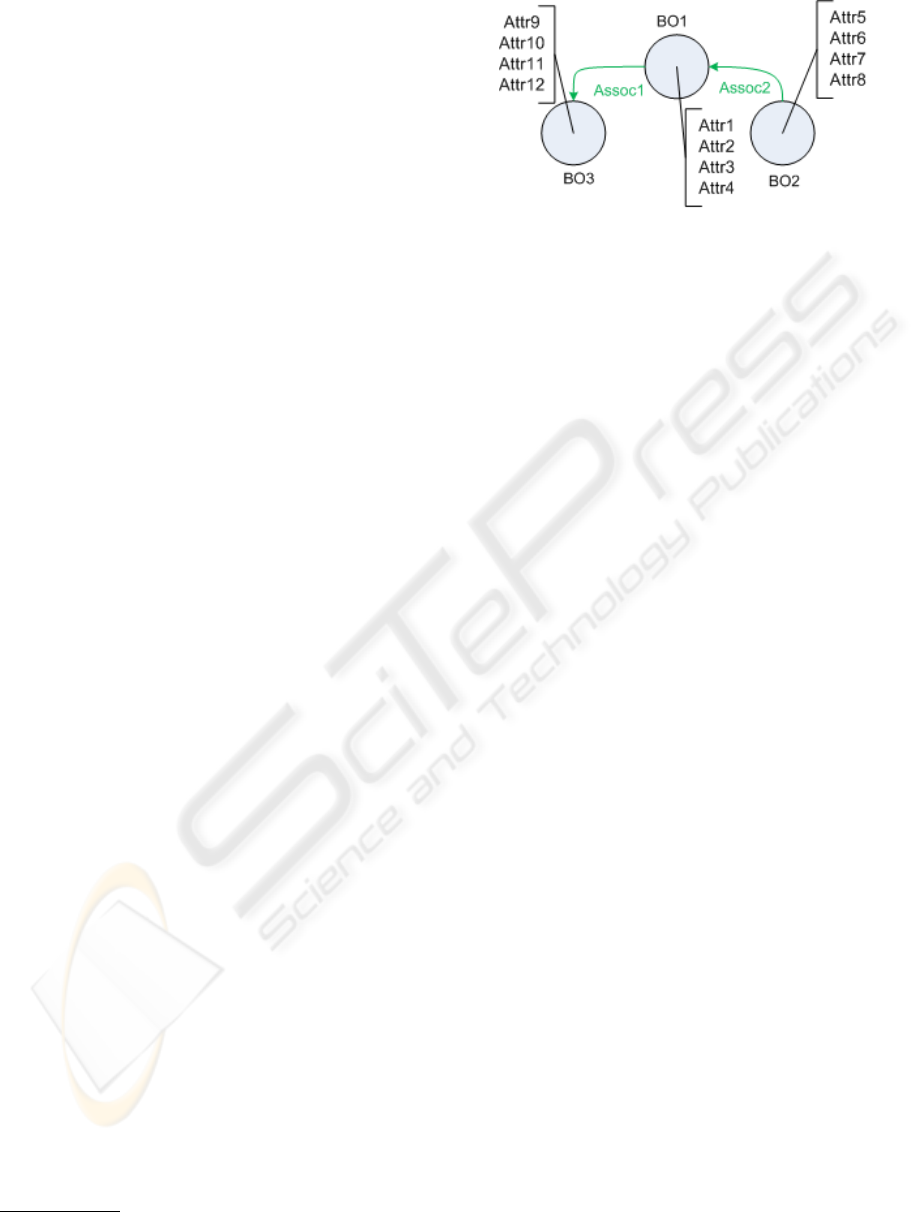

tive business objects are simply a collection of seman-

tically related data, e.g. invoice, bill of material, pur-

chase order, and a number of business operations that

can be performed on the data, e.g. read, create, etc. A

business object can be represented as set of data ﬁelds

or attributes, e.g. id, count, name, and associations or

links with other business objects, e.g. a SalesOrder

is associated with a Customer and Product business

objects.

Despite the diverse semantics of business objects

they all have the same structure (an array of attributes

and associations) and behavior (a set of operations).

The most basic set of operations a business object

supports is known as CRUD - Create, Retrieve, Up-

date, Delete. Although too generic, this set of op-

erations has an advantage that any business object

can support it. Therefore, all business objects can

be derived from the same base class featuring the

mentioned arrays (of attributes and associations) and

CRUD-operations. Such uniform behavior and struc-

ture allow to introduce a query language for business

objects very much like SQL for relational entities. We

propose the following scenario:

1. A programmer composes a query, the description

of what to retrieve from the system, according to

some SQL-like grammar and sends the query as

a string to the system via a generic service opera-

tion, for example ExecuteQuery.

2. The system parses the string to detect present

clauses (from, select, where, etc.) and builds a

query tree - an internal representation of the query.

The tree is then passed for further processing to

a query execution runtime, very much like in a

DBMS).

3. Using the from clause the runtime obtains refer-

ences to the business objects from which the re-

trieval must be performed: source business ob-

jects. Then the runtime traverses the query tree

in a speciﬁc order and converts recognized query

tokens to appropriate operation calls on the source

business objects. For example, tokens from select

clause are converted to Retrieve or RetrieveByAs-

sociationChain operations, while tokens from up-

date clause are converted to Update operations.

4. Having constructed the call sequence, the runtime

binds corresponding string tokens to the input pa-

rameters of CRUD-operations. For example, the

token Customer.Name of the select clause is inter-

preted as a call to Retrieve operation with the in-

put parameter value ”Name” on the business ob-

ject Customer. Now everything is ready to per-

form the calls of CRUD-operation in the on-the-

ﬂy constructed sequence. The last step the run-

time performs is the composition of result set. Af-

ter that the result is formatted in XML and sent

back to the calling programm.

In its essence the query language performs orches-

tration of calls to objects’ operations based on user-

deﬁned queries. These queries are transformed to

a sequence of operation calls that yield the required

data. Business object query language has an advan-

tage of supporting ﬁne-grained queries as in the case

of SQL without circumventing business rules as in

the case of the data as a service approach. Such an

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

approach is allowed by a uniform representation of

business objects (in terms of the structure and behav-

ior).

An important question to answer is what grammar

the business object query language must have. We

think SQL- or XQuery-like grammar is the most ap-

propriate choice. The former one assumes business

data to be organized as a set of relations. The later one

sees business data organized in documents. Both no-

tations are of equal power and allow for querying at a

business object level (meaning the attributes of a sin-

gle object) and at a cross business object level (mean-

ing business object joins). The semantics of both sug-

gested grammars is straightforward to understand by

developers. In fact, many of them may have already

worked with either one, and hence will quickly learn

the business object query language. An ERP provider

can support both (SQL- and XQuery-like) notations.

In the subsection 2.3 we will brieﬂy mention what is

needed for this.

Although the suggested approach offers great ex-

tend of data access ﬂexibility, it creates a number of

challenges. The ﬁrst one is the development of the

query parser. If an ERP provider decides to support

most of the SQL features/syntax, the implementation

of the parser (and runtime) will require high effort.

Therefore, there is no sense in pursuing the suggested

approach for systems with simple data schema. For

large systems like SAP Business ByDesign, where

there are hundreds of business objects with dozens of

associations and attributes each, this approach is more

preferable. The parser and the runtime are indepen-

dent from business objects. Once the both have been

developed a provider can use them without changes to

expose new objects.

Our second concern regarding business object

query language is performance. Users may create

very complex queries and thus put a high workload on

the system. Given the fact that the system is planned

to be shared by many customers, a high workload

generated by one customer application can potentially

affect the performance of other customers’ applica-

tions. What is more disturbing is the fact that arbitrary

queries may destroy the performance of the underlay-

ing database. Every database management system has

internal query optimizer and a set of system tables ac-

cumulating the operational statistics. Given the statis-

tics and database metadata (primarily the information

on indices and the size of tables), the optimizer com-

putes the query execution plan that ensures the highest

possible performance for a given query in a given sit-

uation. The problem here is that the optimizer adjusts

itself to the most frequent types of queries. But from

time to time it will encounter a query for which it will

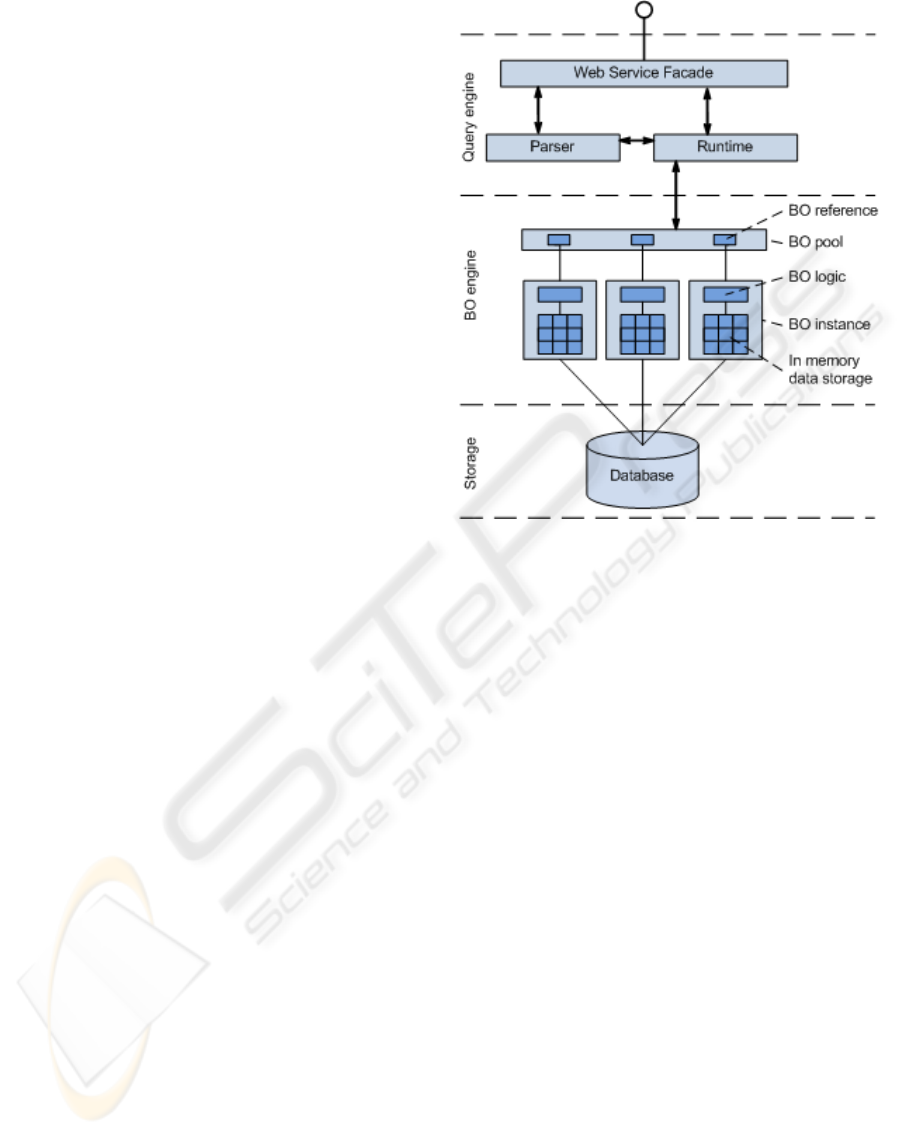

Figure 1: The architecture of the test system.

generate the plan much worse than its default plan,

meaning that optimization will only worsen the per-

formance. Such situations happen periodically with

many databases. The reason for this is that the internal

statistics has been computed for completely different

types of queries and the system has sharpened itself

for those queries. In such situations the optimizer can

generate a weird plan (e.g. use wrong index ) and

the query will block the system for some time. In the

worst case such rare queries may trigger the recalcu-

lation of the statistical information and readjustment

of the optimizer, which blacks the whole system for

much longer time.

In our implementation we have not experienced

such performance problems for the reason we have

cached the data in in-memory tables and did not issue

on the ﬂy any queries to the underlaying database. In

fact, using in-memory data storage solves the perfor-

mance problem mentioned above. Nevertheless, we

believe that such a problem is worth an additional re-

search and investigation.

2.3 Suggested Architecture

The current subsection demonstrates how an ERP sys-

tem can support BOQL. The Figure 1 sketches the

architecture of a prototyped system. BOQL is im-

plemented by two elements: a business object engine

and a query engine: the former manages business ob-

FLEXIBLE DATA ACCESS IN ERP SYSTEMS

jects in a way BOQL assumes

and the latter provides

access to them from outside of the owning process

via a query-like interface. These two elements are in-

stances of BoEngine and QueryEngine classes respec-

tively. Both are created at the system’s startup time.

Business object engine is instantiated ﬁrst to assem-

ble business objects and store references to them in a

pool. Then the instance of the query engine is created.

It has access to the pool and thus can manipulate the

objects.

Every business object encapsulates an in-memory

table to cache data. The in-memory table is populated

with data taken from a private database. Every object

also encapsulates logic to synchronize its in-memory

table with the database. To the query execution run-

time an object is seen through its interface: a collec-

tion of attributes and associations to other objects and

a set of operations. How those are implemented is

completely hidden inside the object. Typically, at-

tributes and associations are bound to data ﬁelds and

relations of the underlying physical storage. In this

prototype we concentrate on two operations (acces-

sors) from the interface: Retrieve to get attributes of a

given object and RetrieveByAssociationChain to nav-

igate from one object to another via speciﬁed associ-

ations. These operations retrieve data from the under-

lying physical storage or the local cache according to

internal business logic. By default the accessors as-

sume one-to-one correspondence between a business

object’s logical and physical schemas. For example,

if an attribute Attr1 of a business object Bo1 is queried

the query runtime looks for data ﬁeld named Attr1 in

a table corresponding to a given business object; if

an association Assoc1 of a Bo1 is queried the runtime

looks for a foreign key relationship corresponding to

the association and constructs a join.

Neither the business object nor its in-memory and

database tables can be directly accessed outside of

the owning process. The direct access to the data is

prohibited to enforce integrity rules and internal busi-

ness logic implemented by business objects. To ac-

cess the business data an external application must

use the standardized query-like interface exposed by

the query engine. When the latter receives a query it

parses it and transforms recognized tokens to corre-

sponding operation invocations. The result of these

invocations is put in XML format and sent back to a

client application.

As an implementation platform for the prototype

we chose .NET. The system is implemented as a Win-

dows service and the query interface is published as

a Web service hosted by Internet Microsoft Informa-

meaning that it guarantees the compliance to CRUD-

interface

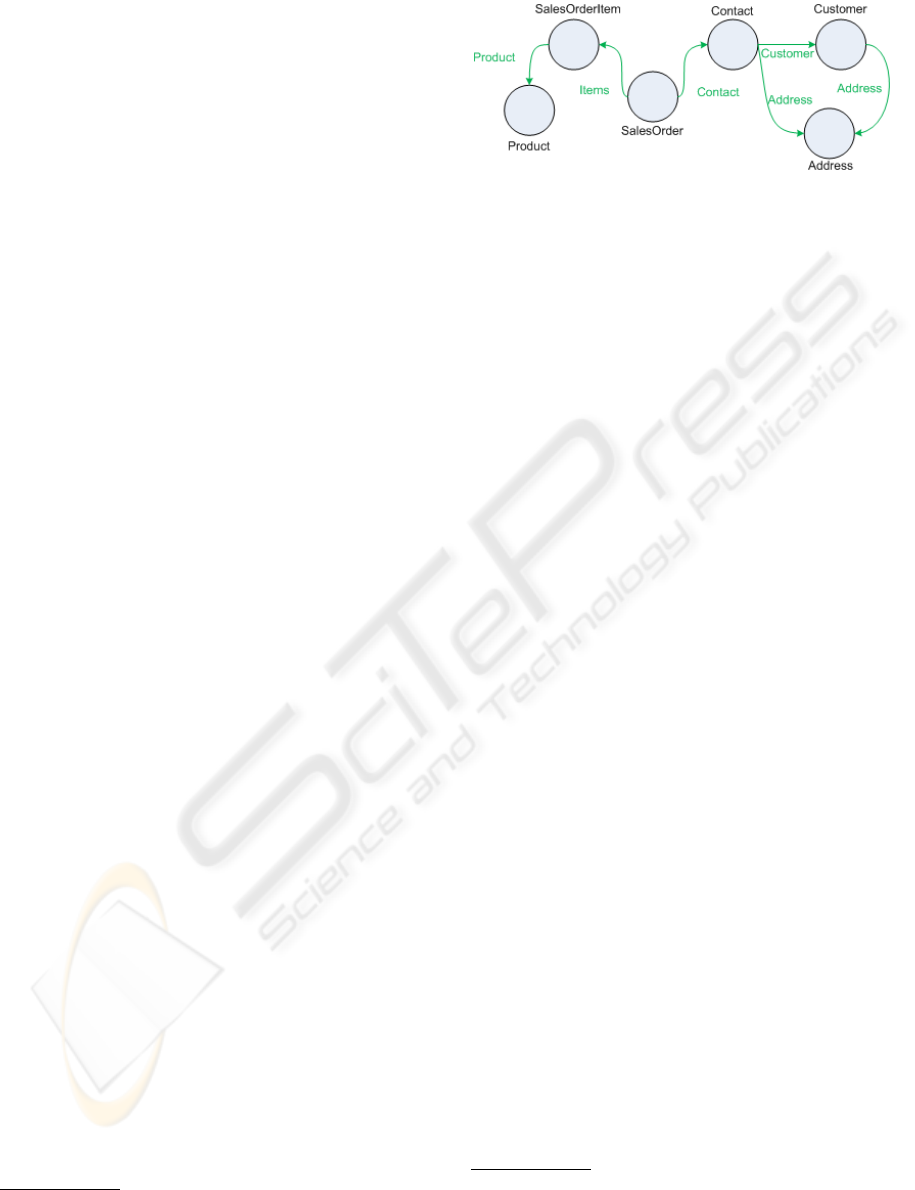

Figure 2: Business Object Graph.

tion Services (IIS). The Web service is meant to dis-

patch a query to the system and serves as a request

entry point. There is no other way to invoke or ac-

cess the system except for issuing a call to the Web

service. The physical data storage is implemented as

a Microsoft SQL Server 2005 database.

2.4 Exposing Business Object Model

Using BOQL requires the knowledge of business ob-

ject model, that is what business objects a system has,

what attributes and associations every business object

has. To communicate this information we use ori-

ented graphs. The vertices of a graph denote busi-

ness objects and oriented edges denote associations.

A set of attributes is attached to every vertex (see Fig-

ure 2). For the sake of compactness we will not list

the attributes on further diagrams. The graph plays

the same role for business objects as the schema for a

database. It depicts the structure of business data and

is essential to know to compose queries.

We have developed a tool called Schema Explorer

that automatically retrieves metadata from the test

system and builds a business object graph. Such a tool

greatly simpliﬁes the creation of BOQL queries. This

tool provides a plenty of useful functionality: busi-

ness object search, association and attribute search,

ﬁnding connections/paths between any two business

objects, displaying a business object graph or its part,

intellisense support for query editor, test execution

of a query, to name just a few. The implementation

of metadata retrieval depends on the implementation

of the backend system. For the implementation pre-

sented in the subsection 2.3 the metadata about the

instances of business objects is obtained using the re-

ﬂection mechanism of .Net Framework. Query engine

exposes a number operations which internally use re-

ﬂection in order to query the business object meta-

data. For example, if a developer wants to know what

business objects a system has the tool calls an oper-

ation which scans the pool and obtains the types of

business objects instantiated by the system. To look

up the list of associations of a given business object,

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

100

say Customer, the tool issues a call to another oper-

ation that gets the names of elements in the Associa-

tions array of the corresponding business object. Be-

cause business object model does not change (at least

should not) we cache metadata in order to avoid the

reﬂection overhead.

2.5 Sustaining Changes

The ﬂexibility of BOQL in supporting ﬁne-grained

queries comes from the way it is designed, but the

ability to sustain changes is not straightforward to see.

In fact, if the business object graph changes, previ-

ously written queries and thus all applications issuing

these queries may become invalid. The situation is

the same as in the case of changing the schema of a

database - existing SQL queries are not guaranteed

successful execution. Therefore, the suggested archi-

tecture must be augmented with a compatibility assur-

ance tool that minimizes incompatibility in the case of

changing the business object graph.

A literature review showed that in the case of re-

lational and object-oriented databases the view mech-

anism can be applied to cope with schema changes

(Curino et al., 2008), (Banerjee et al., 1987), (Brats-

berg, 1992). The prime tool for view support in

relational and object-oriented databases is mapping

(Bertino, 1992), (Shiling and Sweeney, 1989), (Liu

et al., 1994), (Monk and Sommerville, 1993). The ar-

chitecture we proposed natively supports mappings.

That is, mappings can be seamlessly embedded into

the system. The mappings can be supported in two

ways: by means of data access plug-ins and query

rewriting.

The ﬁrst approach is based on substitution of de-

fault association and attribute accessors (Retrieve and

RetrieveByAssociationChain) with custom ones. This

is achieved by encapsulating a new accessor inside a

call-back operation and dynamically selecting this op-

eration when handling a data request. Associations

and attributes that have or require custom accessors

we call virtual. The set of all virtual elements of a

business object is called the view of the business ob-

ject. Every time a virtual element is called a custom

accessor implementing the mapping is invoked. This

accessor is implemented as a callback operation of a

feature pack that is dynamically loaded by the system

when it encounters a query addressed to the older ver-

sion of the schema for the ﬁrst time. Having loaded

the feature pack the system plugs in the custom ac-

cessor into the runtime of the query engine. In the

prototyped system we used reﬂection mechanism to

redirect calls from default to custom accessors.

The second approach is based on altering a query

while it is being parsed. Before converting a query

token to an appropriate operation call the parser looks

up a correspondence dictionary to ﬁnd the actual path

to the asked attribute or association, rewrites the token

and re-parses it to get a valid operation call.

3 APPLYING BOQL

3.1 Proﬁle-based Conﬁguration

The idea of proﬁle-based user conﬁguration aims at

enabling end-users of a system to customize the sys-

tem’s presentation layer according to their own pref-

erences. This is achieved as follows. With the help

of Schema Explorer end-users discover information

in an ERP system that they are interested in. They

simply select business objects of interest and select

the attributes they want to see for every object. Then

with the help of the same tool they generate BOQL

that retrieve/change these data and store these queries

in a structured way in a personal proﬁle. Next, when a

user logs in to the system the later picks up the user’s

proﬁle executes necessary queries and presents the re-

sults to the user.

In our prototype we have implemented user inter-

face layer with Microsoft Silverlight. The UI is capa-

ble of automatically generating three different types

of frontend forms: (i) business object summary form:

lists all instances of a certain type with a short de-

scription for each instance; (ii) drilldown form: lists

detailed information on a particular business object

instance; (iii) related items form: lists instances of

other business objects that are connected with a given

object instance. Figure 3 illustrates two forms: the

upper one is a summary of all customers in the sys-

tem, and the lower one is a drilldown form for a par-

ticular instance of a sales order business object. The

related items form is essentially the same as the sum-

mary form. There is no difference in rendering them.

The only difference is the actual BOQL query, the re-

sult of which populates the form. On the right side

of the ﬁgure there is a proﬁle from which the forms

were automatically generated. One can see that a user

called ”Purchase01” is interested in business objects

Customer, Opportunity, Material, Sales order, etc. (all

second level elements of the tree). Within each object

there is a list of ﬁelds that must be displayed for the

object. For ”Customer” the ﬁelds are name, status and

id. An object instance can also have related items as-

sociated to it. For example, when the user looks up an

instance of a sales order they might be willing to nav-

igate to services, quotes and opportunities associated

to this particular sales order. Note that the proﬁle is

FLEXIBLE DATA ACCESS IN ERP SYSTEMS

101

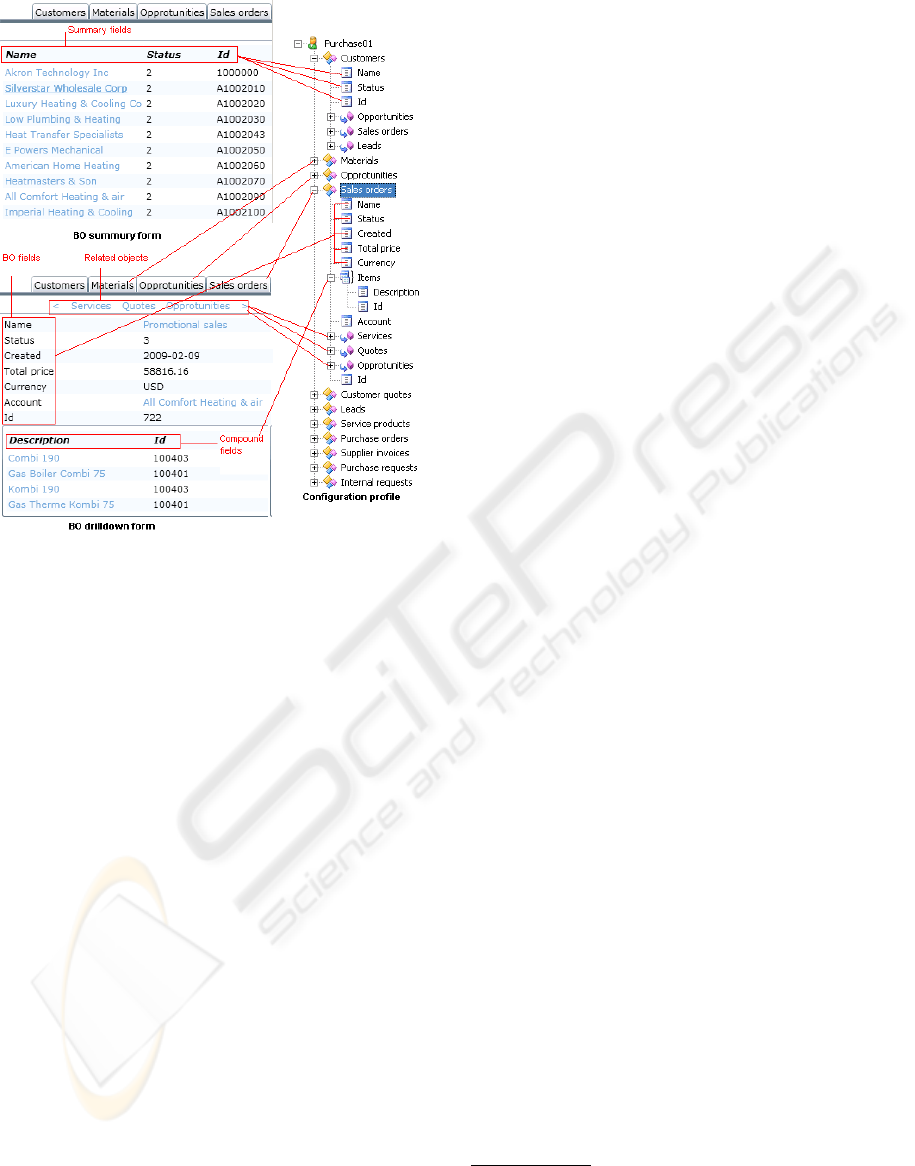

Figure 3: User interface forms and proﬁle conﬁguration.

fully conﬁgurable and no query is executed before the

user has explicitly clicked a corresponding link.

To save time and effort of end users an ERP sys-

tem vendor can create a number of role-speciﬁc con-

ﬁguration proﬁles, which users may adjust according

to their needs.

3.2 Navigation in ERP Systems

An ERP system stores all facts and ﬁgures about

a company’s business activities in a structured way.

Conventionally the data are stored in a normalized

way. This means that data generated by the same

business process is very likely to be split into pieces,

which will be stored separately. Therefore, it is al-

most for certain that semantically related data pieces

will be disjoint by the system. Even though business

objects aim at creating a semantically complete enti-

ties, they do not reassemble business data completely

after the data is normalized at the storage level of the

system. The bigger the company the more diverse and

complex data structures get and the more complicated

the reassembly becomes. This results in a partial loss

of semantical links between data in the ERP system.

The reason is that many semantical relationships are

not modeled at the database level. For example in

SAP R/3 system, there is no direct physical relation-

ship between a customer and invoice entities. They

are connected via a sales order. Therefore, if a user

wants to know if a customer paid their invoices the

user needs to ﬁnd ﬁrst all sales orders of the customer

and then check all associated invoices. This is not

practical.

The ﬁeld research we conducted, showed that

users of ERP systems are struggling a lot with this

problem. They often ﬁnd that even though their sys-

tem stores all information they need, they cannot get

it quickly because of the missing links. We have ob-

served that a user opens on average 3 to 6 windows,

performs 10 to 20 mouse clicks and types 15 to 30

characters to get semantically related data. This re-

sults that an employee spends considerable amount of

their working time on searching and looking up data

in an ERP system.

The ability to handle the corporate data efﬁciently

greatly improves the productivity of the company’s

employees. The opposite is also true. If an employee

needs to spend considerable amount of time to look

up transactional or master data in an ERP system, the

employee’s productivity signiﬁcantly drops. Unfortu-

nately, this is often the case. BOQL in combination

with the Schema Explorer and user proﬁles can solve

this problem completely.

To reconstruct semantical links between business

objects we run a path search algorithm on the business

object graph. In the example above the user would

need to select in Schema Explorer the Customer busi-

ness object as the starting point and CustomerInvoice

as the target business object. Then the tool would use

a modiﬁcation of a graph traversal algorithm to ﬁnd

a path from the source to the target and convert this

path to a BOQL query. After this the user just needs

to update their proﬁle (the section Related Items of

the Customer business object). Next time when the

user opens customer details screen a corresponding

link will appear (see Figure 3).

3.3 Enterprise Composite Applications

A composite application (CA) is an application gen-

erated by combining content, presentation, or appli-

cation functionality from a number of sources. CAs

aim at combining these sources to create new useful

applications or services (Yu et al., 2008). An enter-

prise composite application is a CA application which

has an ERP system as one of its sources

. CA access

their sources via thoroughly speciﬁed application pro-

gramming interface (API). The key characteristics of

a CA are its limited/narrowed scope and straightfor-

From now on we consider only enterprise composite

applications. The terms ”CA” and ”ECA” for the sake of

brevity are considered to mean the same in the rest of the

paper.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

102

ward result set. CAs often address situational needs

and provide replies to ﬁne-grained information re-

quests. They are not intended to provide complex so-

lutions for general problems rather they offer compact

answers to clear-cut questions.

CAs create value by pulling all data and services a

user needs to perform a task on a single screen. These

data and services can potentially come from many

sources, including an ERP system. Very often users

are confronted with a problem of having necessary

information and functionality distributed across many

forms. By creating a CA that assembles them on the

same screen users can substantially increase the pro-

ductivity of their work. Additional beneﬁt here is that

a CA can present information in a way that meets per-

sonal preferences of a user.

The architecture we suggest natively supports CA.

The main enabler of composite applications is the

BOQL, which basically provides a mechanism for

query-like invocation of business objects’ services.

BOQL allows CAs to manipulate ERP data from out-

side of a system without violating internal business

logic. Because the query engine supports SOAP pro-

tocol, CAs can be developed and executed on any

platform that is suitable for a user and has support for

XML.

The process of developing CAs we see as follows.

1. A user

ﬁgure out on which business objects they

want to perform custom operations. This depends

on the actual task and application domain. Then

the user composes BOQL queries that will return

the data from the business objects. To compose

the queries the user can use Object Explorer and

Schema Explorer tools described earlier.

2. Using SOAP interface of the query engine the user

executes the queries and retrieves ERP data.

3. Using selected programming language the user

develops code that operates on the selected data

and performs the required operations.

4. In case the CA needs to change the data in the

source ERP system it composes BOQL queries

that do so and executes the queries using the same

SOAP interface of the query engine.

In the following use case the ﬂexible data ac-

cess of the suggested approach creates business value.

Consider a Web retailer that sells items on-line and

subcontracts a logistics provider to ship sold prod-

ucts to customers. The retailer operates in a geo-

graphically large market (e.g. the US or Europe

). In

power user or application programmer

The greater the territory and the higher the sales vol-

ume, the more relevant the case.

Figure 4: Schema of the Web retailer’s CRM.

this situation the consolidated shipment of items can

generate considerable savings in delivery and thus in-

crease the proﬁt of the retailer. Consolidation means

that a number of sold items is grouped in a single

bulk and sent as one shipment. The bigger the ship-

ment size, the higher the bargaining power of the

retailer when negotiating the shipment with a logis-

tics provider. The savings come from price discounts

gained from higher transportation volume

. In this

way the retailer can lower the transportation cost per

sold product. The consolidation of shipment is done

anyway by all logistics providers in order to minimize

their operating costs

By controlling the delivery of

sold items explicitly, the retailer captures the savings

that otherwise go to a logistics provider.

Let the retailer use a system with a business ob-

ject graph as Figure 4 presents to manage their sales.

We assume that the system exposes a query-like Web

service interface as described in the section 2.3. The

query returning the shipping address for all sales or-

der items that are to be delivered looks as follows:

SELECT

SO.Items˜id, SO˜id,

SO.Contact.Customer˜name,

SO.Contact.Address˜street,

SO.Contact.Address˜number,

SO.Contact.Address˜zip,

SO.Contact.Address˜city,

SO.Contact.Address˜state,

SO.Contact.Address˜country

FROM

SalesOrder As SO

WHERE

SO.Status = "ToDeliver"

GROUP BY

SO.Contact.Address˜city,

SO.Contact.Address˜state

By invoking the query-liked Web service and

passing the above query to it, a third-party applica-

tion consolidates the items by their destination. The

So called economies of scale in transportation

In fact, the economies of scale in transportation re-

sulted in Hub-and-Spoke topology of transportation net-

works.

FLEXIBLE DATA ACCESS IN ERP SYSTEMS

103

next step for the application is to submit a request for

quote to a logistics provider and get the price of trans-

porting each group of items. Many logistics providers

have a dedicated service interface for this, so the ap-

plication can complete this step automatically. Once

the quote has been obtained and the price is appropri-

ate the products can be packaged and picked up by the

logistics provider.

To enable applications like the one just described

the system must expose a ﬂexible data access API.

That is, the system must be able to return any piece

of data it stores and construct the result set in a user-

deﬁned way. As mentioned in the section 2 traditional

APIs cannot completely fulﬁll this requirement: SQL

against views circumvents the business rules enforced

outside the database; Web services limit the retriev-

able data to a ﬁxed, predeﬁned set. The architecture

suggested in the current work overcomes the existing

limitations and offer the necessary degree of data ac-

cess ﬂexibility.

4 CONCLUSIONS

Flexible data access API is essential for ERP systems.

It helps to resolve a number of challenges. Unfor-

tunately, existing approaches and APIs do not offer

appropriate level of ﬂexibility and simplicity while

guaranteeing integrity and consistency of data when

accessing and manipulating ERP data.

The current work contributes with the concept

of query-like service invocation implemented in the

form of a business object query language (BOQL).

BOQL is the corner stone of the API offering both the

ﬂexibility of SQL and encapsulation of SOA. In its

essence, BOQL is on-the-ﬂy orchestration of CRUD-

operations exposed by business objects of ERP sys-

tems. In addition the paper showed how BOQL en-

ables navigation among ERP data and conﬁguration

of UI layer as well as development of enterprise com-

posite applications. Furthermore, we outlined the ma-

jor components of the architecture and prototyped

with Microsoft .NET platform an ERP system that

supports BOQL as prime data access API.

REFERENCES

Banerjee, J., Kim, W., Kim, H.-J., and Korth, H. F. (1987).

Semantics and implementation of schema evolution in

object-oriented databases. In Proceedings of the 1987

ACM SIGMOD international conference on Manage-

ment of data, pages 311 – 322.

Bertino, E. (1992). A view mechanism for object-

oriented databases. In Proceedings of the 3rd Inter-

national Conference on Extending Database Technol-

ogy, pages 136 – 151.

Bratsberg, S. E. (1992). Uniﬁed class evolution by object-

oriented views. In Proceedings of the 11th Inter-

national Conference on the Entity-Relationship Ap-

proach, pages 423 – 439.

Curino, C. A., Moon, H. J., and Zaniolo, C. (2008). Grace-

ful database schema evolution: the prism workbench.

In Proceedings of the VLDB Endowment, pages 761–

772.

Liu, C.-T., Chrysanthis, P. K., and Chang, S.-K. (1994).

Database schema evolution through the speciﬁcation

and maintenance of changes on entities and relation-

ships. In Proceedings of the13th International Confer-

ence on the Entity-Relationship Approach, pages 132

– 151.

Monk, S. and Sommerville, I. (1993). Schema evolution

in oodbs using class versioning. In ACM SIGMOD,

pages 16 – 22.

Shiling, J. J. and Sweeney, P. F. (1989). Three steps to

views: extending the object-oriented paradigm. In

Conference proceedings on Object-oriented program-

ming systems, languages and applications, pages 353

– 361.

Yu, J., Benatallah, B., Casati, F., and Daniel, F. (2008).

Understanding mashup development. IEEE Internet

Computing, pages 44–52.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

104
