A DISTRIBUTED ALGORITHM FOR FORMAL CONCEPTS

PROCESSING BASED ON SEARCH SUBSPACES

Nilander R. M. de Moraes, Luis E. Z

arate and Henrique C. Freitas

Informatics Institute, Pontiﬁcal Catholic University of Minas Gerais, Dom Jos

e Gaspar av., Belo Horizonte, Brazil

Keywords:

Formal concept analysis, FCA, Information retrieval.

Abstract:

The processing of dense contexts is a common problem in Formal Concept Analysis. From input contexts,

all possible combinations must be evaluated in order to obtain all correlations between objects and attributes.

The state-of-the-art shows that this problem can be solved through distributed processing. Partial concepts

would be obtained from a distributed environment composed of machine clusters in order to achieve the ﬁnal

set of concepts. Therefore, the goal of this paper is to propose, develop, and evaluate a distributed algorithm

with high performance to solve the problem of dense contexts. The speedup achieved through the distributed

algorithm shows an improvement of performance, but mainly, a high-balance workload which reduces the

processing time considerably. For this reason, the main contribution of this paper is the distributed algorithm,

capable of accelerating the processing for dense formal contexts.

1 INTRODUCTION

Formal Concept Analysis (FCA) is a ﬁeld of math-

ematics presented in the 1980’s (Ganter, 2002; Gan-

ter and Wille, 1997). The main goal of FCA is in

the knowledge representation based on speciﬁc di-

agrams named Hasse Diagrams (Carpineto and Ro-

mano, 2004). In the 2006 edition of the International

Conference on Formal Concept Analysis (ICFCA),

in Desdren, the challenge to process high-dimension

contexts was presented and, as an example, a context

of order 120,000 objects and 70,000 attributes were

mentioned. For this reason, traditional and sequencial

algorithms have high computational cost, and conse-

quently, a high execution time. This characteristic

shows that the extraction of all formal concepts based

on a high dimension context is not feasible.

So a possible solution to process high-dimension

formal contexts is through a distributed algorithm.

Partial formal concepts would be processed in several

nodes in order to achieve a distributed and parallel be-

havior capable of reducing the execution time.

Mathematics formalism was proposed by several

researchers to explore distributed systems focused on

Formal Concept Analysis (Qi et al., 2004; Hu et al.,

2007; Fu and Nguifo, 2003). However, related work

does not present the impact evaluation of context den-

sity in the ﬁnal performance. Moreover, the related re-

sults have a lack of information about used resources,

such as environment conﬁguration, number of com-

puters, and more details from the cluster.

According to this problem, this paper presents a

strategy to process dense contexts. Therefore, the

main goal of this paper is to present a distributed al-

gorithm focusing on development methodology and

performance evaluation. The distributed algorithm

achieves a speedup up to 139 relative to a sequential

algorithm to solve the same workloads. For this rea-

son, in accordance with the problem statement and

lack of information from related work, the main con-

tribution of this paper is the distributed algorithm. It

is necessary to highligh that Formal Concept Analysis

is very important for ﬁelds such as data mining, social

networks and knowledge search, and a distributed al-

gorithm can represent an alternative approach for fea-

sible processing of high dimension contexts.

This article is divided into 6 sections. The fol-

lowing section presents the theoretical foundations of

Formal Concept Analysis. In the third section are pre-

sented the related work. The fourth section presents

the proposed algorithm. Section 5 presents an exper-

imental analysis of the distributed algorithm. Finally,

section 6 presents a brief conclusion and points out

future works.

105

R. M. de Moraes N., E. Zárate L. and C. Freitas H. (2010).

A DISTRIBUTED ALGORITHM FOR FORMAL CONCEPTS PROCESSING BASED ON SEARCH SUBSPACES.

In Proceedings of the 12th International Conference on Enter prise Information Systems - Databases and Information Systems Integration, pages

105-111

DOI: 10.5220/0002976801050111

 SciTePress

2 FORMAL CONCEPT ANALYSIS

In this section the theoretical fundaments of the For-

mal Concept Analysis will be presented. A more care-

ful review about this subject can be found in (Ganter

and Wille, 1997).

2.1 FCA Overview

In the Formal Concept analysis (FCA) a Formal Con-

text is a basic structure used to represent a given data

base through a cross table (formal context). In the Ta-

ble 1 an example of Formal Context for a hipothetical

domain is presented. Such Table represents a struc-

ture that deﬁnes objects (lines), attributes (rows), and

their respective incidence relations.

Table 1: Example of a formal context.

a b c d e f g h

1 x x

2 x x x x

3 x x x x x

4 x x x x

5 x x x

6 x x

Deﬁnition 2.1. A formal context K(G, M, I) consists

in two sets G and M, and a relation I among them. The

elements of G are called objects, while the elements

of M are called attributes. If an object g has a relation

I with a attribute m, this relationship can be expressed

by gIm or (g, m) ∈ I. This can be interpreted as “ob-

ject g has attribute m”.

Deﬁnition 2.2. For a set A ⊆ G of objects, it is deﬁned

:= {m ∈ M|gIm ∀g ∈ A} (1)

as a set of common attributes to the objects in A.

In correspondence, to the set B ⊆ M of attributes, it is

deﬁned

:= {g ∈ G|gIm ∀m ∈ B} (2)

as the set of common objects to the attributes in B.

Deﬁnition 2.3. A Formal Concept is a pair (A, B),

where A ⊆ G, B ⊆ M, A

= B e B

= A. A is called

of extension and B of intention. β(G, M, I) deﬁnes all

the concepts of the context (A, B).

2.2 Search Space

Deﬁnition 2.4. Formally, the search space of con-

cepts, or search space, is deﬁned as the set formed by

all subsets of attributes and objects of a formal con-

text, which can or not give origin to formal concepts.

Deﬁnition 2.5. The set of attributes M of

a formal context K(G, M, I), is formed by

i+1

, a

i+2

, . . . , a

m−1

, a

}. Given a attribute

∈ M, the set F

is denominated closed set of a

and can be deﬁned by

= {a

∈ M, ∀i < j ≤ m} (3)

For example, the closed set of the attribute a

m−1

, a

}. For the attribute a

corresponds the null

set.

Deﬁnition 2.6. An attribute is joined to all subsets of

its respective closed set to form new sets. These new

sets are elements of a search subspace denominated

search subspace of an attribute (F3S) (Fu and Nguifo,

2003).

For example, the search subspace of the at-

tribute a

m−2

is deﬁned by: {a

m−2

}, {a

m−2

, a

m−1

m−2

, a

}, {a

m−2

, a

m−1

, a

}. That is, by all subsets

that include the attribute a

m−2

Based on the deﬁnition statement 2.5, note that the

size of the closed set of an attribute is well deﬁned,

that is, the closed set itself will have no more than

m − i attributes. Thus, as the search subspace of at-

tributes is deﬁned as the union of the attribute with all

the elements of its respective closed set, the size of a

subspace is deﬁned by

|F3S

| = 2

m−i

f or 1 ≤ i ≤ m (4)

Therefore, the size of the search space of at-

tributes, that is, the set of all search subspaces of at-

tributes can be expressed as

|F3S| =

∑

i=1

|F3S

| (5)

3 RELATED WORKS

An important contribution for the Formal Concept

analysis ﬁeld is presented in (Qi et al., 2004), where

the authors propose a new distributed algorithm for

formal concepts extraction through the search space

partitioning of the concepts. In that work, an approach

for validation of the subspaces, that is, of the sub-

sets that have more possibility of generating formal

concepts, was presented. Besides, the distributed pro-

posal presents a polynomial complexity order.

Therefore, in that work, only the mathemati-

cal formalism is presented, what makes it little im-

pactable from the practicable aspect, since it does not

present the experimental results of the proposed ap-

proach.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

106

In (Fu and Nguifo, 2003), an algorithm to obtain

the concepts from search spaces is also presented. Al-

though, in that proposal, redundant attributes are re-

moved from input formal context before the stage of

generation of partitions, in order to diminish the ef-

fort of the algorithm for extracting the formal con-

cepts. Another important characteristic to be high-

lighted about this approach is that it uses the NextClo-

sure algorithm (Carpineto and Romano, 2004) to ob-

tain the formal concepts, and it does not take the

workload balance into consideration.

The authors conclude, through experimental re-

sults, that as a consequence of the usage of the

NextClosure algorithm to obtain the concepts, the

distributed proposal is able to deal with high-

dimensional contexts. However due to the non bal-

ancing of the workloads the algorithm can present

strong performance variations depending of the cho-

sen load factor (i.e. DP).

In (Hu et al., 2007), a partitioning approach for

the formal context is presented, what makes it differ

from the works mentioned before, since the context

is horizontally or vertically divided, in order to obtain

subcontexts. Obtained these subcontexts, the subcon-

cepts are then extracted and joined through a speciﬁc

operator, with the objective to ﬁnd the ﬁnal formal

concepts set. In (yun Li et al., 2003), all the mathe-

matical formalism necessary to the generation of for-

mal concepts in distributed systems is presented, en-

suring its viability.

In this work, a distributed solution to obtain the

formal concept from high dimensional formal con-

texts, referring to number of objects and high density,

is proposed. As a strategy for the distributed solution,

the proposal of the search space (Qi et al., 2004) will

be considered.

4 DEVELOPMENT AND

EVALUATION

METHODOLOGY

In order to obtain an experimental scenario more re-

liable to evaluate the proposed algorithm, the tool

SCGaz (Rimsa et al., 2009) was used to generate all

contexts. This tool is capable of generating random

formal contexts, and specifying the desired density

within a minimum and maximum value.

Table 2 shows the formal contexts used in this pa-

per.

Table 2: Contexts used in algorithm evaluation.

cxt no. of obj. no. of attrib. density

1 100 20 91%

2 200 20 90.5%

3 500 20 87.3%

4.1 Distributed Algorithm

The distributed algorithm based on search subspaces

is the fair division of the workload (Algorithm 1).

Thus, the search space of attributes between the dif-

ferent nodes makes up the cluster and the effective

union of subconcepts, extracted from these nodes in

a central node. Therefore, after all search subspaces

processing we obtain the ﬁnal set of formal concepts

for the input context.

The algorithm to deﬁne the search subspaces of at-

tributes (i.e. Algorithm 1) is responsible for dividing

the search space between slave nodes from the clus-

ter. This task is performed in a central node, which

from here will be called node coordinator or master.

In this node, besides the effective division of attribute

search space, it is also performed the matching of sim-

ple subconcepts generated from the processing of at-

tribute search subspaces. This partitioning algorithm

is expressed by Algorithm 1.

ALGORITHM 1: Definition of partitions

INPUT: adopted block size (BS), amount

of attributes of the input context (M)

OUTPUT: search subspace of attributes

Begin

L = 0

for i = 0 to M do

L = L + C(M,i)

end for

for i = 0 to L/BS do

output (M, i*BS, BS)

end for

End.

As it can be seen, the search space of attributes

partitioning algorithm depends just on the number of

attributes (M) from the input formal context and the

maximum size (BS) of each partition. After the calcu-

lation of the size of the search space of attributes (L),

the algorithm provides the workload for each node.

Note that the partition deﬁnition has independence be-

tween the operations performed by the algorithm and

the formal context. Since in this phase, the relevant

information is only the input parameters M and BS,

mentioned earlier.

Another feature that deserves special attention is

the calculation of combinations to be performed on

the set of attributes of the Formal Context. Such fea-

ture limits the space of possible solutions to the pro-

A DISTRIBUTED ALGORITHM FOR FORMAL CONCEPTS PROCESSING BASED ON SEARCH SUBSPACES

107

posed algorithm. As we know, the calculation of com-

binations is an operation that has high computational

cost and tends to get worse exponentially with the in-

crease on input data. Thus, according to the following

section, the experiments were performed with con-

texts with relatively few attributes and many objects.

Regarding the calculation of the concepts (Algo-

rithm 2), the extraction of subconcepts is performed

by slave nodes. This is a fully independent task which

allows the execution of parallel partitions on each

node. Besides the fair division of the workload, we

can present an estimate of time to generate all Formal

Concepts, since the number of partitions is known and

the processing time of each node is very close to each

other.

The algorithm to obtain the subconcepts is de-

scribed by Algorithm 2.

ALGORITHM 2: Extraction of formal concepts

INPUT: Formal Context, partition offset,

block size

OUTPUT: formal concepts

Begin

r = -1

insidePartition = false

sum = 0

while not insidePartition do

r = r + 1

sum = sum + C(M, i)

if offset < sum then

insidePartition = true

end if

end while

i-th = C(M, r) - sum - offset

output (K, M, r, i-th, BS)

End.

In Algorithm 2, r denotes the subset of combina-

tions, o f f set expresses the offset within the search

space of attributes, that is, the number of combina-

tions already calculated and i-th is the ith combination

of the search space. The attainment of subconcepts is

preceded by the phase of discovery of the partition

beginning. In other words, from which subset (r) of

combinations the slave node has to begin the effec-

tive extraction of formal concepts. After calculating

the ith combination, the algorithm extracts the sub-

concepts that belong to the partition up to BS combi-

nations for the input context K.

Due to the behavior presented by Algorithm 2, it

reveals its parallel nature. The operations performed

on the input parameters are independent of any shared

structure, except the Formal Context that is not yet

modiﬁed by the algorithm.

The proposed algorithm is based on the calcula-

tion of combinations and on the set of attributes in

order to generate the search subspaces. Even though

one can consider a large number of steps, we show

that the strategy adopted to obtain a response is still

acceptable.

5 ANALYSIS OF THE

DISTRIBUTED ALGORITHM

This section presents the obtained results for the dis-

tributed algorithm, as well as the application architec-

ture and the computational environment used in the

experiments.

5.1 Application Architecture

Figure 1 presents the application architecture used

for the realization of our experiments. Note that

rectangles represent applications, arrows represent

the direction of program ﬂow and diamonds are in-

put/output of data.

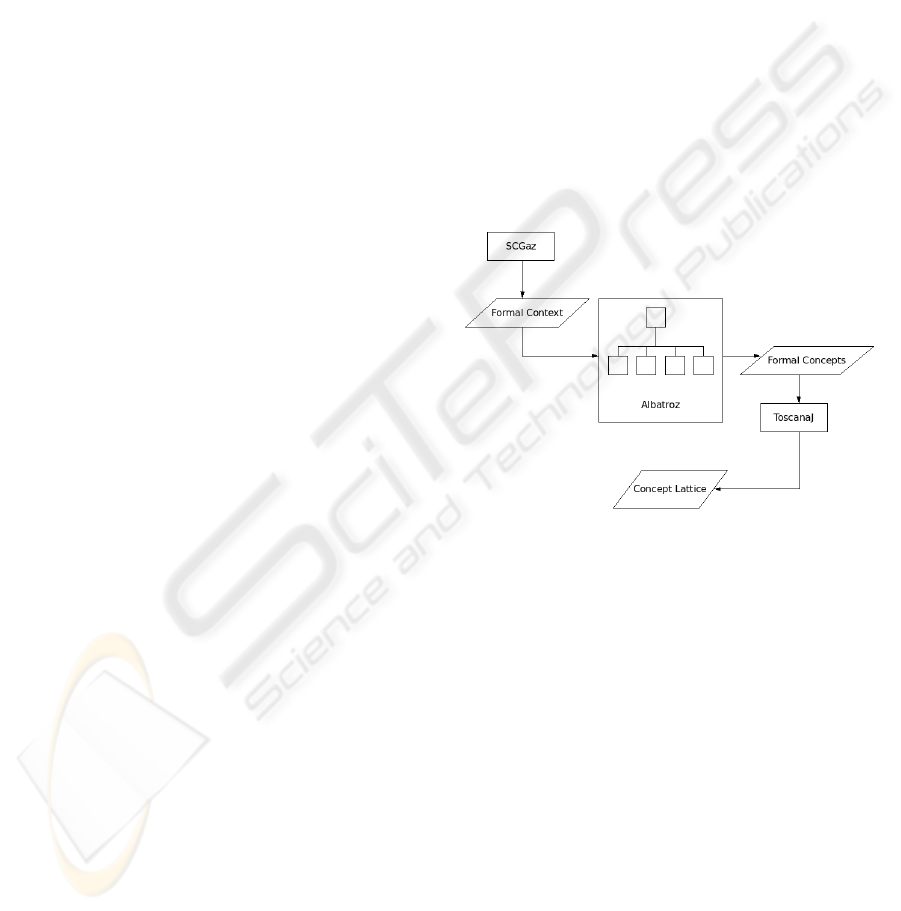

Figure 1: Diagram of the application architecture.

It is worh mentioning that the effective implemen-

tation of the distributed algorithm is the bigger rect-

angle (i.e. the one labeled Albatroz). Since Albatroz

is just a distributed application for the extraction of

formal concepts, other tools were used to create its

workloads, as well as give meaning to its outputs.

Finally, in Figure 2 is presented Albatroz’s se-

quence diagram.

5.2 Distributed Computational

Environment

The distributed computational environment used to

perform the experiments consists of a cluster based on

16 computers. Fifteen machines represent the slave

nodes, and one node represents the master. Table 3

shows the machine conﬁgurations used to process the

workloads. The master (coordinator node) is respon-

sible for distributing the workload and for joining the

concepts.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

108

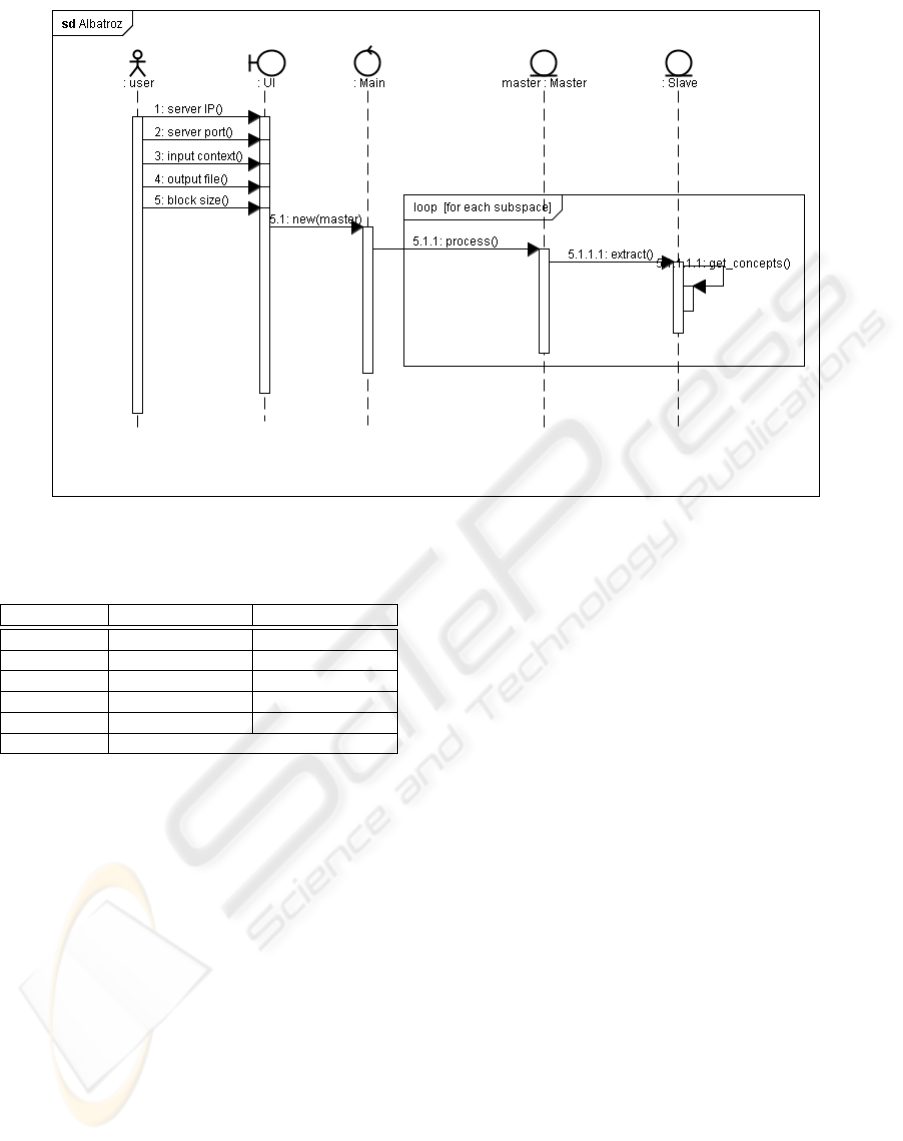

Figure 2: Diagram of the application architecture.

Table 3: Cluster conﬁguration.

master slave

CPU model Intel Pentium IV Intel Core 2 Duo

Clock 3200.329MHz 2197.565MHz

Cache 1024KB 2048KB

CPU cores 1 2

RAM 2027.0859MB 1985.2773MB

O. S. GNU/Linux PelicanHPC

5.3 Experimental Results

As mentioned before, the formal contexts used were

generated in a random form, with the aim to obtain

a more reliable scenario for the tests. Besides, the

maximum density was considered for the workload,

since this value affects the algorithm performance to

extract the formal concepts (i.e. Algorithm 2).

All algorithms of the present work were imple-

mented in the Java programming language, since the

goal of this work is to present through experiements

the validity of the proposed distributed algorithm.

In order to measure the optimal size of the work-

load for the distributed algorithm, a sequential algo-

rithm for the extraction of concepts was used. This

sequential algorithm uses the search space approach

for the calculation of concepts and displays the execu-

tion time for the extraction of concepts of each subset

attributes, as well as, the time required to process all

theses subsets (cumulative total).

Having the time accumulated for the processing

of subsets of attributes, the size was selected, deemed

ideal for the workloads used in the experiments. Fig-

ure 4 shows the sum of execution time for processing

theses search subspaces for an input context with 100

objects and 20 attributes. It is noteworthy that it was

used only one Formal Context for the representation

of the curve, since the performance function always

shows the same behavior, no matter which dimension-

ality of the input context.

Based on this graphic, it is worth to note the

slightly non linear behavior of the performance func-

tion against the accumulation of subconcepts previ-

ously calculated, which shows the interdependence

between the effective time for the extraction of con-

cepts of the input context and the adopted block size.

Thus, in order to obtain a reasonable time for the pro-

cessing of partitions, we tried to select block sizes not

larger than a certain threshold (t) in the lower curve

of Figure 4. In addition to this, it can be seen that the

value of the derivative is smaller at the extremes of the

curve. Moreover, the lower region of the performance

function provides greater ﬂow of concepts, since the

partition sizes in that region are smaller.

Figures 5, 6 and 7 present the results of execution

of the distributed algorithm for extraction of concepts

for 6, 11 and 16 computer nodes, respectively. The

main objective of these simulations is to verify the be-

havior of the distributed algorithm in the variation of

partitions size, as well as in the increase in the number

A DISTRIBUTED ALGORITHM FOR FORMAL CONCEPTS PROCESSING BASED ON SEARCH SUBSPACES

109

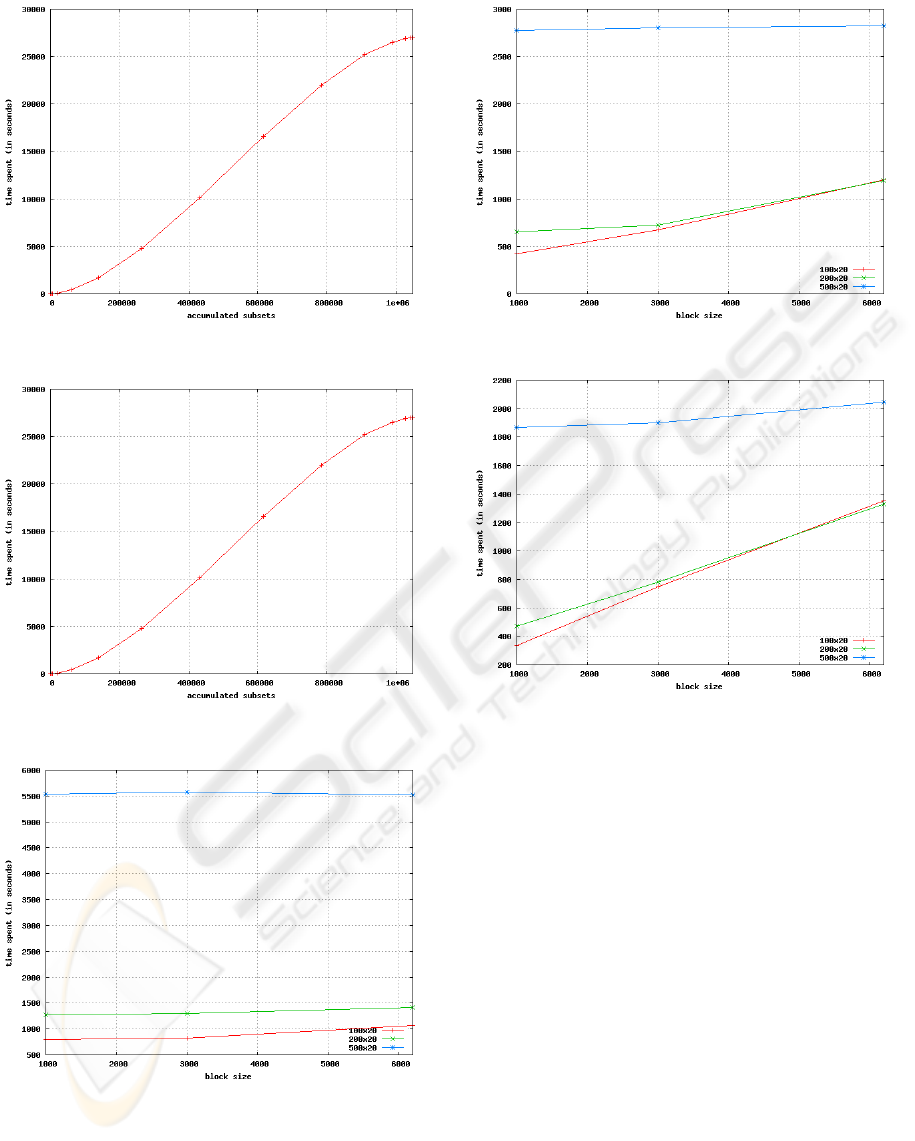

Figure 3: Graphic of the sequential algorithm.

Figure 4: Graphic of the sequential algorithm.

Figure 5: Extraction of concepts in 6 nodes.

of objects in the input context.

Note that, from the analysis of the experimental

results, the increase in the number of objects leads

to a linear increase in the execution time of the pro-

posed algorithm. In addition, the behavior of the per-

Figure 6: Extraction of concepts in 11 nodes.

Figure 7: Extraction of concepts in 16 nodes.

formance curve of the algorithm is closely related to

the amount of nodes used and the adopted block size

for the workloads.

For the graphic of Figure 5, varying the block

size of a Formal Context with 100 objects and 20 at-

tributes, there was a reduction of approximately 25%

in the runtime of the algorithm. This behavior also re-

peats for other formal contexts used in this test. How-

ever it is important to note here that mere reduction

in the block size for the workloads does not ensures a

decrease of the runtime of the algorithm. This can be

veriﬁed from the performance curve of an input con-

text with 500 objects, where the minimum time was

obtained with blocks of size 6196 (maximum thresh-

old).

In Figures 6 and 7, the increase in the number of

nodes for the extraction of formal concepts provides a

considerable stress in the measurement curve of per-

formance of the distributed algorithm. In Figures 5, 6

and 7, for a context with 100 objects and 20 attributes,

using blocks of size 3000 and 6196, the runtime of the

algorithm suffers noticeable increase when the num-

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

110

ber of nodes used is greater than 11. This behavior

also occurs for a context with 200 objects and 20 at-

tributes, where for blocks of size 3000, the increase

was approximately 7.73% in the runtime of the algo-

rithm, while for blocks of size 6196, the increase was

around 11.67%.

Figure 8 expresses the graphic of the relationship

between the number of nodes used for the processing

of formal contexts and the effective time to obtain all

formal concepts for blocks of size 1000.

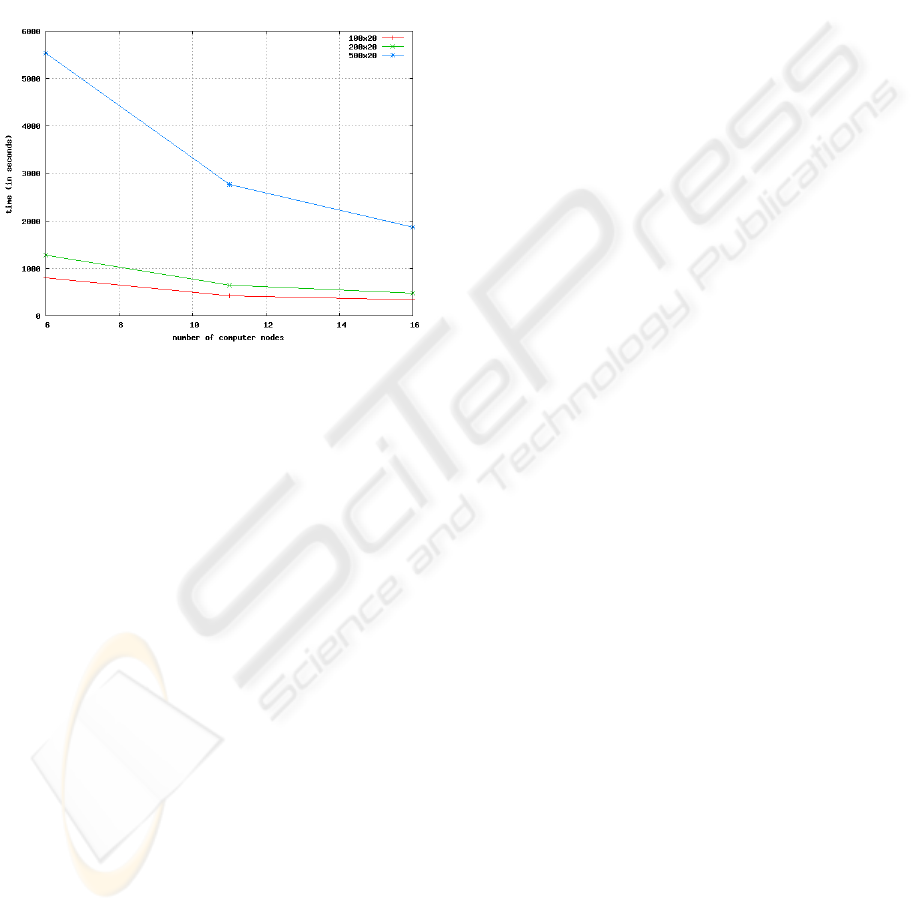

Figure 8: BS = 1000.

Based on the graphic of Figure 8, it can be noted

that the performance of the distributed algorithm is

closely related to the amount of nodes used in the ex-

traction of concepts. Futhermore, it is worth mention-

ing that the performance curve tends to stabilize with

the gradual increase in the number of computers, due

to the overhead introduced by the use of a network.

It is also possible to observe that the reducing

in the runtime of the algorithm for an input context

with 100 objects and 20 attributes was approximately

57.88%, while for a context with 200 and 500 objects

the reductions were close to 62.85% and 66.23%, re-

spectively.

6 CONCLUSIONS

In this paper, a distributed approach for the extraction

of formal concepts for contexts with high density and

large number of objects was presented. It was veri-

ﬁed that with this approach it is possible to determine

an estimative of the time required for the processing

of all concepts of a Formal Context, since the number

of interactions are known and the time for extraction

of concepts in the slave nodes are close to each other.

However, as shown in the experiments, the partition

size has some impact on the ﬁnal performance of the

distributed algorithm. As a result, the values used for

the block size are not always the best ones. Conse-

quently, this may result in a substantial increase in the

runtime of the algorithm.

From this, it can be pointed for future works the

calculation of the best size for the workloads, as well

as test on Formal Context with huge number of ob-

jetcts (approximately 120,000). It is also important to

mention that through our preliminary studies it would

be possible to manipulate social network models char-

acterized through few attributes and large quantity of

objects.

ACKNOWLEDGMENTS

This research has received ﬁnancial support of the

FAPEMIG through the PPMIII-67/09 Project and

CNPq, 471089/2008 Project.

REFERENCES

Carpineto, C. and Romano, G. (2004). Concept Data Anal-

ysis: Theory and Applications. John Wiley and Sons.

Fu, H. and Nguifo, E. (2003). Partitioning large data to scale

up lattice-based algorithm. Tools with Artiﬁcial Intel-

ligence, 2003. Proceedings. 15th IEEE International

Conference on, pages 537–541.

Ganter, B. (2002). Formal concepts analisys: algorithmic

aspects. TU Dresden, Germany, Tech. Report.

Ganter, B. and Wille, R. (1997). Formal Concept Analy-

sis: Mathematical Foundations. Springer-Verlag New

York, Inc., Secaucus, NJ, USA. Translator-Franzke,

Hu, X., Wei, X., Wang, D., and Ii, P. (2007). A parallel

algorithm to construct concept lattice. Fuzzy Systems

and Knowledge Discovery, 2007. FSKD 2007. Fourth

International Conference on, 2:119–123.

Qi, H., Liu, D., Hu, C., Lu, M., and Zhao, L. (2004). A

parallel algorithm based on search space partition for

generating concepts. IEEE, (1):241–248.

Rimsa, A., Z

arate, L. E., and Song, M. A. J. (2009).

Handling large formal context using bdd – perspec-

tives and limitations. In Proceedings of the 7th In-

ternational Conference on Formal Concept Analysis

(ICFCA 2009), volume 5548 of LNCS/LNAI, pages

194–206, Darmstadt, Germany. Springer-Verlag.

yun Li, Liu, Z.-T., Shen, X.-J., Wu, Q., and Qiang, Y.

(2003). Theoretical research on the distributed con-

struction of concept lattices. In Machine Learning

and Cybernetics, 2003 International Conference on,

volume 1, pages 474–479 Vol.1.

A DISTRIBUTED ALGORITHM FOR FORMAL CONCEPTS PROCESSING BASED ON SEARCH SUBSPACES

111
