SUPPORTING COMPLEXITY IN MODELING BAYESIAN

TROUBLESHOOTING

Luigi Troiano

University of Sannio, Department of Engineering, CISELab, Viale Traiano, 82100 Benevento, Italy

Davide De Pasquale

Intelligentia s.r.l., Via A. De Blasio 34, 82100 Benevento, Italy

Keywords:

Troubleshooting, Bayesian networks, Maintenance, Decision support tools.

Abstract:

Troubleshooting complex systems, such as industrial plants and machinery, is a task entailing an articulated

decision making process hard to structure, and generally relying on human experience. Recently probabilistic

reasoning, and Bayesian networks in particular, proved to be an effective means to support and drive decisions

in Troubleshooting. However, troubleshooting a real system requires to face scalability and feasibility issues,

so that the direct employment of Bayesian networks is not feasible. In this paper we report our experience

in applying Bayesian approach to industrial case and we propose a methodology to decompose a complex

problem in more treatable parts.

1 INTRODUCTION

Troubleshooting, i.e. solving failures of, complex

systems is a challenging task assuming that al-

though effects are directly observable, malfunction-

ing sources cannot be deterministically located and

removed. In general, Troubleshooting is aimed at

(i) identifying precisely failure causes, and deﬁni-

tively removing them, (ii) verifying that a failure did

not lead to other breakdowns, (iii) collecting accurate

statistics regarding failures causes and occurrences,

thus providing a feedback to designers and engineers

in order to improve the product. And this requires in-

telligence to be accomplished successfully.

Recent advances in computational techniques,

especially those in the ﬁeld of Artiﬁcial Intelli-

gence, provide new opportunities for supporting

Troubleshooting. In particular, probabilistic reason-

ing represents a natural setting for processing trou-

bleshooting strategies, given uncertainty in linking ef-

fects to malfunction causes. However, troubleshoot-

ing real systems requires to face complexity issues in

modeling a thick network of relationships between ef-

fects and faults, considering their links among parts

and sub-systems. In addition models have to be kept

maintained over the time.

These issues mainly limited a wider adoption of

supporting tools in industrial Service and Mainte-

nance (S&M) activities when plant and machinery

faults occur. These activities still largely rely on the

technical competence of skilled personnel, although

the increasing complexity of systems to maintain, the

shorter retention of knowledge, also due to the higher

personnel turnover, the skill shortage and the lack of

training at enterprise level, and the need of limiting

operational costs demand to assist them more by ma-

chine intelligence.

Therefore, the adoption of supporting tools does

not relate only to mathematical and technological is-

sues, but also and more prominently to issues con-

cerning complexity and management of models. So it

becomes mandatory to to look at complex objects as

systems made of parts and sub-systems, each being a

possible, sometimes hidden, source of failures.

In this paper we report our experience in design-

ing and adopting a support tool based on Bayesian

networks for industrial machinery, focusing more on

usability and maintainability of models than innovat-

ing the mathematical framework. This contribution is

organizedas follows: in Section 2 we brieﬂy overview

approaches to Troubleshooting, Section 3 outlined the

Bayesian approach, Section 4 described a method for

modeling real world problems, Section 5 draws con-

clusions and future directions.

344

Troiano L. and De Pasquale D. (2010).

SUPPORTING COMPLEXITY IN MODELING BAYESIAN TROUBLESHOOTING.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Artiﬁcial Intelligence and Decision Support Systems, pages

344-349

DOI: 10.5220/0002977703440349

 SciTePress

2 TROUBLESHOOTING:

TECHNOLOGIES AND ISSUES

Several technologies relying on Artiﬁcial Intelligence

and Decision Making have been proposed over the

time in order to support Troubleshooting activities.

Information Text Retrieval (ITR) systems became

popular in the 90s, especially with respect to docu-

ment management of products and S&M reporting.

Their main function is devoted to store in and retrieve

from a knowledgebase information regarding speciﬁc

problems, products, past repairing tasks.

A major limitation of this approach resides in the

amount of information that can be effectively man-

aged, as complex industrial products generally entail

a large number of retrievable data and documentation,

thus leading to an excess of information that hides the

actual needs and to read and understand documents

written by others. In addition, often information is not

self contained is one document or section, but split in

several parts, requiring ability in relating sources.

In order to overcome limitations of early ITR ap-

proaches, a more sophisticated class of tools rely on

Case Based Reasoning (CBR). In detail CBR process-

ing can be outlined considering only four main steps:

(i) retrieve: the user describes its problem submitting

it to the CBR system, obtaining a set of cases that sug-

gest which operations to take for solving the current

problem; (ii) reuse: retrieved cases can be re-used to

solve new problems; revise: a case used in the past is

tested against new problems; retain: new cases can be

compiled and retained in the CBR system.

Differently from ITR, users can provide more de-

tailed description of failure events mostly based on

symptoms, thus allowing to retrieve problems solved

in the past by similarity to the current one. This

approach is able to better model the human experi-

ence in problem solving, addressing the issue of re-

ﬁning generic queries as shown by ITR. Therefore

CBR performs better when dealing with large knowl-

edge bases. However, they heavily rely on the case

description given by user in natural language, affect-

ing the quality of results as documents are indexed

by descriptions that can be imprecise, inaccurate and

erroneous.

Both ITR and CBR do not provide a structured

path to problem solution in order to automate Trou-

bleshooting. This led to employ Decision Trees (DT)

to assist S&M operators in taking repairing actions.

DT are able to drive maintenance operations by mod-

eling decision paths and their possible consequences,

including resource costs, utilities, chance event out-

comes and other factors.

Often this approach requires domain experts to de-

sign and validate the tree structure, although param-

eters can be obtained by training the model against

statistical data. During troubleshooting, users can re-

trace the structure, following suggested decisions un-

til the problem is solved. Modeling decision trees

becomes quickly cumbersome and maintaining them

very complex and error prone, especially for unexpe-

rienced users. Human experience still plays a rele-

vant role in keeping up-to-date this kind of models, as

modiﬁcations can invalidate the structure producing a

high impact on model maintenance costs.

Maybe Expert Systems (ES) have been the most

widely approach investigated and applied to Trou-

bleshooting. An expert system attempts to solve a

problem by explicitly modeling knowledge and infer-

ring solutions by causal reasoning as human would

do. For this reason, they are generally speciﬁc to do-

mains. In using this kind of tools, (i) creation of a

knowledge base is made by capturing the expert’s do-

main knowledge, and (ii) solutions are found by log-

ically inferring conclusions given a set of collected

premises. This leads to have white-box models, thus

more intelligible, while other techniques mainly pro-

vide black-box models. Other advantages are consis-

tent answers for repetitive decisions, robust theoreti-

cal framework in decision making, improved user ex-

perience, and reduced management cost.

Main limitations regard impossibility of obtain-

ing creative and unsuspected responses, as human ex-

perts generally are able to provide. Quality of results

depends on quality of knowledge encoded when the

model is designed, thus often leading to errors and

wrong decisions due partial knowledge. Complex and

dynamic problems are difﬁcult to encode.

3 BAYESIAN APPROACH

Technologies presented so far share in common some

limitations that can be summarized as follows:

1. Troubleshooting inherently deals with uncer-

tainty, as malfunctioning causes cannot be deter-

ministically identiﬁed even by humans. Instead

most of outlined approaches make the link be-

tween symptoms and causes deterministic.

2. They generally do not employ a divide-et-conquer

strategy, thus badly ﬁtting real world systems,

made of complex aggregations of parts, each able

to affect correct functioning of the whole system

or of other parts.

3. As knowledge is hard-embedded, models are dif-

ﬁcult to maintain and evolve.

SUPPORTING COMPLEXITY IN MODELING BAYESIAN TROUBLESHOOTING

345

Bayesian Networks (BN) Perl (Pearl, 1988) pro-

vide an answer to issues above as: (i) they are a prob-

abilistic reasoning technique, thus they naturally and

explicitly model uncertain sources of information; (ii)

they can be built by aggregationor decomposition, ac-

cording respectively to both bottom-up and top-down

design strategies; (iii) they allow to model local rela-

tions but, as they rely on strong theoretical basis given

by Probability Theory, they still preserve coherence

of the whole and make models easy to maintain and

evolve

According to Heckerman, Breese and Rommelse

(Heckerman et al., 1994) the purpose of Trou-

bleshooting is to generate a low cost plan in repairing

a system. A repairing plan consists in a list of tasks,

observations and repairing actions to perform in order

to reach the goal of solving the malfunctioning condi-

tion. They describe a typical Troubleshooting process

as a sequence of the following activities:

1. If the component works properly terminate,

2. If not either

(a) select component to replace or repair

(b) select an unobservedvariable for observation or

3. Go to Step 1

Following this approach, in a Bayesian network

we can link faults (parent nodes) to repairing actions

(children nodes) by probabilistic relations (edges).

This leads to determine how likely an action is able

to repair a speciﬁc failure. Similarly, Jensen et al.

(Jensen et al., 2001a) deﬁne a troubleshooting strat-

egy as an optimal sequence of repairing actions min-

imizing the overall expected cost

of the sequence.

In their ground breaking work both Heckerman and

Jensen have introduced the following entities: faults,

repairing actions and observations

. Heckerman con-

siders also non reparable faults.

Fault nodes describe observable problems for a

particular system while repairing actions represent

operations that can be taken in order to repair at least

one fault. Finally observations represent visible op-

erating states of machine/system. Actions A

have as-

sociated a repairing cost C

and repairing probability

. The latter depends on evidence collected so far by

observations, as some faults become more likely than

others.

In order to evaluate an optimal plan, given a se-

quence of repairing actions A ≡< A

,...,A

>, both

For cost we intend in a general meaning monetary and

non-monetary costs, such as MTTR - Mean Time To Repair

costs.

Jensen considers observations in terms of questions to

the user.

Heckerman et al. (Heckerman et al., 1994) and Jensen

et al. (Jensen et al., 2001a) argue that the optimal re-

pair sequence is obtained by minimizing the function

ECR(< A

,...,A

>) =

∑

ECR(i) (1)

where ECR stands for Expected Cost of Repair, each

contribution is given as ECR(i) = C(ε

i−1

)P(ε

i−1

and ε

i−1

is the evidence that the ﬁrst i − 1 actions

failed. In general, computing (1) can be problematic.

However some simplifying assumptions can be made.

Kalagnanam and Henrion (Kalagnanam and Henrion,

1990) assume the following conditions:

1. There is a single fault and only one component is

responsible of the device failure

2. Cost of repairing actions is independent on the se-

quence of actions

3. There is no observation interleaved between two

repairing actions

Under these circumstances, the optimal repairing se-

quence is the one assuming actions ordered by de-

creasing efﬁciency deﬁned as C

|ε.

This order can change as far as we collect evi-

dence on failures, thus varying the repairing proba-

bility P

|ε of following actions.

Observations are merely considered as state anal-

ysis steps along the troubleshooting process, used to

reduce uncertainty regarding the set of possible faults.

However, they can drastically change the optimal or-

der of repairing actions. Therefore, we can assign a

repairing cost due to observations, i.e. Expected Cost

of Observation (ECO) deﬁned as

ECO(Ob|ε) =

∑

s∈St(Ob)

P(Ob = s|ε)ECR(A|Ob = s, ε)

where St(Ob) is the set of possible observation states,

A|Ob = s,ε is the sequence of available actions or-

dered by efﬁciency given the ε and Ob = s. Indeed

that is the cost of repair expected when new evi-

dence (i.e. Ob = s) is added to collected evidence

ε. Performing an observation is convenient when

ECO(Ob|ε)) > ECR(A|ε).

Bayesian approach to Troubleshooting is ex-

tremely ﬂexible, simple and facilitates the model

maintenance. Examples of commercial applications

of Bayesian Troubleshooting are Microsoft MSBNx

(Kadie et al., 2001), Hewlett Packard SACSO (Jensen

et al., 2001b), and more recently Dezide Advisor

However modeling structure and estimating param-

eters (i.e. conditional probabilities, costs, etc.) be-

comes soon cumbersome even for slightly complex

problems. So if on one side several large and medium

sized companies have experimented the Bayesian

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

346

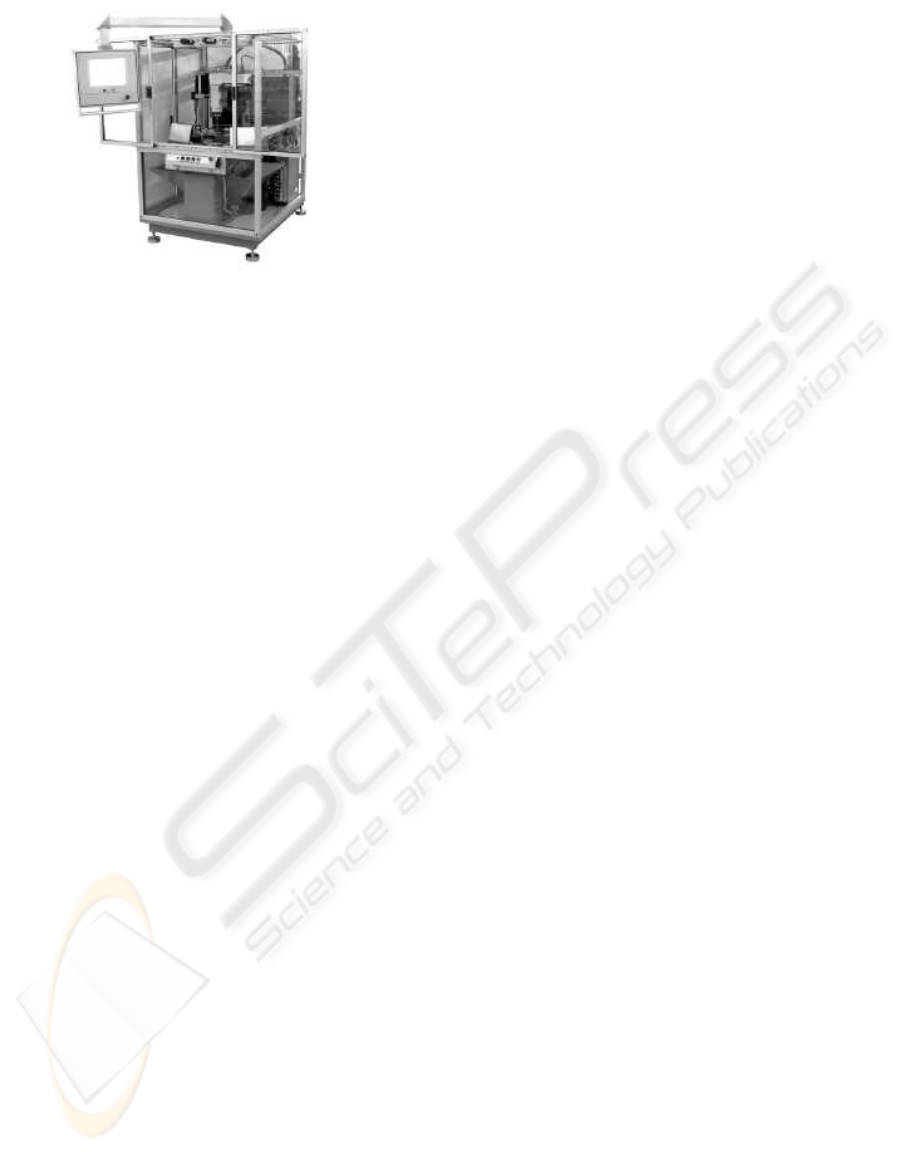

Figure 1: BalanceSystems BVK4.

Troubleshooting (Khanafer et al., 2008; Verma et al.,

2004), on the other only smaller and limited case stud-

ies have been considered, as models were not able

to scale complexity, and large effort was required in

designing the Troubleshooting process, in deﬁning

faults, observations and actions, and ﬁnally in relat-

ing them. This led to consider the problem of how to

deal with increasing complexity, preserving maintain-

ability and usability of models.

4 A METHOD FOR MODELING

TROUBLESHOOTING

A real system is made of subsystems entailing a large

number of parts, each able to affect the failures of

the whole system. Parts are generally instances of

classes of components, therefore their behavior de-

pends on their design and serial production. This can

lead quickly to complex models that is not possible to

manage at the glance. It would be desirable to reuse

knowledge and decompose the problem in order to

face complexity.

In this section we outline a strategy that makes

possible to model Troubleshooting problems for com-

plex systems using Bayesian approach. As an exam-

ple of a real world system let us consider BVK4, a

balancing machine manufactured by Balance Systems

(see Figure 1).

BVK4 is a class of semi-automatic balancing ma-

chines for rotating parts. The machinery is made by

three three sub-systems:

• Measuring Station aimed at estimating (i) initial

unbalance of parts (ii) an optimal position of parts

to be processed, (iii) unbalance of parts after been

processed

• Working Station performs the balancing of parts

• Control Panel grouping together all controllers,

namely the electronic controllers, lock off grabs

controllers used for blocking pieces during bal-

ancing and user input controllers managed by Hu-

man/Machine User Interface.

In order to face such a complexity, we propose the

following strategy:

1. Model the system as made of re-usable parts

2. Identify possible failures and organize them in

groups

3. Link the system-levelfailures to part-levelfailures

4. Estimate the relative fault frequencies

5. Identify actions able to solve the failures, and re-

lated costs

6. Assign a repairing probability to actions given the

failures

7. Provide a set of observations able to reveal fail-

ures

8. Relate observation states to failures

In describing our approach we will make use of a

prototype supporting tool named Dygnose, part of a

research program led by Balance Systems s.r.l. in co-

operation with University of Sannio. As an example

of application we will consider the troubleshooting of

Internet Service Provider (ISP) connection problems.

Dygnose makes explicit the structure of systems

in parts. Parts can be elementary components or sub-

systems. For example a car is made of parts such as

engine, mechanics and passenger compartment. Each

of these parts is a system itself, thus decomposable it-

self in subsystems. Obviously, failures at system level

depend on failures at part level, and that relations be-

tween parts leads to relations between failures. There-

fore a ﬁrst step in facing a Troubleshooting modeling

problem consists in decomposing a system in more

elementary components, and to analyze them individ-

ually.

Another source of abstraction relies in the fact that

individuals belong to classes characterized by simi-

lar (or even the same) structure, thus entailing similar

failures, symptoms and repairing actions. For exam-

ple each individual car belong to a series, as produced

according to the same design. Therefore, although

each car is speciﬁc, the whole series will entail simi-

lar faults and solutions to them. In addition, general-

ization can be led at different levels of abstraction, so

that different classes can be generalized into a larger

class, in order to pool troubleshooting issues in com-

mon. Each class can refer to a more general class of

systems, inheriting structure, possible failures, symp-

toms and repairing actions.

System are characterized by a set of failures or-

ganized in a tree structure aimed at classifying them.

SUPPORTING COMPLEXITY IN MODELING BAYESIAN TROUBLESHOOTING

347

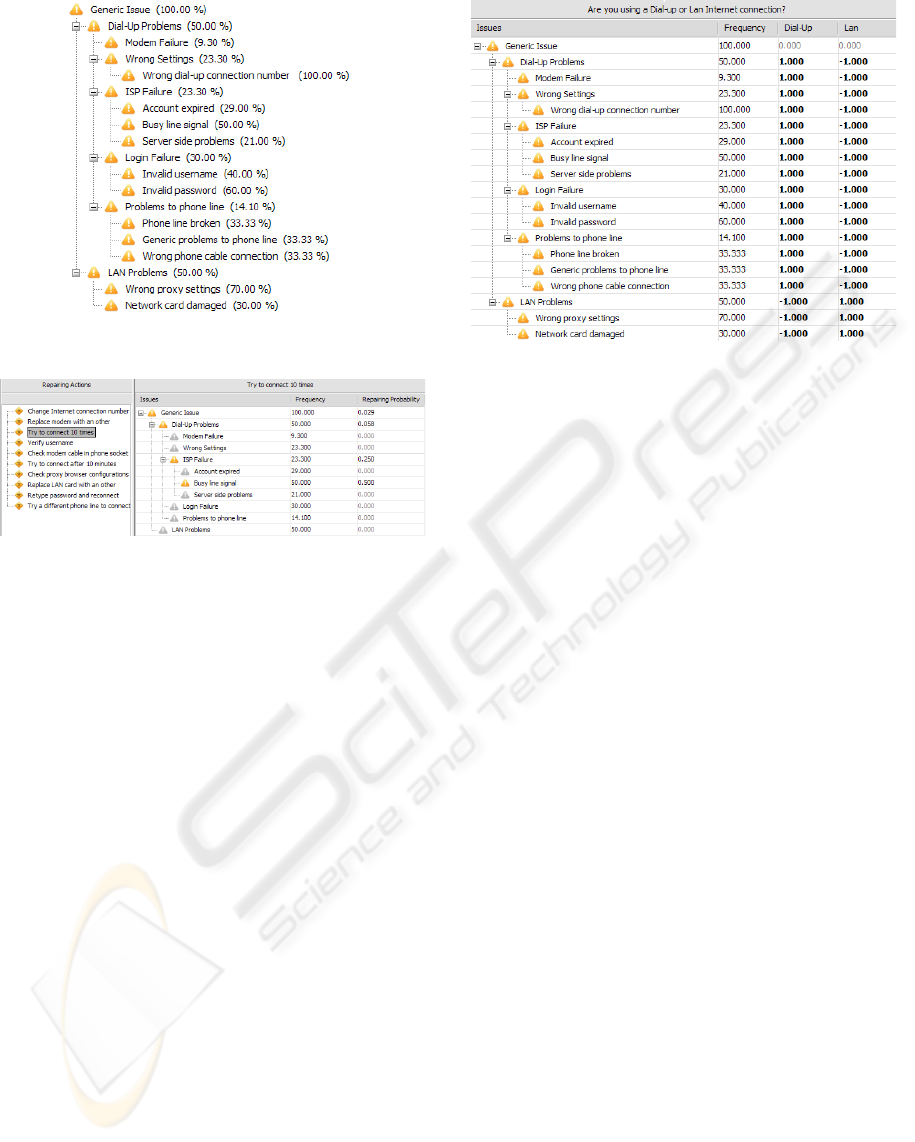

Figure 2: Dygnose: Possible ISP connection failures.

Figure 3: Dygnose: Probabilities of repairing actions.

In modeling ISP connection problems, we ﬁrst create

the fault tree as depicted in Figure 2. In particular, we

have classiﬁed failures in two categories: Dial-up and

Lan problems. Each of these is further speciﬁed. The

percentage value associated to each fault represents

the relative frequency of happening within the class

of problems it belongs to.

As noted before, there is relationship between the

failures of parts and system they belong to. For exam-

ple if there is a modem failure at connection level, this

is due to a set of possible failures at device level. This

linkage can have a double nature: (i) it can specify at

part level a problem or (ii) it deﬁnes a causal relation,

so that a problem at part level produces a side-effect

at system level. Both meanings can be just modeled

by considering a failure cause at system level that is a

proxy of its counter part at component level.

After the failures tree is speciﬁed, we can provide

a set of repairing actions as troubleshooting solutions.

Each action is likely able to solve a given failure. This

is done by assigning a repairing probability with re-

spect to each failure, as depicted in Figure 3. As de-

fault we assume that the repairing probability is 0 if

not differently speciﬁed.

In addition each repairing action entails a cost

when the action has place. This cost is multi-

dimensional, entailing a usage of different resources

Figure 4: Dygnose: Relating observations to failures.

such as time, budget, people, materials and even

user attitude.

In resolving the ISP connection problem, we con-

sider the following actions:

• Change Internet connection number and retry to

connect (cost=100)

• Replace modem with an other (cost=200)

• Try to connect 10 times (cost=130)

• Check username currently in use (cost=110)

• Retype password and reconnect (cost=110)

• Check modem cable in phone socket (cost=120)

• Try to connect after 10 minutes (cost=130)

• Check proxy browser conﬁgurations (cost=130)

• Replace Lan card with an other (cost=200)

• Try a different phone line to connect (cost=140)

Failure symptoms are the last aspects to consider.

Observations are the means by which the failing sys-

tem is looked at and symptoms detected. In par-

ticular, each observation depicts a particular observ-

able aspect of the system by a set of operating con-

ditions. These conditions can reveal some insights

regarding the actual failure. However symptoms are

not deterministically related to failures, and a condi-

tional probability distribution is required to link the

twos. In order to reduce the complexity of specify-

ing such a parameter, observations and failures can be

linked by a correlation index. This index varying be-

tween -1 and 1, makes possible to consider symptoms

able to certainly exclude a failure (correlated −1) and

to identify the failure (correlated +1); we assume 0

when it is not possible to determine such a relation.

An example in modeling observations is provided in

Figure 4. Namely, we considered:

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

348

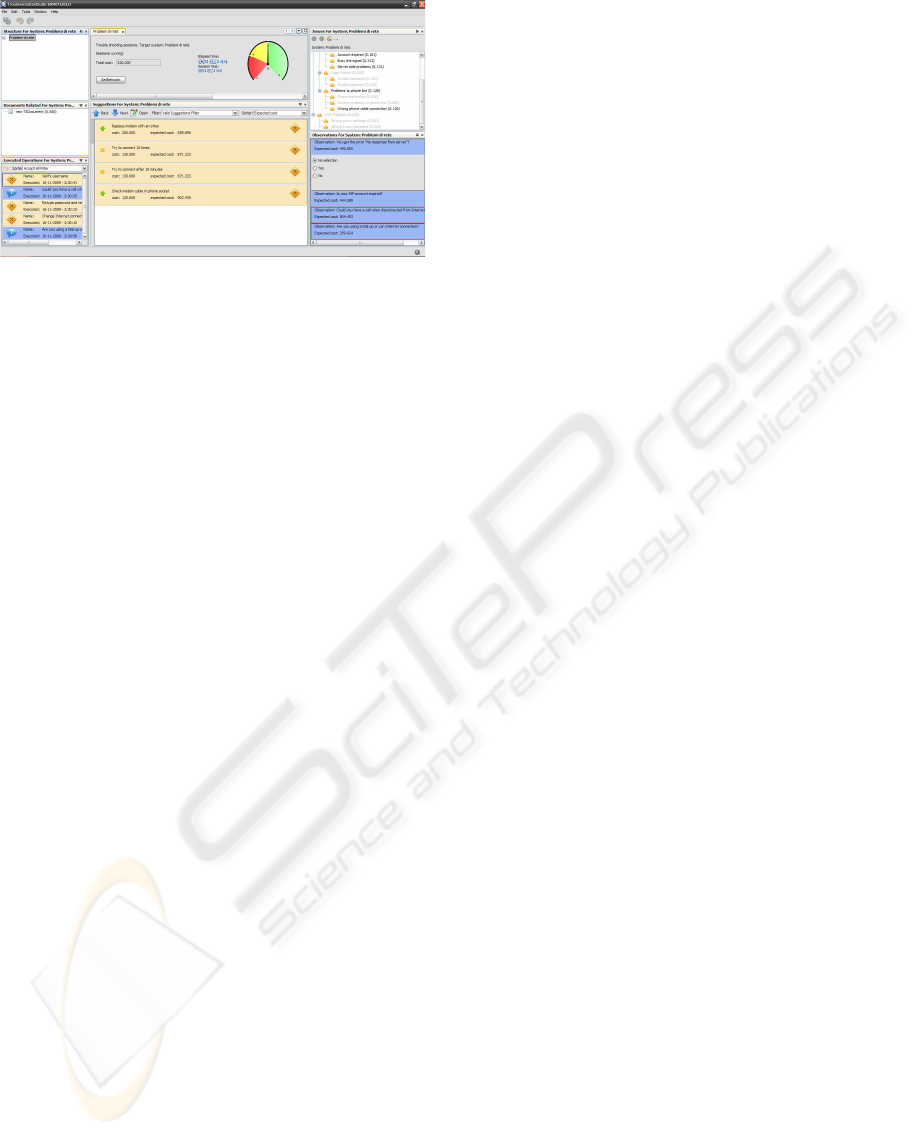

Figure 5: Dygnose: Supporting the user in solving a failure.

• Connection type (States: Dial-up, Lan)

• No response from server (States: Yes, No)

• ISP account expired (States: Yes, No)

• Phone calls available (States: Yes, No)

Once the Troubleshooting problem has been fully

speciﬁed, the model can be translated to a Bayesian

Network. The goal is to collect evidence on what is

the actual failure, according to observations and at-

tempts to remove it.

In executing a troubleshooting model, a Service

employee is supported by suggesting a series of possi-

ble repairing actions ordered by decreasing ECR (see

Figure 5). In addition, observations are listed by de-

creasing ECO.

Although actions and observations are proposed

according to optimal criteria, the user is free to per-

form them in any order until the problem is solved.

As far as new evidence is collected, fault, repairing

action and observation probabilities are updated, and

actions/observations are sorted accordingly.

Modeling real world problems can be problem-

atic. The BVK4 troubleshooting model is currently

described by 9719 lines of text, entailing 2839 prop-

erties and 12687 parameters, even considering a re-

duced structure made of 56 sub-systems and 69 parts.

The model describes 241 possible failures, 102 obser-

vations and 117 repairing actions. However, although

referring a complex system, we were able to complete

the modeling in about a working month employing

three designers: 1 full-time and 2 part-time (2 hours

per day). The model was tested against several prob-

lems, and was able in general to lead the user to the

problem resolution.

5 CONCLUSIONS

Bayesian Troubleshooting provides an interesting

theoretical framework to develop a new generation of

decision support tools in solving failures, able to over-

come limitations of former technologies. Although

strong theoretical basis and availability of computa-

tional methods make this approach really promising,

and effective application to real world problems, such

as servicing industrial machinery, requires to develop

a divide-et-conquer strategy to model complex sys-

tems and tools to make it feasible. In this paper we

presented a method to decompose Troubleshooting

modeling in more treatable steps and Dygnose, a tool

designed to support it. In a preliminary experimen-

tation we successfully considered an industrial ma-

chine. However, developing an effective decompo-

sition strategy is not sufﬁcient by itself. Indeed, new

questions are posing. For instance how to test and

debug a complex model is an open issue we aim at

answering in the future.

REFERENCES

Heckerman, D., Breese, J., and Rommelse, K. (1994). Trou-

bleshooting under uncertainty. Technical report, Mi-

crosoft Research.

Jensen, F., Kjaerulff, U., Kristiansen, B., Langseth,

H., Skaanning, C., Vomlel, J., and Vomlelov´a, M.

(2001a). The sacso methodology for troubleshoot-

ing complex systems. Artif. Intell. Eng. Des. Anal.

Manuf., 15(4):321–333.

Jensen, F. V., Skaanning, C., and Kjaerulff, U. (2001b). The

sacso system for troubleshooting of printing systems.

In SCAI ’01: Proceedings of the Seventh Scandina-

vian Conference on Artiﬁcial Intelligence.

Kadie, C., Hovel, D., and Horvitz, E. (2001). Msbnx: A

component-centric toolkit for modeling and inference

with bayesian networks. Technical report, Microsoft

Research Technical Report MSR-TR-2001-67.

Kalagnanam, J. and Henrion, M. (1990). A comparison

of decision alaysis and expert rules for sequential di-

agnosis. In UAI ’88: Proc. of 4th Annual Conf. on

Uncertainty in Artiﬁcial Intelligence, pages 271–282.

North-Holland Publishing Co.

Khanafer, R., Solana, B., Triola, J., Barco, R., Nielsen, L.,

Altman, Z., and et al. (2008). Automated diagnosis

for umts networks using bayesian network approach.

In IEEE Transactions on Vehicle Technology.

Pearl, J. (1988). Probabilistic reasoning in intelligent sys-

tems: networks of plausible inference. Morgan Kauf-

mann.

Verma, V., Gordon, G., Simmons, R., and Thrun, S. (2004).

Real-time fault diagnosis. IEEE Robotics & Automa-

tion Magazine, 11(1):56 – 66.

SUPPORTING COMPLEXITY IN MODELING BAYESIAN TROUBLESHOOTING

349
