A NOVEL WI DECODER FOR THE SEGMENTED FRAME

DECODING IN THE TEXT-TO-SPEECH SYNTHESIZER

Kyungjin Byun, Nak-Woong Eum and Hee-Bum Jung

Electronics and Telecommunications Research Institute (ETRI), Daejeon, 305-700, Korea

Keywords: Waveform interpolation, Speech coding, Speech synthesizer, Text-to-speech.

Abstract: The implementation of a high quality text-to-speech (TTS) requires huge storage space for a large number

of speech segments, because current TTS synthesizers are mostly based on a technique known as synthesis

by concatenation. In order to compress the database in the TTS system, the use of speech coders would be

an efficient solution. Waveform interpolation (WI) has been shown to be an efficient speech coding

algorithm to provide high quality speech at low bit rates. However, the speech coder used in a TTS system

has to be different from the one used in communication applications because the decoder in the TTS system

should have an ability to decode segmented frames. In this paper, we propose a novel WI decoder scheme

that can handle the segmented frame decoding. The decoder can reconstruct a good quality speech even at

the concatenation boundary, which is effective for the TTS system based on a synthesis by concatenation.

1 INTRODUCTION

In recent years, various speech coding algorithms

have been widely used in many applications such as

mobile communication systems and digital storage

systems for the speech signal to be represented in

lower bit rates while maintaining its quality. The WI

coding algorithm has been known as one of the good

coding algorithms producing the good quality

speech even at the below 4 kbps rates. Most speech

coders operate on narrow bandwidth limited to 200 -

3400 Hz. However, as mobile systems are evolving

from speech-dominated services to multimedia ones,

the advent of the wideband coder becomes highly

desirable because it is able to provide higher quality

speech. The wideband speech coder extends the

audio bandwidth to 50 - 7000 Hz in order to achieve

the high quality both in the sense of speech

intelligibility and naturalness.

Although WI speech coder is classified into

parametric one, it is able to provide high perceptual

quality at low bit rates (Kleijn & Haagen, 1995).

Most literatures for the WI coding have been

concentrated on the narrow band speech coding

(Kleijn, 1993; Gottesman & Gersho, 2001), but

recent researches (Ritz, et al. 2002, 2003) show the

potential of applying a WI algorithm to wideband

speech signal. In the WI coding, there are four

parameters to be transmitted. They are the linear

prediction (LP) parameter, the pitch value, the power

and the characteristic waveform (CW). The CW

parameter is decomposed into a slowly evolving

waveform (SEW) and a rapidly evolving waveform

(REW). Since the SEW and REW have very

distinctive requirements they should be quantized

separately to enhance the coding efficiency.

On the other hand, the implementation of a high

quality TTS requires huge storage space for a large

number of speech segments, because most TTS

synthesizers are based on a technique known as

synthesis by concatenation. In order to compress the

database in the TTS system, which usually consists

of wideband speech, the use of speech coders is an

efficient solution (Vercken, et al., 1997). However,

the speech coder used in a TTS system has some

differences compared to the one used in

communication applications. In the communication

systems, the speech coder continuously performs the

encoding and decoding procedure to process

continuous speech signals. Once the speech coder

operates, it maintains its normal operating mode.

Therefore, the speech coder always can keep the

parameters of the previous frame and maintains filter

memories required for performing the next frame.

However, the decoding scheme for the TTS

system has to decode segmented frames of the

arbitrary intervals to reconstruct segmented speech

151

Byun K., Eum N. and Jung H. (2010).

A NOVEL WI DECODER FOR THE SEGMENTED FRAME DECODING IN THE TEXT-TO-SPEECH SYNTHESIZER.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 151-154

DOI: 10.5220/0002978901510154

 SciTePress

signals, which will be used as an input to the TTS

system. In this case, the reconstructed speech signal

generated by a common speech coder is seriously

degraded especially at the initial parts of the signals

because the decoder cannot have previous

parameters at the start frame. In order to cope with

this problem, we propose a novel WI decoder

scheme that can handle the segmented frame

decoding. Therefore, it can reconstruct a good

quality speech even for the segmented frame

decoding, which is effective for the TTS system

based on a synthesis by concatenation.

The outline of this paper is as follows. Firstly, in

section 2, we describe the overview of WI speech

coding algorithm. In section 3, we propose the novel

WI decoder scheme for the segmented frame

decoding with the good quality of the reconstructed

speech. Then, the experimental results are discussed

in section 4. Finally, conclusions are made in

section 5.

2 WI SPEECH CODING

The WI coding algorithm has been extensively and

steadily developed since it was first introduced by

Kleijn (Kleijn & Haagen, 1995). The encoder block

diagram of the WI speech coder is shown in Fig. 1.

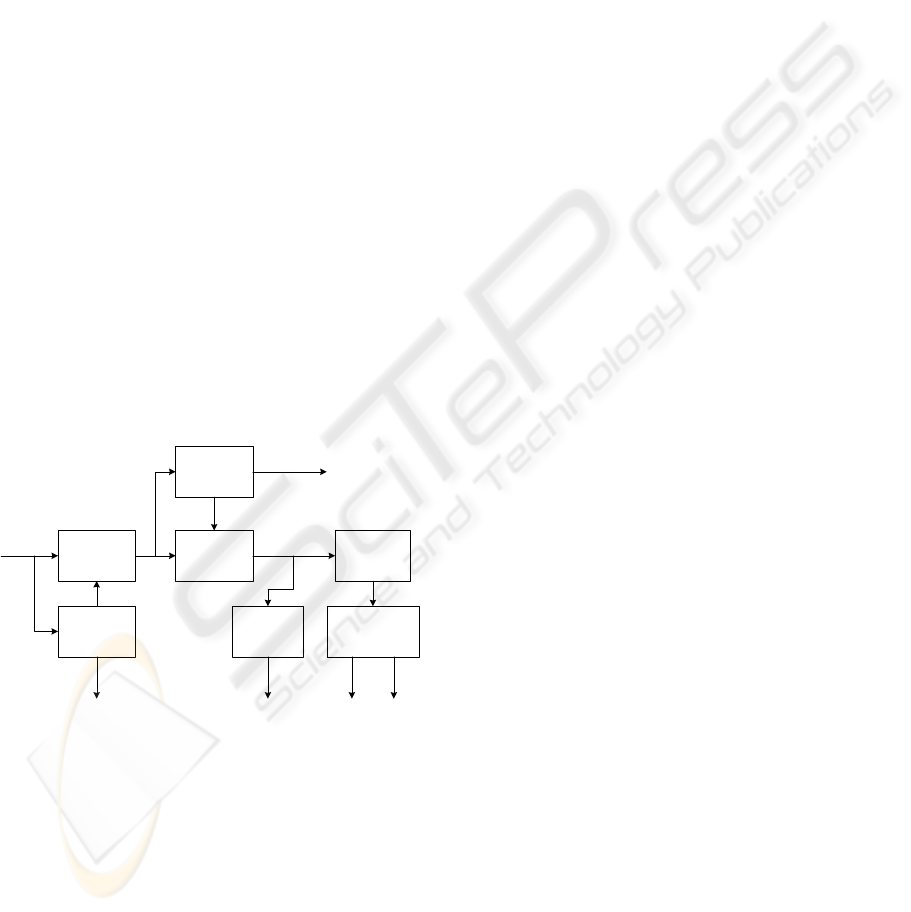

Figure 1: The encoder block diagram of WI speech coder.

The WI coder firstly performs LP analysis once

per frame for the input speech. The LP parameter set

is converted into the line spectrum frequency (LSF)

for the efficient quantization and usually vector

quantized using various quantization techniques.

The pitch estimation is performed in the linear

prediction residual domain. In the WI paradigm, the

accuracy of this pitch estimator is very crucial to the

performance of the coder. After the pitch is

estimated, WI coder extracts pitch-cycle waveforms

which are known as CWs from the residual signal at

a constant rate. These CWs are used to form a two-

dimensional waveform which evolves on a pitch

synchronous nature. The CWs are usually

represented using the discrete time Fourier series

(DTFS) as follows:

[]

⎣⎦

∑

2/)(

)sin()()cos()(),(

knbknanu

φφφ

(1)

where

)(/2)( nPmm

)(0 nPm <≤

and

are the DTFS coefficients, and

)(nP

is the pitch

value. The CWs are used to construct a two

dimensional surface

),(

to display the shape of

the discrete time waveform along the phase

axis

and the evolution of the shape along the discrete-

time

axis.

The extraction procedure performed in the LP

residual domain provides a DTFS description for

every extracted CW. Since these CWs are generally

not time-aligned, the smoothness of the surface in

the time direction should be maximized. This can be

accomplished by aligning the extracted CW with the

previously extracted CW by introducing a circular

time shift to the current one. Since the DTFS

description of the CW enables to regard the CW as a

single cycle of a periodic signal, the circular time

shift is equivalent to adding a linear phase to the

DTFS coefficients. The CWs are then normalized by

their power, which is quantized separately. The main

motivation of this normalization is to separate the

power and the shape in CWs so that they can be

quantized separately to achieve higher coding

efficiency.

This two-dimensional surface is decomposed

into two independent components, i.e., SEW and

REW, via low pass filtering prior to quantization.

The SEW and the REW are down sampled and

quantized separately. The SEW component

represents mostly the periodic (voiced) component

while the REW corresponds mainly to the noise-like

(unvoiced) component of the speech signal. Because

these components have different perceptual

properties, they can be exploited to increase coding

efficiency in the compression. In other words, the

SEW component requires only a low update rate but

has to be described with a reasonably high accuracy

whereas the REW component requires a higher

transmission rate but even a rough description is

perceptually accurate. This property of the CW

suggests that low pass filtering of the CW surface

leads to a slowly evolving waveform. The rapidly

Extraction

Analysis

Filter

Pitch

Estimation

Power

Calculation

Speech

signals

Residual

signal

CWs

Pitch

PowerLSF

Decomposition

Downsampling

SEW REW

LPC

Analysis

Alignment

SIGMAP 2010 - International Conference on Signal Processing and Multimedia Applications

152

evolving part of the signal can be obtained by simply

subtracting the corresponding SEW from the CW.

3 A NOVEL WI DECODER

SCHEME

In the conventional WI decoder used in the

communication areas, the received parameters are

the LP coefficients, the pitch value, the power of the

CW, the SEW and REW magnitude spectrum. The

decoder can obtain a continuous CW surface by

interpolating the successive SEW and REW and then

recombining them. After performing the power de-

normalization and subsequent realignment, the two-

dimensional CW surfaces are converted back into

the one-dimensional residual signal using a CW and

a pitch value at every sample point, which can be

obtained by linear interpolation. This conversion

process also requires the phase track estimated from

the pitch value at each sample point. The

reconstructed one-dimensional residual signal is

used to excite the linear predictive synthesis filter to

obtain the final output speech signal.

However, for the decoder used in the TTS

system, the final reconstructed signals are obtained

by decoding the segmented frames and

concatenating them. Therefore, if the medium part of

the concatenated speech is decoded by using the

conventional decoder, the final reconstructed speech

will be seriously distorted especially at the

concatenation boundary. For the segmented frame

decoding, if the decoder can use the previous

parameters at the start frame, the distortion due to

mentioned above can be dramatically decreased.

Therefore, in this paper we present the novel

decoder scheme for the segmented frame decoding

to reduce the distortion at the concatenation

boundary by utilizing the previous parameters. The

block diagram of the novel decoding scheme is

shown in Fig. 2.

As shown in Fig. 2, in order to decrease the

distortion for the segmented frame decoding, the

decoder utilizes all the previous parameters; the

(n-1) frame’s LSFs, pitch, CW power, SEW and

REW magnitudes, where the current frame number

is n. In the decoder, the (n-1) frame’s CWs are

required for processing the initial state at the start

frame. Since the CWs are generated by combining

the SEWs and REWs, both the (n-2) frame’s SEWs

and REWs are necessary to generate the (n-1)

frame’s CWs. For the continuous frame decoding,

the previous CWs are always available at the time of

the current frame processing since they are

preserved in the decoder during the decoding

procedure. However, for the segmented frame

decoding, since the previous CWs are not available

at the start frame, the decoder should make the

previous CWs using the (n-1) and (n-2) frame’s

SEWs and REWs.

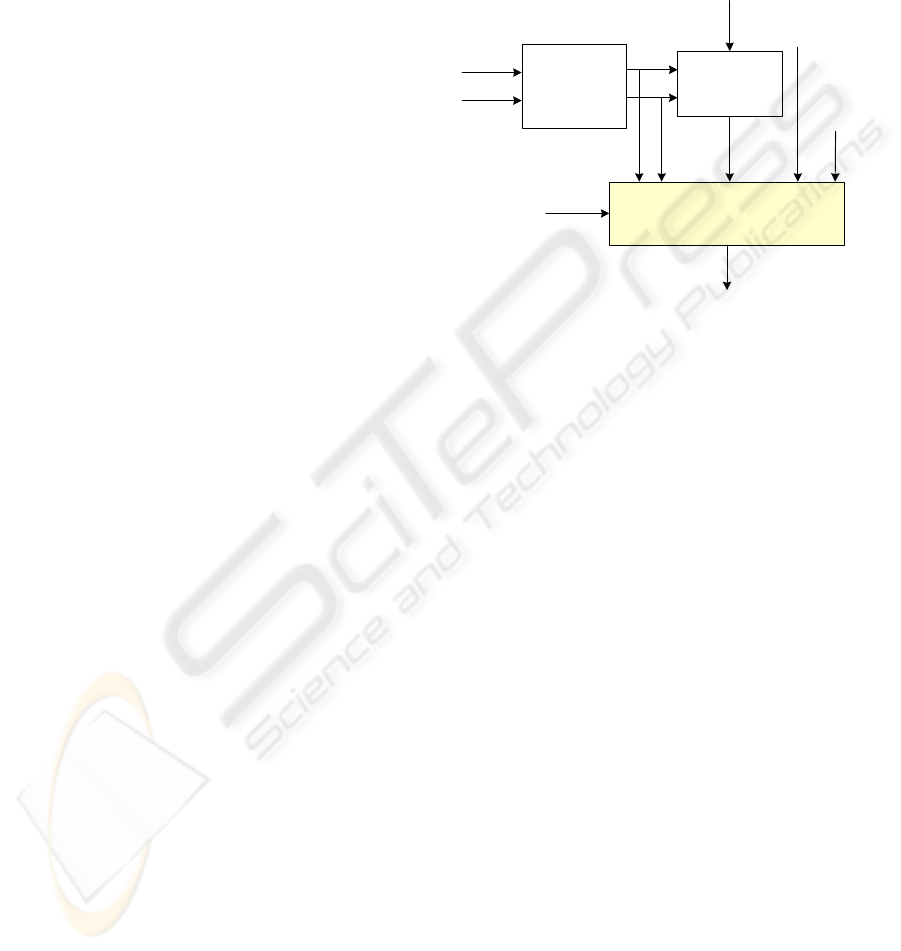

Figure 2: A novel WI decoding scheme.

In addition to these five previous parameters, the

phase instant is also exploited in the proposed

decoding scheme for the segmented frame decoding.

The phase instant is calculated at the phase

estimation. The phase instant is used for obtaining

the one-dimensional residual signal from the two-

dimensional characteristic waveform. During the

procedure the phase instant at every sample is

calculated and the last one is stored for the next

frame processing. In the proposed scheme, the

previous phase instant at the start frame is also

exploited with the five previous parameters

mentioned above. Adopting the phase instant for the

segmented frame decoding dramatically improves

the performance of the final reconstructed speech

segments.

4 EXPERIMENTAL RESULTS

The waveforms in the Fig. 3 are generated by

decoding the segmented frames and then

concatenating two reconstructed speech signals. In

this figure, the solid vertical line indicates the

concatenation boundary. Waveform (a) is generated

by the continuous frame decoding; hence this

waveform can be considered as the original

waveform compared to the waveforms generated by

the segmented frame decoding.

Decoder

frame’s

- LSPs

-Pitch

-Power

-SEW Mag.

-REW Mag.

Pre-processing

for

SEW & REW

Pre-processing

for CW

(n-1)

frame’s

- LSPs

-Pitch

-Power

(n-1)

SEW Mag.

(n-2)

frame’s

SEW Mag. = 0

REW Mag. = 0

(n-1)

REW Mag.

(n-1)

SEW

(n-1)

REW

Reconstructed

Speech

(n-1)

frame’s

last phase

A NOVEL WI DECODER FOR THE SEGMENTED FRAME DECODING IN THE TEXT-TO-SPEECH SYNTHESIZER

153

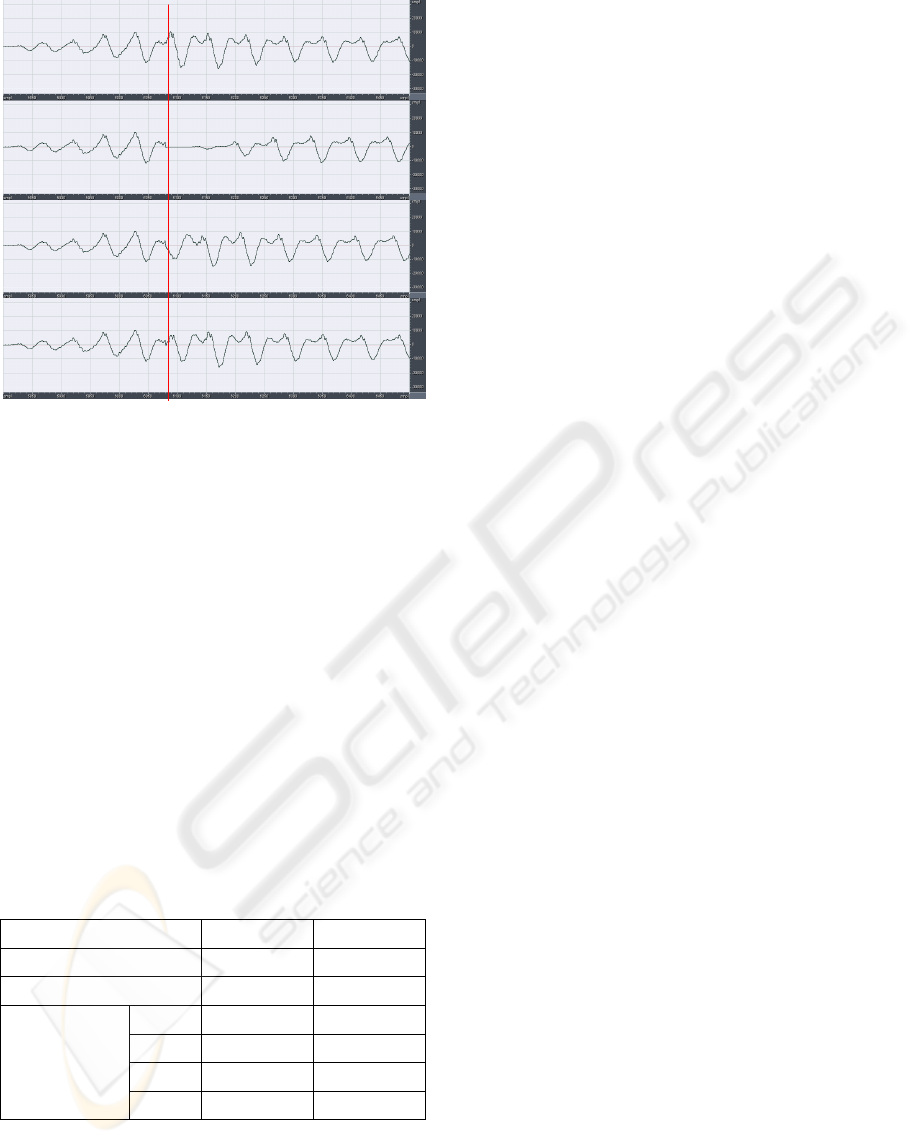

Figure 3: Reconstructed waveforms: (a) continuous frame

decoding, (b) segmented frame decoding with no previous

parameters, (c) with 5 previous parameters, (d) and adding

phase information.

In the waveform (b) generated by using no

previous parameters, the beginning part of the

reconstructed speech generated from the second

segmented frames is seriously distorted. The

waveform (c) is for using all five previous

parameters. The shape of this waveform is mostly

similar to the waveform (a), but the phase distortion

begins from the concatenation boundary. However,

the waveform (d) utilizing the previous phase

information together with all other parameters is

almost same as the waveform (a) in both shape and

the phase. Therefore, the SNR measurement

between (a) and (d) is much higher than that

between (a) and (c). The SNR performance is given

in Table 1.

Table 1: Performance of the novel decoding scheme.

Previous Parameters SNR segSNR

No parameter 5.502 4.413

5 parameters 9.167 6.033

5 parameters

and phase

(quantization

bits)

4 bits 20.187 15.772

5 bits 23.565 18.972

6 bits 23.158 24.103

7 bits 27.697 29.273

Although the absolute SNR value is not

important meaning for the parametric coder like a

WI coder, it still can be considered as a useful

measure of the relative performances between two

waveforms. In Table 1, we can find that the

proposed scheme improves the performance of the

reconstructed speech signals. Especially, the

performance is dramatically improved together with

the phase information. The previous phase instant

value should be quantized in order to utilize it for

the segmented frame decoding in the TTS system.

The simulation result according to the bit allocation

for the phase instant is also provided in this table.

5 CONCLUSIONS

In this paper, we propose the efficient WI decoder

scheme for the segmented frame decoding, which

would be used in the TTS synthesizer to reconstruct

the speech signals from the compressed speech

segments. The proposed decoding scheme is able to

suppress the distortion at the concatenation

boundary by utilizing the previous parameters.

Moreover, the phase information is also adopted to

additionally improve the quality of final

reconstructed speech. It is found that the adoption of

the phase instant makes it possible to improve the

performance dramatically.

ACKNOWLEDGEMENTS

This work was supported by the IT R&D program of

MKE/IITA. [2006-S-048-01, Embedded DSP

platform for audio and video signal processing]

REFERENCES

Kleijn, W. B., Haagen, L. J., 1995. Waveform

interpolation for coding and synthesis: Speech coding

and synthesis. Elsevier Science B. V.

Kleijn, W. B., 1993. Encoding Speech Using Prototype

Waveforms. IEEE Tans. on Speech and Audio

Processing, 1(4), pp. 386-399.

Gottesman, O., Gersho, A., 2001. Enhanced Waveform

Interpolative Coding at Low Bit-Rate. IEEE Trans. on

Speech and Audio Processing, 9(8), pp. 786-798.

Ritz, C. H., Burnett, I. S., Lukasiak, J., 2002. Extending

waveform interpolation to wideband speech coding.

Proc. IEEE workshop on Speech Coding, pp. 32-34.

Ritz, C. H., Burnett, I. S., Lukasiak, J., 2003. Low bit rate

wideband WI speech coding. Proc. IEEE Int. Conf. on

Acoustics, Speech, and Signal Processing, pp. 804-807.

Vercken, O., Pierret, N., Dutoit, T., Pagel, V., Malfrere, F.,

1997. New Techniques for the Compression of

Synthesizer Databases. Proc. IEEE Int. Symp. on

Circuits and Systems, pp. 2641-2644.

(

)

(

)

(c)

(

)

SIGMAP 2010 - International Conference on Signal Processing and Multimedia Applications

154
