DESIGNING ENTERPRISE ARCHITECTURES BASED ON

SYSTEMS THEORETIC STABILITY

Philip Huysmans, David Bellens, Dieter Van Nuffel and Kris Ven

Department of Management Information Systems, University of Antwerp, Prinsstraat 13, B-2000 Antwerp, Belgium

Keywords:

Normalized systems, Design science research, Enterprise architecture, Method engineering.

Abstract:

Contemporary organizations are operating in increasingly volatile environments. Hence, organizations must

be agile in order to be able to quickly adapt to changes in its environment. Given the increasing complexity of

organizations, it has been argued that organizations should be purposefully designed. Enterprise architecture

frameworks provide guidance for the design of organizational structures. Unfortunately, current enterprise

architecture frameworks have a descriptive, rather than a prescriptive nature and do not seem to have a strong

theoretical foundation. In this paper, we explore the feasibility of extending the prescriptive design principles

of the Normalized Systems theory to the ﬁeld of enterprise architecture. Our results show that such approach

is feasible and illustrate how the systems theoretic concept of stability can be used on the organizational level.

1 INTRODUCTION

Contemporary organizations are operating in increas-

ingly volatile environments. Hence, organizations

must be agile in order to be able to quickly adapt to

changes in their environment. This may be a com-

plex process, since a change to one organizational unit

may affect other units. Given the increasing complex-

ity of organizations, it has therefore been argued that

organizations should be purposefully designed in or-

der to exhibit true agility (Hoogervorst, 2009). En-

terprise architecture frameworks support the design

of the organizational structure, its business processes

and information systems through a coherent set of

principles, methods and models (Bernus et al., 2003).

Unfortunately, current enterprise architecture frame-

works have a descriptive, rather than a prescriptive

nature. In order to purposefully design organizations,

prescriptive principles are needed.

In software engineering literature, the Normalized

Systems approach has recently been proposed to pro-

vide such deterministic design principles for the mod-

ular structure of software. The Normalized Systems

approach is based on the systems theoretic concept of

stability to ensure the evolvability of information sys-

tems. It argues that the main obstacle to evolvability

is the existence of combinatorial effects. Combinato-

rial effects occur when the effort to apply a speciﬁc

change increases as the system grows. This is a result

of Lehman’s law, which states: “As an evolving pro-

gram is continually changed, its complexity, reﬂect-

ing deteriorating structure, increases unless work is

done to maintain or reduce it.” (Lehman, 1980). The

Normalized Systems approach eliminates these com-

binatorial effects by deﬁning clear and deterministic

design principles. Adhering to these principles there-

fore results in software systems that exhibit stability.

In this paper, we extend the Normalized Systems

approach to the domain of enterprise architecture.

The issue of combinatorial effects has not previously

been explored in enterprise architecture frameworks,

but seems relevant. Also, applying systems theory to

the construction of organizations would advance the

emerging ﬁeld of enterprise engineering (Liles et al.,

1995). We therefore explore the feasibility of de-

signing a method for the construction of enterprise

architectures that exhibit systems theoretic stability

by eliminating combinatorial effects. Such a method

would provide a more deterministic way of designing

agile organizations. This method is currently being

developed by using the design science methodology.

2 ENTERPRISE ARCHITECTURE

When market threats, opportunities or changes arise,

the organization as a whole has to adapt. In order to

be able to comprehend and manage the complexity of

modern organizations, enterprise architecture frame-

works have been introduced. Despite the common

157

Huysmans P., Bellens D., Van Nuffel D. and Ven K. (2010).

DESIGNING ENTERPRISE ARCHITECTURES BASED ON SYSTEMS THEORETIC STABILITY.

In Proceedings of the International Conference on e-Business, pages 157-162

DOI: 10.5220/0002985901570162

 SciTePress

goal of enterprise architectures, many different frame-

works are available. Various authors (e.g., (Leist and

Zellner, 2006)) have compared these frameworks and

identiﬁed differences and similarities. According to

Leist and Zellner, who evaluated enterprise architec-

ture frameworks with regard to the requirements of

method engineering, no framework exists which pro-

vides all necessary elements to constitute a complete

method (Leist and Zellner, 2006). Should an enter-

prise architect require the use of all elements, sev-

eral (complementary) frameworks can be used con-

currently, or a particular framework can be extended

with missing elements. However, by combining or

extending existing frameworks, the issue of integra-

tion between the models in the framework becomes

even more complex. While most frameworks reduce

the inherent complexity of an organization by offer-

ing separate views, it is not always clear how these

views relate to or affect each other. The integration

between the conceptual models should facilitate the

translation of a single change in the outside world to

all the different aspects of the organization.

However, if a change in a certain model affects

other models it is combined with, a combinatorial ef-

fect occurs. While originally used in the Normalized

Systems approach to describe evolvability in soft-

ware, combinatorial effects also seem to affect evolv-

ability on the enterprise architecture level. Anal-

ogously with combinatorial effects on the software

level, this implies that organizations would become

less evolvable as they grow. While the issue of inte-

gration has been acknowledged by other authors (e.g.,

(Lankhorst, 2005)), it has, to our knowledge, not yet

been studied based on system theoretic concepts such

as stability. By applying the design principles from

Normalized Systems to enterprise architecture, we at-

tempt to introduce these concepts in this ﬁeld. In this

paper, we elaborate on the construction of the core di-

agram. The core diagram is a model which provides

an overview of the organizational scope which will be

designed (Ross et al., 2006). Moreover, the core dia-

gram aids understandability and communication of an

enterprise architecture framework.

3 THEORETICAL FOUNDATION

3.1 Enterprise Ontology

Enterprise Ontology views the organization as a so-

cial system (Dietz, 2006). Therefore, it is well suited

to describe the interaction between an organization

and its environment. Enterprise Ontology assumes

that communication between human actors is a neces-

sary and sufﬁcient basis for a theory of organizations

(Dietz, 2006). This is based on the language action

perspective and Habermas theory of communicative

action. The strong theoretical foundation ensures a

consistent modelling methodology. Clear guidelines

are provided to create abstract models. Since only

the ontological acts are represented in the models, the

same model will be created for organizations who per-

form the same function, but operate differently. For

example, consider the BPR case at Ford (Hammer,

1990). The ontological model of the processes of the

situation before and after reengineering are identical.

Because of the focus on the essential business pro-

cesses, Enterprise Ontology models can be very con-

cise. Therefore, they provide a good overview of a

broad enterprise scope, and are well suited as an en-

terprise architecture core model.

The transaction pattern describes the coordination

necessary to produce a certain result. This result is

represented by a production fact. There are always

two actors involved in a transaction: the initiator ac-

tor who wants to achieve the fact, and the executor

actor who performs the necessary actions to create

the fact. Delivering a product, performing a service

or subscribing to an insurance are examples of pro-

duction facts which could be created by completing

a transaction. The high-level structure of the trans-

action pattern consists of three phases. In the order

phase, the actors negotiate the subject of the transac-

tion. In the execute phase, the subject of the transac-

tion is brought about. In the result phase, the result of

the transaction is presented and accepted. In different

versions of the transaction pattern, different ontolog-

ical process steps are identiﬁed in the three phases.

These steps are called coordination acts. The suc-

cessful completion of an act results in a coordination

fact.

The basic transaction pattern consists of the ﬁve

standard acts which occur in a successful scenario

(i.e., request, promise, execute, state and accept) (Di-

etz, 2006, p. 90). Consider a transaction in the case of

a simple product delivery process. In the order phase,

the customer requests the product. Once this request

is adequately speciﬁed, the request coordination fact

is created. The supplier then promises to deliver the

product according to the agreed terms. This creates

the promise coordination fact. In the execute phase,

the executor actually performs the the execute act, re-

sulting in the production fact. In our example, this

is the actual delivery (i.e., “Product X has been de-

livered”). In the result phase, the supplier states that

the delivery has been completed. If the customer is

satisﬁed with the delivery, he will accept the delivery

in the accept process step. Once the accept coordina-

ICE-B 2010 - International Conference on e-Business

158

tion fact is created, the transaction is considered to be

completed.

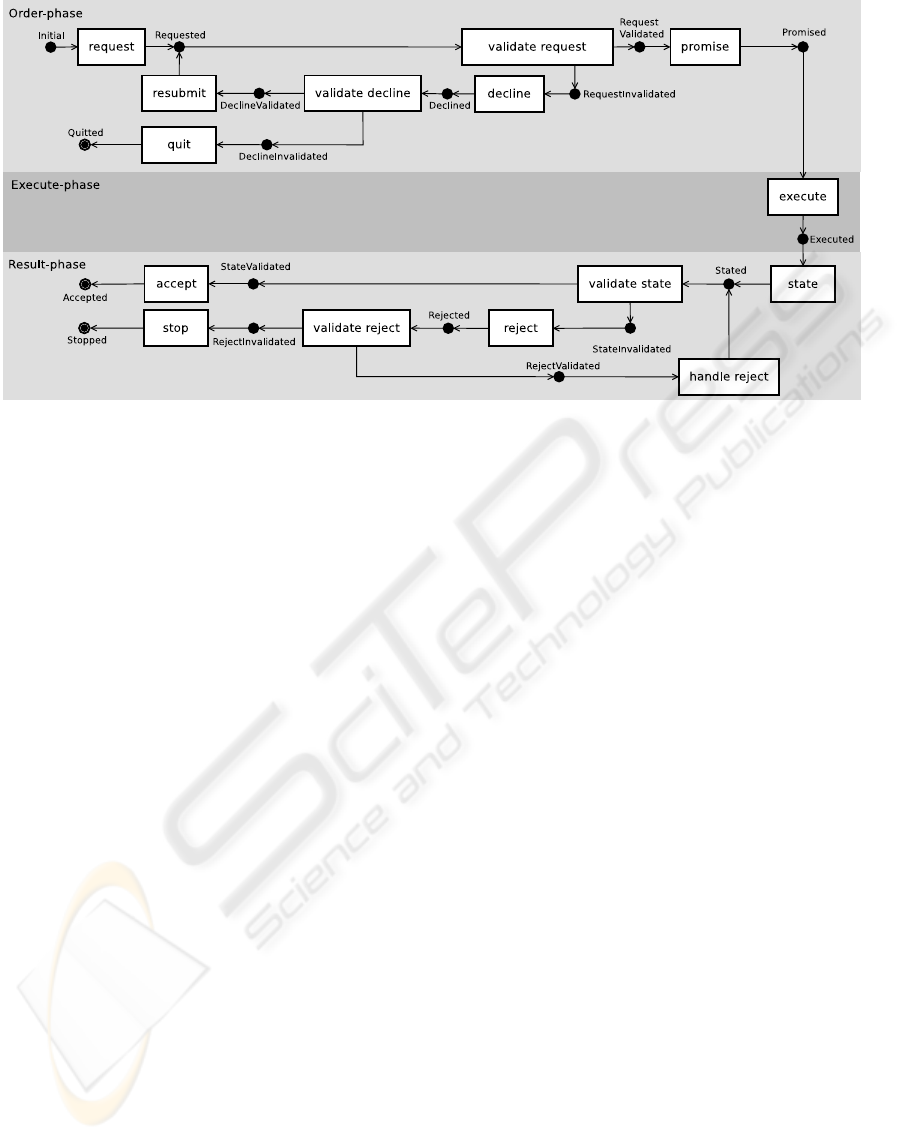

The standard transaction pattern is the basic trans-

action pattern, augmented with the scenario in which

the actors dissent (Dietz, 2006, p. 93). In the order-

phase, the executor actor can decline the incoming re-

quest of the initiator actor. The initiator then has to

decide whether he resubmits his request, or quits the

transaction. In our example, the supplier could de-

cline the delivery of a product which does not belong

to his catalogue. The customer would need to select

another product, or quit the transaction and search an-

other supplier. The execute-phase is identical to the

execute-phase in the basic transaction pattern. In the

result-phase, the initiator actor can reject the stated

production fact instead of accepting it. The executor

then has to decide whether he wants to repeat the ex-

ecution act and make the statement again, or stop the

transaction.

3.2 Normalized Systems

The basic assumption of the Normalized Systems ap-

proach is that information systems should be able

to evolve over time, and should be designed to ac-

commodate change. To genuinely design information

systems accommodating change, they should exhibit

stability towards requirements changes. In systems

theory, stability refers to the fact that bounded in-

put to a function results in bounded output values,

even as t → ∞. When applied to information sys-

tems, this implies that no change propagation effects

should be present within the system; meaning that a

speciﬁc change to an information system should re-

quire the same effort, irrespective of the information

system’s size or the point in time when being applied.

Combinatorial effects occur when changes require in-

creasing effort as the system grows. They need to

be avoided in stable systems. Normalized Systems

are therefore deﬁned as information systems exhibit-

ing stability with respect to a deﬁned set of changes

(Mannaert and Verelst, 2009), and are as such defy-

ing Lehman’s law of increasing complexity (Lehman,

1980) and avoiding the occurrence of combinatorial

effects.

The Normalized Systems approach proposes a set

of four design principles that act as design rules to

identify and circumvent most combinatorial effects

(Mannaert and Verelst, 2009). The ﬁrst principle, sep-

aration of concerns, implies that every change driver

or concern should be separated from other concerns.

This theorem allows for the isolation of the impact of

each change driver. The second principle, data ver-

sion transparency, implies that data should be com-

municated in version transparent ways between com-

ponents. This requires that this data can be changed

(e.g., additional data can be sent between compo-

nents), without having an impact on the components

and their interfaces. The third principle, action ver-

sion transparency, implies that a component can be

upgraded without impacting the calling components.

This principle can be accomplished by appropriate

and systematic use of, for example, polymorphism

or a facade pattern. The fourth principle, separation

of states, implies that actions or steps in a workﬂow

should be separated from each other in time by keep-

ing state after every action or step. This suggests an

asynchronous and stateful way of calling other com-

ponents.

The design principles show that software con-

structs, such as functions and classes, by themselves

offer no mechanisms to accommodate anticipated

changes in a stable manner. The Normalized Systems

approach therefore proposes to encapsulate software

constructs in a set of ﬁve higher-level software ele-

ments. These elements are modular structures that

adhere to these design principles, in order to provide

the required stability with respect to the anticipated

changes (Mannaert and Verelst, 2009). From the sec-

ond and third principle it can straightforwardly be

deduced that the basic software constructs, i.e., data

and actions, have to be encapsulated in their desig-

nated construct. As such, a data element represents

an encapsulated data construct with its get- and set-

methods to provide access to their information in a

data version transparent way. So-called cross-cutting

concerns, for instance access control and persistency,

should be added to the element in separate constructs.

The second element, action element, contains a core

action representing one and only one functional task.

Four different implementations of an action element

can be distinguished: standard actions, manual ac-

tions, bridge actions and external actions. In a stan-

dard action, the actual task is programmed in the ac-

tion element and performed by the same information

system. In a manual action, a human act is required

to fulﬁl the task. The user then has to set the state of

the life cycle data element through a user interface,

after the completion of the task. A process step can

also require more complex behaviour. A single task

in a workﬂow can be required to take care of other

aspects, which are not the concern of that particu-

lar ﬂow. Therefore, a separate workﬂow will be cre-

ated to handle these concerns. Bridge actions create

these other data elements going through their desig-

nated ﬂow. When an existing, external application is

already in use to perform the required task, the action

element would be implemented as an external action.

DESIGNING ENTERPRISE ARCHITECTURES BASED ON SYSTEMS THEORETIC STABILITY

159

These actions call other information systems and set

their end state depending on the external systems’ re-

ported answer. Based upon the ﬁrst and fourth prin-

ciple, workﬂow has to be separated from other action

elements. These action elements must be isolated by

intermediate states, and information systems have to

react to states. To enable these prerequisites, three

additional elements are identiﬁed. A third element

is thus a workﬂow element containing the sequence

in which a number of action elements should be exe-

cuted in order to fulﬁll a ﬂow. A consequence of the

stateful workﬂow elements is that state is required for

every instance of use of an action element, and that

the state therefore needs to be linked to or be part of

the instance of the data element serving as argument.

A trigger element is a fourth one controlling the states

(both regular and error states) and checking whether

an action element has to be triggered. Finally, the con-

nector element ensures that external systems can in-

teract with data elements without allowing an action

element to be called in a stateless way.

4 ARTEFACT CONSTRUCTION

In this section, we outline the construction of a

core diagram which is based on Enterprise On-

tology models and expressed in Normalized Sys-

tems constructs. Since Enterprise Ontology mod-

els are implementation-independent, we can base our

method on these models to implement the needed or-

ganizational aspects in the transactions. The result-

ing artefact is called a Normalized Systems Business

Transaction (NSBT). In order to illustrate the differ-

ent steps, we use a mail order example. In this exam-

ple, different implementations of ontological process

steps are available. For example, consider the request

of the order. Instead of using a standard mail form,

the company can offer the customer the possibility

to place the order on a website. We introduce these

variations to illustrate the evolvability of the NSBT

with regard to changes in implementation technology.

While this changes the implementation, no changes

are made to the essential Enterprise Ontology mod-

els.

In the mail order example, an Enterprise Ontology

transaction would result in a production fact “an or-

der has been delivered”. In Normalized Systems, this

transaction pattern is represented by a ﬂow element.

A ﬂow element is driven by precisely one data ele-

ment, the life cycle data element. In order to deﬁne

a Normalized Systems ﬂow, we thus need a T01 data

element. The completion of the different acts in the

transaction process is represented by the creation of

ontological facts. In Normalized Systems, these facts

are represented by the states which occur in the ﬂow

element, being the life cycle states of the correspond-

ing data element. To reach these states, a state transi-

tion is required. A state transition is realized by an

action element. The successful completion of that

action element results in the deﬁned life cycle state.

In order to deﬁne the control ﬂow of the process, we

therefore need to specify the trigger states, state tran-

sitions and transaction actions. Regarding the request

coordination fact, this implies that the T01 ﬂow ele-

ment, and thus also the corresponding T01 data ele-

ment, should reach the state Requested. This means

that upon initiation of a T01 transaction, a new T01

data element is instantiated, resulting in the life cycle

state Initial. The genuine act of requesting is encapsu-

lated in the action element Request. In the mail order

example, the Request action element would contain

the task which ensures that the order request is fully

deﬁned by the customer. In our automated version of

the example, this functionality is offered by the web-

site. However, if the traditional mail order request

form needs to be supported as well, a second Request

action element could be created. This action element

would be implemented as a manual action. When a

retail company employee receives the order request

form, the Requested state will be set manually. The

remainder of the transaction will be handled identi-

cally, regardless of the implementation method of the

request. The concerns of creating the data element

and handling the request are thus separated as they

can clearly evolve independently from each other.

While all state transitions are deﬁned as action el-

ements, their different nature can mean that they need

to be implemented differently. Consider the notiﬁ-

cation of the initiator actor in the promise process

step. If this notiﬁcation requires a human action, the

Promise action element would be implemented as a

manual action. For example, it could be that the or-

der request needs to be approved by an employee of

the retail company. However, the promise process

step can also require more complex behaviour. When

for example the requested product ﬁrst needs to be

reserved in the warehouse, the Promise action ele-

ment would be implemented as a bridge action trig-

gering a ﬂow element on another data element, e.g.,

a Reservation element. When the retail company

already has an existing application in use to perform

these reservations, the Promise action element would

be implemented as an external action.

However, the transaction process does not always

follow the successful scenario. In the scenario in

which the actors can dissent, additional coordination

acts need to be added. When translating these acts to

ICE-B 2010 - International Conference on e-Business

160

Figure 1: Graphical representation of the standard transaction pattern ﬂow.

Normalized Systems primitives, some additional ac-

tions and states have to be included due to the Nor-

malized Systems theorems. The resulting Normalized

Systems ﬂow element is graphically represented in

Figure 1. Based on separation of concerns, the deci-

sion of the executor actor to promise or decline the re-

quest needs to be separated from the actual coordina-

tion act (i.e., the communication of the decision). The

decision logic to promise or decline can change inde-

pendently from the communication method, as shown

by the various implementations of the Promise action

element described above. Since the communication

method can also change independently of the decision

logic, these two actions should not be combined in

one action element. Doing so would introduce a com-

binatorial effect. Therefore, we introduce an addi-

tional action element ValidateRequest. In the case

where the executor decides to handle the request, the

state RequestValidated is set. Otherwise, the state Re-

questInvalidated is set. The actual Promise action el-

ement then contains the actual communication of the

decision. In our example, the ValidateRequest ac-

tion element can contain the logic to check whether

the retail company can deliver the order, e.g., whether

the product is in stock. If the request is declined, the

initiator actor needs to decide whether or not to resub-

mit the request. This decision logic is again separated

from the other actions by encapsulating the decision

logic in an action element ValidateDecline. If the

initiator decides to resubmit, the state is set to De-

clineValidated. The Resubmit action element then

allows the initiator actor to possibly change the re-

quest and to resubmit it which will again result in the

state Requested. If the product from the original or-

der request is not available, the customer thus has the

option to adapt his order and resubmit it. If the ini-

tiator decides to abort the transaction, the state is set

to DeclineInvalidated, which triggers the Quit action

element to reach the end state Quitted. Analogously,

the initiator actor has to decide whether he accepts the

stated production fact in the result phase of the trans-

action. We therefore introduce the ValidateState

action element, which results in the StateValidated

state in case of a successful acceptance, or in the

StateInvalidated state in case of an unsuccessful one.

The StateValidated state triggers the Accept action

element, which contains the actual accept coordina-

tion act. In case the initiator does not accept the state

coordination fact, the workﬂow is brought to the Re-

jected state through the Reject action element. The

separation of concerns theorem forces us again to sep-

arate the action element containing the decision logic

(i.e., the ValidateState action element) from the ac-

tion element containing the communication method

(i.e., the Accept and Reject action elements). In

our example, it is possible that the customer is not

satisﬁed with the delivered products. This decision

can be implemented as a manual action element. The

user would manually check the delivery, and indicate

whether he accepts it. However, in the context of a

B2B transaction, it could be that an automated qual-

ity control system is in place. In that case, an external

action element would be used. These different action

elements could bring the state of the transaction work-

low in the StateInvalidated state. The Reject action

element, which communicates the decision, can again

be implemented using the different types of action el-

ements. The decision whether to handle the reject is

taken in the ValidateReject action element. The

reject handling itself is implemented as a dedicated

DESIGNING ENTERPRISE ARCHITECTURES BASED ON SYSTEMS THEORETIC STABILITY

161

HandleReject action element. If the retail company

agrees with the complaint, it can modify the delivery

and state the delivery again. If the executor does not

handle the reject, the transaction reaches the end state

Stopped through the Stop action element.

5 DISCUSSION AND

CONCLUSIONS

In this paper, it has been shown that an NSBT, which

consists only of Normalized Systems elements, can

be constructed as a core diagram for an enterprise

architecture framework. By using the combination

of implementation-independent Enterprise Ontology

models and evolvable Normalized Systems elements,

we have demonstrated the ﬂexibility in an e-business

example, by adding a multi-channel request process.

Should the request of the delivery transaction not have

been separated from the execution (i.e., the actual de-

livery), such an addition would have resulted in a

combinatorial effect. Consider the following situa-

tion, in which this separation has been neglected: sep-

arate delivery systems are used for physical requests

(i.e., which are requested through mail) and electron-

ical requests (i.e., orders from the website). A simple

change in the delivery execution, such as recording

the delivery of a certain product, would require two

distinct implementations. The impact of the change

would thus depend on the size of the system: when

more retail channels would be added, the same change

would cause an even larger impact. Such combinato-

rial effects should be avoided. In subsequent itera-

tions, we will integrate other aspects present in en-

terprise architecture frameworks. This will be done

analogously to the integration of cross-cutting con-

cerns on the software level into Normalized Systems

elements.

This paper has two important contributions. A

ﬁrst contribution is that we introduced the concept of

combinatorial effects on the level of enterprise archi-

tectures. We further illustrated how the systems theo-

retic concept of stability can be applied to the design

of enterprise architectures. This requires the elim-

ination of combinatorial effects, which will lead to

more evolvable organizations. As a result, we offer

a view on enterprise agility that has a strong theo-

retical foundation. A second contribution is that we

demonstrated the feasibility of constructing an enter-

prise architecture core diagram based on existing sci-

entiﬁc approaches. By expressing the core diagram in

Normalized Systems elements, we extended the Nor-

malized Systems approach to the organizational level.

Using Enterprise Ontology models as the basis for

the core diagram further demonstrates the feasibility

of constructing an enterprise architecture framework

based on scientiﬁc theories. This illustrates how the-

ories from relevant ﬁelds can be applied in a new set-

ting by using a design science approach.

REFERENCES

Bernus, P., Nemes, L., and Smidth, G. (2003). Handbook

on Enterprise Architecture. International Handbooks

on Information Systems. Springer-Verlag, Berlin.

Dietz, J. L. (2006). Enterprise Ontology: Theory and

Methodology. Springer, Berlin.

Hammer, M. (1990). Reengineering work: Don’t automate,

obliterate. Harvard Business Review, 68(4):104ff.

Hoogervorst, J. A. P. (2009). Enterprise Governance and

Enterprise Engineering (The Enterprise Engineering

Series). Springer, 1st edition.

Lankhorst, M. M. (2005). Enterprise architecture

modelling–the issue of integration. Advanced En-

gineering Informatics, 18(4):205 – 216. Enterprise

Modelling and System Support.

Lehman, M. (1980). Programs, life cycles, and laws of soft-

ware evolution. Proceedings of the IEEE, 68:1060–

1076.

Leist, S. and Zellner, G. (2006). Evaluation of current archi-

tecture frameworks. In SAC ’06: Proceedings of the

2006 ACM symposium on Applied computing, pages

1546–1553, New York, NY, USA. ACM.

Liles, D. H., Johnson, M., Meade, L., and Underdown, D.

(1995). Enterprise engineering: A discipline? In for

Enterprise Engineering, S., editor, Proceedings of the

Society for Enterprise Engineering Conference, Ket-

tering, Ohio.

Mannaert, H. and Verelst, J. (2009). Normalized Systems:

Re-creating Information Technology Based on Laws

for Software Evolvability. Koppa, Hasselt.

Ross, J. W., Weill, P., and Robertson., D. C. (2006). Enter-

prise Architecture as Strategy – Creating a Founda-

tion for Business Execution. Harvard Business School

Press, Boston, MA.

ICE-B 2010 - International Conference on e-Business

162
