TOWARDS RISK BASED PREVENTION OF GROOMING

ATTACKS

Dimitrios Michalopoulos and Ioannis Mavridis

University of Macedonia, Thessaloniki, Greece

Keywords: Risk modeling methods, Grooming detection.

Abstract: The increasing incidents of children sexual exploitation through cyberspace demand for proper protection

with technological defense mechanisms. This paper aims to present and evaluate methods and tools that are

appropriate towards the prevention of child sexual abuse through Internet based communications. Attacking

categories and strategies that predators follow are analyzed and modeled. Moreover, a comparative review

of existing risk modeling methods, which is based on a set of proposed criteria, is presented. This

comparison results in the conclusion that only two of the reviewed risk modeling methods can be adapted on

the intended grooming attack detection system: Bayesian and Markovian. The proposed approach is

concluded with a discussion on particular methods and tools for accurate attack probability calculation.

1 INTRODUCTION

During recent years Internet has been growing

rapidly. Along with the World Wide Web online

communication forms has grown as well. Chat

rooms, instant messaging IM, social networks like

facebook and MySpace are becoming very popular

among children and teenagers. The spend lot of time

on these online communities talking with friends,

classmates or strangers. At the same time many

incidents of children sexual exploitation (grooming

attacks) are reported (Subrahmanyam et al. 2006).

Parents are very concerned about how safe their

children are while spending hours on the internet

talking on these modern communication forms. In

parallel, as they are older they do not have the

proper knowledge and experience for protecting

their children properly.

In section 2 the issues of Internet related hazards

for youth are analyzed and modeled. A comparative

review of existing risk modeling methods is

presented and discussed in section 3. And the paper

concludes with a discussion on methods and

techniques for accurate grooming attack probability

calculation.

2 PROBLEM ANALYSIS

The hazards that children are exposed to while

talking online vary through age and sex and can be

divided into three main categories: (a)

cyberbullying, (b) sexual exploitation or grooming

and (c) exposing to illegal material.

Cyberbullying refers to all kind of attacks that

terrify a young user with threats for his/her life,

parents and friends (Bauman 2007); (Finkelhor and

Ormrod 2000). The most usual types of

cyberbullying are (Bauman 2007):

 Sycophantic defamation

 Assaulting and abusive messages

 Menace against life

 Social exclusion from online communication

networks

Sexual exploitation or grooming attacks are

performed by people who feel sexual attracted to

children using modern communication methods for

victim exploitation (Dean 2007). The research that

has been published on this area has shown the there

are similarities on grooming strategies

(Subrahmanyam et al. 2006); (O’Connell 2003);

(Stanley 2001); (Krone 2005). The types of

grooming are (O’Connell 2003):

 Forming a “love” relationship

 Cyber-rape

 Fantasy enactment

217

Michalopoulos D. and Mavridis I. (2010).

TOWARDS RISK BASED PREVENTION OF GROOMING ATTACKS.

In Proceedings of the International Conference on Security and Cryptography, pages 217-220

DOI: 10.5220/0002986702170220

 SciTePress

Exposing to illegal material includes many types

of images, video, music. Frequently, children are

exposed to problematic materials motivated by

predators or their own curiosity. Indeed, this

category cannot be modeled: The World Wide Web

is a huge source of information and children can

search for inappropriate material not necessary

motivated by a third person.

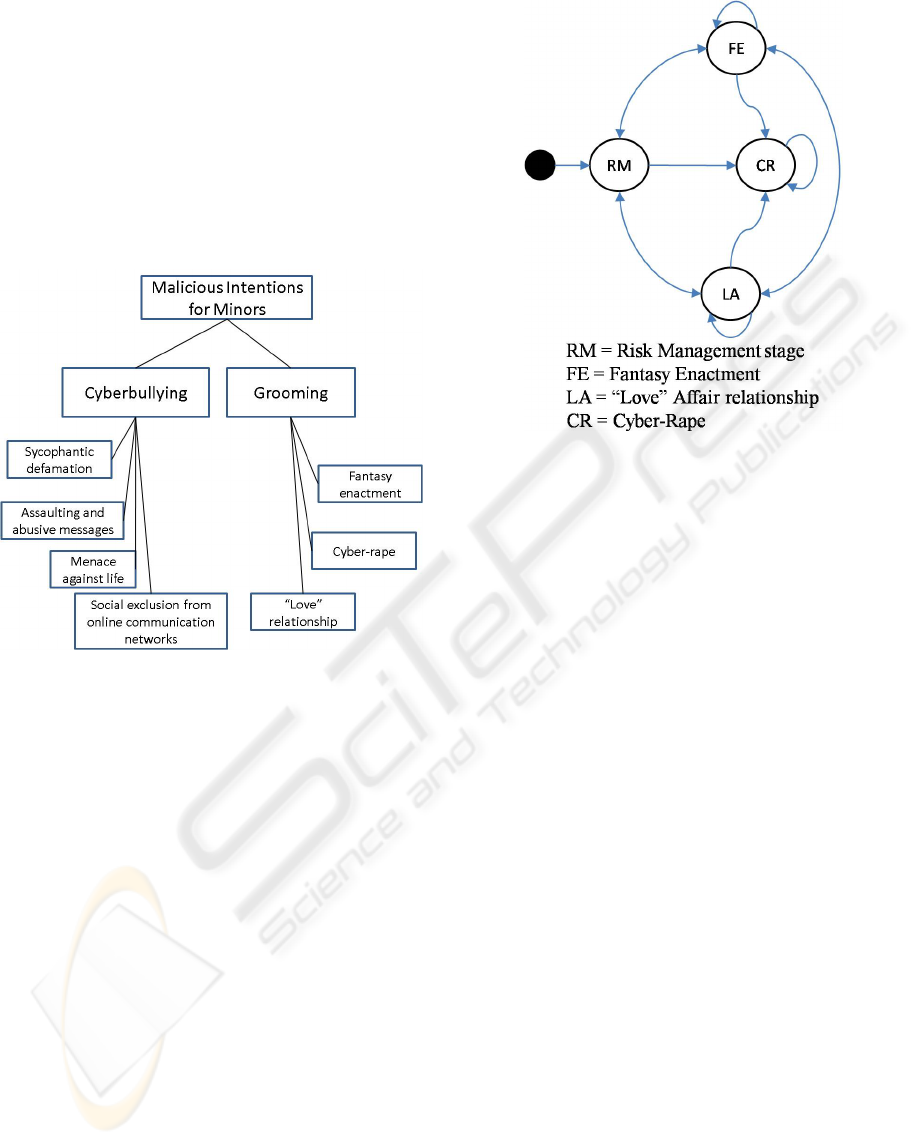

Figure 1 bellow presents the IM and Chat attack

tree that categorizes attacks on children through

internet communications:

Figure 1: IM and Chat attack tree.

In this paper most of the effort is focused on

grooming attacks for two reasons: At first grooming

affects on children are more important and secondly

cyberbullying incidents are more difficult to be

detected and analyzed.

The first step for preventing grooming incidents

is the analysis of how predators act and which their

aims are. Similarly, O’Connell (2003) investigated

grooming incidents and indicated specific stages that

predators follow to perform an attack: The

friendship stage, the relationship stage, the risk

management stage and the sexual stage. The final

one, sexual stage, includes three categories of attack

as they are analyzed previously and presented at the

attack tree of figure 1. For simplicity reasons the

three initial stages before the sexual stage,

friendship, relationship and risk management stage,

are merged in one: the risk management stage

including predator’s preliminary actions before an

attack. The possible transitions between the above

stages are depicted in the state-transition diagram of

figure 2, based on the published research work

(Subrahmanyam et al. 2006); (O’Connell 2003);

(Stanley 2001); (Krone 2005).

Figure 2: Grooming Attack state-transition diagram.

3 COMPARATIVE REVIEW

OF RISK MODELING

METHODS

The potential system detects grooming attacks and

sends a warning signal in case of attack detection.

Indeed, the decision of sending a warning signal or

not is crucial. In case of a false positive (of false

grooming attack detection with warning signal

transmission) the system becomes irritating.

Similarly, in case of a false negative (of grooming

attack incident that was not identified) the

consequences can be catastrophic for the minor user.

Therefore, the decision making algorithm of the

potential grooming attack detection system is going

to decide if a warning signal will be send or not

through a risk modeling process.

Indeed, which one of the existing risk modeling

methods is proper for grooming attack detection?

How risk modeling methods can be implemented on

grooming detection? Which are the criteria for such

an effort? Towards a risk based grooming attack

prevention the following criteria are specified and

proposed based on the specific needs of grooming

attack detection and the published research on this

area (Subrahmanyam et al. 2006); (O’Connell

2003); (Stanley 2001); (Krone 2005)

• C1.Memory of the previous stages is required.

The performing of a grooming attack is not

based only in present stage but is related to

SECRYPT 2010 - International Conference on Security and Cryptography

218

Table 1: Comparison of Risk Modeling Methods.

C1 C2 C3 C4 C5

Block Diagram

No Yes No Yes Towards

Attack Tree

No Yes No Yes Towards

Master Logic Diagram

No Yes No Yes Towards

Event Tree

No Yes No Yes Towards

FMEA - FMECA

Yes Yes Yes Yes Towards

Bayesian Network

Yes No Yes Yes Both

Markov Diagram

Just for the previous No Yes Yes Both

Hidden Markov Model

Just for the previous No Yes No Both

Kalman Filter

Just for the previous No Yes No Both

previous ones.

• C2.There are component dependencies – items

are not physically independent as the presence

of one stage is depended on the previous one.

• C3.The approach is probabilistic-quantitative.

The decision making algorithm about sending

or not a warning signal demands for

probabilistic approach

• C4.The present state should be clear. The

clearance of the present state is crucial for

accuracy in attack probability calculations.

• C5.The attack flow is both towards and

backwards. The attack flow is not precise, the

predator may return to the previous stage, stay

more type and then perform a different type of

attack.

What follows is a brief review of the existing risk

modeling methods with pros and cons for each one:

Block Diagram Method. This method usually

approaches the physical arrangement of the items

(Modarres et al. 1999).

Attack tree method. This method is widely used

in information systems and software engineering.

Master Logic Diagram. It is mostly used in

large and complex systems with several autonomous

subsystems (Modarres et al. 1999).

Event Tree method. This method underlines the

discrete states of a system. It is suitable in cases

where the attack depends on the chronological order

of events (Modarres et al. 1999).

The above three methods, called Logic trees

(Block Diagram, Attack tree, Master Logic Diagram,

Event Tree), are based on Logical or Qualitative

evaluation (Boolean) evaluation. However, this

approach is not suitable as the decision algorithm

demands for probabilistic approach. Methods that

are analyzed above are more focused on

probabilistic – quantitative approach:

Failure Mode and Effect Analysis - FMEA.

Failure Mode and Criticality Analysis - FMECA

(Bouti and Kandy 1994).

Bayesian Network. This is a very powerful

mathematical model for probability calculation

(Krause and Clark1993).

Markov Diagrams. This model is widely used

in economics, computer science, assurance etc. In

many cases it is used in computer science as well. It

is a stochastic method for prediction sequences of

events and analyses the probability of each event to

occur (Kemeny and Snell 1976); (Ayyub 2003).

Hidden Markov model. (HMM) It is similar to

Markov one with the difference that the present state

is unobserved (Kemeny and Snell 1976).

Kalman Filter. Similar with the Hidden Markov

model, is the Kalman filter, developed by Kalman

(1960).

Table 1 presents a synopsis of all above methods

and how they are matching the predefined criteria.

The comparison denotes that two methods match the

defined criteria: Bayesian and Markovian. Indeed,

the implementation of the Bayesian demands for the

calculation of conditional probabilities for the

transmission in each stage. Similarly, the

implementation of the Markovian demands for the

calculation of the transmission matrixes for each

transmission.

The basic challenge is how these transmission-

conditional probabilities can be calculated

accurately. The proposed method for these

calculations is the stochastic simulation (Modarres et

al. 1999). The analysis of a large number of

grooming incidents will lead to accurate estimations

about the transmission probabilities. These

TOWARDS RISK BASED PREVENTION OF GROOMING ATTACKS

219

grooming incidents can be found for example on the

web site www.perverted-justice.com or from live

process where the researcher can pretend a minor

user through chat room or IM conversations. The

categorization among the attack categories will be

achieved through keyword identification. Dialog

analysis will indicate basic keywords that indicate

the presence in specific attack stage.

4 CONCLUSIONS

The implementation of a grooming attack detection

system demands for deep analysis of the

methodologies that predators follow. Besides, the

decision making algorithm about sending or not a

warning signal, leads to a probabilistic approach for

risk modeling. In this paper, most of the existing risk

modeling methods are analyzed and compared

according to a set of proposed criteria and in order to

be implemented on the intended grooming attack

detection system. Bayesian and Markovian methods

seem to match the criteria. However, the

implementation of each method demands for proper

conditional-transmission probability calculation. For

this purpose, stochastic simulation through dialog

analysis is selected for use, in a large number of

known grooming incidents. This dialog analysis

should also include the categorization of captured

dialogs into various attack categories.

The basic advantage of the intended grooming

attack detection system is instant warning. The

system analyzes the captured dialogs, calculates the

probability of grooming attack and then decides

whether to send a signal or not. Thus, parents can be

warned about a possible danger on time and make all

the necessary actions to prevent any catastrophe.

REFERENCES

Ayyub, B., 2003 Risk Analysis in Engineering and

Economics Taylor & Francis Ltd 2003 ISBN

1584883952

Bauman, S., 2007 CyberBullying: a Virtual Menace,

National Coalition Against Bullying, Melbourne,

Australia,www.ncab.org.au/Assets/Files/Bauman,%20

S.%20Cyberbullying.pdf accessed October 2009

Bouti A, Kadi A. D., 1994 A State-of-the-art review of

FMEA/FMECA International Journal of Reliability,

Quality and Safety Engineering, vol1 pp.515-543

Dean, S., (2007) Sexual Predators: How to recognize them

on the internet and on the street - how to keep your

kids away, Silver Lake Publishing.

Finkelhor, D. and Ormrod, R., 2000 Characteristics of

Crimes against Juveniles, Juvenile Justice Bulletin, pp.

1-11.

Kalman, R. E., 1960 The Seminal Kalman Filter Paper

http://www.cs.unc.edu/~welch/kalman/kalmanPaper.ht

ml accessed October 2009

Kemeny, J. G. and Snell, J. L., 1976 Finite Markov chains,

Springer-Verlag, ISBN: 978-0-387-90192-3

Krause, P., Clark, D., 1993 Representing Uncertain

Knowledge: An Artificial Intelligence Approach,

Springer, 1 edition, ISBN-10: 0792324331

Krone, T., 2005 Queensland Police Stings in Online Chat

rooms no. 301, Australian Institute of Criminology

www.aic.gov.au/documents/B/C/E/%7BBCEE2309-

71E3-4EFA-A533-A39661BD1D29%7Dtandi301.pdf

accessed October 2009

Madan, B. B., Gogeva-Popstojanova, K., Vaidyanathan,

K., Trivedi, K.S., 2002 Modeling and quantification of

security attributes of software systems, Dependable

Systems and Networks, Proceedings of International

Conference on Dependable Systems and Networks

vol., no. pp. 505-514

Modarres, M., Krivtsov, V., Kaminskiy, M., 1999

Reliability Engineering and Risk Analysis, Taylor &

Francis Ltd New York 1999 ISBN 0824720008

O'Connell, R., (2003) A typology of child

cybersexploitation and online grooming practices,

Cyberspace Research Unit, University of Central

Lancashire (UK), http://image.guardian.co.uk/sys-

files/Society/documents/2003/07/24/Netpaedoreport.p

df accessed October 2009

Rish, I., 2001 An empirical study of the naive Bayes

classifier IJCAI 2001 Workshop on Empirical

Methods in Artificial Intelligence

Stanley, J., (2001) Child abuse and the Internet, Australian

Institute of Family Studies, Melbourne,

http://aifs.org.au/nch/pubs/issues/issues15/issues15.pd

f accessed October 2009

Subrahmanyam, K., Smhel, K. and Greenfield, P., 2006

Connecting Developmental Constructions to the

Internet: Identity presentation and Sexual Exploration

in Online Teen Chat Rooms, National Science

Foundation Grant

Taylor, C., Krings, A., Alves-Foss, J., 2009 Risk Analysis

and Probabilistic Survivability Assessment (RAPSA):

An Assessment Approach for Power Substation

Hardening, http://

www.csds.uidaho.edu/papers/Taylor02a.pdf accessed

October 2009

SECRYPT 2010 - International Conference on Security and Cryptography

220
