A NOVEL MODULAR BLACK-BOX ARCHITECTURE

FOR SECURE VEHICULAR NETWORKS

M’hamed Chammem, Mohamed Hamdi and Noureddine Boudriga

Communication Networks and Security Research Lab., Sup’Com, University of 7th of November, Carthage, Tunisia

Keywords: VCS, Black-box, Investigation process, Information privacy, Secure access, Authentication.

Abstract: The emerging technology of vehicular communication systems (VCSs) raises a number of technical

challenges that need to be addressed. Particularly, security ranks at the top of these challenges. In fact, the

plethora of services that can be provided using VCSs introduces new communication scenarios that require

special security services. This paper tackles the problems related to the storage of the evidences related to

onboard security architectures. A special emphasis is made on the management of the events related to the

features and history of the vehicle. In this context, a new black-box architecture is proposed. It consists in

two basic modules: a main black-box and an auxiliary black-box. We show that this separation allows a

better classification of the data records supported by the block-box. The interaction of the black-box with

the other components of the VCS is also discussed. Due to the sensitivity of the event records, the input data

flows pass necessarily through a security module which performs some key functions including event

timestamping and security policy management. A specific public key infrastructure is also proposed to

support our secure VCS architecture.

1 INTRODUCTION

The recent proliferation of the applications of

Vehicular Communication Systems (VCSs) has been

mainly rendered possible by the development of

embedded electronic systems and wireless

communication infrastructures. The particular

features of vehicular networks mainly stem from the

nature of the parties involved in the communication

and also from the properties of the data. In fact, the

entities that are part of a vehicular communications

system are private and public vehicles, the road-side

infrastructure, and authorities (the latter component

being composed primarily as network entities). An

authority will be responsible for the identity and

credential management for all vehicles registered in

its region (e.g., national territory, state, canton,

metropolitan area), similarly to what is currently the

case. Public vehicles (e.g. police cars) may have

specific roles and be considered as mobile

infrastructure.

This complex context raises two major

security-related challenges: (a) the secure storage of

the event records related to the different applications

the vehicle is involved in and (b) the simultaneous

provision of privacy guarantees and strong

authentication mechanisms. The analysis of the

different incidents that a vehicle can be subject to

(e.g., crashes, thefts, masquerading) strongly

depends on the solutions one can find for these

challenges. The characteristics of VCSs make it

difficult to manage the event records since these can

be related to the applications in which the vehicle is

involved or to some key manufacturing tasks. The

event records should also be generic enough to be

supported by the different actors involved in VCS

transactions.

In this paper, we propose a new black-box

architecture that supports the management of

complex evidence records emanating from the

different components of the VCS. It includes two

major modules: the main black-box and the auxiliary

black-box. The first is used to store highly-sensitive

data that are intrinsic to the vehicle while the latter

rather serves for the preservation of event records

related to the applications to which the vehicle

participates. A security unit is also devised to

support the implementation of sophisticated

operations including data timestamping and security

policy management. According to the application of

interest, appropriate access modes and privileges are

granted to the authorized entities. Furthermore, a

lifetime is defined for every event record category

Chammem M., Hamdi M. and Boudriga N. (2010).

A NOVEL MODULAR BLACK-BOX ARCHITECTURE FOR SECURE VEHICULAR NETWORKS.

In Proceedings of the International Conference on Data Communication Networking and Optical Communication Systems, pages 93-103

DOI: 10.5220/0002989400930103

 SciTePress

depending on the sensitivity of the corresponding

application. A Public Key Infrastructure (PKI) is

developed to support the implementation of the

proposed security architecture. A particular interest

is given to the simultaneous provision of

authentication and anonymity services.

The major contributions of the paper are given in the

following:

1. The black-box concept is generalized to

encompass the storage of data originating from

various applications while it has been used, in

the existing approaches, only to monitor

incidents and crashes.

2. The consideration of two black-box modules

(main black-box and auxiliary black-box) is

suitable with the segregation of duties concept

since the main black-box is accessed only by the

manufacturer and the authorities mandated to

perform post mortem investigation while the

auxiliary black-box can serve to store data

related to various applications.

3. The proposed vehicular PKI guarantees both

authentication and anonymity services. It is also

used to timestamp important events. It relies on

simple operations, which makes it suitable with

the computational and memory capabilities of the

VCS components.

4. We address a case study showing how our

system can be used in complex contexts (i.e.,

fleet management) to monitor various parameters

ranging from the driver behaviour to the events

that can occur to the vehicle.

The rest of the paper is structured as follows.

Section 2 reviews the existing researches that have

addressed the implementation of black-boxes for

vehicular applications. We highlight the factors that

make vehicular black-boxes different from those

used in airplanes. Section 3 explores a set of typical

applications that can be deployed on the basis of

VCSs and sets the basic security requirements for

these applications. Section 4 presents the secure

black-box architecture that constitutes the core of

our contribution. A functional description of the

main modules and data flows is given in this section.

Section 5 describes the PKI we introduced to

support the security services related to the new

black-box module. A case study illustrating the

functionalities enabled by our black-box system is

discussed in Section 6. Finally, Section 7 concludes

the paper.

2 RELATED WORK

The black-box is becoming a mandatory component

in modern vehicles. It can store a lot of useful

parameters to analyze for possible investigation

(Qiang Wu, et al., 2008). However, the functions

implemented on the black-box are not enough

sophisticated.

In Qiang Wu, et al., 2008, a vehicular black-box

architecture is discussed. The architecture of the

developed system can record and store analog video

sequences compliant to H.264 only when the

acceleration exceeds a limit value. When the car

operates in normal conditions, the system does not

record any information since the risk of traffic

accidents is limited. However, if an emergency

occurs, the system will start the video encoding and

stores a series of H.264 files.

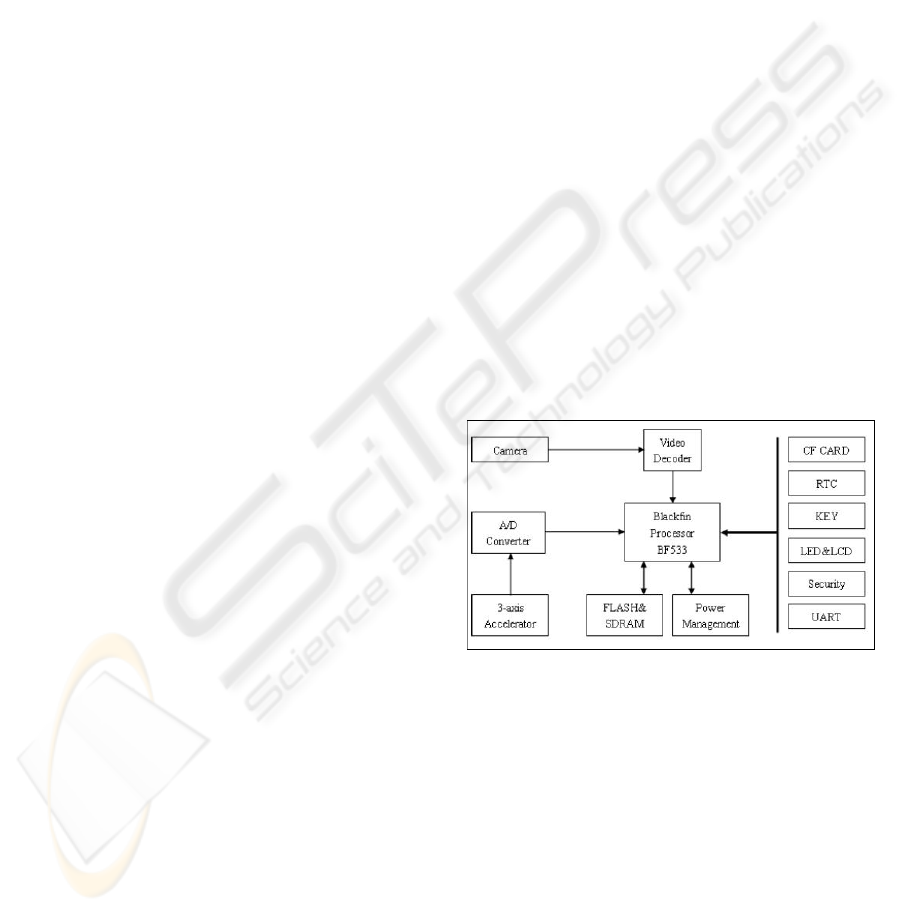

The block diagram representing this black-box is

given in Figure 1. Apart from the camera and video

decoding device, we observe the 3-axis

accelerometer and a memory function. It should be

noticed that the security functions has not been

accurately addressed in this paper.

Since most of the black-box approaches that

have been proposed in the literature for VCSs rely

on Event Data Recorders, we accurately discuss this

concept in the following subsection.

Figure 1: System block diagram of black-box, (Qiang Wu,

et al., 2008).

2.1 EDR-based black-box Approaches

The integration of Event Data Recorders (EDRs) in

a number of recently manufactured vehicles presents

a different perspective on the assessment of the

validity of passengers risk based on the Acceleration

Severity Index ’ASI’ (Gabauer, D.J., and Gabler,

H.C., 2005). EDRs are capable of electronically

recording data such as vehicle speed, brake status

and throttle position just prior to and during an

accident. The ability of EDRs to document the

deceleration of a vehicle during a collision event is

of particular interest. Another interesting feature

DCNET 2010 - International Conference on Data Communication Networking

developed in this study is the ability of EDR to

record the velocity profile of the vehicle during a

collision event.

Other approaches rely on EDR technology to

investigate the correlation between the ASI

threshold limits and the potential for passenger

injury in crash events. Gabauer, D. J., and Gabler, H.

C., (Gabauer, D. J., Gabler, H.C., 2005) investigate a

relationship between the ASI and injury to airbag-

restrained occupants and has established a

methodology for future studies.

Today, the complex computer systems in

vehicles can store huge amount of data.

The concept of black-box has been used for a long

period in aircraft monitoring for recording

information in the few minutes before a crash.

For years, this same concept has been widely

used in the automotive field including crash

investigation and accident scenario reconstruction

(The Florida Senate, 2009 and Deborah Sapper et

al., 2009).

In most vehicles, the EDR module is located in

the airbag control module. The objective of this

module is to monitor the crash scenarios and to

deploy the airbags if needed. This module also

contains several accelerometers. The EDR will

record about five seconds of pre-crash data per type

of vehicle. These data include vehicle speed,

acceleration / deceleration, engine speed...

The EDR will also record the crashing phase,

assessing different parameters every five

milliseconds before impact. These data can be

analyzed to calculate many parameters including the

crash duration and impact velocity (Hampton C.

Gabler and al., 2004).

Despite the abundance of the literature having

addressed the EDR concept, several severe

drawbacks can be noticed (Aleecia M. McDonald,

Lorrie Faith Cranor., 2006):

1. The stored data are not structured according to

their sensitivity making them viewable to

everyone that accesses the black-box. This is not

convenient to the real context where the vehicle

is involved in many applications generating data

with different security levels. The fact that the

EDR is monolithic can be at the origin of

confidentiality and privacy violations if the usage

of the black-box is generalized to the monitoring

of miscellaneous services.

2. The entities storing data into the EDR are not

authenticated. Similarly, the stored events are not

timestamped. These two facts prevents the use of

the stored data as legal proofs. Cryptographic

functionalities should be enabled on the EDR in

order to ensure the authenticity and the integrity

of the data retrieved by the event analyzer.

3. The data stored into the EDR are not prone to

automated analysis. They present relevance only

to experts that can decode appropriately these

data. This constitutes a serious limitation since

even the owner of the vehicle is unable to exploit

the information stored in the corresponding

black-box. Consequently, the usage of the black-

box is confined to the analysis of serious

incidents while it can be used for the storage of

less harmful events such as the profiling of the

driver behaviour or the vehicle state.

2.2 Black-box usage in Modern

Vehicles

Black-boxes have many applications in vehicular

networks. The most relevant usages of this

technology are listed below.

1. Investigating accidents and crashes: The data

recorded by EDR or the black-box just a few

seconds before a crash are usually exploited by

experts in the investigation process to delineate

responsibilities and evidences. The recorded

parameters are mainly related to vehicle speed,

acceleration, braking, timestamp...

2. Training young drivers: Clemens Kaufmann and

Christine Tureschek., (Clemens Kaufmann,

Christine Tureschek., 2008) has a particular

operating data recorded for evaluating the

performance of young drivers during training

sessions. This practice seems to be very helpful

for improving driver training.

3. Detecting unauthorized modification of odometer

parameters: Changing the odometer parameters

reading is a crime that is unfortunately becoming

a widely-performed practice. Some vehicle

owners are not immune to this temptation. Black-

box can provide proofs to ensure that the mileage

is correct.

4. Detecting unauthorized modification of VIN: A

unique identification number of vehicle (VIN) is

assigned to each car. It is a unique identifier of

17 characters, defined by an international

standard that identifies a vehicle uniquely. The

bodies of law enforcement use these serial

numbers to identify and retrieve cars or car parts

that have been stolen. Automobile manufacturers

use the VIN as part of safety recalls. The

character identification number (VIN) can be

considered as part of the black-box to indicate

the vehicle manufacturing data, model, location

of manufacture, and possibly more. The

decoding of this issue is the process of

deciphering that information. The VIN is also

A NOVEL MODULAR BLACK-BOX ARCHITECTURE FOR SECURE VEHICULAR NETWORKS

used to access a report on the vehicle history

(Carfax, 2010). Each report issued by CARFAX

contains important information that can influence

the decision of whether to buy a used car.

5. Addressing special needs: The use of vehicles by

governmental poses specific problems and

therefore requires careful management of the

vehicle's history including the presence of

multiple drivers per vehicle. Some information

available in the black-box can allow the

identification the behaviours of drivers and their

parameters such as speed, acceleration, shock.

The exploitation of such information can help in

fleet management car (e.g., government, fire-

fighters, rent) to better understand the history of

cars.

2.3 Intrinsic Features of the Vehicular

Black-box

Black-boxes have been widely as part of airplane

security systems to store reliable proofs and

evidences that can assist in investigation processes.

The extension of this concept to the VCS context

requires substantial modifications due to the

particular characteristics of vehicular networks. In

the following, we give the most important features

of vehicular black-boxes.

1. The qualifications of the driver or driver are

completely different. The drivers like the drivers

of trains and boats have training and

qualifications. They all have predispositions to

drive in and drive safely.

2. Regulating the operation of airplanes, trains and

boats is generally governed by national and

international laws. This implies that maintenance

procedures of equipment and safety procedures

that tend toward universal repositories. Driver of

the car does not have comparable qualifications

to the requirements of the aerospace or marine.

Cars drive on city streets, semi-urban areas and

motorways. The space evolution of cars is

particularly dynamic in terms of the evolution of

other cars, pedestrians, etc.

3. Research and development of black-box for

vehicles for over forty years, have provided some

solutions including the implementation of

electronic systems called 'Event Data Recorder'.

The EDR is used to investigate in cases of traffic

accidents and delineate the responsibilities of

different actors involved in the accident.

4. Many countries do not exploit the data recorded

by the EDR in accidents. It is important to note

that many new cars contain an EDR is close to

100% (registered in 2009/2010).

5. Electronic systems in the car are seen by many

drivers and users of the car, like electronic

gadgets and not as professional solutions for

driver assistance contrary to the perception of

electronic systems of the aircraft, boat or train.

The reliability of components and electronic

systems is widely approved.

6. The vehicular system actors are many:

manufacturer, vehicle owner, insurance,

mechanic, engineering services Transportation

(technical inspection), police, customs...

7. Manufacturers of cars tend to increase vehicle

safety through two approaches:

a. Enhanced Passive Safety: Passive safety for

all that, the vehicle is designed to avoid

serious injury (or death) to the driver and

passenger of a car during an accident (e.g.,

reinforcement box, airbags, security belt)

b. Enhanced active safety Active safety is

everything in the vehicle and around the

vehicle is designed to avoid the accident in

automotive technology: electronics (ABS,

ESP(electronic stability control), BAS - BAS

• Traction...)

8. Many development ideas of black-box for

vehicles. The basic idea is to capture a few

seconds of data before and after the shock (the

crash).

9. The vehicles of tomorrow must be designed to

combine the active and passive safety (figure 2).

The efficiency of passive safety systems are

beginning to reach saturation. In contrast, active

safety systems promote the potential of

significantly improving the effectiveness of

vehicle safety. Significant improvements can be

obtained by combining the systems of active and

passive safety (Claudia Kratzsch, Heidi

Kroemker., 2009).

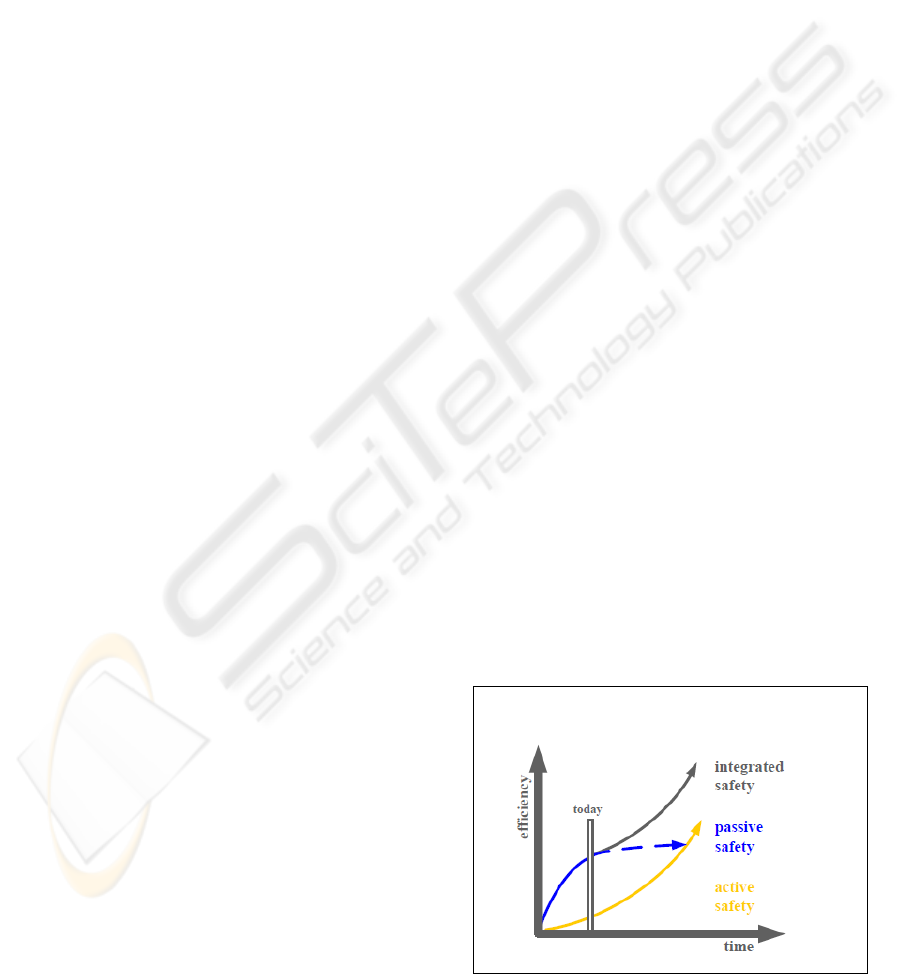

Figure 2: Efficiency of Integrated safety approach

(Claudia Kratzsch, Heidi Kroemker., 2009).

DCNET 2010 - International Conference on Data Communication Networking

3 SECURE ARCHITECTURE FOR

VEHICULAR NETWORKS

In M. Chammem et al., (M. Chammem et al., 2009),

we proposed a secure VCS architecture depicted in

figure 3. In this section, we describe the components

of this architecture and investigate the potential

services that it can provide. We also set the basic

security requirements for these applications.

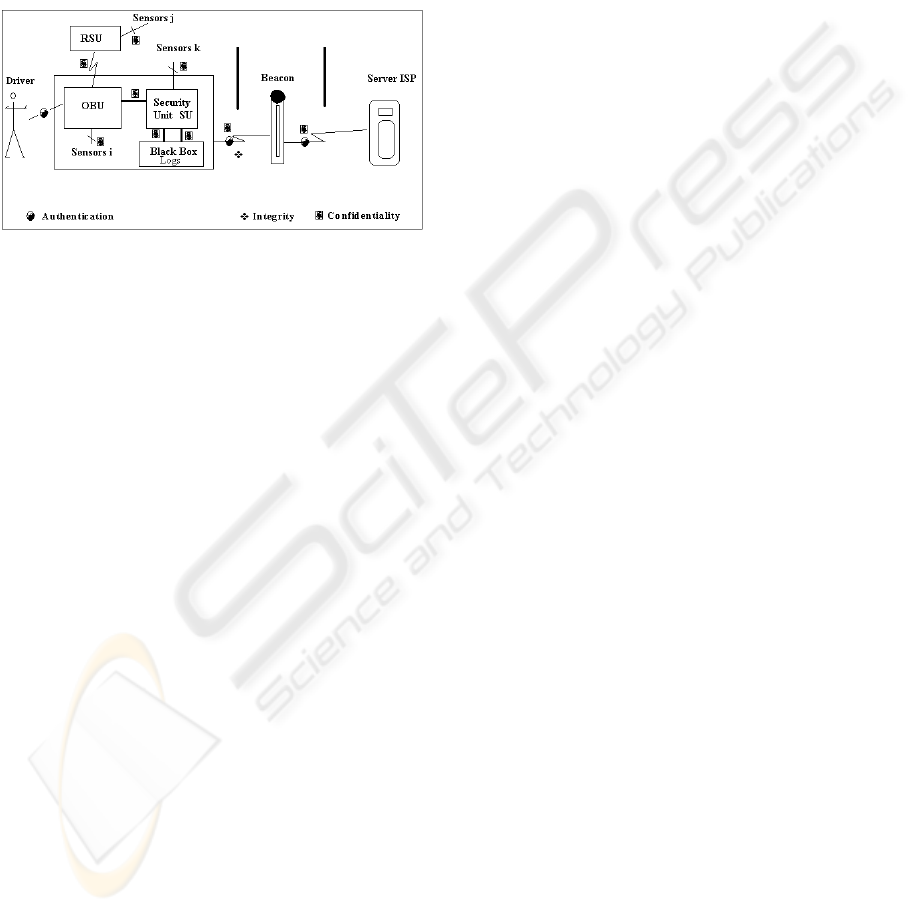

Figure 3: General architecture (M. Chammem et al.,

2009).

3.1 Secure VCS Architecture

The key components of the secure VCS architecture

developed in (M. Chammem et al., 2009) are cited in

the following.

Sensors: A set of sensors gathering various

information about the external and internal

environments of the vehicle are part of the

communication system. The data provided by these

sensors mainly serves not only to monitor the

behaviour of the driver and the vehicle but also for

the implementation of computer-assisted decision

making systems inside the vehicle.

Onboard Unit (OBU): This component implements

most of the computational tasks required to deploy

the applications of the VCS. It generally consist of

one or more processors or microcontrollers

interacting through various specific bus technologies

such as CAN(Controller Area Network), VAN,

(Vehicle Area Network), LIN (Local Interconnect

Network), FlexRay, MOST.

Security Unit (SU): The security policies related to

the different actions related to the services involving

the vehicle are managed by the SU. This component

can be used to build trust relations between the

components involved in vehicular transactions. It

supports advanced security functionalities related to

cryptographic protocols (e.g., PKI, anonymous

certificates) and security policy management.

Black-Box: It is mainly used to store the proofs and

evidences related to various vehicular transactions in

a secure environment. It should implement

appropriate policies in order to cope with the

heterogeneity of the evidences that can relate to the

driver behavior (e.g., payment receipts, velocity

excess) or the vehicle state (e.g., incidents, identity

modification)

Road Side Unit (RSU): The RSU acts as a relay

between the driver, the vehicle, and the

environment. It often consists in a data gathering and

communication system related to the environmental

data (e.g., traffic, atmospheric conditions, available

services). It can also serve to advertise for some

services and applications. Other possible usages of

RSU are emergency handling and assisted driving.

Beacon: Performs the same functionalities as the

RSU but it is resource-impoverished. The usage of

beacons is often limited to detection and localization

services.

Application and service provider (ASP): Various

services can be provided on the basis a VCS. ASPs

can be the source of various data such as news,

multimedia content, location information, and

advertisements.

3.2 Short-range and Long-range

Communication Media in VCSs

Modern vehicles are increasingly relying on

electronic devices to access/provide secure services

across public communication networks. At the

vehicle level, specific buses are used to ensure local

communication between the various devices.

Additional devices are also included into the vehicle

so that it can communicate with other entities

belonging to the VCS.

In the following, we review the most important

bus technologies integrated in today’s vehicles

(Anthony Marino, John Schmalzel., 2007 and Milind

Khanapurkar, et al. 2008).

Controller Area Network (CAN): developed by

Bosh in the eighties. All sensors, actuators, and

command devices have the same privilege level and

are connected through a serial bus.

Local Interconnect Network LIN: used as an in-

vehicle communication and networking serial bus

between intelligent sensors and actuators. Other auto

body electronics include air conditioning systems,

doors, seats, column, climate control, switch panel,

intelligent wipers, and sunroof actuators.

Byteflight: is used for safety-critical applications in

motor vehicles. Byteflight is a TDMA (Time

A NOVEL MODULAR BLACK-BOX ARCHITECTURE FOR SECURE VEHICULAR NETWORKS

Division Multiple Access) protocol that runs at

10Mbps over (2-WIRE or 3-WIRE) Plastic optical

fibers in a bus, Star or Cluster configuration which

provides an information update rate of 250uS.

FlexRay: is a high-speed serial communication

system for in-vehicle networks using Point-to-Point

links, at 10Mbps (Fault-Tolerant) over Un-shielded

Twisted Pair or Shielded Twisted Pair cable.

The FlexRay bus defines the Physical layer

(Electrical and Optical) and Protocol.

FlexRay is an extended protocol version of

byteflight. Applications for FlexRay include; steer-

by-wire and brake-by-wire.

Media Oriented Systems Transport (MOST): is

the de-facto standard for multimedia and

infotainment networking in the automotive industry.

MOST defines a multimedia fiber-optic (low

overhead, low cost) point-to-point network

implemented in a ring, star or daisy-chain topology

over Plastic optical fibers.

Long-range communication infrastructures are

also required in VCSs to enable Vehicle-to-Vehicle

(V2V) and Vehicle-to-Infrastructure (V2I) data

transmission. Multiple standards can be used to this

purpose including Wifi, GSM, GPRS, UMTS, and

WIMAX.

3.3 Security Requirements for

Vehicular Communication

In this subsection, we point out the security needs

related to secure service provision over vehicular

networks (M. Chammem et al., 2009 and Maxim

Raya et al., 2006).

• Authentication: The authentication process must

verify the identity of the driver or the person

authorized to drive the vehicle. Similarly,

beacons should be authenticated in order to

counter spoofing attacks.

• Integrity: The information and data from

various sources of information should not be

either altered or amended by an intruder.

Relevant information from the sensors,

computers OBU, RSU and SU systems and

V2V and V2I communications should be

protected against unauthorized modifications.

• Non-repudiation: It is important to ensure that

the parties engaged in a V2V and V2I

communication cannot deny that a transaction /

communication took place.

• Access control: The vehicle systems are a

means of transport belonging to individuals or

legal entities. The possessive side is crucial.

Access to systems is strictly controlled by

means of increasingly secure.

• Confidentiality: The confidentiality of

information must be ensured in all vehicle

systems. Only authorized persons can access

information, particularly in V2V and V2I

communications.

• Accessibility: The vehicular systems have a

long lifetime. The proper functioning of

sensitive subsystems must be ensured

throughout the lifecycle of the vehicle.

• Privacy: Vehicular systems are private. Their

operations are governed by regulations and

practices. The privacy of the driver and

passengers is considered as an important aspect

of security.

• Responsibility enforcement: Drivers of vehicles

are fully responsible for their actions in the

process of conduct. Vehicles should provide

information to identify or assist in the

attribution of responsibility. Authorities are

generally entitled to the identification of

responsibilities in case of accidents (police

officers, insurance experts).

• Vehicle Tracking: The precise location of the

vehicle has become useful information for

vehicle safety in particular against theft and

rangeland management.

• Proof and evidence management: During the

movement of vehicles on roads and highways,

some services require evidence to identify the

vehicle in case of legal travel speed; accidents...

The proof may include photography of the

registration plate of the vehicle supported by a

timestamp.

4 ENHANCED BLACK-BOX

ARCHITECTURE FOR VCS

In this section, we introduce a new black-box

architecture for VCSs. We first describe the modules

constituting this black box. Then, we discuss the

typology of the events that can be stored.

Figure 4 illustrates the functional architecture of the

proposed enhanced black-box architecture for secure

vehicular communication system. We mainly

consider two black-box modules: a main black-box

and an auxiliary black-box.

• Main black-box (MBB): used to store the

essential parameters of the vehicle including

VIN. Three data flows can be thought of to store

data in this module. The first flow (1) serves to

DCNET 2010 - International Conference on Data Communication Networking

upload the features generated at the

manufacturing phase to the MMB using a

privileged access. The second data flow (2)

relates to events generated by the sensors

embedded in the vehicle. This encompasses the

information about incidents including crashes

and airbag deployment. The third data flow (3)

concerns the events generated by the OBU

without direct human intervention. For instance,

physical damages occurring on the OBU as well

as driving anomalies fall into this category. It is

noteworthy that all the data stored in the MBB

are (relatively) timestamped by the SU without

the intervention of external timestamping

servers.

• Auxiliary black-box (ABB): This module is used

to store data related to the applications in which

the vehicle is involved. Unlike the information

stored on the MBB, ABB entries have a finite

lifetime and cannot excess a storage space quota.

This is necessary due to the panoply of potential

applications that can enrich modern VCSs. The

security policies regulating the storage of these

application data are also stored in the ABB.

Three data flows can be considered with respect

to the ABB. The first flow (4) corresponds to

data that pass through the Data Recording

Module (DRM) and that may originate from the

application provider platform or from a local

passenger. These events do not require

authentication by the SU. The second data flow

(5) is similar to (4) except that the stored

information passes through the User

Authentication Module (UAM) prior to the

DRM. It is used for sensitive application and

user data. The third data flow (6) concerns the

security policies that are stored on the ABB.

Such information must be authenticated since the

addition or the modification of security policies

is restricted to authorized users.

The alert reader would have noticed that the MBB

and the ABB are physically separated in the sense

that no communication occurs between them. This is

perfectly sound since these two modules are

accessible by different entities. On the one hand,

write access to the MBB is hardly restricted to the

manufacturer, in the initialization phase, while read

access is restricted to the transportation regulation

authorities, in the operating phase. A tamper-proof

capability is also made available to prohibit write

access through the privileged access port (even to

the manufacturer) once the vehicle is in the

operating phase (i.e., has passed the initialization

phase). On the other hand, access modes are richer

for the ABB since different scenarios, depending on

the available applications should be considered.

More practically, data stored in the ABB can be, for

example, (partially) retrieved by the owner, a private

company (in the case of fleet management), and also

experts authorized by regulatory courts.

Through the previous discussion, it appears that

the SU is a mandatory interface to write data into the

black-box modules. Basically, the SU supports four

access modes:

Privileged access:

The SU enables this special

mode to manage the basic characteristics and

parameters of the vehicle. Privileged write access is

granted only to the manufacturer, during the

initialization phase, in order to store the VIN.

However, read access should be possible to the

entities authorized to verify the authenticity of VIN

(such entities are often agencies under the control of

the department of transportation).

Sensor events:

Modern vehicles are richly

equipped with sensors based on various technologies

(e.g., temperature sensors, velocity sensors, contact

sensors, light sensors). Depending on its sensitivity,

the information gathered by these sensors are stored

either in the MBB or in the ABB. With the

development of sensing and networking

technologies, a trend that will probably be developed

in the near future is to inter-connect the embedded

sensors.

Passenger events:

Since the driver and the

passengers are able to interact with the OBU, the

corresponding events should be handled by the SU

in order to perform authentication and timestamping

procedures. Different passenger clearance levels

should be defined in order to deploy access control

policies to the SU according to the source privilege.

Application events:

When interacting with the

available applications, several event records should

be stored to serve as proofs or evidences. Such

records range from payment receipts to

timestamping tokens. To promote fairness between

the multiple applications, lifetime and space quota

policies should be enforced by the SU.

In the privileged access mode, a user should be

authenticated before inserting modifications to the

SPMM. The possible actions that can be made:

- Add a new policy

- Modify an existing policy

A policy is defined as follows:

Security_policy = {lifetime,protection_type,access_mode}

Protecting_type:= enciphered,signed,hashed

Access_mode Є {users_class} x {read,write}

User_class:= owner | driver

The owner car associate the data related to a given

application to specific security policy. The maximum

A NOVEL MODULAR BLACK-BOX ARCHITECTURE FOR SECURE VEHICULAR NETWORKS

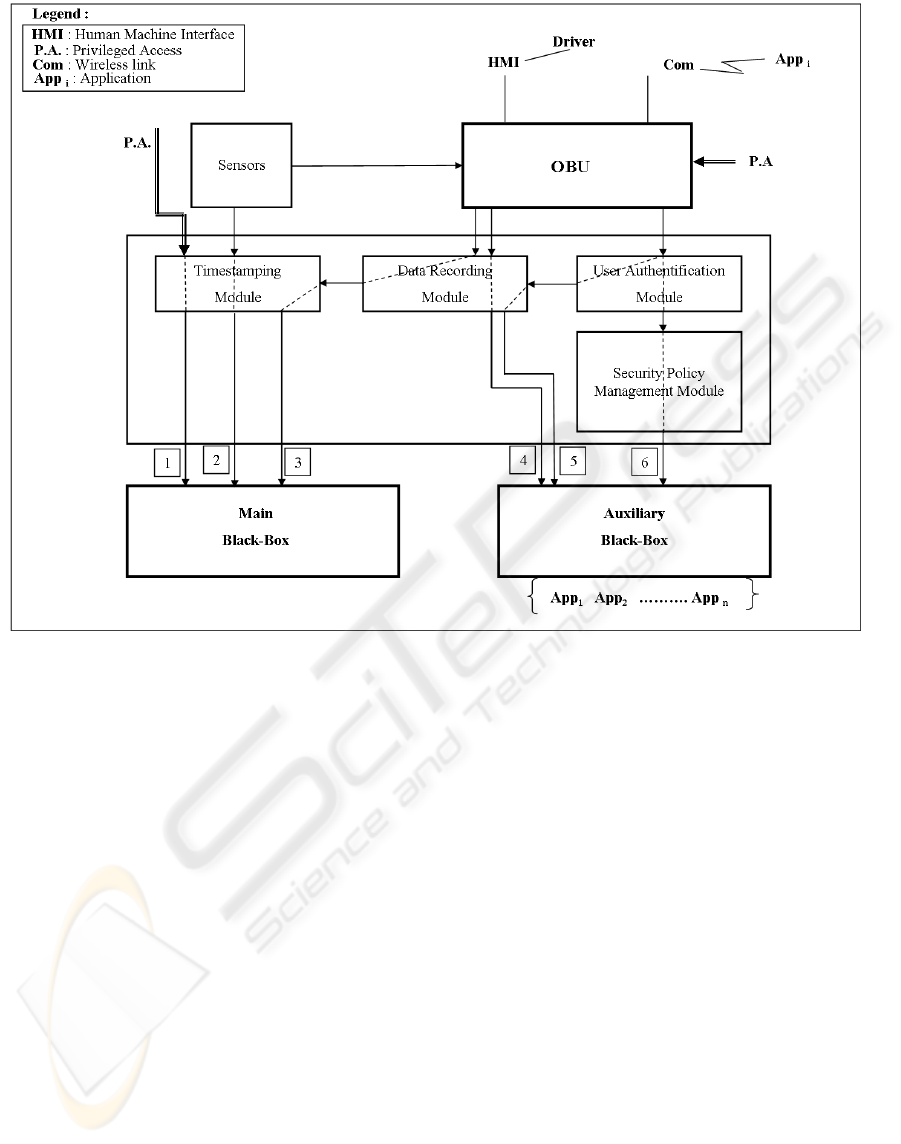

Figure 4: Enhanced black-box architecture.

storage space that can be record for this data should

also be declared.

Association:= data,security_policy,storage_space

Then the record corresponding to the data of interest

exceed the maximum storage space; a rotation policy

is applied to preserve the most recent records.

5 VEHICULAR PKI

ARCHITECTURE

Clearly, in the architecture introduced in the

previous section, the black box is the focal

component that will be used to look for trustable

evidences regarding past events. To implement a

mechanism allowing the preservation of such

evidences, we introduce a new PKI that adapts to the

specific features of vehicular networks. It relies on

the encryption scheme proposed by Franklin and

Boneh (D. Boneh and M. Franklin., 2001).

Vehicles and RSUs should be able to authenticate

themselves and at the same time use disposable

pseudonyms for vehicles so that their activities and

communications are not tracked by parties that are

eavesdropping on them. We also need to make

certain that there is a verifiable trail between the

pseudonyms and the real identities of the vehicle and

that only a common, Trusted Authority (TA) is able

to verify that trail in case of a dispute.

Unfortunately, existing PKI solutions are not

convenient to our context because of the following

reasons:

• Traditional PKIs are not very flexible in

providing user specified levels of privacy due to

rigid pseudonym (common name) assignments

• The size of the asymmetric keys used in existing

cryptosystems do not allow the implementation

of bandwidth-efficient protocols

• Existing signature algorithms do not allow the

fulfillment of both authentication and anonymity

preservation

To overcome these limitations, we propose the

use of a modified asymmetric cryptosystem where

public keys are substituted by arbitrary strings. The

scheme proposed by Boneh and Franklin uses a

bilinear map

: Γ



Γ



Γ

,

where Γ

and Γ

are cyclic groups of order p for

DCNET 2010 - International Conference on Data Communication Networking

100

some large prime p. In particular, satisfies that

(, ) (,)

aP bQ P Q

μμ

for all , ∈PQ

2Γ⋅Γ⋅×⋅Γ

and

ab∈ ] Z

Weil and Tate pairings on elliptic curves are two

fast and efficient ways of constructing such bilinear

maps. In addition to encryption, we need the ability

to provide non-repudiation in a cost-effective

manner. In order to achieve non-repudiation with

relatively meager computational requirements, we

have chosen to employ a function which combines

signing and encryption operations and also produces

smaller ciphertext as compared to ‘sign and then

encrypt’ strategies. Such features are not provided

by D. Boneh and M. Franklin (D. Boneh and M.

Franklin., 2001).

In our solution, each vehicle and RSU has a

unique identifier ID

. These identifiers include the

designation of the entity as a vehicle or RSU; e.g.

IDv = (vehicle||identifier). We envision that these

identifiers can be certified at regular periods (say

annually) by a TA. If any certificate is revoked the

TA notifies all the RSUs in the system, so RSUs

have to only store Certificate Revocation List (CRL)

entries that are less than a year old. Vehicles never

have to download any CRL, which provides for huge

savings in communication costs. Moreover, we use

the following notations:

• d

; d

: Secret key corresponding to ID

and ID

;

respectively.

• K

: Secret key assigned to the RSU I.

• TS

: Timestamp at time i.

• , : Public and private keys assigned to

a vehicle by TA as part of their certificates.

• sigEncrypt (sigencryption) and sigDecrypt

(sigdecryption) refer to identity-based operations

while rsaEncrypt, rsaDecrypt, rsaSign and

rsaVerify refer to operations that use the RSA

algorithm. In some places we breakup sigEncrypt

and sigDecrypt to its subfunctions Sign, Encrypt,

Decrypt and Verify. Additionally, we use

aesEncrypt and aesDecrypt to denote symmetric

cipher operations using the AES cipher.

Our process is conducted according to three phases:

Setup Phase: The TA conducts the setup phase of

the cryptosystem and computes the relevant system

parameters (params) and the master secret s. Both of

these are then distributed to all the RSUs in the

system. The TA also generates a random secret key

for each RSU I and distributes it to that RSU.

The TA keeps a copy of this key in its database to

help in future arbitration proceedings. The TA

provides each vehicle with its unique vehicle

identifier (ID

), public key certificate certifying this

identifier and including a public and private key

(Pub

and Pvt

) generated using classical algorithms

like RSA. Additionally each vehicle is provided with

all the public system parameters (params) of the

identity-based cryptosystem.

Pseudonym Generation: We assume that RSUs

have up-to-date CRLs and that they will only issue a

new pseudonym only if the vehicle's credentials

have not been revoked. When a vehicle needs to get

a new pseudonym, it engages a RSU as follows:

Secure Communication: Our system provides an

implicit credential in the form of the pseudonym for

secure communication between all entities. The

pseudonym includes a time-stamp indicating the last

time some infrastructure point validated the

credentials of a vehicle. Each vehicle could set its

trust threshold as per the user's choice, in deciding

how old pseudonyms they want to trust. Once that

choice is made, we can simply validate the identity-

based signature on the message to verify that the

vehicle using the pseudonym actually has the private

key corresponding to it. The private key could only

have been generated by a RSU (or the TA) who has

the master secret s. The implicit authentication

provided by our pseudonyms is communication

efficient because it eliminates the need for certificate

exchange between vehicles and also does not require

the vehicles to download any CRL.

Non-repudiation: In case of a dispute involving

vehicles one can try to locate the cause of the

incident based on the messages exchanged between

vehicles. Vehicles can log messages into some-kind

of a black-box like device and turn these messages

over to an arbiter. We assume for simplicity that the

arbiter is the same as the TA and has access to the

secret key database (containing secret keys of the

RSUs). Suppose vehicle ID

hands over a message

M and corresponding signature hU;Wi stating it was

sent by vehicle pseudonym ID

a to pseudonym IDi

A NOVEL MODULAR BLACK-BOX ARCHITECTURE FOR SECURE VEHICULAR NETWORKS

101

b. The arbiter will validate if the message indeed

was created and signed by IDi a, intended for IDi b

and then will decipher as to which real vehicle ID's

these pseudonyms belong to. This mechanism works

as follows:

The advantage of this scheme is that no special

storage is required in either the vehicles or the

infrastructure for each pseudonym. The message M

containing the source and destination pseudonyms

and signature are the only things that need to be

stored to settle any disputes. Further, the original

identities of the vehicles can be re-created only by a

TA with valid legal cause for such action.

6 CASE STUDY

We consider the case of a fleet management system

deployed by a private transportation company in

order to monitor the behaviour of the drivers. We

suppose that the vehicle is equipped with sensors

allowing the measurement of the following

information:

• Vehicle speed (wheel-based)

• Vehicle speed (from tachograph)

• Accelerator pedal position (0–100 %)

• Total fuel used (litre since life time)

• Fuel level (0–100 %)

• Engine speed

• Total engine hours (h)

Obviously, this application interacts with other

services defined by the regulation authority such as

highway fee payment. Using the proposed

architecture, the black-box usage scenarios in this

situation are as follows:

• Two privilege levels should be defined on the

SU: one for the monitoring administrator and the

other for the driver. The administrator is granted

read access to the data listed above while the

driver is able to define a security policy so that

the payments receipts related to highway fees are

stored in the black-box. Appropriate lifetimes

should obviously be set according to the local

laws and guidelines.

• Information related to the monitoring service as

well as the highway fee payment is stored into

the ABB. Since the data related to the driver

behaviour is collected by local sensors, it should

not be authenticated. However, the payment

receipts should be signed by the payment server.

It is important to mention that this latter should

also preserve a payment proof, which should be

different from the one sent to the client (driver)

since it includes the signatures of the different

RSUs the vehicle has crossed as well as the

signature of the driver. In fact, the identity in this

case is composed by the pseudonym

(authenticating the driver) and the vehicle

identity (that can be RFID tag).

• The data stored in the ABB, and related to the

monitoring service, should be encrypted using a

symmetric key configured by the administrator.

7 CONCLUSIONS

In this paper, we developed a novel black-box

architecture for applications provided on vehicular

networks. The major advantage of our approach is

that it allows the definition of multi-level security

policies to protect the data stored within the back-

box. The proposed architecture allows a better

segregation of duties during the data analysis phase

since a main black-box has been considered for

long-term storage while an auxiliary black-box is

used for medium-term and short-term storage. Space

quota and lifetime policies are therefore used to

support this reasoning.

REFERENCES

Qiang Wu, Kebin Jia, Xuwen Li., 2008. Study on Vehicle

Video Blackbox with Acceleration Sensitive Function,

International Conference on MultiMedia and

Information Technology, p.833-836.

Gabauer, D. J., and Gabler, H. C., 2005. Evaluation of

Acceleration Severity Index Threshold Values

Utilizing Event Data Recorder Technology, Transpor-

tation Research Record: Journal of the Transportation

Research Board, No. 1904, Transportation Research

Board of the National Academies, pp. 37-45,

Washington, DC.

Claudia Kratzsch, Heidi Kroemker., 2009. Vehicle-To-

Vehicle Communication For Enhanced Integrated

Safety, 21st International Technical Conference on the

Enhanced Safety of Vehicle, June 15–18, Stuttgart,

Germany.

DCNET 2010 - International Conference on Data Communication Networking

102

The Florida Senate, 2009. Committee on Commerce, Issue

Brief 2010-305 Automobile Event Data Recorders.

October 2009.

Clemens Kaufmann, Christine Tureschek., 2008.

Connecting Black Box Data and Driving Behaviour

Observation for Better Understanding of Driving

Behaviour, European Conference on Human Centred

Design for Intelligent Transport Systems - Lyon,

France, April 3-4, 2008

Maxim Raya, Panos Papadimitratos, Jean-Pierre Hubaux.,

2006. Securing Vehicular Networks, Poster at IEEE

Infocom2006 (Infocom April 2006), Barcelona, Spain.

Deborah Sapper, Henry Cusack, Lisa Staes., 2009.

Evaluation of Electronic Data Recorders for Incident

Investigation, Driver Performance and Vehicle

Maintenance, Project #BD549-50, Center for Urban

Transportation Research University of South Florida,

September 2009.

Aleecia M. McDonald , Lorrie Faith Cranor., 2006. How

Technology Drives Vehicular Privacy, A Journal of

Law and Policy for the Information Society, Volume

2, Issue 3, http://www.is-journal.org/

Mhamed Chammem, Mohamed Hamdi, and Noureddine

Boudriga,. 2009. A Platform for Secure Multi-Service

Vehicular Communication, Int. Conference on Ultra

Modern Telecommunications (ICUMT’09), 12-14 Oct,

2009, St Petersbourg, Russia.

Milind Khanapurkar, Dr. Preeti Bajaj, Dakshata Gharode.,

2008. A Design Approach for Intelligent Vehicle

Black Box System with Intra-vehicular

communication using LIN/Flex-ray Protocols, IEEE

International Conference on Industrial Technology,

Sichuan University, Chengdu, China, April 21-24,

(IEEE ICIT 2008)

Hampton C. Gabler and al., 2004. Use of Event Data

Recorder (EDR) Technology for Highway Crash Data

Analysis, National Cooperative Highway Research

Program, Project 17-24, Final Report

John Pierowicz, Daniel P. Fuglewicz, Glenn Wilson.,

2004. Development of Requirements and Functional

Specifications for Crash Event Data Recorders, Final

Report, December 2004 USDOT Contract: DTFH61-

01-C-00182, Task Order Number: BZ82B007

Anthony Marino, John Schmalzel., 2007. Area Network

for In-Vehicle Law Enforcement Applications, SAS

2007 - IEEE Sensors Applications Symposium San

Diego, California USA, 6-8 February 07

Carfax, 2010. Vehicle Identification Number, a CARFAX

vehicle history report, Website http://

www.carfax.com/, Last visit February, 26, 2010.

D. Boneh and M. Franklin., 2001. Identity-based

encryption from the Weil pairing, Lecture Notes in

Computer Science.

A NOVEL MODULAR BLACK-BOX ARCHITECTURE FOR SECURE VEHICULAR NETWORKS

103
