DESKTOP SUPERCOMPUTING TECHNOLOGY FOR SHADOW

CORRECTION OF COLOR IMAGES

Artem Nikonorov, Sergey Bibikov

Samara State Aerospace University named after academician S. P. Korolyov, Moskovskoe shosse 34, Samara, Russia

Vladimir Fursov

Image Processing Systems Institute of Russian Academy of Science, Molodogvardeyskaya st. 151, Samara, Russia

Keywords: Image processing, Shadow distortion, Color correction, Identification, CUDA.

Abstract: The paper deals with information technology for correction of shadow artifacts on color digital images

obtained by photographing of paintings with the purpose of their reproduction. Shadow artifacts are caused

by differences of light intensity. The problem of shadow detection and subsequent color correction is

solved. The architecture of heterogeneous CPU/GPU – system implementing the elaborated technology is

considered, examples of real images processing are given.

1 INTRODUCTION

Digital images of paintings are used to create fine art

reproductions, virtual museums, and digital

catalogues in museums. Usually, they can be

obtained in two ways: either by direct digital

photographing, or by scanning negatives and slides

made earlier. The main problem in picture

photographing is to provide a uniform intense

lighting of the entire picture surface. For this

purpose, paintings are lighted from both sides by

floodlight projectors. This causes the appearance of

shadows along the edges of the frame.

Paper (Cheng, 2006) deals with the problem of

removing the shadow using two images of the same

object, one obtained in the “natural” lighting, and

other made with flashlight. The problems of color

reproduction and correction of color artefacts on

digital images were also solved in papers (McCamy,

1976, Gevers, 1999, Weis, 2001, Fursov and

Gavrilov, 2004, Nikonorov and Fursov, 2004).

In these papers, cases of uniform shadowing

along the image area were investigated.

In this paper, we consider an information

technology for removing the shadow in a situation,

when the single unique copy of painting is available,

and the shadows are located in known area. The

paper deals with correction methods based on

applying an algorithm for histogram transformation

and identification of formal transformation model of

lightness function. The architecture of

heterogeneous CPU/GPU-system, implementing the

developed technology is considered, examples of

real images processing are given.

2 PROBLEM DEFINITION

Usually, the lighting equipment does not cause any

perceptible color distortion. That is why in the

present paper, to detect and remove the shadow

distortion, we only use information about lightness

of pixels. It is known (Judd and Wyszecki, 1975)

that this information is contained in the lightness

components of some color spaces. Specifically, the

CIE Lab color space is used in the present work.

In the case when the lighting causes any

additional color distortion, correction in color

channels is performed. Due to the fact that the

distortions are distributed uniformly across the

image, the task can be solved after removing the

shadows by methods considered in papers (Gevers,

1999, Weis, 2001, Fursov and Gavrilov, 2004,

Nikonorov and Fursov, 2004).

Let us give the definition of a shadow. Let

k be

a number of row. Consider an interval

[]

0, N in this

124

Nikonorov A., Bibikov S. and Fursov V. (2010).

DESKTOP SUPERCOMPUTING TECHNOLOGY FOR SHADOW CORRECTION OF COLOR IMAGES.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 124-129

DOI: 10.5220/0002992101240129

 SciTePress

row. Let

∗

< be some point within the interval.

Assume that for the k -th row of the uniformly

illuminated image, the equality of mean lightness

within the intervals to the left and right from this

point is valid:

() ()

ki ki

xLx

sNs

−

∑∑

(1)

where

()

x are values of lightness at the

x -th

points of the

k -th image row.

As a shadow on the interval

∗

⎡⎤

⎣⎦

we shall call

a distortion, whereby for any interval

,0,

⎡⎤⎡⎤

∈

⎣⎦⎣⎦

holds the following inequality

() ()

ki ki

is is

xLxd

=+ =+

⎛⎞

−>

⎜⎟

−

⎝⎠

∑∑





(2)

where

d is a parameter characterizing the shadow

intensity. Here and elsewhere, the values of lightness

for illuminated pixels are designated as

(

)



, and

for shaded pixels as

()



Due to the light source is not a point source, the

shadow boundary can be fuzzy. In this case, the

definition of shadow (1) and (2) still holds, if the

diffusion function is smooth and has no ridge point

(sign reversals of the derivative). In this case, as a

frontier point

∗

of shadow field we take a point,

where the diffusion function is equal to half-sum of

its extreme values. From now on this point will be

called middle point of diffusion (transition) area.

Furthermore, the shadow area for various rows

k may differ because of the relief of picture frame.

Thus, the shadow has two regions with different

distortion, consequently, the methods for their

correction must differ, and the boundaries of these

regions are in general not rectilinear.

Area with uniform shading adjoins image edge.

Between this area and illuminated area is a transition

area, generally more narrow, which shading is

decreasing in direction of the picture edge. The

boundaries of the transition field are curved.

Thus, the problem is to determine the boundaries

and to develop the algorithms for color correction in

each area. The proposed technology aims to

implementation in a distributed computing system.

3 DETECTING A BOUNDARY OF

SHADOW AREA

The problem of detecting the boundaries of shadow

transition area is problem of edge detection. The

most approximate to it is the problem of edge

detection in the CIE Lab color space considered in

(Murashev, 2009). In this paper, active contours

method (Kass and Witkin, 1987) was applied. But in

our case, this method is not applicable in original

form because the contours can be fuzzy. In the

following, we consider the algorithm for detecting

the boundaries of shadow transition area.

The problem is solved in two steps. First, we

determine a set

G of points

()

xy G∈ of

transition area midline. Then, the entire transition

area is formed in neighborhood of midline.

Let us consider a lightness component L of a

three-component color image. To detect the

boundary of shadow area let us introduce a criterion.

For the point

∗

, being a boundary of the shadow

area determined by Eq. (1) and (2), the so called

contrast indicator is introduced:

(

)

fs C C

−

(3)

where

()

Rki

Lki

CLx

∗

−

∑





are estimates of the mean value of lightness function

within the intervals

∗

⎡⎤

⎣⎦

and

∗

⎡

⎤

⎣

⎦

respectively, and

is a number of lightness values

of image row.

To show the applicability of the criterion (3) for

detecting the shadow boundaries, together with the

assumption (1), suppose that the variations of

interval boundaries in the neighborhood of the

boundary

∗

for the case of uniform illumination do

not cause changes of mean values.

() ()

ki ki

xLx

sNs

−

∑∑



(4)

() ()

ki ki

xLx

sNs

−

∑∑



(5)

Here,

12 1 2

ss s

≤

are any points in some

neighborhood

∗

, including

;

12*

DESKTOP SUPERCOMPUTING TECHNOLOGY FOR SHADOW CORRECTION OF COLOR IMAGES

125

Thus, point

∗

is the boundary of shadow area at

the

k -th row, if the contrast indicator (3) is distinct

from zero and assume the maximum value at this

point. Consequently, to detect the boundary of

shadow area it is necessary to compute the values of

the contrast indicator (3) at every point of the row, to

choose point of maximal value, and to verify that the

contrast at this point is perceptible enough.

We should emphasize once more that in reality

the statements (1), (4), and (5) do not hold exactly.

But the differences between the means within the

intervals are generally much less than the contrast

caused by shadow. That is why described procedure

is effective in a wide range of shading intensity.

4 DETECTING THE

BOUNDARIES OF A

TRANSITION AREA

In the course of correction of the transition area the

fact that the width of this area is varying along

shadow boundary should be taken into account. This

is caused by different distances between parts of the

frame and the light-source. In particular, for the

points of the frame more distant from the light

source, the transition area is getting wider. In this

section, procedure of detecting the boundaries of

transition area with regard for the described

peculiarities is considered.

The idea is to approximate the lightness function

within the transition area by the steady increasing

function. Actually lightness functions may

essentially differ owing to shadowing of various

picture elements. This is why approximation is

implemented with respect to some averaged

lightness function values obtained by summing the

lightness of several neighboring rows.

To detect the boundaries of transition area within

the certain local area, we have to solve a problem of

approximating the set of averaged lightness values

by following function

()

cxc

wx c

cx c

−

+−

(6)

Estimates of the parameters

,1,4

ci= for each

midline of local subset of rows are made applying

the least absolute values method. As an initial

approximation for subsequent rows, estimates of the

parameters obtained in the previous step are used.

As a result, we have a set of function (6) parameter

estimates for each row.

Using the amended approximated lightness

function of transition area for middle of each local

subset of rows, the boundary values of transition

area are defined by

(

)

bor

−Δ

=±

(7)

where

x is the amended coordinate of a midline

point,

(

)()

max

bor

wx w xΔ=Δ , and

(

)

wxΔ is

admissible deviation of lightness function from the

maximal value of approximating curve at the

boundary point of transition area.

Moreover, for each row in the neighborhood of

the amended midline point there is a set of values of

the approximated lightness function which, in fact,

are weighting factors characterizing a change of

shading intensity.

5 ALGORITHMS FOR COLOR

CORRECTION

Algorithms for color correction of shadow

distortions in uniformly shaded and transition areas

are developed in different ways. When solving a

problem in the Lab color space only one component

(lightness component L) is responsible for a shadow.

Thus, for shadow correction it seems reasonable to

apply equalization of histogram (Soifer at al., 2009)

method for correction of grayscale images.

In this case, the histograms of lightness function

should be built for uniformly shaded and illuminated

areas adjoining to the transition area. Afterwards, the

pixel-by-pixel transformation of lightness values in

the shaded area is performed. This transformation

converts the shadowed area histogram to a form of

illuminated area histogram by means of closeness

criterion minimization. The transformation is

applied to all picture elements from the shaded field.

Application of this method to real images

revealed the main defect - posterization effect, i.e.

merging of different, but neighboring lightness

values as a result of transformation. In this paper, we

develop an approach proposed in (Bibikov and

Fursov, 2008) and based on solving a problem of

identification of color transformation model.

Consider peculiarities of its applying for the present

case.

Designate the coordinates of two points selected

from the shaded and illuminated image areas as

(

)

xy and

(

)

xy respectively. By assumption,

SIGMAP 2010 - International Conference on Signal Processing and Multimedia Applications

126

at uniform picture illumination, the colors of these

points are similar:

()()

ll rr

ij i j

xy Lxy≈ .

(8)

In the following, the points meeting the condition

(8) will be called matching points. Take into

consideration the transformation function

[

]

*Ψ

establishing a relation between the brightness values

of matching points as follows:

()

(

)

ll rr

ii i i

xy Lxy

⎡⎤

=Ψ

⎣⎦

Suppose

[]

*Ψ is a polynomial, then coefficients

can be obtained by identification using least squares

method or least absolute values method.

To take into account shadowing decreasing along

rows a set of weighting factors obtained by

approximation (7) of lightness function within the

local subset of rows is used. The transformation of

lightness values in each row of transition area is

performed according to the next rule:

() ()

()

min

max min

ii ki ki L

LkIkI

ki k

Lx Lx w

xLx

wx w

=+⋅Δ

Δ=Ψ −⎡⎤

⎣⎦

−



where

()

xΨ⎡ ⎤

⎣⎦

is a transformation for the point

x of the k -th row,

w is weighting factor of each

point in k -th row, and

x are coordinates of the

nearest shaded point of row from the uniformly

shaded area.

6 IMPLEMENTATION OF THE

DESKTOP SUPERCOMPUTING

SYSTEM FOR IMAGE

CORRECTION

Developed software package is designed for solving

the full range of tasks related to computer-aided

color correction of images including point artefacts

removal (Fursov and Nikonorov, 2008). Software

implementation provides for operation both within

existing image processing systems such as Adobe

Photoshop and in free running mode.

Some of the developed algorithms, in particular,

the algorithm for identification of point flares, are

compute-intensive. As shown in Fursov and

Nikonorov, 2008), implementation of computations

using Nvidia universal graphics processor and

CUDA technology allows the acceleration up to 10

times to be obtained. These investigations show that

utilizing GPU allows the large-scale images to be

processed in real time, for instance, in a video

stream.

With regard to what has been said, the software

should meet the following requirements. First, the

software is to operate both in the free running mode

and in the integration mode with existing image

processing systems as well. Second, the most

resource-intensive computations should be carried

out in parallel, using GPU. Besides, the software

should meet the requirements of cross-platformness.

The architecture of software package meeting the

said requirements is represented in Fig. 1.

Figure 1: Architecture of software package.

As shown on the figure, the system structure may

be divided into several levels. First level is the user’s

interface. Midlevel is the implementation of graphics

interface (GUI) of the computer-aided image

retouching. Third level that is independent from

other levels is the dynamic libraries, where

computational algorithms are realized. If used

algorithm is compute-intensive and the CUDA

supporting hardware is available, then the algorithms

can activate procedures implemented for GPU. In

the future, it is intended to make the GPU

computations more universal by using OpenCL

(Munshi, 2009). Such approach will allow both the

GPU Nvidia and the GPU AMD (ATI) to be utilized

for computations.

If the GPU is not available, the computational

procedures may be carried out by several CPU

Other image

processing

modules

Photoshop

plug-in

GUI dll, wxWid

ets

Point flares

retouching

module

Shado

ing

correction

module

CUDA/Open CL

implementation of

resource-intensive

algorithms, static library

Standalone

DESKTOP SUPERCOMPUTING TECHNOLOGY FOR SHADOW CORRECTION OF COLOR IMAGES

127

a b c d

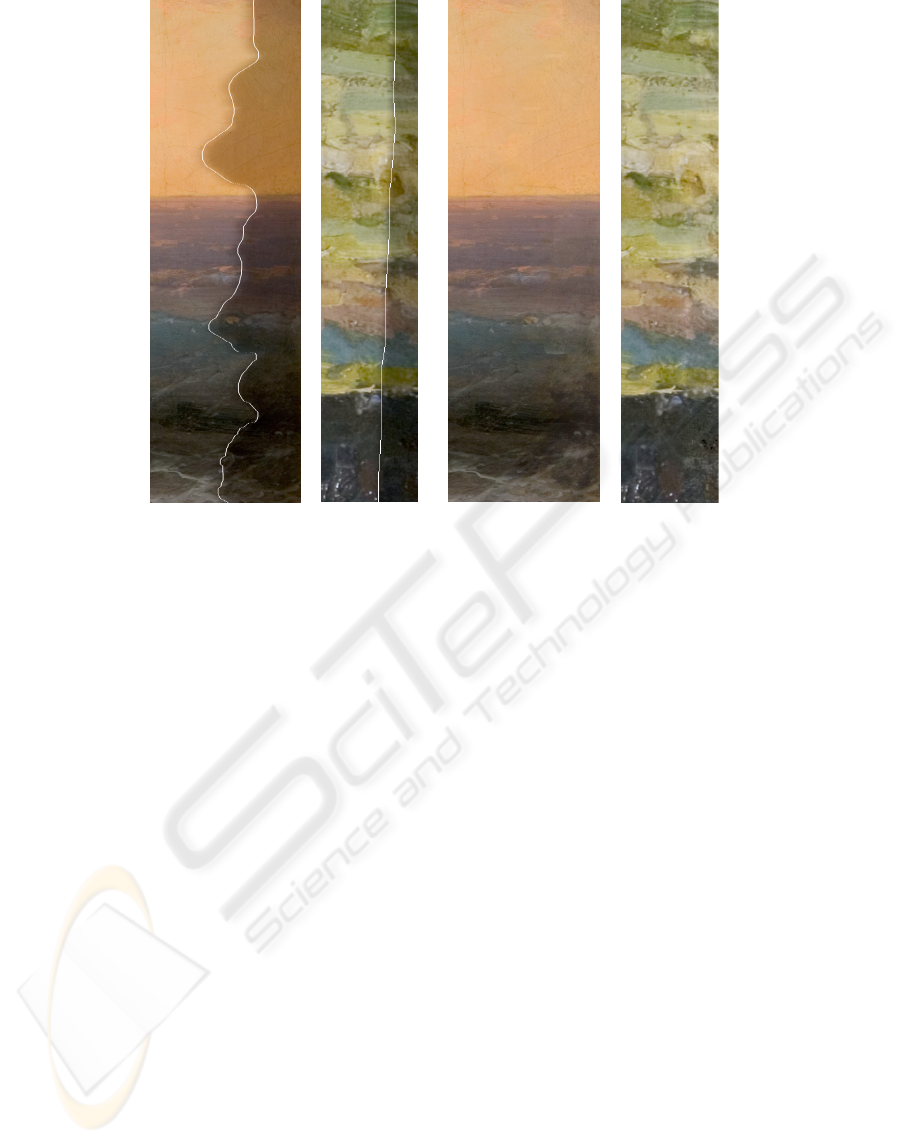

Figure 3: Example of color correction of images with the curvilinear boundary of shadow stripe and area of slowly

changing color: a), c) initial images with the detected shadow line; b) d) images after correction.

threads. The multithreaded implementation is

performed using OpenMP. Most of the developed

retouching algorithms allow data decomposition to

be performed, which allows parallelizing to be

carried out in quite a simple way.

Though the system GUI is connected with the

algorithmic part by dynamic linking, in this case, the

cross-platform C++ library is used to create the GUI.

At the present time, several libraries of this kind are

known. The most popular of them are QT, GTK and

wxWidgets library (Smart, 2000). In our opinion,

wxWidgets is distinguished for its conceptual

integrity and flexibility in using, which fully justifies

its utilization in the present work.

Developed system intended for processing

images interactively and in our implementation

CUDA shadow correction algorithm can process one

image at a time. Image divided into small fragments

consist of some rows of original image and each of

them processed by one CUDA kernel. Most of the

developed retouching algorithms allow the data

decomposition to be performed (Nikonorov and

Fursov, 2008), which allows parallelizing to be

carried out in quite a simple way.

7 RESULTS OF EXPERIMENTS

As test images, high-resolution digital photos of real

paintings featuring a grove and sunset were used.

The images processed have the size 554

×3558 and

145

×3933 pixels respectively. Image format is TIFF,

color space is Lab (8 bit per channel). Enhanced

fragments of two initial images with shadow area are

shown in Figure 2a and 2b.

The image featuring a sunset is more complex in

respect of detecting the shadow boundary. Main

difficulty consists in large dimensions of the

transition area (up to 120 pixels). Besides, the width

of this field is varying within the wide limits along

midline.

On the image featuring a grove, the shadow

boundary is rather distinct; this is determined by

small width of transition area, whereby the boundary

is almost rectilinear. Both images feature a large

number of contrast elements and are characterized

by a wide range of lightness variation in channel L.

Moreover, both images are noisy. Said peculiarities

essentially complicate identifying the weight

function (6) in the transition areas.

Mean values within the shadow transition area of

images featuring a sunset and grove are represented

SIGMAP 2010 - International Conference on Signal Processing and Multimedia Applications

128

by a white line in Figure 3a and 3b. End result after

shadow artifact removing is represented in Figure 3c

and 3d.

In this paper we present only two shadowed

images, but our system was tested by prepress

specialists on about 200 images and sufficient

quality was obtained in 75% cases. In other cases

additional correction was required. Automation of

shadow correction process reduces time of

processing one shadowed image from about one

hour to 2-3 minutes.

8 CONCLUSIONS

The developed information technology for color

correction of shadowed images admits a high

automation degree. Its software implementation has

resulted in essential reducing the time expenditures

for prepress of colorful images. Apart from

preparation of painting reproductions, the

technology may be employed to process the areas of

images obtained by aerospace monitoring systems

and intended for print, and to provide the services of

improving the quality of digital images to a wide

range of users.

There is a difference in internal parallelism and

computational complexity degree between the steps

of the technology developed. Accounting for these

factors when elaborating a program complex, in

particular, implementation of image processing

algorithms in the GPU, allows its productivity to be

increased.

ACKNOWLEDGEMENTS

We render our thanks to the specialists of Agni

Publishing House for their qualified assistance in

computer-aided color correction and testing of

software on real images.

This work was supported by the Russian

Foundation for Basic Research (Project No. 09-07-

00269-a).

REFERENCES

Cheng L. Removing shadows from colorful images, PhD

Thesis – Simon Fraser University, 2006. – 155 p.

Weiss Y. Deriving intrinsic images from image

sequences, ICCV01 – IEEE, 2001. – V.II – P. 68-75.

McCamy M., Davidson J. G. A color-rendition chart, J.

App. Photog. In Eng. – 1976 – V.2 – P. 95-99.

Gevers T., Smeulders A. W. M. Color-based object

recognition / Patt.Rec. – 1999. – V.32 P. 453-464.

Fursov V. A., Gavrilov A. V. Parallel algorithm of data

selection using relative conforming estimate criterion /

Proceedings of The 12th ISPE International

Conference on Concurrent Engineering: Research and

Applications, Ft. Worth/Dallas, U.S.A., 25 - 29 July,

2005, p. 375-380.

Fursov V. A., Nikonorov A. V. Conformity estimation in

color lookup tables preprocessing problem. 7th

International Conference on Pattern Recognition and

Image Analysis: New Information Technologies,

St.Peterburg, 2004, Russian Federation, Volume I,

p. 213-216.

Nikonorov A. V. Constructing the conforming estimates

of non linear parameters, 4th European Congress on

Computational Methods in Applied Sciences and

Engineering, 2004, Finland. – PP. 404, 429.

Judd D., Wyszecki G., Color in business, science, and

industry – New York: Wiley, 1975. – 553 с.

Murashev D. M. Automated cytological specimen image

segmentation technique based on the active contour

model, Proceedings of Moscow Institute of Physics

and Technology. – 2009. – V.1 – N.1. P. 80-89. – (in

Russian).

Kass M., Witkin A., Terzopoulos D., Snakes: Active

contour models, Int. J. Computer vision. – N.1. –

1987. – PP. 321-331.

Soifer V. A. et al. Computer Image Processing

/ – Lightning Source Inc, 2009 – 296 pp.

Bibikov S. A., Fursov V. A., Color correction based on

models identification using test image patches,

Computer optics. – Samara-Moscow, 2008 – Т.32 №

3. – С 302-307 – (in Russian).

Smart J. Cross-platform GUI Programming with

wxWidgets – Prentice Hall, 2000. -714 p.

Munshi A. Kronos OpenCL Working Group, The OpenCL

Specification. – 2009. – 314p.

Nikonorov A. V., Fursov V. A. Distributed computational

system of color images correction, XV All-Russian

conference Telematica. – 2008. – Vol.1. – p. 88-89 –

(in Russian).

DESKTOP SUPERCOMPUTING TECHNOLOGY FOR SHADOW CORRECTION OF COLOR IMAGES

129
