IMPLICATIONS OF MISBEHAVING ATTACKS ON PROBABILISTIC

QUORUM SYSTEM FOR MANETs

Elisa Mannes, Eduardo Silva, Michele Nogueira and Aldri Santos

∗

Department of Informatics, Federal University of Paran´a, Curitiba, Brazil

Keywords:

Quorum system, Wireless self-organized networks, Security, Attack tolerance.

Abstract:

Reliable storage supports different data sharing services, such as mobility and cryptographic key management

and distributed naming. Mobile Ad hoc NETworks (MANETs) present issues in guaranteeing the consistency

of data on concurrent read and write due to dynamism of nodes, the inexistence of a central control entity

and support infrastructure. Probabilistic quorum systems, as PAN (Probabilistic Ad Hoc Quorum System),

were designed for MANETs to improve the efﬁciency of data replication by relaxing consistency constraints,

comprising a set of quorums with relaxed intersections among themselves. PAN ensures high probability of

consistency between replicated data by an asymmetric quorum construction and by a gossip-based multicast

protocol. However, it does not consider the presence of malicious or selﬁsh nodes in its operations. This work

assesses the impact of lack of cooperation, timeout and data manipulation attacks against PAN. Simulation

results show that PAN is vulnerable to these attacks, particularly, the data manipulation attack.

1 INTRODUCTION

Mobile Ad hoc NETworks (MANETs) comprise mo-

bile devices (nodes) communicating among them-

selves by wireless channels. These networks are

dynamic, infrastructureless, and nodes individually

maintain network operation in a self-organized and

distributed way. Each node communicates directly

with others in its range or by a multihop routing (Luo

et al., 2003). Thus, network services depend on the

cooperation of nodes, being necessary tolerant opera-

tions in face to malicious actions.

MANETs present issues in guaranteeing reliable

storage of data with concurrent read/write accesses.

Reliable storage with reasonable cost and high avail-

ability enables the support to different data sharing

services, such as cryptographic key management and

distributed naming (Tulone, 2007). However, their

characteristics make difﬁcult to provide the synchro-

nism for ensuring a high level of consistency.

To relax the consistency constraints of MANETs

special mechanisms are employed (Luo et al., 2003;

Gramoli and Raynal, 2007; Tulone, 2007). Proba-

bilistic quorumsystems are an example of them. They

improve the efﬁciency of data replication in MANETs

by better balancing the load between nodes. A quo-

∗

Supported by CNPq/Brazil, grant 303770/2008-2

rum system consists of a subset of nodes with data

replicas, called quorums. The construction of inter-

sections on quorums ensure properties to guarantee

that nodes obtain the most recent value even if queries

or updates are performed on individual quorums.

PAN (Probabilistic Ad Hoc Network Quorum Sys-

tems) (Luo et al., 2003) is a quorum system more ap-

propriated to highly dynamic environments due to the

use of less strict rules for creating intersections among

quorums (Gramoli and Raynal, 2007; Tulone, 2007),

and guarantees a high probability of consistency on

replicated data by a gossip-based multicast protocol.

Albeit PAN’s advantages, it does not consider the

existence of misbehaving nodes in the network. Ex-

amples of misbehavior are the lack of cooperation,

timeout and data manipulation. Misbehaving attacks

can compromise effectiveness and reliability of quo-

rums system, affecting the performance of network

services. Hence, this paper quantiﬁes the impact of

such attacks on the reliability of PAN, highlighting

which vulnerabilities need to be addressed.

We evaluate the implications of attacks on PAN’s

operations by simulations. We use the reliability de-

gree and number of intermediate nodes as metrics to

quantify the effects of lack of cooperation, timeout

and data manipulation attacks on writing and reading

operations. Results under different network mobility

show that PAN is vulnerable to these attacks, and its

189

Mannes E., Silva E., Nogueira M. and Santos A. (2010).

IMPLICATIONS OF MISBEHAVING ATTACKS ON PROBABILISTIC QUORUM SYSTEM FOR MANETs.

In Proceedings of the International Conference on Security and Cryptography, pages 189-195

DOI: 10.5220/0002995701890195

 SciTePress

reliability decreases with higher percentage of attack-

ers. Attacks result in a low reliability of the system,

having its worst performance under the data manipu-

lation attack. Node mobility also affects the reliabil-

ity, and write operations are more compromised by all

attacks than read operations.

This paper proceeds as follows. Section 2 presents

related works. Section 3 describes PAN’s characteris-

tics. Section 4 describes PAN’s vulnerabilities and at-

tacks. Section 5 depicts simulation scenarios and the

metrics used for analysis. Section 6 presents results.

Section 7 presents the conclusions and future works.

2 RELATED WORK

Quorums systems were ﬁrst introduced as a voting

scheme to ensure data consistency (Gifford, 1979).

Generally they own strict rules for intersection con-

structions and must ensure that at least one quorum is

free of faulty nodes. Recently, authors have proposed

improvements in quorum systems to make them more

ﬂexible and reliable (Herlihy, 1987; Naor and Wieder,

2003). In (Herlihy, 1987), they designed a system

of dynamic quorums, whereas in (Naor and Wieder,

2003), authors created a reconﬁgurable quorum sys-

tem. However, Friedman et al. (Friedman et al., 2008)

have proved that such approach is not applicable to

MANETs due to the overhead generated by the mes-

sages for reconﬁgurations. They conclude that the

ideal strategy for MANETs lies on probabilistic quo-

rums because of their capability to relax restrictions

of intersection (Malkhi et al., 2001).

Among the quorums systems proposed for

MANETS, we highlight three of them. The PAN

(Luo et al., 2003) that employs propagation mech-

anisms based in gossip. The timed quorum sys-

tem (Gramoli and Raynal, 2007) that aims to en-

sure intersections during an amount of time, and the

mobile dissemination quorum system (Tulone, 2007)

that uses the geographic location of nodes to con-

struct quorums. Strategies for probabilistic quorums

on MANETs are listed in (Friedman et al., 2008).

Despite those quorums systems consider characteris-

tics as dynamic topology and collaboration, they do

not consider misbehaving nodes, being susceptible to

them.

Misbehaving nodes in MANETs have been ad-

dressed in several works, such as (Hu and Burmester,

2009; Marti et al., 2000), but most of them consider

attacks in routing and application levels. Quorums

system have been evaluated with focus on the Inter-

net (Amir and Wool, 1996; Owen and Adda, 2006),

and for the best of our knowledge, there are no stud-

ies that analyze the behavior of quorum systems for

MANETs facing attacks. Hence, this work quantiﬁes

the impact of misbehaving attacks in PAN in order to

provide directions for improvements on the design of

quorum systems to achieve reliability and robustness.

3 PAN: PROBABILISTIC

QUORUM SYSTEM FOR AD

HOC NETWORKS

A typical quorum system Q comprises a set of quo-

rums that has two distinct properties, consistency and

availability (Malkhi and Reiter, 1997). The consis-

tency property deﬁnes that any two quorums must in-

tersect - ∀Q

, Q

∈ Q , Q

∩Q

0, whereas the avail-

ability property means that there is at least one opera-

tional and reliable quorum.

In probabilistic quorum systems, quorums

are chosen probabilistically within each inter-

action (Malkhi et al., 2001). This kind of sys-

tems tries to ensure that in a quorum system Q ,

two quorums Q

, Q

and an access strategy w,

then ∀Q

, Q

∈ Q , P (Q

∩ Q

0) ≥ 1 − ε, being

ε a very small value. The access strategy w deﬁnes

the way that read and write quorums are constructed.

PAN is an example of probabilistic quorum sys-

tem, ensuring this probability P by gossiping to

create write quorums (Q

), and unicast messages to

construct read quorums (Q

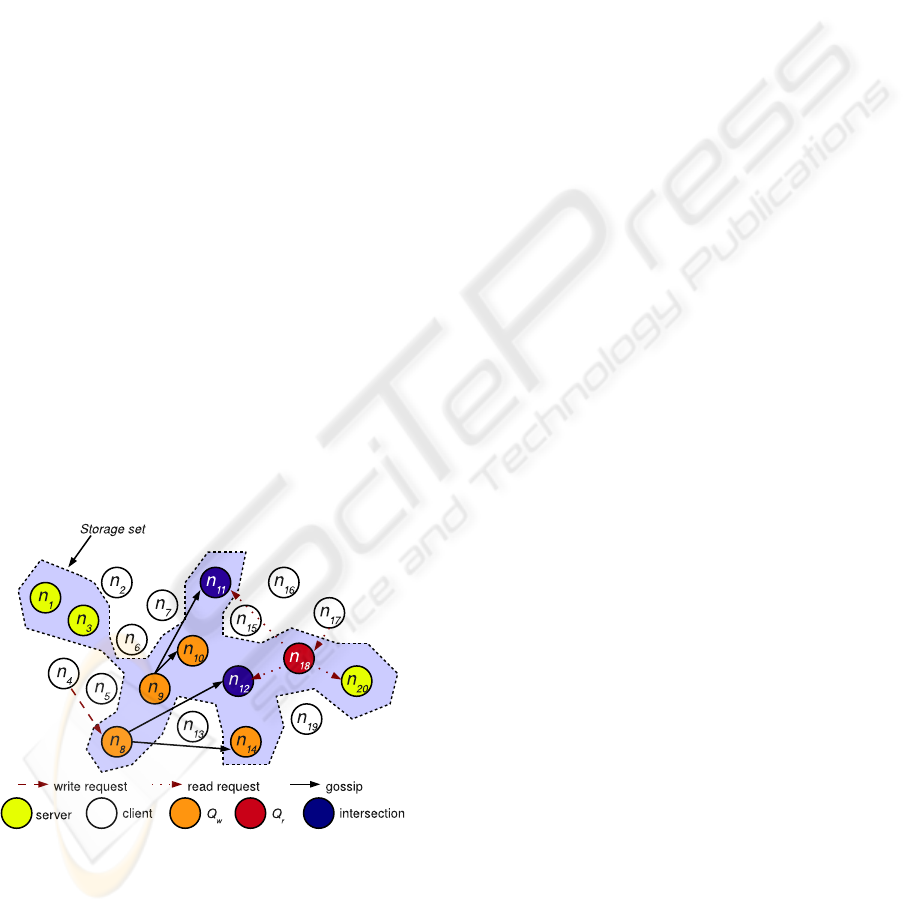

Figure 1: Entities in PAN quorum system.

PAN elects some nodes to form a storage set (StS),

as shown in Figure 1. These nodes are the servers,

whereas the remainder are clients. When servers are

mediating read and write requests, they are the agent

of that speciﬁc operation. In both operations, clients

send requests to servers randomly chosen. Servers on

SECRYPT 2010 - International Conference on Security and Cryptography

190

read requests compose read quorums and the servers

on writing operations compose write quorums.

3.1 PAN Operations

PAN provides to clients reading and writing opera-

tions. Servers, acting as agents, are responsible for

receiving and replying requests from clients. In writ-

ing operations, agents deliver updates received from

clients with the collaboration of nodes in the StS. In

reading operations, agents consult a read quorum be-

fore respond to the client. These operations are illus-

trated in Figure 2 and occur as described:

WRITE - as part of the mechanism of writing, all

servers have a buffer that stores the latest update of

each data. Upon receiving a write request, the agent

updates its data and adds it to its buffer. Periodically,

nodes propagate data from the buffer to other nodes.

After some time, all servers have the updated value.

READ - the agent chooses nodes to compose the read

quorum based on predeﬁned read quorum size. Then,

it forwards the request along with its local copy of

the searched data. Thus, members of the read quo-

rum reply to the agent if their data is more updated

than that from the agent. In this case, the agent waits

for replies, and in the lack of them, it responds to the

client with its own data as conclusion that the data it

holds is the most updated. Further, if servers in the

quorum receive a data more updated than theirs, they

revise their local copy and add it to the buffer in order

to be disseminated in the next round of propagation.

Figure 2: Read and write operations in PAN.

To explain PAN’s operation, we assume a net-

work of 20 nodes, in which ten are part of the StS

as illustrated in Figure 2. Node n

sends a write re-

quest to node n

. Node n

, the agent, propagates this

write to other nodes following the gossiping protocol.

Write operations are propagated to a certain number

of servers, being this number called fanout (F). It is

previously conﬁgured, and servers follow the same

value.

In Figure 2, F equals two servers and the size of

the read quorum four. Client n

issues a read oper-

ation. Then, agent n

consults the read quorum in

order to collect the updated value. Nodes n

and n

participate in both operations, being the intersection

between read and write quorums. Intersection nodes

have the most updated value to client n

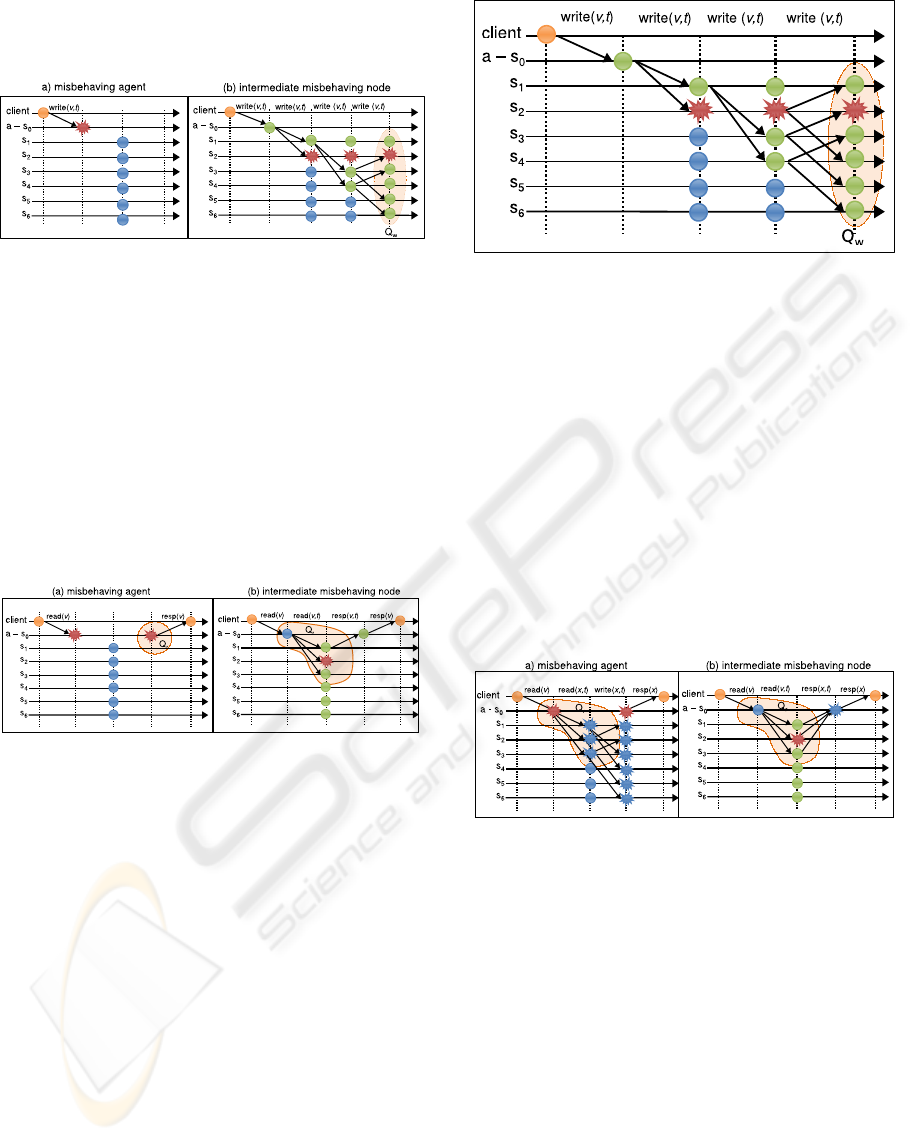

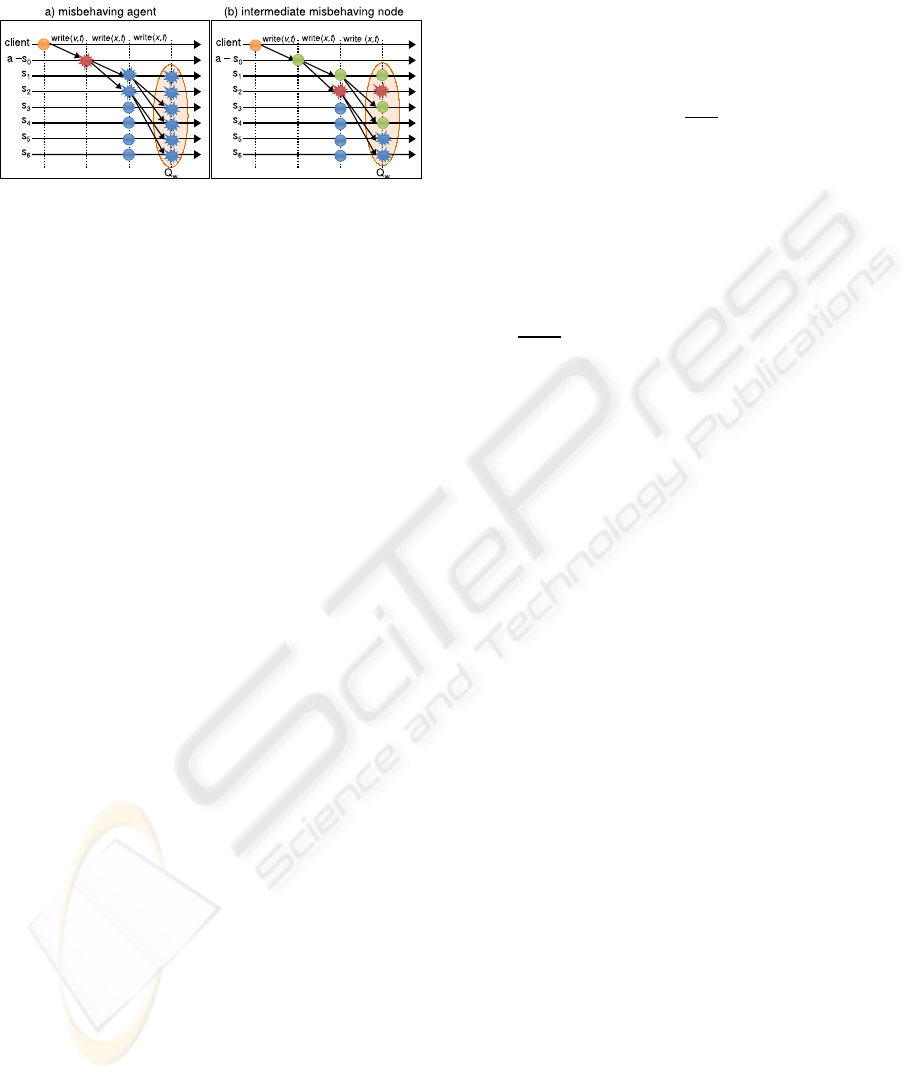

4 ATTACKS ON PAN

The success of writing operations is related to the col-

laboration of all servers involved in the dissemination.

Thus, members of the StS may hinder the progress of

updates in several ways, such as refusing to propa-

gate the updates or making updates to progress slowly.

This can occur if nodes are selﬁsh and want to save

their resources, or if nodes are malicious and want to

degrade the system. Further, nodes can manipulate

values that are being updated, causing inconsistencies

in the system.

Servers consulted by agents in reading operations

may deliberately not respond to requests, forcing the

agent to send its own data to client. They can also

modify the value of data and send this wrong value.

In the second case, generated by active attackers, the

problem is critical because in addition to providing

clients erroneousinformation, servers can trust in data

sent by agents and also update their data.

This work examines particularly three attacks:

lack of cooperation and timeout and data manipula-

tion. Considering the characteristics of PAN, these

types of attacks are more harmful than others for op-

erations in quorum systems. The operation of such

attacks are described below.

4.1 Lack of Cooperation

Lack of cooperation attacks occurs on both opera-

tions. Figure 3(a) illustrates the behavior of a com-

promised agent in a read operation. A client issues a

read request of a data v to server s

, which is a selﬁsh

node. As a misbehaving agent, s

waits until the op-

eration timeout expires and replies the client with its

own data, that might be outdated.

When the selﬁsh node is an intermediate node, it

simply stops responding to the agent. In Figure 3(b),

the client requests a data v to the server s

, that con-

sults the read quorum composed by s

, s

and s

Server s

is a selﬁsh node and does not respond to

the agent. Under this situation, a reading operation

IMPLICATIONS OF MISBEHAVING ATTACKS ON PROBABILISTIC QUORUM SYSTEM FOR MANETs

191

can still complete correctly if at least one server in

the read quorum responds to the agent or if the agent

itself has the updated data.

Figure 3: Lack of cooperation in read operations.

In writing operations a selﬁsh agent does not up-

date its data or disseminate data provided by the

client. In Figure 4(a), the client issues an update of

data v to s

, a selﬁsh node. In this condition, s

does

not propagate the update and the write operation does

not complete. As an intermediate server receiving an

update via gossip, the selﬁsh node does not update

neither its local data nor the buffer. As a result, the

propagation of the write operation does not progress,

as shown in Figure 4(b). The client sends a write re-

quest to server s

, that propagatesit via gossip. Server

is a selﬁsh node and does not propagate the data.

Figure 4: Lack of cooperation in write operations.

4.2 Timeout Manipulation

The time interval between the gossip is an important

parameter in PAN. It determines write dissemination

speed, and as faster the propagation is, faster the for-

mation of the write quorum is. In timeout manipula-

tion attack, illustrated in Figure 5, servers in the StS

delay the propagation of updates. In this example, the

client issues a write request to the server s

, which

propagates via gossip this update. Server s

is a ma-

licious nodes, and arbitrarily delays the propagation

in one round. This behavior makes servers of the StS

take more time to update the data.

4.3 Data Manipulation

Data manipulation attacks consist in nodes that re-

ceive a data and deliberately change its value, in both

read and write operations. As a result, nodes can ac-

cept a manipulated data. Figure 6(a) shows the be-

Figure 5: Timeout manipulation attack.

havior of a misbehaving agent in the read operation.

The agent is the only contact between the client and

the StS, being a vulnerable point.

In the ﬁgure, the client requests a data v to the

server s

, which is a misbehaving node. Server s

changes the data value and timestamp. Then it con-

sults the read quorum, s

, s

and s

. As these servers

have an outdated data compared to the one received

by the agent, they update their values, believing the

data received is the most updated. Servers also store

this value in their buffer, and propagates it via gos-

sip. The read quorum does not respond to the agent

request, since they believe the agent has the most up-

dated data. As the timeout expires, the agent replies

the client with its manipulated data.

Figure 6: Data manipulation in read operations.

If the misbehaving node compose the read quo-

rum, the impact is minimized, as shown in Fig-

ure 6(b). In this example, the client issues a read re-

quest for data v to server s

that consults the read quo-

rum. Server s

is a misbehaving node and changes its

data and timestamp. When agent s

receives answers

from the read quorum, the data received from server

is the most updated, then agent s

updates its own

data, keeps this entry in its buffer and waits to propa-

gate this data. It also responds to the client with this

manipulated data.

In writing operations, malicious nodes can widely

compromise the system. Figure 7(a) illustrates the

case when the agent is a misbehaving node, and can

commits the system faster since any write will result

in an incorrect data. In this example, when client

sends a write request to server s

, it changes the value

SECRYPT 2010 - International Conference on Security and Cryptography

192

and the timestamp of the data to be updated, and then

propagates it to other nodes.

Figure 7: Data manipulation in write operations.

A case where the node is an intermediate node is

shown in Figure 7(b). The client issues a write re-

quest to server s

, that propagates it to servers. Server

is a misbehaving node, thus it changes the data and

propagates it to other two nodes. Each server that re-

ceives this data will propagate it and the StS will be

compromised by this manipulated data.

5 EVALUATION MODEL

PAN was implemented on the Network Simulator

(NS-2) version 2.33, and simulations parameters are

based in (Luo et al., 2003). Nodes communicate us-

ing a wireless channel with the TwoRayGround prop-

agation model. The network consists of 50 nodes in

which 25 are servers in StS. Nodes move according

to the Ramdom Waypoint model in an area of 1000m

by 1000m, and have maximum speeds of 2, 5, 10 and

20m/s, with pause time of 10, 20, 40 and 80s, respec-

tively. All nodes own a transmission range of 250m

and use AODV as routing protocol. Updates from the

buffer are propagated every 200ms, and F is set to

two servers. Read quorums are set to four servers.

The percentage of attackers varies in 20%, 28% and

36% of the servers in StS. A larger number of attack-

ers leads the system to a state where quorums are fully

compromised.

As in (Luo et al., 2003), readings and writings

intervals are determined by a Poisson distribution.

Writes have an average interval of 6s while readings

happens in an average of 4s. Results are the average

of 35 simulations with a 95% of conﬁdence interval,

and the lifetime of the network is 1500s.

Two metrics are employed: reliability degree (R

)

(Luo et al., 2003) and the quantity of malicious nodes

in read operations (Q

). R

quantiﬁes the probabil-

ity of intersection between read and write quorums.

also represents the amount of correct readings ob-

tained by clients. We consider correct reads the ones

retrieved from previously written values, in addition

to the last write. This is because the last value written

may be still in progress inside the StS. Therefore, the

previously written value is also considered correct. R

is deﬁned in Eq. (1), where C

denotes correctly ﬁn-

ished reads and R the amount of read requests issued

by clients.

∑

|R|

(1)

denotes the number of times that malicious or

selﬁsh nodes participated in reading operations. The

timeout manipulation is excluded because it is carried

out only in write operations. This metric is expressed

by Eq. (2), where M

means a read operation in which

a member of the read quorum is malicious.

∑

|R|

∀i ∈ R, where Mr



1 if ∃m ∈ Q

)

0 if not

(2)

6 RESULTS

6.1 Lack of Cooperation

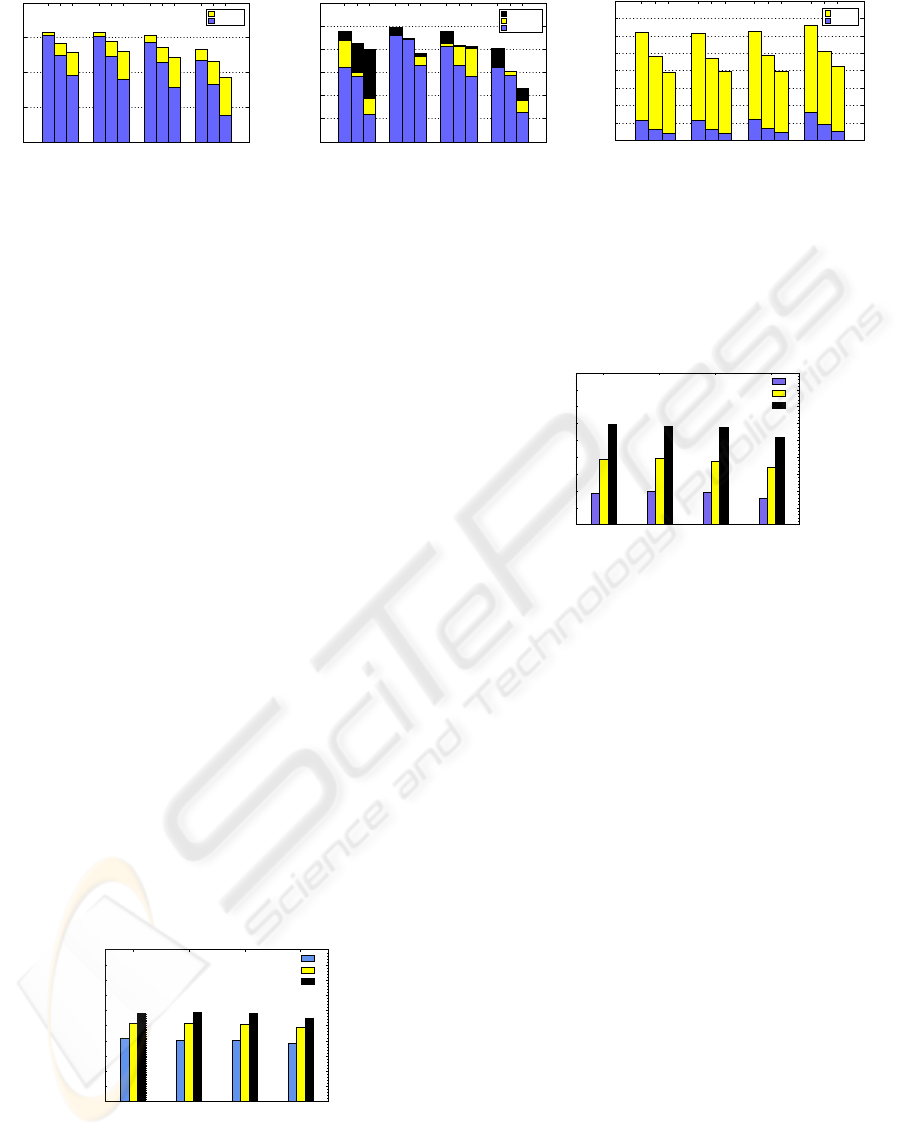

Figure 8 shows results obtained when PAN faces

the lack of cooperation attack. Each cluster of bars

presents results for the same value of node speed com-

paring variations on the type of operation and the per-

centage of selﬁsh nodes. We observe that in both

operations, R

decreases with the increase of selﬁsh

nodes. For all clusters, decreases in R

are more sig-

niﬁcant on write operations than in read operations.

Comparing clusters, we observe that higher node

speed results in lower R

. We also observe that R

owns the smallest value for writing operations in sce-

narios with 36% of selﬁsh nodes and when nodes have

a maximal speed of 20m/s. This occurs because al-

most half of the StS is compromised.

6.2 Timeout Manipulation

Figure 9 presents results for R

when PAN is under

timeout manipulation attacks. Malicious nodes prop-

agate updates every 400ms, 800ms and 3000ms, in-

stead of the normal 200ms. Results are grouped by

the nodes speed, and for each speed, R

values under

variations on the percentage of attackers and T are

compared. We observe that R

decreases proportion-

ally as the update propagation delay increases. For all

speeds, this behavior is observed.

IMPLICATIONS OF MISBEHAVING ATTACKS ON PROBABILISTIC QUORUM SYSTEM FOR MANETs

193

100

20 28 36 20 28 36 20 28 36 20 28 36

Reliability Degree (%)

2m/s 5m/s 10m/s 20m/s

Read

Write

Figure 8: Lack of cooperation.

100

20 28 36 20 28 36 20 28 36 20 28 36

Reliability Degree (%)

2m/s 5m/s 10m/s 20m/s

T=400

T=800

T=3000

Figure 9: Timeout manipulation.

20 28 36 20 28 36 20 28 36 20 28 36

Reliability Degree (%)

2m/s 5m/s 10m/s 20m/s

Read

Write

Figure 10: Data manipulation.

6.3 Data Manipulation

The data manipulation attack also affects PAN. Fig-

ure 10 shows results obtained from the simulation of

this attack. Results are represented by bars, grouped

by the speed of nodes. For each speed, the percentage

of malicious nodes is varied on both operations.

We observe that for all scenarios, R

is lower than

50%, and as the percentage of attackers grows, the

reliability decreases. When the nodes move faster,

the R

decreases. We notice that these attacks af-

fect signiﬁcantly write operations in relation to results

achieved under the other two attacks. In this case,

is lower than 10% for all scenarios. Higher speed

and number of attackers issue the worst values to R

This attack has an uncommon behavior: as the speed

of nodes increases, the R

increases too. This is be-

cause MANET’s characteristic, in which higher node

speeds result in higher routes dinamicity. Such behav-

ior decreases delivered updates and the effectiveness

of a malicious node to propagateits manipulated data.

6.4 Malicious Nodes Participation

It was recorded the number of times that misbehav-

ing nodes participated in read quorums, in read oper-

ations. Figure 11 shows results obtained under lack

of cooperation attack. Increasing the speed of nodes

has the same effect observed in the data manipulation

attack, i.e. as the speed increases, the number of quo-

rums affected by misbehaved nodes decreases.

100

2m/s 5m/s 10m/s 20m/s

Misbehavior nodes (%)

f = 20%

f = 28%

f = 36%

Figure 11: Compromised reads in lack of cooperation.

Figure 12 shows the results under the data manip-

ulation attack. The number of readings affected by

misbehaving nodes also increases as the number of

attackers increases. It is observed that nodes speed

interferes in the number of compromised nodes. As

the speed grows, the number of misbehaving nodes

decreases. This occurs because increasing the speed,

less packets are received by nodes and less nodes are

consulted and can deliver manipulated data.

100

110

120

2m/s 5m/s 10m/s 20m/s

Misbehavior nodes (%)

f = 20%

f = 28%

f = 36%

Figure 12: Compromised reads in data manipulation.

7 CONCLUSIONS

This paper assessed the impact of misbehaving at-

tacks that affect data availability and consistency on

the PAN system, a probabilistic quorum system for

MANETs. Our analyses examined the implications

of lack of cooperation, timeout and data manipulation

attacks on the read and write operations. Albeit PAN’s

advantages, simulation results reinforced PAN vul-

nerability to attacks resulted from its MANET’s char-

acteristics, PAN’s design and operations over quo-

rums.

We observed that the percentage of malicious or

selﬁsh nodes and node speed affects the reliability of

the system. All attacks inﬂuenced the read or write

operations, being write operations the most damaged.

As future work, we plan to propose a model to im-

prove the tolerance of probabilistic quorum systems

to attacks and intend to employ it in the context of the

key management for MANETs.

REFERENCES

Amir, Y. and Wool, A. (1996). Evaluating quorum systems

over the internet. In FTCS, pages 26–35, Washington,

DC, USA. IEEE Computer Society.

SECRYPT 2010 - International Conference on Security and Cryptography

194

Friedman, R., Kliot, G., and Avin, C. (2008). Probabilis-

tic quorum systems in wireless ad hoc networks. In

IEEE/IFIP DSN, pages 277–286, Washington, DC,

USA. IEEE Computer Society.

Gifford, D. K. (1979). Weighted voting for replicated data.

In ACM SOSP, pages 150–162, NY, USA. ACM Press.

Gramoli, V. and Raynal, M. (2007). Principles of dis-

tributed systems, chapter Timed Quorum Systems for

Large-Scale and Dynamic Environments, pages 429 –

442. Springer Berlin.

Herlihy, M. (1987). Dynamic quorum adjustment for parti-

tioned data. ACM TODS, 12(2):170–194.

Hu, J. and Burmester, M. (2009). Cooperation in Mobile

Ad Hoc Networks, chapter 3, pages 1–15. Springer

London.

Luo, J., Hubaux, J.-P., and Eugster, P. T. (2003). PAN:

providing reliable storage in mobile ad hoc networks

with probabilistic quorum systems. In ACM MobiHoc,

pages 1–12, New York, NY, USA. ACM.

Malkhi, D. and Reiter, M. (1997). Byzantine quorum sys-

tems. In ACM STOC, pages 569–578, NY, USA.

ACM.

Malkhi, D., Reiter, M. K., Wool, A., and Wright, R. N.

(2001). Probabilistic quorum systems. The Informa-

tion and Computation Journal, 170(2):184–206.

Marti, S., Giuli, T. J., Lai, K., and Baker, M. (2000). Miti-

gating routing misbehavior in mobile ad hoc networks.

In ACM MobiCom, pages 255–265, NY, USA. ACM.

Naor, M. and Wieder, U. (2003). Scalable and dynamic

quorum systems. In ACM PODC, pages 114–122, NY,

USA. ACM.

Owen, G. and Adda, M. (2006). Simulation of quorum sys-

tems in ad hoc networks. In 3rd International Con-

ference on Artiﬁcial Intelligence in Engineering and

Technology.

Tulone, D. (2007). Ensuring strong data guarantees in

highly mobile ad hoc networks via quorum systems.

Ad Hoc Networks, 5(8):1251–1271.

IMPLICATIONS OF MISBEHAVING ATTACKS ON PROBABILISTIC QUORUM SYSTEM FOR MANETs

195
