EFFICIENT ASYMMETRIC IPSEC FOR SECURE ISCSI
Murthy S. Andukuri and C. Edward Chow
Department of Computer Science, University of Colorado at Colorado Springs
1420 Austin Bluffs Parkway, Colorado Springs, CO 80918, U.S.A.
Keywords: IPSec, Asymmetric Secure Protocol, iSCSI, Online Data Backup.
Abstract: In this paper we propose a new asymmetric IPsec scheme to enhance the security of data at the remote end,
while simultaneously improving the overall performance. The idea is to apply IPsec encryption/decryption
in a segmented manner on the iSCSI traffic, such that the user data remains encrypted after leaving the
sender, and is decrypted only when it is retrieved by the sender. A dual key cryptographic scheme is
proposed where the private key is used to encrypt the iSCSI payload at the sender and traditional IPsec is
modified to encrypt/decrypt only on the TCP/iSCSI headers. A development test bed was built using User-
Mode-Linux virtual machines for developing and debugging the asymmetric IPsec software and running as
the sender and receiver to verify the functionality and security features of the proposed design. A
benchmark test bed was built with two real PCs where the asymmetric IPsec modules can be dynamically
loaded. The performance results show that the existing implementation of the proposed asymmetric IPsec
scheme reduces the IPsec processing time by about 25%.
1 INTRODUCTION
Remote backup of data for security has become a
subject of rapidly growing interest in the recent
times (Kirk, 2006). The importance of backups, and
remote storage for security in today's networked
world can hardly be overstated. Of the various
options available, iSCSI seemed the most worthy of
study because its design smartly makes full use of
the universally proven strengths of existing
protocols like TCP, IP and IPsec, thereby reducing
the cost, effort and time of learning, setup and
deployment. The various mechanisms that can be
used are FCIP, iFCP, iSCSI (Clark, 2002) (Shurtleff,
2004). Among these, iSCSI has been getting a lot of
attention of late because it can be run on commonly
available, relatively inexpensive IP networking
infrastructure already in place. iSCSI is an
application layer protocol that uses the available IP
network to make a remote storage disk accessible as
a simulated local SCSI disk.
This locally accessible remote disk can be written to,
or read from, like any local disk. An iSCSI setup has
two parts - The iSCSI initiator is the 'client' program
located on the source machine and writes to / read
from the remote machine. The iSCSI target is the
software on the destination machine that helps store
the data and return it on demand. iSCSI restricts
itself to handling the user-level data and leaves the
actual details of transmission to the TCP and IP
layers. By default, the data is transmitted in plain
text between the initiator and the target. This
vulnerability can be remedied by using IPsec to
secure the data in transit.
IPsec is designed to provide interoperable, high
quality, cryptographically-based security for IPv4
and IPv6. The set of security services offered
includes access control, connectionless integrity,
data origin authentication, protection against replays
(a form of partial sequence integrity), confidentiality
(encryption), and limited traffic flow confidentiality.
These services are provided at the IP layer, offering
protection for IP and/or upper layer protocols
(RFC2401).
IPsec encrypts the data leaving the network layer
on the sender and, at the receiving end, decrypts the
data before it leaves the network layer. This secures
the data in transit but does not help secure the data
AFTER it has reached its destination. This makes
data very vulnerable to theft when the target site gets
break-in. This vulnerability can be alleviated by
reencrypting the received data using a third party
software – and redecrypt, so that the IPsec layer can
encrypt it in preparation for transmission back to the
sender. Figure 1 shows such a scenario.
314
S. Andukuri M. and Edward Chow C. (2010).
EFFICIENT ASYMMETRIC IPSEC FOR SECURE ISCSI.
In Proceedings of the International Conference on Security and Cryptography, pages 314-317
DOI: 10.5220/0002996903140317
Copyright
c
SciTePress

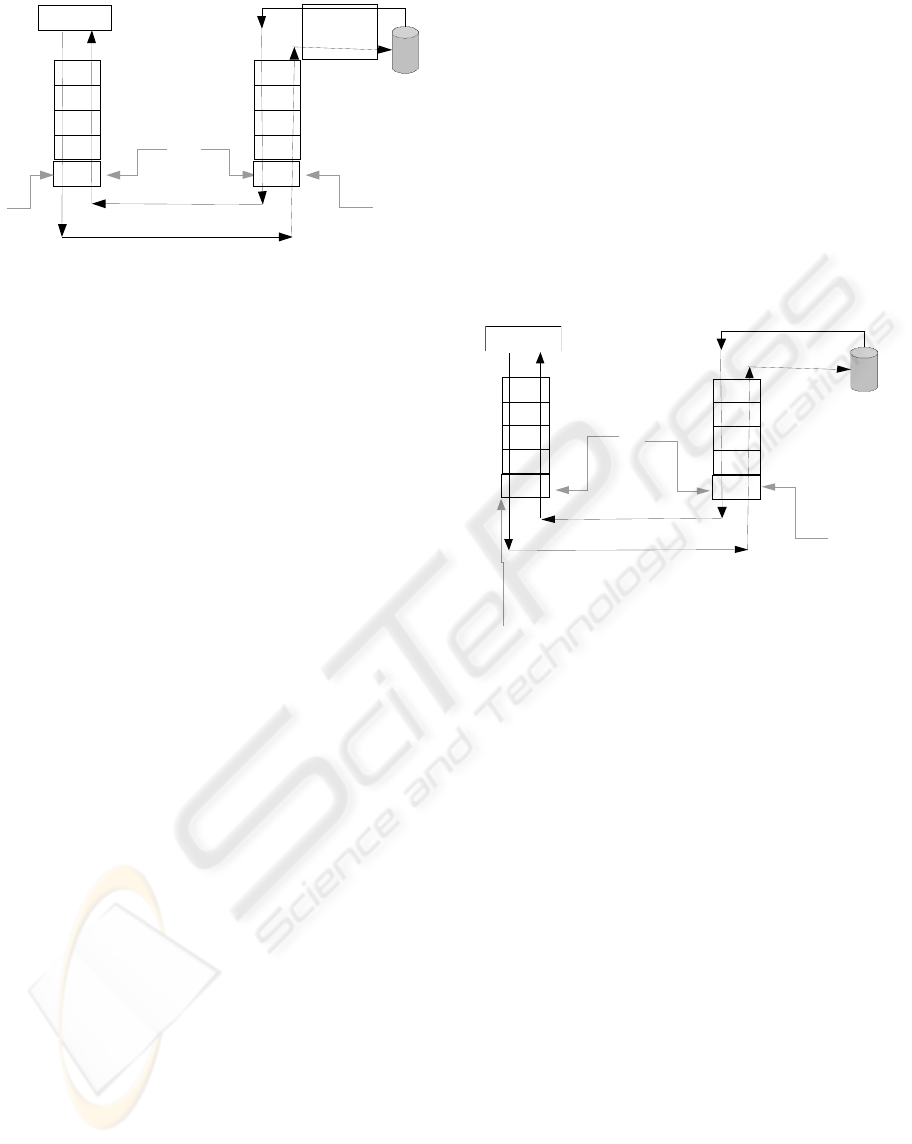

Figure 1: Re-encryption/decryption at target site.
