KNOWLEDGE SUPPORT FOR SOFTWARE PROCESSES

Michal Košinár, Svatopluk Štolfa and Jan Kožusznik

VŠB - Technical University of Ostrava, Faculty of Electrical Engineering and Computer Science

17. listopadu 15, 708 33, Ostrava, Poruba, Czech Republic

Keywords: Software Process Improvement, Knowledge, Rules, Facts, Knowledge Base, Data Mining, Software

Process.

Abstract: Documented software processes and their assessments are the basics of modern software development.

Nowadays, the semantic web, knowledge bases and knowledge management support many applications, but

still their application within software processes (and business processes generally) are surprisingly being

ignored. In this paper we focus on applying a knowledge layer into software processes and on the design of

such a knowledge base. After a brief description of some classical fundamental approaches to software

processes and knowledge bases, we propose an improvement based on the application of a machine readable

knowledge base. We focus, in particular, on optimizing and enhancing software processes and their

assessments with the knowledge layer.

1 INTRODUCTION

The main goal of every software company is to

develop high-quality software with a minimal cost of

development. One way to assure this is to follow

good practices that are described in software

processes. Since software processes show how to

build software, they are therefore an integrated part

of every software company. Every software

company uses some type of software process. Even

if this process is undocumented and/or unknown, it

is still there (Thayer, 1997).

Describing and maturing the software process is

a key element of a company’s strategy, because a

more mature software process means higher quality

and more inexpensive software. Maturity of the

software process is recognized through the

assessment and its evaluation. According to the

reference standards, a company’s software process

maturity is rated at a level from 0 to 5 (SEI, 2002). If

the company wants to have a more mature process,

the process must follow appropriate good practices

for a higher level (Makinen, 2008).

Building a knowledge base that describes the

practices in a company is an essential practice that

assures that everybody in company knows what to

do. Nowadays, almost every company has some type

of human readable knowledge base (HRKB) that

describes a variety of practices in the company.

There even exist human readable knowledge bases

that describe reference software processes and/or

good practices (Alexandre, 2008). What is still

missing in this area is the systematic usage of the

machine readable knowledge bases (MRKB) and

appropriate automated knowledge management.

In this paper, we are going to describe an

application of a machine readable knowledge base

for the support of a basic assessment of software

processes. The assessment result is the evaluation of

a comparison between the real software process and

the reference software process. This type of

assessment and its evaluation is only one part of our

proposed comprehensive approach for an assessment

and enhancement of the software processes. The aim

of this paper is to present this particular part and

discuss the integration into our comprehensive

knowledge supported approach for the assessment

and enhancement of software processes.

This paper is organized as follows: section 2

describes the basics of software processes; section 3

introduces the concept of creating, sharing and

comparing knowledge bases. In section 4 we briefly

present our process of semi-automated assessments

and evaluation of the similarity of the software

process to the reference process. Section 5 concludes

and discusses future work.

105

Košinár M., Štolfa S. and Kožusznik J. (2010).

KNOWLEDGE SUPPORT FOR SOFTWARE PROCESSES.

In Proceedings of the Fifth International Conference on Evaluation of Novel Approaches to Software Engineering, pages 105-111

DOI: 10.5220/0002999801050111

 SciTePress

2 SOFTWARE PROCESS

Business processes represent the core of company

behavior. They define activities which companies

(their employees) perform to satisfy their customers.

For a definition of the term business process, we use

the definition from (WfMC, 1999): “Business

process is a set of one or more linked procedures or

activities which collectively realize a business

objective or policy goal, normally within the

structure defining functional roles and

relationships.” A process of IS development is called

the software process. The software process is also a

kind of business process but it has its specific

aspects.

Software engineering is a discipline that is

involved in software process development and

maintenance (Humphrey, 1995). The main purpose

is risk and cost reduction during software

development. There exist many methodologies in the

domain of software engineering but they could be

divided specifically into two areas:

• Software development methodologies – they

are the system of methods for software product

development,

• Project management methodologies – they are

the system of methods for project management.

Software development methodologies often

divide software process into separate disciplines:

• requirement specification,

• analysis and design,

• implementation and testing,

• deployment,

There are two base kinds of software process

models:

• waterfall model,

• iterative model

During the waterfall model, every discipline

takes part after the previous discipline ends. The

idea of the waterfall model is adopted from civil

engineering and was popular in the beginning of

software engineering.

The waterfall model has a big disadvantage,

because implemented software is visible only after

the end of the whole process. However, it is a

practical experience requirement and the needs of

stakeholders, users or investors could be changed.

This issue solves the iterative model. The software

development process consists of several iterations.

Every iteration contains all disciplines – from

requirement specification to deployment. Only

selected requirements – based on priority – are

implemented and after finishing the iteration the

evaluation takes its part. Results of the evaluation

come as input in the next iteration and it can modify

or add requirements. The paradigm of the iterative

model uses such robust process frameworks as

Rational Unified Process or other lightweight

process frameworks or methodologies – XP

programming, ICONIX and etc…

3 KNOWLEDGE BASE

A knowledge base serves as artificial memory

(Brachman, 2004). The content of the knowledge

base consists of rules (obtained from reasoning or

domain ontologies) and facts (the state of the system

and its environment). We will use knowledge bases

and ontologies as a basic building block for

documenting and evaluating software processes. In

this section, fundamentals are described to

understand our approach to knowledge (Ciprich,

2008) and (Frydrych, 2008).

Details on how we can transform a human

readable knowledge base and how the rules and facts

are stored, reconstructed and managed in the

knowledge base are described in the next section.

3.1 Human Readable Knowledge Base

This section contains fundamentals of human

readable knowledge bases that are used in

organizations to document, share and evaluate

knowledge.

All of the pros and cons are shown the name. As

it is human readable, it is also created by humans. It

is simple to understand and share the contents. A big

disadvantage also comes from this property –

contents of such knowledge bases are typically

vague, and suffer from the lack of details.

3.1.1 Documentation

The most commonly used tools to document

knowledge in organizations are Wikis, project

portals and typical FAQs. Typical examples are

applications like web documentation of RUP, portals

like MSDN and Wikipedia.

3.1.2 Sharing

Sharing human readable knowledge means typical

communication that can be personal (meetings,

brainstormings, conferences etc.), combination of

personal and electronic (video calls, conference calls

ENASE 2010 - International Conference on Evaluation of Novel Approaches to Software Engineering

106

etc.), or pure electronic (e-mail client, Exchange,

Lotus etc.).

3.1.3 Evaluation

With all the advantages that human readable

knowledge bases offer, the assessment is a really big

disadvantage. Evaluating a process described in such

a knowledge base means manually comparing

documented knowledge with a real process.

3.2 Machine Readable Knowledge Base

The basic difference between a human readable and

machine readable knowledge base is the use of an

inference system in a machine readable knowledge

base. Even comparing two or more machine

readable knowledge bases is easier because we can

use smart algorithms instead of a manual

comparison.

So far so good, these possibilities are however

dependent on the domain ontology of such

knowledge bases. Let’s presume that we have a base

ontology describing a general software process

(terms like request, use case, change, sequence

diagram, class etc. and basic relation among them)

and one specialized ontology which is an extension

of the base ontology. The specialized ontology will

serve as a domain ontology for a concrete software

process formal semantic description and will allow

us to build a knowledge base for assessment

purposes. More information about enhancing

software processes with knowledge bases and

semantic tools is in the section 4.

3.2.1 Creation and Storage

The first difference is that instead of “documenting”

the knowledge in human readable knowledge bases

we are “creating and storing” it to fill the base with

rules and fact. All knowledge must be based on

domain ontology and has to be written in some

formal language (i.e. Prolog, OWL DL, TIL-Script).

Still, knowledge must be inserted into the base

by an expert, as in the case of human readable

knowledge bases.

More about formal languages used in knowledge

bases in (Ciprich, 2007), (Ciprich, 2008) and

(Frydrych, 2008).

3.2.2 Sharing

Sharing as we know it from human readable

knowledge bases is out of the question because we

are not building machine readable knowledge bases

to share the knowledge among experts like in their

human readable siblings’ case.

Moreover, there are ways to share knowledge

stored in a machine readable base. One possibility is

to use such a base as a base memory of an intelligent

software agent in a multi-agent system. The second

way is to translate the knowledge into natural

language (using TIL-Script and natural language

semantic web like WordNet). The third way is to

read the content of the base in its plain form;

however, this is possible only for those who know

the language used to formalize the content.

3.2.3 Evaluation

The difficult way to build machine readable

knowledge base for software processes has its

positives. We can evaluate knowledge content using

a machine comparison of two (or more) knowledge

bases that can be done more easily than a manual

comparison of two human readable knowledge

bases. In the next section of this paper, this idea is

described in more detail.

3.3 Knowledge Base Comparison

As mentioned above, we can compare contents of

two knowledge bases.

To do this correctly, we must define one basic

condition that will allow us to do that

- every member of knowledge base must be

comparable with another

This basic requirement is fulfilled as we are

using a homogenous data model to store knowledge

(every member of the set is stored as a string of text)

and usage of more content languages

in two bases

which will be compared is prohibited.

Now, we can handle knowledge bases as with

typical unordered sets (of rules and facts) so it

allows us to perform operations like union and

intersection.

So far, a simple relation to compare two

knowledge bases can be defined.

Definiton 3.4.

Similarity (A, B) = | intersection (A, B) | / | union (A, B) |

This function can compare only KBs where at

least one has no zero cardinality..The function

returns a number from interval <0 ;1>. This fuzzy

value is the value of two knowledge bases similarity.

KNOWLEDGE SUPPORT FOR SOFTWARE PROCESSES

107

4 KNOWLEDGE SUPPORT FOR

SOFTWARE PROCESSES

The idea of knowledge support for the assessment

and evaluation of software processes is based on the

fact, that according to us, the assessment,

enhancement and monitoring can be supported by

the creation and usage of machine readable

knowledge bases. A lot of manual procedures can be

automated. The goal is to create a more effective

environment for the assessment, enhancement and

monitoring of software processes.

One of the many tasks of this domain area is the

comparison between the reference software process

and real software process that is used in the

company. The issue is to find the similarity between

the real software process and the reference software

process and provide an evaluation of the current

state. Typically, the real process is assessed and

human readable knowledge bases are searched for

similarities. Everything is performed manually. Our

proposed approach shows the possibility of using a

machine readable knowledge base for the automatic

evaluation of the similarity between the real and

reference processes.

Our approach can be basically described as

follows:

1. The first step is the creation of the particular

reference knowledge base - Knowledge base

transformation.

Documented software processes that are

described in the human readable knowledge bases

are analyzed and the particular ontology for each

software process is created. Next, the ontology and

knowledge obtained from the HRKB is transformed

into the machine readable knowledge base. A new

MRKB is created for every type of the reference

software process.

2. The second step is the study and creation of

the real knowledge base and the comparison of the

reference and real knowledge base - enhancing

software processes with knowledge management.

A real software process is modeled and the

ontology for this process is created. The created

ontology must then be mapped into the reference

software process ontology. The mapped ontology set

and the knowledge obtained from the model is then

transformed into the machine readable knowledge

base.

Both knowledge bases are then automatically

compared and the result is a number that shows the

similarity of real and reference software processes.

It is obvious that the first step can be performed

only once for every reference software process. The

step is then applied for every real software process

that we want to evaluate.

4.1 Knowledge Base Transformation

We have already sketched a basic idea of how to

transform a human readable knowledge base into its

machine readable clone. Now, it is time to refine it

into details.

At first, we should explain the basic reason for

transforming the human readable KB into the

machine readable KB. The answer is really simple –

if we want to evaluate a process that is based on

some reference software process we would have to

manually compare it with the reference model

process described in its human readable knowledge

base. With knowledge enhancements and basic

approaches described above, we can sort this

problem automatically – by transforming the

reference knowledge base into the machine readable

knowledge base (Fig.1).

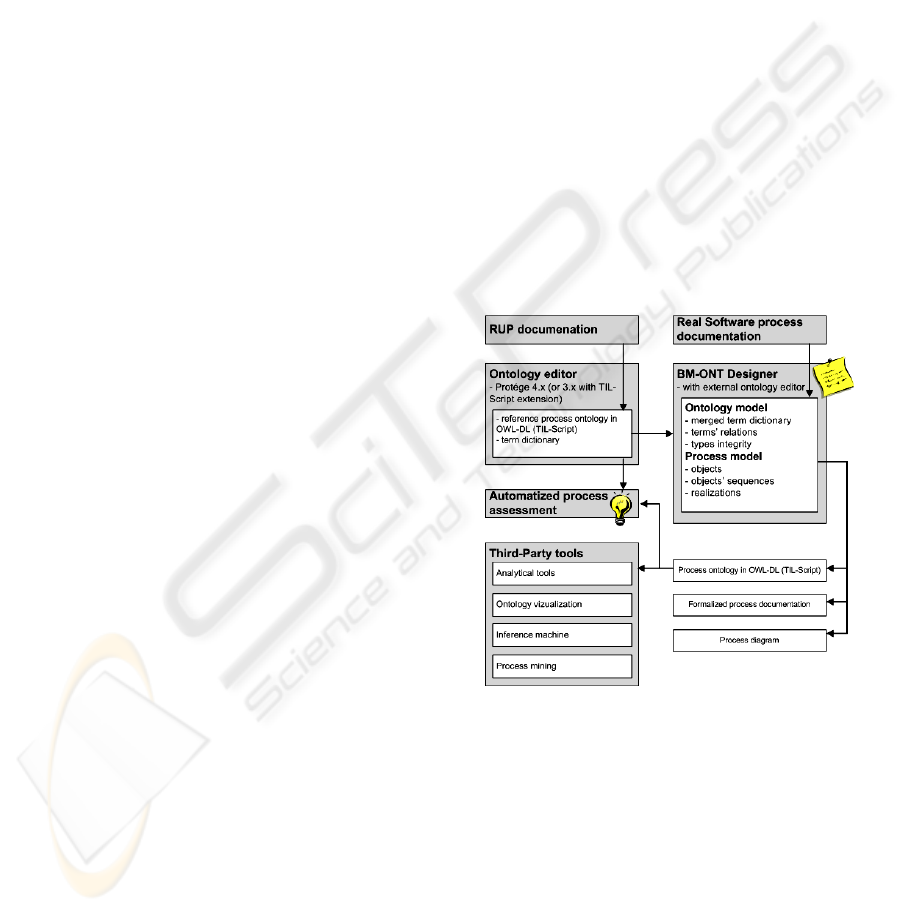

Figure 1: Scheme of the machine readable knowledge base

creation – RUP example.

This can be done by building an ontology for a

concrete domain (i.e. a software process) using the

human readable reference documentation. Then, the

knowledge base is defined by such ontology’s

content. We can see particular transformation in

greater detail in figure 2.

ENASE 2010 - International Conference on Evaluation of Novel Approaches to Software Engineering

108

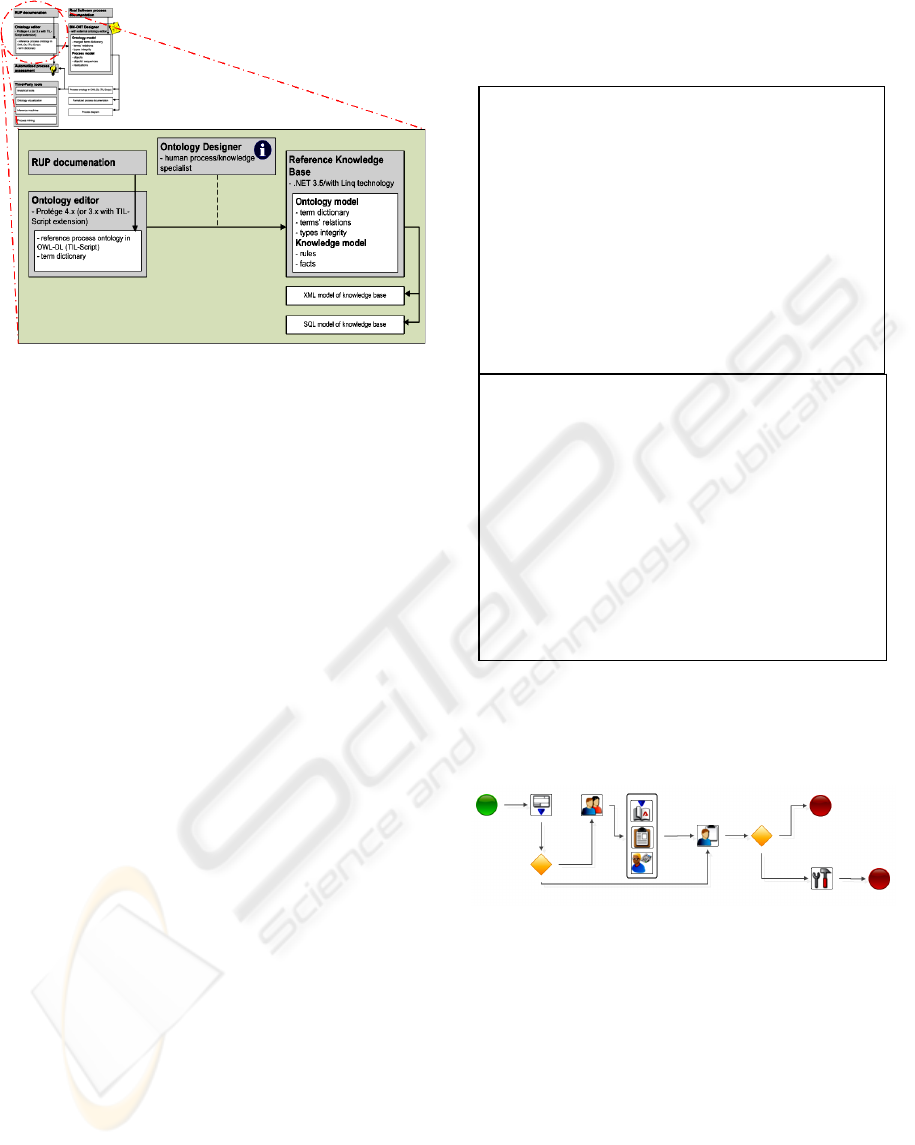

Figure 2: Knowledge base transformation.

An ontology builder has to describe the domain

to the ontology data file (using tools like Protégé

etc.) and then fill the reference knowledge base with

rules and facts (using some content language like

OWL-DL, TIL-Script or PROLOG) describing the

reference domain (using terms and relations from

domain ontology).

4.2 Building Process Definition with

Ontology Background

Example: Let’s say that we want to transform a part

of RUP’s “Change request” process. The simple

example of created ontology below describes types

of Change request and Change manager where the

Change request is a class of all possible instances of

change requests and Change manager class of all

change managers - individuals (as defined in RUP’s

documentation). As in real world, both types have

some properties – we must define them as well by

using Object Property definition. These properties

allow us to define a relationship among all described

types. In our example we define that Change

manager is associated with Change request via “Is

manager of” relation and vice versa Change request

is connected with manager by “Has manager”

relation. We can also use primitive types as Integer,

Boolean etc. in Object properties as in “Is approved”

property of Change request that says whether the

request was or was not approved. However more

appropriate usage of primitives are in Data

properties of types like in “Change request number”

property of Change request. Then we have to

associate the Data property to Class with defining an

Individual – the concrete instance of the property

associated with Class (the Change label that

identifies the change request in whole system). In

last example we define an individual as instance of

Change manager associated to Change request via

Change label identification.

Class(pp:changeRequest)

Class(pp:changeManager partial

restriction(pp:uses

someValuesFrom(pp:ChangeManagementArt

efacts)))

ObjectProperty(pp:isManagerOf

domain(pp:changeManager)

range(pp:changeRequest))

ObjectProperty(pp:isApproved

domain(pp:changeRequest) range(xsd:bool))

ObjectProperty(pp:hasManager

domain(pp:changeRequest)

range(pp:changeManager))

DataProperty(pp:changeRequestNumber

range(xsd:integer))

Individual(pp:ChangeLabel

type(pp:changeRequest)

value(pp:changeRequestNumber

"007"^^xsd:integer))

Individual(pp:Michal type(changeManager)

value(pp:isManagerOf pp:ChangeLabel))

Now, with defined ontology background of some

RUP process part, we can build a process definition

with storyboard method with strong formal system

of semantic annotation in every item’s background.

Figure 3: Storyboard diagram example from Storyboard

designer application.

4.3 Enhancing Software Processes with

Knowledge Management

The ability of transforming human readable

knowledge bases of documented software processes

into machine readable knowledge bases means that

we have a tool for the automatic assessment of

software processes.

This can be performed with the creation of two

knowledge bases.

i. One knowledge base that holds the optimal

software process transformed from human

KNOWLEDGE SUPPORT FOR SOFTWARE PROCESSES

109

readable base holding the process’

documentation (RUP documentation on the

Web). Let us name this knowledge set as a

“Template”.

ii. The second knowledge base that holds an actual

software process that is used in an organization.

This knowledge base must be filled by an

ontology expert in processing and consulting

services using the same ontology dictionary as

the “Template”. The name of this set will be the

“Actual”.

Now, when we have two knowledge bases whose

contents are documented and real software processes

we can use the function from Definition 3.4 to

evaluate the similarity of them.

An individual content comparison can be

performed as an add-on to the assessment. We can

search for differences directly between individual

members of both sets. However, this means basically

a brute-force comparison of two sets, which is not

optimal. Results of such a comparison can tell us

where gaps are in the “Actual” knowledge base of a

process compared to “Template”. The way to search

for such differences is the main task of our future

research.

5 CONCLUSIONS AND FUTURE

WORK

In this paper, we presented our new approach for the

semi-automated assessment and evaluation of

software process similarity. The comparison of the

real and reference software processes is done by the

usage of machine readable knowledge bases. The

template (reference) knowledge base describes the

reference software process and the actual knowledge

base (assessed process) describes the software

process in the company. The template knowledge

base is created in advance, using specific ontology

for the particular software process and other

techniques that are necessary to build a machine

readable knowledge base. The actual knowledge

base is created during the assessment process. Both

knowledge bases are then compared and the result is

the number that represents percentage similarity.

This presented process is one part of our

comprehensive approach to the assessment,

evaluation and improvement of software processes.

The first step is the extension of the presented

process to the automated comparison of specific

parts of software processes. The next steps are then

e.g. automated comparisons with more than one

specific process at once, involvement of process

modeling to the approach that will be used for the

automated search, evaluation and improvement

suggestion using the template software process

models etc… A lot of future work is needed to solve

all the problems that arise during the development of

this new approach. Our work is also supported by

the experience that is gained through the practical

experiments of this approach in real software

companies.

Although, according to our preliminary use cases

studies, this approach seems to be very promising,

the further use case studies are needed to

continuously develop and enhance the approach and

support its inclusion into the software process

assessment models and improvement techniques.

ACKNOWLEDGEMENTS

This research has been supported by internal grant

agency of FEECS VSB-TU Ostrava - IGA 22/2009

Modeling, simulation and verification of software

processes. Author Michal Košinár is also grand

aided student of Ostrava City Authority, Czech

Republic.

REFERENCES

Alexandre, S. Makinen, T., and Varkoi, T. Implementation

of a Software Process Standard as an Electronic

Process Guide. In proceedings of SPICE 2008

Conference (Software Process Improvement and

Capability dEtermination), 26-28 May 2008,

Nuremberg, Germany.

Ronald Brachman and Hector Levesque. Knowledge

Representation and Reasoning (The Morgan

Kaufmann Series in Artificial Intelligence). Morgan

Kaufmann, May 2004.

Ciprich, N., Duží, M., Košinár, M.: TIL-Script: Functional

Programming Based on Transparent Intensional

Logic. In RASLAN 2007, Sojka, P., Horák, A., (eds.),

MasarykUniversity Brno, 2007, pp. 37-42.

Ciprich, N., Duží, M. and Košinár, M.: The TIL-Script

language. In the Proceedings of the 18

European

Japanese Conference on Information Modelling and

Knowledge Bases (EJC 2008), Tsukuba, Japan 2008.

Frydrych, T., Kohut, O., Košinár, M.: Transparent

Intensional Logic in Knowledge Based Multiagent

Systems. In RASLAN 2008, Sojka, P., Horák, A.,

(eds.), MasarykUniversity Brno, 2008.

Dragan Gasevic, Dragan Djuric, and Vladan Devedzic.

Model Driven Architecture and Ontology

Development. Springer, July 2006.

ENASE 2010 - International Conference on Evaluation of Novel Approaches to Software Engineering

110

Humphrey, W. S. 1995 A Discipline for Software

Engineering. 1st. Addison-Wesley Longman

Publishing Co., Inc.

Makinen, T., and Varkoi, T. Assessment Driven Process

Modeling for Software Process Improvement. In

proceeding of PICMET'08 Conference, 27-31 July

2008, Cape Town, South Africa 2008

Standish Group International. The Chaos Report [online].

Boston: The Standish Group International, 1994 –

[cited on 17. Sept. 2006]. Available on http://www.

standishgroup.com/sample_research/chaos_1994_1.

php

Workflow Management Coalition, Terminology &

Glossary, The Workflow Management Coalition

Specification, February, 1999

Software Engineering Institute: CMMI staged-version 1.1

(2002), http://www.sei.cmu.edu/cmmi/

Thayer, R. H., Software System Engineering: An

Engineering Process, Software Requirements

Engineering, R. H. Thayer and M. Dorfmann, Eds.,

IEEE Press, Los Alamitos, CA 1997.

KNOWLEDGE SUPPORT FOR SOFTWARE PROCESSES

111
