A KNOWLEDGE SHARING SYSTEM FOR SOFTWARE

DEVELOPERS

Takayuki Shibata, Kazuyuki Nakamura, Takanobu Sato

Graduate Department of Information Technologies and Project Management, University of Aizu

Aizu-Wakamatsu City, Fukushima, 965-8580, Japan

Rentaro Yoshioka

Graduate Department of Computer and Information Systems, University of Aizu

Aizu-Wakamatsu City, Fukushima, 965-8580, Japan

Keywords: Knowledge sharing, Program reuse, Software development, Knowledge acquisition.

Abstract: Knowledge sharing is a key factor for increasing productivity of programmers and also in maintaining the

quality of programs in companies. However, programmers tend to resort to outside resources for solving

their problems. This paper proposes a system to facilitate active sharing of program related knowledge

among a group of programmers in a company. The system introduces a flexible unit to define the target

knowledge, defines a set of function tags to describe its functionality from a programming point of view,

and a set of project tags to describe its environmental aspects. We illustrate the rigid structure and

classification of the tags and how this approach can decrease the work load of programmers in registering

and retrieving knowledge along with a few examples. In addition, a simple evaluation tests have been

performed with an experimental implementation of the proposed system.

1 INTRODUCTION

When a programmer comes across problems during

coding, where does he/she turn for help? Prying

through documents, looking up the index of a

favorite book, or running a search on the Internet,

there are often many sources to choose from. There

is a study that reports that, among professional

programmers, the most preferred source to seek

advice is (1) the Internet, (2) books, and (3)

colleagues/supervisors (Kurata, 2003). Although this

order might vary depending on whom you ask,

definitely these are everyone’s favorites. To a

company engaged in software development, it is of

great interest whether their programmers solve their

problems efficiently and with sufficient quality. For

instance, books can be considered as a relatively

reliable source, considering the process it goes

through before getting printed. On the other hand,

books on more recent or evolving technologies can

take some time until they get printed and must be

properly replaced with old versions to be fully

useful. As for efficiency, books are well organized

and are fast when you are looking for something that

is listed in the index but you might need to spend

time to skim some chapters if it is not. Asking a

colleague or boss, or any other knowledgeable

person, about a coding problem is often a simple

solution. It is possible to immediately receive advice

but the quality of the answer could depend on the

time your colleague can spare. Especially in

companies, the fact that one person spends time to

help another could be considered as undermining the

efficiency of the organization as a whole. Compared

to the two sources of knowledge we have just

considered, the Internet has features that

complement their drawbacks. The amount of

resource available on the Internet is vast and covers

a wide range of information which is usually

updated at a much higher speed than books.

Obviously, searching the Internet does not influence

any other colleague’s time so it is a promising

candidate as an ideal source for increasing the

productivity of programmers. Still, it is quite far

from being perfect.

499

Shibata T., Nakamura K., Sato T. and Yoshioka R. (2010).

A KNOWLEDGE SHARING SYSTEM FOR SOFTWARE DEVELOPERS.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 499-503

DOI: 10.5220/0003005704990503

 SciTePress

General search engines, such as Google and Yahoo,

provide full-text search of resources available on the

Internet. The problem with using general search

engines is that its efficiency is unpredictable. Often,

it takes much more time than expected to find

anything useful and requires sufficient knowledge

and experience to come up with the right keywords

that will produce the expected search results.

Moreover, although there is great amount of

resources to search from, those with sufficient

quality are much less. There are search engines

devoted to specific fields of interest. For example,

DBCLS is a search engine specialized in life science

(Codase, 2010). Also there are web sites dedicated to

code sharing, called code search engines (CSE) sites,

such as, Google Code Search (Google, 2010),

Koders, Codase (Koders, 2010). CSE sites allow

users to post programs along with tags that represent

the type of programming language, additional user

specified tags (keywords) and text and are

customized for sharing programs. However, other

than the tag that represents language types, they

basically perform a text search on the tags, text, and

program and suffer from the same efficiency/quality

problem of general search engines. There is a type of

CSEs that collect programming knowledge in the

form of code snippets (DZone, 2010) (Snipplr,

2010). These sites allow users to share small parts of

programs and to retrieve them as templates for

coding. However, even these sites do not provide

any additional means for supporting a more efficient

search.

We propose a system in which knowledge related

to program development can be shared efficiently

among a group of developers. The aim of the system

is to increase the productivity of program

development by providing access to a shared

repository of knowledge useful for developers. This

repository stores knowledge in units of logical

fragments. A logical fragment can represent varying

sizes of knowledge, from a few lines of code to a

few files of programs. The knowledge is not limited

to program code and can represent configuration

files, documents, etc. A logical fragment is annotated

by a set of tags that describe its function, called the

function tag, and a tag describing its environmental

attributes, called the project tag.

The paper is organized as follows: the next

section presents the background and direction of our

approach. The following section describes the

specific method used to register and retrieve

knowledge in our system. The final section provides

summary and presents future work.

2 BACKGROUND

This research is concerned with knowledge

management within an organization to support

software engineering. We are especially interested in

increasing the productivity of programmers while

increasing the quality of the code that they produce.

Knowledge management is a means of solving

business challenges and many methods have been

practiced (Alavi and Leider, 2001). The first

generation systems were focused on the documents

created by users. The second generation systems

focused on the people who possess knowledge.

These systems were realized as web sites that

provide a public place where questions on particular

topics could be posted and people with the

knowledge could answer. A particular group of web

sites that support interaction and exchange of

knowledge between people sharing common

interests (Social Networking Sites) were also

introduced. The first generation systems suffered

from the high-cost of accumulating information and

the second generation systems suffered the difficulty

of evaluating the effects since effects were difficult

to visualize. In more recent attempts, methods that

try to evaluate the contents that each user possesses

and to connect them have also emerged.

Existing CSEs can be classified into two types.

In the first type, the system parses various files,

which were registered as one set of files related to a

project, and performs searches. In the second type,

lines of code are registered individually as snippets.

In both types, in addition to the code, additional

information provided by users and the system are

subject to search. For example, types of

programming languages or licenses are used by

some systems. Based on a finding that many

programmers perform search related to API

(application programming interface),

troubleshooting, implementation, development tools,

language syntax and semantics, a system to assist

problem solving by automatically collecting and

extracting significant information from web pages

with sample codes, Java archive (JAR) files, Java

documents (JavaDoc) pages has been proposed

(Thummalapenta and Xie, 2007). There are also

many approaches related to component-based

software engineering that aim at solving the problem

with programming efficiency and quality by reusing

software as components (Heineman and Councill,

2001 ).

Compared to current CSEs, the system we

propose introduces a greater structure to the format

in which programs and related information are

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

500

registered. This structure allows the system to better

understand and manipulate the knowledge when

performing searches and presenting the results to

users. The fundamental policy is to extract as much

knowledge as possible from the person registering it.

Instead of simply allowing the user to register a file,

the system will ask the user to specify which lines

are important and what they represent. This brings

up another important point that our system does not

use free-word tags but introduces a predefined set of

tags. Tags are often sources of ambiguity and causes

searches to return unrelated information. In some

social networking sites (SNS), folksonomy is used to

bring some kind of order to freely defined tags

(Golder and Huberman, 2006). It is possible to

create a hierarchical structure from these tags by

creating clusters but the quality of the resulting

classification depends on the number of tags and

usually requires a huge set (Niwa, Doi, Honiden,

2006). We prefer to use a well organized set of tags,

where each tag represents some range of meaning so

that we do not need to prepare a tag for everything.

The impreciseness can be supplemented by using

multiple tags and intelligent user interfaces

technologies. The main framework supporting our

idea is described in the next section.

3 KNOWLEDGE

REPRESENTATION METHOD

This system aims at managing two types of

knowledge. The first type is the knowledge related

to programming of software (in other words,

coding). This is the practical knowledge required for

developing software systems, such as, syntax of

programming languages, logics of specific

algorithms, usage of specific libraries, etc. These are

the knowledge that becomes useful in developing

programs. The second type is the knowledge related

to project management. This is the knowledge

related to managerial aspects, such as, system design

documents, project balance sheets, schedule, etc.

These are the knowledge that becomes useful in

planning projects and creating similar documents in

the future. Since there are many existing approaches

in sharing the second type of knowledge, our main

focus is on how to effectively share the first type of

knowledge. Our approach to dealing with

programming related knowledge is based on “logic

fragments” and “tag-based retrieval”.

3.1 Logic Fragments

A “logic fragment” (LF) is a unit of knowledge

representing some meaningful function within a

program. Each LF consists of more than one file

(usually a program) and a set of line numbers that

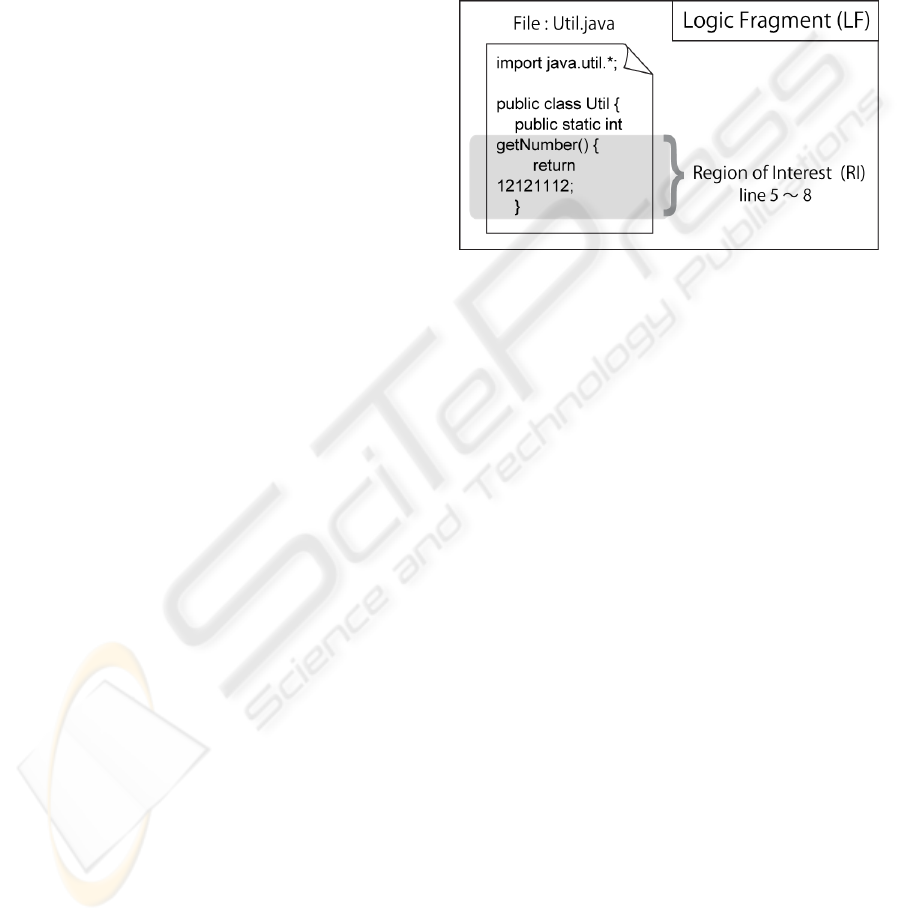

specify a region of interest (RI). Figure 1 depicts the

simplest form of LF. In the figure, the code to be

shared is marked as an RI by the line numbers.

Figure 1: Logic Fragment and Region of Interest.

Then, the original program and the line numbers

are stored as an LF. This structure, compared to

cutting out and storing only the lines that are related

to the target function, is more suitable in program

reuse since other parts of the program provides

additional information for understanding the RI. Let

us consider an example. Suppose that a programmer

wishes to share the following knowledge: “How to

extract the month and year from a formatted string

of characters”. The programmer will first open the

program file that contains this code. Then the lines

that actually correspond to that code should be

specified (Supposing that this program contains code

that performs other functions as well.). Multiple RIs

can be used within an LF. As already mentioned, an

LF can consist of multiple files so that functions that

span across multiple files can be represented. An

important rule of LF is that all LFs should be ready

for compilation and execution. This is based on the

thought that understanding of programs is better

accomplished by actually running it. So, supportive

files, such as additional programs and libraries, can

be attached to an LF.

3.2 Tag-based Retrieval

The knowledge of an LF is specified by two types of

tags: function and project. A function tag is used to

describe the functional meaning of that knowledge.

A project tag is describes the features specific to the

concrete instance of that knowledge.

A KNOWLEDGE SHARING SYSTEM FOR SOFTWARE DEVELOPERS

501

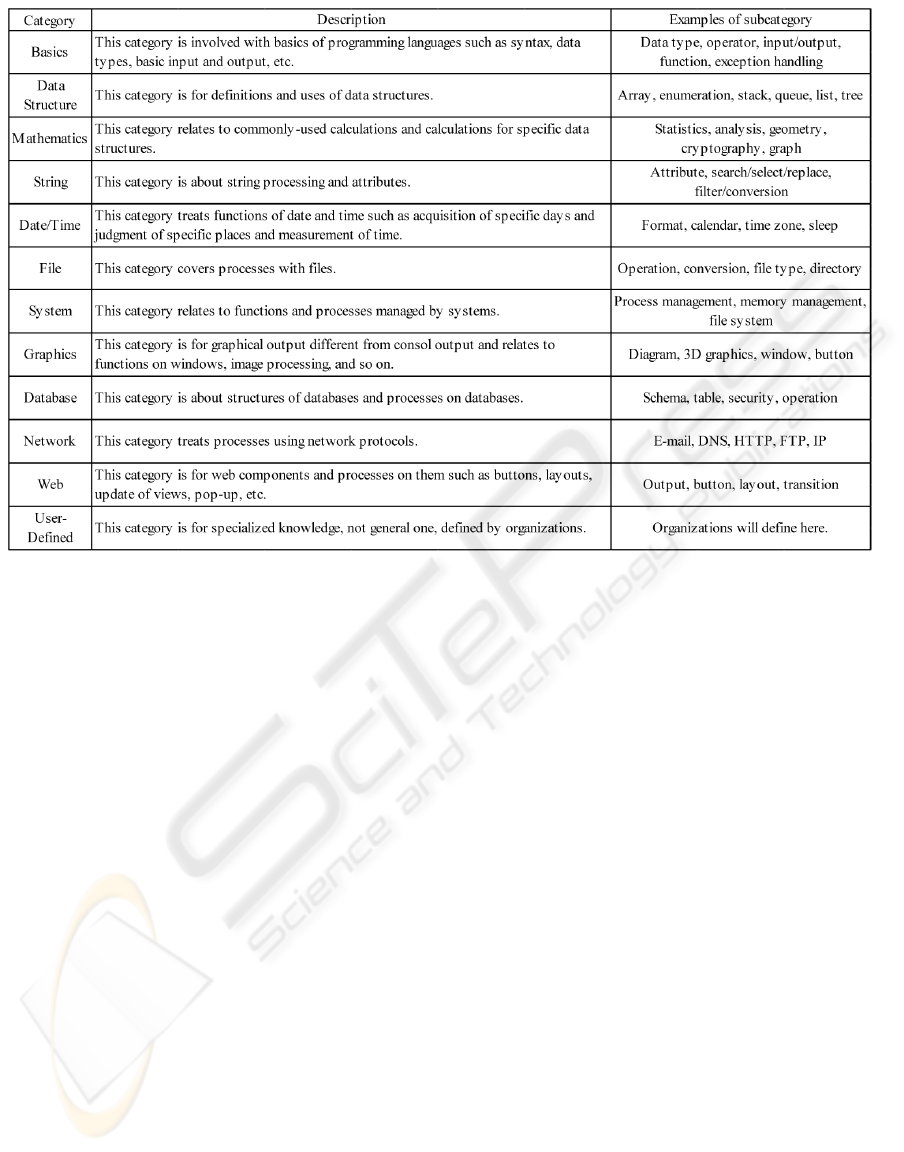

Figure 2: The top level items of function tags.

An LF represents knowledge of one or more

program-related functions. Each LF is attached at

least one function tag. Based on our analysis of past

and current methods and systems, we have opted to

predefine the possible types of functions rather than

allowing users to use free-words. In defining the

tags, a classification of functions was created by

analyzing existing knowledge from books,

programming languages, software applications, etc.

The functions tags have a hierarchical tree structure

of three levels. The top level items are shown in

Figure 2. There are 12 categories in the first level.

For example, the basic category contains functions

that directly relate to features of programming

languages, such as, variable definitions, declarations,

operators, input/output functions, etc. The user-

defined category is a special category in which

functions related to specialized knowledge may be

added. This allows groups of users (i.e. companies)

to add custom tags that are specific to their field of

activity. Since this is a newly proposed classification

of functions, it is expected that users will require

some time to understand its organization.

A project tag represents features related to the

specific environment in which the program was

intended for, such as, programming languages,

operating systems, dependent libraries and

frameworks, etc. Since these attributes are often

defined by the requirements of development projects

in companies, we have named them the project tags.

The project tags are especially useful when

retrieving knowledge registered by members of the

same project.

4 CONCLUSIONS

A knowledge representation method for a system

specialized in sharing knowledge related to program

development has been presented. This system is

aimed to be used by a group of developers (within in

a company) by registering useful program code as

reusable knowledge. In this system, fragments of

program code that implement some function are

registered. In the proposed method, a unit called

Logic Fragment (LF) and Region of Interest (RI) are

used to define the body of knowledge. Two types of

tags, called function and project, are proposed to

describe the content meaning of each LF. The

function tag is used to describe the function it

provides. The project tag is used to describe the

environmental features related to the program, such

as, programming language, dependant libraries,

operating system, etc. to supplement the retrieval

process. Users may retrieve knowledge from the

system by specifying one or more logic tags. The

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

502

search results may be sorted / filtered with the

project tags. Although the details could not be

included in this paper due to space constraints, an

experimental system was implemented and usability

tests were performed. From these tests, we have

obtained results that show that this system can be

effective in organizing program-related knowledge

and that it may contribute to increasing the

efficiency of searches and maintaining quality of

acquired knowledge.

REFERENCES

Alavi, M., Leidner, D., 2001. Review: Knowledge

Management and Knowledge Management Systems:

Conceptual Foundations and Research Issues, MIS

Quarterly Vol.25 No.1, pp.107-136.

Codase homepage. Retrieved February 1st, 2010, from

http://www.codase.com/.

Code Snippets homepage. Retrieved February 1st, 2010,

from http://snipplr.com/.

DZone Snippets home page. Retrieved February 1st, 2010,

from http://snippets.dzone.com/.

Golder, S.A., Huberman, B.A., 2006. The Structure of

Collaborative Tagging. Journal of Information

Science, 32, 198-208.pp. 101-127.

Google Code Search homepage. Retrieved February 1st,

2010, from http://www.google.com/codesearch.

Heineman, G.T., Councill, W.T., 2001. Component-Based

Software Engineering, Addison-Wesley, New Jersey.

Koders homepage. Retrieved February 1st, 2010,

http://www.koders.com/.

Kurata, Y., 2003. Questionnaire: Awareness of skills and

career development of IT engineers. Retrieved at

http://y-kurata.com/2002project.htm.

Niwa, S.,Doi, T., Honiden, S., 2006. Web Page

Recommender System based on Folksonomy Mining,

Proc. 3rd International Conference on Information

Technology: New Generations (ITNG'06), pp.388-393.

Thummalapenta, S., Xie, T., 2007. PARSEWeb: A

Programmer Assistant for. Reusing Open Source Code

on the Web, Proc. 22nd International Conference on.

Automated Software Engineering, pp.204–213.

A KNOWLEDGE SHARING SYSTEM FOR SOFTWARE DEVELOPERS

503
