TRIOO

Keeping the Semantics of Data Safe and Sound into Object-oriented Software

Sergio Fern

andez, Diego Berrueta

Fundaci

on CTIC, C/ Ada Byron 39, Parque Cient

ıﬁco y Tecnol

ogico, Gij

on, Asturias, Spain

Miguel Garc

ıa Rodr

ıguez, Jose E. Labra

Computer Science Department, Universidad de Oviedo, Campus Los Catalanes, Oviedo, Asturias, Spain

Keywords:

RDF, SPARQL, Web, Data, Persistence, Object-oriented programming.

Abstract:

Data management is a key factor in any software effort. Traditional solutions, such as relational databases,

are rapidly losing weight in the market towards more ﬂexible approaches and data models due to the

fact that data stores as monolithic components are not valid in many current scenarios. The World Wide

Consortium proposes RDF as a suitable framework for modeling, describing and linking resources on the

Web. Unfortunately the current methods to access to RDF data can be considered a kind of handcrafted work.

Therefore the Trioo project aims to provide powerful and ﬂexible methods to access RDF datasets from object-

oriented programming languages, allowing the usage of this data without negative inﬂuences in object-oriented

designs and trying to keep the semantics of data as accurate as possible.

1 INTRODUCTION

Software data management has experienced a notable

evolution in the last few years. Relational databases

are still one the most powerful and used solutions for

data storage in many cases, but there are many reasons

to discard it as a suitable technology: On the one

hand, the emergence of new distributed architectures

of software requires new approaches able to fulﬁl all

these new requirements relying on availability and

ﬂexibility. Unfortunately federated databases do not

yield the expected features and performance in some

scenarios. On the other hand, it is impossible to

normalise a relational schema when data schema is

not clearly decided or condensed. Both issues have

motivated a lot of research in the last few years.

Concerning distributed storage, the software indus-

try currently offers some quite interesting solutions:

Google uses Bigtable or Pregelin many of their appli-

cations, Microsoft developed BitVault, among others.

With respect to how to efﬁciently store schema-free

data, there are other promising proposals facing this

challenge: from proprietary data models, as solutions

used in many of the distributed storage systems or

in native object-oriented databases, to more open

solutions, such as the XML-based databases.

The World Wide Consortium

adopted

another approach, often known as the Semantic

Web (Berners-Lee et al., 2001). Semantic Web

aims to provide a set of technologies that would

facilitate the implementation of solutions to this (and

others) current problems, based on the decentralised

Web architecture, the idea of a “Web of Data”.

Obviously it has some additional open issues, such

as the trust and provenance of data, that do not

apply to an intranet environment; but once they

are solved, the “Web of Data” reveals as a much

more powerful solution than a one. W3C’s main

proposal is build upon the current Web. So that

means using HTTP (Fielding et al., 1999) as basic

protocol for transfer information and XML as basic

format for encoding documents, but enriched with

the RDF technologies stack. RDF (Klyne and

Carroll, 2004) (Resource Description Framework)

provides a ﬂexible and extensible data model,

based on the concept of “triple” (subject,

predicate, object), that greatly simpliﬁes data

interoperability, interchange and integration across

different heterogeneous sources and applications.

RDF extends the linking structure of the Web to

http://www.w3.org/

311

Fernández S., Berrueta D., García Rodríguez M. and E. Labra J. (2010).

TRIOO - Keeping the Semantics of Data Safe and Sound into Object-oriented Software.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 311-320

DOI: 10.5220/0003008803110320

 SciTePress

use URIs to name the relationship between things

instead of documents (Berners-Lee et al., 2005;

Sauermann and Cyganiak, 2008). This architecture is

complemented with languages to model knowledge

(RDFS (Brickley et al., 2004) and OWL (Schneider

et al., 2009)) and languages to natively query

RDF data such as SPARQL (Prud’hommeaux and

Seaborne, 2008)/SPARUL (Schenk and Gearon,

2010).

Consequently RDF allows to relate data

from different providers, interlinking resources

from different datasources, as the “Linked Data”

principles (Berners-Lee, 2006) dictate. The Linked

Data initiative

is growing quite fast, and a large

amount of data is already available on the Web as

RDF, ready to be consumed by new applications

capable of exploiting this innovative paradigm. This

means a new way to integrate the Word Wide Web

with business data and applications. Due to these

features, RDF may be a key technology to store the

data in the next generation of software applications,

becoming a common layer where data can be stored

and retrieved.

In this position paper we present the Trioo

project (which name means something like “triples

object-oriented”), an ongoing initiative that aims to

add support to some of the most important object-

oriented programming languages for managing RDF

data based on those standard technologies in an

efﬁcient and ﬂexible way. Because at the end “are

objects, not triples”

. A key premise of the project is

that software developers must not be forced to adapt

their oo-design keeping the semantics of data safe

and sound in the software.

This paper is structured as follows: Section 2

analyses the related work relevant to the objectives

addressed by Trioo. Section 3 describes in detail

these objectives and the design issues found, facing

and comparing both computational models, RDF and

object-oriented. Section 4 brieﬂy depicts the on-

going implementations in the current early state of

development. Finally Section 5 discusses the current

conclusions, setting the basic guidelines for the work

in the upcoming months.

2 RELATED WORK

The ongoing work described in this paper is ex-

tensively related to the work made these last years

on object-relational mappings, but also to work in

http://linkeddata.org/

http://harth.org/andreas/blog/2009/03/27/

its-objects-not-triples/

accessing (Semantic) Web data. On these ﬁelds, and

for better understating of this analysis, it is necessary

to introduce two relevant design patterns:

Active Record is a widely used design pattern to

work with relational databases where each row is rep-

resented as a single object (Fowler, 2002). Therefore,

ActiveRecord can be considered as an approach to

access databases: each table (or view) is wrapped as

a class, and each row as a instance object. The as-

sumption “one object, one row” greatly simpliﬁes the

development of CRUD functions (Create, Read, Up-

date and Delete) on relational databases. In fact, most

of the current ORMs (“Object-Relational Mapping”)

implements this design pattern, or an adaptation of it.

Data Mapper is an adaptation of the Mapper

design pattern (Fowler, 2002). Objects and relational

databases have different mechanisms for structuring

data, and many parts of an object, such as business

logic, collections and inheritance, are not present

in relational databases. The object schema and the

relational schema do not need to match up. The

Data Mapper is a layer of software that separates

the in-memory objects from the database. Its

responsibility is to transfer data between the two

and also to isolate them from each other. With Data

Mapper the in-memory objects do not need to know

even that there is a database present; they do not need

SQL interface code, and certainly no knowledge of

the database schema; in fact the database schema is

always ignorant of the objects that use it.

These two design patterns are probably the most

relevant and used for object-data mapping, but there

are many more, such as “Table Data Gateway” or

“Row Data Gateway”, among others. However this

is not a full report about these patterns, just a brief

introduction of the concepts, in order to illustrate how

data access use to be implemented in modern software

systems. Although the target of the Trioo project are

just RDF-based stores, one of the aims of this position

paper is to extract (positive and negative) conclusions

from other current solutions. Therefore this state of

the art will not be restricted to RDF stores, but it will

cover a wider range of approaches in order to reach

the best possible solution in Trioo.

2.1 Traditional Stores

In this paper the term “traditional stores” actually

concerns traditional relational databases. There

are several software solutions that solve the

object-relational impedance mismatch problems

by replacing direct persistence-related database

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

312

accesses with high-level object handling functions.

Some of the most relevant are (by alphabetic order):

ActiveRecord

is the implementation of the pat-

tern with the same name used in the popular Web

framework Ruby on Rail, which main contribution to

the pattern is to relieve the original of two stunting

problems: lack of associations and inheritance. By

adding a simple domain language-like set of macros

to describe the former and integrating the Single

Table Inheritance pattern for the latter, Active Record

narrows the gap of functionality between the data

mapper and active record approach. It follows the

principle DRY philosophy

. There are many other

implementations for many other languages that follow

a quite similar approach, such as Django Models for

Python, nHydrate and Castle for C# (this last one ac-

tually an implementation built on top of NHibernate),

CakePHP for PHP, or GORM for Groovy.

Hibernate originally is an implementation of the

Data Mapper design pattern for the Java language,

but currently is much more, providing a framework

for mapping an object-oriented domain model

to a traditional relational database (Bauer and

King, 2004). The current version is a certiﬁed

implementation of the Java Persistence API 1.0

speciﬁcation (JPA (DeMichiel and Keith, 2006)),

but hopefully soon it will start to support the recent

version 2.0 (JSR317 (DeMichiel, 2009)). Hibernate

also provides a SQL inspired language, called

Hibernate Query Language (HQL), which allows

SQL-like queries to be written against Hibernate’s

data objects. Undoubtedly, Hibernate is the most

extended data mapper for the Java world. A port for

the .NET framework, known as NHibernate

, has

been even carried out. Nowadays JPA has become

so popular that there are several implementations,

although Hibernate is still the most popular one.

iBATIS is an implementation in Java, .NET and

Ruby of the Active Record design pattern, providing a

persistence framework which automates the mapping

between relational databases and objects. It takes the

reverse approach than, for instance, Hibernate: iBatis

automates the creation of POJOs (Plain Old Java

Objects) from an already existed relational database.

All these solutions allow to develop persistent

classes over relational databases following object-

oriented idiom, including association, inheritance,

http://ar.rubyonrails.org/

Don’t Repeat Yourself

https://www.hibernate.org/343.html

polymorphism, composition, and collections manage-

ment.

2.2 RDF-based Stores

The critical problem of how to efﬁciently query RDF

datasets has been there since the origins of the Se-

mantic Web until today (Sintek and Decker, 2002).

It is true that the current technological landscape

has substantially improved: there is a standard query

language (SPARQL), efﬁcient RDF stores (Virtuoso

Sesame

, 4Store

, and many others), and libraries

that support all this technology. However there is

still a huge gap on how all this RDF-based data

is actually managed on the software systems. As

described above, a RDF class is not exactly the same

that a class in object-orientation, even though there

are some solutions based on this approach

. Anyway

there are some interesting attempts to be analysed:

ActiveRDF proposed a novel way to work

with RDF with object-orientation on Ruby (Oren

et al., 2008), based on the ActiveRecord design

pattern (Fowler, 2002), and clearly inﬂuenced by the

work on model-driven Web development. When it

was developed, SPARQL did not have data update

capabilities, so it works over proprietary interfaces

(based on a pluggable architecture that allows new

implementations) for each store for persisting the

RDF data the query language has evolved since then,

but apparently there is not any plan to support its new

features.

Empire

is an implementation of a large chunk

of the core of JPA to provide an interface to RDF

databases (currently only 4Store, Sesame, and Jena)

using SPARQL, SeRQL (Broekstra and Kampman,

2003) and the supported stores’ proprietary API, by

a small annotation framework for tying Java beans to

RDF.

JenaBean

persists POJOs to Jena’s models

, and

back. Although it is annotation-based, requires to

extend a templated class (RdfBean) to gain RDF

http://virtuoso.openlinksw.com/

http://www.openrdf.org/

http://4store.org/

Such as the one use by Soprano

(http://soprano.sourceforge.net/apidox/trunk/

soprano devel tools.html#onto2vocabularyclass) or by

Prot

e (http://protegewiki.stanford.edu/index.php/JSave)

http://github.com/clarkparsia/Empire

http://jenabean.googlecode.com/

http://jena.sourceforge.net/javadoc/com/hp/hpl/jena/rdf/

model/Model.html

TRIOO - Keeping the Semantics of Data Safe and Sound into Object-oriented Software

313

capabilities, which is a heavy design restriction on

programming languages with single inheritance like

Java.

OntoBroker originally consists of a number of lan-

guages and tools that enhance query access and infer-

ence service of the World Wide Web (Fensel et al.,

1998). This is based on the use of ontologies to

annotate Web documents and to provide query access

and inference service that deal with the semantics of

the presented information. Nowadays OntoBroker

has become a consolidated commercial product that

provides a high performance and scalable Seman-

tic Web reasoning middleware, supporting several

standard technologies such as OWL, RDF, RDFS,

SPARQL or F-logic.

Ripple is a relational, stack-based data-ﬂow lan-

guage for the Semantic Web (Shinavier, 2007), a

versatile framework for traversal-based algorithms on

semantic networks. The open source implementa-

tion

is written in Java and includes a command-

line interpreter as well as a query API which only

interoperates with the native API of Sesame RDF

store.

SuRF

is another implementation of the Active

Record pattern. It exposes the RDF triple sets as

sets of resources and seamlessly integrates them into

the object-oriented paradigm in Python, in a similar

manner as ActiveRDF does for Ruby. In can work

both over ﬁles or RDF stores, using SPARQL for

reading where possible, but implementing proprietary

interfaces for writing data to a couple of natively

supported stores.

This analysis draws that many these products use

the same approaches for RDF than their equivalents

for other technologies. For instance, even though

the Active Record pattern ﬁts well for relational

databases, that is not so for RDF: a RDF object

is not a row, it is a set of triples. Thus RDF data

model has many differences that should be taken

into account for developing such a kind of tools.

Therefore it would be necessary learn from other

more developed technologies, but it must ﬂee from

negative inﬂuences. Many of these details will be

described below in this paper.

http://www.ontoprise.de/en/home/products/ontobroker/

http://ripple.googlecode.com/

http://surfrdf.googlecode.com/

2.3 Other Families of Stores

Data storage embraces many more technologies

than those described above, such as object-oriented

databases. Unfortunately object-oriented databases

are still minor players with reduced market niches.

And meanwhile some of the products described above

have added object capabilities to relational databases.

In a parallel way there are other alternatives that

do not require ﬁxed table schemes, and usually

avoid join operations. It is worth highlighting the

NoSQL initiative

, that actually it is not a concrete

product, but a portmanteau term for a loosely deﬁned

class of non-relational data stores that break with

a long history of relational databases and ACID

guarantees

. In addition, there are two products that

are somehow interesting due their adaptability to

many different stores:

EclipseLink

provides an extensible framework

that allows Java developers to interact with various

data services, including relational databases, web

services, Object XML mapping (OXM), and

Enterprise Information System (EIS). EclipseLink

supports a number of persistence standards including

Java Persistence API (JPA), Java API for XML

Binding (JAXB), Java Connector Architecture (JCA)

and Service Data Objects (SDO).

LINQ is a general-purpose query language

proposed by Microsoft for adding native query

capabilities to their .NET framework (Meijer et al.,

2006). LINQ applies to all sources of information,

not just relational or XML data, by implementing new

data providers, even for RDF, such as the ﬂedgling

effort on LinqToRdf

3 BRINGING TRIOO TO THE

ARENA

The Trioo project aims to develop a technology en-

abling to easily use RDF data directly in some object-

oriented programming languages, not only to persist

that data in RDF stores, but also to consume data

available on the Web and to expose the business

model of the application as Linked Data. It is true

that some languages start to offer new generic mecha-

nisms closer to the object-orientation that to the query

http://nosql-database.org/

Atomicity, Consistency, Isolation, and Durability

http://www.eclipse.org/eclipselink

http://linqtordf.googlecode.com/

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

314

technology, such as the above described Microsoft’s

LINQ; but they still fail to offer more natural ways to

access the data, from an object-oriented perspective.

This is not a new challenge in computer science,

because the software industry already offers some

solutions since some years ago, for instance Hibernate

for relational databases. But going deeply into the

problem, it is clear that there is not any satisfactory

solution to work with RDF, because they all strongly

rely on design patterns, such as Active Record, too

close to the entity-relational model. And the RDF

model has many special features and semantics that

should be treated as such. Therefore providing a tech-

nology capable of managing RDF data in a object-

oriented way is a appealing scientiﬁc challenge that,

from our point of view, may potentially have a great

impact on the usage of the Semantic Web to provide

innovative software solutions to real world problems.

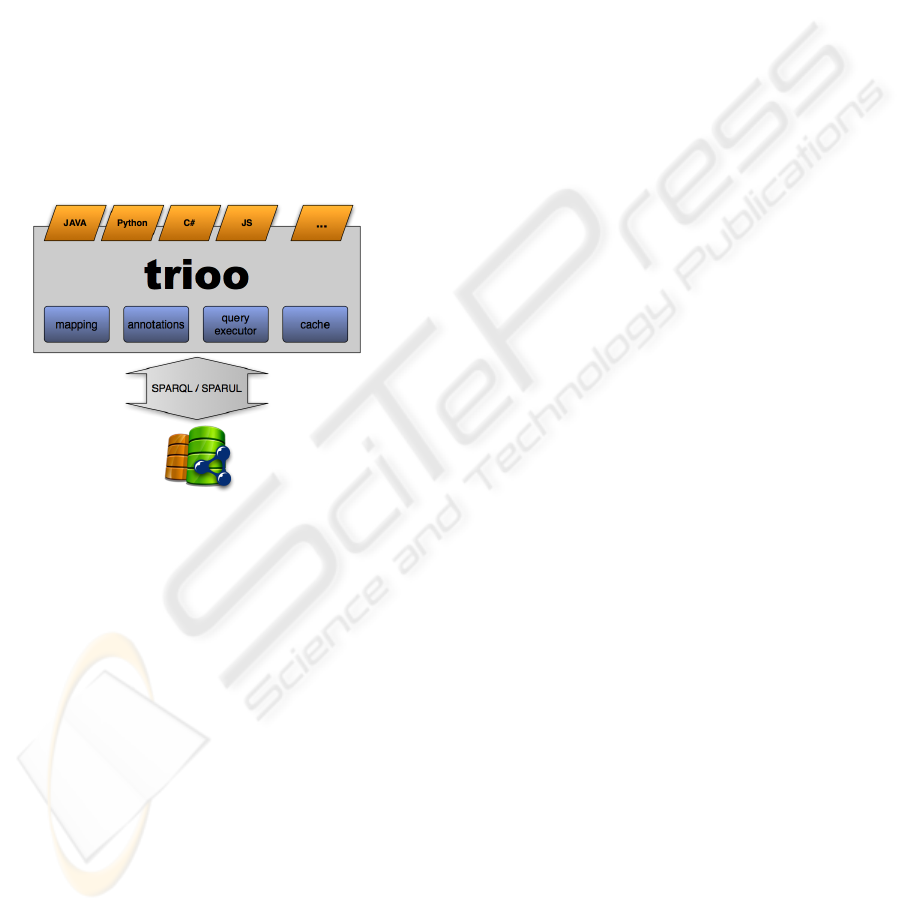

Figure 1: Trioo overview.

Ideally with Trioo developers will be not need to

deepen in detail on the RDF data model, abstract-

ing on how the query language internally works.

However Trioo would not only take care about data

mapping, but also about the typing inference where

possible. And probably a cache mechanism would be

also required, in any case such a kind of implemen-

tation details are not so relevant for the scope of this

paper.

3.1 Computational Models

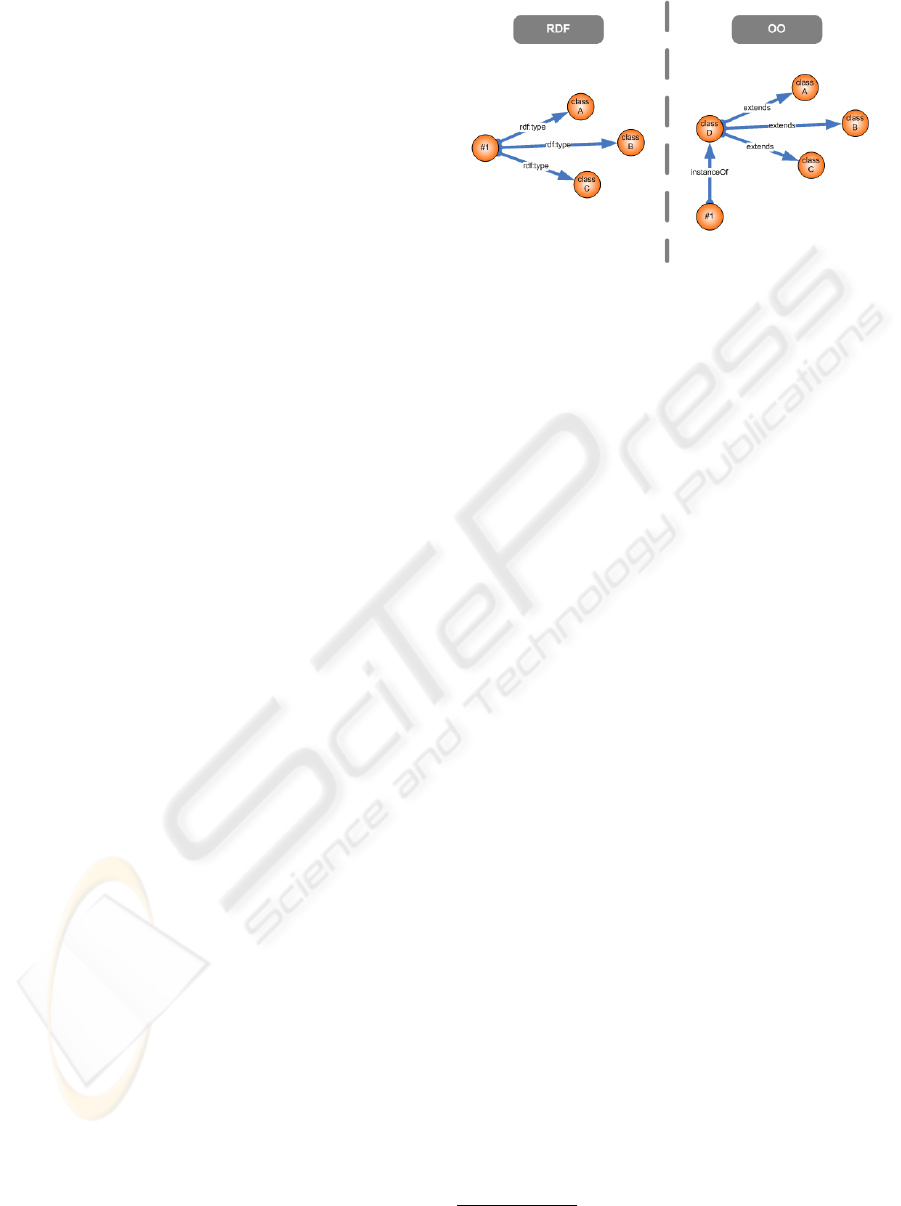

Both computational models (RDF and OO) share

many concepts. But at the same time they present

many substantial differences on their semantics.

In the object-orientation there is no a unique

computational (Logozzo, 2004), there are more

than one with several implementations. Usually

object-oriented languages are divided into two big

families (Evins, 1994): class-based and prototype-

based programming languages.

Class-based programming languages use a com-

putational model where objects are grouped on sets

with equal structure and behaviour as instances of the

same class (Booch, 1993). Thus there is a heavy link

between an object and its class on instantiation, and

it is not possible to create and use an object without

previously deﬁne its static structure and behaviour on

a class.

Prototype-based programming languages aim

to be more faithful to the object computational

model, where it is only necessary to have objects,

no additional abstractions such as classes are

required (Blaschek, 1994; Noble et al., 1999;

Borning, 1986). The common behaviour is deﬁned

by what is known as “trait objects” (Ungar et al.,

1991). The shared structure is represented as

prototype objects, which inherit their behaviour

from the trait objects. Therefore the state is always

deﬁned always as objects. The creation of objects

(actually instance objects) is done using cloning

those prototype objects.

So both approaches of object-orientation must be

taken into account in Trioo.

RDF semantics is further complicated. It is

an assertional language intended to be used

to express propositions using precise formal

vocabularies (Hayes and McBride, 2004). The

semantics of the language is speciﬁed using model-

theory, a technique which assumes that the language

refers to a “world”, and describes the minimal

conditions that a “world” must satisfy in order to

be an interpretation which makes a expression in

the language true. The utility of a formal semantic

theory is to provide a mechanism to determine valid

inference processes, i.e. when the truth is preserved.

Through the notions of satisfaction, entailment and

validity, RDF semantics gives a rigorous deﬁnition

of the meaning of a RDF graph. Actually, the

RDF semantics speciﬁcation deﬁnes four normative

notions of entailment for RDF graphs: Simple,

RDF, RDFS, and Datatype entailment. Simple-

entailment captures the semantics of RDF graphs

when no attention is paid to the particular meaning

of any of the names in the graph (this is precisely

the semantics supported by the current version of

SPARQL). To obtain a complete meaning of an

RDF graph written using a particular vocabulary,

it is necessary to add further semantic conditions

to interpret particular resources and typed literals

in the graph. This way, RDF-entailment provides

support for basic entity interpretation using the

RDF vocabulary (typing, literals, basic structures,

TRIOO - Keeping the Semantics of Data Safe and Sound into Object-oriented Software

315

etc.). Furthermore, D-entailment imposes additional

conditions on the treatment of datatypes (for

instance, for the use of externally deﬁned datatypes

identiﬁed by a particular URI reference). And ﬁnally

RDFS Vocabulary extends RDF to include a larger

vocabulary with more complex semantic constraints,

such as classes, subclasses, domains, ranges and so

on (Brickley et al., 2004). RDF graphs (serialised

using RDF/XML syntax) are also the normative

representation of OWL ontologies for exchange

purposes. However, Trioo is not intended to support

OWL semantics for now. A full compatibility with

OWL would introduce a lot of complexity, as it will

require interpreting OWL vocabulary and axioms,

and providing support for DL reasoning.

Hence there are many details on these computa-

tional models (object-oriented and RDF) that would

need to be analysed in detail in order to archive a real

integration:

3.1.1 Typing

Typing is an intriguing challenge, since both

approaches implementing the object-oriented

computational model do it differently. For class-

based languages the typing is build upon a hierarchy

model of types based on classes (inheritance is

deﬁned at that class level, building a hierarchy

system of classes). Nevertheless prototype-based

languages provide a faithfully implementation of the

object-oriented model: the inheritance relationship

between objects is actually a derivation relationship,

consequently “instance of ” relationship is no

necessary any longer; ideally this derivation could

be from more than one object, although commonly

this feature is restricted to a single reference in

many of the implementations of the prototype-based

computational model, such as Python. Typing on

RDF works like the pure prototype-based model:

each RDF object could have several types, with no

restrictions. Figure 2 illustrates these differences

on typing. Other concepts, such as inheritance and

consistency, only appears with RDFS and OWL.

Following section describes how type inference

works.

3.1.2 Type Inference

Type inference is a feature to automatically deduce

the type of a value in a programming language, both

at compilation-time and run-time depending on the

concrete language. It is a common feature in dynami-

cally typed programming languages, but also in some

strongly statically ones, such as C#. On programming

Figure 2: Differences on typing.

that inference affects to the type of variables (or at-

tributes in the case of object-oriented programming).

By contrast, in RDF relationships are declared using

properties. And those properties are global, i.e. the

same can be used to link different objects. In RDFS

(and OWL) each property can declare both a domain

and a range: the type that respectively the subject and

the value may have. Therefore given a property P

with a domain restriction D and a range restriction R,

with a triple (a, P, b) it would be inferred that a is of

type D and b of type R. Needless to say that support

this behaviour would be difﬁcult on statically typed

programming language, but it would be achievable in

dynamic languages.

3.2 Expressiveness

As commented above, OWL would be not supported

by Trioo. However, Horst proved that entailment

for RDFS is decidable, NP-complete, and in P if the

target graph does not contain blank nodes. Therefore

probably it would more realistic just to use the RDFS

semantics (ter Horst, 2005). Moreover, this level

of expressiveness could be achieved without perform

a full reasoning process, because it could be vastly

implemented directly inside the object model (in fact,

there is already an implementation in Python of this

concept

3.3 Integrity Constraints

Integrity constraints are used to ensure accuracy and

consistency of data. Those constraints are directly

ensured by the engines for other families of stores (for

instance, by the entity-relationship model). However,

detecting constraint violations is out of the scope of

RDF Schema and OWL due to the Open World As-

sumption adoption. Under OWA, a statement cannot

http://www.ivan-herman.net/Misc/PythonStuff/ RDFS-

Closure/

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

316

be inferred to be false on the basis of a failure to

prove, i.e. if something is not said, it is not possible

to know whether it is true or false. As a consequence,

everything may be true unless proven otherwise. The

OWA assumes incomplete information by default and

it is really useful for knowledge reusability in con-

texts such as Linked Data, limiting the the kinds of

deductions just to those that follow from statements

that are known to be true. However, with respect to

Integrity Constraints, OWL and RDF Schema consis-

tency checking only detects logical inconsistencies in

the data, but missing information does not cause an

inconsistency. Consider the following RDF graph:

foaf:name rdfs:domain foaf:Person .

:sergio foaf:name "Sergio" .

Under OWA, the domain restriction implies that

:Sergio is a foaf:Person, but there is no violation

of the domain of the property. Missing values of data

do not cause inconsistencies, rather new information

of data is inferred from the application of the RDF

Schema entailment rules. These inferences may be

counterintuitive for users who need data validation,

like in some real scenarios and applications. As

other frameworks for managing object-oriented do-

main models with data repositories, Trioo is envi-

sioned to provide support for integrity and validation

over RDF data. In order to check these inconsisten-

cies, Trioo must explore how to introduce the Closed

World Assumption alternatively to OWA. CWA in-

terpretation means that an assertion is considered

false if it is not explicitly known whether it is true

or false. This semantics is usually supported by

classical logical programming systems implementing

Negation as Failure (NAF). There are several ways

to come up with Integrity Constraints from the OWL

and RDF Schema axioms of an ontology (Sirin and

Tao, 2009; Motik and Rosati, 2007). One of the

most interesting approaches is the translation of OWL

axioms to SPARQL queries (following the entail-

ment regime deﬁned by Sirin et al. (Sirin and Parsia,

2007)). SPARQL is equivalent to non-recursive data-

log and NAF may be encoded using the well-known

OPTIONAL/FILTER/!BOUND pattern. The Pellet

Integrity Constraint Validator

implements this ap-

proach, automatically translating OWL axioms into

ASK SPARQL queries, so an OWL ontology can be

used to validate RDF data integrity. The previous

domain restriction of the foaf:name property may be

written as the following integrity constraint:

ASK WHERE {

?person foaf:name ?name .

OPTIONAL { ?person2 rdf:type foaf:Person }

http://clarkparsia.com/pellet/icv

FILTER ( bound(?person2) )

FILTER ( ?person = ?person2 )

}

3.4 Target Languages

The success of the project strongly depends largely on

the achieved impact. And the impact is directly linked

to the programming language chosen, both for its

popularity and its technical features. With respect to

the popularity of programming languages the TIOBE

Programming Community index gives an indication

of it

. On the top of this ranking is the Java pro-

gramming language (Gosling et al., 2005) since 2001.

Java is general-purpose, concurrent, and class-based

object-oriented programming language. It has a sim-

pler object model and fewer low-level facilities, such

as direct access to memory. Java has single inheri-

tance, but conceptually that is not entirely true since

the inclusion of Interfaces (reference types without

implementation). Java applications are compiled to

an intermediate language (known as“bytecode”) that

runs on a virtual machine. The java.lang.reflect

package provides introspection capabilities that al-

lows to examine Java applications at run-time; for

providing some computational reﬂection capabilities

the package simulates them with an implementation

of the Proxy pattern (Gamma et al., 1994), known

as “Dynamic Proxy Classes”. Additionally to all

these features of the language, Java would a good

candidate for implementing Trioo because all the

good Semantic Web tools implemented in Java: Jena,

OWL API, Pellet, etc.

However dynamic programming languages are

closer to RDF, because actually they implement a

prototype-based model. Probably the most pure and

complete of these languages could be Self (Ungar

and Smith, 1987). Self is a prototype-based dynamic

object-oriented programming language, environment,

and virtual machine centred around the principles of

simplicity, uniformity, concreteness, and liveness.

Unfortunately it is less usable than other modern

languages. Due to this fact, and also taking into

account popularity criteria, Python would be one

of the most interesting choices for provide the

second reference implementation of Trioo. Python

is a prototype-based general-purpose and dynamic

typed programming language (van Rossum, 1989),

designed with the philosophy of emphasise the

code readability. It offers a modern and versatile

computational model, supporting several paradigms

such as object-oriented and structured programming.

Available online at http://www.tiobe.com/index.php/

tiobe index, retrieved by February of 2010.

TRIOO - Keeping the Semantics of Data Safe and Sound into Object-oriented Software

317

Python also includes some important features, such

as introspection, structural reﬂexion (the union of

the latter two is called metaprogramming), multiple

inheritance and generative programming, converting

its computational model in one of the most usable and

versatile between modern programming languages.

But, apart from the commitment of initially ap-

ply Trioo on these two widely used object-oriented

programming languages, Trioo aims to offer much

more, covering other scenarios that would be very in-

teresting to complete this research work. For instance,

the powerful dynamic features available on JavaScript

offer an interesting scenario where more conclusions

could be extracted. For instance, given the trend

to use AJAX (Asynchronous JavaScript and XML)

for improving the user experience on Web interfaces,

together with the W3C’s effort to enrich the markup

with technologies such as RDFa (Adida et al., 2008),

it could convert Trioo in a suitable technology to

provide support for developing semantically-enriched

user interfaces on (X)HTML due the interesting dy-

namic features of the JavaScript language. Addi-

tionally, the support for dynamic typing included in

C# 4.0 (Hejlsberg, 2008) open an interesting area

of applicability in the Microsoft’s .NET framework.

These, and others, lines open amazing opportunities

on unexplored research ﬁelds in many of the potential

target languages where Trioo could be applied and/or

extended.

3.5 Mechanism

How Trioo would be applied on all target languages is

a quite important question that may not be answered

yet for all of them. Although probably such mecha-

nism would need to be supplemented with a external

conﬁguration ﬁle (XML, YAML or whatever suitable

format). A priori there are some requirements that

should be taken into account: simplicity (it should

follow the DRY philosophy, reducing as possible the

repetition of information), non intrusive (the mech-

anism used should not modify the original design,

e.g. inheritance would not be a suitable construction

when the language only supports single inheritance),

legible (it should not dirty the readability of source

code), accessible at run-time (due to the intrinsically

dynamic features of the project, the mechanism cho-

sen should offer that meta-information at run-time),

customisable (such mechanism should support to be

parametrise, in order to allow implementations to

be customisable when would be needed). All these

requirements could be covered with annotations, that

are supported by the two ﬁrst chosen target languages.

Annotations were introduced in the version 5.0 of the

Java programming language (Bracha, 2004). They are

a special form of syntactic metadata that can be added

to Java source code and can be reﬂectively retrieved at

run-time. On the contrary, annotations in Python are

syntactic sugar that actually provides a generic im-

plementation of the decorator pattern (Gamma et al.,

1994), enhancing the action of the function or method

they decorate. In Python prior to version 3, decorators

only apply to functions and methods; however class

decorators are supported from Python 3.0 (Winter,

2010).

3.6 Persistence

It is obvious that, in this concrete moment when W3C

is running a working group

to extend SPARQL

technology, including some of the features that the

community has identiﬁed as both desirable and im-

portant for interoperability based on experience with

the initial version of the standard (Kjernsmo and

Passant, 2009), formally known as SPARQL 1.1. For

instance, the new properties path (Seaborne, 2010)

converts SPARQL in a more powerful query lan-

guage. Henceforth all these new features should be

exploited by new tools.

A SPARQL query contains a set of triple patterns,

where triple patterns are like RDF triples except that

each term may be a variable. A basic graph pattern

matches a subgraph of the RDF data when RDF

terms from that subgraph may be substituted for

the variables and the result is RDF graph equivalent

to the subgraph. The expressiveness of SPARQL

is powerful: it is a query language equivalent in

expressive power to Relational Algebra (Angles and

Gutierrez, 2008). Therefore, in a similar way that was

previously done for relational databases (Cyganiak,

2005), it would be necessary to additionally describe

a transformation from object-oriented programming

languages into the algebra of SPARQL.

Consequently the innovative approach of the

Trioo project would be to provide a purely standards-

based implementation for store RDF data. So that

means only using SPARQL 1.1, not implement

proprietary interfaces, allowing developers to be

independent from a concrete RDF store. Obviously,

this purist approach would be supplemented with

the additional possibility of using speciﬁc dialects of

SPARQL

, in a similar way as Hibernate does, in

order to maximise the performance where would be

possible, but at the same time without favouring the

http://www.w3.org/2009/05/sparql-phase-II-charter

SPARQL proprietary extensions are widely imple-

mented by many vendors.

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

318

vendor lock-in allowing developers to switch to other

RDF store just changing a conﬁguration line.

4 IMPLEMENTATIONS

Currently

the Trioo project is immersed in develop-

ing the two reference implementations in the two pro-

gramming languages selected above (see Section 3.4).

The analysis carried out in this paper establishes a

solid foundation that greatly facilitated the design

and implementation on both programming languages.

An alpha prototype has been developed in Java with

a functional version of some of the core features.

The philosophy followed for the development of the

Python version is far more ambitious, since it aims

to provide RDF support in a more natural way, try-

ing to exploit the full power of the prototype-based

computational model. Therefore it is still too early to

assess the results. In a nutshell, unfortunately both

are far from being full functional implementations

according the criteria described in this paper, and they

still would require more effort on development. Of

course, needless to say that when they would be ready

for a real usage, all these implementations will be

released as open source.

5 CONCLUSIONS AND FUTURE

WORK

This paper has described the ongoing work carried

out by the Trioo project to leverage the power of the

RDF data model into object-oriented programming

languages, trying to keep the semantics of data safe

and sound into the applications. But the ﬁnal aim

is not only to persist data on RDF stores, but also to

allow consuming and publishing RDF data linked on

the Web.

The analysis accomplished on Section 3 shows

that it is possible to integrate RDF data model into

object-oriented computational models with a good

enough level of commitment between both semantics.

The prototype-based model ﬁts best with RDF than

the class-based, but that should not be an impediment

to also implement Trioo on class-based program-

ming languages. And since the approach followed to

perform this analysis has been completely language

independent, Trioo could be potentially applied to any

object-oriented programming language.

Trioo gives rise to the necessity to have software

tools for accessing RDF data from software appli-

At March 5th, 2010

cations. The learning curve of some of the current

RDF tools is not always accessible to all developers,

while they require advanced knowledge of both the

data model and query language. And, as with other

technologies, developers should not need to be aware

of all the details about how their applications store

the data. Therefore Trioo should abstract developers

of such details. For the moment the results of the two

current implementations are still promising. As these

implementations progress to a more mature level of

development, many of the current open questions

will have a more clear answer. The lessons learned

from these implementations will serve as feedback for

the current groups working on the related standards

involved in Trioo, in such a way that all these standard

technologies can really serve to fulﬁl the objectives

set forth in the project initially.

REFERENCES

Adida, B., Birbeck, M., McCarron, S., and Pemberton, S.

(2008). RDFa in XHTML: Syntax and Processing.

Recommendation, W3C.

Angles, R. and Gutierrez, C. (2008). The Expressive Power

of SPARQL. In Proceedings of the 7th International

Semantic Web Conference (ISWC2008).

Bauer, C. and King, G. (2004). Hibernate in Action.

Manning Publications.

Berners-Lee, T. (2006). Linked Data: design issues.

Berners-Lee, T., Fielding, R., and Masinter, L. (2005).

RFC3886: Uniform Resource Identiﬁer (URI):

Generic Syntax. Request For Comments, The Internet

Society.

Berners-Lee, T., Hendler, J., and Lassila, O. (2001). The

Semantic Web: a new form of Web content that is

meaningful to computers will unleash a revolution of

new possibilities. Scientiﬁc American.

Blaschek, G. (1994). Object-Oriented Programming with

Prototypes. Springer-Verlag New York, Inc.

Booch, G. (1993). Object-Oriented Analysis and Design

with Applications. Addison-Wesley.

Borning, A. H. (1986). Classes Versus Prototypes in

Object-Oriented Languages. In Proceedings of the

ACM/IEEE Fall Joint Computer Conference, pages

30–40.

Bracha, G. (2004). JSR 175: A Metadata Facility for

the Java Programming Language. Java Speciﬁcation

Request, Sun Microsystems.

Brickley, D., Guha, R., and McBride, B. (2004). RDF

Vocabulary Description Language 1.0: RDF Schema.

Recommendation, W3C.

Broekstra, J. and Kampman, A. (2003). SeRQL: a second

generation RDF query language. In Proceedings of

SWAD-Europe Workshop on Semantic Web Storage

and Retrieval.

TRIOO - Keeping the Semantics of Data Safe and Sound into Object-oriented Software

319

Cyganiak, R. (2005). A relational algebra for SPARQL.

DeMichiel, L. (2009). JSR 317: Java Persistence

API, Version 2.0. Java Speciﬁcation Request, Sun

Microsystems.

DeMichiel, L. and Keith, M. (2006). JSR 220: Enterprise

JavaBeans 3.0. Java Speciﬁcation Request, Sun

Microsystems.

Evins, M. (1994). Objects Without Classes. Computer

IEEE, Volume 27:104–109.

Fensel, D., Decker, S., Erdmann, M., and Studer, R. (1998).

Ontobroker: The Very High Idea. In Proceedings of

the 11th International Florida Artiﬁcial Intelligence

Research Symposium (FLAIRS98).

Fielding, R., Gettys, J., Mogul, J., Frystyk, H., Masinter,

L., Leach, P., and Berners-Lee, T. (1999). RFC2616:

Hypertext Transfer Protocol HTTP/1.1. Technical

report, The Internet Society.

Fowler, M. (2002). Patterns of Enterprise Application

Architecture. Addison-Wesley.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J. (1994).

Design Patterns: Elements of Reusable Object-

Oriented Software. Addison-Wesley Professional.

Gosling, J., Joy, B., Steele, G., and Bracha, G. (2005).

Java(TM) Language Speciﬁcation, The (3rd Edition)

(Java (Addison-Wesley)). Addison-Wesley Profes-

sional.

Hayes, P. and McBride, B. (2004). RDF Semantics.

Recommendation, W3C.

Hejlsberg, A. (2008). The Future of C#. In the Microsoft’s

Professional Developers Conference (PDC).

Kjernsmo, K. and Passant, A. (2009). SPARQL New

Features and Rationale. Working Draft, W3C.

Klyne, G. and Carroll, J. J. (2004). Resource Description

Framework (RDF): Concepts and Abstract Syntax.

Recommendation, W3C.

Logozzo, F. (2004). Separate Compositional Analysis

of Class-based Object-oriented Languages. In

Proceedings of the 10th International Conference

Algebraic Methodology and Software Technology

(AMAST 2004).

Meijer, E., Beckman, B., and Bierman, G. (2006). LINQ:

reconciling object, relations and XML in the .NET

framework. In ACM SIGMOD International Confer-

ence on Management of Data, Chicago, Illinois.

Motik, B. and Rosati, R. (2007). A Faithful Integration

of Description Logics with Logic Programming.

In Proceedings of the Twentieth International Joint

Conference on Artiﬁcial Intelligence (IJCAI 2007),

pages 477–482.

Noble, J., Taivalsaari, A., and Moore, I. (1999). Prototype-

Based Programming: Concepts, Languages and

Applications. Springer Publishing Company.

Oren, E., Heitmann, B., and Decker, S. (2008). ActiveRDF:

embedding Semantic Web data into object-oriented

languages. Journal of Web Semantics, 6:191–202.

Prud’hommeaux, E. and Seaborne, A. (2008). SPARQL

Query Language for RDF. Recommendation, W3C.

Sauermann, L. and Cyganiak, R. (2008). Cool URIs for the

Semantic Web. Interest Group Note, W3C.

Schenk, S. and Gearon, P. (2010). SPARQL 1.1 Update.

Working Draft, W3C.

Schneider, M., Carroll, J., Herman, I., and Patel-Schneider,

P. F. (2009). OWL 2 Web Ontology Language, RDF-

Based Semantics. Recommendation, W3C.

Seaborne, A. (2010). SPARQL 1.1 Property Paths. Working

Draft, W3C.

Shinavier, J. (2007). Ripple: Functional Programs as

Linked Data. In Proceedings of the 3rd inter-

national workshop on Scripting for the Semantic

Web (SFSW2007), co-located with the 4th European

Semantic Web Conference (ESWC2007).

Sintek, M. and Decker, S. (2002). TRIPLE—A Query,

Inference and Transformation Language for the Se-

mantic Web. In Proceedings of the 1st Interna-

tional Conference on Semantic Web, volume Volume

2342/2002, pages 364–378, Sardinia, Italy. Springer

Berlin / Heidelberg.

Sirin, E. and Parsia, B. (2007). SPARQL-DL: SPARQL

Query for OWL-DL. In Proceeddings of the 3rd

OWL Experiences and Directions Workshop (OWLED

2007).

Sirin, E. and Tao, J. (2009). Towards Integrity Constraints

in OWL. In Proceedings of the 6th International

Workshop on OWL: Experiences and Directions

(OWLED 2009).

ter Horst, H. J. (2005). Completeness, decidability and

complexity of entailment for RDF Schema and a

semantic extension involving the OWL vocabulary.

Journal of Web Semantics, Vol. 3:pp. 79–115.

Ungar, D., Chambers, C., Chang, B.-W., and Hlzle, U.

(1991). Organizing programs without classes. LISP

and Symbolic Computation, Volume 4:223–242.

Ungar, D. and Smith, R. B. (1987). SELF: The Power of

Simplicity. In Proceedings of The International Con-

ference on Object Oriented Programming, Systems,

Languages and Applications (OOPSLA’87), pages

227–241.

van Rossum, G. (1989). The Python programming

language. http://www.python.org/.

Winter, C. (2010). PEP 3129 – Class Decorators. Python

Enhancement Proposal, Python Software Foundation.

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

320
