CONSTRAINT REASONING IN FOCALTEST

Matthieu Carlier, Catherine Dubois

ENSIIE,

Evry, France

Arnaud Gotlieb

INRIA, Rennes, France

Keywords:

Software testing, Automated test data generation, MC/DC, Constraint reasoning.

Abstract:

Property-based testing implies selecting test data satisfying coverage criteria on user-speciﬁed properties.

However, current automatic test data generation techniques adopt direct generate-and-test approaches for

this task. In FocalTest, a testing tool designed to generate test data for programs and properties written in

the functional language Focal, test data are generated at random and rejected when they do not satisfy se-

lected coverage criteria. In this paper, we improve FocalTest with a test-and-generate approach, through the

usage of constraint reasoning. A particular difﬁculty is the generation of test data satisfying MC/DC on the

precondition of a property, when it contains function calls with pattern matching and higher-order functions.

Our experimental results show that a non-naive implementation of constraint reasoning on these constructions

outperform traditional generation techniques when used to ﬁnd test data for testing properties.

1 INTRODUCTION

Property-based testing is a general testing technique

that uses property speciﬁcations to select test cases

and guide evaluation of test executions (Fink and

Bishop, 1997). It implies both selecting test inputs

from the property under test (PUT) and checking the

expected output results in order to evaluate the con-

formance of programs w.r.t. its property speciﬁca-

tions. Applying property-based testing to functional

programing is not new. Claessen and Hugues pio-

nneered the testing of functional programs with the

Quickcheck tool (Claessen and Hughes, 2000) for

Haskell programs. Koopman et al. proposed a generic

automated test data generation approach called GAST

for functional programs (Koopman et al., 2002). The

tool GAST generates “common border values” and

random values from variable types. More recently,

Fisher et al. (Fischer and Kuchen, 2007; Fischer and

Kuchen, 2008) proposed an original data-ﬂow cover-

age approach for the testing of Curry programs. This

approach is supported by the tool Easycheck (Chris-

tiansen and Fischer, 2008). In 2008, FocalTest (Car-

lier and Dubois, 2008), a tool that generates random

test data for Focalize programs was proposed. Focal-

ize (Dubois et al., 2006) is a functional language that

allows both programs and properties to be imple-

mented into the same environment. It also integrates

facilities to prove the conformance of programs to

user-speciﬁed properties. FocalTest is inspired by

Quickcheck as it implements a generate-and-test ap-

proach for test data generation: it automatically gen-

erates test inputs at random and reject those inputs

that do not satisfy the preconditions of properties

(Carlier and Dubois, 2008). This approach does not

perform well when strong preconditions are speciﬁed

and strong coverage criteria such as MC/DC are re-

quired on the preconditions. As a trivial example,

consider the generation of a couple (X,Y) where X

and Y stand for 32-bit integers, that has to satisfy the

precondition of property X = Y ⇒ f(X) = f(Y). For

a random test data generator, the probability of gener-

ating a couple that satisﬁes the precondition is

In this paper, we improve FocalTest with a test-

and-generate approach for test data selection through

the usage of constraint reasoning. The solution we

propose consists in exploring very carefully the pre-

condition part of the PUT and more precisely the def-

inition of the involved functions in order to produce

constraints upon the values of the variables. Then

it would remain to instantiate the constraints in or-

der to generate test cases ready to be submitted. The

Carlier M., Dubois C. and Gotlieb A. (2010).

CONSTRAINT REASONING IN FOCALTEST.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 82-91

DOI: 10.5220/0003009800820091

 SciTePress

underlying method to extract the constraints is based

on the translation of the precondition part of the PUT

and the body of the different functions involved in it

into an equivalent constraint logical program over ﬁ-

nite domains - CLP(FD). Constraint solving relies on

domain ﬁltering and constraint propagation, resulting,

if any, in solution schemes, that once instantiated will

give the expected test inputs.

The extraction of constraints and their resolution

have required to adapt the techniques developed in

(Gotlieb et al., 1998) to the speciﬁcation and imple-

mentation language of Focalize, which is a functional

one, close to ML. In particular, an important technical

contribution of the paper concerns the introduction in

CLP(FD) of constraints related to values of concrete

types, i.e. types deﬁned by constructors and pattern-

matching expressions, as well as constraints able to

handle higher-order function calls.

In this paper, we describe, here, the constraint rea-

soning part of FocalTest that permits to build a test

suite that covers the precondition with MC/DC (Mod-

iﬁed Condition/Decision Coverage). This involves

the generation of positive test inputs (i.e. test inputs

that satisfy the precondition) as well as negative test

inputs. We evaluated our constraint-based approach

on several Focalize programs accompanied with their

properties. The experimental results show that a non-

naive implementation of constraint reasoning outper-

form traditional generation techniques when used to

ﬁnd test inputs for testing properties.

The paper is organized as follows. Sec.2 pro-

poses a quick tour of the environment Focalize and

brieﬂy summarises the background of our testing en-

vironment FocalTest which includes the subset of the

languageconsidered for writing programs and proper-

ties. Sec.3 details our translation scheme of a Focal-

ize program into a CLP(FD) constraint system. Sec.4

presents the test data generation by using constraints.

Sec.5 gives some indications about the implementa-

tion of our prototype and gives the results of an exper-

imental evaluation. Lastly we mention some related

work before concluding remarks and perspectives.

2 BACKGROUND

2.1 A Quick Tour of Focalize

Focalize is a functional language allowing the devel-

opment of programs step by step, from the speciﬁca-

tion phase to the implementation phase. In our con-

text a speciﬁcation is a set of algebraic properties de-

scribing relations over inputs and outputs of the Fo-

calize functions. The Focalize language is strongly

typed and offers mechanisms inspired by object-

oriented programming, e.g. inheritance and late bind-

ing. It also includes recursive (mutual) functions, lo-

cal binding (let x = e

in e

), conditionals (if e then

else e

), and pattern-matching expressions (match

x with pat

→ e

| ...| pat

→ e

). It allows higher-

order functions to be implemented but does not permit

higher-order properties to be speciﬁed for the sake of

simplicity. As an example, consider the Focalize pro-

gram and property of Figure1 where app (append)

and rev (reverse) both are user-deﬁned functions. The

property called rev prop simply says that reversing a

list can be done by reversing its sub-lists.

let rec

app(L, G) =

match

with

|[] → G

|H :: T → H :: app(T, G);

let rec

rev aux(L, LL) =

match

with

|[] → LL

|H :: T → rev aux(T, H :: LL);

let

rev(L) = rev aux(L, []);

property

rev prop :

all

L L1 L2

:list(int),

L = app(L1, L2) → rev(L) = app(rev(L2), rev(L1));

Figure 1: A Focalize program.

In Focalize, variables can be of integer type (in-

cluding booleans) or of concrete type. Intuitively, a

concrete type is deﬁned by a set of typed constructors

with ﬁxed arity. Thus values for concrete type vari-

ables are closed terms, built from the type construc-

tors. For example, L in the rev prop of Focalize pro-

gram of Figure1 is of concrete type

list(int)

with

constructor [] of arity 0 and constructor :: of arity 2.

We do not detail further these features (details in

(Dubois et al., 2006)). We focus in the next section

on the process we deﬁned to convert MC/DC require-

ments on complex properties into simpler requests.

2.2 Elementary Properties

A Focalize property is of the form P(X

, . . . , X

) ⇒

Q(X

, . . . , X

) where X

, . . . , X

are universally quan-

tiﬁed variables and P stands for a precondition while

Q stands for a post-condition. P and Q are both

quantiﬁer free formulas made of atoms connected by

conjunction (∧), implication (⇒) and disjunction (∨)

operators. An atom is either a boolean variable B

the negation of a boolean variable ¬B

, a predicate

(e.g. X

= X

) holding on integer or concrete type

variables, a predicate involving function calls (e.g.

L = app(L1, L2)), or the negation of a predicate. Fo-

calize allows only ﬁrst order properties, meaning that

properties can hold on higher order functions but calls

CONSTRAINT REASONING IN FOCALTEST

to these functions must instantiate their arguments

and universal quantiﬁcation on functions is forbid-

den. Satisfying MC/DC on the preconditions of Fo-

calize properties requires building a test suite that

guarantees that the overall precondition being

true

and

false

at least once and, additionally requires

that each individual atom individually inﬂuences the

truth value of the precondition. The coverage crite-

rion MC/DC has been abundantly documented in the

literature, we do not detail it any further in this paper.

It is worth noticing that covering MC/DC on the pre-

conditions of general Focalize properties can be sim-

ply performed by decomposing these properties into a

set of elementary properties by using simple rewriting

rules. Assuming there is no coupling conditions (two

equivalent conditions), this rewriting system ensures

that covering MC/DC on the precondition of each de-

composed elementary property implies the coverage

of MC/DC on the original general property. More de-

tails on a preliminary version of this rewriting system

can be found in (Carlier and Dubois, 2008). An ele-

mentary property is of the form:

⇒ . . . ⇒ A

⇒ A

n+1

∨ . . . ∨ A

n+m

(1)

where the A

s simply denote atoms in the sense de-

ﬁned below. For an elementary property P, the pre-

condition Pre(P) denotes A

∧ . . . ∧ A

while the con-

clusion Con(P) denotes A

n+1

∨ . . . ∨ A

n+m

. Property

rev prop of the Focalize program of Figure1 is an el-

ementary property of the form A

⇒ A

Covering MC/DC on the precondition Pre(P) of

an elementary property is trivial since Pre(P) is

made of implication operators only (⇒). Assuming

there are no coupling conditions in Pre(P), covering

MC/DC simply requires n + 1 test data: a single test

data where each atom evaluates to

true

and n test

data where a single atom evaluates to

false

while all

the others evaluate to

true

. In the former case, the

overall Pre(P) evaluates to

true

while in the latter it

evaluates to

false

. It is not difﬁcult to see that such

a test suite actually covers MC/DC on Pre(P).

2.3 Test Verdict

A test data is a valuation which maps each integer or

concrete type variable X

to a single value. A posi-

tive test data for elementary property P is such that

Pre(P) evaluates to

true

while a negative test data is

such that Pre(P) evaluates to

false

. When test data

are selected, Con(P) can be used to assess a test ver-

dict which can be either OK, KO, or deﬁned by the

user noted TBD (To Be Deﬁned). The test verdict is

OK when a positive test data is selected and Con(P)

evaluates to

true

. The test verdict is KO when a

positive test data is selected and Con(P) evaluates to

false

. In this case, assuming that property P is cor-

rect, the selected test data exhibits a fault in the Focal-

ize PUT. Finally, the test verdict is TBD when a nega-

tive test data is selected. When the precondition of the

PUT evaluates to

false

, then the user has to decide

whether its Focalize program is correct or not in this

case. For example, if P is a safety property specify-

ing robustness conditions, then TBD should indeed be

KO. Conversely if P is a functional property specify-

ing an algebraic law (e.g. X + (Y +Z) = (X +Y)+Z),

then TBD should be inconclusive when negative test

data are selected.

In the paper, we only consider elementary proper-

ties (except in Sec.5.2) without coupling conditions

and focus on the problem of covering MC/DC on

these properties. Our test data generation method in-

volves the production of positive, as well as negative

test data. In both cases, each atom of the elemen-

tary property takes a predeﬁned value (either

true

false

) and test data are required to satisfy constraints

on integer and concrete type variables. The rest of the

paper is dedicated to the constraint reasoning we im-

plemented to handle function calls that can be found

in atoms of precondition (such as L = app(L1, L2)).

Note that these function call involves constraints from

all the constructions that can be found in Focalize pro-

grams, including pattern-matching and higher-order

functions.

3 CONSTRAINT GENERATION

Each elementary property resulting from the rewriting

of PUT, more precisely its precondition, is translated

into a CLP(FD) program. When translating a precon-

dition, each Focalize function involved directly or in-

directly (via a call) in the precondition are also trans-

lated into an equivalent CLP(FD) program.

Our testing method is composed of two main

steps, namely constraint generation and constraint-

based test data generation. Figure2 summarizes our

overalltest data generationmethod with its main com-

ponents. A Focalize program accompanied with a

general property is ﬁrst translated into an intermedi-

ate representation. The purpose of this transformation

is to remove all the oriented-object features of the Fo-

calize program by normalizing the code into an inter-

mediate language called MiniFocal. Normalization is

described in Sec.3.1. The second step involves the

construction of CLP(FD) programs, which are con-

straint programs that can be managed by a Constraint

Logic Programmingenvironment. As explained in the

previous section, the general property is dispatched

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

into elementary properties and for each of them, a

single CLP(FD) program is generated. This process

is described in Sec.3.2. Finally, the FD solver coming

from our Constraint Logic Programming environment

is extended with speciﬁc constraint operators (namely

apply

and

match

) in order to solve requests, the solv-

ing of which guarantees the MC/DC coverage of each

individual elementary property. As a result, our test

data generation method produces a compliant MC/DC

test suite for the general property speciﬁed within the

Focalize PUT.

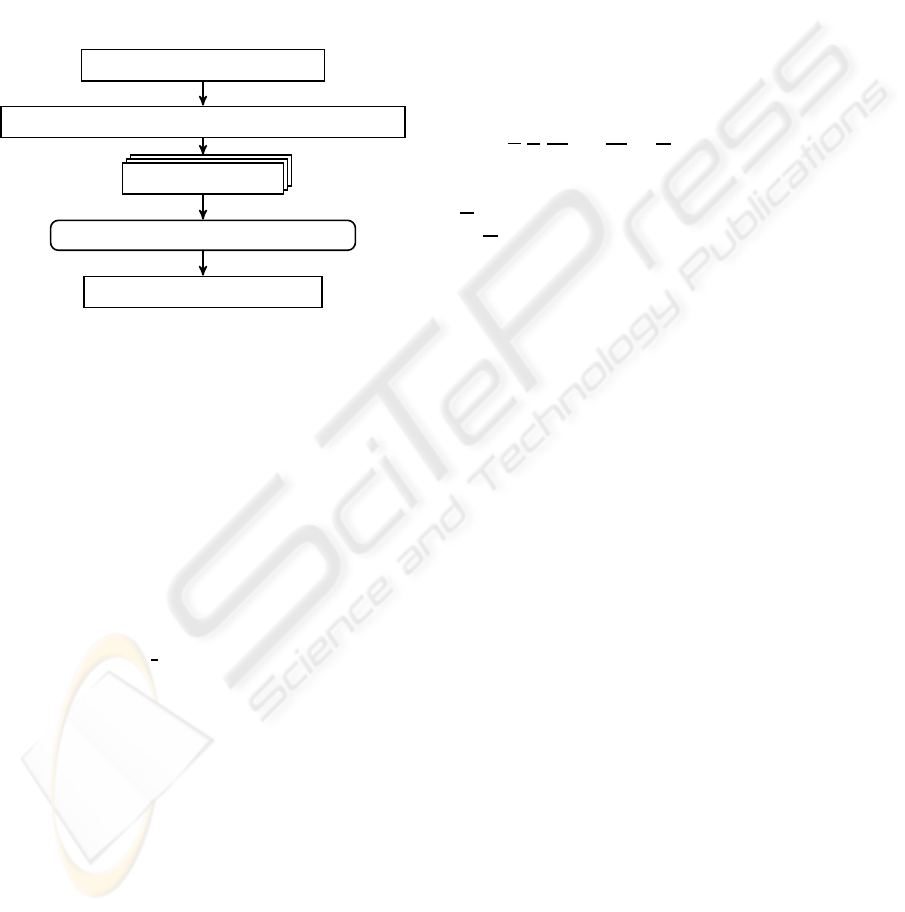

Focalize program + Property

MiniFocal program (intermediate representation)

CLP(FD) program

FD Solver +

apply

match

extension

MC/DC compliant test suite

Figure 2: Constraint solving procedure.

3.1 Normalization of Function

Deﬁnition

Each expression extracted from a function deﬁnition

is normalized into simpler intermediate expressions,

designed to ease the translation into a set of con-

straints. Figure3 gives the syntax of the intermediate

language MiniFocal.

expr ::= let x = expr in expr |

match x with

pat → expr; ... ; pat → expr;

[ → expr] |

op(x, ... , x) |

f(x, .. ., x) |

x(x, .. ., x) |

n | b | x | constructor(x, .. ., x)

pat ::= constructor | constructor(x, x)

Figure 3: Syntax of the MiniFocal language.

In MiniFocal, each expression used as an argu-

ment of a function call is assigned a fresh variable.

The same arises for decisions in conditional expres-

sions and pattern-matching operations. Furthermore,

patterns are linear (a variable occurs only once in

the pattern) and they cannot be nested. High-order

functions can be deﬁned but the language cannot

cope with creation of closures and partial application.

Moreover, MiniFocal does not include if x then e

/else e

as this expression is translated into a match

expression match x with | true → e

| false → e

Such automatic normalization procedures are usual

in functional programming, Another less-usual nor-

malization procedure required by our method is the

so-called lambda-lifting transformation, described in

(Johnsson, 1985). It consists in eliminating free vari-

ables from function deﬁnitions. The purpose of these

transformations is to ease the production of CLP(FD)

programs.

3.2 Production of CLP(FD) Programs

The function deﬁnition (recursive or not) let [rec]

f(X

, . . . , X

) = E is translated into the CLP(FD) pro-

gram f(R, X

, . . . , X

) :- E. Thus a function is trans-

lated into a logical predicate with one clause that sets

the constraints derived from the body of the function.

R is a fresh output variable associated to the result of

f. E denotes the constraint resulting from the transla-

tion of E, according to the rules described below. In

the following we omit the overlines on objects in the

constraint universe when there is no ambiguity.

The translation of arithmetic and boolean expres-

sions is straightforward. A functional variable is

translated into a CLP(FD) variable. Next section ex-

plains what exactly a CLP(FD) variable is. The trans-

lation of the binding expression let X = E

in E

re-

quires ﬁrst translating the output variable X and then

second translating expressions E1 and E2. For ex-

ample, let X = 5 ∗ Y in X + 3, is translated into the

constraint X = 5 ∗ Y ∧ R = X + 3, assuming the ex-

pression is itself bound to variable R. A function

call f(X

, . . . , X

), bound to variable R, is translated

into f(R, X

, . . . , X

). In the case of recursive func-

tion, this is the natural recursion of Prolog that han-

dles recursion of MiniFocal functions. A higher-order

function call X(X

, . . . , X

) where X denotes any un-

known function is translated into the speciﬁc con-

straint combinator

apply

with the following pattern

apply

(X, [X

, . . . , X

]). The constraint

apply

is de-

tailed in Sec.4. Similarity, the pattern-matching ex-

pression is translated into a constraint combinator

match

. This constraint takes the matched variable as

ﬁrst argument, the list of pattern clauses with their

body as second argument, and the default case pat-

tern as third argument (

fail

when there is no default

case). As an example, consider a pattern-matching

expression of Figure1:

match L with [] → G; H :: T → H :: app(T, G);

is translated into

match

(L, [ pattern([], R = G),

pattern(H :: T, app(R1, T, G), R = H :: R1)],

fail

CONSTRAINT REASONING IN FOCALTEST

4 CONSTRAINT-BASED TEST

DATA GENERATION

Constraint-based test data generation involves solv-

ing constraint systems extracted from programs. In

this section, we explain the key-point of our ap-

proach consisting in the implementation of the con-

straint combinators we introduced to model faithfully

higher-order function call and pattern-matching ex-

pressions. First we brieﬂy recall how CLP(FD) pro-

gram are handled by a Prolog interpreter (Sec.4.1),

second we explain our new dedicated constraint com-

binators (Sec.4.2), third we present the test data label-

ing process (Sec.4.3) and ﬁnally we discuss the cor-

rection of our constraint model (Sec.4.4).

4.1 Constraint Solving

A CLP(FD) program is composed of variables, built-

in constraints and user-deﬁned constraints. There are

two kinds of variables: free variables that can be uni-

ﬁed to Prolog terms and FD variables for which a

ﬁnite domain is associated. The constraint solving

process aims at pruning the domain of FD variables

and instantiating free variables to terms. Built-in con-

straints such as +, −, ∗, min, max . . ., are directly en-

coded within the constraint library while user-deﬁned

constraints can be added by the user either under the

form of new Prolog predicate or new constraint com-

binators. Uniﬁcation is the main constraint over Pro-

log terms. For example, t(r(1, X), Z) = t(H, r(2)) re-

sults in solutions H = r(1, X) and Z = r(2).

Intuitively, a CLP(FD) program is solved by

the interleaving of two processes, namely constraint

propagation and labeling. Roughly speaking, con-

straint propagation allows reductions to be propa-

gated throughout the constraint system. Each con-

straint is examined in turn until a ﬁxpoint is reached.

This ﬁxpoint corresponds to a state where no more

pruning can be performed. The labeling process tries

to instantiate each variable X to a single value v of its

domain by adding a new constraint X = v to the con-

straint system. Once such a constraint is added, con-

straint propagation is launched and can reﬁne the do-

main of other variables. When a variable domain be-

comes empty, the constraint system is showed incon-

sistent (that is the constraint system has no solution),

then the labeling process backtracks and other con-

straints that bind values to variables are added. To ex-

emplify those processes, consider the following (non-

linear) example: X,Y in 0..10∧X ∗Y = 6∧X +Y = 5.

First the domain of X and Y is set to the interval 0..10,

then constraint X ∗Y = 6 reduces the domain of X and

Y to 1..6 as values {0, 7, 8, 9, 10} cannot be part of so-

lutions. Ideally, the process could also remove other

values but recall that only the bounds of the domains

are checked for consistency and 1∗6 = 6∗ 1 = 6. This

pruning wakes up the constraint X + Y = 5, that re-

duces the domain of both variables to 1..4 because

values 5 and 6 cannot validate the constraint. Finally

a second wake-up of X ∗ Y = 6 reduces the domains

to 2..3 which is the ﬁxpoint. The labeling process

is triggered and the two solutions X = 2,Y = 3 and

X = 3,Y = 2 are found.

4.2 Dedicated Constraint Combinators

In CLP(FD) programming environments, the user can

deﬁne new constraint combinators with the help of

dedicated interfaces. Deﬁning new constraints re-

quires to instantiate the following three points:

1. A constraint interface including a name and a set

of variables on which the constraint holds. This is

the entry point of the newly introduced constraint;

2. The wake-up conditions. A constraint can be

awakened when either the domain of one of its

variables has been pruned, or one of its variables

has been instantiated, or a new constraint related

to its variables has been added;

3. An algorithm to call on wake-up. The purpose

of this algorithm is to check whether or not the

constraint is consistent

with the new domains of

variables and also to prune the domains.

The CLP(FD) program generated by the transla-

tion of MiniFocal expressions (explained in Sec.3) in-

volves equality and inequality constraints over vari-

ables of concrete types, numerical constraints over

FD variables, user-deﬁned constraints used to model

(possibly higher-order) function calls and constraint

combinators

apply

and

match

The domain of FD variables is generated from

MiniFocal variables using their types. For example,

MiniFocal 32-bits integer variable are translated into

FD variables with domain 0..2

− 1. Variables with

a concrete type are translated into fresh Prolog vari-

ables that can be uniﬁed with terms deﬁned upon

the constructors of the type. For example, the vari-

able L of concrete type list(int) has inﬁnite domain

{[], 0 :: [], 1 :: [], . . . , 0 :: 0 :: [], 0 :: 1 :: [], . . .}.

4.2.1 apply Constraint

The constraint combinator

apply

has interface

apply

(F, L) where F denotes a (possibly free) Prolog

variable and L denotes a list of arguments. Its wake-

up condition is based on the instantiation of F to the

If there is a solution of the constraint system.

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

name of a function in the MiniFocal program. The en-

coding of

apply

follows the simple principle of sus-

pension. In fact, any

apply

(F, L) constraint suspends

its computation until the free variable F becomes in-

stantiated. Whenever F is bound to a function name,

then the corresponding function call is automatically

built using a speciﬁc Prolog predicate called =... This

higher-order predicate is able to build Prolog terms

dynamically. To make things more concrete, consider

the following simpliﬁed implementation of

apply

(F, L)

:- freeze

(F,CALL =.. F::L, CALL)

If L represents a list of arguments X

:: X

:: [], this

code just says that when F will be instantiated to a

function name f, the term f(X

, X

) will be created

and called. This is a simple but elegant way of dealing

with higher-order functions in CLP(FD) programs.

4.2.2 match Operator

The

match

constraint combinator has interface

match

(X, [pattern(pat

, C

), .. ., pattern(pat

, C

)],

) where C

, . . . ,C

denote FD or Prolog con-

straints. The wake-up conditions of the combinator

include the instantiation of X or just the pruning of the

domain of X in case of FD variable, the instantiation

or pruning of variables that appear in C

, . . . ,C

The algorithm launched each time the combinator

wakes up is based on the following rules:

1. if n = 0 then

match

rewrites to default case C

;

2. if n = 1, and C

fail

, then

match

rewrites to

X = pat

∧ C

;

3. if ∃i in 1..n such that X = pat

is entailed by the

constraint system, then

match

rewrites to C

;

4. if ∃i in 1..n such that ¬(X = pat

∧ C

) is

entailed by the constraint system then

match

rewrites to

match

(X, [pattern(pat

), ...,

pattern(pat

i−1

), pattern(pat

i+1

), . ..,

pattern(pat

, C

)], C

The two former rules implement trivial terminal

cases. The third rule implements forward deduction

w.r.t. the constraint system while the fourth rule im-

plements backward reasoning. Note that these two

latter rules use nondeterministic choices to select the

pattern to explore ﬁrst. To illustrate this combinator,

consider the following example:

match

(L, [ pattern(

[]

, R = 0), pattern(H :: T, R =

H + 10)],

fail

) where R is FD variable with domain

6..14 and L is of concrete type list(int). As con-

straint ¬(L =

[]

∧ R = 0) is entailed by current do-

mains when the fourth rule is examined (R = 0 and

R ∈ 6..14 are incompatible), the constraint rewrites to

match

(L, [ pattern(H :: T, R = H + 10)],

fail

)

and the second rule applies as it remains only a single

pattern: L = H :: T ∧R = H + 10. Finally, pruning the

domains leads to R ∈ 6..14, H ∈ −4..4, and L = H :: T

where T stands for any list(int) variable.

4.3 Test Data Labeling

As mentioned below, constraint solving involves vari-

able and value labeling. In our framework, we give

labels to variables of two kinds: FD variables and

Prolog variables representing concrete types coming

from MiniFocal programs. As these latter variables

are structured and involve other variables (such as in

the above example of list(int)), we prefer to instanti-

ate them ﬁrst. Note that labeling a variable can awake

other constraints that hold on this variable and if a

contradiction is found, then the labeling process back-

tracks to another value or variable. Labeling FD vari-

ables requires to deﬁne variable and value to enumer-

ate ﬁrst. Several heuristics exist such as labeling ﬁrst

the variable with the smallest domain (ﬁrst-fail prin-

ciple) or the variable on which the most constraints

hold. However, in our framework, we implemented an

heuristic known as random iterative domain-splitting.

Each time a non-instantiated FD variable X is se-

lected, this heuristic picks up at random a value v into

the current bound of the variable domain, and add the

following Prolog choice points (X = v;X < v;X > v).

When the ﬁrst constraint X = v is refuted, the pro-

cess backtracks to X < v and selects the next non-

instantiated variable while adding X to the queue of

free variables. This heuristic usually permits to cut

down large portions of the search space very rapidly.

It is worth noticing that once all the variables have

been instantiated and the constraints veriﬁed then we

hold a test input that satisﬁes the elementary PUT.

4.4 Correctness, Completeness and

Non-termination

Total correctness of our constraint model implies

showing correctness, completeness and termination.

If we make the strong hypothesis that CLP(FD) pred-

icates correctly implement arithmetical MiniFocal op-

erators and that the underlying constraint solver is

correct, then the correctness of our model is guaran-

teed, as the deduction rules of

match

directly follow

from the operational semantics of conditional and pat-

tern matching in Focalize. Completeness comes from

the completeness of the labeling process in CLP(FD).

In fact, as soon as every possible test data is possi-

bly enumerated during the labeling step, any solution

will be eventually found. But completeness comes

at the price of efﬁciency and preserving it may not

be indispensable in our context. A proof of the cor-

CONSTRAINT REASONING IN FOCALTEST

rectness and the completeness has been written (Car-

lier, 2009). It required to specify the formal semantics

of the Focalize functional language, the semantics of

constraints, to deﬁne formally the translation and the

notion of solution of a constraint system derived from

a Focalize expression. We have formally proved that

if we obtain a solution of the CLP(FD) program, i.e.

an assignment of variables of this program, then the

evaluation of the precondition, according to the Focal-

ize operational semantics yields the expected value.

Our approach has no termination guarantee as

we cannot guarantee the termination of any recursive

function and guarantee the termination of the label-

ing process. Hence, it is only a semi-correct proce-

dure. To leverage the problems of non-termination,

we introduced several mechanisms such as time-out,

memory-out and various bounds on the solving pro-

cess. When such a bound is reached, other label-

ing heuristics are tried in order to avoid the problem.

Note however that enforcing termination yields losing

completeness as this relates to the halting problem.

5 IMPLEMENTATION AND

RESULTS

5.1 Implementation

We implemented our approach in the FocalTest tool

(Carlier and Dubois, 2008). It takes a Focalize pro-

gram and a (non-elementary) property P as input and

produces a test set that covers MC/DC on the pre-

condition of P as output. The tool includes a parser

for Focalize, a module that breaks general proper-

ties into elementary ones, a preprocessor that normal-

izes function deﬁnitions and the elementary proper-

ties, a constraint generator, a constraint library that

implements our combinators and a test harness gener-

ator. FocalTest is mainly developed in SICStus Pro-

log and makes an extensive use of the CLP(FD) li-

brary of SICStus Prolog. This library implements sev-

eral arithmetical constraints as well as labeling heuris-

tics. The combinator

match

is implemented using the

SICStus global constraint interface; It is considered

exactly as any other FD constraint of the CLP(FD)

library. Our experiments have been computed on a

3.06Ghz clocked Intel Core 2 Duo with 4Gb 1067

MHz DDR3 SDRAM. Integer are encoded on 16 bits.

5.2 Experimental Evaluation

Firstly, we wanted to evaluate if constraint reasoning

brought something to the test data generation process

in FocalTest. Second, we wanted to evaluate sev-

eral possible implementations of our constraint com-

binators. In particular, we wanted to evaluate a “full

constraint reasoning” approach against two naive ap-

proaches: using Prolog choice points to explore the

branches of

match

constraints, using only forward

constraint reasoning rules (e.g. only rules 1-2-3 of the

implementation of

match

). This last experience was

designed to evaluate the advantage of using backward

reasoning rule (e.g. rule 4 of

match

). For the eval-

uation of “constraint reasoning” w.r.t. a random test

data generation approach, we compared FocalTestnot

only with the previous implementation (Carlier and

Dubois, 2008), but also with QuickCheck (Claessen

and Hughes, 2000) the mainstream tool for test data

generation of Haskell programs.

Context of the Experiment. We evaluated Focal-

Test as follows on 6 examples (listed below) and

asked FocalTest to generate 10 MC/DC-compliant

test suite for each property. For all examples and

strategies, we measured CPU runtime with the Unix

time command and computed the average time. The

time required to generate the CLP(FD) program, to

produce test harness, to execute Focalize program

with the generated test data have not been computed

in order to fairly evaluate our distinct versions. We

also dropped trivial test data only based on empty lists

or singletons, which are of limited interest for a tester.

Focalize Programs.

Avl

is an implementation of

AVL trees. The PUT says that inserting an element

into an AVL (of integers) still results in an AVL:

is avl

(t) →

is avl

(

insert avl

(e,t))

Three properties hold on lists:

sorted list

(2) is

similar to

insert avl

but holds over sorted lists;

min max

(3) is a simple property on integer optima

from lists; and

sum list

(4) speaks of the sum of in-

teger elements of a list.

∀t ∈

list(int)

, ∀e ∈

int

sorted

(t) →

sorted

(

insert list(e,t)

)

(2)

∀l ∈

list(int)

, ∀min, max, e ∈

int

is min

(min, l) →

is max

(max, l) →

(

min list

(e :: l) =

min int

(min, e) ∧

max list

(e :: l) =

max int

(max, e))

(3)

s1 =

sum list

(l1) → s2 =

sum list

(l2) →

s1+ s2 =

sum list

(

append

(l1, l2))

(4)

The

triangle

function takes three lengths as in-

puts and returns a value saying whether if the

corresponding triangle is

equilateral

isocele

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

Table 1: Random/Constraint test data generation time comparison (in milliseconds).

Programs Properties QuickCheck Random FocalTest constraint reasoning Speedup

time nb generated FocalTest factor

avl

See Sec.5.2 48,007 10,288,259 22,531,719 10,061 5.8

sorted list

See Sec.5.2 515 2 1,090 54 9.5

min max

See Sec.5.2

Fail

147,202 20,007,999 264 557.6

sum list

See Sec.5.2

Fail

133,139 13,444,919 55 2,420.7

Triangle

equilateral

Fail

70,416 12,710,142 113 623.2

Voter

range c1 2,863 708 136,537 87 32.9

range c2 3,556 742 142,387 80 44.5

partial c1

Fail Fail

- 486 +∞

partial c2

Fail Fail

- 430 +∞

scalene

invalid

. For example, property

tri correct equi

triangle

(x, y, z) =

equilateral

→ x = y ∧ y = z

Voter

is a component used in the industry for

computing a unique value from data obtained via

three sensors (Ayrault et al., 2008). The func-

tion

vote

takes three integers as inputs and re-

turns a pair composed of an integer and a value in

{

Match

Nomatch

Perfect

means that

the difference between two inputs is less than 2

while other tags describe similar properties. Property

vote perfect

) says:

compatible

(v1, v2) →

compatible

(v2, v3) →

compatible

(v1, v3) →

compatible

(

fst

(

vote

(v1, v2, v3)), v1) ∧

snd

(

vote

(v1, v2, v3)) =

Perfect

These properties contain recursive functions with

heavy use of pattern matching and combination of

structures of concrete types (lists and trees over nu-

merical values), as well as conditionals.

The last property executed aims at evaluating con-

straint reasoning in presence of higher order fea-

tures. The property is : l

map

(

successor

, l

) →

sigma

) =

map

(

successor

sigma

)). The sec-

ond order function

map

takes f and a list l as inputs

and returns a list obtained by applying f on each el-

ement of l.

sigma

implements a permutation. Our

results show that FocalTest can generate 10 test cases

(where (l1, l2) is made of two 1,000-elements lists) in

less than ﬁve seconds.

5.3 Results

Tab. 1 shows the results obtained with the ran-

dom based approach, more precisely the ﬁrst column

presents the time required for QuickCheck to generate

the test suite. The two next columns represent random

in FocalTest(CPU time and number of test data gener-

ated until we obtain 10 adequate test data). The fourth

column contains the CPU time required for FocalTest

with constraint reasoning to generate the test cases.

The last column highlights the gain factor between

QuickCheck (or random FocalTest when QuickCheck

fails) and FocalTest with constraint reasoning.

Firstly, note that two properties of

triangle

are

easily covered with both random test data genera-

tors. This is not astonishing since these properties

require the three lengths to form a scalene triangle or

an invalid triangle. The

sorted list

example is also

tractable with the random approaches as small lists

are generated (4 elements) and the probability to gen-

erate sorted lists in this case is high. In general, the

results of QuickCheck ﬁts the results obtained with

the random test data generator of FocalTest (without

constraint reasoning) but QuickCheck is usually more

efﬁcient. Secondly, note that for most of the other

examples, both random approaches fail to ﬁnd any

test data (failure is reported when more than 10 mil-

lions of consecutive non-adequate test data are gen-

erated). Nevertheless, FocalTest with constraint rea-

soning ﬁnds MC/DC-compliant test suites with an av-

erage speed up factor of 23 w.r.t. QuickCheck (when

QuickCheck does not fail).

Thirdly, Tab.2 compares the CPU time required by

three distinct implementations of the

match

operator.

full

denotes “full constraint reasoning” such as de-

scribed in the paper,

noback

denotes an implemen-

tation without backward reasoning rules, and

choice

denotes an implementation with Prolog choice points.

Thus,

match

(x, [pattern(pat

, C

), .. ., pattern(pat

)], C

) is implemented with (x = pat

);. . . ;(x =

pat

);(x 6= pat

, . . . , x 6= pat

For some examples,

choice

and

full

give simi-

lar results which was unexpected (triangle and some

properties of Voter). In fact, these examples con-

tain few execution paths and our

choice

implemen-

tation of

match

makes the corresponding CLP(FD)

programs having few choice points. Thus, these ex-

amples are less sensitive to constraint reasoning. On

the contrary, for all other examples, we got a speedup

factor in between 3.7 and 2789. This is not surprising

as constraint reasoning can capture disjunctive infor-

mation while choice points cannot.

For the triangle example,

noback

fails because

CONSTRAINT REASONING IN FOCALTEST

constraint inconsistency is detected only when all

the variables are instantiated. In some examples,

backward reasoning is not used for improving the

time required to generate test data (

sorted list

and

Voter

). However, on these examples, one can see that

backward reasoning does not slow down the process.

On other example, backward reasoning is useful and

improve the CPU time required to generate test data.

In conclusion, these experiments show ﬁrstly, that

constraints helps to ﬁnd test data for testing proper-

ties, especially when random generation fails. Sec-

ondly, the choice of using operators like

match

to-

gether with forward and backward reasoning rules

speeds up the computation of a solution. An Pro-

log choice points implementation is ineffective when

there are numerous execution paths in a program.

6 RELATED WORK

Using constraint solving techniques to generate test

cases is not a new idea. (Dick and Faivre, 1993) and

(Marre, 1991) were among the ﬁrst to introduce Con-

straint Logic Programming for generating test cases

from speciﬁcation models such as VDM or algebraic

speciﬁcations. These seminal works yield the devel-

opment of GATEL, a tool that generates test cases for

reactive programs written in Lustre. In 1998, Gotlieb

et al. proposed using constraint techniques to gen-

erate test data for C programs (Gotlieb et al., 1998).

This approach was implemented in tools InKa and

Euclide (Gotlieb, 2009). In (Legeard and Peureux,

2001) set solving techniques were proposed to gen-

erate test cases from B models. These ideas were

pushed further through the development of the BZ-

TT and JML-TT toolset. In 2001, Pretschner devel-

oped the model-based test case generator AUTOFO-

CUS that exploited search strategies within constraint

logic programming (Pretschner, 2001) and recently,

PathCrawler introduced dynamic path-oriented test

data generation (Williams et al., 2005). This method

was independently discovered in the DART/CUTE

approach (Godefroid et al., 2005; Sen et al., 2005).

In the case of testing functional programs,

most approaches derive from the QuickCheck tool

(Claessen and Hughes, 2000) which generates test

data at random. GAST is a similar implementation

for Clean, while EasyCheck implements random test

data generation for Curry (Christiansen and Fischer,

2008). QuickCheck and GAST implement function

generators for higher-order function since they deal

with higher-order properties while this is not neces-

sary in our approach because such properties are not

allowed in Focalize. Easycheck resembles to FocaTe-

st because it takes advantage of the original language

features such as free variable and narrowing to gen-

erate automatically test cases w.r.t. a property. These

features could be related to clause deﬁnition, back-

tracking and labeling in CLP(FD) program without

constraint aspects. FocalTest originally takes inspira-

tions from these tools, that is, to test a functional pro-

gram against a property. As far as we know, FocalTest

is the ﬁrst application of constraint solving in the area

of test data generation for functional programs.

The development of SAT-based constraint solver

for generating test data from declarative models also

yields the development of Kato (Uzuncaova and

Khurshid, 2008) that optimizes constraint solving

with (Alloy) model slicing. Like some of the above

tools such as GATEL, AUTOFOCUS or EUCLIDE,

FocalTest relies on ﬁnite domains constraint solving

techniques. But, it has two main differences with

these approaches. Firstly, it is integrated within a

environment which contains naturally property that

could be used for testing. Secondly, it uses its ownop-

erators implementation for generating test data in the

presence of conditionals and pattern-matching opera-

tions and concrete type. This allows various deduc-

tion rules to be exploited to ﬁnd test data that satisfy

properties. Unlike traditional generate-and-test ap-

proaches, this allows one to exploit constraints to in-

fer new domain reductions and then helps the process

to converge more quickly towards sought solutions.

7 CONCLUSIONS

The constraint-based approach we proposed is a gen-

eral one that allows us to obtain an MC/DC compli-

ant test suite that satisﬁes the precondition part of Fo-

calize properties. This approach is based on a sys-

tematic translation of Focalize program into CLP(FD)

programs and relies on the deﬁnition of efﬁcient con-

straint combinators to tackle pattern-matching and

higher-order functions. We integrated this constraint-

reasoning to FocalTest and relieves it from using in-

efﬁcient generate-and-test approaches to select test

data satisfying given preconditions. Our experimen-

tal evaluation shows that using constraint reasoning

for this task outperforms traditional random test data

generation by a factor of 23.

Furthermore this work can be reused for test gen-

eration in other functional languages, for example to

extend test selection in QuickCheck-like tools (that

rely on random or user-guided generation). Further-

more exploring how the constraint model of the over-

all properties and programs could be used to formally

prove the conformance of the program to its speciﬁca-

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

Table 2: CPU time required by distinct implementations of match in FocalTest (in milliseconds).

Programs Properties noback choice full Speedup factor (choice/full)

avl

See Sec.5.2 149,131 37,302 10,061 3.7

sorted list

See Sec.5.2 68 150,612 54 2,789.1

min max

See Sec.5.2 1,466 120,318 264 455.8

sum list

See Sec.5.2 137 38,924 55 707.7

Triangle

equi

Fail

112 113 1.0

Voter

range c1 40 23 87 0.3

range c2 36 986 80 12.3

partial c1 103 2,590 486 5.3

partial c2 304 22 430 0.5

tions needs further investigation. Exploiting con-

straint solving in software veriﬁcation is likely to be

an important topic able to enlight the convergence of

proofs and tests.

REFERENCES

Ayrault, P., Hardin, T., and Pessaux, F. (2008). Develop-

ment life cycle of critical software under focal. In Int.

Workshop on Harnessing Theories for Tool Support in

Software, TTSS.

Carlier, M. (2009). Constraint Reasoning in Focal-

Test. CEDRIC Technical report, available on

http://cedric.cnam.fr.

Carlier, M. and Dubois, C. (2008). Functional testing in the

focal environment. In Test And Proof, TAP.

Christiansen, J. and Fischer, S. (2008). Easycheck – test

data for free. In 9th Int. Symp. on Func. and Logic

Prog, FLOPS.

Claessen, K. and Hughes, J. (2000). QuickCheck: a

lightweight tool for random testing of Haskell pro-

grams. ACM SIGPLAN Notices, 35(9):268–279.

Dick, J. and Faivre, A. (1993). Automating the generation

and sequencing of test cases from model-based spec-

iﬁcations. In First Int. Symp. of Formal Methods Eu-

rope, FME, pages 268–284.

Dubois, C., Hardin, T., and Vigui´e Donzeau-Gouge, V.

(2006). Building certiﬁed components within focal.

In Fifth Symp. on Trends in Functional Prog., TFP’04,

volume 5, pages 33–48.

Fink, G. and Bishop, M. (1997). Property-based testing:

a new approach to testing for assurance. SIGSOFT

Softw. Eng. Notes, 22(4):74–80.

Fischer, S. and Kuchen, H. (2007). Systematic generation

of glass-box test cases for functional logic programs.

In Conf. on Princ. and Practice of Declarative Pro-

gramming (PPDP’07), pages 63–74.

Fischer, S. and Kuchen, H. (2008). Data-ﬂow testing of

declarative programs. In Proc. of ICFP’08), pages

201–212.

Godefroid, P., Klarlund, N., and Sen, K. (2005). Dart: di-

rected automated random testing. In ACM Conf. on

Prog. lang. design and impl., PLDI, pages 213–223.

Gotlieb, A. (2009). Euclide: A constraint-based testing

platform for critical c programs. In Int. Conf. on Soft-

ware Testing, Validation and Veriﬁcation, ICST.

Gotlieb, A., Botella, B., and Rueher, M. (1998). Au-

tomatic test data generation using constraint solving

techniques. In Int. Symp. on Soft. Testing and Analy-

sis, ISSTA, pages 53–62.

Johnsson, T. (1985). Lambda lifting: Transforming pro-

grams to recursive equations. In Conference on Func-

tional Programming Languages and Computer Archi-

tecture, pages 190–203. Springer-Verlag.

Koopman, P., Alimarine, A., Tretmans, J., and Plasmeijer,

R. (2002). Gast: Generic automated software testing.

In Workshop on the Impl. of Func. Lang., IFL02, pages

84–100. Springer.

Legeard, B. and Peureux, F. (2001). Generation of func-

tional test sequences from B formal speciﬁcations -

presentation and industrial case-study. In Int. Conf.

on Automated Soft. Eng., ASE01, pages 377–381.

Marre, B. (1991). Toward Automatic Test Data Set Se-

lection using Algebraic Speciﬁcations and Logic Pro-

gramming. In K. Furukawa, editor, Int. Conf. on Logic

Programming, ICLP, pages 202–219.

Pretschner, A. (2001). Classical search strategies for test

case generation with constraint logic programming. In

Formal Approaches to Testing of Soft., FATES, pages

47–60.

Sen, K., Marinov, D., and Agha, G.(2005). Cute: a concolic

unit testing engine for c. In ESEC/FSE-13, pages 263–

272. ACM Press.

Uzuncaova, E. and Khurshid, S. (2008). Constraint prioriti-

zation for efﬁcient analysis of declarative models. In

15th Int. Symp. on Formal Methods, FM.

Williams, N., Marre, B., Mouy, P., and Roger, M. (2005).

Pathcrawler: Automatic generation of path tests by

combining static and dynamic analysis. In Depend-

able Computing, EDCC, pages 281–292.

CONSTRAINT REASONING IN FOCALTEST
