RFID Event Data Processing: An Architecture for

Storing and Searching

Matthieu-P. Schapranow, J¨urgen M¨uller, Alexander Zeier and Hasso Plattner

Hasso Plattner Institute, Enterprise Platform and Integration Concepts

August–Bebel–Str. 88, 14482 Potsdam, Germany

Abstract. The pharmaceutical industry suffers from increasing counterfeit rates.

U.S. federal restrictions force manufacturers to guarantee product authenticity.

RFID technology can be used as foundation for an integer and counterfeit-resistant

pharmaceutical supply chain. We present an architecture optimized for storing

and searching of pharmaceutical RFID data and share results of our main-memory-

based prototype.

1 The Pharmaceutical Supply Chain

The European pharmaceutical industry hit the headlines with operation MEDI-FAKE

announcing 34 million detected fake drugs in only two months [1]. The European Com-

mission reports an increase of 118% for pharmaceutical counterfeits detected at borders

in 2008 compared to 2007. The pharmaceutical product category is the third largest

product category in terms of quantities of intercepted articles besides the categories

CDs/DVDs and cigarettes [2]. Counterfeited goods are a risk for customers and for

suppliers, because their efforts is neither tested nor validated and the customer may suf-

fer from various kinds of medical complications. In 2004, it was estimated that more

than 500 billion USD were traded in counterfeits, i.e. 7% of the world trade in the same

period [3]. It is argued, that this equals an increase of 150 billion USD compared to

2001 [4]. During the same period, the worldwide merchandise trade increased only by

approx. 50 billion USD. This example highlights the risks of counterfeits and the need

for product protection. A high level of supply chain integrity is the basis for reliable

product tracking to support counterfeit detection. The European pharmaceutical supply

chain consists of approx.2,200 pharmaceutical producers, 50 thousand wholesalers, and

more than 140 thousand retailers [5]. Every supply chain participant stores events in a

local event repository for any handled product. Reliable product tracking and tracing

across the entire supply chain can be implemented with RFID [6], but this technique is

not designed to be immunized against threats, such as cloning, spooﬁng or eavesdrop-

ping [7]. The pharmaceutical industry has to identify speciﬁc solutions addressing the

product’s authenticity while data integrity is ensured to shield the global pharmaceuti-

cal supply chain against intrusion of counterfeits. Enhancing existing supply chains by

introducing RFID tags comes with various prevailing advantages [8], e.g. in contrast

to barcodes, RFID tags can be read without establishing a direct line of sight, multiple

Schapranow M., MÃijller J., Zeier A. and Plattner H.

RFID Event Data Processing: An Architecture for Storing and Searching.

DOI: 10.5220/0003017100130022

In Proceedings of the 4th International Workshop on RFID Technology - Concepts, Applications, Challenges (ICEIS 2010), page

ISBN: 978-989-8425-11-9

tags can be read simultaneously, and they can cope with dirty environments [9]. Build-

ing an industry-speciﬁc solution on top of an existing communication infrastructure is

non-trivial, because the communication medium suffers from the amount of event data

exchanged for anti-counterfeiting [10]. We propose an architecture which addresses the

following challenges:

– small event data (approx. 100-200 bytes) to be stored in local repositories,

– hundreds of thousands of events captured hourly at partner sites,

– queries which need to be forwarded via a global communication infrastructure to

decentralized EPC Information Services (EPCIS) repositories, and

– queries to be processed in sub-second time, because the authenticity of hundreds of

products is checked simultaneously, e.g. during inbound processing.

The rest of the paper is structured as follows: In Sect. 2 our work is placed in con-

text of related work. Architecture components are outlined in Sect. 3, while Sect. 4

explains their interaction. Sect. 5 describes benchmarking setup, results, and shares our

measurement evaluation. Our paper concludes in Sect. 6.

2 Related Work

Fast storing and performing predeﬁned search queries on RFID data is a current trend

in research and various works address this topic. Acquiring real-world events by read-

ers to map them to virtual product histories is the task of enterprise RFID middle-

ware systems [11]. They support either one of both categories of RFID applications:

history-oriented tracking and real-time monitoring. The latter requires sub-second re-

sponse times, e.g. for incoming goods processing. Our Java prototype is optimized for

real-time monitoring by leveraging very short response times for EPC-based queries.

Product ﬂow and temporal event queries are expected to be major queries in RFID

event analysis [12]. Existing data stream management systems build on enhancements

of query languages, e.g. SQL. Language enhancements for temporal queries exist to re-

duce complexity of temporal RFID exploration [13]. Special query templates exist for

storing and retrieving ﬂow and temporal data of a certain product [14]. They build on

the separation of tag, path, and time data. All data is stored in separate Data Base (DB)

tables stored in a centralized repository, but a decentralized application prototype was

also proved to work [15].

Our architecture approach uses decentralized event stores, which can be uniquely

identiﬁed by URLs using the Object Name Services [16]. It builds on a tree-based data

structure comparable to the one used by the Domain Name Service (DNS). The DNS

architecture supports distribution of responsibilities across hierarchy levels via dedi-

cated network information centers [17]. Although a centralized instance reduces costs

for maintenance, it introduces a single point of failure, e.g. when the system has to

be placed ofﬂine. This requires redundant hardware and data to overcome extreme sit-

uations which doubles infrastructure costs at least. We combine the ideas of an EPC

Discovery Service [18] and a DNS architecture. Queries are forwarded to decentralized

EPCIS repositories to prevent load peaks that paralyze centralized architecture compo-

nents. The huge amount of RFID data makes any kind of architecture fragile in terms

of system load. Various researchers focus on data reduction, e.g. ﬁltering duplicate and

redundant RFID events which can be performed by enterprise middleware systems to

reduce the total data load [19]. The cuboid architecture offers an implementation for

partitioning RFID data [20], which can be enhanced to implement static load balancing

policies. Once a product reaches the end consumer, associated events can be moved

to slower storages to establish data retention management and to increase the system

performance [21].

3 Architecture Components

The architecture components depicted in Fig. 1 are described in the following focusing

on throughput effectiveness. To satisfy incoming queries, all EPC-related events need

to be aggregated which involves the following steps:

– determination of involved EPCISs,

– query propagation to involved EPCISs,

– parallel and distributed processing of query at remote EPCISs,

– return of partial query results,

– aggregation of partial query results, and

– return of ﬁnal query result to querying participant.

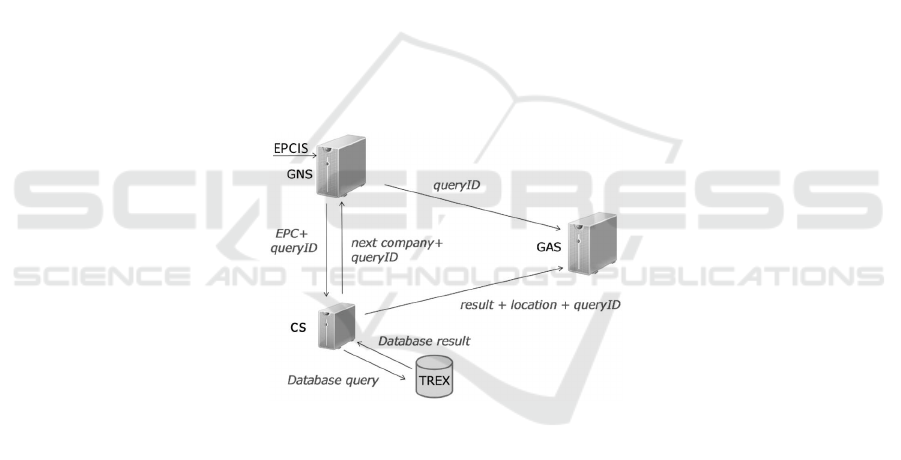

Fig.1. Architecture: Infrastructure Components and Data Flow.

Queries are only forwarded to EPCISs that are involved in the supply chain path of

a certain product. All EPCIS repositories offer interfaces to access their stored data in

a uniﬁed way, regardless of internal format and vendor. Data uniﬁcation is not part of

the given architecture. The outlined algorithm is chosen to reduce processing time by

enabling partial processing comparable to MapReduce [22]. By limiting the recipients

for a query, the overall network load is kept minimal and the risk for congestion by

ﬂooding the communication network with RFID data is prevented [23].

The Global Name Server (GNS) is the central component of our architecture. Its

implementation follows the concept of the DNS root servers [17]. The GNS receives an

incoming query containing the product’s EPC. Firstly, the Global Aggregation Server

(GAS) is notiﬁed and secondly, the incoming query is forwarded to servers at lower hi-

erarchy levels, i.e. Company Servers (CSs) which have access to a single EPCIS repos-

itory or multiple EPCISs repositories of a company or department. Spanning a tree on

top of the CSs hierarchy helps to identify the correct CS for a certain EPC in logarith-

mic time, i.e. O-complexity O log n , instead of performing a long sequential scan on

a list of servers with O n . Our GNS implementation differs from a DNS root server,

because query results from servers at lower hierarchy levels are received to enable pro-

cessing of the next query. If one EPCIS repository declines information, e.g. because of

insufﬁcient access rights, the requester is informed. Access rights are implemented and

managed by each EPCIS repository separately to guarantee data protection. We con-

sider EPCIS repositories as standardized products, e.g. the open source RFID platform

fosstrak

. Their design is not discussed due to page limitations.

The GAS is responsible for collecting partial query results generated by the CSs,

it is queried by the GNS and receives partial query results by CSs. To save a list of

known companies and to store partial query results received from the CS, the GAS allo-

cates memory for a temporary session to store the query [18]. It can perform additional

plausibility checks for anti-counterfeiting, but this is not an integrated part of our archi-

tecture as we encourage counterfeit detection to be implemented by dedicated service

providers.

The CS has direct access to the EPCIS repositories of the company or department

which contains event data. We decided to use the SAP TREX Main Memory (MM) DB

to store events. Instead of loading all attributes, the columnar DB layout enables loading

of affected attributes, e.g. only EPC and timestamp to answer the following query:

”When did the product with the given EPC leave your company?”

The results are forwarded to the GAS. Each supply chain participant knows details

about predecessors and successors of a certain product. This information is combined

with the data received from the EPCIS and returned to the GNS. The GNS restarts its

algorithms and forwards the initial query to the next participant in the supply chain.

Starting from the last participant traversing back to the producer the same steps are per-

formed to improve processing time. The last participant in the supply chain is deﬁned by

the querying party. If the querying party is an intermediate and the product was already

passed to the next participants the chain has to be reconstructed by the querying party

only in one-way traversing to the end of the chain. By executing both queries in parallel,

processing time can be divided by two if the querying party holds the product. If the

communication network is segmented at a single site or partially unable, this approach

can be used to reconstruct the chain around the unresponsive participant, because the

query would stop from both ends at the same participant. If multiple participants are

unresponsive or multiple paths are unavailable, the outage cannot be bridged and an

incomplete result is indicated.

SAP TREX is a columnar MMDB supporting queries to be performed directly on

compressed data in MM [24]. Using a MMDB beneﬁts in instant responses when query-

ing a speciﬁc EPC. We simulated event data for the pharmaceutical supply chain. Each

event consists of the following attributes: EPC, readpoint, time, action, disposi-

http://www.fosstrak.org/

Table 1. Test Data Scenarios.

# Events Size on Disk Size in RAM

Scenario I 1.1 M 200 MB 20 MB

Scenario II

6.3 M 1150 MB 120 MB

Test Data Scenarios

tion, bizlocation, bizstep. The EPC is stored as serialized global trade identiﬁca-

tion number and the locations (readpoint and bizlocation) are stored as serialized

global location number [25]. The remaining attributes are used for anti-counterfeiting

by service providers.

Our simulated data is characterized in Tab. 1. Scenario I consists of 1.1 M events,

consuming 200 MB on disk and 20MB of RAM once the data is loaded and compressed

by SAP TREX. Scenario II is 6-times larger and consists of 6.3 M events, 1150MB on

disk and 120MB in RAM. Both scenarios were compressed 10:1 by SAP TREX when

loaded into MM. We identiﬁed the mean size of a single event with circa 182 byte

uncompressed resp. 18byte compressed, which helps to estimate storage demands for

the global pharmaceutical supply chain.

The Service Provider performs plausibility checks for anti-counterfeiting with the

product’s virtual product history. All supply chain participants have to agree on com-

mon access rights for this instance to process any request. If a counterfeit is identi-

ﬁed, the service provider returns counterf eit and the product is removed from the

supply chain. If the virtual product history is valid, authentic will be returned. If

the result of the counterfeit detection is inconclusive, e.g. during network partition-

ing, unknown will be returned to indicate the need for further processing. We deﬁne

a function servic e

counterf eit

in Equation 1 describing the service provider which per-

forms checks with the help of a given epc

. It returns either one of the results authentic

a, counterfeit c, or unknown u.

ser vice

counterf eit

: epc

epc

, a, c, u (1)

4 Performance Aspects

A product query is created and sent to the GNS, which registers the request and gen-

erates a unique query ID. With the help of the ID, the GAS is contacted and creates

a temporary session to hold responses. The query results received from the CS are as-

signed by the GAS to the corresponding session. The EPC consists of an encoded com-

pany preﬁx, an encoded product reference, and a serial number [26]. The GNS contacts

the producer of a certain product. The initial query and the query ID are forwarded to

the CS. The CS performs two DB lookups: the ﬁrst returns the supply chain successor

the product was passed to, the second performs the existence check for events associ-

ated with the given EPC. Results of the ﬁrst lookup are used for the following next-hop

algorithm. This separation improves response time, because looking up events associ-

ated with a certain EPC takes longer time than determining the next participant in the

supply chain. The next CS can be queried autonomously to start the next lookup; the

algorithm continues until no further successors exist. The GAS receives a notiﬁcation

for anti-counterfeiting checks consisting of:

1. the query ID for mapping the query result to the corresponding query,

2. the company ID of the current CS, and

3. an indicator for the EPC’s existence in the local event store of the company.

4.1 Network

During the development, we switched the communication protocol from Transmission

Control Protocol (TCP) to User Datagram Protocol (UDP). This was initiated to handle

numerous messages which are exchanged between GNS, CSs, and GAS. We deter-

mined that a signiﬁcant amount of time was spent for TCP’s three-way handshake [27].

We assume modern communication infrastructures to be reliable, i.e. lost packets dur-

ing query retrieval are retransmitted after timeouts. If duplicated results are received,

they are distinguished by the GAS using the company ID and query ID. If expected

responses are not received, the return value will be marked to be incomplete. This

way, network segmentation and missing data can be identiﬁed without creating false-

positives.

4.2 Sequence of Company Actions

Besides the selected communication protocol we ﬁgured out that the sequence of per-

formed DB queries has an impact on the response time. We decided to implement two

different action settings as depicted in Fig. 2. Both action settings differ in the opera-

tion of the CS. We focused on the CS because this component is involved multiple times

during a trace for a single product. Our architecture builds on two DB queries which are

performed by the CS. Action setting I in Fig. 2 shows, that both queries are performed

simultaneously in step 5. Once both results are returned, the CS sends one part to the

GNS and the other to the GAS. Fig. 2 outlines for action setting II that the ﬁrst query

retrieves details about the successor of a product. In contrast to action setting I, the GNS

is now informed immediately in step 4 and in step 5 the second query is performed by

the CS while the GNS can proceed traversing the trace. The result of the second query

is sent asynchronously to the GAS in step 6.

5 Timing Results

We share insights about our 4 implementation combinations consisting of 2 communi-

cation protocols and 2 action settings in the following.

SAP TREX DB was conﬁgured to run in a non-distributed environment. It was installed

on a single IBM Blade HS 21XM Type 7995 running SuSE Linux Enterprise 10 SP 2

with the 64-bit kernel 2.6.16.60-0.21-smp. It was equipped with two CPUs Intel Xeon

E5450 CPUs, each running at 3.0GHz clock speed consisting of four logical cores with

32 kB L1 cache, 12 MB L2 cache. The system was equipped with eight 4 GB DIMM

DDR modules to form a total of 32 GB RAM. We measured the impact of the DB size

on the response time.

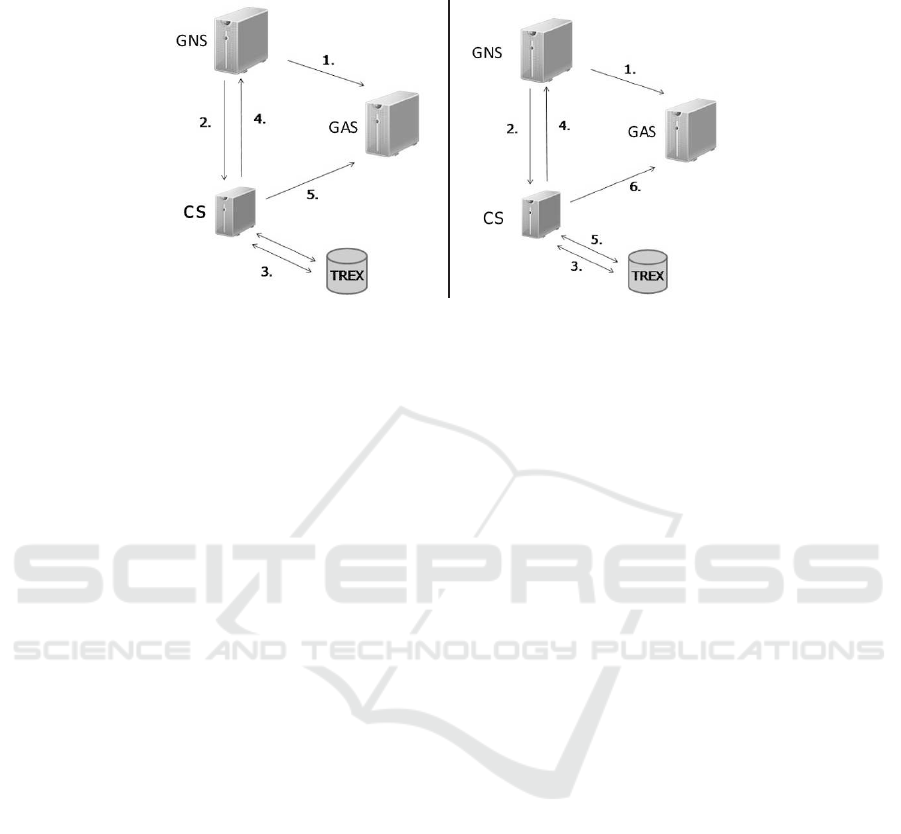

Fig.2. Action Setting I (left) and Action Setting II (right).

Our results showed, that the next company query returns in avg. in 11 ms and the

result query in avg. in 10 ms. These timing results are scenario-independent as shown

in Fig. 3 (b) for bars TCP 1 and UDP 1. This underlines the instant response time which

is achieved by the SAP TREX MMDB in the given enterprise scenario. The RAM size

in the blade systems exceeds the amount of used simulated data, i.e. the entire data sets

of both scenarios ﬁt completely in MM and can be accessed with MM access time.

The Network was benchmarked by installing GNS and GAS on workstations running

Microsoft Windows 7. They were equipped with a single CPU, two cores running at

2.6GHz clock speed, 4 GB RAM, and Gigabit network interface cards. All systems

were connected through an unmanaged Gigabit network switch. The network through-

put of our prototype is addressed by measuring the connection time, i.e. the time needed

to transfer messages between peers. The connection time for the communication proto-

cols TCP and UDP are compared.

Our measurements showed that each data transfer using TCP needs 6 ms in avg.

whereas UDP is approx. 6-times faster with an average of 1 ms. With TCP one com-

pany needs 41ms in avg. to complete query processing. Fig. 3 (a) on the left shows the

cumulated results which consist of the connection time between GNS and CS (6 ms),

processing the DB queries for the next participant (11 ms) and the query for detecting

the EPC in the local EPCIS (10 ms), evaluating the next company (2ms), and two con-

nection times: to the GNS (6 ms) and to the GAS (6ms). Switching our prototype to use

UDP as communication protocol reduced the connection time to avg. 1ms. We were not

confronted with unordered or lost packets, which might occur in more complex routed

networks. The complete processing time when using UDP is reduced to an average of

26 ms as depicted in Fig. 3 (a) on the right.

Architecture Conﬁgurations were implemented as a conﬁgurable CS to switch between

action settings. Action setting I uses two subsequent DB queries. From the GNS’s point

of view using action setting I showed to consume 35 ms in avg. with communication

protocol TCP and 25ms with communication protocol UDP as shown in Fig. 3 (b)

TCP UDP

Time in [ms]

Communication Method

Response Time Measurements

GNS To CS

CS To GAS

CS To GNS

Next Evaluation

Existing Query

Next Query

TCP1 TCP2 UDP1 UDP2

Time in [ms]

Communication Method

Response Time Measurements

Existing Query

CS To GNS

GNS To CS

Next Evaluation

Next Query

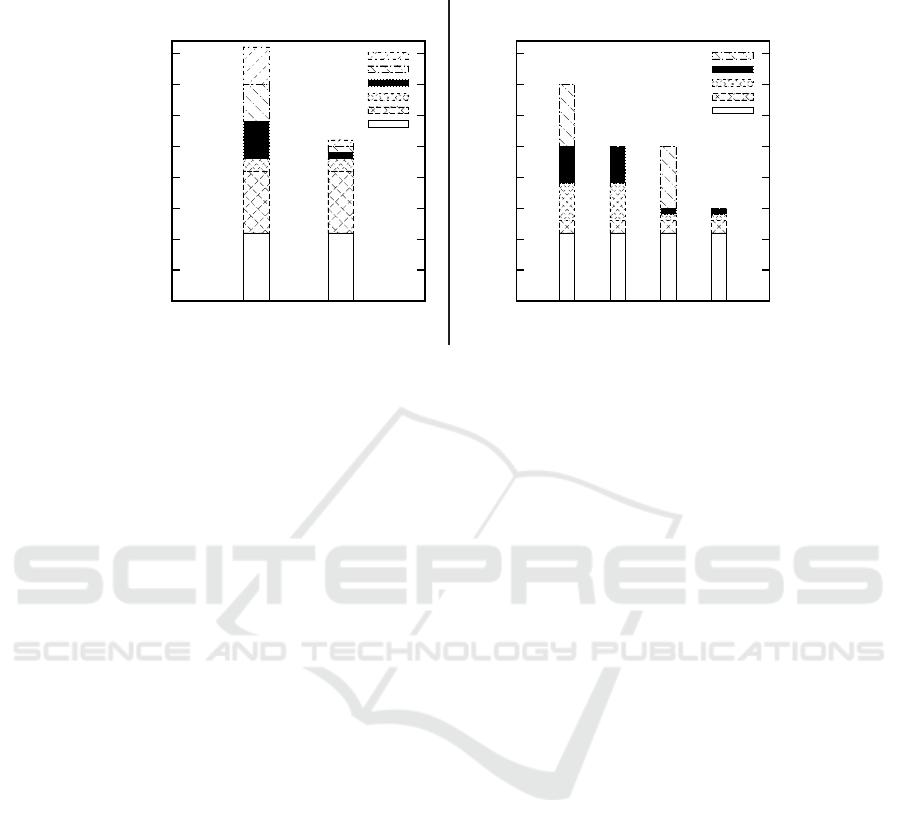

Fig.3. Comparison of Communication Methods (a) and Conﬁgurations (b).

for TCP1 and UDP1. These response timings occur, because result transmission to the

GAS is postponed until both DB results are available. By varying query processing in

action setting II, it is possible to reduce processing time at the CS by avg. 10ms. Once

the next company is determined, it is immediately sent to the GNS. The GNS receives

the result without the need to wait for the second DB query to complete. Using the

communication protocol TCP in this case results in avg. 25 ms processing time. The

communication protocol UDP consumes 40 % less processing time with 15ms in avg.

as depicted in Fig. 3 (b) for UDP2. Our timing results show, that the GNS is able to

process one CS within 15ms in avg. depending on the architecture conﬁguration. By

switching to action setting II using UDP, we were able to reduce processing time by

approx. 60 % compared to action setting I using TCP.

6 Conclusions

In the given paper,we shared our insights gathered by the implementation of a Java pro-

totype designed for storing and searching of RFID event data. Our work is motivated

by the need for counterfeit detection in the pharmaceutical industry, because of an in-

creasing number of fake drug cases. Our proposed architecture consists of GNS, GAS

and numerous decentralized CSs connected to EPCICs. For storing RFID event data

we used the SAP TREX MMDB to leverage instant response times for real-time mon-

itoring. To perform centralized anti-counterfeiting, we query all participants involved

in the product lifecycle for a certain product to return event details. A linked list of

companies is traversed in two directions to save time and to reconstruct single network

segmentations. The amount of messages traveling through the communication network

is minimized by querying only involved supply chain participants instead of performing

broadcasts to all participants.

We outlined different architecture conﬁgurations, gave details about timing results

and characterized the optimal setup for our prototype. Using action setting II with

communication protocol UDP enables us to contact each involved participant in the

product’s lifecycle in avg. 15ms which is 60 % faster than action setting I with com-

munication protocol TCP. We observed that our simulated RFID events consume in

avg. 18 bytes when stored by SAP TREX compressed in memory. For the European

pharmaceutical supply chain, we assume 1 producer, 4 wholesalers, 1 retailer, and 1

end consumer. With approx. 15billion prescriptions per year and 9 read events – 2 per

wholesaler and 1 per retailer – an annual amount of approx. 2.3 TB of compressed event

data needs to be stored by all decentralized SAP TREX instances.

References

1. IP Crime Group: IP Crime Report (2008)

2. European Commission Taxation and Customs Union: Report on EU Customs Enforcement

of IP Rights (2009)

3. ICC Policy Statement: The Fight against Piracy and Counterfeiting of Intellectual

Property. http://www.iccwbo.org/home/intellectual property/ﬁght against piracy.pdfMar. 8,

2010 (2003)

4. Staake, T., Thiesse, F., Fleisch, E.: Extending the EPC Network: The Potential of RFID in

Anti-Counterfeiting. In: Proc. of the ACM Symposium on Applied Computing, New York,

NY, USA, ACM (2005) 1607–1612

5. M¨uller, J., P¨opke, C., Urbat, M., Zeier, A., Plattner, H.: A Simulation of the Pharmaceutical

Supply Chain to Provide Realistic Test Data. In: Proc. of the Internattional Conference on

Advances in Syst. Simulation. (2009)

6. Bundesverband Informationswirtschaft, Telekommunikation und neue Medien: White Paper

RFID Technologie, Systeme und Anwendungen (2005)

7. Schapranow, M. P., M¨uller, J., Zeier, A., Plattner, H.: Security Aspects in Vulnerable RFID-

Aided Supply Chains. In: Proc. of the 5th European Workshop on RFID Syst. and Technolo-

gies. (2009)

8. Stiehler, A., Wichmann, T.: RFID im Pharma- und Gesundheitssektor. Vision und Realit¨at

RFID-basierter Netzwerke f¨ur Medikamente. Berlecon Report (2005)

9. White, G., et al.: A Comparison of Barcode and RFID Technologies in Practice. Journal of

Inf., Inf. Technology, and Organizations 2 (2007)

10. M¨uller, J., Schapranow, M. P., Helmich, M., Enderlein, S., Zeier, A.: RFID Middleware as a

Service – Enabling Small and Medium-sized Enterprises to Participate in the EPC Network.

In: Proc. of the 16th Int’l Conference on Ind. Eng. and Eng. Mgmt. Volume 2. (2009) 2040–

2043

11. Wang, F., Liu, S., Liu, P., Bai, Y.: Bridging Physical and Virtual Worlds: Complex Event Pro-

cessing for RFID Data Streams. In: Advances in Database Technology. Volume 3896/2006.,

Springer Berlin / Heidelberg (2006) 588–607

12. Fazzinga, B., Flesca, S., Masciari, E., Furfaro, F.: Efﬁcient and effective RFID data ware-

housing. In: Proc. of the Int’l Database Eng. Applications Symposium, New York, NY, USA,

ACM (2009) 251–258

13. Bai, Y., et al.: RFID Data Processing with a Data Stream Query Language. In: Proc. of the

23rd Int’l Conference on Data Eng. (2007) 1184–1193

14. Lee, C. H., Chung, C.W.: Efﬁcient Storage Scheme and Query Processing for Supply Chain

Management using RFID. In: Proc. of the Int’l Conference on Management of Data, New

York, NY, USA, ACM (2008) 291–302

15. Cheung, A., Kailing, K., Sch¨onauer, S.: Theseos: A Query Engine for Traceability across

Sovereign, Distributed RFID Databases. In: ICDE, IEEE (2007) 1495–1496

16. Chawathe, S. S., Krishnamurthy, V., Ramachandran, S., Sarma, S.: Managing RFID Data.

In: Proc. of the 30th Conference on Very Large Data Bases, Toronto, Canada, VLDB En-

dowment (2004) 1189–1195

17. Mockapetris, P., Dunlap, K. J.: Development of the Domain Name System. SIGCOMM

Comput. Commun. Rev. 25 (1995) 112–122

18. M¨uller, J., Oberst, J., Wehrmeyer, S., Witt, J., Zeier, A.: An Aggregating Discovery Service

for the EPCglobal Network. In: Proc. of the 43th Hawai’i Conference on Syst. Sci., Koloa,

Hawaii, USA (2010)

19. Bai, Y., Wang, F., Liu, P.: Efﬁciently Filtering RFID Data Streams. In: CleanDB, Seoul,

Korea (2006)

20. Gonzalez, H., Han, J., Li, X., Klabjan, D.: Warehousing and Analyzing Massive RFID Data

Sets. In: Proc. of the 22nd Int’l Conference on Data Eng., Washington, DC, USA (2006) 83

21. Wang, F., Liu, P.: Temporal Mgmt. of RFID data. In: Proc. of the 31st Int’l Conference on

Very Large Data Bases, Norway, VLDB Endowment (2005)

22. Dean, J., Ghemawat, S.: MapReduce: Simpliﬁed Data Processing on Large Clusters. Com-

mun. ACM 51 (2008) 107–113

23. Stallings, W.: Data and Computer Communications. 8 edn. Prentice Hall (2007)

24. Schaffner, J., Bog, A., Kr¨uger, J., Zeier, A.: A Hybrid Row-Column OLTP Database Archi-

tecture for Operational Reporting. In: Business Intelligence for the Real Time Enterprise,

Auckland, New Zealand (2008)

25. EPCGlobal: EPCIS Standard 1.0.1. http://www.epcglobalinc.org/standards/epcis/epcis 1 0 1-

standard-20070921.pdfMar. 8, 2010 (2007)

26. EPCGlobal: Tag Data Standard 1.4. http://www.epcglobalinc.org/standards/tds/tds 1 4-

standard-20080611.pdfMar. 8, 2010 (2008)

27. Miller, P.: TCP/IP - The Ultimate Protocol Guide - Data Delivery and Routing. Volume 1.

Universal-Publishers (2009)
