SYSTEM FOR STORAGE AND MANAGEMENT OF EEG/ERP

EXPERIMENTS

Generation of Ontology

Roman Mouček and Petr Ježek

Department of ComputerScience and Engineering, University of West Bohemia

Univerzitní 8, 306 14 Pilsen, Czech Republic

Keywords: Relational Database, Object Oriented Programming, Semantic Web, Ontology, OWL, RDF, Semantic Web

Tools, Semantic Web Frameworks, Semantic Mapping, Electroencephalography, EEG, Event-related

Potentials, ERP, Hibernate, Spring MVC.

Abstract: This paper shortly describes the system, which provides the possibility to store and manage data and

metadata from EEG/ERP experiments. The system is planned to be registered as a source of neuroscience

data and metadata. It is one of the reasons we need to provide the system ontology. The scientific papers

often describe the domain by using a semantic web language and consider this kind of domain modelling as

a crucial point of software solution. However, real software applications use up the underlying data

structures such as relational database and object classes. That is why the fundamental differences in

semantics between common data structures (relational database, object oriented code) were summarized.

The existing tools in semantic web domain were studied and partially tested. The first transformations from

the system relational database and object oriented code were performed.

1 INTRODUCTION

Our research group at Department of Computer

Sciences and Engineering, University of West

Bohemia in cooperation with other partner

institutions (Czech Technical University in Prague,

University Hospital in Pilsen, Škoda Auto...)

specializes in the research of attention, especially

attention of drivers and seriously injured people. We

widely use the methods of electroencephalography

(EEG) and methods of event-related potentials

(ERP).

EEG and ERP experiments take usually long

time and produce a lot of data. Because there is no

usable software tool for long-term storage and

management of data obtained during these

experiments, we have developed our own software

tool for EEG/ERP data storage and maintenance

(called simply the system in the following text)

(Ježek, 2010).

Registration of the system as a recognized data

source occasionally requires providing data and

metadata structures in the form of ontology in

accordance with ideas of semantic web (“SWB”,

2001). Representation of data and metadata using

ontologies is also supported by scientific effort to

integrate data from various data sources and to

develop autonomous agents reading and transferring

data into an ontology form.

This paper briefly introduces the system for

storage and management of EEG/ERP experiments,

describes its architecture and used technologies, and

explains the basic approaches for building

ontologies. Then some known approaches (and their

advantages and drawbacks) to a mapping of

knowledge from common data structures (relational

database, object oriented code) to semantic web

languages are summarized. Existing mapping tools

and occasionally our experience with them are

described. Finally, the preliminary solution for

transformation of our system data and metadata to

semantic web ontology is looked for and discussed.

The final aim of this paper is to open a wider

discussion concerning both the theoretical

background and practical mapping possibilities from

common structures especially if modern open source

frameworks and technologies are used and thereby

some kind of inner semantic mapping is already

performed.

415

Mou

cek R. and Ježek P. (2010).

SYSTEM FOR STORAGE AND MANAGEMENT OF EEG/ERP EXPERIMENTS – Generation of Ontology.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages

415-420

DOI: 10.5220/0003019904150420

 SciTePress

2 SYSTEM FOR STORAGE AND

MANAGEMENT OF EEG/ERP

EXPERIMENTS

System for storage and management of EEG/ERP

experiments enables clinicians and various

community researchers to store, update and

download data and metadata from EEG/ERP

experiments. The system is developed as

a standalone product; the database access is

available through a web interface (Figure 1).

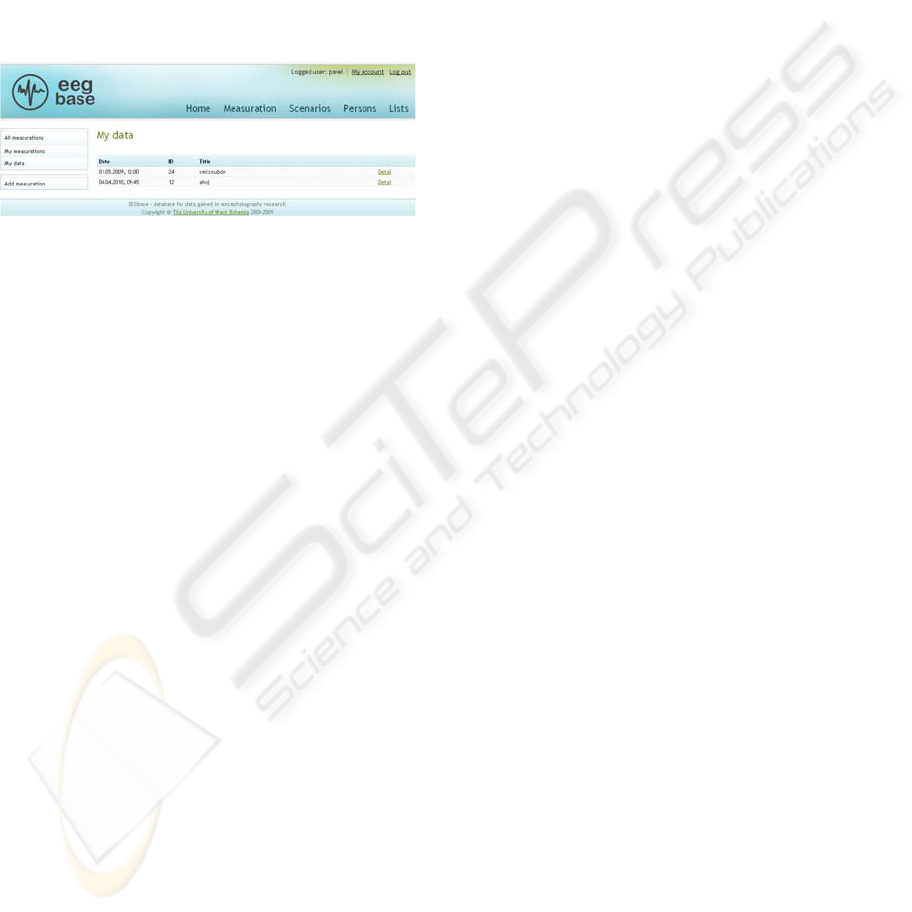

Figure 1: User Interface preview.

The system essentially offers the following set of

features (the set of accessible features depends on a

specific user role):

 User authentication

 Storage, update, and download of EEG/ERP

data and metadata

 Storage, update and download of EEG/ERP

experimental design (experimental

scenarios)

 Storage, update and download of data

related to testing subjects

The system is based on tree layer architecture

(MVC pattern) consisting of persistent layer

(relational database), application layer (object

oriented code, object relational mapping from

persistence layer) and presentation layer (JSP). The

persistence layer uses Hibernate framework; Oracle

11g database server is used to ensure the processing

of large data files. Application and presentation

layers are designed and implemented using Spring

technology. This framework supports MVC

architecture, Dependency injection and Aspect

Oriented Programming. There were no significant

difficulties with integration of both frameworks,

Hibernate and Spring MVC. Spring Security

framework is used to ensure management of

authentication and user roles.

Since the system is thought to be finally open to

the whole EEG/ERP community there is necessary

to protect EEG/ERP data and metadata, and

especially personal data of testing subjects stored in

the database from an unauthorized access. Then

a restricted user policy is applied and user roles are

introduced.

The complete overview of the system features

and user roles (use case diagram) is available in

(Pergler 2009).

Concerning the architectural layers there is

a question which layer is more feasible for mapping

of its structure into ontology. Currently we have

studied two possibilities:

 Mapping from the persistence layer

(relational database)

 Mapping from the application layer (object

oriented code)

The mapping from the application layer to an

ontology includes the precedent object relational

mapping provided by Hibernate framework. The

next section discusses the differences between the

semantics of ontologies and common data structures.

3 SEMANTICS OF ONTOLOGIES

AND COMMON DATA

STRUCTURES

Although a definition of ontology is still under

debate we will consider the ontology definition

given by Gruber (Gruber, 1993) and Stabb and

Studer (Stabb, 2004) who consider ontology as

a formal explicit specification of a conceptualization

for a domain of interest.

3.1 OWL

The standard for expressing semantic web

ontologies is nowadays W3C OWL 2 Ontology Web

Language (OWL) (OWL, 2009), which is based on

description logic. They are various syntaxes

available for OWL 2 and they serve various

purposes. The RDF/XML syntax is the only syntax

that is mandatory to be supported by all OWL 2

tools.

Knowledge expressed in OWL documents

(ontologies) can be reasoned with computer

programs either to verify the knowledge consistency

or to make implicit knowledge explicit (OWL

Primer, 2009). The essential part of OWL ontology

is vocabulary (a set of central terms) with

interrelation information (the meaning of a term is

characterized by its interrelation to other terms).

Then there is important to emphasize that OWL is

neither a database framework (although there is an

analogy e.g. between assertional information and

database content) or a programming language (OWL

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

416

is a declarative language; e.g. algorithmic realization

of inferences is not a part of OWL document).

OWL 2 also does not provide any means to

prescribe the document syntactic structure. It means

that there is impossible to enforce the presence of

any information in a document.

Concerning the semantics of OWL document the

correct answer to any question is predetermined by

the formal semantics in two possible versions: the

Direct Semantics and RDF-Based Semantics.

OWL of course cannot reflect and represent all

aspects of human knowledge. On the other hand, an

important OWL feature is that it captures the

possibility to draw consequences from the

knowledge. The automatic computation of these

consequences is made by OWL reasoners. This is

also the strength of OWL 2 because these OWL

tools can discover information that can be hardly

found by people. However, this also means that it is

difficult to predict the future effect of various

constructs and their combinations.

The basic OWL notions include axioms (the

statements expressed by OWL ontology), entities

(elements referring to real-world objects –

individuals, classes and properties) and expressions

(combinations of entities).

There are fundamental differences in richness of

semantics between OWL (Description Logic based

system) and relational database or object oriented

systems. On the other hand, there are several

approaches how to bridge at least some of these

semantic gaps. These issues are discussed in the

following sections.

3.2 OWL and Relational Database

What are the differences and similarities comparing

relational databases and OWL? How to bridge the

gap between ontologies and relational databases?

Except an analogy concerning assertional

information (the previous section) an analogy

between ontology terminological information and

a database schema can be found. On the other hand,

they are important differences in the underlying

semantics. If some information is not present in a

database, it is considered to be false (closed-world

assumption). By contrast, if some information is not

present in an OWL document, it may be missing and

possibly true (open-world assumption).

LePendu (2007) aligns the expressiveness of

existing ontology languages with the capabilities of

RDBMS. His work on database integration focused

on generating ontology from schemas and ontology-

based data integration (Dou, 2006a; Dou, 2006b).

Then he continued with the work on the system

taking an ontology as input and generating SQL

relational database schema definition (LePendu,

2007). It is maintained that many of the first-order

features which are common to ontologies are also

reflected in relational databases. A simple

observation is made: database schemas are like

simple ontologies. Simple rules of thumb are used

and there is shown that “ontology schema” for one

database can be merged with another one.

However, to bridge the semantic gap between

relational database and ontology means to get

a broad knowledge of several fields including

relational models, database normalization,

knowledge representation, logic, conceptual

modeling, etc. Moreover, there are not only semantic

gaps between ontologies and relational database but

they are still gaps between the conceptual design of

a database and its implementation in relational

database management system (RDBMS).

A set of general statements and specific facts

within an ontology are often referred to as

intensional (inferred) knowledge in contrary to

extensional (explicit) knowledge. Relational

databases store and retrieve extensional data well but

they generally do not perform inference. Intensional

knowledge reduces the amount of required

extensional data storage. On the other hand,

inference is a time-expending process; it means if

we store more extensional data then we need less

time to answer queries is necessary. From this point

of view data in the systems are extensional while

mappings between systems are intensional rules. The

current research in data integration brings some

logics in databases again (LePendu, 2007).

A methodology describing mapping of ontology

basic constructs and axiomatic features to SQL

database relational schema is described in (LePendu,

2007). A wide discussion is dedicated to connections

between databases and logics with respect to the

various theoretical foundations.

(Hu, 2008) proposes a method of building

domain specific OWL ontology from relational

database automatically. Three mapping rules from

relational database schema to ontology class

property are introduced and a method prototype is

implemented.

(Lam, 2006) describes translation of two

neuroscience databases into OWL and the formal

merging of the resulting OWL ontologies. An

existing tool D2RQ was used.

(Juric, 2008) introduces a framework for an

automatic mapping of relational database content

and metadata to OWL domain ontologies. The

constructed ontologies are enriched with additional

semantics from the WordNet lexical database. Jena

tool was applied.

SYSTEM FOR STORAGE AND MANAGEMENT OF EEG/ERP EXPERIMENTS - Generation of Ontology

417

(Astrova, 2009) proposes an approach to

automatic transformation of relational database to

ontologies written in OWL with the aim to integrate

data scattered across many different domains.

3.3 OWL and Object Oriented

Programming

As we already mentioned OWL as a description

language is not considered to be a software

programming language. Moreover, object oriented

programming (OOP) is not captured as the way of

ontology construction. On the other hand, the

ontological representation of objects in OWL is,

syntactically and semantically, very similar to the

description of objects, classes and instances. Then

the analogy of system analysis in software

engineering process with building ontologies leads

to the idea of system development based on the

description logic, it means formalized ontological

description.

(Koide, 2005) developed an OWL processor

(SWCLOS) based on Common Lisp Object System

(CLOS). CLOS allows lisp programmers to develop

object-oriented systems. OWL processor itself

allows lisp programmers to construct domain and

task ontologies in software application fields. Koide

also demonstrates the possibility of the integration of

OWL and OOP, and discusses semantic gaps

between CLOS and OWL.

The automatic mapping from OWL ontologies

into Java is described in (Kalyanpur, 2004). The

authors note the fundamental differences between

description logic and object oriented systems,

primarily related to completeness and satisfiability.

They present ways to minimize the impact of these

differences and show how to map richer OWL

semantics into Java. HarmonIA framework is

mentioned.

4 FRAMEWORKS AND TOOLS

There is a number of frameworks and software tools,

which are considered to generate OWL (RDF)

output from relational database or object oriented

code. Some of these frameworks and tools exist only

as initial proposals or prototypes described in

scientific papers, while some of them have been

really implemented. The following list includes a

selection from existing frameworks and software

tools, which were studied for the next possible

usage. If a framework or tool was widely tested at

our department, our experience is added.

4.1 Jena

Jena is a well known Java framework for building

Semantic Web applications. It provides a program

environment for RDF, RDFS and OWL, SPARQL

and includes a rule-based inference engine. It is

developed as an open source and grown out of work

with the HP Labs Semantic Web Programme. The

framework includes: RDF API, OWL API, Reading

and writing RDF in RDF/XML, N3 and N-Triples,

in-memory and persistent storage and SPARQL

query engine (Jena, n.d.). Jena is integrated within

variety of tools intended for semantic web purposes.

4.2 D2RQ

D2RQ is a declarative language to describe

mappings between relational database schemata and

OWL/RDFS ontologies. The D2RQ Platform uses

these mappings to enable applications to access

a RDF-view on a non-RDF database through the

Jena and Sesame APIs, as well as over the Web via

the SPARQL Protocol and as Linked Data (D2RQ,

2009).

There is important for practical usage that the

installation process is straightforward; all necessary

libraries are in a package. We were able to generate

RDF output without substantial difficulties.

4.3 Virtuoso

Virtuoso is open source software, which enables to

transform SPARQL queries to SQL queries. It is

possible to combine SPARQL and SQL queries over

one database. The Virtuoso RDF meta schema is a

built-in feature of Virtuoso's SPARQL to SQL

translator. It recognizes triple patterns that refer to

graphs for which an alternate representation is

declared and translates these into SQL accordingly

(VIRTUOSO, 2009).

4.4 SquirrelRDF

SquirrelRDF is a tool which allows non-RDF data

stores (not explicitly RDF) to be queried using

SPARQL. It includes relational databases and LDAP

servers. It provides a Query Engine, a command line

tool, and a servlet for SPARQL http access. The

result is the information looking like RDF. However,

it makes no attempt, for example, to reveal implicit

relations between objects (suggested by foreign

keys), or normalise denormalised data (SqRDF,

n.d.).

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

418

4.5 METAMorphoses

The data transformation processor METAmorphoses

transforms data from a relational database into RDF

documents according to a mapping. To achieve this

goal it processes schema mapping and template

documents written in XML languages. The

processor employs an algorithm based on author´s

data transformation model, which is maintained to

have a higher performance than similar solutions in

the field. The tool is designed to hide the complexity

of the semantic web technologies into the schema

mapping layer, while exposing the simple template

layer to the programmer (Švihla, 2007).

This software tool works well with predefined

data source but any change means a lot of manual

work especially during templates construction. Data

processor and supplemental software tools failed

several times during operations without informing

a user about the source of difficulties.

4.6 Sommer

Sommer is a simple library for mapping Plain Old

Java Objects (POJOs) to RDF graphs and back.

XML/RDF template designates the form of output

RDF document. The XML/RDF template is

extended about information from input JavaBeans

(SOMMER, n.d.).

4.7 JenaBean

JenaBean uses Jena's flexible RDF/OWL API to

persist Java Beans objects. Java Beans are

transformed into RDF graph but the biding is driven

by the Java object model rather than an OWL or

RDF schema (JenaBean, n.d.). It also means that this

tool does not require an input template (in contrast

with Sommer) but RDF output is semantically poor

and not well-formed.

4.8 Java2OWL-S

Java2OWL transforms JavaBeans directly into OWL

representation by using two transformations. The

first transformation is from JavaBeans into WSDL

(Web Service Description Language). The input of

this transformation is formed by Java class and the

output is temporary WSDL file. The second

transformation transforms temporary WSDL file into

OWL (four OWL documents are created).

4.9 OWL API

There exist several syntaxes for representation of

ontologies. OWL API is a Java API and reference

implementation for creating, manipulating and

serializing OWL Ontologies. It includes a number of

components including RDF/XML, OWL/XML;

Turtle parsers and writers, and interfaces for

working with reasoners (OWLAPI, n.d.).

5 SOFTWARE TOOLS USAGE

AND PRELIMINARY RESULTS

As we already mentioned in Section 1 our primary

aim is to register our system as recognized data

source and to provide the system ontology. It means

that we need to perform only one-sided mapping

from relational database (object oriented code) to

OWL; then we need to use only a subset of semantic

richness of RDFS and OWL.

We decided to try out two parallel approaches.

The first approach includes the transformation of

relational database into ontology using D2RQ tool

and OWL API. The second approach includes the

transformation from object oriented classes to OWL

using Java2OWL-S tool.

We have encountered the following difficulties

yet. EEG/ERP raw data are saved in the database as

binary files. However, D2RQ tool does not work

with the corresponding BLOB data type. We solved

this problem by simple refactoring of D2RQ code.

The original reaction (exception is thrown) was

replaced by textual output using the attribute name.

The second approach only OWL output for

smaller part of the Java application code was

successful till now. The transformation of the whole

code brings difficulties which are solved.

6 CONCLUSIONS

The presented paper shortly describes the system

which provides the possibility to store and manage

data and metadata from EEG/ERP experiments.

Open source Java technologies were used for the

development.

We plan to register our system as a source of

neuroscience data and metadata within world known

projects e.g. Neuroscience Information Framework

(NIF, n.d.). It is one of the reasons we need to

provide the system ontology. The scientific papers

often describe the domain by using a semantic web

language and consider this kind of domain

modelling as a crucial point of software solution.

However, real software applications use up the

SYSTEM FOR STORAGE AND MANAGEMENT OF EEG/ERP EXPERIMENTS - Generation of Ontology

419

underlying data structures such as relational

database and object classes. That is why the

fundamental differences in semantics between

common data structures (relational database, object

oriented code) were summarized. The existing tools

in semantic web domain were studied and partially

tested. The first transformations from the system

relational database and object oriented code were

performed.

Our aim for the conference includes discussion

concerning both the theoretical background of

semantic richness using various expressing

languages and practical usage of existing

frameworks and software tools. These frameworks

and tools are considered to be suitable for generation

of ontologies over the systems that are already

developed using current Java technologies.

ACKNOWLEDGEMENTS

This work was supported by Grant no. 2C06009

Cot-Sewing.

REFERENCES

Astrova, I. (2009). Rules for Mapping SQL Relational

Databases to OWL Ontologies. In 2nd International

Conference on Metadata and Semantics Research

(MTSR 07) (pp. 415-424)

D2RQ (D2RQ) (2009). Retrieved November 18, 2009,

from http://www4.wiwiss.fu-berlin.de/bizer/D2RQ/

Dou, D. and LePendu, P. (2006a). Ontology-based

integration for relational databases. In ACM

Symposium on Apllied Computing (SAC) (pp 461-

466).

Dou, D., LePendu, P., Kim, S. and Qi, P. (2006b).

Integrating databases into the semantic web through an

ontology-based framework. Proceedings of the 22nd

International Conference on Data Engineering

Workshops), (pp 54-63).

Gruber, T.D. (1993). A translation approach to portable

ontology specifications. Knowledge Acquisition, 5(2),

199-220.

Hu, Ch., Li, H., Zhang, X. and Zhao, Ch. (2008). Research

and Implementation of Domain-Specific Ontology

Building from Relational Database. The Third

ChinaGrid Annual Conference (pp.289-293)

JenaBean (JenaBean), (n.d.) Retrieved January, 18, 2010,

from http://code.google.com/p/jenabean/

Jena framework (Jena) (n.d.) Retrieved November 18,

2010, from http://jena.sourceforge.net

Juric, D., Banek, M., Skocir, Z. (2008). Uncovering the

deep Web: Transferring relational database content

and metadata to OWL ontologies. In 12th

International Conference on Knowledge-Based

Intelligent Information and Engineering Systems (pp.

456-463)

Kalyanpur, A., Pastor, D., Battle, S. and Padget, J. (2004).

Automatic Mapping of OWL Ontologies into Java. In

Proceedings of the 16th Int'l Conference on Software

Engineering & Knowledge Engineering (SEKE'2004)

(pp. 98-103)

Koide, S., Aasman, J. and Haflich, S. (2005), OWL vs.

Object Oriented Programming. In International

Workshop on Semantic Web Enabled Software

Engineering (SWESE).

Lam, H.Y., Marenco, L., Shepherd, G.M., Miller, P.L.,

Cheung. K.H. (2006). Using Web Ontology Language

to Integrate Heterogeneous Databases in the

Neurosciences. In AMIA Symposium Proceedings (pp.

464-468).

LePendu, P. (2007). Ontology based Relational

Databases, University of Oregon.

Neuroscience Information Framework (NIF). (n. d.).

Retrieved September 7, 2009, from

http://www.neuinfo.org/

OWL API (OWLAPI) (n.d.). Retrieved November 18,

2009, from http://owlapi.sourceforge.net/

OWL 2 Web Ontology Language (OWL2). (2009).

Retrieved February 22, 2010, from

http://www.w3.org/TR/owl2-overview/

OWL 2 Web Ontology Language Primer (OWL Primer)

(2009). Retrieved February 22, 2010, from

http://www.w3.org/TR/2009/REC-owl2-primer-

20091027/

Semantic web (SWB). (2001). Retrieved February 22,

2010, from http://www.w3.org/2001/sw/

SOMMER (SOMMER) (n.d.) Retrieved January 13, 2010,

from https://sommer.dev.java.net/sommer

Staab, S. and Studer, R. (2004). Handbook on ontologies

(International Handbooks on Information Systems).

Springer.

Švihla, M. (2007). Transforming Relational Data into

Ontology Based RDF data. Thesis. CTU, Prague.

SquirrelRDF (SqRDF) (n.d.). Retrieved January 11, 2010,

from http://jena.sourceforge.net/SquirrelRDF/

Virtuoso Open-source Wiki (VIRTUOSO), (2009).

Retrieved February 25, 2010, from

http://virtuoso.openlinksw.com/dataspace/dav/wiki/M

ain/VOSSQLRDF.

Ježek, P., Mouček R. (2010). Database of EEG/ERP

experiments. In HEALTHINF 2010 - Proceedings of

the Third International Conference on Health

Informatics. (pp. 222-227)

Pergler, J. (2009). Database of ERP experiments –

business and presentation layer. Thesis (in Czech).

University of West Bohemia. Pilsen.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

420
