EFFICIENT POWER MANAGEMENT IN HIGH PERFORMANCE

COMPUTER CLUSTERS

Carlos de Alfonso, Miguel Caballer and Vicente Hernández

Instituto Universitario I3M, Universidad Politécnica de Valencia, Camino de Vera s/n, Valencia, Spain

Keywords: Green computing, Cluster.

Abstract: Nowadays the computer cluster infrastructures are very common not only in research centers, but also in the

business environment. These computer infrastructures were traditionally used to perform complex

mathematic calculations using parallel programs, but currently it is extended the use of them as

virtualization platforms and shared by means of grid middlewares. Anyway, this kind of infrastructures

usually has many idle periods due to different issues such as the lack of intensive calculations, holydays,

weekends, etc. Even having reduced the power consumption of different components, and accomplishing

energy saving initiatives, it would be better to not to waste energy when it is not needed. This paper shows

that green computing techniques can be applied in these infrastructures, powering-off the nodes which are

not being used and switching them on when needed, to enable reducing power consumption considerably.

These techniques must be applied trying to cause a minimum impact to the user who is using the

infrastructure, and without interference in running applications.

1 INTRODUCTION

Green computing or green IT, refers to

environmentally sustainable computing or IT. It is

"the study and practice of designing, manufacturing,

using, and disposing of computers, servers, and

associated subsystems - such as monitors, printers,

storage devices, and networking and communica-

tions systems - efficiently and effectively with

minimal or no impact on the environment. Green IT

also strives to achieve economic viability and

improved system performance and use, while

abiding by our social and ethical responsibilities.

Thus, green IT includes the dimensions of

environmental sustainability, the economics of

energy efficiency, and the total cost of ownership,

which includes the cost of disposal and recycling. It

is the study and practice of using computing

resources efficiently." (Murugesan, 2008)

Nowadays is usual to perform experiments

consisting on the model simulations using

computers. Moreover these models are more and

more complex and require greater computer

infrastructures to perform the calculations

efficiently. So, it is common to use singular

infrastructures of cluster of computers, to compute

these models.

On the other hand, it is extended the use of

computer infrastructures as virtualization platforms.

These platforms are usually managed by some

specific middlewares as OpenNebula (Fontan,

2008), Eucalyptus (Nurmi, 2008), etc. that enable to

manage virtual machines (power on, stop, check the

state, etc.) efficiently in a cluster infrastructure.

Nevertheless, these middle-wares try to have only

the needed virtual machines actives. This way, in

many times, the platform is not completely used.

Maintain these infrastructures working have an

important power impact. Furthermore is important to

consider that the computer power source have

efficiencies lower than 80% (Liang, 2008) (although

there are many current initiatives to improve this

ratio as (The 80 PLUS Program, 2009) or (Hoelzle,

2010)). The rest of the enery is transformed into

heat, which may be dissipated by coolers which,

indeed, need energy.

Many other previous green computing works,

realted to high performance cluster systems, were

focused on reducing the power consumption and

heat disipation of the different components of the

computer (mainly the CPU) (von Laszewski, 2010),

(Feng, 2008), (Feng, 2007).

This paper describes techniques which aim at

reducing power consumption of high performance

de Alfonso Laguna C., Caballer M. and Hernández V. (2010).

EFFICIENT POWER MANAGEMENT IN HIGH PERFORMANCE COMPUTER CLUSTERS.

In Proceedings of the Multi-Conference on Innovative Developments in ICT, pages 39-44

DOI: 10.5220/0003036500390044

 SciTePress

cluster systems, which run batch jobs. That working

pattern match many scientific computing clusters

which apply queue managers such as Portable Batch

System (PBS), Load Sharing Facility (LSF), or

others, using similar ideas than shown in (Da-Costa,

209).

These techniques can be also applicable to

clusters shared using Grid middlewares (Globus

Toolkit (Globus Alliance, 2009), gLite (EGEE,

2009)), since the job submission is performed using

the same queue managers.

The next section shows the special features of the

working modes of the clusters in the described cases.

Then some approaches to reduce the power

consumption are proposed. Finally it is show a case

analyzing the impact of the raised measures in a real

cluster.

2 CLUSTER BEHAVIOUR

A cluster is composed by, besides the passive

elements (screws, cables, etc.), the following

elements: working nodes, administration nodes,

front-end node, storage systems, internal network

switches, external switches, firewalls, etc. (Lucke,

2004).

The power needed to feed this infrastructure is

great and it is convenient to have a power saving

plan, to minimize the consumption. This plan must

take into account the way that the cluster is used,

and should try to reduce the impact in the throughput

of the applications and the system as a whole.

A common way to use a cluster consist in having

a front-end which is in charge of coordinating the

execution of user’s jobs by a Local Resource

Manager System (LRMS), such as a queue system

(Torque, OpenPBS, LSF, Sun Grid Engine, etc.). In

this case, the users submit jobs to a queue, and they

are executed as they have enough nodes to satisfy

the job’s requirements.

In the last years, a common way of using a

cluster was by sharing it by a Grid Computing

middleware such as Globus Toolkit. The way of

running jobs in the cluster by Grid techniques is

partly integrated with the LRMS. So the usage of the

cluster consists in submitting the jobs to the local

queue. The main difference in this case is that it is

needed an extra information reporter, which must

provide the number of free online nodes (among

other characteristics of the cluster).

A recent manner of managing a cluster consists

in having it as a virtualization platform. Some

examples of Virtual Appliance management

platforms are VMWare, Eucalyptus or Open Nebula.

Using these middlewares, the Virtual images are

started in the form of running virtual machines, in

the internal nodes of the cluster.

A power saving plan must take into account the

way of using the clusters, but also the hardware

issues. The most common way to reduce the power

consumption is to power off the machines, but the

problem can arise when trying to power on the nodes

again. In this sense, there are mainly two

approaches: the usage of Power Distribution Units

(PDU), to manage the power access to the nodes, or

the usage of Wake-on-Lan alternative.

Each of the approaches need that the nodes are

configured in a specific way: using a PDU requires

that the node powers on when power is restored, and

WOL alternative needs that the network card is well

tuned by the operating system.

Regarding any of the alternatives, there is always

a residual consumption associated to the PDU

controlling system or to the network card WOL

monitoring. So it will impossible to achieve the zero

consumption.

3 TECHNIQUES

Different techniques can be used to save energy in

the computer cluster environment. These techniques

are based in powering-off idle nodes, or

alternatively, hibernating them or putting them in

standby mode.

These two last approaches may have problems in

Linux environments since (1) many devices do not

support the standby mode and (2) in many cases

(depending on the memory used in the machine, as

the main factor) hibernating the node and starting up

the machine again implies far more time than

switching-off and on the computer.

On the other hand, the basic criterion for

applying any of these techniques is that the node

must be idle. Furthermore, the process of switching-

on a working node in a cluster is quite fast, as during

the boot process only the minimum applications are

needed to be loaded. So the approach of powering

off an idle node and powering it on when it is

needed is an appropriate solution.

In any case, the aim of using these techniques is

to achieve the maximum power saving, trying to

maintain the response times for the users, and

searching for the easier measures to apply.

In order to achieve those objectives the

following aspects must be considered:

 To select the power-on/off block size: If a

group of nodes are idle, they can be switched

INNOV 2010 - International Multi-Conference on Innovative Developments in ICT

off. Nevertheless, it is interesting not to power

down all the cluster nodes (when possible),

considering an eventual increase in the

demand. Reciprocally when a demand of a set

of nodes is detected, instead of switching on

only the number of needed machines, a block

of nodes can be activated preventing a future

demand of more resources. The “block size”

can be defined as the number of nodes to be

deactivated when the cluster is idle, or to be

activated when some resources are needed.

This size can change from one node to the

whole cluster, but it is important to select the

proper one, depending on the cluster and the

user needs.

The usage of a small block size enables a

maximum power reduction, since only the

needed nodes will be activated. On the other

hand, it would increase the response time for

the users, since in many cases the launched

jobs will wait for the cluster to be switched on

before getting their jobs started.

In case of using a large block size, the power

consumption is greater, since the number of

activated machines would be more than

needed by the users. But, on the other hand, as

users usually send consecutive executions,

they only should wait for the first one, while

the other jobs will be launched immediately.

According to the usage of the cluster, it should

be applied an intermediate approach, which

reduces the waiting times to the users, but also

reduces the power consumption. Some mixed

solution can be also chosen so that it can be

used different heuristics to change the block

size according to different factors: the job

requirements, the time when the job is

submitted, the number of connected users, etc.

 To select the cluster inactivity time to

deactivate: In a HPC cluster environment it is

quite simple to find patterns in the the usage

of the nodes, due to the use of Local Resource

Management Systems (LRMS). A first

approach consist in checking the LRMS logs

files to get the maximum and minimum

inactivity times, to obtain the appropriate

values to the system usage.

To work in a correct way for estimating the

switching off time, the jobs can be grouped in

the switched-on nodes, correlating with the

power-on/off block sizes, to obtain the waiting

times and thus determining the most suitable

time to wait before suspending a node.

 In addition, other heuristics can be introduced,

considering the working hours, the holidays,

etc.

To get the best solution with the most

appropriate values for the analyzed parameters, a

good approach is to make some simulations, varying

the different parameter to evaluate the system

behavior and selecting the best values.

Anyway, the behavior of the system may change

in the future, according to different projects, users

interests, etc., so it will be necessary to re-evaluate

the parameter values to adequate them to the new

system usage and user needs.

4 GREEN COMPUTING

APPROXIMATION

We have developed a system which, taking into

account the considerations in previous sections,

powers-on and off the nodes in a cluster.

The solution is divided into two subsystems: the

core engine, which is in charge of orchestrating the

power-on and off of the system, and the plug-ins

which must evaluate which nodes have been inactive

for a long time, and so they are likely to be powered

off.

The core engine consists in a script which is

periodically launched by common linux utilities (in

our case, the cron daemon). The pseudo code of the

body of this script is stated below:

inactive_nodes=

for each plugin in plugin_dir

candidate_nodes = exec_monitor

inactive_nodes = inactive_nodes

intersect candidate_nodes

end for

poweroff inactive_nodes

In our approximation, there must be

implemented a plug-in for each way of using the

cluster. Each plug-in has two parts: the first one will

be invoked when checking the state of usage of the

cluster, and will return a list containing the nodes

which are inactive. The second part will be in charge

of on demand powering-on the nodes of the cluster,

and must be integrated with the running subsystem.

Currently we have developed the Torque-LRMS

plug-in. The plug-in in charge of listing the inactive

nodes uses the “pbsnodes” to get the list of the

resources and their states. The script in charge of

getting the information about the demand uses the

“qstat” command in order to get the jobs launched

into the system, and the resources needed by them.

EFFICIENT POWER MANAGEMENT IN HIGH PERFORMANCE COMPUTER CLUSTERS

To switch-on the nodes the “Job Submission

Filter” option of the “qsub” command is used to

enable launching a script before the effective

submission of a job into the queue system. This

script checks the availability of the resources needed

by the submitted job, and switches-on a set of nodes,

if necessary, using the selected block size. This

solution minimizes the impact to the user since it

will use the same commands to submit the jobs to

the system.

This cluster also is shared using the Globus

Toolkit grid middleware. The service Globus

Resource Allocation Manager (GRAM) provides the

capability to submit jobs to the cluster LRMS. The

GRAM service as well as the users, uses the “qsub”

command to submit jobs to the queue system, so the

integration is immediate. On the other hand the

Monitoring and Discovery System (MDS) requires a

simple modification since it considers the powered-

off nodes as unavailable resources. The script that

provides the information about the Torque/PBS

system to the Globus information system must be

modified to publish the switched-off nodes as

available resources.

5 USE CASE

Some of the described techniques to reduce power

consumption have been tested in a high performance

cluster, in order to check the real impact in the

power consumption and in the response time of the

user submitted jobs.

The cluster is composed by 51 bi-processor

nodes Intel Xeon CPU 2.80GHz, interconnected by a

SCI network in a 10x5 2D Torus topology. Each

node has 2 GB of RAM memory. The front-end

node is the access point to the cluster, and the other

(50) are used as the working nodes.

The SCI network has an important restriction

when applying the green computing techniques,

since it is necessary to have all the nodes activated

to get the best parallel performance of the network.

If one of the nodes is inactive, some of the paths

between nodes are lost, and thus decreasing the

network performance. This restriction makes

necessary switching on/off the whole cluster for

avoiding the interference on the user or the running

applications.

5.1 Cluster Analysis

To study the impact of the described techniques, it

has been made a complete analysis of the cluster, not

only at the power consumption level, but also at the

usage of the system by the users. Taking the results

of this analysis it is possible to get an estimation of

the different key factors for the technique described

in this paper: the power consumption, the economic

saving and the final impact on the user interactivity

or running applications.

5.1.1 Power Consumption

In the target cluster, we have measured the power

consumption in the main states of the cluster:

powered off, idle, and calculating with one and two

processors per node.

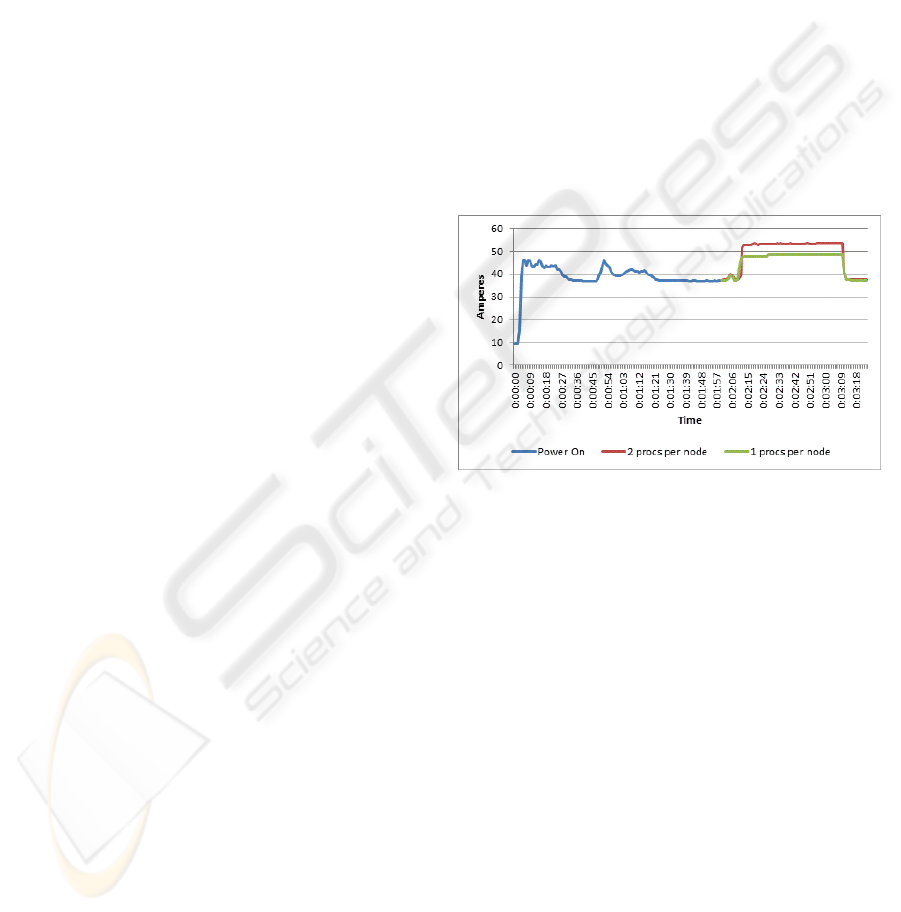

Figure 1 shows the power on cycle of the 50

working nodes (blue), the execution of a parallel

process in all the nodes using one processor per node

(green) and finally the execution using two

processors per node (red).

Figure 1: Cluster Power consumption.

In the initial state (all the working nodes

switched off) the power consumption is 9.4A. This

consumption corresponds to the front-end node, the

switches, the KVMs, etc. Once the working nodes

are powered on and the consumption arrives a stable

state, it reaches 37.2 A of consumption. When the

parallel process is started the consumption gets to

48.5 A; but when a parallel process uses two

processors per node the consumption increases until

53.3 A.

5.1.2 Usage

To evaluate the cluster usage, the torque LRMS

accounting files have been analyzed for about four

months.

The total number of jobs was 8806, which have

been launched in a 133 days period. The jobs

average time was 15’32’’.

The cluster usage percentage (at least one job

running in the LRMS) was only the 17.38% of the

INNOV 2010 - International Multi-Conference on Innovative Developments in ICT

time. Therefore the remaining 82.62% it is

consuming resources without any throughput.

Table 1: Jobs that have to wait the cluster to power on.

Wait Time 4 h 3 h 2 h 1h

Jobs 54 63 72 85

To obtain the best value for the cluster inactivity

time to deactivate, it has been analyzed the impact of

using a set of values for the user wait time, and but

also the power consumption.

Table 1 shows the jobs

that have to wait the cluster to power on, when

considering different values of the time to wait. In

any case the number of jobs that have to wait is

around 1% of the total jobs. On the other side, the

power-on time of the whole cluster is less than 1 min

and 30 seconds (as shown in Figure 1).

Table 2: Percentage of time in each state.

Wait Time Off Idle Used

4 h 75,86% 6,77% 17,38%

3 h 76,70% 5,92% 17,38%

2 h 78,11% 4,51% 17,38%

1 h 79,96% 2,66% 17,38%

Table 2 shows the percentages of time that the

cluster would have been in the different states,

applying the different values for the cluster

inactivity time to deactivate. It shows that there is no

significant difference among the different values.

5.2 Results

To estimate the power consumption, the behavior of

the cluster will be split into three states: powered

off, idle, and in use. For the first two cases, the

power consumption has been measured in the

previous section. In the last case the power

consumption has been estimated to be a usage of the

75% of the cluster nodes, using only one processor.

The diary power consumption is shown in

Table 3.

Table 3: Diary power consumption.

State Ampere Volts

(mean)

kW/Day

(A*V*24/1000)

Off 9,4 230 51,88

Idle 37,2 230 205,34

Used 41 230 226,32

Using this data and the current usage percentage

of the cluster, the total yearly power and economic

consumption is show in

Table 4.

With the restrictions imposed by the usage of the

SCI network, in the performed tests it has been

applied an algorithm which powers off the whole

cluster, with a period of inactivity of 4 hours. The 4

hours period has been selected due to the results

obtained in the last section, in order to avoid the

maximum number of cluster activations (it restricts

the component stress due to the power-on and

power-off cycles).

Table 5 shows an economic and

power consumption estimation applying the

described green computing techniques, showing an

economic saving of 3.754€, which means a 55% of

the whole current expenses.

Table 4: Current power consumption.

State Pct kW/Year €/Year

Off 0% 0 0

Idle 82,62% 59.927 5.453

Used 17,38% 14.353 1.306

TOTAL 100% 74.280 6.759

* Cost: 0,091 €/kw. Data obtained from the Ministerio de Industria,

Turismo y Comercio del Gobierno de España.

Other important issue to consider is the impact of

the cluster activation in the wait time for the users.

Some test has been performed to evaluate this time,

getting an average of 1’58’’, with a maximum time

of 2’10’’. This time is only the 12.6% of the average

time of the measured jobs. Furthermore, as it has

been analyzed in the previous section only will

affect to the 0.61% of the total jobs, so the effective

impact to the user will be minimal.

Table 5: Estimated power consumption.

Pct kW/Year €/Year

Off 75,86% 13.755 1.252

Idle 6,77% 4.908 447

Used 17,38% 14.353 1.306

TOTAL 100% 33.016 3.005

Not only it is important the power consumption

of the cluster but also it is needed to consider the

heat dissipation produced by it, that must be

counteracted by a cooling system equipment.

The cooling system of the cluster room in the use

case is composed by two compressors, each one

consuming about 10 A. Approximately in the warm

months (from May to October) the cooling system is

working with both compressors whether the studied

cluster is switched-on or not. So in these 6 months

there is no possibility of decreasing the power

consumption of the cooling system. In the cool

months (from November to April) we have

measured that if the main cluster is switched off only

one of the compressors is needed to maintain the

temperature of the cluster room. But when the

cluster is activated both of them are needed. Using

those observations it can be estimated the power

EFFICIENT POWER MANAGEMENT IN HIGH PERFORMANCE COMPUTER CLUSTERS

consumption saving produced in the cooling system

when applying the green computing techniques

selected.

Table 6 shows the cooling system power

consumption in the cold months, in the warm

months, and the total consumption and compares

them with the current expenses. It is produced a

saving of 695€, a 19% of the current total cost.

Table 6: Cooling system power consumption comparison.

Estimated Curr.

cold months warm months

Kw € Kw € €/Year €/Year

Off 7.641 695 15.283 1.391 2.086 0

Idle 1.363 124 1.363 124 248 3.030

Used 3.500 319 3.500 319 637 367

Total 12.506 1.138 20.093 1.834 2.972 3.667

6 CONCLUSIONS AND

FURTHER WORK

This paper describes techniques to reduce the power

consumption on cluster infrastructures, reducing the

impact on users. Different aspects to be considered

are commented: the selection of the block size to

power on/off the cluster, the time to detect the

inactivity of the system to deactivate nodes, etc.

In this kind of environments the usage of LRMS

enables to easily manage the information about the

usage of cluster systems.

The real case described, exposes good results in

the implantation of this kind of techniques in a real

cluster, decreasing the power consumption in 55%

of the total expenses.

We are currently working in the development of

other plug-ins, which will address emerging uses of

clusters, such as Cloud Computing. In our case, we

are debugging plug-ins for Open Nebula and

Eucalyptus. In this case, the aim is to maintain a

quality of service for virtual machines, with the

minimum number of host nodes. In order to

determine which nodes are candidate to be powered

off and on, we manage concepts such as virtual

memory per node, virtual cores per real cores and

disk image size.

Our approximation is oriented to cluster

management, in which nodes are homogeneous and

are interconnected by a private network. But we are

also considering the extension to heterogeneous

nodes (with different number of cores per node,

memory size, disk size, etc.), and evaluating the

impact of managing machines in local area

networks.

ACKNOWLEDGEMENTS

The authors wish to thank the financial support

received from The Spanish Ministry of Education

and Science to develop the project "ngGrid - New

Generation Components for the Efficient

Exploitation of eScience Infrastructures", with

reference TIN2006-12890. This work has been

partially supported by the Structural Funds of the

European Regional Development Fund (ERDF).

REFERENCES

Murugesan S., 2008. Harnessing Green IT: Principles and

Practices. In IEEE IT Professional, pp 24-33.

Fontan, J. et al, 2008. OpenNebula: The Open Source

Virtual Machine Manager for Cluster Computing. In

Open Source Grid and Cluster Software Conference.

San Francisco, CA, USA.

Nurmi, D. et al., 2008. The Eucalyptus Open-source

Cloud-computing System. In Proceedings of Cloud

Computing and Its Applications.

Liang, S. A., 2008. Low cost and high efficiency PC

power supply design to meet 80 plus requirements. In

Industrial Technology IEEE International Conference,

pp 1-6.

The 80 PLUS Program, 2009. viewed 1 December 2009.

<http://www.80plus.org/>.

Hoelzle, U., Weihl, B., 2010. High-efficiency power

supplies for home computers and servers, Google Inc.

viewed 22 February, 2010) <http://static.

googleusercontent.com/external_content/untrusted/ser

vices.google.com/blog_resources/PSU_white_paper.

pdf>.

von Laszewski, G. et al, 2009. Power-Aware Scheduling

of Virtual Machines in DVFSenabled Clusters. In

IEEE Cluster 2009. New Orleans.

Feng, W. and Feng, X., 2008. Green supercomputing

comes of age. IT Professional, vol. 10, no. 1, pp. 17–

23.

Feng, W. and Cameron K., 2007. The Green500 List:

Encouraging Sustainable Supercomputing. In IEEE

Computer, pp. 50–55.

Da-Costa, G. et al, 2009. The green-net framework:

Energy efficiency in large scale distributed systems. In

High Performance Power Aware Computing

Workshop.

Globus Alliance, 2009. Globus Toolkit, viewed 1

December 2009, <http://www.globus.org/toolkit>.

EGEE, 2009, gLite Lightweight Middleware for Grid

Computing. viewed 1 December 2009,

<http://www.glite.org>

Lucke, R. W., 2004. Building Clustered Linux Systems,

Prentice Hall. ISBN - 978-0-13-144853-7.

INNOV 2010 - International Multi-Conference on Innovative Developments in ICT
