PURPOSE-DRIVEN APPROACH FOR FLEXIBLE

STRUCTURE-INDEPENDENT DATABASE DESIGN

Youri I. Rogozov, Alexander S. Sviridov, Sergey A. Kutcherov

Taganrog Institute of Technology, Southern Federal University

22 Chekhov Street, 347928, Taganrog, Russia

Wladimir Bodrow

Department Business Computing, University of Applied Sciences Berlin

8 Tresckowalle Street, 10318, Berlin, Germany

Keywords: Semi structured data, Relational database model, Database construction method, Structure-independent

database.

Abstract: This paper presents a purpose-driven approach for development of flexible databases outgoing from the

relational database concept. Based on carried out analysis of both relational and entity-attribute-value

database models the aspects essential for the described purpose-driven approach are defined. The necessary

requirements to be satisfied by structure-independent databases are derived and discussed in detail. Several

implementations of structure-independent databases using the suggested approach have been realized and

presented as well. The improvement of relational database model based on proposed structure-independent

database approach is formulated.

1 INTRODUCTION

The problem of storing changeable relational data

structures appears for instance as concomitant in the

research and development projects focused on

creating of CASE-tools for automated development

of inquiry and communication systems. In such

systems a database is to be designed under

conditions of full or partial uncertainty regarding

users’ data that will be stored in it. Due to this

vagueness the application of the relational data

model turns out to be difficult. The crucial point is

that the reflection of the stored data structure at

logical level to the relational database structure at

physical level results in the significant growing of

the labour intensity to maintain this physical

structure. Furthermore it leads to data surplus and

normalization rules violation. The complicated

daunting task which can be completed only by a

group of highly qualified database administrators

helps to face with such difficulties appearing in the

databases that are able to reach up to several

hundreds of tables. This contradicts the idea of

automated development of a flexible information

system presupposing the opportunity to enter

changes into the system by users themselves as

many times as necessary. Another defined ambition

is the reducing of the number of software

engineering and database specialists involved in the

particular project.

Among known approaches to solve the problem

it is possible to single out two main ones, i.e.:

1. Applying the techniques of storing semi

structured data, such as native XML databases,

Object-Exchange Model (Bourret, 2010,

Agrawal et al., 1995);

2. Creating and using database static physical

relational structures independent from the stored

data logical structure (Paley, 2002, Tenzer,

2001, Bannikov, 2010, Polishchuk and

Thcernykh, 2009).

The initial purpose of similar technologies for

dealing with changeable data is in accordance with

the first approach. The list of existing concepts may

tend to an independent research of their efficiency

for solution of the mentioned task. It’s worth being

noted that the basic technologies of this field, e.g.

356

I. Rogozov Y., S. Sviridov A., A. Kutcherov S. and Bodrow W. (2010).

PURPOSE-DRIVEN APPROACH FOR FLEXIBLE STRUCTURE-INDEPENDENT DATABASE DESIGN.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 356-362

DOI: 10.5220/0003044103560362

 SciTePress

XML, are a modified hierarchical data model. Thus

the basic technologies contain the disadvantages of

this model (Date, 2008). The relational database

model eliminates these disadvantages.

The second approach is based on the

differentiation concept of database at physical and

logical levels. It helps to use all the optimization

method diversity worked out for years of the

relational tables application. The used set of static

tables at the physical level allows keeping the

relational technologies. The consequent database

differentiation at physical and logical levels allows

simultaneously working with different database

models; as relational model, object-oriented model,

hierarchical model etc. The evident shortcomings of

this approach are the insignificant efficiency

decrease and the complication of data access

mechanisms.

Presented research describes the purpose-driven

approach for the storage of data structures with high

degree of ability to be changed. It is based on

generation and use of static physical relational

database structures that are independent from the

stored data at logical level. The approach allows the

realization of different structurally independent

databases using the relational database models

according to the particular application declared by

developer. It is based on the implementation analysis

of the relational model at physical level and entity-

attribute-value model which allows the

specifications revealing of the structure-independent

database. The following steps lead to compliance

with identified requirements and describe the

implementation of the physical database structure.

2 DATA MODELS ANALISYS

The start point of the proposed approach is the

implementation analysis of the independence of

physical database structure from the logical structure

of the stored data. To make the peculiarities

obvious, one can consider every model

implementation through the three-dimensional

matrix images in the basis “entity – attribute –

instance”.

2.1 Relational Model

The basis of the relational model (Codd, 1970)

implementation consists in storing data in the form

of tables (entities) with a finite set of fields

(attributes) both at the logical and physical levels.

The set of tables and their interconnections are

specified at the design stage. The continuous line

represents the growth of data amount in the database

(instances), entailing changes in the physical

structure (entities), and the dotted line signs the

absence of any change.

The relational model implementation can be

spatially represented applying the taken symbol and

the basis “entity-attribute-instance” as a three-

dimensional random figure (Fig. 1). This figure cells

contain attribute values for the entity instances as

follows.

Attributes

Entit

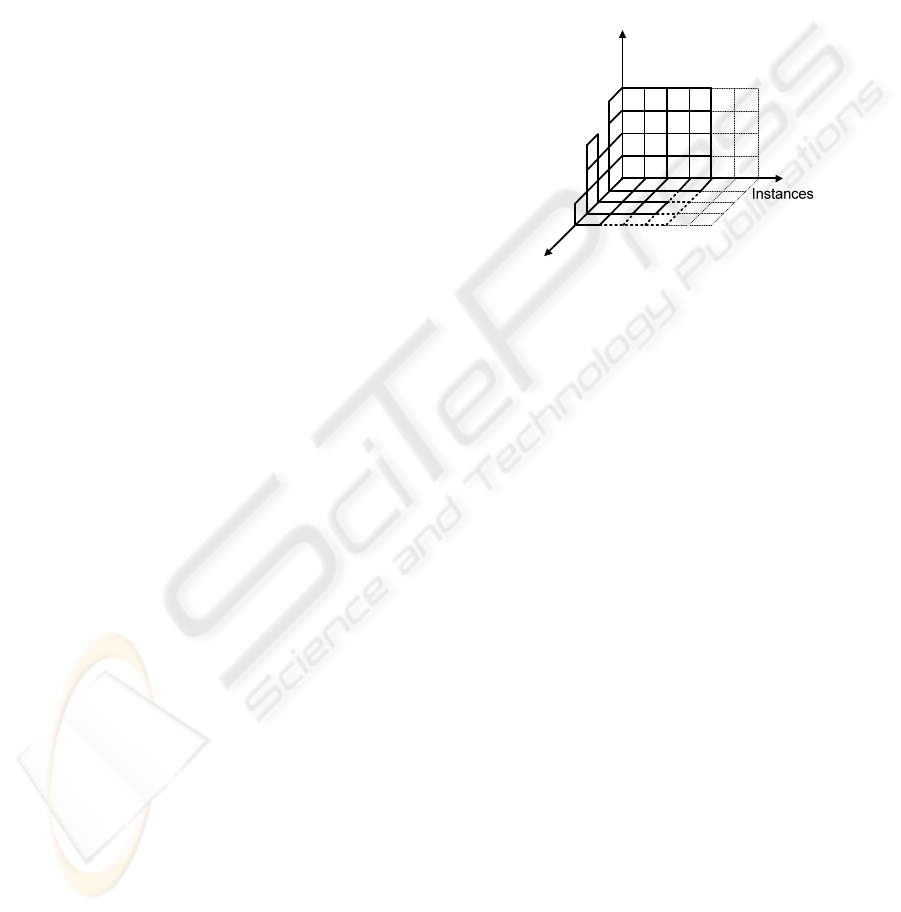

Figure 1. Spatial representation of the relational data

model implementation in the “entity-attribute-instance”

basis.

Figure 1 allows the conclusion that in relational

model physical database structure is independent

from the quantity of entity instances. It is justifies by

the obvious storage of metadata denoting the ones

stored earlier in table with field titles and tables ties.

The relational model rejects the metadata change at

any moment of the database use without physical

interference. This provides its being inapplicable for

storing changeable data structures.

2.2 Entity-Attribute-Value Model

Unlike the relational model, the entity-attribute-

value (EAV) data model (Stead, 1982, Nadkarni,

2010) allows to change metadata partially (entity

attributes) during the process of database utilization.

Decisive database growth directions according to

this model can be visualized based on extended

image used before in the “entity – attribute –

instance” basis (Figure 2).

The additional cells presented by dotted lines

visualize the possibility of dynamical extension of

attributes as for entities as for instances. In the

conclusion Figure 2 underlines that the physical

database structure doesn’t depend on quantity of

attributes or entities and can be changed based on

instance quality. This implementation ability is

anchored direct within the changeable metadata

PURPOSE-DRIVEN APPROACH FOR FLEXIBLE STRUCTURE-INDEPENDENT DATABASE DESIGN

357

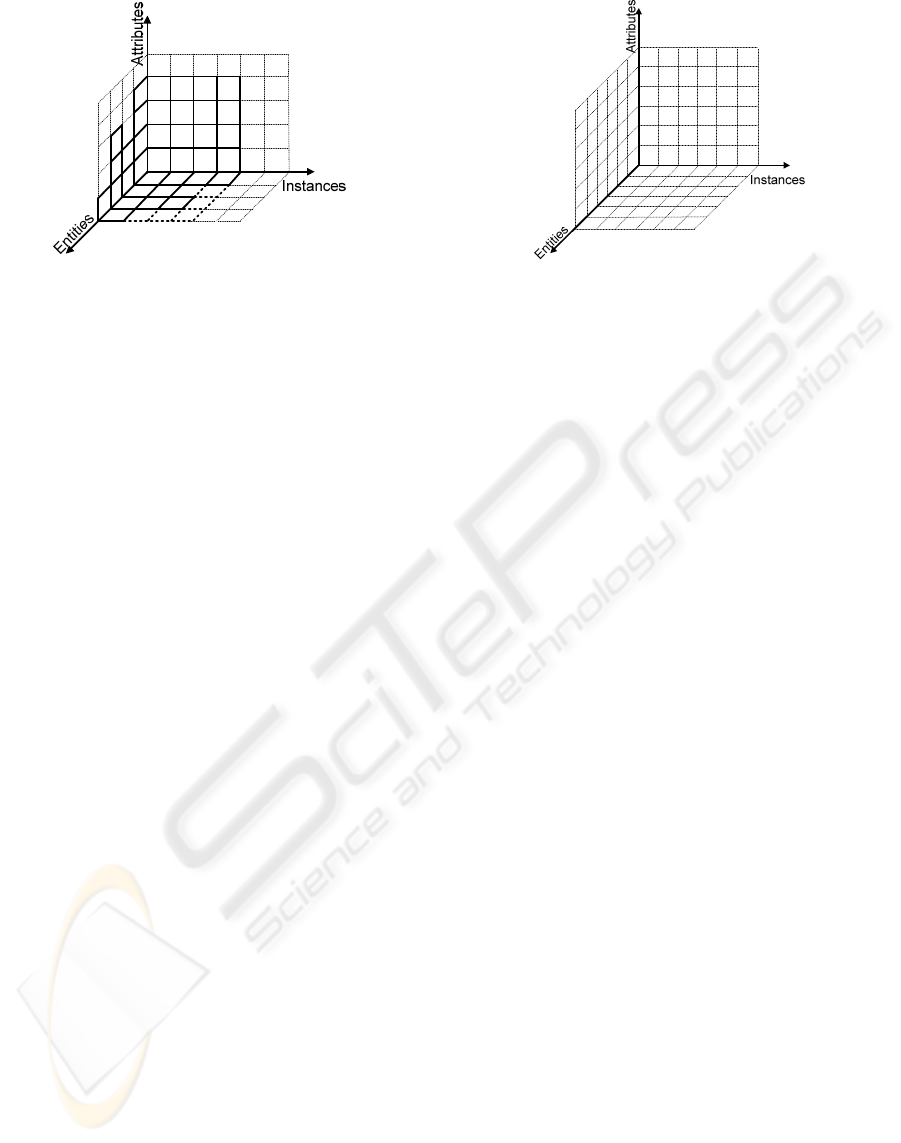

Figure 2. Spatial representation of the EAV data model

implementation in the “entity-attribute-instance” basis.

inside the database. A special table is generated for

storing attributes and their descriptions, the

attributes values are kept apart (Dinu and Nadkarni,

2007, Brandt et al., 2002). In addition to that

different instances of the same entity can contain

variable quantity of attributes. In other words,

“instance – attribute” basis is a sparse matrix

containing only really needed attribute values.

At the same time the EAV database is positioned

as one of stringent specification and so is often used

in fields with predetermined unchangeable number

of entities and parts of their attributes, e.g. in

medical information systems or e-commerce

systems. The fitting of the physical database

structure to the stored data structure justifies the

reasonability of the EAV model characteristics its

applicability for structure-independent database

development focused on purposes in particular

project.

2.3 Requirements to Structure-

Independent Databases

The data structure representation as a sparse matrix

provides its dynamic change. Direct storage of

structural metadata in the database permits its

independence at both physical and logical levels of

implementation. The discussion above allows the

development concept for structure-independent

database using the three-dimensional representation

in the “entity-attribute-instance” basis (Figure 3).

According to the Figure 3 the structure-

independent database do not need the description of

the subject domain beforehand, it is ready for being

used even without precise definition of all entities or

attributes. This way the full differentiation of the

physical and logical implementation levels is

achieved:

Figure 3. Spatial representation of structure-independent

database in “entity-attribute-instance” basis.

 logic structure characterizing user data is

described not by the physical database

structure, but by the stored metadata;

 the physical database structure is fixed and

relational technologies can be applied for its

development.

The data models analysis lets form the

requirements for the structure-independent

database, implemented in accordance with the

relational technologies:

1. Metadata that define the logical database

structure are stored directly in the database as

data sets in the relational tables and build a

metadata substructure. Independence between

the logic and physical structure is provided by

refuse from metadata explicit determine as table

titles, fields and table links;

2. Data are grouped in tables with respect to

types. Tables contain attributes indicating

membership in a reference to the metadata

tables and compose a certain subsystem. The

field title where values are stored are not

attribute title;

3. The structure of the database is represented by

a sparse matrix. The logical structure of data is

generated afterwards according to the project

purposes. It contains only entities and attributes,

really used in the application. The logical data

structure can be added or changed anytime;

4. The total number of database tables at the

physical level is fixed and depends just on

metadata tables number and used data types,

but it doesn’t depend on the logical structure of

the stored data. The restricted number of tables

on the physical level is the key to

implementation productivity. It decreases the

complexity requirements for the database,

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

358

which is important for the maintenance during

the exploitation of the solution.

Analysis of certain structure-independent

database models with applying relational technology

(Paley, 2002, Tenzer, 2001, Bannikov, 2010,

Polishchuk and Thcernykh, 2009) reveals that the

models meet the declared application requirements.

Consequently the realized implementation depends

on project and/or developer’s purposes. This allows

the formulation of an approach for the development

of flexible structure-independent database models

based on relational technologies according to the

project purposes. (Provided that developer follows

exact the project purposes and owns the professional

skill for its adequate translations into the database to

be realized.)

3 APPROACH OF STRUCTURE-

INDEPENDENT DATABASE

CONSTRUCTION

Irrespective of the developer's professional skill the

sequence of steps leading to the reception of a

necessary set of connected relational tables can be

formulated. This sequence meets the requirements

stated above and is described in detail below. The

given set of tables is a physical level of the

structure-independent database. The sequence of

steps represents an approach of structure-

independent databases construction based on

relational technology.

3.1 The Approach Formulation

It's most convenient to formulate an approach,

through its division into some steps with respect to

defined above requirements to be complied. To

meet the both first requirements it is necessary:

1. To define a set of the metadata necessary for the

description of logic structure of a database;

2. To define structure of metadata and to realize

them in the form of a fixed set of the connected

relational tables which make a subschema of

the metadata. The given step includes:

 division of the figured out metadata set into the

groups based on accessory (for example,

describing entity and the attributes, describing

communications between entities etc.);

 creating a separate relational table for each

group;

 specification of links between tables (for

example, between the table of

communications and description tables of

entities and attributes);

To fulfill the following two requirements it is

necessary:

3. To define types of data which will be used for

storage of attributes' values;

4. To develop a subschema of data, in the form of

a final set of the same relational tables not

connected among themselves for storage of

attributes' values. The quantity of tables

corresponds to the quantity of used types of

data. It is expedient to store values in the form

of the triplet "entity-attribute-instance", where

the first two elements represent the reference

links to records in tables of the metadata. It

allows to present data structure in the form of

sparse matrixes;

To construct a structure-independent database

finally it is necessary:

5. To implement the database physical structure

based on definition and specification of the

communications between tables of metadata

subschema and a data subschema;

Fulfillment of the third and fourth requirements is

a consequence of fulfillment of the both first:

 Representation of the stored data structure in

the form of sparse matrixes is realized due to

the storage of values in the form of the triplets

(the sparse matrix of instances) and storage of

metadata in a database (the sparse matrixes of

entities and attributes);

 Independence between physical and logic level

is realized due to storage of the metadata in

the same database.

This sequence of the realization steps anticipates

working out of user's (logic) structures of data,

executed according to the technology defined by the

developer of a database.

3.2 Utilization of the Approach

The described approach supports the construction of

flexible structure-independent database based on

relational technologies depending on particular

purpose to be achieved in the project. For the

validation of the proposed approach we will consider

an example with known data structure on its basis

and also we will result own variant.

PURPOSE-DRIVEN APPROACH FOR FLEXIBLE STRUCTURE-INDEPENDENT DATABASE DESIGN

359

Example 1. Let's imagine that project purpose is the

creation of universal relational structure for

processing and storage of semistructured data in

terms of object-oriented technology – in the form of

classes and objects. According to the approach the

reception of the given structure looks as follows:

1. We allocate a metadata set:

 Names of classes’ objects and attributes;

 Hierarchies of classes;

 Links between objects;

 Relations between objects and classes.

2. We form the structure of metadata tables

according to the logic accessory of metadata:

 The attributes reference table – tbl_attdef table;

 The object classes reference table – the

tbl_classdef table;

 The links between objects reference table – the

tbl_links table;

 The objects reference table – the tbl_obj table.

3. At the conceptual level it is enough to specify

only one type of the data – line. The other types

of data use will lead to increase of identical data

tables quantity;

4. The data subschema is realized in the form of

one table – tbl_attval;

5. Communications between subschema tables of

metadata and the data will be arranged

according to key values of unique id.

Thus, on the basis of the formulated approach the

model of the database structure (Fig. 4), realizing the

specified purpose and meeting the formulated

requirements is constructed.

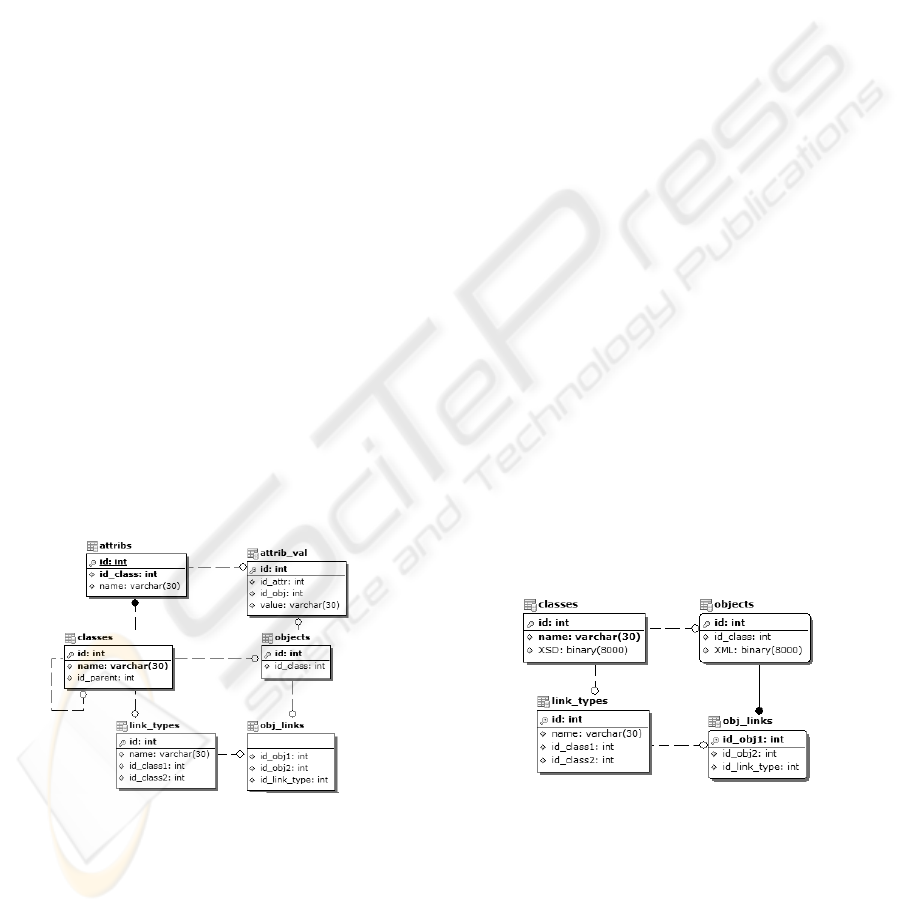

Figure 4. Model of database structure for storing objects.

A similar structure named the expanded

relational scheme for processing of quasi-structured

data, is come across in references (Paley, 2002).

Remaining within the limits of purpose of data

storage in terms of object-oriented technology, it is

possible to obtain a set of various structures – each

developer chooses the metadata according to his

understanding of the project purpose. In references

(Tenzer, 2001) and (Bannikov, 2010) the authors

result the models of the structurally-independent

database distinct from resulted above, but based on

specified purpose.

Example 2. The project purpose is the creating of a

universal relational structure for storing XML-data

in terms of object-oriented technology. According to

the presented approach the given structure is

produced the following way:

1. Singling out a metadata set: objects and

attributes class names; enabled links between

the classes, links between objects.

2. The metadata table structure is to be formed

according to the logical metadata attachments:

 The object class reference table – the Classes

table;

 The reference table of enabled links between

classes – the link_types table;

 The reference table of links between objects –

the obj_link table.

3. All the data can be stored as XML-objects. To

do this developer may pick the BLOB or XML-

data if the DBMS used allows it;

4. The data subschema is implemented in the form

of a single table – objects – with the following

set fields: a unique id, an object id, a value;

5. The connections between the metadata and data

subschema tables are arranged according to the

unique id key values.

Thus, on the basis of the described approach we

receive a database structure (Fig. 5) implementing

the project purpose and meeting the formulated

demands.

Figure 5. Model of database structure for storing XML-

objects.

The model of database structure termed as a

data-storage model using the XML-schema is

described in the paper (Polishchuk and Thcernykh,

2009).

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

360

4 SIDB

Within the framework of presented research project

purposes are considered as a central component for

storage of relational data structures with a high

degree of changeability in databases with a static

physical structure. In this chapter we view the

suggested approach applied to construction of the

model for structure-independent databases (SIDB).

1. The metadata necessary for SIDB model include:

entities and attributes names, entity-attribute

connections, entity-entity connections, unique

synonyms, attributes and entities brief description,

logical deletion feature, order applied by the users'

sorting, entities and attributes structure hierarchy.

2. Metadata can be subdivided into the following

groups with the corresponding tables:

 The hierarchical reference table including all

metadata except for those determining the

“entity-attributes” and “entity-entity”

connections. The metadata can be effectively

applied both to entities and attributes, so they

can be represented with one table –

tSprDicrionary;

 The entities’ attributes reference table which

records will refer to the hierarchical reference

table connectible elements – table tEntityAttr;

 The entity instance reference table referring to

the hierarchical reference table elements –

tEntity table.

The speciality of the metadata describing the

entity-entity connection lies in their appearance

when the direct connection between entities’

instances appears. It is advisable to enter the

appropriate data type - a reference to entity and to

keep this kind of metadata in the data subschema.

3. A set of data types dealt with by SIDB, includes:

string, number, date, BLOB and the «Entity» data

type which is an entity reference link used as

metadata.

4. To store data it is appropriate to use “entity-

attribute-instance” triple sets (in papers Paley, 2002,

Tenzer, 2001, Bannikov, 2010) the “object-attribute-

value” triple sets are used). In this case entities and

attributes are set implicitly as the hierarchical

reference table element links. The subschema

encompasses the “tEntityData*” tables;

5. The connections between the metadata subschema

tables are arranged by the unique id key values.

The SIDB model obtained as a result of applying

the purpose-driven approach (Fig. 6.) enables to

store highly changeable data relational structures of

any complexity.

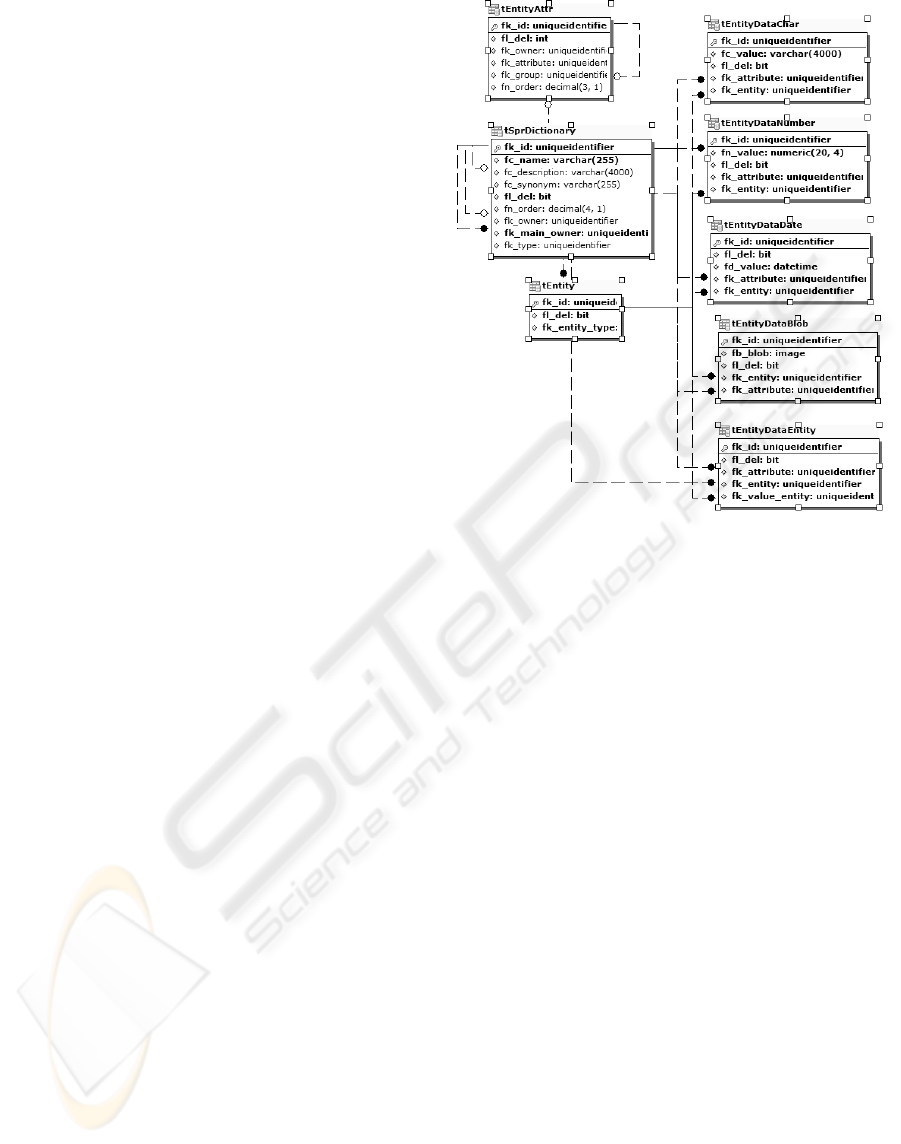

Figure 6. Model of SIDB database structure.

5 CONCLUSIONS

The approach described in this paper enables to

construct SIDBs for storage data with changeable

structures applying relational technology. There are

considerable advantages of worked out SIDBs:

 Limiting the structural complexity of database

queries by means of fixing the amount of

relational tables at the physical level;

 Enhancing the speed of data operations by

using relational technology;

 The lack of the database interdependence at

physical and logical level provides the

significant increasing of its flexibility;

 Low maintenance cost without involving any

professional database specialists.

Applying the approach presented in the paper a

number of various SIDBs can be developed via

relational technology. The implementation of each

stage depends on a project purpose and its

understanding by developer. It is not confined to the

examples treated in the paper and can be applied to

models implementation analysis outgoing from the

independence between the physical database

structure and the stored data logic structure. To

make the particularities obvious, developer has to

consider every model implementation through the

PURPOSE-DRIVEN APPROACH FOR FLEXIBLE STRUCTURE-INDEPENDENT DATABASE DESIGN

361

three-dimensional matrix images in the basis “entity

– attribute – instance”.

REFERENCES

Bourret, R., 2010. XML and Databases. //

http://rpbourret.com, Last call 2010

Agrawal, R., Gehani, N., Srinivasan J., 1995. OdeView:

The Y. Papakonstantinou, H. Garcia-Molina, and J.

Widom. Object Exchange Across Heterogeneous

Information Sources. Proceedings of the Eleventh

International Conference on Data Engineering, pp.

251-260, Taipei, Taiwan

Paley, D., 2002. Quasistructure Data Modeling // Open

Systems. № 09, pp. 57-64.

Tenzer, A., 2001. A Database as an Object Storage //

Computer-Press. №8, pp. 144-145.

Bannikov, N., 2010. The “Universal Database” Project //

www.stikriz.narod.ru, Last call 2010

Polishchuk, Yo.V. , Thcernykh, T.A. 2009. The Modeling

of Information storage subsystems for Storing

Quasistructured objects // Modern Technology,

Information Technology. №1, pp. 66-71

Date, C.J., 2008. An Introduction to Database Systems,

Eighth Edition. ISBN 0321197844

Codd, E.F., 1970. A Relational Model of Data for Large

Shared Data Banks// Communications of the ACM,

Volume 13, Number 6

Stead, W.W., Hammond, W.E., Straube, M.J., 1982. A

Chartless Record—Is It Adequate? // Proceedings of

the Annual Symposium on Computer Application in

Medical Care, pp. 89–94.

Nadkarni, P., 2010. An Introduction to Entity-Attribute-

Value Design for Generic Clinical Study Data

Management Systems // Center for Medical

Informatics, Yale University Medical School.

http://med.yale.edu/., Last call 2010

Dinu,V., Nadkarni, P., 2007. Guidelines for the effective

use of entity–attribute–value modeling for biomedical

databases. Elsevier, Ireland. International journal of

medical informatics № 76. pp. 769–779.

Brandt, C., Morse, R., Matthews, K., Sun, K., Deshpande,

A., Gadagkar, R., Cohen, D., Miller, P., Nadkarni P.,

2002. Metadata-driven creation of data marts from an

EAV-modeled clinical research database. Elsevier,

Ireland. International journal of medical informatics №

65. pp. 225–241.

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

362
