Enterprise Interoperability Ontology for SOC

applied to Logistics

Wout Hofman

TNO, P.O. Box 5050, 2600 GB, Delft, The Netherlands

Abstract. The Service Oriented Architecture (SOA, [1]) can be applied to

enterprise integration. It creates an Internet of services for enterprises. Service

science [2] defines services in term of value propositions of enterprises to

customers. Both service science and the Internet of services require a form of

mediation between customer requirements and service capabilities like for

instance identified in [3]. However, mediation is not yet automated, thus can not

be applied real time. Furthermore, many business areas already have agreement

on semantics and interaction sequencing based on existing business documents,

thus, mediation is not always required for a certain business area. This paper

presents an ontology to support business services (Ontology Web Language

(OWL), [18]). The concepts shared at business level are based on existing

approaches like Resource, Event, Agent used for auditing and control [4] and

builds upon service frameworks like OWL-S [13]. The ontology will be

specialized to logistics and compared with other approaches that might be

applied to enterprise integration.

1 Introduction

Over the past decades, services have become the most important part of economies

[5]. Basically, the service economy refers to the service sector. It leads to more

sophisticated forms of cooperation, or what is called value co-creation [2]. As Spohrer

also points out, service systems are dynamic configurations of resources that interact

via value-proposition-based interactions with governance mechanisms.

Each value proposition can be supported by a service. One could distinguish

business services that directly relate to a value proposition, and IT services, mostly

known as web services [6]. From an IT perspective, IT services can be defined by

each individual service provider with its own semantics specified as ontology, thus

requiring mediation to match user requirements and leading to mash ups for enterprise

integration [3]. Mediation not only requires the matching of customer requirements to

provider’s capabilities, but also semantic mappings, and mapping of interaction

sequencing (the latter is also called ‘choreography’, [7]). An alternative is to develop

a shared ontology at business level for a particular class of business services common

to more than one actor, e.g. logistics, customs, etc. The basic research question of this

paper is on the feasibility of enterprise interoperability ontology common to all

business services or phrased otherwise: do all enterprises use identical concepts in

their business. To answer this question, we apply concepts from accountancy [4] to

Hofman W. (2010).

Enterprise Interoperability Ontology for SOC applied to Logistics.

In Proceedings of the 4th International Workshop on Architectures, Concepts and Technologies for Service Oriented Computing, pages 66-78

DOI: 10.5220/0003050400660078

 SciTePress

interoperability, since these concepts already focus on value propositions and value

exchange. This ontology will then be the basis for defining application area specific

ontology. Firstly, we define the interoperability ontology, and secondly specialize it to

logistics. Finally, we discuss the relation between our interoperability ontology and

other approaches.

2 Concepts for Enterprise Interoperability

This section defines enterprise interoperability ontology. The concepts of this

ontology are based on value propositions, their supporting electronic business

documents and accountancy concepts. The concept ‘actor’ is used in this section to

represent ‘enterprise’, ‘organizational unit’, or ‘government organization’. Although

we discuss class - and data constraints, these are not formally shown in this paper.

Furthermore, we did not have a tool to visualize classes and their properties, we have

drawn such a visualization where classes are visualized by (blue) ellipses; the

instances as (grey) rectangles. Class constraints are visualized by arrows between a

domain and a range. First, the classes are defined and, second, briefly explained.

Finally, some guidance on the construction of a business system semantic model is

given.

2.1 Classes Representing Interoperability Concepts

The following classes represent enterprise interoperability concepts at business level:

• Business System Interoperability Model: a model of all business activities and a

business system semantic model for modelling interoperability in a given

business system or application area, e.g. logistics, customs, and supply chains.

• Business Activity (or activity): a generic activity provided by one or more actors

that is able to change the state of a business system for customers. ‘Capability’,

‘event’ and ‘state transition’ are synonyms for business activity as they express

state change that can be induced by an actor to the outside world.

• Business System Semantic Model: semantic model of all classes and their

constraints that are common to all business activities in a business system.

• Value proposition: a value offered by a particular actor based on a business

activity of that actor [2].

• Business Service: the constraint between an actor and a value proposition of that

actor. This definition implies that value propositions are the main concepts from

an actor’s viewpoint.

• Business Process: the internal process of an actor to provide a business activity.

• Business Activity Choreography: an ordered set of event types for the execution

of a business activity. A synonym is business activity protocol. A business

activity choreography can be common to more than one business activity (see

lateron).

• Event Type: a means to exchange data between a customer and a service provider

within the context of a business activity, see. REA [4]. Interaction type is a

synonym.

• Business Transaction: information exchange between a customer and provider for

actual value exchange referring to a particular business activity or value

proposition. A business transaction behaves according the business activity

choreography of the referred business activity.

• Customer: an actor that consumes a business activity (or business service) by

initiating a business transaction.

• Service Provider: an actor providing a particular business activity with related

value propositions.

• Resources: two types of resources are distinguished, namely operand and operant

resources [2]:

− Operant resources (also called t-resources): the persons and/or means to

execute a business process.

− Operand resources (also called d-resources): the actual resources that are

exchanged between a customer and a service provider. Three types of

resources are distinguished: goods, services, and rights [4].

• Resource Allocation: the mechanism to assign operant resources to one or more

business transactions.

• Bound resources: those operant resources that are assigned to one or more

business transactions.

• Business Transaction Phases: the different phases in the initiation and execution

of a business transaction. Together, these phases compose a business activity

choreography.

We will discuss these classes in more detail in the next section. The classes and

their class constraints are shown in the following figure; an OWL representation of

this model is constructed with Protégé. The concepts all comprise a business system

interoperability model. The business system semantic model is not visualized, see

later.

value proposition

resource type

business activity

resource

business

transaction

actor

event

event type

business activity

choreography

has a

is part of

is of type

publishes

business service

supports

provided by

initiated by

relates to

is of type

transferred by

operant resource

operand

resource

is_a

business process

supports

service

goods

rigths

is_a

allocated resource

is of type

in a

owned by

for a

Fig. 1. Interoperability classes and their class properties.

2.2 Explaining the Classes

The classes need further explanation. This section elaborates on the difference

between classes representing dynamic and static concepts, class constraints, and

clarifies the core concept ‘business activity’.

Firstly, we distinguish between static and dynamic concepts, meaning that dynamic

concepts change more frequent than static ones. Static concepts are shown in blue;

dynamic ones in grey. It implies for instance that a business activity of an actor will

change less frequent than business transactions referring to those business activities,

i.e. the core business activity of an enterprise will probably not change during years.

Second, we will define class constraints. Business activity, value proposition,

business transaction, business activity choreography, event type, and event are the

central concepts. A business activity has choreography of event types. Choreography

of event types is not modelled in this figure; we will discuss this aspect later on. A

business transaction consists of a specific sequence of events that are of a type and

need to be exchanged according to the business transaction choreography. The right

part of the figure shows actors and their support of business activities. An actor

supports a business activity and can define value propositions for those business

activities. These value propositions are published as business services. An actor has a

business process that supports one or more activities and their value propositions. As

a business process supports a business activity, it must also support the related

business transaction protocol and its choreography. The left part of the figure shows

the resource types, which can be the operand and operant resource types. The operant

resources are owned by an actor and can be allocated at a specific time and location to

a business process for the execution of one or more business transactions. These

business transactions control the exchange of the so-called operand resources: goods,

service or rights. It implies that all information exchanged in a business transaction

must be sufficient to exchange the goods, service or right.

Thirdly, the core concept ‘business activity’ needs clarification. We have defined a

business system interoperability model that defines all real world aspects shared by

actors and modelled by business activities provided by those actors, e.g. the

transportation of containers from one place to another, financial risk management, and

insurances against risk. These real world aspects, that either have a physical or a

virtual nature, are considered as business activities that are provided by actors. The

semantics that those business activities have in common are given by the business

system semantic model. A business activity, or in short activity, is able to change the

state of the real world by exchanging a resource (an operand resource defined

according to [4]) according to a particular value proposition. Thus a state transition of

a business system can be induced by executing a business activity. Thus, a business

system interoperability model consists of a state space, modelled by a business system

semantic model, and state transitions on that state space, modelled by business

activities.

State transitions, and thus activities, in general consist of [8]:

• Pre-conditions: a set of conditions (or predicates) that must always be true

before the execution of an activity.

• Post-condition: the actual result of the execution of an activity. The result can

be defined as the state in case an activity is executed successfully.

• Firing rule: the (ordered) set of rules that are executed when all pre-conditions

are met and result in the post-condition. A firing rule actually changes the state

of the world. In our interoperability framework, a firing rule behaves according

business activity choreography.

Pre- and post-conditions can be expressed in terms of the state space, i.e. the real

world effects that can be changed by their activity. These pre- and post-conditions can

be expressed at different abstraction levels that require different knowledge. An

abstract specification by logical expressions can for instance not be understood by

business persons, whereas they are the ones that specify the activities and thus the

pre- and post-condition.

Finally, we have stated that firing rules between pre- and post-conditions are

specified by business activity choreography. The latter can consist of different

transaction phases as for instance [11] and [12] distinguish a negotiation and an

execution phase after activity discovery. In the negotiation phase, all data needs to be

exchanged to allow that pre-conditions can be met, whereas in the execution phase all

required data for actual firing an activity is required. One could state that an activity

can logically be decomposed into two activities that reflect transaction phases. Each

of these phases consists of ordered set of event types exchanged between customer

and service provider. The phases need to be completed by a rollback phase, see [11]

and [12]. One could argue that business activity choreography always consists of the

same set of phases. However, one could also distinguish between choreography for

public and commercial services. The main difference would be that in public services

there is no negotiation on prices and conditions of a value proposition, but a public

service provider has to state officially that pre-conditions are met and a firing rule can

be executed (in Dutch: ‘ontvankelijkheidverklaring’). Execution results in a decision

(e.g. an ordinance or a grant; Dutch ‘beschikking’), e.g. a building permission,

permission for transportation of goods, and the reception of unemployment benefit. A

decision can always be followed by an official objection or a different viewpoint. A

decision is always according to the request, negative, or partly positive.

2.3 Refining Pre- and Post-conditions for an Application Area

In this section of the paper, we try to combine physical business systems and more

abstract systems by introducing the concept of ‘place’. This latter concept represents

either a physical location or a state. A place is always connected to a business activity

and a place can contain zero, one or more resources at a given time. In our

framework, a business activity equals a state transition with pre- and post-conditions.

Pre-conditions consume so-called operant resources that are produced as a post-

condition according to firing rules and their choreography utilising operand resources.

For instance, in case a business activity is the assembly of cars as output resources,

the input resources are its parts and assembly machines and personnel the operand

resources. This example illustrates that all its parts need to be present at a given time

to assemble a car at a given time.

We take the approach formulated in [12] and [14] and state that:

• A pre-condition of a business activity specifies the types and number of

operand resources that are required for its execution and the types and

number of operant resources that are input to the activity. Pre-conditions are

connected to a place by an input connector.

• A post-condition of a business activity specifies the types and number of

operand resources that are produced as a result of the business activity,

including the duration between consumption of the input operand resources

and the output operand resources. Post-conditions are connected to a place by

an output connector.

• Between two actors, a business transaction shares the availability of

resources of type operant resources in a place connected to a pre-condition

and the availability of resources, also of type operant resources, that are

produced by a post-condition in a place connected to that post-condition via

an output connector.

The concepts ‘place’, ‘connector’ and ‘availability’ to our ontology (see next

figure) support the ability to express availability of resources in a given place at a

given time. Time is expressed as ‘availability’ that refers to a place (or state) in a

Petrinet and resources. At any given time, a place can contain various resources

belonging to different business transactions for a business activity. In this approach,

an input connector relates to a pre-condition and an output-connector to a post-

condition. This extension expresses that a business transaction must always consider

‘time’, ‘resource’ and ‘place’ to be shared by two actors that participate in that

business transaction. Place can represent a physical location or a state in a state space

shared by two (or more) actors.

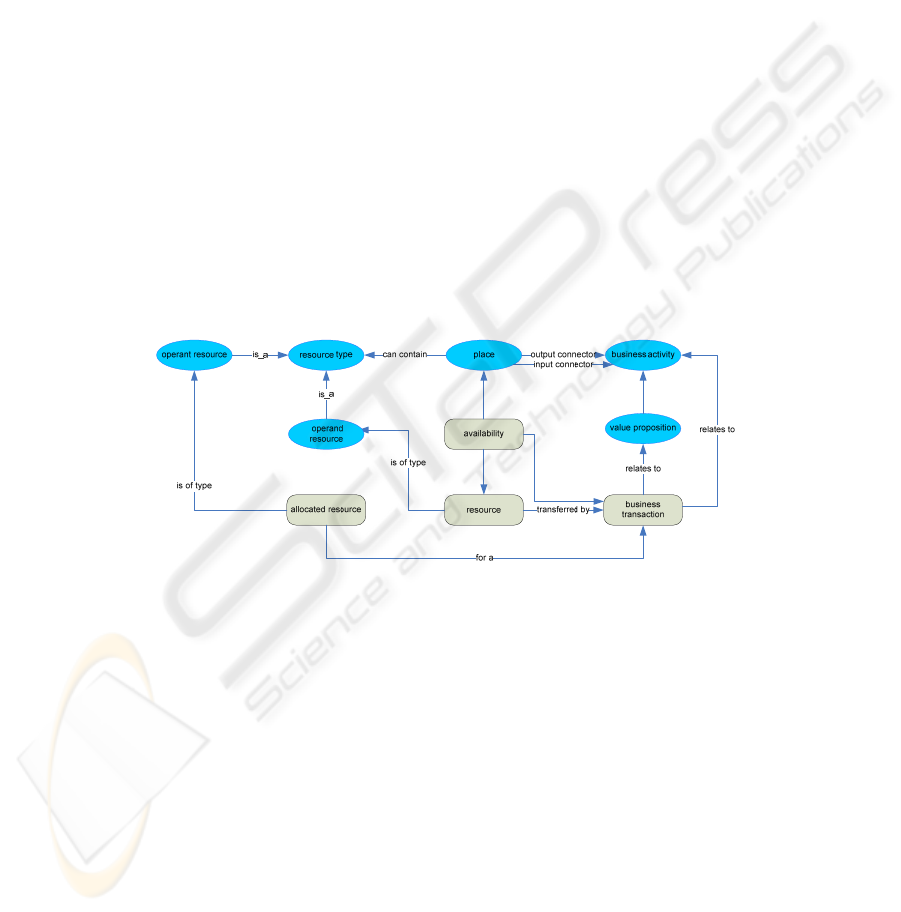

Fig. 2. Adding place and time to ontology.

According to Abstract State Machines [8], the relation between pre- and post-

conditions is not expressed, which is however the case according to [14] by places

and connectors. The latter means that a Petrinet of processors, places, and connectors

exists and each place can contain object types. In our approach, these object types are

resources and a business activity is equal to a processor. In some application areas, it

might be worthwhile to specify such a network explicitly with a Petrinet, e.g. in

transport a network of ports exists between which sea transport is possible. In other

application areas like government, the network can become very complex due to the

large number of business activities, each of which changes part of the state space, and

an approach based on ASM will suit better. In the latter case, a Petrinet has to be

constructed to validate that state transitions are really executable (although it can be

complex to visualize due to the large number of states, see [15]).

3 Specialization to Logistics and Transport

Logistics and transport consists of several actors that utilize each others resources to

transport goods from one physical location to another. The transportation process can

be quite complex, involving a variety of actors. International container transport by

sea for instances consists of transport by truck to a port (pre-carriage), loading a

container in a vessel, sea transport, discharge of the container in the port of

destination, short sea shipment from that port to another port, and final transport by

truck to the final destination. In other occasions, large shippers have regional

warehouse in close to a port, in which the goods are stored for regional distribution.

This paper only presents ‘transport’ as a business activity, whereas others like

‘transshipment’ and ‘storage’ are other business activities. First of all, we define

‘transport’ as activity and secondly we present a semantic model for this particular

activity.

3.1 The activity ‘transport’

‘Transport’ is a specialization of ‘business activity’. Quite a number of actors offer

‘transport’ as a value proposition, e.g. a number of shipping lines offer transport of

containers between for instance specific ports in Europe and the Asian Pacific. One

organization can also offer a variety of transport services, e.g. express delivery (the

same day), air cargo and an international parcel service. Although each transport

service will have a different price, is offered for a different type of cargo, and has

different durations, all value propositions for ‘transport’ have common elements. A

specialization of ‘business activity’ called ‘transport’ defines those common elements:

the physical movement of cargo between two places with duration, cost, and a

specific transport means as an allocated resource. Specific transport means have a so-

called transport mode and will give restrictions to the type of goods that can be

transported, e.g. a container vessel can for instance only carry 20 or 40 feet containers

and an airplane requires the particular containers that fit that type of plane. Thus a

particular transport activity can be expressed by the number and type of operant

resources that can be transported using a particular operand resource. The relation

between operand and operant resources is expressed by the business activity, although

it can also be expressed as a constraint between operand and operant resources.

Duration also gives restrictions to type of cargo, e.g. heavy cargo needs more

attention and will take more time. The pre- and post-conditions for ‘transport’ are

derived from the above mentioned parameters and can be expressed quite simply:

• Pre-conditions are defined as in terms of the operant resources that can be

consumed via input connectors:

− The cargo offered by a customer is part of the set of cargo types defined by a

service provider.

− The weight of the cargo offered must be between the minimal and maximal

weight defined by a service provider.

− The physical dimensions of the cargo must be between a minimal and

maximal dimension defined by a service provider.

• Post-condition: the cargo offered by a customer is transported by a service

provider to a place of delivery according to the agreed duration and costs. It is

said to be produced in a place connected to the post-condition by an output

connecter.

Although the values of pre-conditions differ per value proposition, type and number

of cargo are the only concepts requiring a value. Considering that ‘transport’ activity

can be this simple, we still have to connect an activity to places with resource types.

This connection can be specific for each value proposition of each service provider,

although of course different service providers can use the same places (e.g. in terms

of ports or other types of hubs for transshipment). By connecting places to ‘transport’

activities, a so-called transport network is defined. Such a network can be defined in

various ways, e.g.:

• A transport activity is within a certain country, implying it is only national

transport. Transport can in principle take place between any physical location

within that country.

• A transport activity is in a region covering various countries or part of countries,

e.g. between the Netherlands and northern part of Italy via Austria and Germany

or between the EU and the Asian Pacific. The EU can also be an example of a

region.

• A transport activity is defined from any place in a region and a particular

location, e.g. a port. This transport activity is normally offered as inland

transport in combination with sea-transport (see next example).

• A transport activity is defined between two physical locations, e.g. between two

ports. By combining transport activities between various ports, a so-called

voyage is defined. In this particular case, various value propositions between

different ports can be defined on the same voyage

• A similar approach to the last is to construct a so-called hub network. Between

the hubs, that are physical locations, a transport activity is defined at a regular

basis (e.g. daily between those hubs). Thus, a distribution network can be

defined.

Additionally, a transport activity utilizes particular resources with a particular

transport mode, e.g. vessels for sea transport and trucks for road transport. Whilst

value propositions may differ for each transport mode, a customer may request a

particular transport mode to be used. Considering a transport network, a business

transaction has to contain the following information:

• The place of acceptance and delivery as indicated by a customer are in the

geographical area that is connected to a pre-condition by an input connector and

a post-condition by an output connector.

• The required transport mode is in the set offered by a service provider.

• The difference between the expected date and time of delivery and acceptance

must be greater than or equal to the duration of the requested business activity.

In sea-transport, a voyage most often has a port at which it starts and a port at which it ends, related to a

particular time of start and end. In the meantime, the voyage passes different ports. A voyage is

independent of the vessel used as an operand resource; that vessel can pass a port with different voyages

in a given time period.

Thus, one could basically state that pre- and post-conditions can be simple,

whereas complexity is in the network of places, connectors, activities, and resource

types in those places. The structure is for all actors providing a ‘transport’ activity

identical, but values will differ. The firing rule of ‘transport’ activity requires exact

data of the cargo, e.g. the number and type of packages, container numbers, and other

actors involved.

3.2 Transport Interoperability Ontology

Transport interoperability ontology is the specialization of the concepts introduced in

section 2. Basic classes are already discussed in the previous part. The OWL

document of the business system interoperability model is imported in an OWL

document for transport and extended with the following concepts and class constraints

for transport (see also the next figure):

Fig. 3. Classes of transport ontology.

• Specialization of operant resources to transport means and packaging types.

Transport means are further specialized to vessel, truck, barge, airplane, and

train. Each of these transport means has a specific transport modality and its own

characteristics, e.g. a truck has a license plate and a vessel a Radio Call Sign.

Packaging types can be further specialized in those that are used once (e.g.

cartons and boxes) and those that are used several times (e.g. containers and

pallets). Note that these operant resources can also take the role of operand

resources in which case the use is given to another actor (see for instance REA

that defines ‘use’ [4]).

• Specialization of operand resources ‘goods’ to cargo. Cargo can be further

specialized to ‘goods items’ and ‘equipment’. Goods items are further

specialized to packaged goods and bulk cargo (either liquid or solid).

Equipment, e.g. containers, can be both operant and operand resources: they can

be used to facilitate transport and have to be allocated, and they are cargo.

• At the highest level, the concept transport modality representing a particular

transport mode (sea, air, road, inland waterways) is introduced. Sea can be

further decomposed into deep-sea and short sea.

• A number of specific properties is introduced like a property that a transport

means has a modality (a specialized transport means like a truck should have

modality ‘road’). Additional properties can be defined like the fact that a certain

transport means can only be used for container transport.

Fig. 3 shows the specialization of the overall model to transport. The figure only

shows the classes, not the required class and data properties. It needs further extension

for the support of for instance dangerous and temperature controlled cargo.

Introducing these specializations also gives a number of additional properties like

stowage restrictions to dangerous cargo. Further work needs to be done to complete

this model.

4 Reference to Other Approaches

We have combined various concepts of other approaches to construct our ontology:

Resource, Event, Agent (REA, [4]), Semantic Markup for Web Services (OWL-S,

[13]), Web Service Modeling Ontology [3], and timed, colored Petrinets [14]. We will

briefly discuss their relation to our framework.

REA is an accountancy framework to describe exchange of goods, money and

rights between two organizations. The latter are called agents. Goods, money, and

rights are called resources: a resource is a collection of rights associated with it:

ownership, usage, and copy rights. An economic event is the transfer of rights

associated with a resource from one economic agent to another. Resources, agents,

and events can be of a type. Resources and their types are part of our model since they

are exchanged between any two agents. An agent type is modeled as an actor and an

event type as a business activity. Whereas REA distinguishes different event types

like ‘produce’, ‘consume’, and ‘use’, those are part of pre- and post-conditions of

‘business activity’, e.g. a pre-condition consumes one or more resources and a post-

condition produces them. In case there is no post-condition, a resource is said to be

‘consumed’. The term ‘event’ in our model is restricted to information exchanged

within the context of a business transaction. ‘Business transaction’ in our ontology

seems to be identical to ‘event’ in REA. The approach taken in REA is to specialize

these basic concepts to an application area, e.g. the production and consumption of

pizza’s or lending of books as illustrated in [4].

Semantic Markup for Web Services, OWL-S, defines a semantic model of all

concepts required for a web service, or more generic, a service. A service has a profile

(what it does), a grounding (how to access it), and a model (how it works). In our

model, we do not describe grounding. A service profile defines aspects like pre- and

post-conditions, input and output and a process. The process describes how to interact

with a service; it can be constructed with a number of constructs like ‘split’ and ‘join’.

One of the core concepts in our ontology is ‘business activity’ with pre- and post-

conditions, input and outputs, and a choreography. In this approach, a business

activity can be compared with ‘service’. However, we have taken the approach that

many actors can have identical business activities, whereas each actor can have its

particular value proposition. The combination of ‘business activity’ and ‘value

proposition’ seems to be identical to ‘service’. Inputs and outputs are in our model

defined as resource types that can be consumed or produced in places, and

choreography describes the way to interact with a business activity.

Web Service Modeling Ontology is based on Abstract State Machines (ASM [8]).

The core concepts are ‘goal’ to represent a customer requirement and ‘capability’ to

represent a service, including their grounding to technical standards like XML

Schema. Whereas OWL-S does not give guidance on the specification of input and

output semantics, WSMO does by applying OWL. Goal and capability are expressed

by pre- and post-conditions of an ontology. Furthermore, goal and capability have

interfaces with choreography. Mediation is meant to match a goal and a capability.

Thus, WSMO uses similar concepts as defined in OWL-S, but slightly different. We

will not discuss differences, but one could state that similar to OWL-S our concepts

‘business activity’ and ‘value proposition’ are identical to ‘capability’. They all reflect

the concept of ‘state transition’ within ASM.

Finally, we have introduced concepts from timed colored Petrinets. We define

actors in terms of the business activities they can provide according to a value

proposition. A business activity is identical to a Petrinet ‘process’ that has connectors

to places. These places can contain tokens with a color that can be modeled by

ontology. The concept ‘state’ is expressed by all tokens in all places at a given time.

Thus, the concept ‘state’ is defined different from that in Abstract or Finite State

Machines, where it refers to a specific object (e.g. the ‘state’ of a container). Whereas

in Petrinets all processes need to be connected to places, Abstract State Machines

specify the individual state transitions (the ‘processes’) on states which are arbitrary

data structures. In ASM, ‘state’ can be derived from any pre- or post-condition,

whereas in timed colored Petrinets, this part of state is reflected by the color of tokens

that can be consumed or produced. Whereas Petrinets present (graphically) a

complete model connected processes via places, ASM needs chaining of state

transitions based on logical expressions defining pre- and post-conditions.

5 Conclusions and further Research

We have presented enterprise interoperability ontology for Service Oriented

Computing at business level and applied it to logistics. The ontology is based on an

accountancy model called REA, extended with concepts from existing service

frameworks like WSMO, and defines concepts that can be shared amongst different

classes of business services. It seems obvious that business transactions and their

events contain all relevant information for executing a business activity, e.g. the

availability of resources in a particular place. We have not discussed business activity

or value proposition discovery, which differs from service discovery. It is described in

more detail for a particular case [10].

There are still a number of issues for further research:

1. We have taken the basic concepts of timed colored Petrinets and applied them

to enterprise interoperability for transport. However, other cases are better

modeled with Abstract State Machines, see for instance [8]. Both approaches

offer identical functionality and a combination of approaches needs to be

considered.

2. The concepts consider both process and semantic aspects, e.g. it models

choreography as a concept and semantics of exchanged information.

Choreography should be further refined, e.g. by applying process modeling

approaches as defined for instance in OWL-S [13] or YAWL [16].

3. Relevant aspects like organizational issues and grounding need to be

considered further. As grounding is clear, organizational issues consider the

maintenance of models, service directories, etc. Furthermore, integration of

semantic models of different application areas has to be considered. This is

especially the case in for instance government interoperability where each

government organization is responsible for (part of the) government data. Is a

common model of enterprise interoperability meeting these requirements?

Ontology import might offer some solution. Is it also allowed for actors to

define their specific models based on a generic model? What is the impact of

actor-refined models on an execution environment?

4. An execution environment should combine dynamic service mediation

supported by user interaction, with automatic service mediation based on rules.

What is the role of enterprise interoperability concepts in an execution

environment? What would be the architecture and functionality of such an

execution platform? Can this functionality be offered by for instance the

DynamiCoS framework [17] or the SESA execution environment [3]?

5. There are some practical issues to consider when defining semantic models for

an application area. One can for instance define a complete model for

international logistics or a separate model for each modality. Another approach

is to define separate models for each activity. Again, practical issues are the

integration of different models to create different views on logistics, e.g. a

customs view may differ from a transporters view.

6. Currently, practical applications still need the specification of the information

exchanged in particular events that are of a type. Each event type only contains

that specific information that is required by a particular value proposition.

Further research supported by a Proof-of-Concept is required to investigate the

impact in practice regarding interoperability without specific semantic models

for each event type.

7. We have only applied the model to logistics in this particular paper. However,

we also have examples of the application of our proposed enterprise

interoperability ontology to government services [10].

References

1. T. Erl, Service-Oriented Architecture – concepts, technology, and design, Prentice Hall,

2005.

2. J. Spohrer. and S.K. Kwam, Service Science, Management, Engineering and Design

(SSMED) – An emerging Discipline – Outline and references, International Journal on

Information Systems in the Service Sector, May 2009.

3. D. Fensel, M. Kerrigan, M. Zaremba (eds.), Implementing Semantic Web Services – the

SESA framework, Springer-Verlag, 2008.

4. P. Hruby, Model-Driven Design using Business Patterns, Springer-Verlag, 2006.

5. J. Heineke, M. Davis, The emergence of service operations management as an academic

discipline, Journal of Operations Management 25 (2007) 364–374.

6. Y-H Tan, W.J. Hofman, J. Gordijn, J. Hulstijn, A framework for the design of service

systems, Springer-Verlag (to appear in Service Sciences).

7. Business Process Modelling Notation (BPMN), version 1.2, january 2009.

8. E. Börger: "High Level System Design and Analysis Using Abstract State Machines",

Proceedings of the International Workshop on Current Trends in Applied Formal Method:

Applied Formal Methods, p.1-43, October 07-09, 1998

9. M. Holtkamp, W.J. Hofman, Semantic Web Technology – state of the art report, Internal

TNO report, 2009.

10. W.J. Hofman, M. van Staalduinen, Dynamic Public Service Mediation, eGov2010.

11. J.L.G. Dietz, Enterprise Ontology, Theory and methodology, Springer-Verlag, 2006.

12. W.J. Hofman, A conceptual model of a business transaction system, Uitgeverij Tutein

Nolthenius, 1994.

13. OWL-S, Semantic Markup for Web Services, W3C member submission, 2004.

14. K.M. van Hee, Information systems engineering: a formal approach, Cambridge University

Press, 1994

15. H.M.W. Verbeek, A.J. Pretorius, W.M.P. van der Aalst ... [et al.], Visualizing state spaces

with Petri Nets, Eindhoven : Technische Universiteit Eindhoven, 2007.

16. A.H.M. ter Hofstede, W.M.P. van der Aalst, M. Adams, N. Russel, Modern business

process automation: YAWL and its support environmnet, Springer-Verlag, 2009.

17. E. Silva, L. Ferreira Pires, M. van Sinderen, Supporting Dynamic Service Composition at

Runtime based on End-user Requirements, 1

International Workshop on User-Generated

Services, 2009.

18. P. Hitzler, M. Krotzsch, S. Rudolph, Foundation of semantic web technologies, CRC Press,

2009.
