THE CHALLENGE OF AUTOMATICALLY ANNOTATING

SOLUTION DOCUMENTS

Comparing Manual and Automatic Annotation of Solution Documents

in the Field of Mechanical Engineering

Andreas Kohn, Udo Lindemann

Institute of product development, Technische Universität München, Boltzmannstraße 15, 85748 Garching, Germany

Gerhard Peter

Festo GmbH & Ko. KG, Plieninger Straße 50, 73760 Ostfidern-Schamhausen, Germany

Keywords: Solution knowledge, Manual annotation, Evaluation of annotation.

Abstract: This paper contains part of the actual research in the use case PROCESSUS of the German research

program THESEUS. A case study about comparing manual and automatic annotation of solution documents

in the field of mechanical engineering is described. A set of six solution documents was annotated manually

by four users. Then, the same set of documents was annotated automatically by an ontology-based system.

The two annotations are compared considering proposed ranking numbers. These ranking numbers give the

weighting of annotations according to the overall and merged manual annotations. Therewith, they serve as

a reference for the expected result of the automatic annotation. Comparing the automated and the manual

annotation can not only reveal limitations of the automatic annotation process but also raise interesting

questions to what extent domain specific knowledge has to be represented in the ontology.

1 INTRODUCTION

In product development, the access to existing

knowledge about previous solutions may reduce the

amount of development cycles and conception

rework and therewith reduce the efforts of time and

costs. Principally, various sources exist for

supporting this knowledge. In a study in the German

automation industry, sources for the search of

existing solution knowledge were identified (Ponn et

al., 2006). Besides direct personal communication,

organisation-internal knowledge sources (e.g.

project folders or databases), construction

catalogues, internet portals, and publically available

marketing documents were identified as mostly

used.

However, an engineer who wants to retrieve

existing solution knowledge may face several

barriers (see Figure 1). First of all, solution

knowledge is mostly unstructured and the access to

unstructured data is often insufficient (Blumberg et

al., 2003). Secondly, different wordings are used by

the involved developers (Dylla, 1990). This different

wording hinders the access via a normal full-text

search (Pocsai, 2000). Furthermore, varying

taxonomies and classifications due to different

viewpoints in sales, marketing, and engineering

(Hepp, 2003) contribute to the barrier that hinders

the access to needed solutions.

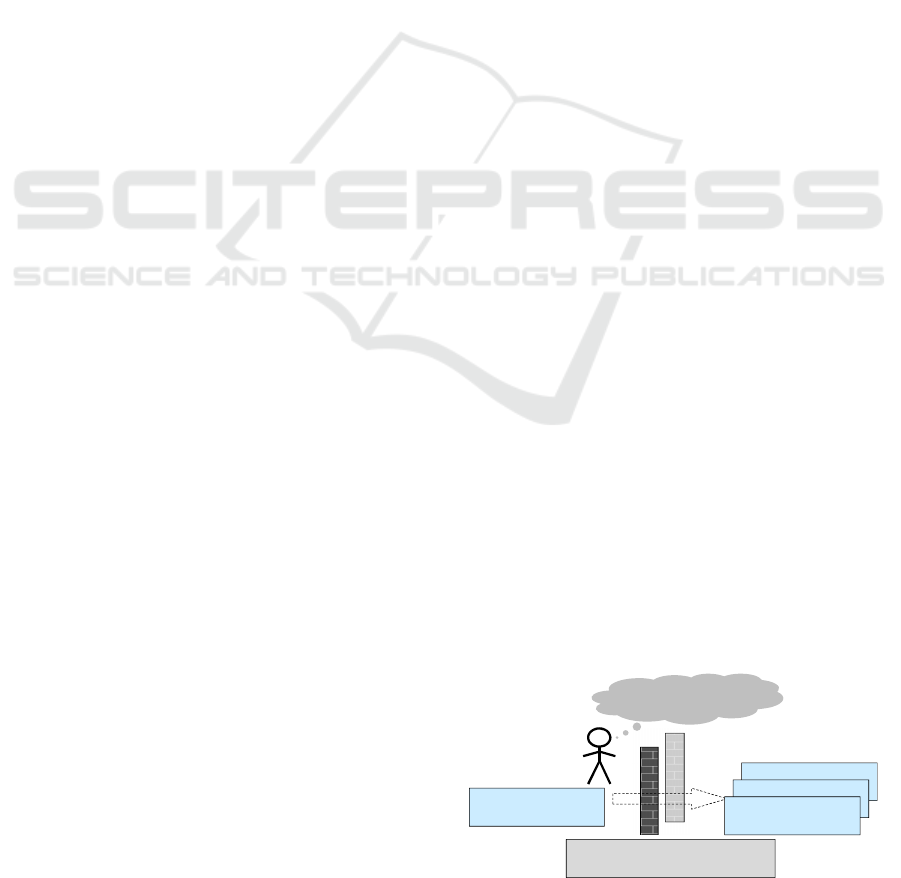

Figure 1: Barriers in the process of retrieving technical

solutions.

Improving this process of retrieving existing

solutions is one of the main goals of the use case

PROCESSUS as one part of the German research

e. g. transfer one

bottle for packaging

Technical

Problem/Tasks

Solution C

Solution B

Solution A

Existing solutions

Barriers: e. g. unstructured data,

different wordings and taxonomies

What are possible

solutions?

153

Kohn A., Lindemann U. and Peter G..

THE CHALLENGE OF AUTOMATICALLY ANNOTATING SOLUTION DOCUMENTS - Comparing Manual and Automatic Annotation of Solution

Documents in the Field of Mechanical Engineering .

DOI: 10.5220/0003055201530158

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2010), pages 153-158

ISBN: 978-989-8425-29-4

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

project THESEUS. Within PROCESSUS, an

ontology has been developed, that is used for

capturing the knowledge of technical solutions

(Gaag et al., 2009). The instances of the ontology

and the modelled relations can also be used as a

vocabulary for automated annotation of solution

documents. This annotation should help in the later

retrieval of the documents.

This paper focuses on improving the process of

annotating unstructured text data stored in publicly

available solution documents of the automation

industry. In these documents, companies provide

information about previously installed solutions (e.g.

a bottling and filling line for beverages). They are

mostly used for marketing purposes to give

references of previous work. Furthermore, they are

useful in generating first ideas how to approach an

engineering task.

In engineering design theory, technical solutions

can be described by their functions - typically

composed of an object and an operation performed

on the object (Ponn et al., 2008). Given a solution

document with a certain number of different

functions, an annotation tool that identifies most of

these functions but not the really important ones is

surely not the best one. Due to these uncertainties,

generally applied methods of ranking like term

frequency or the evaluation of annotations with

precision and recall can hardly be applied here.

To evaluate and improve annotations, it is

necessary to get a deeper insight into the content of

the existing solution documents. For this purpose,

solution documents are analysed by comparing

manual annotations made by different persons.

These manual annotations are merged and by

applying ranking numbers the most relevant content

of the document concerning the technical functions

of the solution is identified. Subsequently, these

ranking can be used to evaluate the automated

annotation. This procedure is exemplarily tested

with six solution documents and applied on the

developed annotation tool of our prototype.

The paper is organised as follows: First we will

provide a short overview of the ontology (the main

concepts and their relations) and its use in the

developed prototype. The technical functionalities of

the prototype will not be described in detail and only

as far as it is relevant for this work. Second, we

describe our methodology. Then, we will describe

the case study and results in detail. This is followed

by a review of related work. We will conclude the

paper with a discussion and summary of our findings

and provide an outlook on the next steps to take.

2 USAGE OF THE ONTOLOGY

IN THE PROTOTYPE

A prototype was implemented that uses the

developed ontology (as an OWL ontology) to

support the automated annotation and the subsequent

search for solution documents. For the automated

annotation, the ontology serves as a vocabulary and

provides the needed information about the existing

relations of elements belonging to technical

solutions. The base structure with the core concepts

of this ontology is shown in Figure 2. The function

has the central position. It is realised by a technical

solution, used in a special industrial sector, executed

by a function owner, and performs a certain

operation on a decent object. Existing solutions can

be described by instantiating these concepts with the

appropriate instances.

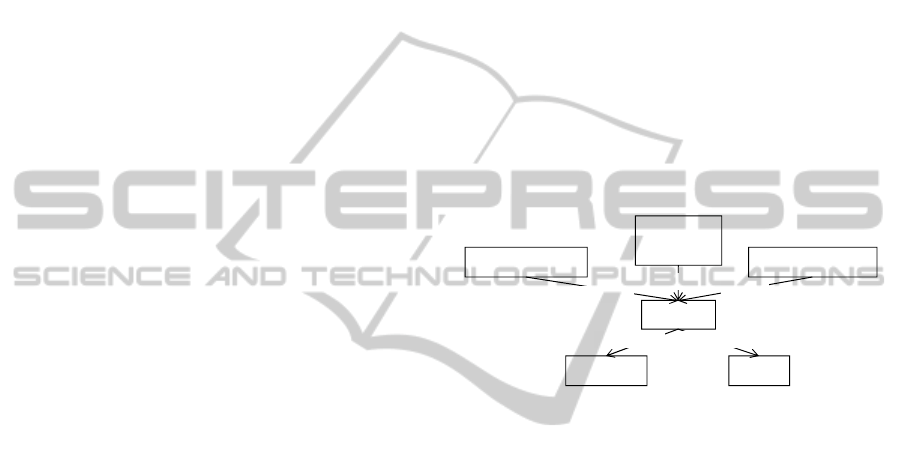

Figure 2: Base structure of the domain-specific ontology

to support solution retrieval.

For the automated annotation, the prototype uses

the label property of the instances in the ontology to

recognize the appropriate words and attach the

corresponding concept to the document. Linguistic

features as word stemming and flexion of words are

considered. Also, linguistic algorithms are supposed

to analyze the syntax of a sentence and to determine

relations between the words in a sentence. The

annotation process will be illustrated by a simple

exemplary sentence “The conveyor belt transports

the boxes” taken from one of the solution

documents. “Conveyor belt” is the function owner

which performs the operation “transports” on the

object “box”. If these instances are available in the

ontology, the corresponding concepts are annotated.

With the help of the linguistic algorithms, the

combination of “transport” and “box” in one

sentence leads to the annotation of the function

“transport box”.

Figure 3 shows screenshot of this prototype with

an exemplary result of an automated annotation. On

the left side, the annotated instances of a document

are listed according to the concepts chosen as

annotation filter (property of a solution, industrial

industrial sectorfunction owner

objectoperation

function

uses

executes

performs works on

technical

solution

realises

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

154

sector, etc.). On the right side, a graph browser

offers the possibility to navigate through the

ontology and adding further annotations manually.

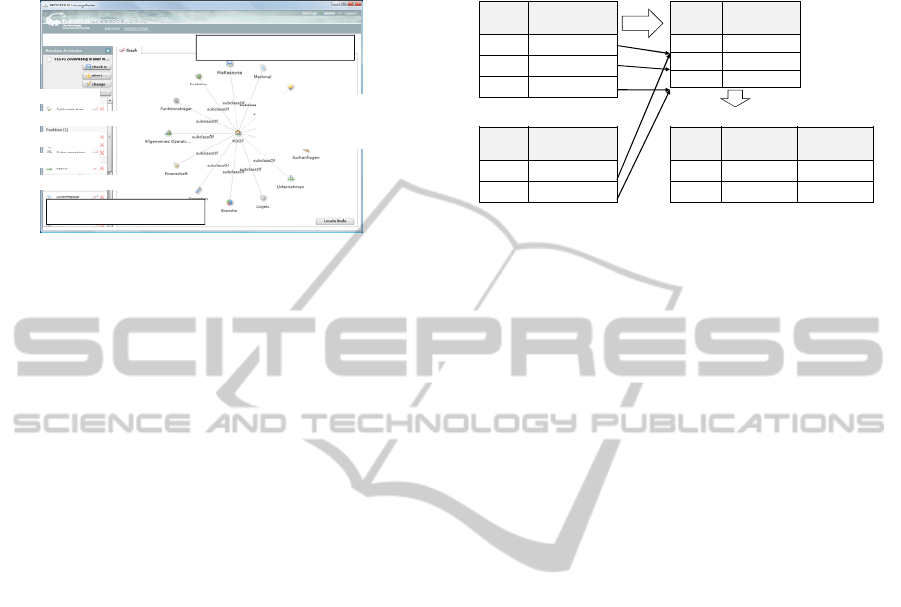

Figure 3: Screenshot of the prototype.

3 ANALYSING MANUAL

ANNOTATIONS

This section shows the procedure of manually

annotating the documents and merging these

annotations. Afterwards, the applied ranking

numbers for the annotated instances and their use for

the evaluation of automatic annotation are explained.

3.1 Manual Annotation of Documents

To get a deeper insight into the content of the

solution documents, they are analysed by a

comparison of manual annotations. Test participants

were asked to identify all function owners and the

corresponding functions. There was no limitation of

the number of maximum function owners or

functions annotated in each document. It was also

allowed to annotate only function owners without a

corresponding function or vice versa.

As a result of the single manual annotation, a set

of function owners and corresponding functions

(operation and object) emerges. Additionally, the

position of the source for the annotation in the

document was marked in order to identify where the

annotation stems from.

3.2 Merging of the Manual

Annotations

Subsequently, the manual annotations of one

document are merged to give an overview over the

similarities and differences of the single manual

annotations. The manual annotations are merged

according to their appearance in the document.

Figure 4 gives a short overview of the merging

procedure.

Figure 4: Merging of the manual annotations.

When, for example the same part of the

document is annotated by more than one person (in

this example the objects “bottle” and “box” in line 1

and 6 by person 1 and person 2), it is only added

once to the merged annotation. While merging the

documents, both the number of overall different

annotations of one concept and the number of equal

annotation between the single manual annotations

becomes evident. In the example, the instance “box”

was annotated once by two persons, while the

instance “bottle” was annotated twice (one time by

two persons, the other time by one person).

Therewith, the merged annotations can be

interpreted as a very precise annotation as possibly

missed annotations of one single annotation can be

found in the annotation of another person.

3.3 Appliance of Ranking Numbers

The number of equal annotations within the single

manual annotations gives a first impression about

major or minor important instances. When an

instance of a concept or two instances of two related

concepts are annotated by a high number of people,

they can be interpreted as important for the

document. In the example presented above, the

instance “bottle” is annotated by two people in line 1

but only once in line 2. This indicates that in the

second line, the one person did not interpret the

“bottle” in this sentence as an important object for

this solution.

Additionally to this simple measurement, two

more ranking numbers are proposed. These ranking

numbers show similarities to the term frequency

used in information retrieval (Salton et al., 1986). In

contrast to the term frequency, not the importance of

a word in a document, but the importance of an

annotation according to all annotations of the

respective document is focused here. Furthermore,

Annotated instances

Graph browser

Property

Industrial sector

Function

Company

Function owner

Visualisation of the

modelled concepts

and instances

Object

Location in

the document

bottle line 1

box line 6

Object

Location in

the document

bottle line 1

bottle line 2

box line 6

Object

Found in

annotation

bottle 1 and 2

bottle 1

box 1 and 2

Manual annotation 1

Manual annotation 2

Merged annotation – 1

step

Object

Found in

annotation

Found in

annotation

bottle 1 and 2 1

box 1 and 2

Merged annotation – 2

step

THE CHALLENGE OF AUTOMATICALLY ANNOTATING SOLUTION DOCUMENTS - Comparing Manual and

Automatic Annotation of Solution Documents in the Field of Mechanical Engineering

155

the ranking numbers combine the amount of overall

annotations of an instance within all manual

annotations with the number of annotations of an

instance after the merging of the manual

annotations. By this combination, the error rate of a

single manual annotation is decreased while the

“overall intelligence” of several manual annotations

is increased.

The first ranking number R(i) considers the

annotation of instances of single concepts. It is

calculated by the multiplication of the overall

number of similar annotated instances of a single

concept N(io) with the number of similar annotated

instances of a single concept after merging the

manual annotations N(im). To normalise the number,

the product is divided by the product of the

maximums of N(io) and N(im) over all instances

(equation 1).

 











max







max







(1)

In the example in Figure 4, the ranking numbers

are calculated as shown in Table 1.

Table 1: Calculation of the ranking numbers.

Object N(io) N(im) R(i)

bottle 3 2 1

box 2 1 0,33

The instance “box” was annotated twice in line 1

and once in line 2, so the overall number of

annotations N(io) is 3. It is annotated in line 1 and 2

which makes the N(im) equal to 2.

The second ranking number R(r) - and from the

ontological point of view the more interesting one -

considers the annotation of instances of related

concepts. Similar to R(i), it is calculated by the

multiplication of the number of overall annotations

and the number of annotations after merging the

manual annotations. This time, the numbers are only

counted when the annotation contains a pair of

instances belonging to concepts that are related in

the ontology. Once again, it is normalised by the

maximum of these numbers N(ro) and N(rm) as

shown in equation 2.

 











max







max







(2)

Therewith, the ranking number R(r) provides

information about the mutual annotation of instances

that are related according to the ontology.

3.4 Interpretation

The ranking numbers take values between 0 and 1.

These ranking numbers, applied to each instance or

related instances, give the weighting according to

the overall and merged manual annotations and

therewith the reference for the expected result of the

automatic annotation. The automatic annotation has

to identify at least the highest ranked instances.

Especially R(r) can be used for evaluating the

quality of the annotation of related instances.

With the help of the ranking numbers, precision and

recall measures for the evaluation of the automatic

annotation can be calculated with a higher

granularity. It is more important to find higher

ranked instances than lower ranked ones.

4 CASE STUDY

This section shows the application of the above

described steps of annotating and merging the

documents. The annotated documents and the results

of the annotations are presented and finally

compared with the automatic annotation of the

developed prototype. Four persons of different

background (marketing, computer science and

mechanical engineering) were asked to manually

annotate six solution documents concerning the

contained function owners and their corresponding

functions.

The documents describe technical solutions in

the field of automation technology (see Table 2 for a

short overview of the content of the documents).

Their length varies between 2 and 8 DIN A4 pages

and their number of words lies between 343 and

912.

Table 2: Overview of the used documents.

Content Pages Words

Packaging of medical tablets 2 877

Separation of small components 4 750

Sorting of empty bottles 2 343

Bottling of bottles 2 741

Palletizing of bread 2 752

Packaging of drink crates 8 912

4.1 Merging of Manual Annotations

By the example of one document (packaging of

medical tablets), the results of the manual annotation

and the merging shall be explained. Table 3 shows

the numbers of annotations of instances of the four

concepts. The first column shows the number of

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

156

overall annotations after merging; the following

columns show the number of annotations of the

individual manual annotations.

Table 3: Number of annotations.

Concept all 1 2 3 4

Operation 30 28 14 12 14

Object 27 24 14 9 14

Function owner 16 13 11 9 8

Function 27 24 14 9 14

The four participants differ in the number of

annotations made. In subsequent interviews it was

identified that this can be explained due to the

different professional backgrounds. A mechanical

engineer did not consider every function as

“important”. He focused on the core functions. In a

subsequent search, he expects these functions to be

ranked higher than other functions.

By merging these annotations the number of

different annotations of instances of the four

concepts can be identified. In this document, 26

different operations, 14 objects, 7 function owners,

and 26 different functions were identified.

Table 4 gives an exemplary overview of the

instances of the concept “function owner”. The

corresponding values of N(io) and N(im) are

presented and the resulting R(i)-values shown.

Table 4: Annotations of the concept “function owner”.

Function owner

N(io) N(im) R(i)

Robot 17 7 1,00

Machine 8 3 0,20

Conveyor belt 4 1 0,03

Barcode reader 4 1 0,03

Operator 2 2 0,03

The instance “robot” was annotated 7 times in

the document and was mentioned 17 times

altogether by the four annotators. This identifies this

instance as most relevant for the annotation of

function owners.

4.2 Evaluation of the Automatic

Annotation

With the help of these ranking, numbers, the

automatic annotation can be evaluated. Table 5

shows exemplary which terms have been annotated

as functions owners in the document by the

automated annotation process. As illustrated, the

most important function owner (R(i) = 1) has been

identified. Nevertheless, some instances have not

been automatically annotated.

Table 5: Comparing with the automated annotation.

Function owner

R(i) Autom. annotation

Robot 1,00 found

Machine 0,20 not found

Conveyor belt 0,03 found

Barcode reader 0,03 found

Operator 0,03 not found

The results of the evaluation of function owners,

operation und object over the six documents were

quite similar. Only the annotation of technical

functions did not achieve the expected results. This

result can be explained by the fact, that the linguistic

algorithms do not properly recognise when an object

and an operation constitute a technical function.

5 RELATED WORK AND

DISCUSSION

An overview of general methods and tools for

semantic annotation is given by Uren et al. (2006).

Uren et al. proposed seven requirements for

ontology-supported annotation and evaluated

twenty-seven annotation tools. Especially automatic

annotation was mentioned as an important field for

further improvement. Corcho (2006) compared

different annotation approaches (ontology, thesauri

and controlled vocabulary) for supporting the

process of creating metadata. He identified

ontology-based annotation as the most powerful

annotation approach concerning the annotation of

relations between the instances of a document and

also emphasized the meaning of improving

automated annotation. A domain ontology as

knowledge base for information retrieval is used to

improve search over large document repositories by

Vallet et al. (2005). In their approach, Vallet et al.

also used a label property to identify potential

occurrences of instances in the annotated documents.

The high amount of work for manually

annotating and the following merging make this

approach only limited applicable for a larger number

of documents and questionable concerning its

statistical validation. Furthermore, the influence of

the personal background has to be considered when

interpreting the results of the manual annotations.

Nevertheless, in addition to the identification of

ranked instances for the annotation, this approach is

twofold useful: First of all, by analysing and

verifying the manual annotations, linguistic and

syntactic properties of the solution documents can be

identified. In a next step, these can be used to

deduce typical linguistic schemes (e.g. the syntax of

sentences) of solution documents for improving the

THE CHALLENGE OF AUTOMATICALLY ANNOTATING SOLUTION DOCUMENTS - Comparing Manual and

Automatic Annotation of Solution Documents in the Field of Mechanical Engineering

157

automated annotation. Secondly, the merging of the

manual annotation and its later validation is useful

for obtaining a set of well-annotated documents for

further evaluation of automatic annotations.

The findings of this work can be used in other

domains of knowledge where unstructured data has

to be annotated using a domain-specific ontology. In

this context, it has to be considered, where the

needed knowledge is stored. If using only instances

for the annotation, the ontology could become huge.

For example, if every function owner should be part

of the ontology, huge classifications or standards

have to be integrated. For instance, transferring the

products and services categorization standards

eCl@ss in OWL yielded 75,000 ontology classes

plus more than 5,000 properties (Hepp, 2006).

Alternatively, you may use a combination of

ontological knowledge and linguistic patterns (or

rules) for annotation. For example, modelling only

on the (technical) operations in the ontology and

defining patterns to annotate a technical function in

combination with an identified noun in the sentence

would decrease the size of the ontology, as the

number of technical operations is limited. However,

the number of rules to be defined will increase.

What works best has to be judged considering the

relevant domain and the complexity of the modelled

knowledge.

6 CONCLUSIONS AND

OUTLOOK

The analysis of solution documents done in this

research permits an insight into the content of

solution documents in the field of automation

technology. With the help of the proposed ranking

numbers, important instances can be identified

according to the manual annotations made by

different persons. This ranking numbers can be

subsequently used for the evaluation of an

automated annotation. The evaluation of the used

prototype showed need for improvement concerning

the annotation of related instances in the ontology.

To improve this annotation, further work will

focus on the interpretation of the made analyses for

identifying patterns in the syntax or layout of

solution documents. Furthermore, the personal

background of the manual annotations will be

considered for the purpose of identify individual

requirements on the annotation. This will improve

the automatic annotation and may also be

instrumental to identifying the “core functions” of a

technical solution.

ACKNOWLEDGEMENTS

This work has been funded by the German Federal

Ministry of Economy and Technology (BMWi)

through THESEUS. The authors wish to

acknowledge gratitude and appreciation to all the

PROCESSUS project partners for their contribution

during the development of various ideas and

concepts presented in this paper.

REFERENCES

Blumberg, R., and Atre, S. (2003). The Problem with

Unstructured Data. In DM Review, 13(2).

Corcho, O. (2006). Ontology based document annotation:

trends and open research problems. Int. J. of Metadata,

Semantics and Ontologies, 1(1), 47–57.

Dylla, N. (1990). Denk- und Handlungsabläufe beim

Konstruieren, PhD thesis, Technische Universität

München.

Gaag, A., Kohn, A., and Lindemann, U., (2009). Function-

based Solution Retrieval and Semantic Search in

Mechanical Engineering. In ICED’09, 17th

International Conference on Engineering Design,

Stanford, California, USA.

Hepp, M. (2003). Güterklassifikation als semantisches

Standardisierungsproblem. Wiesbaden: Deutscher

Universitäts-Verlag.

Hepp, M. (2006). Products and Services Ontologies: A

Methodology for Deriving OWL Ontologies from

Industrial Categorization Standards. Int. J. on

Semantic Web & Information Systems, 2 (1), 72-99.

Ponn, J., and Lindemann, U. (2008). Konzeptentwicklung

und Gestaltung technischer Produkte. Berlin:

Springer.

Pocsai, Z. (2000). Ontologiebasiertes Wissensmanagement

für die Produktentwicklung. PhD thesis, Technische

Universität Karlsruhe.

Ponn, J., Deubzer, F., and Lindemann, U., (2006).

Intelligent Search for Product Development

Information - an Ontology-based Approach. In:

DESIGN’06, 9th International Design Conference,

Dubrovnik, Croatia.

Salton, G. and McGill, M. J. (1986). Introduction to

Modern Information Retrieval. New York: McGraw-

Hill.

Uren, V., Cimiano, P., Iria, J. e., Handschuh, S., Vargas-

Vera, M., Motta, E., and Ciravegna, F. (2006).

Semantic annotation for knowledge management:

Requirements and a survey of the state of the art.

Journal of Web Semantics, 4(1), 14-28.

Vallet, D., Fernández, M., and Castells, P., (2005). An

Ontology-Based Information Retrieval Model. In

ESWC’05, The Semantic Web: Research and

Applications, Second European Semantic Web

Conference. Heraklion, Crete, Greece.

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

158
