ESTIMATION OF QUANTUM TIME LENGTH
FOR
ROUND-ROBIN
SCHEDULING ALGORITHM
USING NEURAL
NETWORKS
Omar AlHeyasat and Randa Herzallah
FET, AL-Balqa’ Applied University, Amman, Jordan
Keywords: Round-robin Scheduling Algorithm, Neural Networks Model, Quantum Time, Length Estimation.
Abstract: The quantum time length is usually taken as a fixed value in all applications that use Round Robin (RR)
scheduling algorithm. The determination of the optimal length of the quantum that results in a small average
turn around time is very complicated because of the unknown nature of the tasks in the ready queue. The
round robin algorithm becomes very similar to the first in first served algorithm if the quantum length is
large. On the other hand, high context switch results for small values of quantum length which might cause
central processing unit (CPU) thrashing. In this paper we propose a new RR scheduling algorithm based on
using neural network models for predicting the optimal quantum length that yields minimum average turn
around time. The quantum length is taken to be a function of the service time of the various jobs available in
the ready queue. This in contrast to the traditional methods of using fixed quantum length is shown to give
better results and to minimize the average turnaround time for almost any collection of jobs in the ready
queue.
1 INTRODUCTION
CPU scheduling is the task of selecting a waiting
process from the ready queue and allocating the
CPU to it. The CPU is allocated to the selected
process by the dispatcher. First-come, first-served
(FCFS) schedul- ing is the simplest, but it can cause
short processes to wait for every long process.
Shortest job-first (SJF) scheduling provably optimal,
providing the shortest average waiting time.
Implementing SJF scheduling is difficult, however,
because predicting the length of the next CPU burst
is difficult. The SJF algorithm is a special case of the
general priority scheduling algorithm, which simply
allocates the CPU to the highest priority process.
Both priority and SJF may suffer from starvation.
Round-robin scheduling is more appropriate for a
time-shared (interactive) system. RR scheduling
allocates the CPU to the first process in the ready
queue for q time units, where q is the time quantum.
After q time units, if the process does not relinquish
the CPU, it is preempted, and then it is put at the tail
of the ready queue. Round Robin scheduling
algorithm is considered the fairness compromise
algorithm among different mechanisms and
disciplines that deal with sharing the CPU time
between processes that resides in the ready queue.
RR, First come first served, high priority, shortest
job first and other algorithms have several
disadvantages when dealing with real-time systems
and deadline limitations. In real-world of time-
sharing systems, RR service (behavior) is widely
used.
Many publications discussed the RR scheduling
algorithm, its efficiency, reliability, and its consis-
tency if it was part of a general system. Ramab-
hadran et al (Ramabhadran and Pasquale, 2006) pre-
sented analytical and simulation results based on RR
algorithm in a manner of a stratified RR scheduler.
Jorge R. et al (Ramos et al., 2006) showed a modi-
fied RR algorithm that predicts potential job depar-
tures and schedules them in advance. John Tsili-
garidis et al (Tsiligaridis and Acharya, 2005) dis-
cussed a very important algorithm that constitutes an
alternative way of defining the most suitable size of
the quantum in RR scheduling algorithm using grad-
ual or direct weight increase mechanisms, and in the
same paper the author strongly stated that this kind
of algorithms can be applied for next generation
internet routers. Seungmin Baek et al (Seungmin et
al, 2004) described a packet filtering-based RR
scheduling scheme for tightly coupled clusters in
253
AlHeyasat O. and Herzallah R..
ESTIMATION OF QUANTUM TIME LENGTH FOR ROUND-ROBIN SCHEDULING ALGORITHM USING NEURAL NETWORKS .
DOI: 10.5220/0003058002530257
In Proceedings of the International Conference on Fuzzy Computation and 2nd International Conference on Neural Computation (ICNC-2010), pages
253-257
ISBN: 978-989-8425-32-4
Copyright
c
2010 SCITEPRESS (Science and Technology Publications, Lda.)
terms of throughput and reliability. Rahul Garg et al
(Rahul and Xiaoqiang, 1999) described a scheduling
algorithm named recursive round robin scheduler
(RRR), based on the concept of the construction of
scheduling tree, and showed that the work
conserving scheduler is fair. While in (Salil et al.,
2004), Salil et al used a technique to analytically
derive the latency bound of preordered DDR. Many
other publications described, discussed, and proved
many scheduling algorithms (Philip and Rasch,
1970; Ben et al., 2005; Janche et al., 1994; Amotz et
al., 2004; Andrews and Zhang, 2005; Cooling and
Tweedale, 1997; Srinivasan and Anderson, 2005;
Silberschatz et al., 2000; Chakrabarti et al., 1997).
Almost in all these publications, authors selected
different criteria, like fairness, bounded delay, low
complexity, deadline and other criteria. The
common among almost all works (Tsiligaridis and
Acharya, 2005; Seungmin et al., 2004; Rahul and
Xiaoqiang, 1999; Salil et al., 2004) that discussed
RR scheduling algorithm is that the length of
quantum time is fixed.
The major problem in RR scheduling is the
selection of the time quantum. If the quantum is too
large, RR scheduling degenerates to FCFS
scheduling. If jobs. Figure 1 Shows the block
diagram of the pro- posed RR scheduling algorithm.
Here neural network model is used to estimate and
predict the time quantum based on the service time
of the jobs in the queue. Using neural network
model to estimate the time quantum has the
advantage of varying the time quantum according to
the variation of the service time of the jobs in the
ready queue. Instead of using fixed quantum time,
neural network model estimates and predict the time
quantum that minimizes the average turnaround
time.
Figure 1: The architecture of the proposed scheduling
algorithm.
2 PROBLEM FORMULATION
In RR scheduling algorithm, the average turnaround
time is described by the following equation:
the quantum is too small, scheduling overhead in the
form of context-switch time becomes excessive. In
addition, the turnaround time can varies with
different time quantum. Figure 2 Shows the way in
which turnaround time varies with the time quantum.

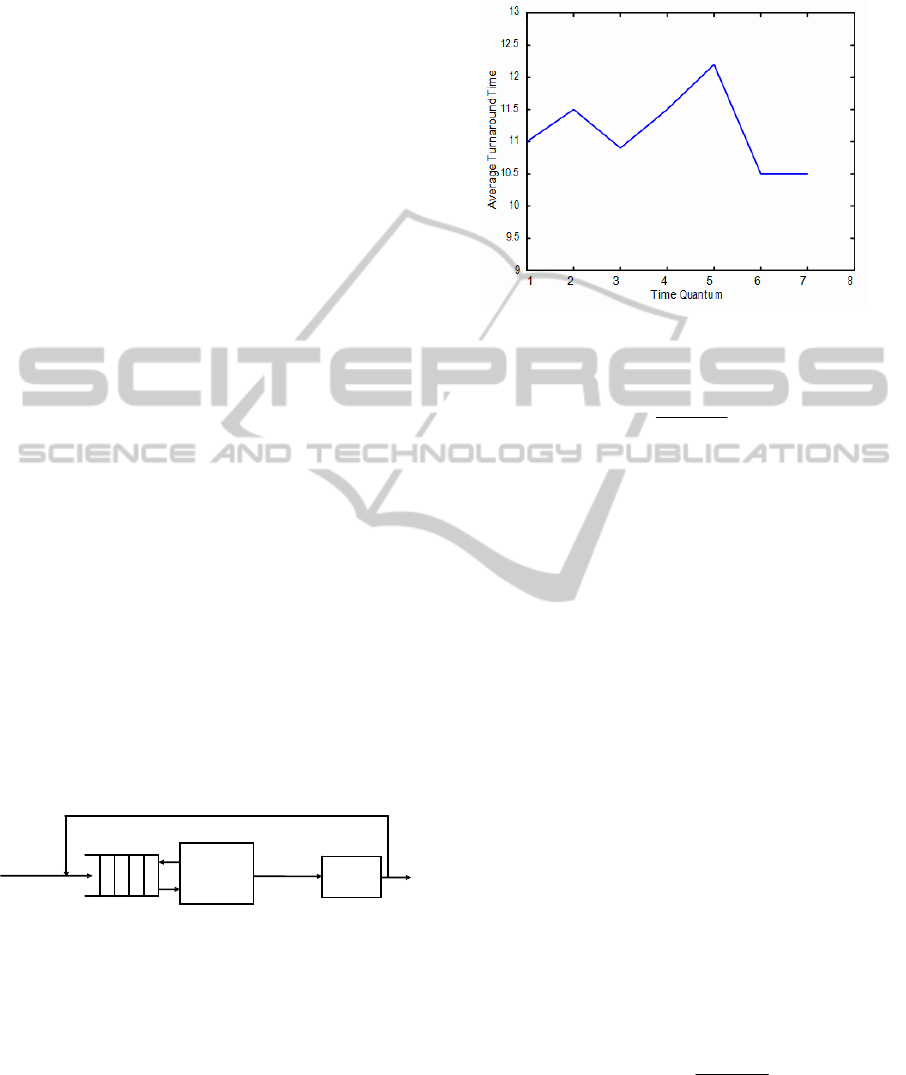

Figure 2: The variation of the turnaround time with the
time.
=
+
=
N
i
i
t
i
t
t
N
Ws
T
1
(1)
where T
t
is the average turnaround time,
i
t
S
is the
service time of job i in the ready
queue,
i
t
W
is the
waiting time of job i in the ready queue, and N is the
number of jobs in the ready queue.
The objective in this paper is to minimize the av-
erage turnaround time by the control of the optimal
quantum time length q. By changing the quantum
time length the average waiting time of the various
jobs in the ready queue will be different. The aver-
age waiting time can be described as a function of the
quantum time length according to the following equa-
tion
(
)
oqNW
i
t
+=
(2)
where o is the context time switch. In practical appli-
cations it is desirable to make the context switch neg-
ligible compared to the quantum time length. Taking
this into consideration and substituting Equation (2)
into Equation (1) yields
quantum
In this paper, we will develop a neural network
model that will estimate the time quantum for the
Round-robin scheduling algorithm, in order to min-
imize the turnaround time for any collection of ready
=
+
=
N
i
i
t
t
N
Nqs
T
1
(3)
Equation (3) shows that the average turnaround
time highly depends on the value of the selected
quantum length, which in turn is dependent on the
service time of the jobs in the ready queue.
Arrival jobs
Ready Queue
Neural
Network
Model
Quantum
length
CPU
ICFC 2010 - International Conference on Fuzzy Computation
254
Following this, the RR scheduling problem can be
described as follows:
Find the time quantum length q such that the fol
lowing objectives are met:
1. The turnaround time of a set of jobs in the ready
queue is minimized.
2. The number of context switch is kept minimal.
3 NEURAL NETWORK MODEL
The effect of the service time on the length of the
quantum is characterized by high levels of
uncertainty and complexity. Neural network
models are proved to give superior results under
such circumstances. consequently, in this paper we
propose using neural network models to estimate
and predict the optimal length of the time quantum
that will give the minimum turnaround time for
various service times of the jobs in the ready queue.
Neural Network models with nonlinear compo-
nents can be used in nonlinear, complex and uncertain
applications. The inherently parallel nature of the net-
works can make them suitable for solving problems
at high rates. The important result that multi-layer
feed-forward networks with a single hidden layer and
sufficient number of hidden units, are capable of ap-
proximating any continuous function to any degree of
accuracy has been proved in the literature. Therefore,
in this paper, multi layer perceptron neural network
with one hidden layer will be used. The number of
neurons in the input layer are determined by the num-
ber of jobs in the ready queue. Here the output of the
neural network is the quantum length that results into
minimum turnaround time. This architecture is shown
in Figure 3. The hidden layer activation function is
taken to be tanh function and the activation function
of the output layer is taken to be linear function.
The design of a neural network model involves
Two major phases: Training and validation. In the
training phase the weight parameters of the neural
network model are determined using a set of input–
output patterns in the training set. The neural net-
work model is trained such that it minimizes the mean
square error between the estimated quantum value
and the actual one. Scaled conjugate gradient method
is employed in this work to optimize the weight pa-
rameters. To find the network structure that has the
best performance on new data, different structures of
neural network models are firstly trained using the
training set. The performance of the various struc-
tures of the network models is then compared by eval-
uating an error function using an independent
validation set, and the network having the smallest
error with respect to the validation set is selected.
After training and validating the neural network
model, it can be applied on line to predict the quantum
length value that results into the minimum turnaround
time.
To reemphasize, neural network model is pro-
posed in this study to estimate the length of the quan-
tum time that will be used in the RR scheduling al-
gorithm. The neural network model takes the service
time of the jobs in the ready queue as input and esti-
mates the length of the time quantum that gives min-
imum turnaround time. As a result of the dynamic
changes of the quantum, the average turnaround time
for almost all the jobs should be the minimal. Con-
trast to conventional methods of RR scheduling algo-
rithm which use fixed quantum length, the proposed
RR scheduling algorithm is shown to give superior
results and to minimize the turnaround time in almost
all sets of jobs in the ready queue.

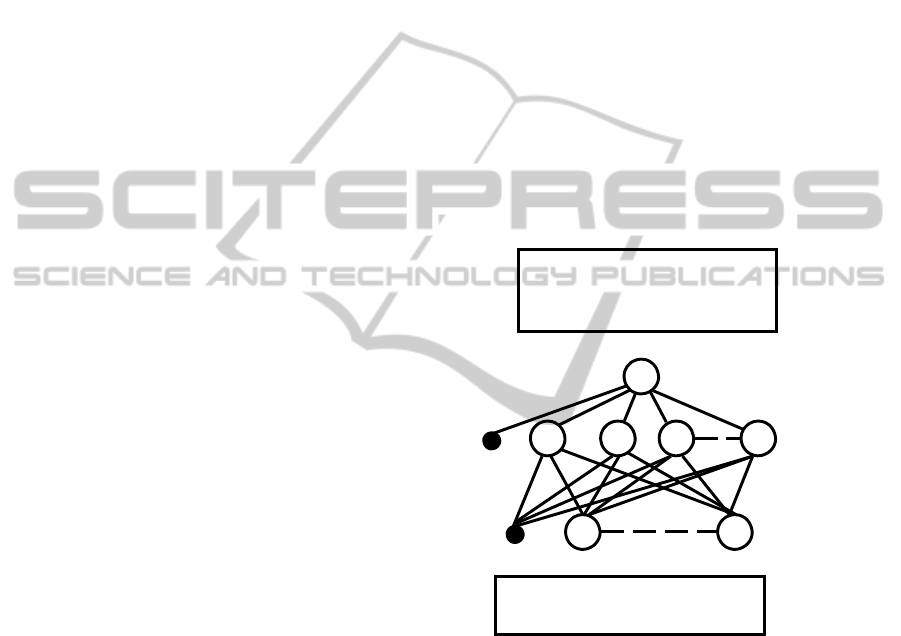

Figure 3: A multilayer feedforward neural
network.
4 SIMULATION RESULTS
In this section neural network model is used to pre-
dict the optimal quantum length that gives minimum
turnaround time. The number of jobs in the ready
queue is taken to be ten. The service time of the
jobs are generated randomly to have values between
1.0 and 10.0. Ten thousand samples of the ten jobs
are simulated. Here, for each sample (consisting of
10 jobs) the average turnaround time is calculated for
fifty different values of quantum time length starting
from 0.1 and stepping up to 5.0 at a step of
0
.
1.
Multi layer perceptron neural network with the
Quantum length that gives
minimum average
turnaround time
Output
layer
Hidden
layer
Input
layer
q
1
Z
1
Z
2
Z
3
Z
m
1
S1
S
N
Service time of various
jobs in the ready queue
ESTIMATION OF QUANTUM TIME LENGTH FOR ROUND-ROBIN SCHEDULING ALGORITHM USING
NEURAL NETWORKS
255
service time of the ten jobs as input and optimal quan-
tum length as output is used to predict the optimal
quantum length to be used in the RR scheduling
algorithm.
()
10321
,,,, SSSSgq
est
K=
where g is multi layer perceptron neural network and
q
est
is the predicted quantum length from the neural
network model.
Since the service time of the jobs in the ready
queue ranges between 1.0 and 10.0, normalization for
the input variables has been conducted. Here each
input variable is normalized between 0 and 1 by di-
viding the service time of each job by its maximum
value, which is 10 in this simulation example.

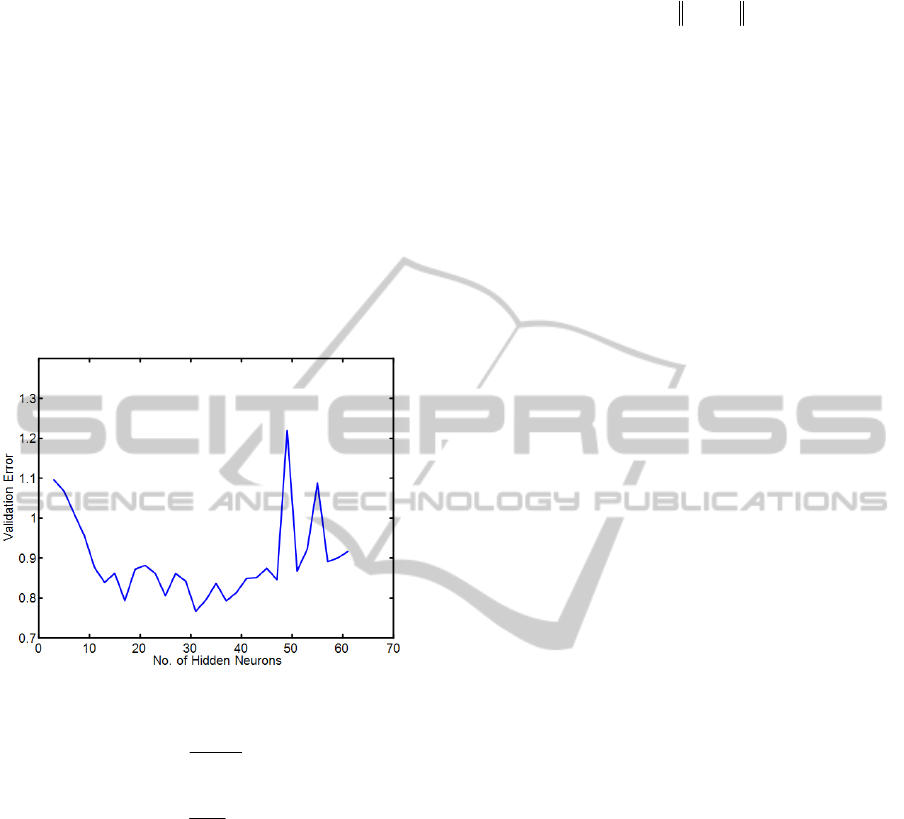

Figure 4: The quantum length network validation result.
10.0
max,
,
i
i
i
nori
S
S
S
S
=
=
Normalization of the output variable is not necessary
in this study since linear activation function is as-
sumed for the output layer.
The neural network model was trained on the
training set which consisted of 5000 samples of the
collected data. Scaled conjugate gradient method was
implemented to obtain the optimal parameters of the
neural network model. The single optimal structure
of the neural network model found by applying the
cross validation method consisted of 31 neurons in the
hidden layer. In the cross validation method the neu-
ral network model that estimates the optimal quantum
length to be used in the RR scheduling algorithm has
been tested on a validation data set which consisted of
2000 samples that have not been seen in the training
stage. The error function between the optimal quan-
tum length and the estimated quantum length from the
neural network model,
2
est
qqe =
, was calculated
for different model structures with different number
of neurons in the hidden layer. the best optimal struc-
ture is then taken to be the model with the minimum
error value in the validation stage. The validation re-
sult is shown in Figure 4.
After training the neural network model that pre-
dicts the optimal quantum value off line, and choosing
the structure of the model, the quantum length net-
work is brought on line and the quantum length is
calculated for each set consisting of ten jobs in the
ready queue. The optimal quantum length value and
the estimated one from the neural network model is
shown in Table 1. Comparing the estimated quantum
length value and the optimal one, it can be seen that
the neural network model was able to predict to a very
good accuracy the optimal quantum length that
minimizes the average turnaround time in almost
most of the cases.
5 CONCLUSIONS
In this paper, we have demonstrated for the first time
the application of neural network models to predict
the optimal quantum length in the RR scheduling al-
gorithm. A major feature of using neural network
models to predict the quantum length is the dynamic
change of the quantum length to be used in the RR
scheduling algorithm.
The proposed method is validated using ten thou-
sands samples consist of ten jobs in the ready queue.
Simulation results proved the capability of the neu-
ral network model to predict the optimal quantum
length value that yields minimum average turnaround
time. Contrast to the conventional RR scheduling al-
gorithm which uses fixed quantum length value re-
gardless the knowledge on the service time of the
jobs in the ready queue, our proposed neural network
based RR scheduling algorithm dynamically changes
the quantum length value based on the service time of
the jobs in the ready queue. This has the benefit of
minimizing the overall average turnaround time for
the different set of jobs that might be presented to the
CPU.
Neural network model is brought on line only
after being trained and validated. This means that
compu- tational time of the cpu is kept the same.
The only added time to the CPU is the computation
of the op timal quantum length value from the
neural network model which needs only one
forward propagation of its input vector.
ICFC 2010 - International Conference on Fuzzy Computation
256
Table 1: Estimated and optimal quantum lengths for several sets of services times of the ten jobs in the ready queue.
Quantum
length (q
es
t
)
Quantum
length(q)
Job10
S
t
10
Job9
S
t
9
Job8
S
t
8
Job7
S
t
7
Job6
S
t
6
Job5
S
t
5
Job4
S
t
4
Job3
S
t
3
Job2
S
t
2
Job1
S
t
1
4.9932
5
5.0001.9004.2008.1008.3004.5009.6003.9005.8004.100
3.8118
4.7
3.5002.5004.0001.0001.0006.4009.3004.6002.2003.800
3.0065
2.9
4.7005.1000.1009.6008.1001.4009.70010.0002.0002.900
4.5457
4.9
8.5007.7004.8006.9001.7003.3009.3000.8002.8009.700
4.0042
3.2
7.5009.0002.8006.3007.8003.1008.6007.2002.9006.000
3.971
4.0
3.9009.0008.9001.8008.0005.3002.8005.9007.8008.000
3.4346
3.7
3.7008.6002.6003.4001.1004.8006.30010.0007.1005.300
3.1378
3.1
3.1002.7007.9005.7005.8005.5007.7008.5005.8005.900
3.8003
2.1
5.6000.8007.9008.8001.6004.1005.8006.2006.7008.600
3.8491
4.3
0.3008.7006.7006.1008.2006.3009.3004.3001.0007.700
4.0545
4.0
3.5003.9008.6009.4001.4005.6005.2006.7002.2004.000
2.1449
2.1
1.1005.3003.6002.1001.4006.0006.1005.6008.5005.000
3.5606
3.3
2.7008.0004.0005.6004.7009.6000.2006.6006.5002.600
3.7999
4.6
8.7005.1006.9006.7000.9006.0000.2001.9004.6007.100
2.4572
0.5
0.4004.3006.3009.0008.4001.4000.4003.0007.3000.300
3.3133
4.2
5.8005.7004.2000.8001.4002.0000.2000.3001.9002.600
1.1836
1.3
4.5003.8001.3000.3001.1005.2007.1008.2006.0001.900
4.1698
4.3
1.6005.3002.9005.3004.3004.2000.9005.4004.2005.100
4.6203
4.9
8.6005.5000.4007.5004.8002.0006.2004.9004.5002.200
4.9653
4.6
0.6004.6002.7003.6008.0002.3001.0003.6004.6003.200
3.4902
3.7
6.7002.1003.7003.2004.8005.5005.8006.7009.8007.100
2.5514
2.3
9.0002.1003.5000.1001.4001.5005.5001.8009.7004.400
3.0072
2.9
2.7000.4001.0008.1009.8009.1005.3002.9008.0001.600
3.2077
2.8
1.4005.0004.8005.1009.1008.7005.6007.2007.4004.900
4.1322
4.1
9.6005.1008.7004.1001.0009.2006.7008.1006.1001.800
4.8429
4.9
8.5005.7004.2004.4001.5009.6004.3004.8007.6001.800
4.677
4.9
7.4004.9007.0006.0005.7008.8004.3008.2004.2007.100
REFERENCES
Amotz, B., Vladimir, D., and Boaz, P. (2004). Efficient
algorithm for periodic scheduling. Computer
Networks, 45:155–173.
Andrews, M. and Zhang, L. (2005). Scheduling over a
time-varying user-dependent channel with applications
to high-speed wireless data. Journal of the ACM,
52(5):809–834.
Ben, G., Richard, J., Lipton, Andrea, L., and F, F. (2005).
Estimating the maximum.Journal of Algorithms,
54:105–114.
Chakrabarti, S., Demmel, J., and Yelick, K. (1997).
Models and scheduling algorithms for mixed data and
task parallel programs. Journal of Parallel and
Distributed Computing, 47:168–184.
Cooling, J. and Tweedale, P. (1997). Task scheduler co-
processor for hard real-time systems. Microprocessors
and Microsystems, 20:553–566.
Janche, S., Ke-hsiung, C., and Vernon, R. (1994). Efficient
algorithm for simulating service diciplines. Simulation
Practice and Theory, 1:223–244.
Philip, J. and Rasch (1970). A queuing theory study of
round-robin scheduling of time-shared computer
systems. Journal of Association for Computing
Machinary, 17(1):131–145.
Rahul, G. and Xiaoqiang, C. (1999). Rrr: recursive round
robin scheduler. Computer Networks, 31:1951–1966.
Ramabhadran, S. and Pasquale, J. (2006). The stratified
round robin scheduler: Design, analysis and imple
mentation. IEEE/ACM Transactions on Networking,
14(6):1362–1373.
Ramos, R. J., Rego, V., and Sang, J. (2006). An efficient
burst-arrival and batch-departure algorithm for round-
robin servicestar. Simulation Modelling Practice and
Theory, 14(1):1–24.
Salil, S., Kanhere, and Sethu, H. (2004). Investigated
socket-based rr scheduling scheme for tightly coupled
clusters providing single-name images. Computer
Communications, 27:667–678.
Seungmin, B., Hwakyung, R., and Sungchun, K. (2004).
Investigated socket-based rr scheduling scheme for
tightly coupled clusters providing single-name im-
ages. Journal of Systems Architecture, 50:299–308.
Silberschatz, A., Galvinand, P. B., and Gagne, G. (2000).
Operating System Concepts. John Wiley and Sons,
Inc., New York. London.
Srinivasan, A. and Anderson, J. (2005). Fair scheduling of
dynamic task systems on multiprocessors. Journal of
Systems and Software, 77:67–80.
Tsiligaridis, J. and Acharya, R. (2005). Three new
approaches for adjustment and improvement of the rr
scheduler in a dynamic resource environment.
Computer Communications, 28:929–946.
ESTIMATION OF QUANTUM TIME LENGTH FOR ROUND-ROBIN SCHEDULING ALGORITHM USING
NEURAL NETWORKS
257
