IMPLICIT SEQUENCE LEARNING

A Case Study with a 4–2–4 Encoder Simple Recurrent Network

Stefan Gl¨uge, Ronald B¨ock and Andreas Wendemuth

Faculty of Electrical Engineering and Information Technology - Cognitive Systems

Otto von Guericke University Magdeburg, Universit¨atsplatz 2, 39106 Magdeburg, Germany

Keywords:

Implicit sequence learning, Temporal order in associative learning, Elman network, Simple recurrent network.

Abstract:

Without any doubt the temporal order inherent in a task is an important issue during human learning. Re-

current neural networks are known to be a useful tool to model implicit sequence learning. In terms of the

psychology of learning, recurrent networks might be suitable to build a model to reproduce the data obtained

from experiments with human subjects. Such model should not just reproduce the data but also explain it and

further make veriﬁable predictions. Therefore, one basic requirement is an understanding of the processes in

the network during learning. In this paper, we investigate how (implicitly learned) temporal information is

stored/represented in a simple recurrent network. To be able to study detailed effects we use a small network

and a standard encoding task for this study.

1 INTRODUCTION

Temporal order plays an important role in human

learning, e.g. humans tend to use the serial order in

free recall (Mandler and Dean, 1969). Even if the

temporal component is learned implicitly it helps us

to solve the task. Arthur Reber investigated the phe-

nomenon of implicit learning using ﬁnite state gram-

mars. In sequential reaction time tasks he could show

that test persons learn the rules of an underlying gram-

mar implicitly (Reber, 1989).

Axel Cleeremans provides a formal model for im-

plicit sequence learning based on connectionist the-

ory. The model applies a simple recurrent network

(SRN), also known as Elman network, and ﬁts the

network’s behaviour to the experimental data of Re-

ber (Cleeremans, 1993).

A SRN is very similar to a common multilayer

feedforward network. It involves additional recurrent

links to provide the network with a dynamic memory.

Therefore it is able to recognise the temporal proper-

ties of a sequential input (Elman, 1990).

The prediction capabilities of the SRN were eval-

uated by Lalit Gupta and Mark McAvoy (Gupta and

McAvoy, 2000). They focus on the prediction of non–

orthogonal vector components of real temporal se-

quences. This leads to a number of applications in

the ﬁeld of signal classiﬁcation (

Ubeyli and

Ubeyli,

2008). Another area for the application of SRNs is

autonomous robot control (Sluˇsn´y et al., 2007).

Up to now, it is little known about the mechanisms

of implicit sequence learning in SRNs. Using the ex-

ample of a biologically inspired classiﬁcation task we

showed that the network’s learning performance de-

pends on the presence of a temporal order in the input

sequence (Gl¨uge et al., 2010).

In terms of the psychology of learning and biolog-

ical plausibility there is no doubt about the need for

models based on recurrent networks since biological

neural networks are recurrent. SRNs might be suit-

able to reproduce the data obtained from experiments

to study the effect of temporal order on associative

learning by humans (Hamid et al., 2010). Such model

should not just reproduce the data but also explain it

and further make veriﬁable predictions. Therefore,

one basic requirement is an understanding of the pro-

cesses in the network during learning/training.

In (Heskes and Kappen, 1991; Heskes and Kap-

pen, 1993) the learning process and the learning dy-

namics of neural networks were investigated from a

general point of view.

In this paper, the focus is not on the learn-

ing process in the SRN. But rather we investi-

gate how (implicitly learned) temporal information is

stored/represented in a SRN. Further, the inﬂuence of

the sequential input during training and testing is ex-

amined.

After training the network is tested on different

279

Glüge S., Böck R. and Wendemuth A..

IMPLICIT SEQUENCE LEARNING - A Case Study with a 4–2–4 Encoder Simple Recurrent Network.

DOI: 10.5220/0003061402790288

In Proceedings of the International Conference on Fuzzy Computation and 2nd International Conference on Neural Computation (ICNC-2010), pages

279-288

ISBN: 978-989-8425-32-4

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

input sequences under different conditions, e.g. with

and without working memory. To be able to study

detailed effects we use a small network and a standard

encoding task for this study.

2 THE 4–2–4 ENCODER SRN

Figure 1 shows a conceptual diagram of a SRN. Com-

pared to a feedforward network the SRN has an addi-

tional context layer. Each hidden unit is connected to

one corresponding context unit. The weights of these

recurrent connections are ﬁxed to 1. Thereby, each

context unit stores a copy of the output of the cor-

responding hidden unit. At the next time step each

context unit feeds its copy back to all hidden layer

units. Due to the time delay and the feedback loop in

the information processing ﬂow the network is able to

memorise earlier internal states. Therefore, the out-

put of the hidden layer depends on the actual input

and implicitly on input from all previous time steps.

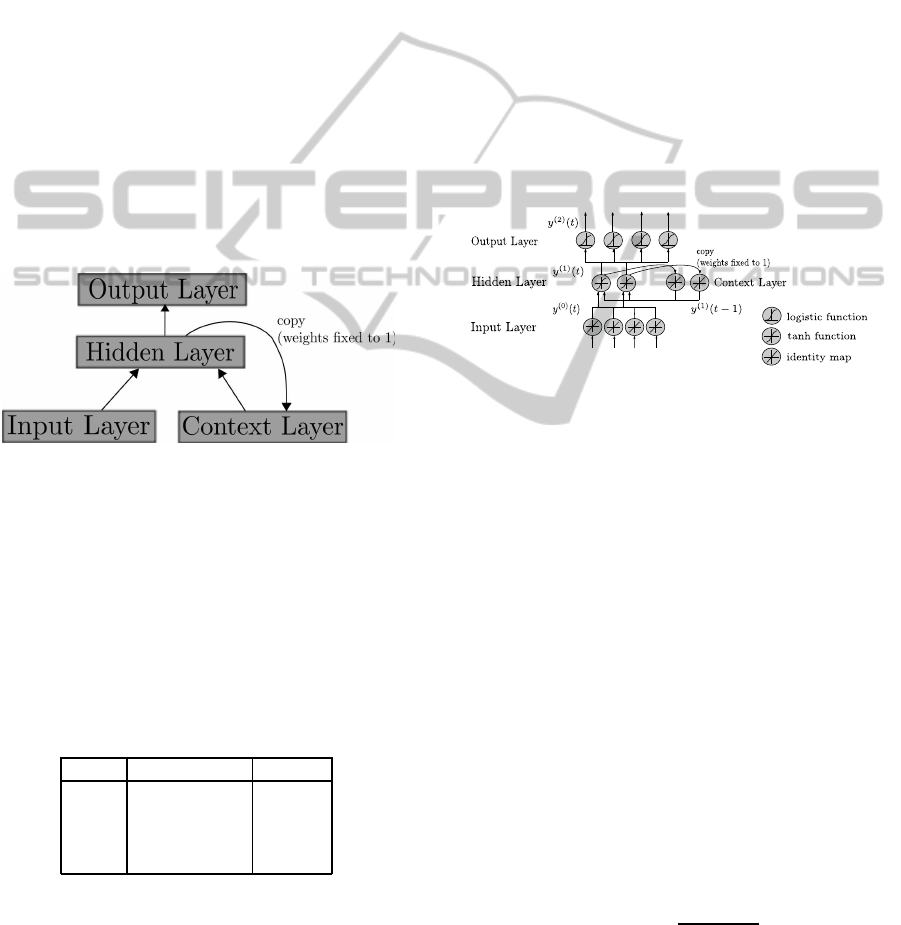

Figure 1: Conceptual Diagram of a SRN.

2.1 Learning Task

The encoding task is the conversion of four 1−of−4

coded input vectors into a binary representation and

vice versa. For the network, the task is ﬁrst to ﬁnd

a mapping for the 1−of−4 coded input into a binary

code. The second part is the retrieval of the binary

coded input into a 1−of−4 coded output. Table 1

shows one possible solution for the problem.

Table 1: 4–2–4 encoding.

Input Binary Code Output

0001 00 0001

0010 01 0010

0100 10 0100

1000 11 1000

Attention should be paid to the fact that the encod-

ing is independent of the sequence of input vectors.

The network learns a direct mapping between input

and output. Nevertheless, we will see that the SRN

implicitly learns a temporal relation between inputs

and uses this as an advantage for memorising.

2.2 Network Conﬁguration

If we denote y

(0)

(t), y

(1)

(t) and y

(2)

(t) as output vec-

tors of the input, hidden, and output layer at time t,

(l)

(t) with l = 1, 2 as network activation vectors of

the hidden and output layer, and w

(l,l

′

)

as weight ma-

trices between layer l and l

′

, the forward pass of the

4–2–4 encoder SRN (Fig. 2) with activation function

f can be written as:

(1)

(t) =

∑

(1,0)

(0)

(t) +

∑

(1,1)

(1)

(t −1), (1)

(1)

(t) = f (a

(1)

(t)), (2)

(2)

(t) =

∑

(2,1)

(1)

(t), (3)

(2)

(t) = f (a

(2)

(t)) . (4)

Figure 2: 4–2–4 SRN.

The input layer consists of 4 input units which simply

excite or not, given the coding of the input vector. The

hidden layer has the hyperbolic tangent as activation

function. Hence, the output of the hidden layer is

(1)

) = tanh(a

(1)

) . (5)

Each hidden layer unit is connected to one corre-

sponding unit in the context layer. The connection

weights are ﬁxed to 1. The context units are fully con-

nected to the hidden layer providing it with the hidden

layer output from the previous time step. Four differ-

ent input vectors can be represented by two bit. Since

we want the network to code the input vectors into a

binary representation the number of units in the hid-

den layer is set to two. Furthermore, the two hidden

units are fully connected to four output units. This

corresponds to the retrieval of the binary coded input

into a 1−of−4 coded output. As the output units shall

generate values between 0 and 1 their activation func-

tion is the logistic function. The network output is

(2)

) =

1+ e

−a

(2)

. (6)

Note that the hyperbolic tangent at the hidden layer

produces values between −1 and 1. The internal rep-

resentation for the input will consist of values in the

ICFC 2010 - International Conference on Fuzzy Computation

280

interval (−1, 1) and not of 0 and 1 as in Table 1. It

is still required that the internal representation be ’bi-

nary’ in the sense that the hidden layer has to produce

coding values for a uniquely distinguishable mapping

at the output layer. The input and output is presented

to the network as shown in Table 1.

The SRN can be seen as a feedforward network

with additional inputs from the context layer and any

algorithm for feedforward networks can be used to

train it (Elman, 1990).

2.3 Network Training

We use the backpropagation algorithm to train the

SRN. To do so, two constraints have to be fulﬁlled.

1. The context units must be initialised with some

activation for the forward propagation of the ﬁrst

training vector. Commonly, these initial values

are zero.

2. The activation levels of the hidden layer must be

stored in the context layer after each back propa-

gation phase. Hence, the context layer shows the

state of the hidden layer delayed by one time step.

After each input the network output is compared to

the desired output and the mean square error is prop-

agated back through the network. The weights are

updated with the constant learning rate ε = 0.1. Since

each output is evaluated right away, the process cor-

responds to online learning.

The weights are initialised with uniformly dis-

tributed random values in the interval [−0.3, 0.3]

(apart from the ﬁxed hidden–to–context layer

weights). The learning rate and weight initialisation

interval are chosen according to preliminary tests. We

use the combination that yielded best training results

after 1000 training cycles.

3 SIMULATIONS

The above described network was implemented in

Matlab. Since we are interested in the network’s abil-

ity in terms of implicit sequence learning we present

the training input in two different ways, a sequential

and a random one.

One training cycle consists of a presentation of all

four input vectors that are shown to the network one

after another. For the case of a deterministic order

the ﬁrst cycle is repeated for the whole training. This

implies a strong temporal relationship between the in-

put vectors since each one has a ﬁxed successor. For

the case of a random order in each cycle the temporal

correlation between the input vectors is very weak.

If we denote the input vectors with the numbers

from one to four we can describe the two types of

sequences as follows:

det. sequence . . . |

cycle n

z }| {

1 2 3 4 |

cycle n+1

z }| {

1 2 3 4|. . .

random sequence . . . |

cycle n

z }| {

4 3 1 2 |

cycle n+1

z }| {

2 1 3 4|. . .

The network is trained for 1000 cycles. Hence, every

input vector is shown 1000 times to the network. This

results in 4000 training steps or rather 4000 weight

updates.

3.1 Training

3.1.1 Success of the Training

To measure the success of the network we evaluate

the output according to the winner–take–all principle.

The unit with the highest activation is counted as 1 the

remaining as 0. Thus, the network’s output is always

mapped onto a corresponding target vector.

We evaluate the network output in terms of the

probability of success (P

) for each training cycle.

When training starts the probability to excite the cor-

rect output is one out of four (P

= 0.25). At the end

of training the network should have learned the cod-

ing and always deliver the target vector, therefore we

expect P

= 1.

Since the weights are initialised randomly the

learning curves for single networks may differ consid-

erably. As we want to compare the general behaviour

of the network we train 100 networks on each type

of input sequence. Afterwards we calculate the mean

probability of success over the 100 networks (P

) for

the two test cases. In Figure 3 P

is plotted against the

number of training cycles. In general, the networks

perform better on a deterministic input sequence than

on a random one. In both cases, however, the ex-

pected P

= 1 is not reached, which we will explain

in the following.

Figure 4 shows the distribution of P

for the 100 net-

works after training. We plot the number of networks

n against the ﬁnal probability of success P

. Trained

with a deterministic sequence one half of the networks

(n = 51) learned the encoding completely (P

= 1 by

the end of the training). On the other hand, only 23

networks could succeed if trained with a random se-

quence.

In summary it is more likely that a network trained

with a deterministic sequence is able to learn the task

IMPLICIT SEQUENCE LEARNING - A Case Study with a 4-2-4 Encoder Simple Recurrent Network

281

200 400 600 800 1000

0.2

0.4

0.6

0.8

cycle

det. sequence

random sequence

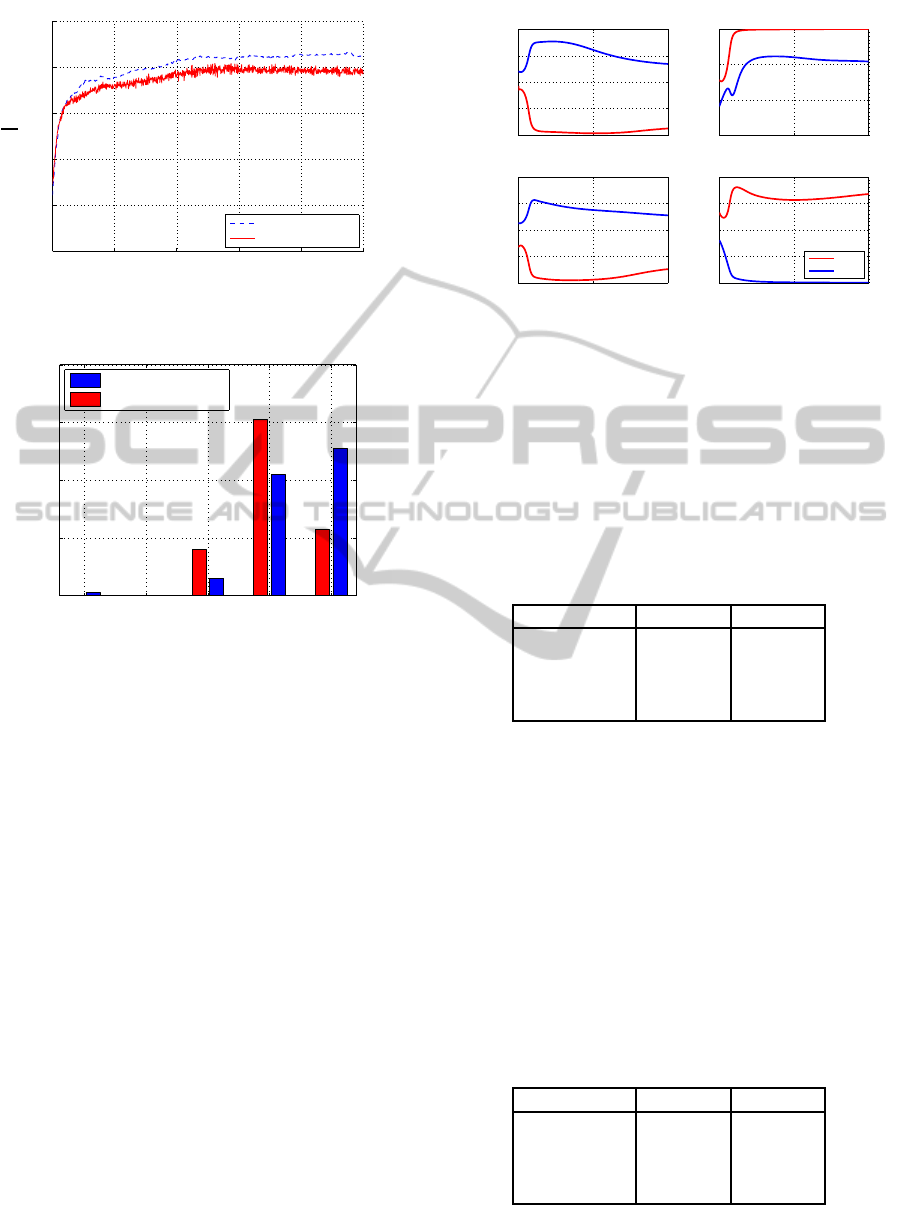

Figure 3: Success of training for the deterministic and ran-

dom sequence.

0 0.25 0.5 0.75 1

det. sequence

random sequence

Figure 4: Distribution of ﬁnal probability of success after

training of 100 nets.

in the training. The reason is the temporal correla-

tion between the input vectors. This extra informa-

tion, which is only provided in the deterministic se-

quence, raises the probability of the SRN to learn the

task.

3.1.2 Unstable Solutions and Training

Algorithm

Apparently, the learning task is quite demanding,

since a high percentage of the networks could not ﬁnd

an optimal solution. Those networks that did not suc-

ceed in training learned an unstable solution.

Figure 5 exemplarily shows the activation of the

two hidden units during training for a network that

did not ﬁnd a distinct encoding. Each input vector

is presented once per training cycle. We plotted the

activation of each hidden unit for one speciﬁc input.

The combination for the units’ activation represents

the network state and therefore, the coding of the in-

put vector. At the beginning of the training all inputs

are represented by activations around zero. At the end

of the training one can see that input vector 2 and 4

are well distinguishable while the inputs 1 and 3 re-

0 500 1000

−1

−0.5

0.5

0 500 1000

−0.5

0.5

0 500 1000

−1

−0.5

0.5

0 500 1000

−1

−0.5

0.5

cyclecycle

units’ activation units’ activation

hidden layer: input vector 1 hidden layer: input vector 2

hidden layer: input vector 3

hidden layer: input vector 4

unit 1

unit 2

Figure 5: Hidden layer output during training for the four

inputs of a network that did not succeed in training.

sult in a nearly identical activation. The network did

not learn to distinguish these input vectors.

Table 2 shows the exact numerical values for the acti-

vations caused by each input vector at the end of the

training.

Table 2: Final hidden layer activations of a network that did

not succeed in training (input 1 and 3 hardly distinguish-

able).

Input Vector Unit 1 Unit 2

1 −0.8770 0.3435

2 0.9999 0.5431

3 −0.7429 0.2746

4 0.6793 −0.9983

It might be possible to avoid such unsuccessful train-

ing results by a more sophisticated training algorithm

(e.g. a variable learning rate, a better measure for

the network error etc.). Nevertheless, some networks

learned to solve the task with the simple learning al-

gorithm we used. Figure 6 shows the activation of the

two hidden units during training for a network that

found a distinct encoding. Again, we plotted the acti-

vation of each hidden unit for one speciﬁc input vec-

tor.

Table 3 shows the exact numerical values for the acti-

vations caused by each input at the end of the training.

Table 3: Final hidden layer activations of a network that

succeeded in training (all inputs distinguishable).

Input Vector Unit 1 Unit 2

1 0.2384 0.9794

2 −0.9999 0.9876

3 −0.9988 −0.9872

4 0.9993 −0.9068

Since we are only interested in the inﬂuence of the

temporal context in the input sequence and the role of

ICFC 2010 - International Conference on Fuzzy Computation

282

0 500 1000

−1

−0.5

0.5

0 500 1000

−1

−0.5

0.5

0 500 1000

−1

−0.5

0.5

0 500 1000

0.5

cycle

cyclecycle

cycle

units’ activation

hidden layer: input vector 1

hidden layer: input vector 2

hidden layer: input vector 3

hidden layer: input vector 4

unit 1

unit 2

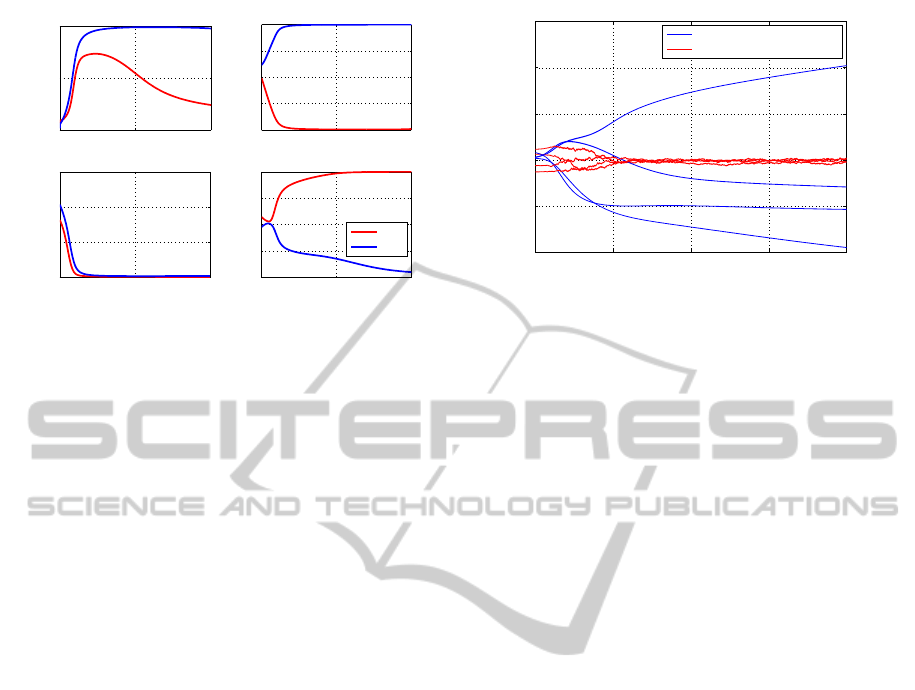

Figure 6: Hidden layer output during training for the four

inputs of a network that succeeded in training.

the context layer we did not optimise the learning al-

gorithm. By that, we have the opportunity to compare

the results of the training while the only difference is

the sequence of training inputs. An optimal learning

algorithm for the given task is not in the focus of our

study.

3.1.3 Weights of the Context Layer

The success of the training shows that the networks

use the temporal relations of the input vectors. The

question is, how is this represented in the network?

The answer lies in the weights of the network since

this is the only parameter that is changed during train-

ing. Further, the key component to sequence learning

is the context layer, thus we investigate the develop-

ment of the weights of this layer.

Two context units are fully connected to two hid-

den units. This results in four weights in the context

weight matrix, w

(1,1)

with i, j = {1, 2} (cf. Eq. 1).

Figure 7 exemplarily shows the weights of the con-

text layer during training. We plotted the four context

weights of two networks that solved the task (P

= 1

at the end of the training). Each training cycle con-

sists of four input vectors. A training of 1000 cycles

results in 4000 weight updates. The red lines show the

weights of a network trained with a random sequence.

The blue lines those of a network trained with a deter-

ministic sequence. Each line shows one weight of the

weight matrix.

For a deterministic sequence the weights take a value

between −2.5 and 2.5. Longer training would result

in higher weights, since the network tries to generate

exactly 1 at the output. This value is never reached

by the activation functions of the hidden and output

units.

The random sequence leads to vanishing context

weights. The network learns that there is no temporal

0 1000 2000 3000 4000

−2

−1

training step

weight

weights det. sequence

weights random sequence

Figure 7: Development of weights in context layer.

dependency in the input. This leads to the remarkable

result that the SRN turns into a standard feedforward

network and omits all context information.

3.2 Testing

For testing, we chose the networks that solved the task

at least in the last training cycle (P

= 1). As we will

see this criterion does not ensure that the solution the

network found is stable. We got 51 networks trained

with the deterministic sequence and 23 trained with

the random sequence for the test. The two sequence

types were presented to this networks again for 1000

cycles.

3.2.1 Test with the Deterministic Sequence

Networks Trained with the Deterministic Se-

quence should also produce comparable results

during testing. In our case 3 of the 51 networks per-

formed worse in the test run (P

= 0.25 or 0.5). An

analysis of these networks showed that two of them

did not learn a distinct encoding in the hidden layer.

In fact, the two networks did not provide a binary cod-

ing but a mixed coding or fuzzy coding which was

unstable.

The third had learned a clear encoding in the hid-

den layer but produced poor results in the test run.

Further investigation of the network showed that the

strange behaviour in the test run results from the miss-

ing context information at the initial test input. When

testing starts, the output of the context layer is set to

zero. Therefore, the ﬁrst test input is processed at

the hidden layer without contextual information. This

gap in the ﬂow of information from the context to the

hidden layer was sufﬁcient to cause “confusion” in

the network which lead to the poor results. In other

words, the network based the decision, which input

vector to code, primarily on the context of an input

then on the input itself.

IMPLICIT SEQUENCE LEARNING - A Case Study with a 4-2-4 Encoder Simple Recurrent Network

283

The mean probability of success of the 51 net-

works during testing is constant P

= 0.9657.

Networks Trained with the Random Sequence

turned into feedforward networks by setting the con-

text weights to zero. The encoding is based solely on

the current input. Therefore, we expect that it does not

matter whether the networks are tested with a random

or deterministic sequence. In case of the random se-

quence 5 of the 23 networks showed an oscillating be-

haviour with a success rate between 75% and 100%.

Apparently the 5 outliers learned an unstable solution

during training. The remaining networks solved the

task in testing as in training to 100%.

The mean probability of success of the 23 net-

works during testing is constant P

= 0.9457.

3.2.2 Test with the Random Sequence

Networks Trained with the Deterministic Se-

quence did not learn just the input itself but also

the temporal correlation between inputs. Tested on a

random sequence this temporal information is miss-

ing. Further the temporal correlation that was learned

during training can be misleading. For instance if the

network learned that input vector 1 is followed by 2

but in the next step vector 3 is presented. Then the

network has to process two conﬂicting informations.

The input layer indicates vector 3 to the hidden layer

but the context at the present time–step indicats vector

2 to the hidden layer.

This results in a poor overall performance in the

test run. Figure 8 shows the mean probability of suc-

cess of the 51 networks during testing. The spiky

character of the curve can be explained with the fact

that parts of the random sequence may be equal to the

deterministic sequence.

Networks Trained with the Random Sequence

keep the high performance during testing. The mean

probability of success of the 23 networks during test-

ing is about P

≈0.95 (Fig. 8). This can be explained

by the pure feedforward processing of these networks.

The training with the random sequence turned them

into feedforward networks, thus the learned mapping

between input and output is independent of the tem-

poral context of the input.

3.2.3 Summary of the Test Results

Table 4 shows the mean probability of success of the

tested networks for the four combinations of training

and testing.

200 400 600 800 1000

0.2

0.4

0.6

0.8

cycle

networks trained with det. sequence

networks trained with random sequence

Figure 8: Probability of success during testing with the ran-

dom sequence.

Table 4: Results of Testing.

training

det. seq. random seq.

testing det. seq. 0.9657 0.9457

random seq. ≈0.5 ≈ 0.95

Networks tested with their training sequence unsur-

prisingly perform very well in the test run. Those who

did not succeed in the test learned an unstable solution

during training.

We saw that networks trained with the determin-

istic input sequence performed very poor in the test

with a random sequence. The networks learned the

coding based on the actual input plus contextual infor-

mation. The test result shows that this contextual in-

formation is not just some add on but absolutely nec-

essary for the networks to solve the new task. Since

the networks saw just one type of input sequence they

do not generalise to other types of sequences.

The networks that were trained with a random

sequence turned into feedforward networks during

training (cf. Sec. 3.1.3). Therefore, they could deal

with any kind of input sequence since the encoding of

an input is independent of the input sequence.

3.3 Test Without Context Layer

The result of the test run with the random sequence

shows that networks trained with the deterministic se-

quence heavily rely on the temporal structure of the

input. To investigate the inﬂuence of the context layer

we tested the networks again. This time we take

the trained networks and set their context weights to

zero. Thereby networks trained with a deterministic

sequence lose the previously learned temporal corre-

lation between input vectors.

Those networks trained with a random sequence

have zero context weights already thus, the replace-

ment by zero should have no effect to them.

ICFC 2010 - International Conference on Fuzzy Computation

284

We test the modiﬁed networks with the determin-

istic sequence for 1000 cycles. Table 5 shows the

mean probability of success in this test. The perfor-

mance of the networks trained with a deterministic

sequence drops dramatically while those trained with

a random sequence still perform very well (cf. Tab. 4).

Table 5: Results of Testing without context layer.

training

det. seq. random seq.

testing det. seq. 0.5196 0.9257

Figure 9 shows the distribution of P

for the 51 net-

works trained with the deterministic sequence. Not

all networks rely on the context layer to the same ex-

tend. The majority of the networks (n = 29) achieve

= 0.5 in the test run. For 13 networks the context

layer was less signiﬁcant. They obtain a probability

of success above average, P

= 0.75. Further, 9 net-

works rely on the context layer to a greater extent and

therefore perform below average, P

= 0.25.

0 0.25 0.5 0.75 1

networks trained with det. sequence

networks trained with random sequence

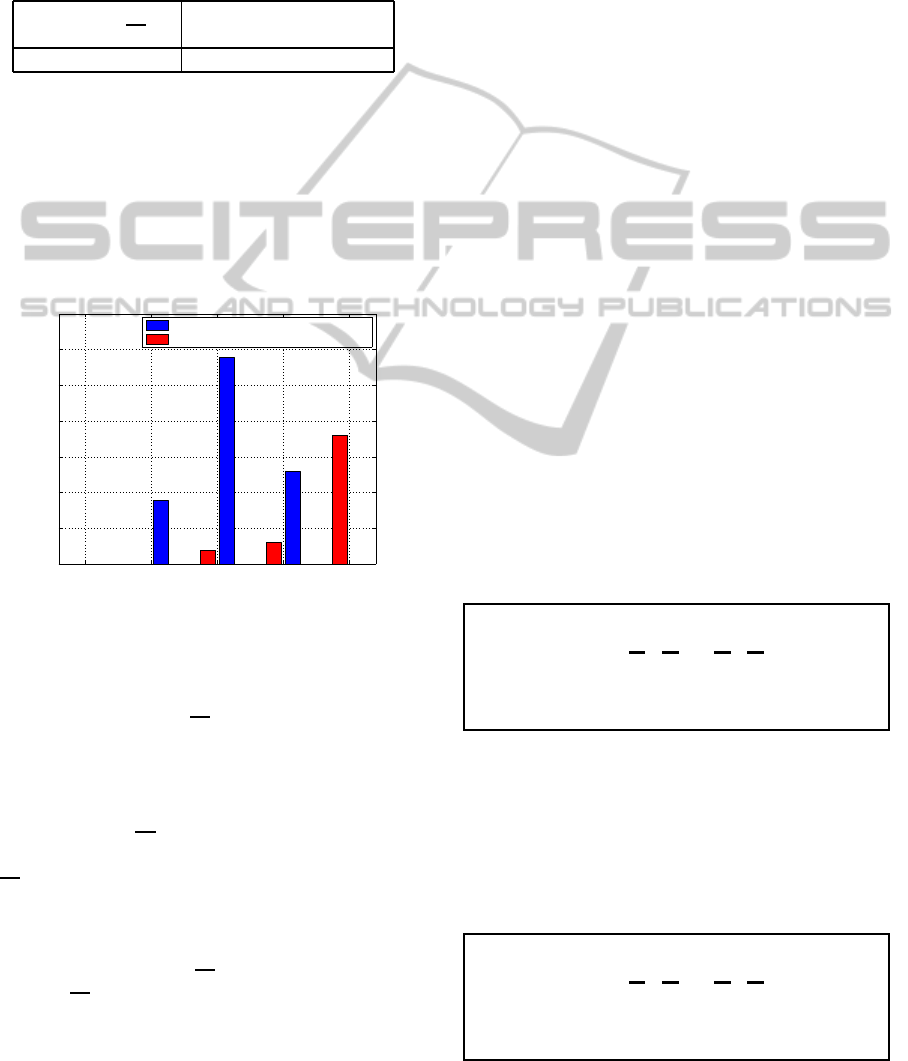

Figure 9: Distribution of success for testing without context

layer.

The 23 networks trained with a random sequence

have zero context weights already. Their probability

of success remains high,

= 0.9239. Figure 9 shows

that 18 networks succeeded the test run. Another 5

networks achieved only a probability of success of

50% or 75%. This does not imply an importance of

the context layer to these networks. The mean prob-

ability of success P

= 0.9239 is comparable to those

achieved in the test with context layer in Section 3.2.1

= 0.9457).

All in all, the test shows the relevance of the con-

text layer for networks trained with the deterministic

sequence. After removalof this layer the performance

in this test drops from P

= 0.9657 (with context

layer) to P

= 0.5196 (without context layer). Fur-

ther, Figure 9 points out that the inﬂuence of the con-

text layer may differ from network to network even if

the networks are trained in the same manner.

For networks trained with a random sequence the

context layer is of little importance as expected.

3.4 Output Sequences and their

Characteristics

3.4.1 Sequence Generation

Recurrent networks tend to oscillate, even if the input

is zero the networks produce an activation in the out-

put layer. Networks trained with a random sequence

do not oscillate since the feedback connections are

zero. We presented one initial input followed by ze-

ros for the duration of 1000 cycles and observed the

sequences that are generated. The networks trained

with a deterministic sequence produce a variety of

sequences. We observed four classes of sequences

after evaluation of the behaviour of the 51 networks

that succeeded the training with the deterministic se-

quence. The types of sequences are:

1. full cycle oscillation,

2. half cycle oscillation,

3. constant after transient oscillation,

4. others.

This distinction is not universally valid but seems to

be most adequate in terms of evaluation of the ob-

served data.

Full Cycle Oscillation (FCO): is a sequence that

reproduces the trained input sequence completely,

e.g. . . . |

cycle n

z }| {

1 2 3 4 |

cycle n+1

z }| {

1 2 3 4|. . . ,

or . . . | 2 3 4 1 | 2 3 4 1 |. . . .

In every cycle all four training inputs appear in the

order of the deterministic sequence (1, 2, 3, 4) but the

cycle does not necessarily start with “1”.

Half Cycle Oscillation (HCO): is a sequence that

reproduces some part of the trained input sequence

with the period of a half cycle,

e.g. . . . |

cycle n

z }| {

1 4 1 4 |

cycle n+1

z }| {

1 4 1 4|. . . ,

or . . . | 2 3 2 3 | 2 3 2 3 |. . . .

IMPLICIT SEQUENCE LEARNING - A Case Study with a 4-2-4 Encoder Simple Recurrent Network

285

Two input pattern appear alternating two times per cy-

cle.

Constant after Transient Oscillation (CTO): is a

sequence that takes a constant value after a transient

oscillation of about two cycles,

e.g.

cycle 1

z }| {

1 1 1 4 |

cycle 2

z }| {

2 2 2 2|

cycle 3

z }| {

2 2 2 2|. . . ,

or 4 3 4 3 | 4 3 4 3 |1 2 2 2 |. . . .

Others: are the sequences that do not ﬁt into the

three classes above. For instance, sequences that re-

produce the trained input with a blemish or sequences

that produce an oscillation with a period that spans

over several cycles,

e.g. . . . |

cycle n

z }| {

1 3 3 4 |

cycle n+1

z }| {

1 3 3 4|

cycle n+2

z }| {

1 3 3 4|. . . ,

or . . . | 1 1 2 2 |2 3 3 3 |4 4 1 1 |. . . .

Figure 10 shows the distribution of the generated se-

quences over the classes of sequences. Most of the

networks (n = 23) generate the sequence presented

during training after activation with one single input

pattern. In terms of sequence learning these networks

performed best. Another group of networks (n = 17)

has an oscillating behaviour with the period of a half

cycle. This can be interpreted as a clock signal with

two pulses/beats per cycle. A constant output is pro-

duced by 5 networks after a short transient oscillation.

The remaining networks (n = 6) produced some oscil-

lation that does not ﬁt into the aforementioned class.

FCO HCO CTO others

Figure 10: Distribution of sequences generated by 51 net-

works trained with deterministic sequence over classes of

sequences.

The key component to the generation of an oscilla-

tion by the network is the weight matrix of the context

layer. After one initial input, the input layer makes

no further contribution to the processing in the net-

work. The output layer provides the encoding from

the binary representation of the network state into the

1–of–4 coded representation at the output. The se-

quence of network states is solely generated by the

interplay of the hidden and context layer. Figure 11

shows the mentioned part of the SRN.

Figure 11: Interaction of Hidden and Context Layer.

The process of sequence generation can be described

(1)

(t) = tanh(w

(1,1)

(1)

(t −1) + w

(1,1)

(1)

(t −1)),

(7)

(1)

(t) = tanh(w

(1,1)

(1)

(t −1) + w

(1,1)

(1)

(t −1)),

with initialisation

(1)

(t = 0) = tanh(

∑

(1,0)

(0)

(t = 0)). (8)

After the initial input, the network state y

(1)

(t) de-

pends only on the last state y

(1)

(t −1). The transition

of one state to another is controlled by the context

weight matrix w

(1,1)

. From this follows, that the prop-

erties of w

(1,1)

determine which sequence the network

generates or in other words, which sequence the net-

work learned during training.

3.4.2 Properties of the Context Matrix

By polar decomposition of a matrix it is possible to

separate the matrix into a component that stretches

the space along a set of orthogonal axes and a rota-

tion (Conway, 1990). The polar decomposition of a

complex matrix A has the form

A = RS (9)

where R is a unitary matrix and S is positive-

semideﬁnite. The matrix S represents the component

that stretches the space while R represents the rota-

tion. The matrix S is given by

S =

√

∗

A (10)

where A

∗

denotes the conjugate transpose of A. If A

is invertible, then the matrix R is given by

R = AS

−1

. (11)

We used the polar decomposition to extract some

properties of the context matrix that are related to the

generation of the speciﬁc types of sequences.

ICFC 2010 - International Conference on Fuzzy Computation

286

Full Cycle Oscillation. The component of the con-

text matrix w

(1,1)

that represents the rotation, takes

the form of a rotation matrix that acts as a rotation in

Euclidean space. For example

(1,1)



cos(Θ) −sin(Θ)

sin(Θ) cos(Θ)



. (12)

By that the generation of a sequence (7) turns into

(1)

(t) = tanh(R

(1,1)

(1)

(t −1) + R

(1,1)

(1)

(t −1)),

(13)

(1)

(t) = tanh(R

(1,1)

(1)

(t −1) + R

(1,1)

(1)

(t −1)),

which is a rotation of vector y

(1)

in the y

–plane

(counter)clockwise by an angle of Θ. This view

neglects the effect of the component of w

(1,1)

that

stretches the space. This is possible since the hyper-

bolic tangent always maps y

(1)

on values between −1

and 1. For the observed context matrices the angle Θ

lies between 78 and 100 degree. Figure 12 illustrates

the process of the sequence generation. At every time

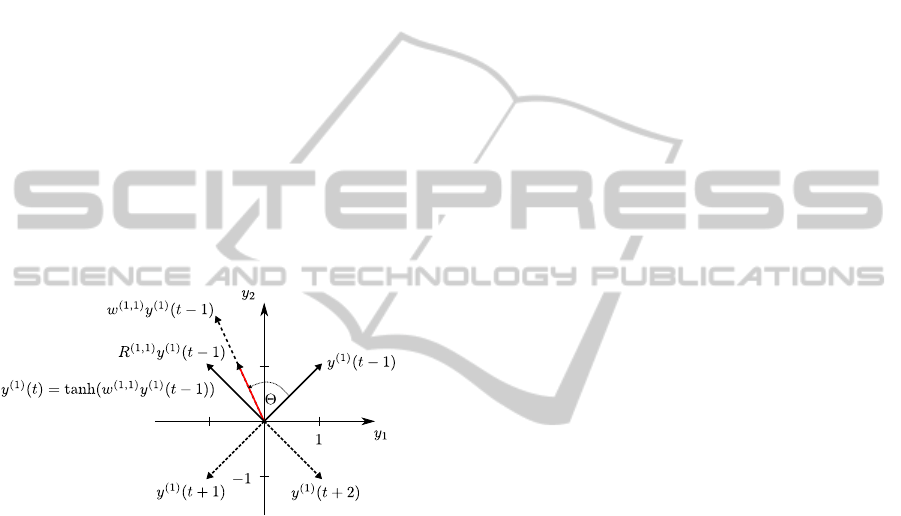

Figure 12: Rotation of y

(1)

by the context matrix w

(1,1)

step the context matrix rotates y

(1)

into a newquadrant

where the hyperbolic tangent maps the single compo-

nents of the rotated vector onto the nearest 1 or −1.

By that y

(1)

passes all four quadrants and therefore

we observe all four training inputs at the output of the

network.

Half Cycle Oscillation. For networks that generate

a HCO the component of w

(1,1)

that represents the ro-

tation takes the form of a reﬂection matrix. A reﬂec-

tion matrix is orthogonal with determinant −1. The

eigenvalues are λ

= 1 and λ

= −1. In terms of a

geometric interpretation w

(1,1)

reﬂects y

(1)

from one

quadrant into another and reverse. Hence, y

(1)

passes

two quadrants and therefore, we observe only two of

the training inputs at the output of the network.

Constant after Transient Oscillation and Other.

For these types we found no property in the context

matrix that is shared by all observed matrices by now.

A deeper investigation of the relation between proper-

ties of the contextmatrix and these sequences remains

future work. Further the inﬂuence of the initial input

on the whole process needs to be analysed.

4 CONCLUSIONS

The learning task was constructed in a way such that

the sequential order of the input was not needed for

the solution. In this sense one can speak aboutimplicit

sequence learning, since the network was never ex-

plicitly trained to reproduce or predict the sequence.

During training (cf. Section 3.1) the sequential or-

der results in a higher learning performance. Nearly

twice as many networks learned the coding if trained

with a deterministic sequence than with a random one

(cf. Figure 4).

The observation of the weights in the context layer

shows the inﬂuence of this network layer in the pro-

cess of implicit sequence learning. A random input

sequence provides no sequential information and a

network trained with such input learns to reject the

information provided by the context layer. This re-

sults in vanishing context weights (cf. Figure 7). By

that the network turns into a standard feedforwardnet-

work.

The testing of the trained networks in Section 3.2

shows the importance of a previously learned sequen-

tial correlation between single inputs. The perfor-

mance of the networks trained with a deterministic

sequence heavily depends on the presence of the tem-

poral context in the input (cf. Figure 8 and Table 4).

The relevance of the context layer for the net-

works trained with the deterministic sequence was in-

vestigated by a test without this layer in Section 3.3.

The overall performance drops dramatically after this

change (cf. Table 4 and Table 5) but not all networks

rely on the context layer to the same extent (cf. Fig-

ure 9).

There is no sequence learning without a context

layer that provides the network with some memory.

On the other hand, there is no guarantee that the net-

work learns exactly the presented sequence in this

layer. In fact, the input sequence often can only be re-

produced in combination with an activation from the

input layer. Section 3.4 clearly shows this fact. The

variety of generated sequences (cf. Figure 10) points

out that the networks ﬁnd different representations of

the sequential information. The context weight matrix

is the determining factor in this process.

IMPLICIT SEQUENCE LEARNING - A Case Study with a 4-2-4 Encoder Simple Recurrent Network

287

ACKNOWLEDGEMENTS

The authors acknowledge the support provided

by the federal state Sachsen-Anhalt with the

Graduiertenf¨orderung (LGFG scholarship).

REFERENCES

Cleeremans, A. (1993). Mechanisms of implicit learning:

connectionist models of sequence processing. MIT

Press, Cambridge, MA, USA.

Conway, J. (1990). A Course in Functional Analysis (Grad-

uate texts in mathematics). Springer.

Elman, J. L. (1990). Finding structure in time. Cognitive

Science, 14:179–211.

Gl¨uge, S., Hamid, O., and Wendemuth, A. (2010). Inﬂuence

of the temporal context on a simple recurrent network

in a classiﬁcation task. In 7th International Sympo-

sium on Neural Networks (ISNN 2010).

Gupta, L. and McAvoy, M. (2000). Investigating the pre-

diction capabilities of the simple recurrent neural net-

work on real temporal sequences. Pattern Recogni-

tion, 33(12):2075 – 2081.

Hamid, O., Wendemuth, A., and Braun, J. (2010). Tempo-

ral context and conditional associative learning. BMC

Neuroscience, 11(1):45.

Heskes, T. M. and Kappen, B. (1991). Learning processes

in neural networks. Phys. Rev. A, 44(4):2718–2726.

Heskes, T. M. and Kappen, B. (1993). Mathematical ap-

proaches to neural networks, chapter On-line learn-

ing processes in artiﬁcial neural networks, pages 199–

233. Elsevier Science Publishers B. V.

Mandler, G. and Dean, P. J. (1969). Seriation: Development

of serial order in free recall. Journal of Experimental

Psychology, 81(2):207–215.

Reber, A. S. (1989). Implicit learning and tacit knowl-

edge. Journal of Experimental Psychology: General,

118(3):219–235.

Sluˇsn´y, S., Vidnerov´a, P., and Neruda, R. (2007). Behav-

ior emergence in autonomous robot control by means

of feedforward and recurrent neural networks. Pro-

ceedings of the World Congress on Engineering and

Computer Science 2007 WCECS 2007, October 24-

26, 2007, San Francisco, USA.

Ubeyli, E. D. and

Ubeyli, M. (2008). Recurrent Neural Net-

works, chapter Case Studies for Applications of El-

man Recurrent Neural Networks. InTech, Croatia.

ICFC 2010 - International Conference on Fuzzy Computation

288
