A COMPREHENSIVE SOLUTION TO PROCEDURAL

KNOWLEDGE ACQUISITION USING INFORMATION

EXTRACTION

Ziqi Zhang, Victoria Uren and Fabio Ciravegna

Department of Computer Science, Unversity of Sheffield, Sheffield, U.K.

Keywords: Information extraction, Knowledge acquisition, Procedural knowledge, Instructional text, Semantic,

Ontology.

Abstract: Procedural knowledge is the knowledge required to perform certain tasks. It forms an important part of

expertise, and is crucial for learning new tasks. This paper summarises existing work on procedural

knowledge acquisition, and identifies two major challenges that remain to be solved in this field; namely,

automating the acquisition process to tackle bottleneck in the formalization of procedural knowledge, and

enabling machine understanding and manipulation of procedural knowledge. It is believed that recent

advances in information extraction techniques can be applied compose a comprehensive solution to address

these challenges. We identify specific tasks required to achieve the goal, and present detailed analyses of

new research challenges and opportunities. It is expected that these analyses will interest researchers of

various knowledge management tasks, particularly knowledge acquisition and capture.

1 INTRODUCTION

Procedural knowledge defines sequences of

activities designed to achieve an objective. They are

commonly embedded in the form of “instructional

texts” (a term often used interchangeably with

“procedural texts”) and are heavily relied upon when

learning to perform new tasks to use new devices

(Paris et al, 2005). Typical examples of instructional

texts include cooking recipes, car maintenance

guides, product usage manuals, and teaching texts.

The importance of procedural knowledge has

sparked the interest of knowledge management

researchers, who have dedicated considerable

amounts of work to relevant research. Among these,

many works have employed corpus analyses to study

the topological, grammatical and rhetorical

structures of instructional texts to understand what

elements are essential to compose effective

instructions (Kosseim, 2000; Aouladomar, 2005a;

Aouladomar & Saint-Dizier, 2005; Bielsa &

Donnell, 2002). Others have exploited findings from

these works to develop semi-automatic Natural

Language Generation (NLG) systems to help users

create readable instructions (Power et al, 1998; Tam

et al, 1998). While these early NLG systems adopt a

knowledge elicitation process in which domain

experts are extensively involved to provide the

knowledge to systems, Brasser & Linden (2002) and

Paris et al. (2002) recognise the “knowledge

acquisition bottleneck” of such processes and

propose to use information extraction technologies

to automatically extract structured procedural

knowledge from largely available heterogenous

resources, including unstructured descriptive texts.

Despite the wide spectrum of relevant research,

we identify several limitations of these works.

Firstly, little effort has been made to establish a

comprehensive set of techniques for automating the

acquisition of procedural knowledge from textual

data, which are commonly available existing

repositories of procedural knowledge. Although

some research has been carried out towards this

direction (Brasser & Linden, 2002; Paris et al., 2002;

Paris et al., 2005), their studies are restricted to

solving sub-tasks of the entire process. Secondly,

studies on instructional texts have been focusing on

recognising the compositional elements of

instructions (e.g., activities, objects, purposes) and

their hierarchical relationships (e.g., sequences and

transitions) with no link to the specific domain in

question. It is believed that capturing the domain

specific semantics of instructions, in addition to

compositional elements, will become increasingly

432

Zhang Z., Uren V. and Ciravegna F..

A COMPREHENSIVE SOLUTION TO PROCEDURAL KNOWLEDGE ACQUISITION USING INFORMATION EXTRACTION.

DOI: 10.5220/0003091104320437

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2010), pages 432-437

ISBN: 978-989-8425-28-7

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

important to support machine understanding and

manipulation of procedural knowledge to assist

users with their tasks (Sabou et al, 2009). These

points are discussed further in the next section.

This paper proposes using information extraction

techniques to address these issues as the next major

research challenge in procedural knowledge

acquisition and information extraction. The

remainder of this paper is structured as follows:

Section 2 discusses these issues in details and

outlines research challenges; Section 3 identifies key

tasks required to tackle the challenges and proposes

a system architecture that integrates some

information extraction techniques to achieve the

goal; Section 4, 5, 6 describe these tasks in details,

and identify new research challenges and

opportunities involved in individual tasks. Section 7

concludes this paper.

2 RESEARCH CHALLENGES

Previously, the goal of most studies on procedural

knowledge has been the generation of readable

instructions for users, who are assumed to possess

the necessary domain knowledge to understand and

follow the instructions. Recent research on smart

environments and smart products (Sabou et al.,

2009) has set out a new challenge for procedural

knowledge acquisition. It has been recognised that

today the increasing complexity of products and

associated tasks has hampered the usability of

products. For example, modern cars are equipped

with many new functionalities (e.g., audio

equipment) and the instruction manual can be

difficult to read (e.g., in hundreds of pages)

(Mühlhäuser, 2008); likewise, cooking a meal may

involve multiple kitchen appliances, each requiring

different domain specific knowledge (Sabou et al.,

2009) that users may not necessarily possess. To

address this issue, the research advocates knowledge

management technologies to equip products with the

capabilities of understanding and manipulating

procedural knowledge such that they are smart

enough to assist users with complex tasks, to guide

users through a process, and to handle exceptions

and substitutions. Enabling such capability requires

procedural knowledge to be defined in machine

understandable forms within the domain-specific

context using ontologies, which would enable

knowledge fusion (Preece et al., 1999) from

heterogeneous sources and automatic reasoning.

The second research challenge concerns the need

for (semi-) automated means to tackle the long-

recognised “knowledge acquisition bottleneck”

(Welty & Murdock, 2006). On the one hand,

increasing amount of relevant information become

documented and available in various sources such as

internet websites (e.g., eHow.com), do-it-yourself

books, user manuals (e.g., car manuals), and recipe

books, enabling the average layman to learn new

skills and perform complex tasks. On the other hand,

to provide formalised and machine understandable

procedural knowledge it is essential to automate the

extraction of relevant information from these

heterogeneous sources and turning them into

structured forms. A comprehensive set of techniques

must be applied to address different stages in the

process, from extracting topic-specific instructional

text to semantifying the instructions.

The interest in tackling these challenges has been

brought up in research on question answering.

Previously, the research has focused on responding

to fact-like questions. A recent trend has however,

diverted to solving procedural questions

(Aouladomar, 2005; Murdock et al, 2007), and

enabling machine understanding and reasoning of

questions in order to provide cooperative answers

(Benamara, 2004). The first aspect is closely related

to the increasing demand for automatic retrieval and

acquisition of instructional information from

heterogeneous sources; the second addresses the

capability to reason and manipulate knowledge by

incorporation of semantic technologies (e.g.,

ontologies) to provide alternative answers when

definitive answers are not available (i.e., being

cooperative).

We encourage researchers to develop new

methods or adapt existing techniques to address

these challenges. Particularly, it is believed that

recent advances in information extraction have

delivered a suite of techniques that may contribute to

a comprehensive solution. In the following, a set of

key tasks that are required to build a complete

system for procedural knowledge acquisition is

proposed. They are analysed to identify relevant

techniques and the new challenges and opportunities

facing each individual technique. We believe this

will facilitate researchers to choose their research

topics of interest.

3 TOWARDS A SOLUTION

We propose a system architecture that takes textual

sources (e.g., a recipe book) of instructional

information and domain ontologies as input, and that

produces structured procedural knowledge

individually identified by the task objectives, and

semantically bound to the domain of interest (e.g.,

A COMPREHENSIVE SOLUTION TO PROCEDURAL KNOWLEDGE ACQUISITION USING INFORMATION

EXTRACTION

433

cooking or car maintenance). We acknowledge the

existence of procedural knowledge in other media

such as pictures and videos; however, we aim to

focus on the textual resources because of their richer

availability and complementary role to other media.

Three major sub-tasks that are involved in the

processing are identified, including 1) extracting

passages of instructional information from original

documents (passage extraction); 2) recognising

instructional components and their hierarchical

relations (procedural analysis); 3) domain-specific

annotations of instructions (semantic tagging). The

process is illustrated in Figure 1 below. Sections 4 to

6 in the following discuss each sub-task in detail.

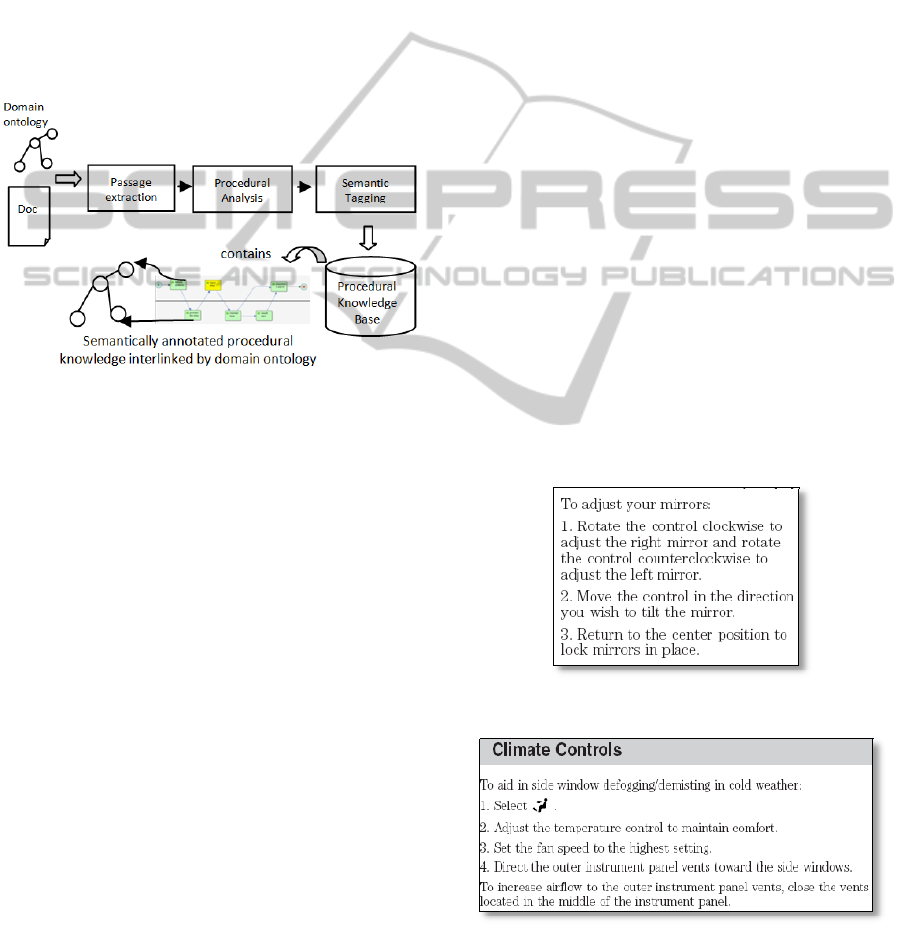

Figure 1: Illustration of the envisioned process of

procedural knowledge acquisition.

4 PASSAGE EXTRACTION

Given an input document containing instructional

information, the first step is to identify passages that

describe particular instructions for individual tasks.

Previous research on instructional texts (Brasser &

Linden, 2002; Paris et al., 2002; Paris et al., 2005)

has all assumed the availability of such passages.

However, passage identification and extraction is a

non-trivial issue in procedural knowledge

acquisition, and must be addressed as the first step in

practical scenarios. For instance, a car manual

contains instructions about carrying out different

tasks; it also contains a good proportion of non-

instructional data, such as precautions, warnings,

illustrations, introductions. Likewise, a recipe book

contains procedures of making different meals, each

of which may contain non-instructional sections

describing ingredients or background information

about the recipe. Obviously, procedural knowledge

acquisition from such data must firstly identify the

boundaries between passages and extract passages of

interest only.

Passage identification and extraction is a topic

that has been actively studied in the information

retrieval (Wang & Si, 2008) and question answering

communities (Tiedemann, 2007). The main goals are

defined as segmenting documents into potential

passages and extracting relevant ones that satisfy a

retrieval need. Traditionally, the segmentation

strategy has focused on using physical document

structure such as paragraphs, and sentences; defining

passages of fixed length; and detecting topic shifts

between passages (Oh et al., 2007). The extraction

of passages is then formulated as a retrieval task, in

which segmented passages are ranked according to

their similarity (semantic or distributional) to a

query or question (Tiedemann, 2007).

Essentially, the first step in procedural

knowledge acquisition can be formulated as an

information retrieval problem that asks “find all

passages that are instructional texts in the

document”, such that the classic passage

segmentation and extraction techniques can be

applied. However, the scope of the query is more

general than topic-specific queries (e.g., “find the

texts about cooking sea food pizza”) that current

research focuses on. It is in fact so general that

traditional content-based feature modelling methods

such as using content words and their meanings may

fail. To illustrate, consider the sample instructions

shown in Figure 2a and 2b, both of which are

extracted instructions from a Ford 2006 Focus car

manual (from http://www.focusplanet.com/).

Figure 2a: Sample instruction of “Adjust mirrors”.

Figure 2b: Sample instruction of “Climate control”.

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

434

Both samples are good candidate instructional

texts and therefore, should be extracted as valid

passages of interest for procedural analysis. It is

obvious that the two passages are about different

topics. The similarity of the two passages cannot be

captured by modelling their content. Therefore, to

effectively extract both passages and other similar

ones, alternative features must be explored.

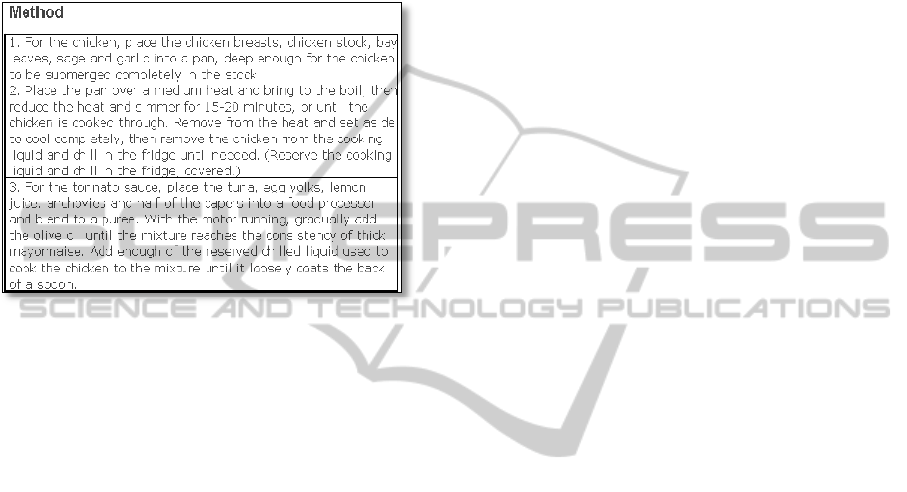

Figure 3: Sample instruction of a recipe extracted from

BBC.co.uk.

Consider again an instruction of a recipe shown

in Figure 3. Although it is evident that the whole

piece of text is a valid passage describing a coherent

topic of cooking a meal, it is also worth noting that

sub-steps 1-2 and 3 are also valid passages

describing sub-procedures of the task. Being able to

identify such nested structure within instructional

texts enables better understanding of a procedure.

Therefore, passage segmentation and extraction

should also cope with such nested relations.

Our initial analyses of a collection of online

recipes and car manuals reveal that although

content-based features used in classic passage

extraction may be of limited use, alternative cues

may be exploited to capture the regularities in such

data. For example, instructional texts are often

characterised by sequences of activities, identified

by bullet point structures. Within a restricted domain

such as a single document or a set of similar

documents, such texts are often formatted by a

distinctive set of styles (e.g., font family, font size,

list structure), or identified by headings of

distinctive styles. Also, previous studies on

instructional texts have shown that the language

used in composing instructions often employs a

“stereotypical” set of grammatical, sentential and

rhetorical structures (Kosseim, 2000; Aouladomar,

2005). For example, Linden & Brasser (2002) argue

that the phrasal structure “to do something” often

indicates the goal to be achieved by a procedure.

These cues bear structural information of a

passage that are potentially effective at identifying

the presence of procedural information and their

boundaries, and may complement or even replace

the content-based features. We believe exploiting

such features for passage extraction can lead to

promising results in procedural knowledge

acquisition.

5 PROCEDURAL ANALYSIS

Once proper passages of instructions have been

extracted, the next step in procedural knowledge

acquisition is the identification of compositional

elements in a procedure, such as actions, objects,

and actors; and their hierarchical relations, such as

sequence, and transitions. Multiple terminologies

have been used to describe the whole or parts of this

analysis process, including “hierarchical

decomposition” (Tam et al., 1998), “rhetorical

structure analysis” (Kosseim, 1998; Aouladomar,

2005a), “task concept” and “task relations” (Paris et

al., 2002). For the sake of simplicity we refer to this

process as “procedural analysis”.

The majority of previous works on instructional

texts address this process. Studies have shown that

instructions are often composed of a limited set of

building blocks, such as objectives, participants,

objects and actions, sequences and transitions. And

the language used for describing instructions

exhibits regular grammatical, sentential and

rhetorical structures. The phenomenon is referred to

as “stereotypical content and structure” by Kosseim

(2000), and is also found common across different

languages (Bielsa, 2002; Kosseim, 2000). Therefore,

intuitively, one could apply Natural Language

Processing (NLP) techniques to perform structural

analysis, such as tokenisation, part of speech

tagging, sentence parsing and discourse analysis.

Next, a limited set of rules exploiting such

regularities could be built to perform procedural

analysis. Typically, Brasser & Linden (2002) and the

extension of their work by Paris et al. (2005) built a

finite-state grammar that essentially employs rules to

identify key elements in a procedural description and

their relations. All of these systems isolate domain-

specific knowledge from the analysis, by focusing

on recognising “closed” classes of words such as

verbs and connectives as indicators of key elements

or relations of a procedure. For example, verbs most

likely indicate an action, and words that follow the

verbs are likely to be objects.

A COMPREHENSIVE SOLUTION TO PROCEDURAL KNOWLEDGE ACQUISITION USING INFORMATION

EXTRACTION

435

Although such methods have domain

independence, they suffer from two limitations.

Firstly, the analysis is not at semantic level but is

literal and syntactic. They may recognise a verb as

an action and the following noun as an object, they

do not analyse the domain specific meaning of the

verb and the object, and thus do not enable

understanding of the procedure. This issue will be

discussed in detail in Section 6. Secondly, ignoring

domain-specific knowledge may cause skewed

performance of systems. For example, in biomedical

information extraction, a specifically trained part of

speech tagger must be used for biomedical texts in

order to capture special term and grammar

compositions in the domain (Tsuruoka et al., 2005).

Domain specific terms (e.g., “On” and “Off”

represent control switches on an MP3 player; “tbsp”

means “table spoon”, and “oz”, “gram” are weight

units in recipe texts) are found common in domain-

specific instructions. Without domain-specific

knowledge it can be difficult to recognise these

terms and, therefore, corresponding objects and

actions. On the other hand, if certain forms of

domain-specific knowledge become available, one

can use them to guide the recognition of

compositional elements and their relations in

procedural analysis.

Automatically constructing and extracting

domain-specific knowledge from heterogeneous

sources has been a constant focus in the research of

information extraction. Many techniques such as

lexicon construction (Ando, 2004), term recognition

(Ananiadou, 1994) and entity recognition (Cimiano

& Völker, 2005) are designed for this purpose. It is

believed that incorporating these techniques can aid

the task of procedural analysis.

6 SEMANTIC TAGGING

Previous works on procedural knowledge acquisition

terminate after the procedural analysis stage, since

the focus has been generating human readable

instructions. As argued in the previous sections, it is

envisioned that the future studies on procedural

knowledge acquisition should address machine

understanding and manipulation of knowledge in

order to provide systems with the capability of

guiding users through complex tasks to achieve their

objectives. The benefits of such capability could be

illustrated using several short scenarios. For

example, a VW Golf car user may query a procedural

knowledge base for “how to adjust side mirror”.

Assuming the knowledge base contains only

instructions of a 2006 Ford Focus model,

understanding that Golf and Focus are both models

of cars but belong to different manufacturers, the

knowledge base can suggest the similar procedure

(such as Figure 2a) found in the Ford car knowledge

base as a potentially valid substitute. In a cooking

scenario, understanding that “tbsp”, “oz”, “gram”

are all weight units, the knowledge base can convert

weights between different measures and adjust

interaction with users depending on their

preferences, such that one is no longer troubled with

finding out how much is a “tbsp” or “oz”. In a smart

products environment, participating devices in a

procedure may collaborate to proactively take over

certain sub-tasks from users. For example, in helping

users with the roast turkey recipe, knowing that

“pre-heat oven to 200 degree for 30 mins” and

“steam vegetables using steamer for 20mins” are

two sub-processes each involving one domain

specific “smart” product participant (oven and

steamer), the knowledge base may delegate the sub-

processes to those devices, which are capable of

performing sub-procedures automatically without

requiring user intervention (e.g., the oven

automatically starts, sets temperature, and triggers

timer to monitor the process).

Although enabling such high level of intelligence

may be long term research that requires integration

from many scientific disciplines, advances of

relevant technologies have already enabled

researchers to take the first step (Mühlhäuser, 2008).

Procedural knowledge acquisition must take one

step further from procedural analysis (Section 6) by

binding the knowledge acquired to domain specific

semantics. Essentially, domain-specific ontologies

must be used to index procedural knowledge, such

that knowledge fusion and reasoning capabilities can

be supported. The process depends on a number of

information extraction tasks, such as domain specific

entity recognition (Cimiano & Völker, 2005) and

ontology population (Cimiano, 2006). Although

classic approaches already exist, efforts should be

made to minimise a system’s dependence on human

supervision (e.g., providing large amounts of

examples) and addressing domain portability (i.e.,

extracting domain-specific knowledge from different

domains). Additionally, the characteristics of

instructional texts described in Section 5 may serve

as useful cues in developing extraction systems.

7 CONCLUSIONS

This paper discusses automating procedural

knowledge acquisition using information extraction

techniques. The importance of procedural

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

436

knowledge has long been recognised and relevant

research has been performed. However several

limitations of these works have been identified,

namely, lack of comprehensive set of (semi-)

automatic techniques to tackle the acquisition

bottleneck, and the capability of enabling machine

understanding and manipulation of procedural

knowledge. It is believed that these are the two

pressing issues that must be addressed in future

research on procedural knowledge acquisition, the

evidence for which can be found in the recent trends

of relevant research and the emergence of smart

product research. This paper argues for applying

various information extraction techniques to address

different stages in procedural knowledge acquisition

to form a comprehensive solution. Specific tasks

required to achieve the goal have been identified

with new challenges and opportunities analysed. It is

believed that these will create new interest in the

research of information extraction and procedural

knowledge acquisition, also potentially other aspects

of knowledge management, such as knowledge

representation.

ACKNOWLEDGEMENTS

Part of this research has been funded under the EC

7th Framework Programme, in the context of the

SmartProducts project (231204).

REFERENCES

Ando, R., (2004). Semantic Lexicon Construction

Learning from Unlabeled Data via Spectral Analysis.

Proceedings of CoNLL’04.

Aouladomar, F., (2005). A Preliminary Analysis of the

Discursive and Rhetorical Structure of Procedural

Texts. In Symposium on the Exploration and

Modelling of Meaning

Aouladomar, F., Saint-Dizier, P., (2005). An Exploration

of the Diversity of Natural Argumentation in

Instructional Texts. In Proceedings of IJCAI’05

Workshop on Computational Models of Natural

Argument. p.69-72

Benamara, F., (2004). Cooperative question answering in

restricted domains: the WEBCOOP experiment. The

ACL Workshop on QA in Restricted Domains.

Bielsa, S., Donnell, M., (2002). Semantic Functions in

Instructional Texts: A Comparison between English

and Spanish. In Proceedings of the 2nd International

Contrastive Linguistics Conference, p.723-732

Brasser, M., Linden, K., (2002). Automatically Eliciting

Task Models From Written Task Narratives. In

Proceedings of the 4

International Conference on

Computer-Aided Design of User Interfaces, p.83-90

Cimiano, P., (2006). Ontology learning and population

from text: algorithms, evaluation and applications,

Springer.

Cimiano, P., Völker, J., (2005). Towards large-scale,

open-domain and ontology-based named entity

classification, Proceedings of RANLP’05.

Ananiadou, S. (1994) A methodology for automatic term

recognition. Proceedings of COLING ’94.

Kosseim, L., (2000). Choosing Rhetorical Structures to

Plan Instructional Texts. In Journal of Computational

Intelligence, Vol. 16, p408-455

Max Mühlhäuser, (2008) Smart Products: An Introduction.

In: Constructing Ambient Intelligence - AmI 2007

Workshops, pp. 158-164, Springer Verlag.

Murdock, V., Kelly, D., Croft, W., Belkin, N., Yuan, X.,

(2007). Identifying and improving retrieval for

procedural questions. In Information Processing &

Management, Vol. 43 (1), pp. 181-203

Oh, H., Myaeng, S., Jang, M., (2007). Semantic passage

segmentation based on sentence topics for question

answering. Journal of Information Sciences, Vol. 177

Paris, C., Colineau, N., Lu, S. (2005) Automatically

Generating Effective Online Help. In International

Journal on E-Learning. Association for the

Advancement of Computing in Education

Paris, C., Linden, K., Lu, S. (2002). Automated

Knowledge Acquisition for Instructional Text

Generation. In Proceedings of SIGDOC’02.

Power, R., Scott, D., Evans, R. (1998). What You See Is

What You Meant: direct knowledge editing with

natural language feedback. In ECAI’98.

Preece, A., Hui, K., Gray, A., Marti, P., Bench-Capon, T,

Jeans, D., Cui, Z. (1999). The KRAFT architecture for

knowledge fusion and transformation. In Expert

Systems. Springer

Sabou, M., Kantorovitch, J., Nikolov, A., Tokmakoff, A.,

Zhou, X., and Motta, E., (2009). Position Paper on

Realizing Smart Products: Challenges for Semantic

Web Technologies, In: The 2nd International

Workshop on Semantic Sensor Networks, collocated

with ISWC'09

Tam, R., Maulsby, D., Puerta, A. (1998). U-TEL: A Tool

for Eliciting User Task Models from Domain Experts.

Proceedings IUI’98, ACM

Tiedemann, J., (2007). Comparing document segmentation

strategies for passage retrieval in question answering.

In Proceedings of RANLP 07.

Tsuruoka, Y., Tateishi, Y., Kim, J., Ohta, T., McNaught,

J., Ananiadou, S., Tsujii, J. (2005) Developing a

Robust Part-of-Speech Tagger for Biomedical Text,

Advances in Informatics, 10

Panhellenic Conference

on Informatics

Wang, M., Si, L., (2008). Discriminative probabilistic

models for passage based retrieval. Proceedings of the

31st annual international ACM SIGIR

Welty, C., Murdock, J., (2006). Towards Knowledge

Acquisition from Information Extraction. ISWC2006.

A COMPREHENSIVE SOLUTION TO PROCEDURAL KNOWLEDGE ACQUISITION USING INFORMATION

EXTRACTION

437
