CONCEPTUAL MODELS FOR METADATA INTEGRATION

AND ARCHITECTURE EVOLUTION

Christian Lettner, Christian Hawel, Bernhard Freudenthaler

Software Competence Center Hagenberg GmbH (SCCH), Softwarepark 21, Hagenberg, Austria

Ewald Draxler

voestalpine Stahl GmbH, voestalpine Straße 3, Linz, Austria

Keywords: Architecture, Conceptual Model, Integration, Metadata, Ontology, Semantic Technology, Topic Maps.

Abstract: Typical organizations operate several systems to perform their business tasks. To support the decision

making process, the data processed by these systems must be integrated into a global, consolidated view. As

each system supports a different business process and therefore operates in a different context, the data

stored in these systems can have slightly different semantics. This semantic gap is one of the main reasons

that data integration is a difficult task. The same challenges also apply to technical and business metadata.

To resolve this semantic gap, conceptual models are proposed as the foundation for metadata integration.

They are used to identify, interconnect and evaluate the similarity of concepts and to provide a vital source

for architectural analysis. The conceptual model should provide a sound understanding of the domain and

act as a general entry point for users who want to learn more about the system architecture.

1 INTRODUCTION

In most organizations the information system

architecture is grown over time. This is also true for

the range of functionalities these systems provide, as

well as the underlying data models. If new

functionality has to be implemented, the quickest

and cheapest strategy is to implement it within the

existing system of the requesting user. Furthermore,

implementing the new functionality from scratch

would fulfill the purpose it was requested for.

Looking at other systems and reusing the existing

functionality seems to be a more exhaustive and

stressful way of developing extensions. This is

especially true when the remote functionality

performs the task slightly different than is needed by

the new request. All these conditions stimulate the

emergence of non-integrated information systems

that are very difficult to manage. The problems can

become virulent when corporate reporting demands

integration of information from various systems into

a single version of the truth.

One problem with non-integrated information

architectures is that a so-called metadata map across

all systems is often missing. This can lead to a

situation where nobody is able to grasp the complete

data architecture (i.e., nobody has an overview of

which data is processed in which systems). Because

various systems process the same information in a

different context, understanding the exact meaning

of an information element in system A compared to

system B gets even more challenging. To get a

complete picture of an organization’s data

architecture this semantic gap must be expressed in

the organizational metadata map. The metadata of

the individual systems has to be enriched with

semantic information that enables access to a global,

integrated view of the organization.

Migrating from a non-integrated information

system to a single version of the truth takes time. In

most cases, the first step is to reach a consensual

catalog of vocabulary, which is valid for the entire

organization. This catalog, also called a controlled

vocabulary, must reflect semantic differences

between terms used in different organizational units.

Once such a vocabulary is established, the next step

is to connect the vocabulary to the metadata of the

individual systems. As a result, the individual

systems metadata gets integrated at the semantic

269

Lettner C., Hawel C., Freudenthaler B. and Draxler E..

CONCEPTUAL MODELS FOR METADATA INTEGRATION AND ARCHITECTURE EVOLUTION.

DOI: 10.5220/0003094802690275

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2010), pages 269-275

ISBN: 978-989-8425-29-4

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

level through the common vocabulary. This

integrated metadata serves as the foundation for the

integration at the instance level, to finally provide

the requested single version of the truth.

In this work we focus on the first two steps:

establishing a control vocabulary and using this

vocabulary to perform metadata integration across

individual systems. We propose to use conceptual

models for these tasks. Conceptual models are well-

known in the data engineering community, but they

are mainly used for analysis and design phases. The

conceptual model should act as a general entry point

for end users; it should provide knowledge about

individual systems to end users.

Chapter 2 discusses related work in the field of

metadata integration, data integration and semantic

technologies. Chapter 3 introduces conceptual

models based on Topic Maps. Chapter 4 shows how

conceptual models can be used to support the

metadata management and architecture evolution

process. Finally, conclusions and suggestions for

further work are provided in chapter 5.

2 RELATED WORK

According to Gilliland (2008, p. 2), metadata is “the

sum total of what one can say about any information

object at any level of aggregation”. It is data about

data. Data integration efforts are all about

integrating metadata from different sources. This is

often difficult, especially if the sources are

heterogeneous. Haslhofer and Klas (2010) classify

predominant metadata heterogeneities mentioned in

the literature. They distinguish between two classes,

structural and semantic heterogeneities. Structural

heterogeneities arise as facts are modeled in

different ways and with different levels of detail.

One example of this so-called meta-level

discrepancy is if location information in one system

is modeled as an attribute while in the other system

it is modeled as an entity. Semantic heterogeneities

occur because of different semantics in the models.

An example of this class is a terminological

mismatch, when two attributes or entities with

different names represent the same concept.

Haslhofer and Klas (2010) classify different

techniques to overcome these heterogeneities, such

as controlled vocabularies, global conceptual

models, etc.

A method of implementing these techniques is

semantic technologies. Semantic technology, more

precisely semantic web technology, has been

developed to provide a better architecture that allows

easy information integration from multiple web

sites. As Horrocks (2008) notes, using semantic

technologies like ontologies for information

integration is not a novel approach and has been the

subject of extensive research in the database

community.

As given in Horrocks (2008), an ontology

introduces a vocabulary, it describes various aspects

of the domain being modeled and provides an

explicit specification of the intended meaning of that

vocabulary (Gruber, 1993). Ontologies can play

several roles in organization for data integration:

 they describe the structure and semantics of

data sources,

 they provide a detailed model of the domain

against which queries are formulated,

 they provide a controlled vocabulary,

 they are used to identify, associate and finally

integrate semantically corresponding

concepts (Horrocks, 2008) (Wache et al.,

2001).

As depicted in Gilliland (2008) the complexity

of a controlled vocabulary can range from a simple

list of terms to a system that defines terms and the

semantic relationships between them. Using

ontologies, the later can be accomplished. However,

ontologies go further than simply representing

knowledge. They provide information about the

domain of interest and derive new knowledge based

on the facts modeled in the ontology. Because

reasoning about a domain was not important in this

work, ontologies were not used. Instead, Topic Maps

(ISO/IEC, 2002), a simpler language built for

representing knowledge, has been used.

Identifying, associating and integrating

semantically corresponding concepts is a very

similar problem to schema matching and data

matching in the database community. In Doan and

Halevy (2005), two groups of semantic matching

techniques were distinguished, rule-based solutions

and learning-based solutions. Rule-based solutions

operate only on schemas, are very fast and do not

require training. Learning-based solutions exploit

data instances, which can hold very valuable

information for schema matching. For this reason

they are not as fast as rule-based solutions and

require training. As already mentioned, data

matching or tuple matching can be considered as a

similar problem like schema matching. As expressed

in Doan and Halevy (2005), research in both

disciplines supports one another. Duplicate detection

is considered to be one of the most prominent data

matching techniques.

Traditional data integration is performed based

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

270

on precisely engineered mappings. A data element

will be extracted from a source schema, will get

transformed and finally will be loaded into a

destination schema. Mappings from the source to the

destination schema must be completely defined

before data integration can take place.

Dataspace management systems try to perform

data integration processes the other way round.

Inspired by desktop search engines, a basic keyword

query utility is available and can be used over all

data sources to be integrated. Initially, the quality of

integration is limited to providing a common

keyword search interface. Like developing

integration mappings, no prior investment in the

integration process is needed. The result set will

contain duplicates, different data encodings, etc. As

the data integration requirements get more

demanding, the dataspace management system must

be enriched with more relationships and mappings.

Using this additional information the integration

process should be able to produce a better level of

integration. This process is called pay-as-you-go

(Salles, Dittrich, Karakashian, Girard and Blunschi,

2007) (Franklin, Halevy and Maier, 2005).

A system that allows for gradual enhancement of

relationships is proposed in Talukdar et al. (2008).

Starting with a basic keyword search, the system

matches the keywords to relational data sources and

evaluates available associations to finally generate a

list of possible queries ranked by a score. Next, the

user has to provide feedback to the system regarding

which query fits the intended information request

best. Based on this feedback, the system is able to

learn by assigning new weightings to associations,

which in turn changes the future rank of proposed

queries.

In this work, the idea of gradually enhancing the

level of integration is applied when mapping the

controlled vocabulary to the logical data models of

the systems in an iterative way. Initially, only a basic

keyword search will be available over the controlled

vocabulary and the logical data models of the

systems. As more and more mappings are

introduced, the more the semantic context of the

system will be formed, which in turn closes the

semantic gap across the systems.

A similar approach has been proposed in

Karjikar, Roy and Padmanabhuni (2009), but for

another area of application. It used Topic Maps to

represent the knowledge contained in Universal

Business Language (UBL) documents, an OASIS

standard for generic business documents.

3 CONCEPTUAL MODELING

USING TOPIC MAPS

Conceptual models provide a controlled vocabulary

and describe entities and relationships involved in

these applications. Several languages exist for

conceptual modeling. The most prominent

representative is UML, the Unified Modeling

Language (Object Management Group, 2007).

To close the semantic gap across systems, a

semantic-aware conceptual modeling language is

needed. Ontology oriented languages like Topic

Maps and OWL, the Web Ontology Language,

provide built-in support for semantic descriptions

and thus seem to be most suitable. Topic Maps have

been selected as the conceptual modeling language

for this study because of its simplicity and

practicality for end users. Topic Maps (ISO/IEC,

2002) are an ISO standard for knowledge

representation. They are inspired by semantic

networks and index structures. “Ontopia”, a general

purpose open source Topic Maps development

environment has been chosen for prototype

development (Ontopia, 2010).

In the following, only the most important

concepts of Topic Maps can be introduced. A

detailed introduction is provided in Pepper (2010).

The main model elements of Topic Maps are topics,

associations and occurrences. Every topic has a type.

Types can be inherited (i.e., every type can define

parent types and sub types). Associations express

relationships between one or more topics. The

following example establishes an association “is-

manager-of” between the topics “Christian” and

“Michael”. Both topics are of type “Employee”.

Christian:Employee is-manager-of

Michael:Employee.

Occurrences are references to additional

information that is relevant for the topic. This could

be a reference to a web-site or simply a data element

that contains additional information, such as the

employee’s birth date.

A prototype of the proposed approach has been

implemented for voestalpine Stahl GmbH.

Voestalpine operates a lot of autonomous

information systems, each designed to perfectly

perform a certain task in the production process. The

data processed in these systems must be integrated

into a global view to optimally control the

production process. As already mentioned, at a

specific size, this distributed architecture gets very

uncomfortable. Even experts find it difficult to give

answers to simple questions like: “Tell me all

systems where some data element gets processed.”

CONCEPTUAL MODELS FOR METADATA INTEGRATION AND ARCHITECTURE EVOLUTION

271

Process

-parent 1

Quality of Representation

0..1

-predecessor

-successor

Process Property

Table

Column

Database

Logical Data Model Element

Report Area

Report Property

Report

Conceptual Model Logical Data Model

Temperature

Person

Quantities

...

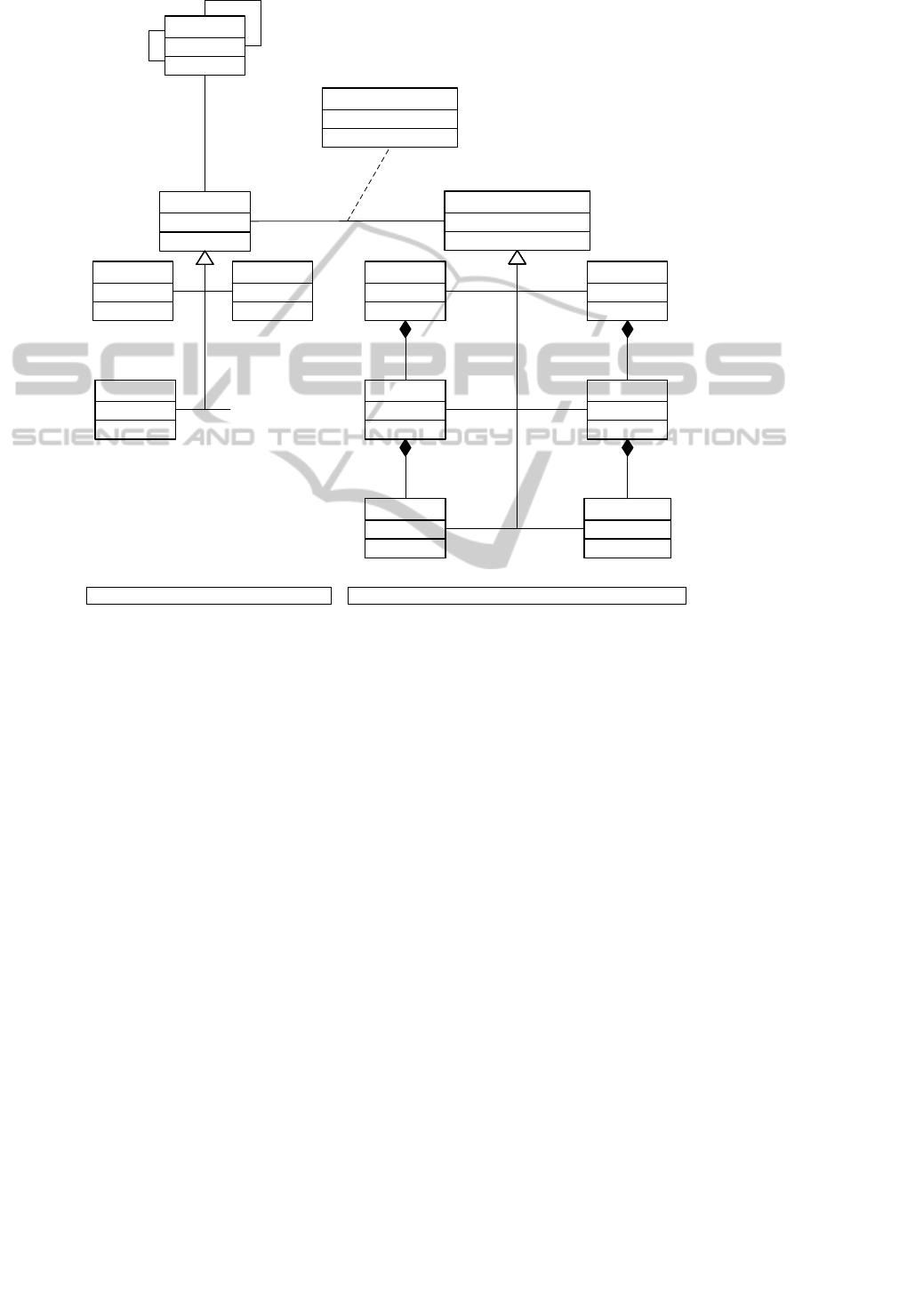

Figure 1: Class diagram of the domain and logical data model.

One aim of the prototype was to answer questions

like these.

As production is mainly organized around

processes, they also form the main topic in the

conceptual model. Each process can be composed of

multiple sub-processes and can have multiple

predecessors and successors. Each process owns a

list of process properties that characterizes the

process. For reasons of readability “process

properties” is substituted with “property” in the

following. For each property a topic has been

created that provides information about which data

is available for the process. Examples for properties

would be “quantities produced”, “production start

time” or “responsible employee”. Each property has

a type depending on its characteristics. Types

include temperatures, quantities, etc., as well as

properties from production facilities, such as pans.

An example instance for a production facility

property is “number of first pan used”. These

properties represent the different roles a pan can

play in the complete production process.

Properties characterize the production process

and have a representation in information systems

(i.e., in logical data models of the information

systems). Furthermore, representations can also exist

on reports, production journals, etc. Some properties

have semantically equivalent representations in more

than one system or artifact.

Associations are modeled between the property

in the conceptual model and the corresponding

representation in the systems logical data model. If

the property has representations in more than one

system, then these associations constitute the clue

that links semantically corresponding concepts

across systems. As in dataspace management

systems, these associations can be gradually

enhanced to move the systems more closely

together.

Depending on the system, the data quality of the

representation can vary significantly across the

systems. Examples of data quality attributes are the

number of missing or duplicate values. To capture

knowledge about data quality, quality of

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

272

Last Measured Temperature

:Temperature

Converter :Report

Secondary Metallurgy

:Report

Continuous Casting :Report

Actual Temperature Last Pan

:ReportProperty

Actual End Temperature

:ReportProperty

Sekm Temp

:ReportProperty

:Quality of Rep.

Secondary Metallurgy

:Process

Conceptual Model Logical Data Model

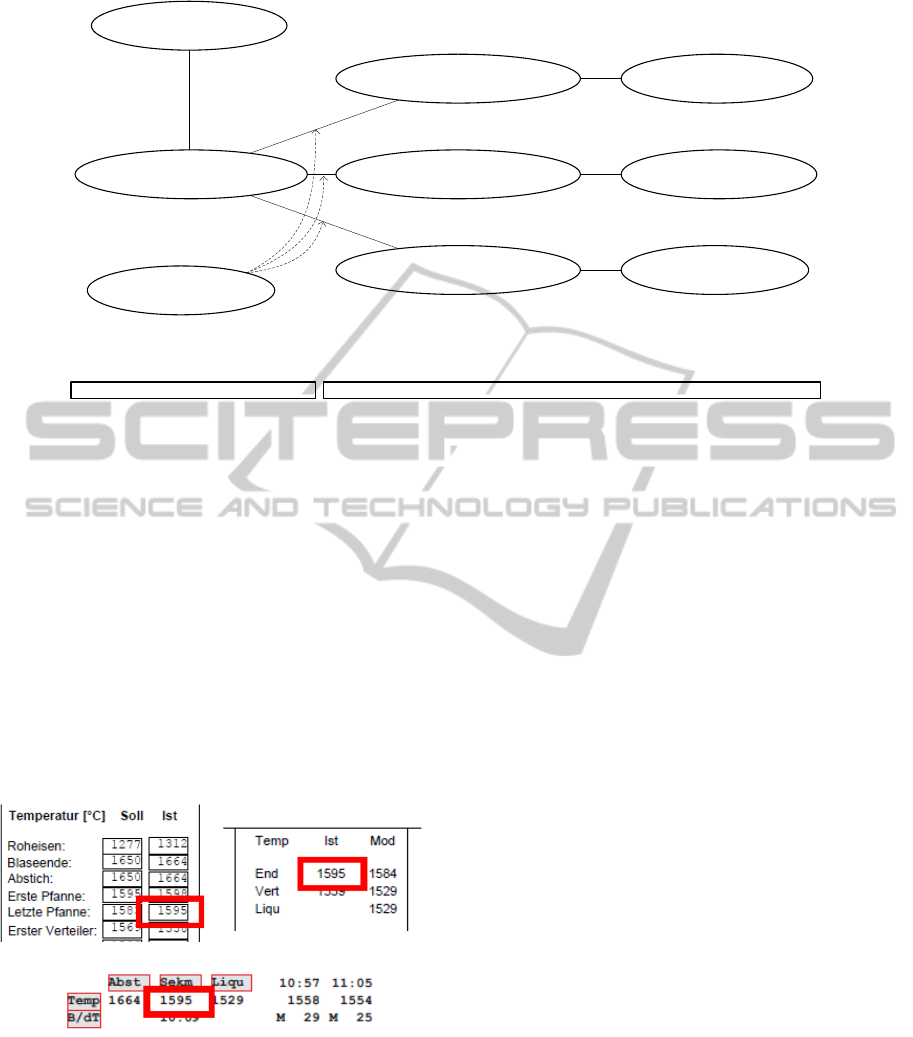

Figure 3: Instance diagram of conceptual model and logical data model.

representation can be specified for the associations

between the conceptual model and the logical data

model. Figure 1 shows a class diagram of the

conceptual model used and the association to the

logical data models of the systems. Both the

conceptual model and the logical data models are

modeled as Topic Maps.

Figure 2 shows excerpts from three different

reports, each displaying the same temperature,

marked with bold squares. The problem is that each

report uses another label for the temperature,

respectively “Temperatur Ist Letzte Pfanne”

(“Actual Temperature Last Pan”), “Temp Ist End”

(“Actual End Temperature”) and “Sekm Temp”

Figure 2: Three reports showing the same temperature.

(“Secondary Metallurgy Temperature”). Only

domain experts know that all three temperatures

actually mean the same thing. For non-experts, this

knowledge remains hidden.

An instance diagram that demonstrates how this

situation is modeled in the conceptual model with

the logical data model is presented in Figure 3. The

conceptual model is used to capture the semantic

equality of the three temperatures displayed in the

reports. There only exists one temperature process

property, called “Last Measured Temperature”, in

the domain model, which belongs to the process

“Secondary Metallurgy”. Starting from this process

property there are three associations to the

corresponding report properties in the reports. All

three representations have been classified as “OK”

as the quality of representation.

4 USING THE CONCEPTUAL

MODEL

To provide the modeled knowledge in the

conceptual model to a major group of users, easy

ways to access the information must be available. In

this section, an overview of the possibilities to

access the conceptual models is given.

4.1 Keyword Search

The easiest way for users to access information is to

use a keyword search. As the Topic Maps tool

“Ontopia” provides a basic keyword search utility,

keyword search is available for the conceptual

model and logical data models. As a result, the name

and the type of the found topics are displayed. The

search not only covers the name of the topic, but

also the type information available in the conceptual

model. Figure 4 illustrates an example for the

keyword search. Searching for the word

CONCEPTUAL MODELS FOR METADATA INTEGRATION AND ARCHITECTURE EVOLUTION

273

“Temperature” as well. “temperature” delivers all

topics of type

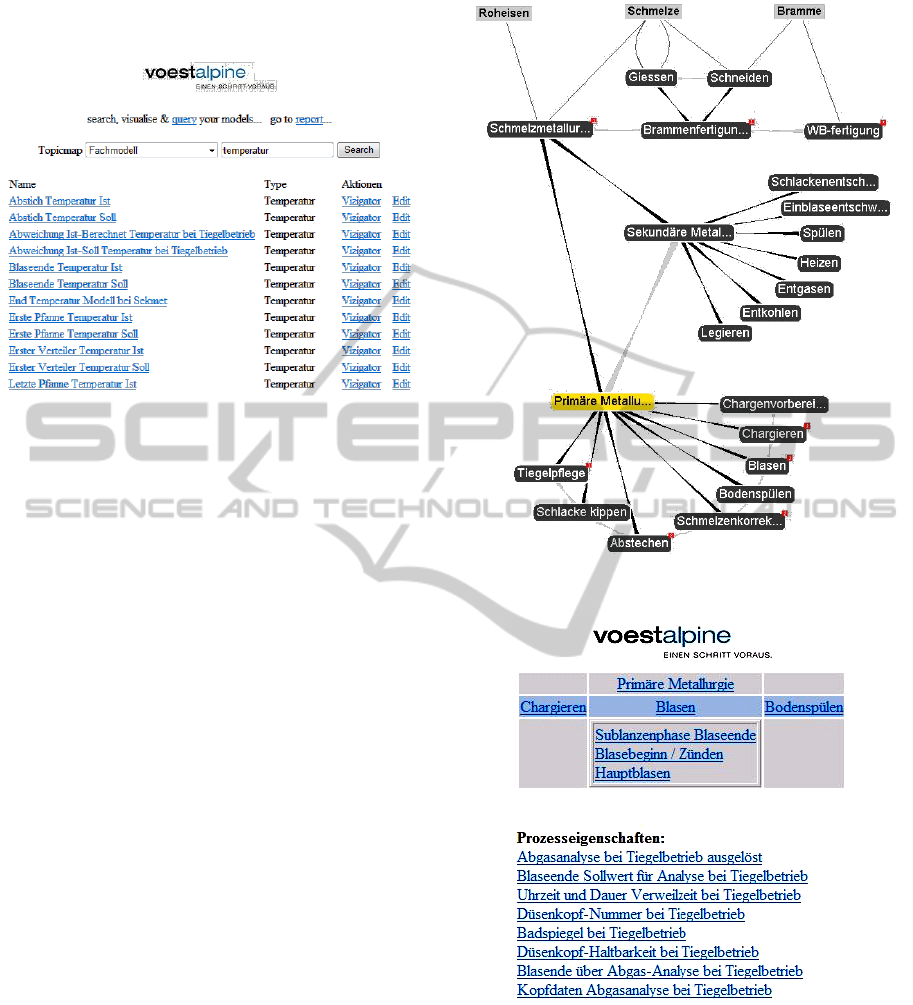

Figure 4: Keyword search on the conceptual model.

4.2 Navigate by Associations

Another way to approach the information modeled

in the conceptual model is using associations. For

example starting from a well-known process, the

association structure to parent-, sub-, previous- and

successor-processes can be used to navigate to the

information the user is interested in. The navigation

can be assisted using the graphical association

visualization tool “Vizigator” that ships with

“Ontopia”.

Figure 5 shows such an example for a process

navigation application. “Schmelzmetallurgie”

(melting shop), “Brammenfertigung” (slab caster)

and “WB-Fertigung” (hot rolling mill) illustrate one

segment of the workflow of the described domain.

The process „Schmelzmetallurgie“ has two sub-

processes, “Primäre Metallurgie“ (primary

metallurgy) and “Sekundäre Metallurgie“

(secondary metallurgy) which are connected by

using associations. Each of these sub-processes can

consist of other sub-processes. For example, the sub-

process “Primäre Metallurgie“ has sub-processes

like “Tiegelpflege” (converter maintenance) or

“Schlacke kippen” (slag tipping) which can be

associated again. “Roheisen” (pig iron) is an

example for materials and demonstrates the material

flow to “Schmelzmetallurgie”.

Another approach is to build a custom

application that uses association information stored

in Topic Maps to provide a domain specific

presentation of the stored information. Based on the

association type, the custom application arranges the

topics accordingly, to allow intuitive navigation.

Figure 6 shows such an example for a process

Figure 5: Using “Vizigator” for process navigation.

Figure 6: Custom process navigation application example.

navigation application. The current selected process

is “Blasen”. The super-process of “Blasen” is

“Primäre Metallurgie” while the previous process is

“Chargieren” and the following process is

“Bodenspülen“. “Blasen” also has three sup-

processes, called “Sublanzenphase Blaseende”,

“Blasebeginn/Zünden” and “Hauptblasen”. The

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

274

process properties for “Blasen” are presented in the

lower part of the screen.

4.3 Query the Conceptual Model

“Ontopia” provides a Topic Maps query language

called “tolog”. “tolog” is a Datalog like query

language for Topic Maps. It can be used to perform

architectural analysis on the conceptual model and

logical data model. For example, queries like “Give

me all temperatures that are processed in System A”

can be written easily. Further, queries can be

formulated that allow monitoring the system

architecture. For example, if a new entity will be

added to the logical data model that has no mapping

in the domain model, a reminder or message will be

generated to add this missing information. The

possibility to monitor the system architecture is a

key enabler for a vital conceptual model and system

architecture.

5 CONCLUSIONS AND FURTHER

WORK

In this work, Topic Map based conceptual models

are proposed for metadata integration. A conceptual

model is used to provide a lasting and intuitive

source of information on how the metadata of the

individual systems is semantically related to each

other. Currently, conceptual models and their

relationships to logical data models must be largely

defined manually. Actuality of the conceptual model

and its relationships to the systems is crucial for

acceptance by users. As such, further work will

concentrate on developing semi-automatic methods

to maintain the actuality of the models.

Further, we will consider using ontologies

instead of Topic Maps as they are much more

expressive. For example, one shortcoming of Topic

Maps is the absence of a practical concept to manage

synonyms, which is essential when establishing a

controlled vocabulary.

Other possible future work could concentrate on

introducing different levels of abstractions for

conceptual models. Different users need different

levels of conceptual model detail for their work. A

language built-in concept that allows composing

higher level topics out of a group of basic topics

would be preferable. The user could decide for

herself/himself, weather s/he wants to see a high

level view of the domain or browse into the details

of the domain.

Finally, a future direction could be to concentrate

on how the conceptual model can be used to perform

data integration at the instance level, also called

ontology-based data access. Ontology-based data

access uses queries specified on a conceptual model

to access and integrate data from underlying

systems.

REFERENCES

Doan, A. and Halevy, A. (2005). Semantic-Integration

Research in the Database Community. AI Magazine,

Vol. 26, No. 1.

Franklin, M.; Halevy, A. and Maier, D. (2005). From

Databases to Dataspaces: A New Abstraction for

Information Management. ACM SIGMOD Record,

Vol. 24, No. 4.

Gilliland, A. (2008). Setting the Stage. In Baca, M. (Ed.),

Introduction to Metadata (2nd ed.). Getty Publications.

Gruber, T. R. (1993). A translation approach to portable

ontology specifications. Knowledge Acquisition. Vol.

5, No. 2, p. 199-220. London: Academic Press Ltd.

Haslhofer, B. and Klas, W. (2010). A survey of techniques

for achieving metadata interoperability. ACM

Computing Surveys, Vol. 42, No. 2, Article 7.

Horrocks, I. (2008). Ontologies and the Semantic Web.

Communications of the ACM, Vol. 51, No. 12.

ISO/IEC. (2002). ISO/IEC 13250 Topic Maps (2nd ed.).

Karjikar, F.; Roy, S. and Padmanabhuni, S. (2009).

Intelligent Business Knowledge Management Using

Topic Maps. Compute’09: Proceedings of the 2nd

Bangalore Annual Compute Conference, p. 1-8.

Object Management Group. (2007). Unified Modeling

Language (UML). Retrieved from:

http://www.uml.org.

Ontopia. (2010). Ontopia. Retrieved from:

http://code.google.com/p/ontopia/

Pepper, S. (2010). The TAO of Topic Maps. Oslo.

Retrieved from:

http://www.ontopia.net/topicmaps/materials/tao.html.

Salles, M. A. V.; Dittrich, J.; Karakashian, S. K.; Girard,

O. R. and Blunschi, L. (2007). iTrails: Pay-as-you-go

Information Integration in Dataspaces. VLDB’07:

Proceedings of the 33

international conference on

Very large data bases, p. 663-674.

Talukdar, P.P.; Jacob, M.; Mehmood, M.S.; Crammer, K.;

Ives, Z.G.; Pereira, F. and Guha, S. (2008). Learning

to Create Data-Integrating Queries. VLDB’08:

Proceedings of the VLDB Endowment, p. 785-796

Wache, H.; Vögele, T.; Visser, U.; Stuckenschmidt, H.;

Schuster, G.; Neumann, H. and Hübner, S. (2001).

Ontology-Based Integration of Information – A

Survey of Existing Approaches. IJCAI-01 Workshop:

Ontologies and Information Sharing, p. 108-117.

CONCEPTUAL MODELS FOR METADATA INTEGRATION AND ARCHITECTURE EVOLUTION

275
