INCREMENTAL DESIGN OF ONTOLOGIES

A Model Transformation-based Approach

Henry Val´ery T´eguiak

1,2

, Yamine Ait-Ameur

, St´ephane Jean

and Eric Sardet

LISI/ENSMA and University of Poitiers, Poitiers, France

CRITT Informatique CRCFAO, Chasseneuil, France

Keywords:

Mapping, Meta-modeling, Model transformation, Ontology, Terminology.

Abstract:

This paper focuses on Model Driven Engineering (MDE) techniques to build ontology incrementally. The

global building process consists of building ontologies from texts through a stepwise approach. Our approach

consists of modeling each step independently and deﬁning a mapping model to express relationships between

these steps. Results of this work are applied in the ANR DAFOE project, which aims to propose a platform

for building ontologies from several kind of resources (texts, terminologies, thesauri or existing ontologies).

1 INTRODUCTION

Although text-based ontology engineering gained

much popularity in the last 10 years, very few ontol-

ogy engineering platforms exploit the full potential of

the connection between texts and ontologies. The on-

tology designers use ontology editors to design their

ontologies. Unfortunately, the process leading to this

ontology is not recorded and therefore, it is not main-

tained. As a consequence, traceability is lost.

Thus, we present DAFOE

, a new platform for

building ontologies using different types of linguis-

tic entries (text corpora, results of natural language

processing tools, terminologies or thesauri). DAFOE

supports knowledge structuring and conceptual mod-

eling from these linguistic entries as well as ontol-

ogy formalization. The requirements of the platform

and its development focus on (1) integrating various

kinds of tools usually used within a single modeling

platform, (2) guaranteeing persistence and traceabil-

ity of the whole building process, and (3) developing

the platform in an open source paradigm with possible

plug-in extensions. Taking into account the diversity

of information resources and extraction tools used, it

is difﬁcult to represent such a construction process in

a single and static model. Indeed, in the scenario of

ontologies building from texts, the platform must be

able to exploit results coming from various Natural

Language Processing (NLP) tools. The difﬁculty of

building such a system consists in the implementation

http://dafoe4app.fr

of conﬁguration mechanisms for handle various tools.

This implementationrequires a bit more abstraction in

the design.

Borrowed from the MDE, our approach is based

on the deﬁnition of model transformations. Indeed,

the ﬁrst model, characterizing terms, is transformed,

in a stepwise transformation process, to an ontology.

In order to be reusable, this transformation process

is applied at the meta-modeling level. This paper fo-

cuses on (1) the loosely coupled modeling approach

that we suggest to manage each step independently,

(2) the meta-modeling based approach for handling

models of each step so that the models can evolve

independently and autonomously and (3) the mod-

els transformation-based approach that we propose

for handling relationships between models. After

an overview of the methodology led by the DAFOE

project, we present our meta-model for encoding ob-

jects together with concepts and the transformation

meta-model allowing to map concepts to some other

ones. We ﬁnally conclude and give some perspectives

about this work.

2 RELATED WORK

2.1 Ontology Building Problem

The study of current tools for developing ontologies

leads to classify these tools into two groups. The ﬁrst

group are ontology editors, which assume that the on-

Valéry Téguiak H., Ait-Ameur Y., Jean S. and Sardet E..

INCREMENTAL DESIGN OF ONTOLOGIES - A Model Transformation-based Approach.

DOI: 10.5220/0003099100940103

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2010), pages 94-103

ISBN: 978-989-8425-29-4

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

tology is already designed (on a paper for example),

and therefore it remains only to edit it in order to make

it interpretable by computers. The second group con-

sists of tools that aim to design ontologies in a su-

pervised work (semi-automatic) according to one or

more design steps. Next sections discuss some meth-

ods and tools for building ontologies.

2.1.1 Ontologies Editors

In the domain of ontologies design, there exist sev-

eral design tools. This section presents some of these

tools.

Prot

e. Prot´eg´e (Knublauch et al., 2004) is a plat-

form for developing OWL ontologies. Its architec-

ture, based on plug-ins, allows a designer to add new

features like intelligent reasoning, test, maintenance,

etc. Originally designed on a frame-based model,

nowadays the most used version is Prot´eg´e-OWL.

This version consists of a set of plug-ins developed

above the Prot´eg´e kernel and dedicated for ontology

construction according to the OWL ontology model.

PLIBEditor. PLIBEditor supports the creation of

ontologies conforming to the PLIB ontology model

(Pierra, 2003). This editor has the advantage of per-

sisting ontologies objects in a database designed ac-

cording to a database architecture called ontology-

based database (Dehainsala et al., 2007). This

database stores ontologies model, ontologiesand their

instances.

DOE. Unlike Prot´eg´e and PLIBEditor that put a

strong emphasis on the formal representation of con-

cepts of an ontology, the DOE editor (Troncy et al.,

2003) suggests to structure the informal description

of concepts to describe more precisely these concepts.

This editor uses a speciﬁc semantics called ”differen-

tial semantics” to document the generalization / spe-

cialization hierarchies by applying four basic rules

(Bachimont et al., 2002): (1) similarity with parent,

(2) difference with parent, (3) similarity with siblings

and (4) difference with siblings.

In addition to the tool features, annotation techniques

allow the designer to keep for example, relationship

between ontologies and annotated documents. But

another way to maintain this relationship consists in

using texts to build ontologies.

2.1.2 Tools for Supervised Design: Designing

Ontologies from Texts

Designing ontologies, on the basis of its consensual

nature, is a very difﬁcult task. Some tools however,

propose building approaches to lighten this problem.

Some of these tools provide an ontology construction

starting from texts.

Text2Onto. Developed at the University of Karl-

sruhe, Text2Onto is a tool that implements text min-

ing algorithms on textual data for building ontologies

semi-automatically (Cimiano and Volker, 2005). It in-

cludes several data processing: terms extraction using

either statistical calculations or regular expressions,

identiﬁcation of relations using lexico-syntactic pat-

terns or proximity computation.

TERMINAE. TERMINAE is a software platform

supporting the development of terminology and on-

tology from texts (Aussenac-Gilles et al., 2008). This

tool integrates a terminology learning environment,

an environment to assist the conceptualization and an

ontology management system. Like Text2Onto, TER-

MINAE stores the link between the designed ontol-

ogy and the texts. This link takes into account linguis-

tic phenomena like polysemy or synonymy, and keeps

track of designer choices about the organizationof the

ontology hierarchy.

The approach suggested in this paper has been ap-

plied to the DAFOE platform that also ranks among

the tools for supervised design of ontologies and fo-

cuses on setting the transition rules from one step of

modeling to another. The setting process is based on

model mapping strategies.

Indeed, Text2Onto and TERMINAE assume that one

well knows in advance in which concept of the next

step a concept of the previous step will be transformed

(e.g., a Class resulting from a Term). In DAFOE, this

matching assumption is not done. Thus, a mapping

space is needed to represent transformations so that

mapping could be easily improved.

3 PRELIMINARIES

This section provides a terminology with deﬁnitions

used in this paper, explain the goal of mappings and

presents the EXPRESS modeling language that we

used to formally implements our approach. Some of

these deﬁnitions are borrowed from the ontology do-

main (de Bruijn et al., 2004) and are generalized for

models in general.

INCREMENTAL DESIGN OF ONTOLOGIES - A Model Transformation-based Approach

3.1 Deﬁnitions

Mapping. A mapping is a speciﬁcation of the se-

mantic overlap between two models M

and M

. Note

that a model mapping is often partial, which means

that the mapping does not specify the complete se-

mantics overlap between two models, but just a piece

of this overlap which is relevant for the mapping ap-

plication. Throughout this paper, mapping and trans-

formation term will be used indifferently.

Mapping Language. The mapping language is the

language used to formalize mappings. Mappings can

also be represented through a model. This model,

called a mapping model, manages mappings as ob-

jects and provides more ﬂexibility on mapping man-

agement.

Mapping Constructor. A mapping constructor can

be seen as a template for mappings which occur very

often. Constructors can be ranked from very simple

(e.g., a mapping between a concept and a relation) to

very complex, in which case the constructor captures

comprehensivesubstructuresof the models, which are

related in a certain way.

More discussions on topics around mapping prob-

lems and provided solutions can be founded in (Rahm

and Bernstein, 2001), (Yan et al., 2001), (Bernstein,

2003), (Euzenat and Shvaiko, 2007), (Claypool et al.,

2001).

3.2 Model Mapping Problem

At the heart of the issue of building a mapping be-

tween models is the issue of instance mediation (Eu-

zenat and Shvaiko, 2007). By instance mediation,

we understand the issue of identifying a target in-

stance from a source instance, each one described by

a model. This includes the speciﬁcation of a map-

ping model and the use of these mappings to rewrite

queries for instance transformation.

Other work (Wache et al., 2001), (Kalfoglou and

Schorlemmer, 2003) address the problem of mapping

discovery. Without describing the discovery process,

we assume that the discovery process has been made.

This work deals with mapping speciﬁcation and in-

stance mediation.

In instance mediation, if we consider a source

model M

and a target model M

, the question of in-

stance transformation can be summarized by ”how to

compute a target instance I

of M

from a source in-

stance I

of M

using the MAP mapping between M

and M

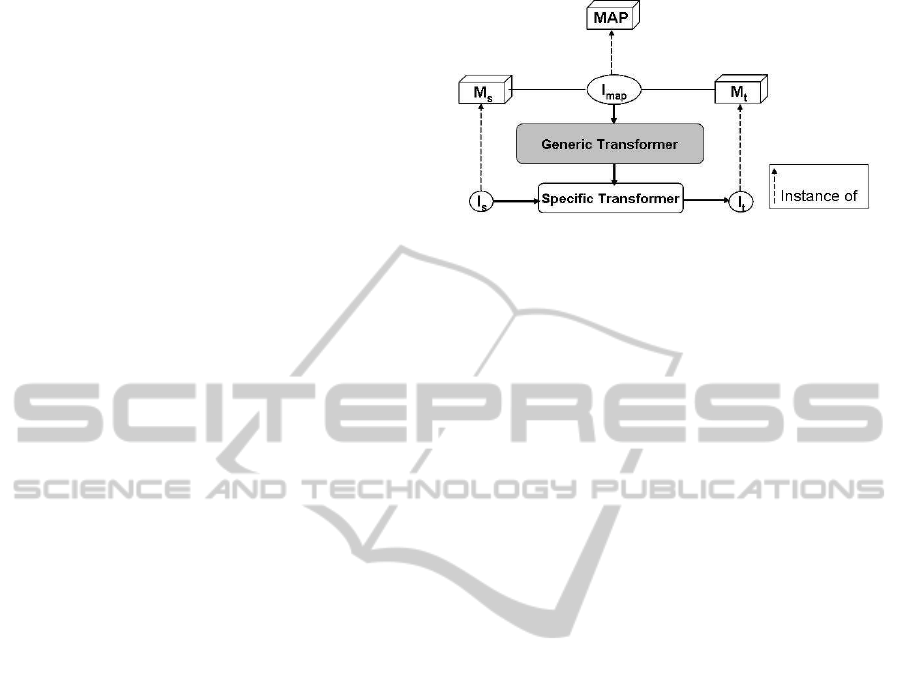

?” as represented in Figure 1. The Generic

Transformer (a model-independent program) read an

Figure 1: Instance mediation.

instance of mapping (Imap) between M

and M

and

produces a Speciﬁc Transformer (a program depend-

ing on M

and M

). This Speciﬁc Transformer is used

to compute I

from I

3.3 The EXPRESS Modeling Language:

an Overview

EXPRESS is a data modeling language that combines

ideas from the entity-attribute-relationship family of

modeling languages with object modeling ideas of the

late 1980s. It became an international standard (ISO

10303-11) in 1994.

The major advantage of this language is its capa-

bility to describe structural, descriptive and procedu-

ral concepts in a common data model and semantics.

This integration avoids the use of several models and

languages that require bridging over the gap between

all the deﬁned models. A data model in EXPRESS

is represented by a set of schemas that may refer to

each other. Each schema contains two parts. The ﬁrst

part is a set of entities that are structured in an object-

oriented approach. The second part contains proce-

dures, functions and global rules used to express con-

straints on that entities.

3.3.1 Entity Deﬁnition

Entities are named and deﬁned by a set of attributes

(which may be an empty set) assigned to each entity.

A value domain (a data type) is assigned to each at-

tribute. This value domain can be either simple (e.g.,

integer, string, etc), a collection domain (e.g., list, set,

etc) or an entity type meaning that an attribute value

is an instance of another entity.

3.3.2 Constraining Entities

EXPRESS makes possible to limit the allowed set of

instances of the data models to those instances that

satisfy some given constraints. For example, the age

of a person must be a positive integer. EXPRESS

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

uses ﬁrst order logic which is completely decidable

since the set of instances is ﬁnite. Constraints are in-

troduced thanks to the WHERE clause that provides

for instance invariant, and to the global RULE clause

that provides for model invariant. Derivations, inver-

sions and constraints (respectively illustrated by the

DERIVE, INVERSE, and WHERE key words) are the

only places where functions may occur.

3.3.3 Examples

Tables 1 and 2 illustrate entity deﬁnitions. Entity

B is described using three attributes b

, b

and b

whose datatype are respectively real, list of strings

and relationship with another entity A, itself being de-

scribed using a single attribute a

. Additionally, two

attributes a

and a

are deﬁned. The a

attribute is

an inverse attribute of the entity A, corresponding to

the inverse link deﬁned by attribute b

in the entity B.

The a

attribute is a derived attribute, that means its

value is calculated by a function. Instances may be

built from entity deﬁnition. An identiﬁer is assigned

to each instance for referencing purposes. Instances

are then described according to the entity deﬁnition

they are referred to (using the entity name). The de-

scription consists of an enumeration of values compli-

ant with each attribute datatype. It can be noticed that

inverse attribute are not represented, because they can

be computed later on.

Table 1: Deﬁnition of entity A.

ENTITY DEFINITION

ENTITY A;

:INTEGER;

INVERSE

: B FOR b

;

DERIVE

: INTEGER:= f(a

);

END ENTITY;

FUNCTION f(x: INTEGER): INTEGER;

return (x*2)

END FUNCTION;

INSTANCE DEFINITION

#1= A(3);

Table 2: Deﬁnition of entity B.

ENTITY DEFINITION

ENTITY B;

: REAL;

: LIST [0:?] OF STRING;

: A;

WHERE

wr: b

> 0.0;

END ENTITY;

INSTANCE DEFINITION

#2= B(4.0,(’hello’,’world’), #1);

An instance deﬁnition is provided for illustration

purposes. In Table 1, the “#1” identiﬁer is assigned

to the instance. The underlying type of the instance

is the entity “A”. The integer value “3” is assigned

to the a

attribute. The derived a

attribute is not

a user assigned value but an automatically assigned

value computed using the value of the attribute a

. In

this example, querying the value of a

will return here

the value “6” according to the derivation function f. In

the same manner, in Table 2, the “#2” instance of the

entity B, where b

is evaluated to 4.0, b

is the list

(’hello’, ’world’) and b

reference the particular in-

stance “#1” of the entity A.

4 THE DAFOE METHODOLOGY

To face with the difﬁculty of building ontologies, the

DAFOE project proposes a stepwise ontology design

approach. As stated in introduction, this methodology

consists of 3 main steps: Terminological, Termino-

Conceptual and Ontological. This paper does not ad-

dress the ontology learning problem (Navigli and Ve-

lardi, 2004), (Maedche and Staab, 2001). Neverthe-

less, it provides an infrastructure with model transfor-

mation (cf. Section 5) in order to enrich the building

process.

4.1 DAFOE Terminological Step

The terminological step takes a corpus of texts as in-

put. This corpus needs to be processed by NLP tools

such as term extractors in order to extract terms and

their relationships . As an alternative, an ontology

designer can use a preexisting terminology. The un-

derlying assumption is threefold: text analysis can

extract term candidates that are relevant for a given

domain. These terms are likely to be turned into on-

tology concepts and the distribution of these terms re-

ﬂects their semantics (Harris, 1968). The result of this

step is represented as instance of the terminological

model shown in Figure 2. A Saillance entity is asso-

ciated to a Term so that terms can be ﬁlter according

to some “saillance” criteria like its frequency.

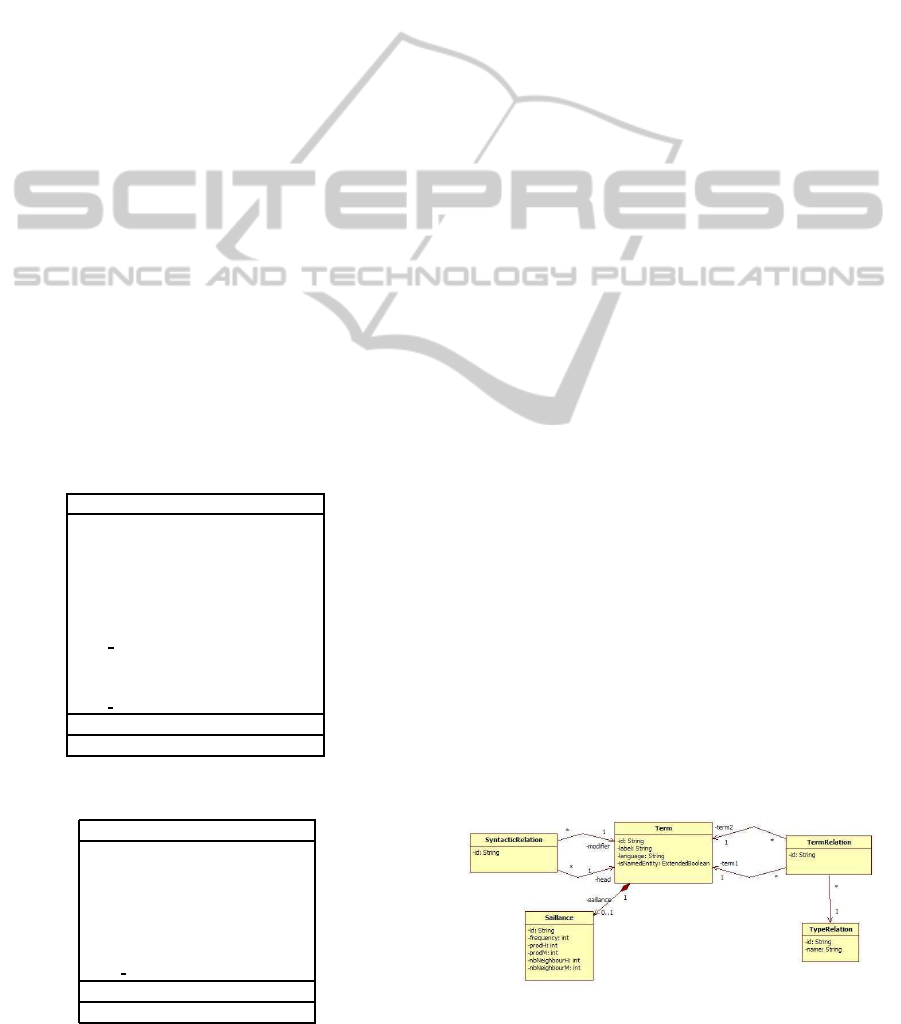

Figure 2: Terminological model: UML diagram excerpt.

INCREMENTAL DESIGN OF ONTOLOGIES - A Model Transformation-based Approach

4.2 DAFOE Termino-conceptual Step

This step transform the terms resulting from the

previous step into a structure of unambiguous

termino-concepts (TC) and termino-conceptual rela-

tions (TCR). As an alternative, the knowledge engi-

neer may build that step by importing a preexisting

termino-conceptual resource such as a thesaurus or

results of the analysis of the terminological step. In

this case, he/she analyses the meanings of terms and

relations that appear at the terminological step with

respect to each other by taking into account their oc-

currences. Then, he/she can cluster terms and rela-

tionships that have the same meaning, distinguish the

various meanings of ambiguous terms, compare the

contexts in which they are used.

The termino-conceptual step is central for trans-

forming linguistic elements into conceptual ones and

for tracing the ontology concept back to the linguis-

tic elements they are coming from. TCs are associ-

ated with differentiation criteria, for describing them

by differences and similarities as proposed by the Ar-

chonte method (Bachimont et al., 2002). Four textual

ﬁelds make explicit semantic differences and similari-

ties of a TC with its father and siblings. This traceabil-

ity improves ontology readability and maintenance.

Terms and terminological relations that are connected

to termino-conceptual elements are said ”conceptu-

alised”. The result of this step is represented as in-

stance of the Termino-conceptual model shown in

Figure 3.

Figure 3: Termino-conceptual model: UML diagram ex-

cerpt.

4.3 DAFOE Ontological Step

The ontology data model formalizes TCs and TCRs

in a formal language equivalent to OWL-DL. Con-

cepts are described as classes, individuals as instances

of classes, properties between classes as object prop-

erties or datatype properties. An automatic process

translates TCs and TCRs into formal concepts in a hi-

erarchy with inherited properties subsumption. This

translation exploits the structure of the semantic net-

work represented in the termino-conteptual step and

the differential criteria associated with TCs and TCRs.

The result of this step is represented as instance of the

Ontological model shown in Figure 4.

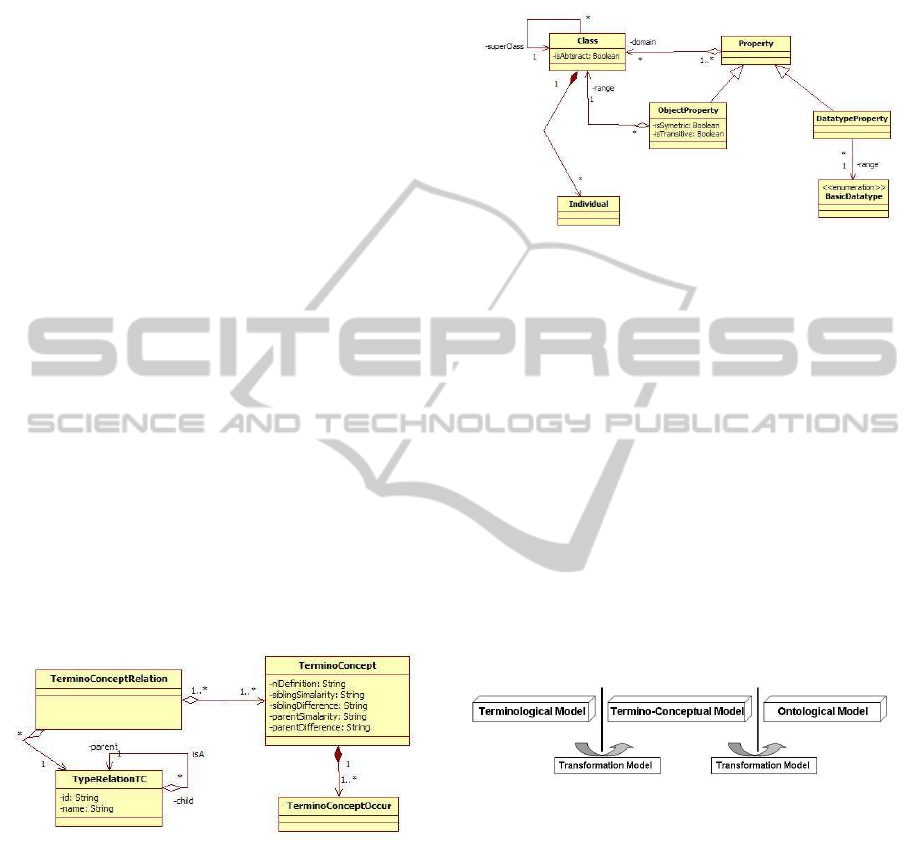

Figure 4: Ontological model: UML diagram excerpt.

The next section presents the two main approaches

to express transformation between models and ex-

plains our proposal for representing relationship be-

tween steps of the DAFOE methodology.

5 MODELING RELATIONSHIPS

BETWEEN STEPS

Due to the numerous types of information managed

in each step of the methodology led by DAFOE, we

explicitly separate the modeling of each step and then

bind these steps through a transformation layer. This

loosely coupled modeling of the DAFOE methodol-

ogy eases model evolution of each step independently.

Figure 5 presents an overview of this process.

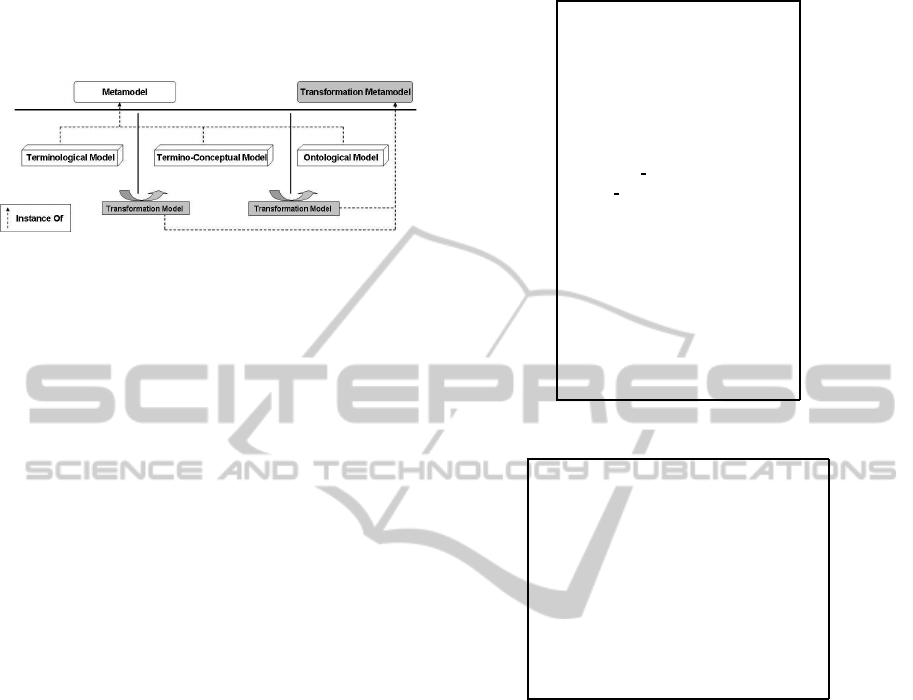

Figure 5: Process for modeling relationships between steps.

When encoding this transformation process, two

approaches are possible: (1) hard encoding of the

transformation or (2) speciﬁcation of the transforma-

tion as an instance of a transformation meta-model.

These two approaches are discussed below.

5.1 A First Attempt: Hard Encoded

Transformation

The ﬁrst approach consists in hard encoding the map-

pings between the concepts of the source and target

models.

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

5.1.1 Managing Transformations

Representing transformations between models re-

quires to be careful about transformation arities. For

example, the 1:1 arity means that one source entity is

mapped to a single target entity, the N:1 (respectively

1:N) arity means that many sources entities (respec-

tively one source entity) may be transformed together

to one target entity (respectively many target entities).

It is also possible to have a N:M arity.

The following EXPRESS code represents an illus-

tration of modeling transformations. Derivation func-

tions are deﬁned: they produce target entities from

source entities. We just present a simple part with a

1:1 transformation between TERM and TC (in the en-

tity E TERM to TC 1 1) or between TC and CLASS

(in the entity E TC to CLASS 1 1). In this approach,

the transformation from the source element to the tar-

get element is embedded in a program, here a deriva-

tion function (build target function). This function

shows for example that the property id of a TERM

matches with the property id of a TC. In the same way,

the label of a TC is the concatenation of the String

’tc ’ with the TERM.label.

Table 3: Hard encoded transformation TM1.

SCHEMA hard encoded transformation TM1;

ENTITY E Term to TC 1 1;

source: TERM;

DERIVE

target: TC:= build target(SELF.source);

END ENTITY;

FUNCTION build target(t: TERM): TC;

LOCAL;

tc:= !TC;

END LOCAL;

tc.id:= source.id;

tc.label:= ’tc ’+source.label;

...;

return (tc);

END FUNCTION;

...;

END SCHEMA;

5.1.2 Limitations

This solution is not satisfactory. Indeed, assume that

one changes the structural representation of the model

of one step (for example, the entity TERM is modi-

ﬁed). In this case, the build target function of the en-

tity E TERM to TC 1 1 must be rewritten. Another

drawback of this approach is the necessity to master in

advance the different possible transformations before

building a sequence of transformations between the

entities of each model. So, the “hard encoded” trans-

formation approach is model-dependent. It is then not

Table 4: Hard encoded transformation TM2.

SCHEMA hard encoded transformation TM2;

ENTITY E TC to CLASS 1 1;

source: TC;

DERIVE

target: CLASS:= build target(SELF.source);

END ENTITY;

FUNCTION build target(tc: TC): CLASS;

LOCAL;

cls:= !CLASS;

END LOCAL;

...;

return (cls);

END FUNCTION;

...;

END SCHEMA;

recommended in a context of heterogeneous models

with various transformation rules. Indeed, the trans-

formation is highly tiled to structural representation of

the models at a given time. Consequently, one needs

to manipulate models and their transformation at each

evolution. Terminae, Text2Onto,... are example of

such tools.

5.2 Our Approach: Transformation as

Instances

The main idea behind our approach is, on the

one side, to deal with the numerous transforma-

tion programs to be written and on the other

side, to offer a conﬁgurable space for setting

up correspondences between steps. Furthermore,

one does not need to known in advance all the

possible transformations. Indeed, if we look

closely at the hard encoded transformation TM1 and

hard encoded transformation TM2 , we notice a set

of similarities like:

s1) Both programs transform a source entity of a

source model in a target entity of a target model.

s2) Inside both programs, we ﬁnd code statements

(the build target function) that transform a kind of

data to a kind of another data (TERM to TC or TC

to CLASS for example).

The objective of a data model based transforma-

tion is to abstract the previous similarities by offering

the capability to replay a single transformation on dif-

ferent model instances. In this case, meta-modeling

techniques are required not only for representing data

model instances, but also the transformation function.

Indeed, functions are reiﬁed by data models that may

be instantiated several times. A single interpretation

function is associated for code generation. This pro-

cess has been adopted on the DAFOE platform, it

is described below. Using a more abstract speciﬁ-

cation, one can handle these similarities in a generic

INCREMENTAL DESIGN OF ONTOLOGIES - A Model Transformation-based Approach

way. Thus, as presented in Figure 6 we use a meta-

model for representing the models of each steps and

we also use a meta-model of transformation for build-

ing transformation dynamically.

Figure 6: Our approach: a generic process.

5.2.1 A Metamodel for Concept Modeling

Meta-modeling appears as the use of a modeling for-

malism to represent a modeling formalism. This vi-

sion of models has two fundamental advantages: (1)

it is possible to represent in the same way models and

instances and (2) it is also possible to write programs

based on both metamodel and models.

The Entity-Attribute Meta-model. For handling

model life cycle during their transformations, we need

a model to express models (the metamodel). For us,

a model will consist of a set of entities, instances

of these entities, and attributes to describe these in-

stances (cf. Figure 7). Instances representation is

also based on a model (instance model). This instance

model is used for example, to migrate instances of a

source model to a target model using mappings be-

tween these two models.

For our experiments in ontology design, the entity-

attribute model has proved to be powerful enough

to play the role of meta-model for Terminological,

Termino-conceptual and ontological models.

5.2.2 Examples

The previous Entity-Attribute meta-model can be in-

stantiated in order to describe the terminological,

termino-conceptual and ontological models.

5.2.3 Encoding Transformations

In the same manner, we propose a meta-model sup-

porting the description of transformations. This meta-

model is composed of two main parts: the structural

mapping model and the procedural mapping model.

The Structural Mapping Model. This model

records the different mappings that could be set up

between entities of the source model and the ones of

Table 5: Instantiate the terminological model.

– Create Terminological model ;

#1=MODEL(1, ’Terminological’);

...

– Create entities

#4=ENTITY(’Term’, #1, $);

#5=ENTITY(’TermRelation’, #1, $);

...

– Create simple attribute type

#8=STRING TYPE(’String’);

#9=INT TYPE(’Integer’);

...

– Create attributes of Term

#10=ATTRIBUTE(’id’, #4, #9);

#11=ATTRIBUTE(’label’, #4, #8);

#12=ATTRIBUTE(’language’, #4, #8);

...

– Create attributes of TermRelation

#15=ATTRIBUTE(’id’, #5, #8);

#16=ATTRIBUTE(’term1’, #5, #4);

#17=ATTRIBUTE(’term2’, #5, #4);

Table 6: Instantiate the TerminoConceptual model.

– Create TerminoConceptual model

#20=MODEL(20, ’TerminoConceptual’);

...

– Create entities

#21=ENTITY(’TerminoConcept’, #1, $);

#22=ENTITY(’TerminoConceptRelation’, #1, $);

...

– Create attributes of TerminoConcept

#23=ATTRIBUTE(’id’, #21, #9);

#24=ATTRIBUTE(’label’, #21, #8);

#25=ATTRIBUTE(’dialect’, #21, #8);

...

the target model. Cardinalities and typing constraints

are identiﬁed in such model. An extract of the struc-

tural mapping model is described on Figure 8.

The Procedural Mapping Model. This model sup-

ports the description of the derivation functions and of

the constraint expressions. In other words, this model

provides for any resources needed to build either ex-

pressions for computing target concepts from source

ones, or to deﬁne boolean expressions that describe

the constraints that may apply on a given concept.

Figure 9 illustrates the simpliﬁed expression model

that we used. Any kind of expression is a subtype of

an abstract Generic Expression that we represent by

an acyclic graph. Since we provide a formal approach

with model checking principle, a consistence rule en-

sure that an expression is acyclic. Furthermore, this

expression model is not only limited to boolean, nu-

meric or string expression. It can be extended for han-

dling numerous types of expression. Once the data

model describing the transformation is set up, MDE

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

100

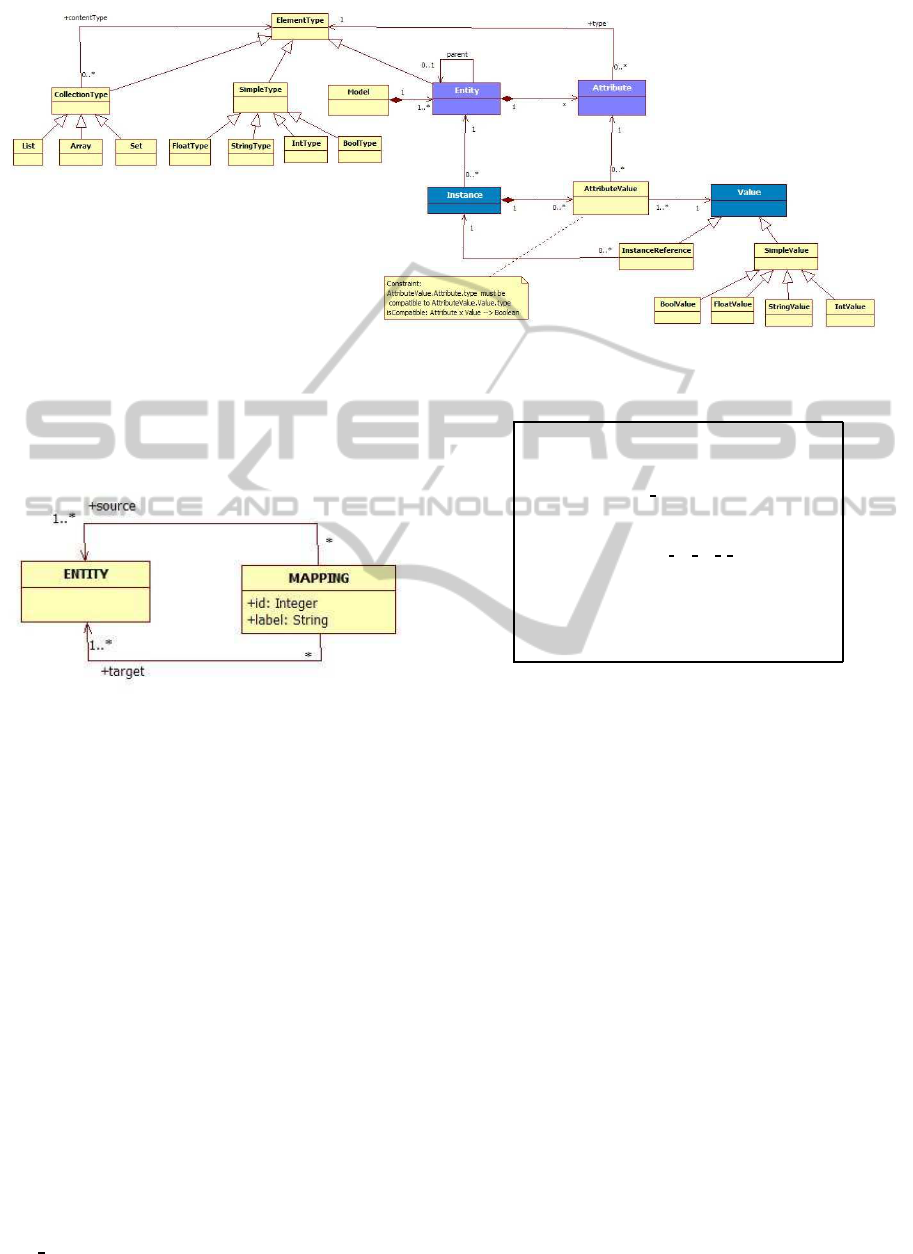

Figure 7: The Entity-Attribute Metamodel.

techniques are used. Then, either the EXPRESS data

modeling language is used to run transformations, or

a speciﬁc program interpreting instances is written. In

our case, we have chosen the second option.

Figure 8: Structural Mapping Metamodel.

Notice that with the Expression model, we are al-

ready able to write mappings. These syntactic map-

pings can be seen as a repository of mapping patterns.

It remains to create a semantic environment to bind

variables and constants of syntactic mappings to con-

cepts of the meta-model. The semantic mapping re-

sults to the projection of syntactic mapping in a se-

mantic environment. Figure 10 presents the projec-

tion model used to add semantics to mappings. It is

important to note that unlike SWRL (Semantic Web

Rule Language) (Horrocks et al., 2004), the projec-

tion model is not only used for writing formal param-

eters. A syntactic mapping can be reused in a new

environment with a new semantics. As example, the

computation of a TC from a Term is illustrated in ex-

amples below (cf. Section 5.2.4).

5.2.4 Examples

The following EXPRESS instances shows a partial

view of the mapping between TERMs and TCs. In

this example, we present how to express that TC.label

= ’tc ’+TERM.label.

Table 7: Instantiate the TerminoConceptual model.

– create variables and constant

#30= ElementVar(3O, ’X’);

#31= ElementVar(31, ’Y’);

#33= CONSTANT(’tc ’);

– create the concatenation #34= ConcatExp(#33, #31);

#35= FunctionalRule(#31, #34);

#40= MAPPING(’TERM TO TC 1 1, #35);

...

– #50= VariableEnvironment(#11, #30);

#51= VariableEnvironment(#24, #31);

#60= SEMANTICS(#40, (#50, #51));

...

6 CONCLUSIONS

This paper presents a stepwise ontology design

methodology. The proposed approach uses MDE ap-

proaches in order to deﬁne model transformations. It

consists in identifying the meta-models of the manip-

ulated (transformed) models and the one of the possi-

ble mappings. It has been fully formalized with the

EXPRESS modeling language and a prototype has

been developed on the top of the OntoDB ontology

based database in order to persist instances resulting

from models instantiations. It has been also integrated

in the DAFOE platform, an open source platform for

building ontologies from texts, terminologies, the-

sauri or existing ontologies. The proposed mapping

approach has been experimented by the DAFOE con-

sortium. In the medical course for example, encour-

aging results has been obtained when building ontol-

ogy of pneumonology from a corpus of the same do-

main.

Currently, mappings deﬁned with our transforma-

tion meta-model are unidirectional and we are still

working on making them bidirectional. Another chal-

INCREMENTAL DESIGN OF ONTOLOGIES - A Model Transformation-based Approach

101

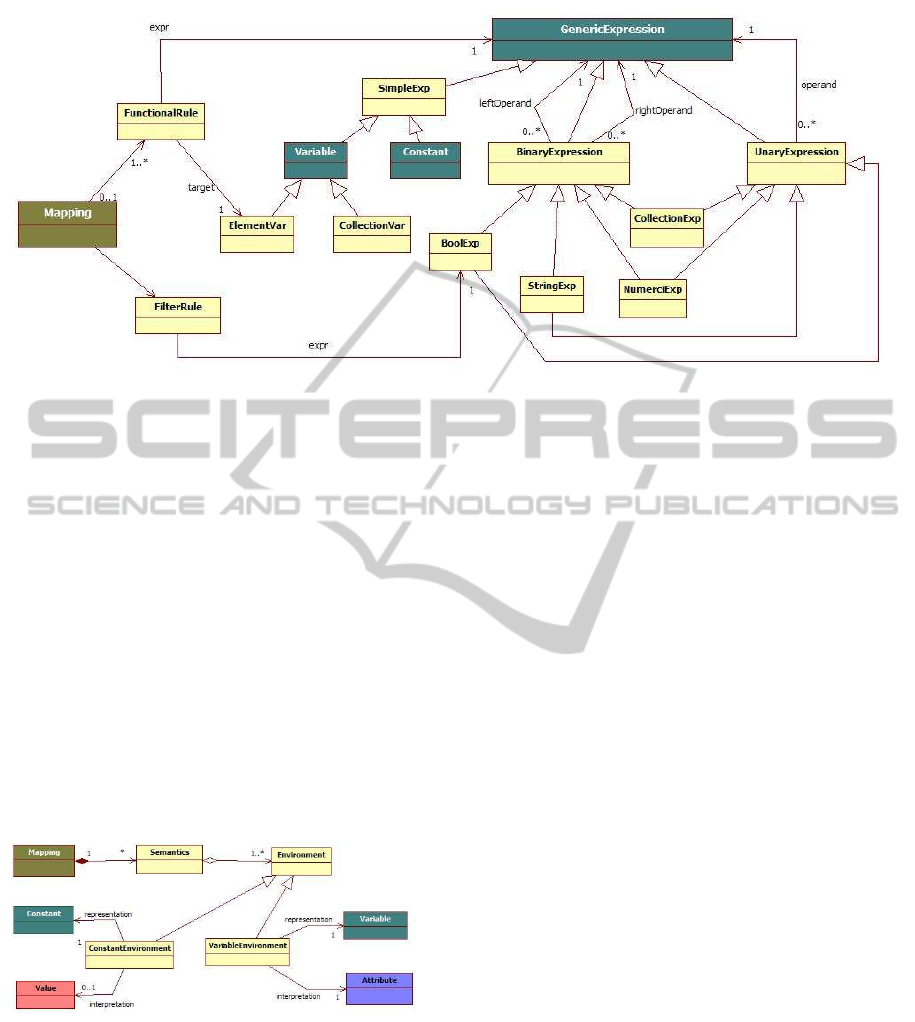

Figure 9: Simpliﬁed model for mapping and expression.

lenge will be to deﬁne a mapping language in a

database persistent context supporting our mapping

meta-model. Indeed, most of the current mapping lan-

guages use a XML representation for the description

of mappings. However, to ensure scalability of our

approach, manipulated data are stored in a database.

For this reason, it would be interesting to have a map-

ping constructors integrated in the query language of

underlying database environment. A possible issue

will be to look closely at the Ontology Query Lan-

guage (OntoQL) (Jean et al., 2006), the exploitation

language associated with OntoDB to manage both on-

tologies and data. We will study how to extend On-

toQL with mapping operators so that it will be possi-

ble to query both created models and mappings in a

database environment.

Figure 10: Model for semantic interpretation.

ACKNOWLEDGEMENTS

The authors would like to thank the partners of the

ANR DAFOE project for their contribution.

REFERENCES

Aussenac-Gilles, N., Despres, S., and Szulman, S. (2008).

The TERMINAE method and platform for ontology en-

gineering from texts. In Bridging the Gap between

Text and Knowledge. IOS Press.

Bachimont, B., Troncy, R., and Isaac, A. (2002). Semantic

commitment for designing ontologies: a proposal. In

European Conference on Knowledge Modelling and

Knowledge Management, Ekaw 2002, Sigenza, Spain.

Springer Verlag, LNCS.

Bernstein, P. A. (2003). Applying model management to

classical meta data problems. In CIDR, pages 209–

220. CIDR SIGMOD Record.

Cimiano, P. and Volker, J. (2005). Text2onto - a frame-

work for ontology learning and data-driven change

discovery. In Montoyo, A., Munoz, R., and Metais,

E., editors, Proc. of the 10th International Conference

on Applications of Natural Language to Information

Systems (NLDB), volume 3513 of Lecture Notes in

Computer Science, pages 227–238, Alicante, Spain.

Springer.

Claypool, K. T., Rundensteiner, E. A., Zhang, X., Su, H.,

Kuno, H. A., Lee, W.-C., and Mitchell, G. (2001).

Gangam - a solution to support multiple data models,

their mappings and maintenance. In SIGMOD Con-

ference, page 606.

de Bruijn, J., Foxvog, D., and Zimmerman, K. (2004). On-

tology mediation patterns library. Deliverable D4.3.1,

SEKT.

Dehainsala, H., Pierra, G., and Bellatreche, L. (2007).

Ontodb: An ontology-based database for inten-

sive applications. In 12th International Confer-

ence on Database Systems for Advanced Applica-

tions(DASFAA’07), pages 497–508.

Euzenat, J. and Shvaiko, P. (2007). Ontology matching.

Springer-Verlag, Heidelberg (DE).

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

102

Harris, Z. (1968). Mathematical Structures of Language.

Interscience Publishers.

Horrocks, I., Patel-Schneider, P., Boley, H., Tabet, S.,

Grosof, B., and Dean, M. (2004). SWRL: a seman-

tic web rule language combining OWL and RuleML.

http://www.w3.org/Submission/SWRL/.

Jean, S., Ait-Ameur, Y., and Pierra, G. (2006). Querying

ontology based database. the ontoql proposal. In IN:

18 th International Conference on Software Engineer-

ing and Knowledge Engeeniring, pages 166–171.

Kalfoglou, Y. and Schorlemmer, M. (2003). IF-Map: an

ontology mapping method based on information ﬂow

theory. Journal on Data Semantics, I:98–127.

Knublauch, H., Fergerson, R. W., Noy, N. F., and Musen,

M. A. (2004). The protg owl plugin: An open develop-

ment environment for semantic web applications. In

International Semantic Web Conference, pages 229–

243. Springer.

Maedche, E. and Staab, S. (2001). Ontology learning for the

semantic web. IEEE Intelligent Systems, 16:72–79.

Navigli, R. and Velardi, P. (2004). Learning domain ontolo-

gies from document warehouses and dedicated web

sites roberto navigli and paola velardi. Computational

Linguistics, 30:2004.

Pierra, G. (2003). Context-explication in conceptual on-

tologies: The plib approach,. In R. Jardim-Gonsalves,

J. C. and Steimer-Garo, A., editors, Proc. of 10th

ISPE International Conf. on Concurrent Engineering:

Research and Applications (CE’03) : Special Track

on Data Integration in Engineering, pages 243–254,

Madeira, Portugal. UNINOVA.

Rahm, E. and Bernstein, P. (2001). A survey of approaches

to automatic schema matching. The VLDB Journal,

10(4):334–350.

Troncy, R., Isaac, A., and Malais, V. (2003). Using xslt

for interoperability: Doe and the travelling domain

experiment. In Proc. 2nd workshop on evaluation of

ontology-based tools (EON), Sanibel Island (FL US),

pages 92–102.

Wache, H., Voegele, T., Visser, U., Stuckenschmidt, H.,

Schuster, G., Neumann, H., and H¨ubner, S. (2001).

Ontology-based integration of information – a survey

of existing approaches. In Proc. IJCAI Workshop on

Ontologies and Information Sharing, pages 108–117,

Seattle (WA US).

Yan, L. L., Miller, R. J., Haas, L. M., and Fagin, R. (2001).

Data-driven understanding and reﬁnement of schema

mappings. In SIGMOD ’01: Proceedings of the 2001

ACM SIGMOD international conference on Manage-

ment of data, pages 485–496, New York, NY, USA.

ACM.

INCREMENTAL DESIGN OF ONTOLOGIES - A Model Transformation-based Approach

103
