AN API FOR DISTRIBUTED REASONING ON NETWORKED

ONTOLOGIES WITH ALIGNMENTS

Chan Le Duc, Myriam Lamolle

IUT Montreuil, LIASD-University Paris 8, 140 rue de la Nouvelle France, 93100 Montreuil, France

Antoine Zimmermann

Digital Enterprise Research Institute, IDA Business Park, Lower Dangan, Galway, Ireland

Keywords:

Distributed reasoning, Ontology, Alignment, Networked ontologies, OWL.

Abstract:

In this paper, we describe design and implementation of a Java interface for distributed reasoning on networked

ontologies with alignments. This API is built over the standard OWLlink interface which is a communication

protocol between OWL2 components. It is compatible with usual reasoners based on OWL such as Pellet

and FaCT++ in centralized contexts. In this API, we have implemented an optimized distributed reasoning

algorithm which, on the one hand requires speciﬁc primitives to manipulate OWL ontologies and alignments

between them, and on the other hand, provides services to check local and global consistency of networked

ontologies with alignements. The main feature of this API is that it can be easily integrated in various editors

and tools dedicated to ontology manipulation.

1 INTRODUCTION

The Semantic Web is founded on technologies related

to ontologies. An ontology can be built by using a

language whose semantics is formal, e.g. OWL (On-

tology Web Language

). This allows us to deﬁne un-

ambiguously the meaning of new terms from a set of

atomic terms which can be concepts, relations or indi-

viduals. Such an OWL ontology enables new knowl-

edge to be inferred by using reasoners such as Pel-

let (Sirin et al., 2007), FaCT++ (Tsarkov and Hor-

rocks, 2006). In addition, an application domain can

be described by several ontologies which are related

in some way. In this context, a reconciliation be-

tween such ontologies can yield new pieces of knowl-

edge which establish correspondences between enti-

ties of two ontologies. A set of such correspondences

is called an alignment. (Borgida and Seraﬁni, 2003)

proposed a formalism, namely DDL (Distributed De-

scription Logics), to represent a system of ontologies

with alignments. DRAGO reasoner

resulting from

this work allows to check consistency of such system

and provides other applications related to alignment

http://www.w3.org/TR/owl-features/

http://drago.itc.it/download.html

manipulations, e.g., alignment debugging and mini-

mization.

The most of these reasoners have been integrated

within ontology editors such as Protg, Swoop, etc.

However, they are only usable through interfaces

(API). These API are more and more numerous. They

are often speciﬁc to reasoners (e.g. KAON2 API).

The proliferation of APIs leads to two issues. On

the one hand, a change of environment can imply to

modify source codes of an application and recom-

pile them in order to be able to use a given rea-

soner. On the other hand, there exist several rea-

soners supporting different semantics such as stan-

dard Description Logics (DL), Distributed Descrip-

tion Logics (DDL) (Borgida and Seraﬁni, 2003), Inte-

grated Distributed Description Logics (IDDL) (Zim-

mermann and Le Duc, 2008), etc.. This fact implies

that speciﬁc APIs offer the same services, but with

different syntaxes. Developers must make efforts to

learn APIs on which their application depends.

To address this issue, a W3C working group pro-

poses a new protocol, namely, OWLlink (Liebig et al.,

2009). The main goal is to facilitate (i) the speciﬁ-

cation of reasoners with knowledge bases associated,

(ii) the axiom speciﬁcation, and (iii) the manner of

asking inferred results. This protocol seems to be par-

295

Le Duc C., Lamolle M. and Zimmermann A..

AN API FOR DISTRIBUTED REASONING ON NETWORKED ONTOLOGIES WITH ALIGNMENTS.

DOI: 10.5220/0003101002950304

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2010), pages 295-304

ISBN: 978-989-8425-29-4

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

ticularly interesting since it is extensible. This enables

us to add functionalities adequate to different kinds of

current and future reasoners.

The main functionalities of the proposed API are

creation and checking consistency of a network of

OWL ontologies with alignments. In addition, it al-

lows users to select a semantics associated to a given

ontology network (e.g. DL, DDL, IDDL), and thus

reasoner corresponding to the selected semantics is

determined as well (Horridge et al., 2007). In this

paper, we focus on the IDDL reasoner

which imple-

ments the algorithm presented in (Zimmermann and

Le Duc, 2008). This reasoner supports distributed

reasoning services that allow us :

• to deal with ontologies and ontology alignments

(i.e. an ontology network constituted of local

OWL ontologies and their alignments),

• to check local and global consistency of a network

of OWL ontologies with alignments.

Roughly speaking, the IDDL reasoner performs

the following tasks : (i) checking consistency of

alignments by using a global reasoner (e.g. Pellet),

(ii) propagating knowledge from alignments to each

local ontology and asking consistency of the local on-

tology with respect to the propagated knowledge, and

(iii) collecting the consistency result from each local

ontology and deciding consistency of the whole sys-

tem.

According to this schema, checking consistency

of each local ontology with respect to the knowledge

propagated from alignments can be carried out in-

dependently by local reasoners. By consequent, the

computation for deciding consistency of the whole

system is performed in a distributed way.

In the following, we present the main features of

different reasoners in Section 2. We introduce in Sec-

tion 3 the new protocol OWLlink which facilitates

communication between reasoners. We propose in

Section 4 different ways to use the IDDL reasoner

by our own Java API based on OWLlink. Section 5

provides details on an optimized implementation of

the algorithm presented in (Zimmermann and Le Duc,

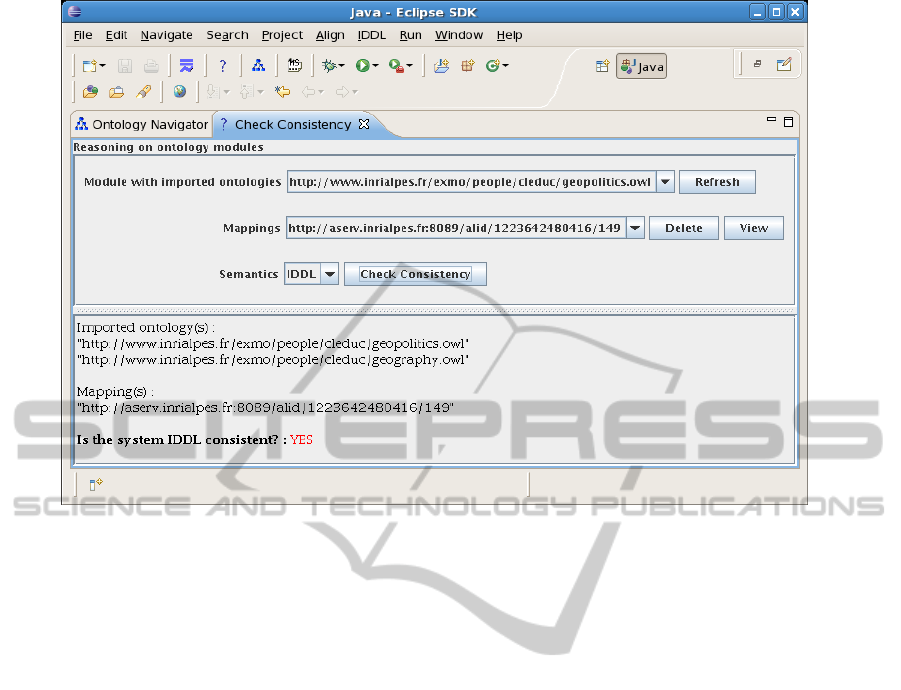

2008). Section 6 presents how to integrate the IDDL

reasoner within the NeOn Toolkit

. We conclude and

present future work in Section 7.

2 EXISTING REASONERS

Reasoning on ontologies is essentially aimed to infer

new knowledge. Reasoners can be also used to check

http://gforge.inria.fr/projects/iddl

http://neon-toolkit.org/wiki

ontology consistency and to classify terms (classes or

relations) in an ontology.

2.1 Reasoners for Simple Ontology

Amongst existing reasoners, which have a Java in-

terface and use OWL API, Pellet and FaCT++ are

the most common. Therefore, we claim that an API

used in distributed reasoners must be compatible with

them. We choose Pellet to experiment the integration

of new reasoners in a transparent way to end-user.

The tested interface with Pellet remains identical to

other open reasoners. In the context of distributed rea-

soning supported by the IDDL reasoner, Pellet is used

to deal with reasoning at global level with alignments.

The OWL API has a standard interface

org.semanticweb.owl.inference.OWLReasoner

with several methods such as isConsistent(), is-

Satisﬁable(OWLClass), isEquivalent(OWLClass,

OWLClass), etc. Pellet provides an implementation

of these methods. In terms of interoperability with

existing reasoners, Pellet can be used with Jena as

follows:

import org.mindswap.pellet.jena.PelletReasonerFactory;

import com.hp.hpl.jena.rdf.model.InfModel;

import com.hp.hpl.jena.rdf.model.Model;

import com.hp.hpl.jena.rdf.model.ModelFactory;

import com.hp.hpl.jena.reasoner.Reasoner;

// creating Pellet reasoner

Reasoner reasoner =

PelletReasonerFactory.theInstance().create();

// creating empty model

Model emptyModel = ModelFactory.createDefaultModel();

// creating inference engine

// using Pellet reasoner

InfModel model = ModelFactory.createInfModel(reasoner,

emptyModel);

This interoperability ability makes Pellet easier to

be integrated within systems based on RDF ontolo-

gies.

2.2 Reasoners for Networked

Ontologies

Another reasoners support distributed reasoning on

ontologies and alignments such as DRAGO

. The

peer-to-peer DRAGO system uses a procedure based

on distributed tableau algorithm for reasoning with

several ontologies interconnected by semantic map-

pings. This distributed reasoner is built on the top

of standard tableau reasoner as Pellet or FaCT++.

The algorithm for distributed reasoning as described

in (Seraﬁni and Tamilin, 2005) builds a distributed

http://drago.itc.it/download.html

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

296

tableau and consults the consistency of other local

ontologies. If there is a local ontology participating

to bridge rules (mappings) the algorithm consults an-

other distributed reasoner at the peer where the local

ontology is located. This process may be propagated

in the whole network.

The major disadvantage of this algorithm is that

it requires a tableau-based reasoning for every peer.

Therefore, the heterogeneity of reasoning mecha-

nisms is impossible.

Moreover, DRAGO adopts the Pellet API by

adding “D” to method signatures to dedicate dis-

tributed reasoning (e.g., isDconsistent(), isDSatisﬁ-

able()). However, this interface does not satisfy one

of our criteria (see Section 4) which says that the

name of services (e.g. consistency, satisﬁability) de-

ﬁnable in two different semantics must not be differ-

ent.

ContentMap

is a tool supporting the integration

of independently designed ontologies by using map-

pings. This tool uses the standard reasoners to gener-

ate semantic consequences of integrated ontologies.

It can help users to detect potential errors and to

evaluate mappings. This work is comparable to that

of (Meilicke et al., 2009), who proposed a method

to help human experts to check automatically align-

ments created. They used DDL to formalize map-

pings as bridge rules, which exploit Drago to reason

with alignments.

3 OWLlink PROTOCOL

If ontologies are expressed in OWL, it is necessary

also to use standard communication to make easier

interactions between reasoners and different services,

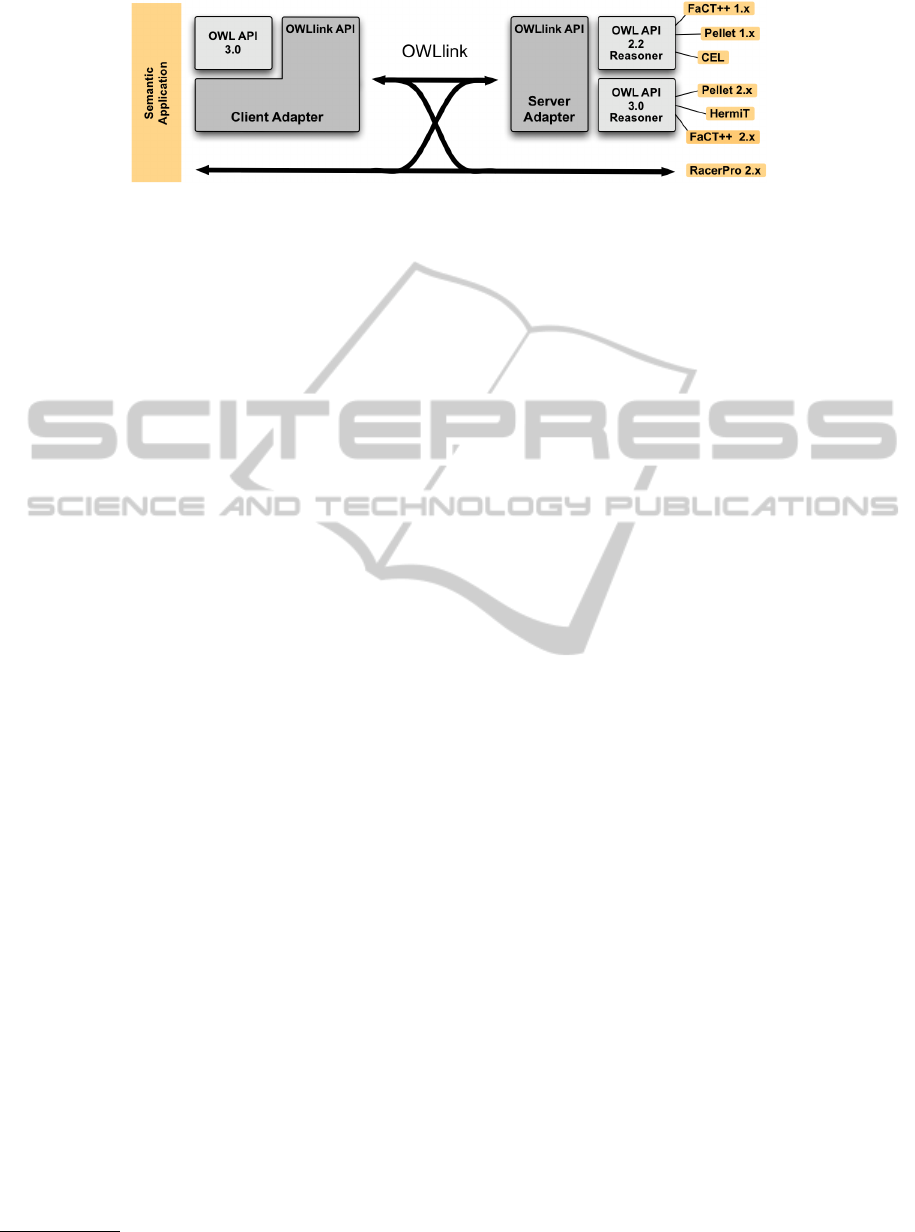

mainly in distributed ontology context. OWLlink

(Liebig et al., 2009), successor of DIG protocol, is

a Java implementation-neutral communication inter-

face for OWL (Figure 1). It follows the new W3C rec-

ommendations about extensible communication pro-

tocols for systems based on OWL2 (Motik et al.,

2009), which allows one to add new functionalities re-

quired by speciﬁc applications. OWLlink overcomes

drawbacks of DIG protocol (Bechhofer et al., 2003)

(Dickinson, 2004) since it relies on DIG2 proposi-

tions (Turhan et al., 2006). OWLlink consists of two

parts: (i) structural protocol speciﬁcation, and (ii) link

mechanism to transport protocols.

http://krono.act.uji.es/people/Ernesto/contentmap

3.1 OWLlink Speciﬁcation

OWLlink manages client/server communication (with

HTTP protocol) by message through session (Wes-

sel and Luther, 2009). Each message of re-

quest type (requestMessage()) on ontology corre-

sponds a response message (requestResponse()).

These two message types embed respectively a

set of objects Request and Response. Associ-

ated with these messages, a mechanism of error

management informs the client about errors aris-

ing from syntactic problems (SyntaxError), seman-

tic problems (SemanticError) or ontology man-

agement (KBError). Clients can get also infor-

mation about server itself (GetDescription() and

Configuration()).

Moreover, OWLlink server can manage simulta-

neously several ontologies by their IRI or by ontology

name. It can check axioms about classes, properties,

or individuals. To do that, client must make a request

(tell) embedding axioms to be checked.

In terms of interoperability, OWLlink provides a

mechanism enabling to encapsulate existing OWL-

based reasoners (Pellet, FaCT++, etc.). This facili-

tates system design which needs to deal with several

ontologies associated with local reasoners. This abil-

ity with client/server communication gives fundamen-

tal elements on which a API dedicated to distributed

reasoning can be elaborated.

3.2 Basic Primitives

OWLlink provides a set of basic primitives

to access

ontologies to obtain information about entities,

status, schema and individual. For instance, the

primitive isKBDeclaredConsistent() checks

ontology consistency. Regarding the schema of on-

tologies, the primitive isClassSatisfiable()

and isClassSubsumedBy() allow to ask

whether a class is satisﬁable or a class is sub-

sumed by another one. Finally, knowledge

about individuals can be obtained by using

isInstanceOf(), areIndividualsRelated()

or getEquivalentIndividuals(), etc.

4 IDDL REASONER INTERFACE

Zimmermann (Zimmermann, 2007) has introduced

IDDL (Integrated Distributed Description Logics) as

http://owllink-owlapi.sourceforge.net/

documentation.html

AN API FOR DISTRIBUTED REASONING ON NETWORKED ONTOLOGIES WITH ALIGNMENTS

297

Figure 1: OWLlink Architecture (source http://owllink-owlapi.sourceforge.net/).

a new formalism enabling to represent a set of on-

tologies with their alignments, i.e. networked on-

tologies interconnected by alignments. Such a net-

work consists of ontologies expressed by OWL, and

alignments considered as a set of subsumption or

disjunction relations between ontology entities (con-

cept/role/individual). This formalism is adapted par-

ticularly to reason with OWL ontology alignment au-

tomatically generated by tools as Alignment Server

The differences between IDDL and other formalisms

are:

1. In IDDL, alignments are considered as knowl-

edge pieces independent from ontology knowl-

edge. As a result, when knowledge is propagated

from alignments to local ontologies, new seman-

tic consequences can be entailed.

2. IDDL does not make any expressiveness hypoth-

esis over used formalisms in local ontology apart

from decidability. This enables the heterogeneity

of reasoning mechanisms and formalisms that are

used in local ontologies. For instance, a local rea-

soner uses a tableaux-based algorithm while an-

other reasoner can decide consistency with help

of an automata-based algorithm.

3. IDDL supports a real distributed reasoning, i.e. all

reasoning on local ontologies can be carried out

independently.

Like the most of reasoners, IDDL gives two main

services: consistency checking and entailment. IDDL

reasoner provides the two following interfaces:

1. “standalone” interface compatible with classical

reasoners (Pellet, FaCT++). The IDDL rea-

soner consists of main class IDDLReasoner,

which implements standard interface

org.semanticweb.owl.inference.OWLReasoner,

2. interface for distributed reasoning which is based

on OWLlinkReasoner presented in section 3.

It is important to note that the services available

in the IDDL API must have the same signature that

should not depend on which reasoner associated with

http://aserv.inrialpes.fr/

a semantics is used. Moreover, from users’ point

of view, this feature facilitates changes from a rea-

soner to another, and corresponds to the fact that we

can talk about (the) consistency of a system includ-

ing several logics in condition that the notion of con-

sistency is generally deﬁnable for each one. This is

the case for a system consisting of DL (OWL), DDL,

IDDL, etc.. Besides, distributed reasoners depend on

APIs for manipulating correspondences between on-

tologies. For this purpose, the IDDL reasoner cur-

rently uses the Alignment API (Euzenat, 2004). It

may arise an issue if users replace a distributed rea-

soner by another and they use different Alignment

APIs.

4.1 Classical Reasoning with a

Standalone Interface

Regarding classical reasoning, the IDDL reasoner

merges all local ontologies and their alignments, then

applies reasoning on the unique ontology. To do so,

the IDDL reasoner provides the following primitives

(where <domain>=fr.inrialpes.exmo.iddl):

<domain>.IDDLReasoner.isConsistent() returns

true if and only if the resulting ontology is consistent,

<domain>.IDDLReasoner.isEntailed(OWLAxiom)

returns true if and only if the axiom can be entailed

from the resulting ontology,

<domain>.IDDLReasoner.isEntailed(Alignment)

returns true if and only if each axiom belonging

to Alignment can be entailed from the resulting

ontology.

From this point of view, the OWLlink interface

(presented in section 3) can be used to encapsulate the

IDDL reasoner in the same way as classical reasoner

(i.e. OWLReasoner). In this case, the IDDL reasoner

with the OWLlink protocol is comparable to a local

IDDL system with regard to the global IDDL system.

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

298

4.2 Distributed Reasoning with

OWLlinkReasoner

In distributed reasoning context, the IDDL reasoner

consists of global reasoner using also Pellet. More-

over, the IDDL reasoner needs to know consistency

of each local extended ontology (Zimmermann and

Le Duc, 2008) with the help of local associated rea-

soners. The local reasoners can be Pellet, FaCT++,

DRAGO, IDDL itself, etc., and they can be located in

different sites. OWLlinkReasoner interface provides

necessary elements that the IDDL reasoner needs to

ensure communication between local and global rea-

soners. Indeed, in order to deﬁne the method:

IDDLReasoner.addOntology(OWLOntology onto1,

URL localReasoner);

the following code can be used:

URL reasonerURL = new URL( ... );

OWLlinkReasoner reasoner =

new OWLlinkHTTPXMLReasoner(

OWLOntologyManager manager,

URL reasonerURL);

CreateKB createKB = new CreateKB();

KB kb = reasoner.answer(createKB);

IRI kbIRI = kb.getKB();

// configuration : a set of global axioms

Tell tell = new Tell(kbIRI,

OWLAxioms[] configuration);

OK ok = reasoner.answer(tell);

...

Roughly speaking, a conﬁguration is a set of axioms

propagated from alignments to local ontologies. This

notion will be clariﬁed in Section 5.

This code enables to associate a local ontol-

ogy (createKB) to a local reasoner (reasoner

which is responsible for deciding and transmit-

ting the result (consistency) to the global reasoner

(reasoner.answer(tell)) whether the local

ontology is consistent with respect to the con-

ﬁguration (new Tell(kbIRI, OWLAxioms[]

configuration) ). The following code shows how

to use the IDDL reasoner.

import fr.inrialpes.exmo.iddl.IDDLreasoner;

import fr.inrialpes.exmo.iddl.types.Semantics;

import org.semanticweb.owl.model.OWLAxiom;

import org.semanticweb.owl.align.Alignment;

...

IDDLReasoner reasoner = new IDDLReasoner();

reasoner.addAlignment(URI onto1);

reasoner.addAlignment(URI align1);

reasoner.setSemantics(Semantics.DL);

//check consistency of DL system

reasoner.isConsistent();

//check entailment of an OWL axiom

reasoner.isEntailed(OWLAxiom ax);

//check entailment of an alignment

reasoner.isEntailed(Alignment al);

...

reasoner.addOntology(onto1);

//associate a local reasoner to an ontology.

reasoner.addOntology(URI onto1,

URL localReasoner1);

reasoner.addAlignment(URI align1);

reasoner.setSemantics(Semantics.IDDL);

//check consistency of IDDL system

reasoner.isConsistent();

5 OPTIMIZATION AND

IMPLEMENTATION

This section brieﬂy presents the principle of the algo-

rithm for distributed reasoning and its implementation

in the IDDL reasoner. This version does not allow

disjointness correspondences to occur in alignments.

This restriction does not lead to a serious drawback of

the expressiveness since alignments generated by the

majority of matching algorithms do not often include

disjointness correspondences.

5.1 Algorithm and Optimization

The distributed algorithm implemented in the IDDL

reasoner was presented in (Zimmermann and Le Duc,

2008). However, the vocabulary used in (Zimmer-

mann and Le Duc, 2008) differs from the one used

here. According to the metamodel, wherever ontol-

ogy is used in (Zimmermann and Le Duc, 2008), we

can replace it by module without loss of correctness.

Where alignment is used in (Zimmermann and Le

Duc, 2008), we use mapping here. Finally, a corre-

spondence in (Zimmermann and Le Duc, 2008) is the

equivalent of a mapping assertion here.

5.1.1 Preliminary Assumption

The IDDL reasoner works by having a module rea-

soner communicate with imported modules’ reason-

ers. The imported modules reasoners are supposed

to be encapsulated so that their implementation is un-

known but they can be used via an interface. Conse-

quently, for each imported module m

, we assume that

there exists an oracle F

which takes a set of DL ax-

ioms A

as arguments and returns a boolean equal to

Consistency(m

∪ A

Deﬁnition 1 (Reasoning oracle). Let O be an on-

tology deﬁned in a logic L. A reasoning oracle is

a boolean function F : P L → Bool which returns

AN API FOR DISTRIBUTED REASONING ON NETWORKED ONTOLOGIES WITH ALIGNMENTS

299

F(A) = Consistency

(O ∪ A), for all sets of axioms

A ∈ P L.

The term ontology in Deﬁntion 1 is to be taken

in a general sense. It can be a module or even a dis-

tributed system, as long as the associated reasoner can

interpret DL axioms and offers correct and complete

reasoning capabilities. In practice, such oracles will

be implemented as an interface which encapsulates a

reasoner like Pellet, Fact++, or a module reasoner.

A module reasoner must call the oracles associ-

ated with the imported modules with well chosen ax-

ioms in order to determine consistency. The choice of

axioms will be explained below. In addition, the mod-

ule reasoner have access to the mappings that may ex-

ist between imported modules. From the importing

module’s point of view, these mappings are treated

like local axioms. Therefore, we can consider that

the mappings are equivalent to an ontology (called

the alignment ontology in (Zimmermann and Le Duc,

2008)).

Deﬁnition 2 (Alignment ontology). Let A be a set of

mappings. The alignment ontology is an ontology

such that:

• for each mapping assertion i :C

←→ j : D with C

and D local concepts,

–

i:C and

i:D;

–

i:C v

i:D ∈

• for each mapping assertion i : P

←→ j : Q with P

and Q local roles,

–

i:P and

i:Q;

–

i:P v

i:Q ∈

In order to check the global consistency of the

module, we also assume that there is a reasoning or-

acle F

associated to

A. The algorithm consists in

questioning all the reasoning oracles with well cho-

sen axioms that are detailed just below.

5.1.2 Algorithm Overview

In (Zimmermann and Le Duc, 2008), it is formally

proven that consistency checking of an IDDL system

with only subsumption mapping assertions can be re-

duced to determining the emptiness and non empti-

ness of speciﬁc concepts. More precisely, we deﬁne

the notion of conﬁguration, which serves to explic-

itly separate concepts between empty concepts and

not empty concepts, among a given set of concepts.

It can be represented by a subset of the given set of

concepts, which contains the asserted non-empty con-

cepts.

Deﬁnition 3 (Conﬁguration). Let C be a set of con-

cepts. A conﬁguration Ω over C is a subset of C .

In principle, a conﬁguration Ω implicitly assert

that for all C ∈ Ω, C v ⊥ and for all C /∈ Ω, C(a) for

some individual a. A similar notion of role conﬁgu-

ration is also deﬁned in (Zimmermann and Le Duc,

2008), but for the sake of simplicity we will only

present it for concepts.

The algorithm then consists in selecting a conﬁg-

uration over the set of all concepts of the alignment

ontology. The axioms associated with the conﬁgura-

tion are then sent to the oracles to verify the consis-

tency of the resulting ontologies. If they all return true

(i.e., they are all consistency with these additional ax-

ioms) then the modular ontology is consistent. Oth-

erwise, another conﬁguration must be chosen. If all

conﬁgurations have been tested negatively, the mod-

ular ontology is inconsistent, according to the proof

in (Zimmermann and Le Duc, 2008). Since there is a

ﬁnite number of conﬁgurations, this algorithm is cor-

rect and complete.

The sets of axioms that must be used to query the

oracles are deﬁned according to a conﬁguration Ω as

follows.

Let A (resp. A

,... , A

) be the sets of axioms associ-

ated with the oracles of the alignment ontology (resp.

with the oracle of modules m

,... , m

For all imported modules m

• for all concepts i :C ∈ Ω,

i:C(a) ∈ A and C(a

) ∈

where a is a ﬁxed individual and a

is a new

individual in m

• for all concepts i :C /∈ Ω,

i:C v ⊥ ∈ A and C v

⊥ ∈ A

5.1.3 Optimization

We can identify, from the algorithm as described

above, some situations that may lead to blow-up com-

plexity.

1. The algorithm will answer negatively if and only

if it has tested all possible conﬁgurations. So, ev-

ery time a module is inconsistent, the reasoner

must call all the oracles 2

times, where n is the

number of concepts in the alignment ontology.

This situation is hardly acceptable in a practical

reasoner.

However, optimizations can be carried out to im-

prove this situation. In particular, backtrack algo-

rithms can be applied to this procedure. Indeed,

for each concept C appearing in a mapping, it

must be decided whether it is empty or not. There

are cases where it can be deduced that C is empty

(resp. not empty) immediately. In this case, it

not necessary to test conﬁgurations where C is not

empty (resp. empty). This can be visualized in

Figure 2.

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

300

. . .

k+1

k+2

k+3

k+4

k+5

v ⊥}

(a)}

at most n

FIG. 2: At each node, the left branch indicates that the concept C

is asserted as an empty concept (C

v ⊥), while the right

branch indicates a non empty concept (C

(a)). The thick path indicates a possible conﬁguration for the distributed system.

FIG. 3: An IDDL consistent system.

Figure 2: At each node, the left branch indicates that the concept C

is asserted as an empty concept (C

v ⊥), while the right

branch indicates a non empty concept (C

(a)). The thick path indicates a possible conﬁguration for the distributed system.

2. Theoretically, there are 2

possible global conﬁg-

urations where n is the number of terms occuring

in alignments. Each conﬁguration Ω is of the form

Ω = (X

,··· ,X

) where X

= C(a) asserts the non-

emptyness of the concept C or X

= (C v ⊥) as-

serts the emptyness of the concept C. We denote

= C(a) if X

= (C v ⊥) and

= (C v ⊥) if

= C(a). It holds that O

∪ Ω is not consistent if

there is X

∈ Ω such that O

∪ {X

} is not consis-

tent.

This observation allows the global reasoner to re-

duce dramatically the number of checks on con-

sistency of local ontologies since the global rea-

soner can reuse the inconsistency result of O

∪

} for all X

∈ Ω and for all conﬁguration Ω.

6 INTEGRATION OF THE IDDL

REASONER WITHIN

NEONTOOLKIT

In this section we describe the principle of the integra-

tion of the IDDL reasoner within the NeOn Toolkit.

This integration is performed by developing a plug-in,

namely IDDL reasoner plug-in, which plays an inter-

face role between the IDDL reasoner and the NeOn-

Toolkit plug-ins, e.g. the module API, Ontology Nav-

igator, Alignment Plugin, etc..

The NeOn toolkit is an environment for managing

and manipulating networked ontologies developed. It

was developed within the NeOn project as a plug-in

for managing ontologies under Eclipse and extends

previous products such as KAON2. The NeOn toolkit

features run time and design time ontology alignment

support. It can be extended through a plug-in mecha-

nism, so it can be customized to the users needs. As a

development environment for ontology management,

the NeOn Toolkit supports the W3C recommenda-

tions OWL and RDF as well as F-Logic for processing

rules. With the support of the integrated mapping-

tool, named OntoMap, heterogeneous data sources,

e.g., databases, ﬁle systems, UML diagrams, can be

connected to ontologies quickly and easily.

The IDDL reasoner API for ontology modules

uses the module API to access to alignments and im-

ported modules of an ontology module. In other

terms, the IDDL reasoner plug-in is developed such

that it can get access to the alignments and imported

modules from an ontology module and pass them to

the IDDL reasoner with help of the IDDL reasoner

API.

More precisely, from the NeOn toolkit environ-

ment the IDDL reasoner plug-in gets URIs of the im-

ported modules and the alignments from an ontology

module. In the most of cases where alignments are not

available from the ontology module, the plug-in can

fetch available alignments from an alignment server

and use them as alignments. This feature allows users

to use alignments permanently stored on servers and

select the most suitable alignments for an intended

purpose.

The IDDL reasoner plug-in relies on the IDDL

reasoner, and the core module API which provides

basic operations to manipulate ontology modules and

alignments. By using the core module API, the IDDL

reasoner plug-in can get necessary inputs from an on-

tology module. In the case where the alignments

obtained from the ontology module in question are

not appropriate, the plug-in can connect to Align-

ment Server

to fetch alignments available. For this

purpose, the plug-in offers to users an interface al-

lowing to visualize and select alignments. Figure 3

is a screenshot of the plugin integrated within Neon

Toolkit.

From a determined input, the IDDL reasoner plug-

in can obtain an answer for consistency from the

IDDL reasoner. In the case where the answer is neg-

ative the plug-in can obtain an explanation indicating

conﬁgurations and/or correspondences which are re-

sponsible for that inconsistency.

http://aserv.inrialpes.fr/

AN API FOR DISTRIBUTED REASONING ON NETWORKED ONTOLOGIES WITH ALIGNMENTS

301

Figure 3: An IDDL consistent system.

The answer time of the IDDL reasoner depends on

the following elements which are taken into account

in the optimized algorithm design.

1. If there are more unsatisﬁable or non-empty con-

cepts occurring in correspondences, the answer

time is shorter,

2. If there are more equivalent concepts or proper-

ties occurring in correspondences, the reasoner

answers faster,

3. If ontology module is inconsistent, the reasoner

has to check likely all conﬁgurations. Therefore,

the answer time would be long.

In Example 4, we have two imported ontologies

: Geopolitics and Geography with a mapping be-

tween them. The axioms of the ontologies and map-

ping are expressed in a description logic and they can

be directly coded in OWL. We consider the following

cases:

1. If these imported modules are merged with the

correspondences of the mapping, we obtain an

OWL ontology which is not consistent. The rea-

son is that the mapping allows one to deduce that

two classes ”EuropeanRegion” and ”SouthAmeri-

canRegion” are not disjoint, which contradicts the

disjointness axiom in Geography.

2. However, in the context of ontology modules the

IDDL reasoner can check consistency of the mod-

ule and answer that the module is consistent (Fig-

ure 3).

3. If we now add to the following mapping

1 : Guyana

∈

↔ 2 : SouthAmericanRegion u

EuropeanRegion, the IDDL reasoner answers that

the module is no longer consistent.

7 CONCLUSIONS AND FUTURE

WORK

In this paper, we argued that it is necessary to intro-

duce a generic API for reasoners to facilitate envi-

ronment changes without upgrading the current API

version. Moreover, we suggested to use the same sig-

nature of the reasoning services independently from

reasoners associated with a given semantics.

Then, we proposed a design and implementation

of such an API which meets these two criteria. Fi-

nally, we optimized and implemented in this API

a distributed algorithm for checking consistency of

networked ontologies with alignments based on the

IDDL semantics.

Comparing to other approaches, e.g. the dis-

tributed reasoning based on DLL, the IDDL dis-

tributed reasoning is more modular and heteroge-

neous, i.e., what global reasoner needs about a local

ontology is whether it is consistent. Thus, local on-

tologies can use different logics in condition that they

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

302

Geopolitics(1)

Woman(Cindy)

Region(Guyana)

Geography(2)

Country v Region

EuropeanRegion ≡ Region u ∃partOf .{Europe}

SouthAmericanRegion ≡ Region u ∃partOf .{SouthAmerica}

EuropeanRegion v ¬SouthAmericanRegion

Trans(partOf )

Country(France)

partOf (France,Europe)

1:Region

≡

↔ 2 : Region

1:Guyana

∈

↔ 2 : ∃partOf .{France}

1:Guyana

∈

↔ 2 : SouthAmericanRegion

FIG. 4: An example of an ontology module with mappings

7 Conclusion and Future Work

In this paper, we argued that it is necessary to in-

troduce a generic API for reasoners to facilitate envi-

ronment changes without upgrading the current API

version. Moreover, we suggested to use the same si-

gnature of the reasoning services independently from

reasoners associated with a given semantics.

Then, we proposed a design and implementation

of such an API which meets these two criteria. Fi-

nally, we optimized and implemented in this API

a distributed algorithm for checking consistency of

networked ontologies with alignments based on the

IDDL semantics.

Comparing to other approaches, e.g. the distribu-

ted reasoning based on DLL, the IDDL distributed

reasoning is more modular and heterogeneous, i.e.,

what global reasoner needs about a local ontology is

whether it is consistent. Thus, local ontologies can use

different logics in condition that they remain to be de-

cidable. This feature of IDDL provides possibility to

use different algorithms for reasoning on local onto-

logies.

The current version of the IDDL reasoner provides

only explanations for inconsistencies which are cau-

sed by correspondences propagated from mappings to

local ontologies. A future version of the IDDL reaso-

ner should take advantages of explanations from local

reasoners to give more details about how propagated

correspondences impact on a local ontology.

As mentioned at the beginning of the present sec-

tion, the current version of the IDDL reasoner does

not allow disjointness correspondences to occur in ali-

gnments. This limitation prevents us from supporting

axiom entailment since it is equivalent to inconsis-

tency of an IDDL system including disjointness cor-

respondences. For instance, the current IDDL reaso-

ner does not know whether hO,Ai |= i:C v j:D where

O, A are the sets of imported ontologies and map-

pings from an ontology module.

In a future version, we plan to extend the reaso-

ner such that it takes into account only disjointness

correspondences translated from entailment but not

those initially included in alignments. Allowing dis-

jointness correspondences in this controlled way may

not lead to a complexity blow-up.

REFERENCES

Bechhofer, S., Moller, R., and Crowther, P. (2003). The DIG

Description Logic Interface. In Calvanese, D., editor,

Proceedings of the International Workshop on Des-

cription Logics (DL03), Volume 81 of CEUR., Rome,

Italy.

Borgida, A. and Seraﬁni, L. (2003). Distributed description

logics : Assimilating information from peer sources.

Journal Of Data Semantics, 1(1) :153–184.

Dickinson, I. (2004). Implementation experience with the

DIG 1.1 speciﬁcation. Technical report, Hewlett-

Packard.

Figure 4: An example of an ontology module with mappings.

remain to be decidable. This feature of IDDL pro-

vides possibility to use different algorithms for rea-

soning on local ontologies.

The current version of the IDDL reasoner pro-

vides only explanations for inconsistencies which are

caused by correspondences propagated from map-

pings to local ontologies. A future version of the

IDDL reasoner should take advantages of explana-

tions from local reasoners to give more details about

how propagated correspondences impact on a local

ontology.

As mentioned at the beginning of the present sec-

tion, the current version of the IDDL reasoner does

not allow disjointness correspondences to occur in

alignments. This limitation prevents us from support-

ing axiom entailment since it is equivalent to inconsis-

tency of an IDDL system including disjointness corre-

spondences. For instance, the current IDDL reasoner

does not know whether hO,Ai |= i:C v j :D where O,

A are the sets of imported ontologies and mappings

from an ontology module.

In a future version, we plan to extend the reasoner

such that it takes into account only disjointness corre-

spondences translated from entailment but not those

initially included in alignments. Allowing disjoint-

ness correspondences in this controlled way may not

lead to a complexity blow-up.

REFERENCES

Bechhofer, S., Moller, R., and Crowther, P. (2003). The DIG

Description Logic Interface. In Calvanese, D., edi-

tor, Proceedings of the International Workshop on De-

scription Logics (DL03), Volume 81 of CEUR., Rome,

Italy.

Borgida, A. and Seraﬁni, L. (2003). Distributed description

logics : Assimilating information from peer sources.

Journal Of Data Semantics, 1(1):153–184.

Dickinson, I. (2004). Implementation experience with the

DIG 1.1 speciﬁcation. Technical report, Hewlett-

Packard.

Euzenat, J. (2004). An API for Ontology Alignment. In

The Semantic Web - ISWC 2004: Third International

Semantic Web Conference,Hiroshima, Japan, Novem-

ber 7-11, 2004. Proceedings, volume 3298 of LNCS,

pages 698–712. Springer.

Horridge, M., Bechhofer, S., and Noppens, O. (2007). Ignit-

ing the OWL 1.1 Touch Paper: The OWL API. In 3rd

OWL Experienced and Directions Workshop, OWLED

2007, Innsbruck, Austria.

Liebig, T., Luther, M., and Noppens, O. (2009). The owllink

protocol. In OWLED.

Meilicke, C., Stuckenschmidt, H., and Tamilin, A. (2009).

Reasoning support for mapping revision. In Journal

of Logic and Computation.

Motik, B., Patel-Schneider, P., and Parsia, B. (2009). OWL2

Web Ontology Language: Structural Speciﬁcation and

Functional-Style Syntax. Technical report, World

Wide Web Consortium.

Seraﬁni, L. and Tamilin, A. (2005). DRAGO: Distributed

reasoning architecture for the semantic web. In Lec-

ture Notes in in computer science, S., editor, Proceed-

AN API FOR DISTRIBUTED REASONING ON NETWORKED ONTOLOGIES WITH ALIGNMENTS

303

ing of the 2nd European Semantic Web Conference,

pages 361–376.

Sirin, E., Parsia, B., Grau, B. C., Kalyanpur, A., and Katz,

Y. (2007). Pellet: a pratical owl-dl reasoner. Journal

of Web Semantics, 5(2):51–53.

Tsarkov, D. and Horrocks, I. (2006). FaCT++ Descrip-

tion Logic Reasoner: System Description. In Lecture

Notes in Artiﬁcial Intelligence, S., editor, Proceeding

of the International Joint Conference on Automated

Reasoning.

Turhan, A.-Y., Bechhofer, S., Kaplunova, A., Liebig, T.,

Luther, M., Noppens, O., Patel-Schneider, P., Sun-

tisrivaraporn, B., and Weithner, T. (2006). DIG 2.0

: Towards a Flexible Interface for Description Logic

Reasoners. In Proceedings of the OWL Experiences

and Directions Workshop (OWLED06) at the ISWC06,

Athens, Georgia, USA.

Wessel, M. and Luther, M. (2009). OWLlink:

HTTP/Functional Binding, Version 1.0. Technical re-

port, W3C.

Zimmermann, A. (2007). Integrated distributed description

logics. In Proceedings of the 20th International Work-

shop on Description Logics (DL 2007), pages 507–

514.

Zimmermann, A. and Le Duc, C. (2008). Reasoning with a

network of aligned ontologies. In Proceedings of the

2nd International Conference on Web Reasoning and

system rules, LNCS 5341, pages 43–75.

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

304
