ON THE USE OF CORRESPONDENCE ANALYSIS

TO LEARN SEED ONTOLOGIES FROM TEXT

Davide Eynard, Fabio Marﬁa and Matteo Matteucci

Dept. of Electronics and Information, Politecnico di Milano, Via Ponzio 34/5, I-20133, Milan, Italy

Keywords:

Ontology learning from text, Knowledge extraction, Correspondence analysis, Machine learning.

Abstract:

In the present work we show our approach to generate hierarchies of concepts in the form of ontologies

starting from free text. This approach relies on the statistical model of Correspondence Analysis to analyze

term occurrences in text, identify the main concepts it refers to, and retrieve semantic relationships between

them. We present a tool which is able to apply different methods for the generation of ontologies from text,

namely hierarchy generation from hierarchical clustering representation, search for Hearst Patterns on the

Web, and bootstrapping. Our evaluation shows that the precision in the generation of hierarchies of the tool

is attested to be around 60% for the best automatic approach and around 90% for the best human-assisted

approach.

1 INTRODUCTION

In the last years there has been a considerable in-

crease in research on knowledge-based systems, es-

pecially in the context of the Semantic Web. How-

ever these systems, as long as they number between

their objectives something more than supplying trivial

functionalities, suffer in their development process of

the so-called knowledge acquisition bottleneck: cre-

ating large, usable, expandable and valid representa-

tions of semantics about a speciﬁc domain of interest

represents the most time-consuming task of the whole

project. The cause of this stands in the fact that, be-

ing these structures supposed to represent a collection

of semantics previously unknown to machines, they

need to be manually annotated by domain experts.

Actually, there is already plenty of information

available on the Internet which could be used to

teach a machine about virtually any domain of knowl-

edge: this information is stored in the form of col-

lections of Web pages, large corpora of documents,

databases, and so on. These repositories, however,

cannot be directly consumed by a machine as they

contain unstructured information according to any

standard model for knowledge representation.

One of the main issues in ontology building is

that two different kinds of expertise are required: the

knowledge of the domain that has to be described,

and the ability to encode the ontology in a machine-

interpretable format. Easing this task means either

making semantic technologies more accessible to

domain experts or providing structured information

about a domain to ontology experts. Focusing mainly

on the second part of this problem, our work pro-

vides an alternative to the manual generation of on-

tologies from scratch: automatically extract candidate

concepts and relations from text and suggest a seed

ontology as a ﬁrst, approximate representation of the

domain knowledge. This ontology can then be mod-

iﬁed (possibly correcting wrong information) and ex-

panded, reducing considerably the time required for

the formalization of the domain knowledge.

The main challenge we face in our tool is the

so called Ontology Learning from Text: free text is

a repository of unstructured knowledge, and this re-

quires researchers to adopt original heuristics in order

to extract structured semantics. These heuristics often

return inaccurate results, and have to be modiﬁed and

validated by experts of the domain. Our work aims at

increasing the accuracy of these methods, relying on

different techniques during the main stages of ontol-

ogy learning from text:

• the extraction of the most relevant concepts is per-

formed according to their Information Gain with

respect to a reference corpus of documents;

• subsumption relationships between the identiﬁed

concepts are built using three different algorithms

(hierarchy generation from hierarchical clustering

representation, search for Hearst Patterns on the

430

Eynard D., Marﬁa F. and Matteucci M..

ON THE USE OF CORRESPONDENCE ANALYSIS TO LEARN SEED ONTOLOGIES FROM TEXT.

DOI: 10.5220/0003102204300439

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2010), pages 430-439

ISBN: 978-989-8425-29-4

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

Web, and bootstrapping);

• the Correspondence Analysis framework has been

employed for the computation of distributional

similarity between terms, which is then used as

a basis to extract different types of relationships.

In Section 2 we present the main approaches to the

problem of the extraction of concept hierarchies that

have been investigated in the context of our project.

In Section 3 we explain in detail the steps of our so-

lution for the extraction of concept hierarchies from

free text. In Section 4 we present a summary of the

results for the tests we performed on the different plu-

gins of our tool. In Section 5 we draw our conclusions

and summarize directions of our future work.

2 ONTOLOGIES FROM TEXT

The extraction of ontologies from text can be super-

vised by a human expert or use any sort of structured

data as an additional source. In the former case, we

are speaking of assisted or semi-automatic learning;

in the latter, we refer to oracle guided learning; if the

algorithm makes no use of structured sources or hu-

man help, it is considered an automatic learner. As an

orthogonal deﬁnition, when the objective of the algo-

rithm is the expansion of a pre-constructed ontology

we talk about bootstrapping instead of learning.

A large number of methods for the ontology learn-

ing from text are based on the same conceptual ap-

proach deﬁned Distributional Similarity. It is based

on Harris’ Distributional Hypothesis (Harris, 1968):

“Words are similar to the extent that they

share similar context”.

The idea is to analyze the co-occurrence of words

in the same sentence, paragraph, document, or other

types of context to infer context similarity. The more

two words are similar in their distribution over the

contexts, the more they are expected to be semanti-

cally similar, and the more a potential directed rela-

tion is expected to stand between them.

In Distributional Similarity approaches, concepts

are extracted and organized using some representation

according to their distributional similarity. Then, dif-

ferent methods can be used to identify relationships

between neighbors. ASIUM (Faure D., 1998), for ex-

ample, is a software for the generation of concept hi-

erarchies that uses as context the verb of the sentence

where a concept appears and the syntactical function

(i.e., subject, object, or other complements) of the

concept itself. This tool presents semantically simi-

lar words to the user that can then suggest trough an

interface their hierarchical organization, thus leaving

relations discovery to the user.

Caraballo (Caraballo, 1999) presents an approach

to build a hierarchy of concepts extracted from a cor-

pus of articles from the Wall Street Journal, with the

parser described in (Caraballo and Charniak, 1998).

That model uses as context the paragraph in which

the terms appear, while for the generation of the hi-

erarchy it looks in the text for the so-called Hearst

Patterns (Hearst, 1992). An example for such a pat-

tern is “t

s, such as t

. . . ”, whose occurrence sug-

gests that term t

is a hyponym

of term t

. A further

different approach is the Learning by Googling one:

Hearst patterns can not only be found within docu-

ment corpora, but they can also be searched on the

Web. PANKOW (Cimiano P., 2004), for instance, is a

software that looks for these patterns on Google and

decides, according to the number of results returned

by the engine, whether a subsumption relation can be

conﬁrmed or denied.

Another model is presented by Fionn Murtagh

in (Murtagh, 2005) and (Murtagh, 2007). This is a

Distributional Similarity approach that relies on Cor-

respondende Analysis (a multivariate statistical tech-

nique developed by J.-P. Benzcri in the ’60s (Benzcri,

1976)) to calculate the semantic similarity between

concepts. The generation of the hierarchy starts from

the assumption that terms appearing in more docu-

ments are more general than others, and the solution

of Murtagh places them in a higher position in the hi-

erarchy.

A strongly different approach from Distributional

Similarity is Formal Concept Analysis, as described

by Philipp Cimiano (Cimiano, 2006). It is based on

different assumptions and largely relies on Natural

Language Processing (NLP) algorithms. The idea in

FCA is to identify the actions that a concept can do

or undergo. Words are organized in groups according

to the actions they share; then groups are ordered in a

hierarchy always according to these actions (i.e. the

group of entities that can run and eat and group of

entities that can ﬂy and eat are put together under the

more general group of entities that can eat). Finally

the user is asked to label every node of the formed

hierarchy (or other automatic methods can be used to

perform this operation), and the ﬁnal hierarchy is ob-

tained. The paper also describes an algorithm which

generates hierarchies from text by using, as a sort

of prompter, a pre-constructed ontology. What the

model obtains is not an extension of the pre-existent

ontology (as for bootstrapping methods), but a new

When a is-a relationship in an ontology starts from

term t

and arrives at term t

, t

is deﬁned as a hyponym

of t

, while t

is deﬁned as a hypernym of t

ON THE USE OF CORRESPONDENCE ANALYSIS TO LEARN SEED ONTOLOGIES FROM TEXT

431

and independent one, not necessarily containing all

the entities and relationships of the starting model.

For what concerns bootstrapping approaches,

many methods have been developed which are

based on distributional similarity ((Hearst M.,

1993), (Schutze, 1993), (Alfonseca E., 2002)

and (Maedche A., 2003)). Their common approach

is to evaluate from a corpus of documents the similar-

ity between a word to be added in the ontology and

other words already present in it. Then the algorithms

put the new concept as a son of the concept in the on-

tology that has the more similar children, according

to the similarity information that has been computed.

3 THE EXTRACTION TOOL

For our work, we decided to be based on the concep-

tual model presented by Fionn Murtagh in (Murtagh,

2005) and (Murtagh, 2007). The main steps of our

approach are depicted in Figure 1.

3.1 Data Indexing

To reduce the complexity of the problem, we start by

selecting a set of terms that can be considered as the

more relevant for the document corpus. To do this

we start from two corpora of documents: the training

corpus, which is used as a referential corpus by the

procedure of identiﬁcation of the relevant terms, and

the test corpus, that is the main corpus from which the

terms are to be extracted and the ontology has to be

learned.

To allow our application to rapidly handle the doc-

uments and the terms contained within them, our ﬁrst

task is to index the two document corpora. To perform

this operation we used Lucene

, which takes care of

tokenization, indexing, and stopwords ﬁltering. The

indexing process is usually very time-consuming, so

users are allowed to save the indexes generated and

reuse them across different executions.

3.2 Data Filtering

Moreover, during the indexing phase, ﬁlters can be

applied in order to select terms according to speciﬁc

needs: two different ﬁlters (one based on Wordnet

and the other on NLP algorithms) can be used to dis-

card everything but the nouns, while another one au-

tomatically discards terms composed by less than n

letters (usually, very short terms rarely represent rele-

vant concepts, even if there are some exceptions such

as with acronyms).

http://lucene.apache.org

3.3 Identiﬁcation of Relevant Terms in

the Test Corpus

For every term appearing in the test corpus the score

of Information Gain is computed. Information Gain

measure is based on the concept of entropy. In our

case, we want to calculate how the total entropy

changes for the two training and test corpora by know-

ing that a speciﬁc term is more or less common within

these sets. We can identify the P(i) function as the

probability for a document to appear in a corpus i,

computed as the number of the documents in i divided

by the total number of documents:

p(i) =

documentsIn(i)

totalDocuments

(1)

Where i can be training or test. Our entropy measure

for a group of documents D

distributed in the two

corpora is measured as:

= −

∑

p(i) · log(p(i)) (2)

We identify three different groups of documents:

• the group of all documents, D

total

;

• documents presenting the term of interest t in

them, D

;

• documents not presenting the term of interest t in

them, D

¬t

Information Gain score of term t is then calculated as:

IG(t) = H

total

−

total

−

¬t

total

¬t

(3)

Information Gain returns low values for terms that

are very common in both training and test corpora.

Terms that, instead, are very common in just one of

the two corpora make Information Gain return high

results. In this context, the training corpus has the role

of a reference for the test corpus: terms that are fre-

quent in test corpus can both be characterizing terms

of the corpus, or very useless terms as conjunction,

common adverbs, common verbs. If a term t is very

frequent also in the training corpus, which refers to a

topic different from the test corpus, t is supposed to

be a useless term, and, in fact, it will receive a lower

IG value. Vice versa, if t is very frequent in test cor-

pus, but not in training corpus it is supposed to be a

characterizing term of the test corpus, and in fact, it

will receive a higher IG value.

At the end, a set of n (with n speciﬁed by the user)

relevant terms is collected, as the top n terms of the

IG rank.

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

432

INPUT:

Training and test

Document corpora

Data

filtering

Similarity

computation

through CA

Indexing

Identification

of relevant terms

in test corpus

Creation

of the

hierarchy

OUTPUT:

final hierarchy

kingdom

troop

Murtagh Algorithm

HP on Web

Bootstrapping

HP+Bootstrapping

Figure 1: Main steps of our approach for ontology learning from text.

Figure 2: An example of Correspondence Analysis 2-dimensional projection, from a corpus of documents about the Roman

Empire.

3.4 Similarity Computation through

Correspondence Analysis

The approach of Correspondence Analysis (Murtagh,

2005) is used to project the relevant terms in

a k-dimensional Euclidean space

according to

k can be chosen at will by the user: the more the di-

mensions, the higher the precision of the distances in the

representation.

ON THE USE OF CORRESPONDENCE ANALYSIS TO LEARN SEED ONTOLOGIES FROM TEXT

433

their distributional behavior over the documents.

Correspondence Analysis starts from a (test

documents)×(relevant terms) matrix, where the

cell n

i, j

holds the number of occurrences of the jth

term in the ith document, as, for example:

caligula city group

D1 60 12 60

D2 20 54 5

D3 32 3 2

D4 1 2 5

In order to create the Euclidean space, Corre-

spondence Analysis operates over the matrix differ-

ent transformations. The ﬁrst step is to calculate the

grand total of the individual observations and divide

each number in the cells for this grand total. This is

done in order to have a matrix M

prob

expressing in the

i, j

cell the probability of co-occurrence of the two

(i, j) modalities (i.e., documents and terms). In this

simple example, the grand total is 376, and the prob-

ability matrix results:

prob

caligula city group

D1 0.159 0.031 0.159

D2 0.053 0.143 0.013

D3 0.085 0.007 0.005

D4 0.002 0.005 0.332

Then the sums of the values of each row and each

column are computed; we call the sum of the values

of the ith row F

and the sum of the values of the jth

column F

. These are the marginal distributions of the

two modalities:

prob

eat city group F

D1 0.159 0.031 0.159 35%

D2 0.053 0.143 0.013 21%

D3 0.085 0.007 0.005 10%

D4 0.002 0.005 0.332 34%

30% 19% 51%

Being

∑

n=0

= 1 and

∑

n=0

= 1, we prefer to re-

port F

and F

as percentages, every percentage repre-

sents the contribution of the ith or jth modality to the

total of the occurrences. Now we proceed by gener-

ating the so-called matrix of column proﬁles. Let us

consider the columns of our M

prob

matrix; the algo-

rithm divides every n

i, j

probability by the F

value.

What we obtain is the matrix whose columns are

called column proﬁles:

col pro f

caligula city group F

D1 53% 17% 31% 35%

D2 18% 76% 3% 21%

D3 28% 4% 1% 10%

D4 1% 3% 65% 34%

Column proﬁles are a very important element of

Correspondence Analysis because they represent the

pure distributional behavior of column modalities (the

terms, in our case), independently from the original

amount of occurrences we were dealing with.

The last F

column represents the average behavior

of the different column proﬁles. The divergences of

the single column proﬁles from this average proﬁle

can be measured with the χ

test of independence, and

the χ

distance between the l column proﬁle and k

column proﬁle can be computed as:

(l, k) =

∑

l, j

− n

k, j

)

. (4)

The sum of all the χ

tests applied to all column

proﬁles in respect to the average proﬁle represents the

total inertia of the matrix in respect to his columns.

Inertia represents the total amount of divergence of

the column proﬁles from the assumption of indepen-

dence. The higher is this number, the higher is the

probability of an interdependence between rows and

columns. There is also something more to say about

the χ

distance between two different column proﬁles:

the obtained value represents how much two differ-

ent rows diverge in their distributional behavior; the

more similar this behavior is, the more there should

be a similarity between the entities represented by the

two columns (in our case these entities are the terms

appearing in documents).

What Correspondence Analysis does, starting

from the column proﬁles matrix, is to provide a sum-

mary representation of the similarities between the

column modalities. In order to do so we project them

into an Euclidean space of k dimensions, where:

k = min(i − 1, j − 1) (5)

This space has the following properties:

• the Euclidean distance between the column

modalities in this space of representation is ex-

actly equal to the χ

distance between their col-

umn proﬁles; calling the αth dimension of the jth

column F

( j) we can state:

(l, k) =

∑

i,l

− n

i,k

)

∑

(l) − F

(k))

(6)

• the origin of the axis is placed in the barycenter of

the different column proﬁles in respect to the χ

distance measure, that is, as we said, the average

column proﬁle

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

434

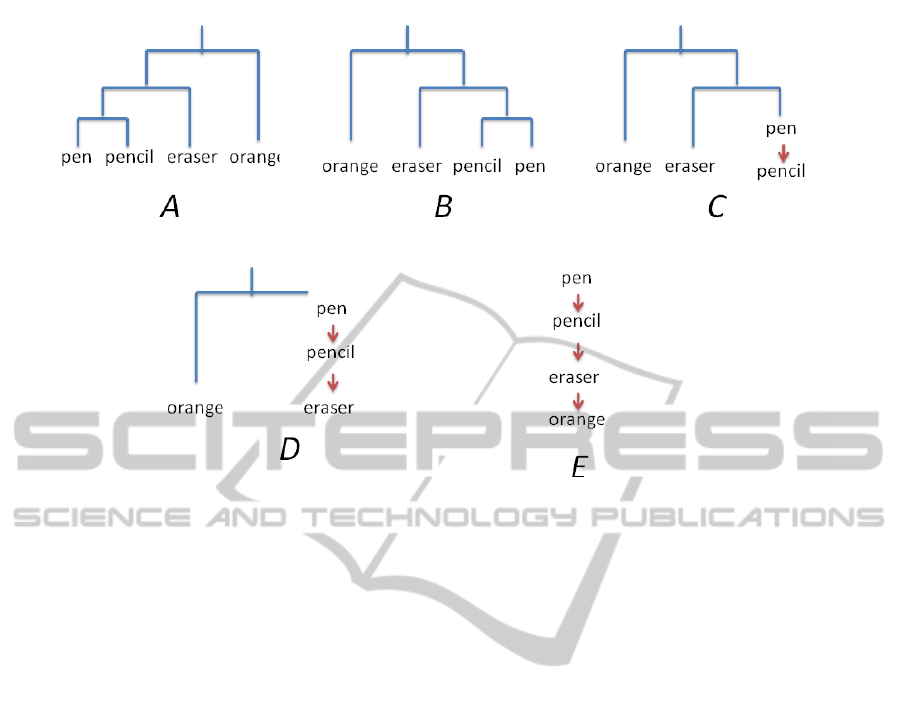

Figure 3: Simple example of Hierarchy generation, according to Fionn Murtagh’s approach.

• axes are selected to have along them, in decreas-

ing order from the ﬁrst to the kth, the maximum

possible variance of the projected elements

The creation of the space is done with the appli-

cation of different operations over the column proﬁles

matrix, the most important between them is a eigen-

value decomposition applied to translate the cloud of

modalities into a different referential system where

the axes are organized along the directions of maxi-

mum distribution of the points.

Knowing that the axes are ordered according to

the variance of the elements, if we want to reduce the

complexity of the representation, we can just discard

as many dimensions as we want, starting from the last

one. In this way, we know that we keep always the

dimensions with the highest distribution, so, the di-

mensions carrying the higher amount of distributional

information. Plot in Figure 2 was obtained just keep-

ing the 2 most important axes in the k-dimensional

space created.

3.5 Creation of the Hierarchy

At this step the user of our Extraction tool can choose

among different algorithms to be applied for the cre-

ation of the hierarchy. The options are four:

• Murtagh’s Algorithm.

• Hearst Patterns on Web.

• Maedche and Staab’s Bootstrapping.

• An original combination of the last two.

3.5.1 Murtagh’s Algorithm

This approach applies the technique presented by

Fionn Murtagh in (Murtagh, 2007) for the generation

of a hierarchy of concepts from a hierarchical clus-

tering representation. Having used the Correspon-

dence Analysis technique, adopted in many works by

Fionn Murtagh, it was natural for us to experiment

with his solution for the generation of hierarchies of

concepts, although better results can be obtained with

other techniques.

A Hierarchical Clustering tree is created deﬁning

the terms proximities in the tree according to their

proximity in the Euclidean space. The algorithm

starts from this representation to build the concept hi-

erarchy (see Figure 3, A), ordering clusters from right

to left according to their proximity to the origin in the

k-dimensional representation. This is done because

terms appearing closer to the origin are expected to

be more general terms, being their occurrences dis-

tributed over the maximum number of documents. In

our case, the representation is exactly specular to what

we had (Figure 3, B).

Starting from the ﬁrst created cluster, the right sib-

ling is always considered as a hyponym of the left one.

Thus, in our example, pen would be considered as a

hypernym of pencil (Figure 3, C). Again, the right

siblings, pen and pencil, are hypernyms of the left

one, eraser (Figure 3, D). Finally, pen, pencil and

eraser are hypernyms of orange (Figure 3, E). This

ﬁnal representation is returned as the searched hierar-

ON THE USE OF CORRESPONDENCE ANALYSIS TO LEARN SEED ONTOLOGIES FROM TEXT

435

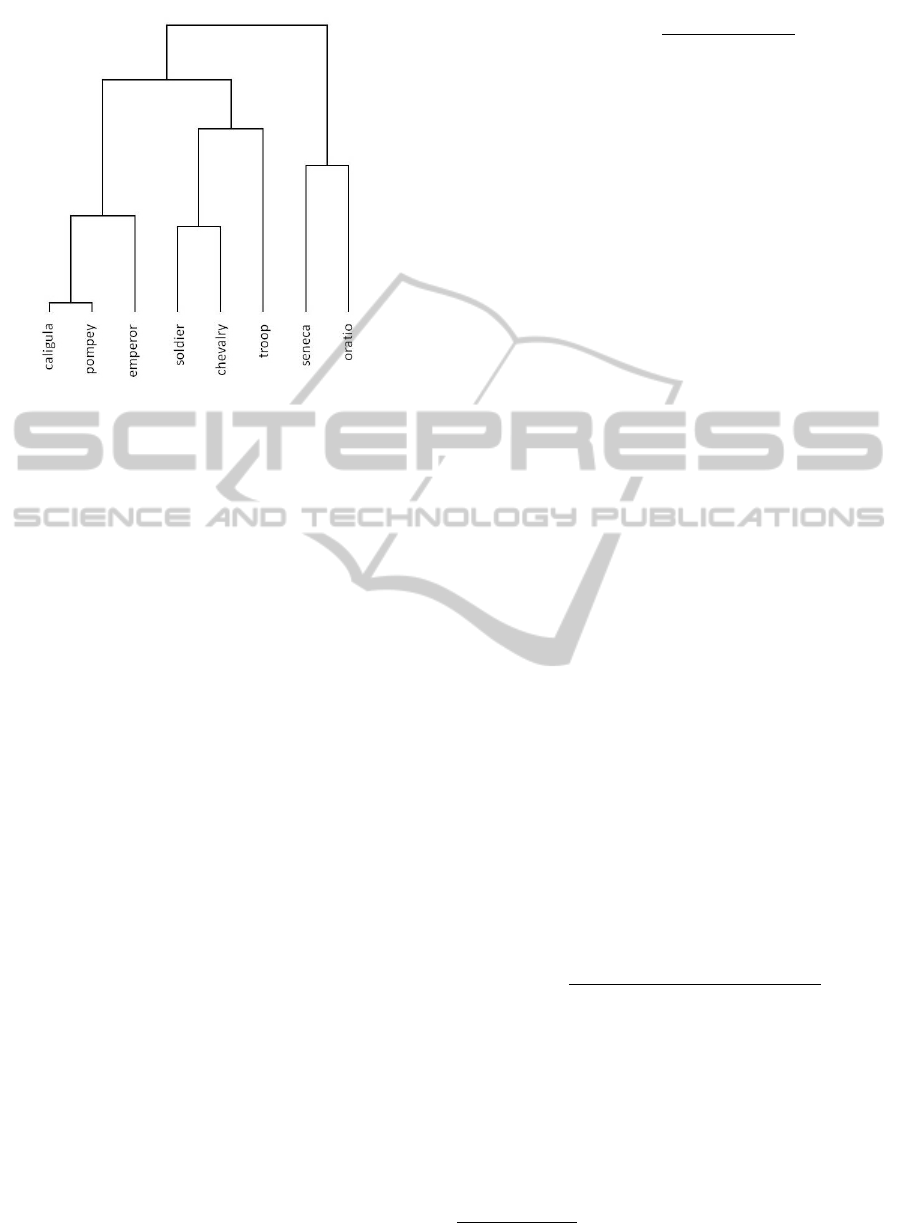

Figure 4: Example of Hierarchical Clustering of terms ex-

tracted from the 2-dimentional projection of the corpus

about the Roman Empire of Figure 2.

chy. An example of a Hierarchical Clustering tree

extracted from Correspondence Analysis depicted in

Figure 2 is shown in Figure 4.

3.5.2 Hearst Patterns on Web

The Hearst Patterns on Web approach can be applied

both for the creation of a hierarchy from scratch or

to expand an existing one. We created this solution

taking inspiration from the application PANKOW and

the general principles of Learning by Googling.

The algorithm starts with a hierarchy to be ex-

panded (bootstrapping), or with a empty hierarchy if

we want to create a new one. In the latter case, the

ﬁrst term t

to be added is simply put under the root

element. Then, for every new term t

to be added, its

lokelihood to be an hyponym of any term t

already in

the hierarchy is checked as follows:

1. ﬁve different pre-deﬁned strings based on Hearst

patterns are built:

• hp

: pluralize(t

) such as t

• hp

: pluralize(t

) including t

• hp

: pluralize(t

) especially t

• hp

: pluralize(t

) like t

• hp

: t

is a/an t

2. six Google queries are executed (the ﬁve Hearst

patterns plus the single term t

), obtaining the

number of Google hits for each query

3. the score of every string is deﬁned as the ratio be-

tween the number of its Google hits and the num-

ber of Google hits of the hyponym searched alone

score

googleHits(hp

)

googleHits(t

)

(7)

4. the total score is obtained as a sum of the different

ﬁve scores

Once the hypernymy scores have been calculated

for every t

in the hierarchy, t

is placed as hy-

ponym of the t

with the highest score between all the

scores, provided that it exceeds a pre-deﬁned thresh-

old level

If no t

hypernyms exceed the threshold level, the

user can possibly suggest a hypernym manually. She

can also select to discard the term or to add it in the

hierarchy as a hyponym of the root element. The al-

gorithm can also be executed in its automatic mode,

in this case it directly puts the t

term as a hyponym

of the root element.

After t

is placed, all its siblings are checked in the

same manner for an hyponymy relation with t

; if the

relation surpasses the threshold, the sibling element is

put as a hyponym of t

3.5.3 Maedche and Staab’s Bootstrapping

Maedche and Staab’s Bootstrapping Process is an in-

stantiation of the model deﬁned by A. Maedche and S.

Staab in (Maedche A., 2003). In this model, a concept

hierarchy is expanded adding a new t

term accord-

ing to the hypernyms of its m nearest neighbors in the

k-dimensional space, where m is a parameter of the

algorithm. The score for every f candidate hypernym

is calculated as follows.

The Least Common Superconcept between two

concepts a and b in a hierarchy is deﬁned as:

lcs(a, b) = argmin

δ(a, c) + δ(b, c) + δ(root, c), (8)

where δ(a, b) is the distance between a and b in terms

of the number of edges which need to be traversed.

Then the taxonomic similarity σ between two con-

cepts in a hierarchy can be deﬁned:

σ(a, b) =

δ(root, c) + 1

δ(root, c) + δ(a, c) + δ(b, c) + 1

, (9)

where c = lcs(a, b). The W ( f ) score for a certain can-

didate hypernym f is ﬁnally computed as:

W ( f ) =

∑

h∈H( f )

sim(t

, h) · σ(n, h), (10)

where t

is the term to be classiﬁed and H( f ) is the set

of hyponyms of candidate hypernym f that are also

nearest neighbors of t

in the k-dimensional space.

The threshold level was empirically identiﬁed after few

experiments.

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

436

The sim function is the similarity between two con-

cepts as obtained from the k-dimensional space.

If no t

hypernyms are found, the user can possi-

bly suggest a hypernym manually. She can also select

to discard the term or to add it in the hierarchy as a hy-

ponym of the root element. The algorithm can also be

executed in its automatic mode: in this case, it directly

puts the t

term as a hyponym of the root element.

3.5.4 Combination of Hearst Patterns on Web

and Bootstrapping Algorithms

This approach works by combining the two previous

algorithms we described for expanding a hierarchy.

The pre-existing hierarchy could be huge, and a new

term to be added with the Hearst patterns algorithm

would generate a huge amount of connections to the

Google servers. Depending on the Internet connec-

tion speed, the execution of a very large number of

HTTP requests could be very time consuming.

In this case, we look for the n nearest neighbors in

the k-dimensional space of t

in the pre-existing hier-

archy, and collect all their ancestors. These ancestors

are considered the candidate hypernyms of t

and they

are checked according to the Hearst Patterns on Web

algorithm.

If no hypernyms are found, the user can possibly

suggest a hypernym manually. She can also select to

discard the term or to add it in the hierarchy as a hy-

ponym of the root element. The algorithm can also be

executed in its automatic mode, in this case it directly

puts the t

term as a hyponym of the root element.

4 TESTS AND RESULTS

We evaluated the precision of the ontologies gen-

erated by some of the automatic and assisted algo-

rithms, deﬁned as the ratio between the right relation-

ships (as evaluated by a human judge) and the totality

of the relationships found:

precision =

right relationships

total relationships in ontology

(11)

Three different corpora of documents were se-

lected as test corpora:

• a set of 847 Wikipedia articles about Artiﬁcial In-

telligence and related arguments;

• a set of 1464 Wikipedia articles about Roman

Empire and related historical articles;

• a set of 1364 Wikipedia articles about Biology.

As a referential Training corpus we always use

the same collection of 1414 Wikipedia articles about

Wikipedia itself. This choice was made according

to what we stated about the Information Gain mea-

sure for term relevance: we expected from the com-

parison between any of the three test corpora and this

Wikipedia training corpus that less importance would

have been given to terms typical of every Wikipedia

article. This, in fact, proved to be correct and terms

as “Wikipedia”, “Wikimedia”, or “article”, that have

a high frequency in all the four corpora of documents,

received a lower Information Gain value with respect

to other characterizing terms of each test corpus.

We then applied the Correspondence Analysis al-

gorithm in order to generate a 2-dimensional repre-

sentation of distributional similarity of the relevant

terms, starting from this representation to execute the

different ontology learning algorithms described in

this paper. In Table 1 the average precision measures

of the ontologies obtained from the application of the

algorithms are summarized.

While Murtagh’s algorithm does not seem to per-

form well, the research for Hearst patterns via Web

seems to be a good option for the generation of con-

cept hierarchies. Its semi-automatic version provides

nearly ready-to-go ontologies, producing hierarchies

such as the one depicted in Figure 5.

Maedche and Staab’s Bootstrapping algorithm

and its combination with Hearst Patterns on Web al-

gorithm were designed to expand large concept hi-

erarchies, and, as we did not have one available, no

valid attempts have been done to test them. Early

tests with small ontologies, anyway, showed that the

combination of Maedche and Staab’s algorithm with

Hearst Patterns on Web improves the precision of

Maedche and Staab’s algorithm alone of about 10%,

but these should be considered as preliminary results

so are not reported in this paper.

5 CONCLUSIONS

In this paper we presented Extraction, a tool for the

generation of seed ontologies from text. Addressing

the problem of ontology extraction from text, we de-

veloped a modular system whose main advantage, in

our opinion, is the original co-presence of the follow-

ing three features:

• a pre-process of identiﬁcation of relevant terms,

which relies on the calculation of information gain

to reduce the complexity of the following elabo-

ration steps;

• the strong framework of correspondence analysis

for the computation of distributional similarity be-

tween terms;

ON THE USE OF CORRESPONDENCE ANALYSIS TO LEARN SEED ONTOLOGIES FROM TEXT

437

Table 1: Precision measures obtained from the evaluation of the different ontology learning algorithms.

Algorithm AI Rome Biology Average

Murtagh 6.6% 5.22% 1.87% 4.56%

Hearst Patterns on Web 60.00% 75.00% 37.50% 57.50%

Hearst Patterns on Web (assisted) 90.00% 94.52% 85.07% 89.86%

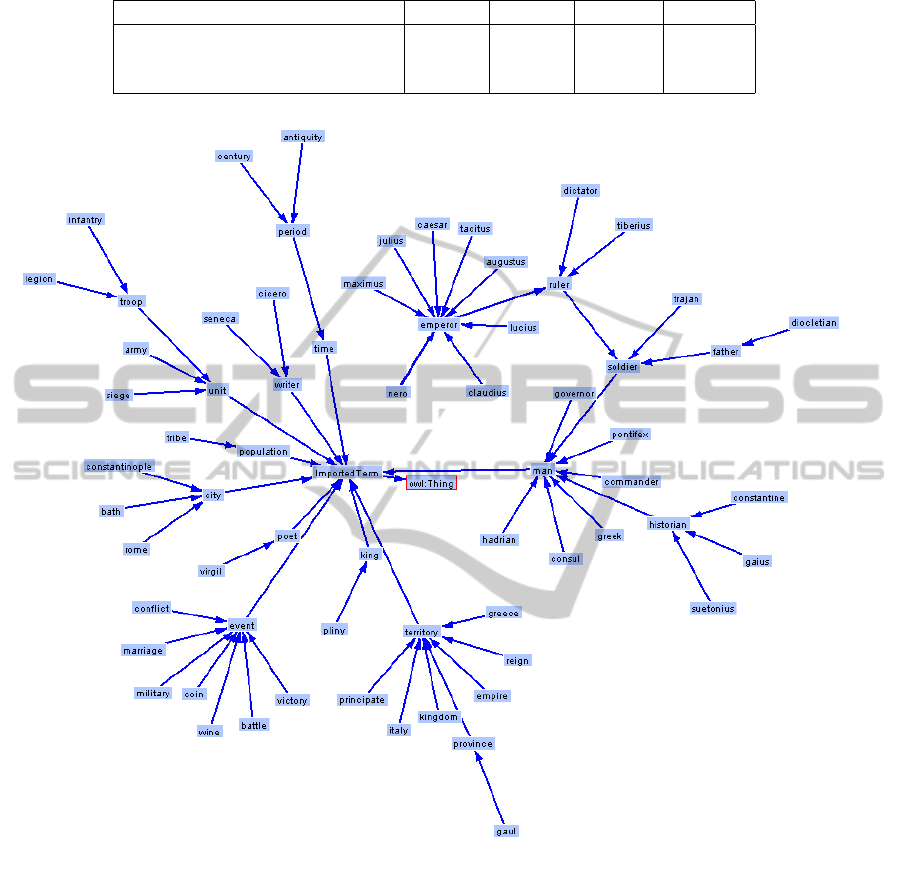

Figure 5: A hierarchy created by the Hearst Patterns on Web algorithm in its semi-automatic procedure, from 100 terms of a

corpus about the Roman Empire.

• the possibility to use different algorithms for the

generation of ontologies.

The results of our evaluation are promising. The

tool surely represents an evolution and an improve-

ment in performance with respect to Murtagh’s ap-

proach, that uses an algorithm for the generation of

hierarchies which strongly depends on an inherent

characteristic of texts called ultrametricity (Murtagh,

2007), condition which does not appear to be met in

the documents that we have analyzed. The assisted

Hearst patterns method, despite of having the disad-

vantage of requiring user interaction, provides high-

quality hierarchies which are almost ready to use. Fi-

nally, the tool allowed us to combine different algo-

rithms and provide qualitatively better results, such

as in the case of Maedche and Staab’s plus Hearst pat-

terns.

As a negative note, while making the tool more

powerful by adding functionalities based on NLP we

also made it more dependent on a speciﬁc language.

This is a limitation if we compare our approach to

Murtagh’s, as pure correspondence analysis is lan-

guage independent. However, this limit is some-

how counterbalanced by the advantages that NLP pro-

vides, such as the possibility of ﬁltering extracted

concepts by keeping only names without the need to

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

438

rely on a limited vocabulary like Wordnet. Similarly,

the extraction of concepts with information gain de-

pends on the set of documents that is chosen as a

training corpus: while this obviously looks like a lim-

itation, it also has useful drawbacks like in our eval-

uation, when we were able to use a set of general

Wikipedia documents to automatically ﬁlter all the

Wikipedia-related text from the articles we wanted to

study.

For what concerns possible future improvements

to our project, we would like to continue our work in

two main directions: on the one hand, improving our

evaluations by testing our tool with large ontologies

(especially while using the bootstrapping algorithm)

and comparing its results with the ones obtained by

using other algorithms; on the other hand, improving

the application itself by adding new functionalities

and a better user interface to easily conﬁgure them.

REFERENCES

Alfonseca E., M. S. (2002). Extending a lexical ontology by

a combination of distributional semantics signatures.

In Proceedings of the 13th International Conference

on Knowledge Engineering and Knowledge Manage-

ment.

Benzcri, J.-P. (1976). L’Analyse des Donnes. Dounod.

Caraballo and Charniak (1998). New ﬁgures of merit for

best-ﬁrst probabilistic chart parsing. In Computa-

tional Linguistics.

Caraballo, S. (1999). Automatic construction of a

hypernym-labeled noun hierarchy from text. In Pro-

ceedings of the 37th Annual Meeting of the Associa-

tion for Computational Linguistics.

Cimiano, P. (2006). Ontology Learning and Population

from Text. Springer.

Cimiano P., Handschuh S., S. S. (2004). Towards the self-

annotating web. In Proceedings of the 13th World

Wide Web Conference.

Faure D., N. C. (1998). A corpus-based conceptual cluster-

ing method for verb frames and ontology. In Proceed-

ings of the LREC Workshop on Adapting lexical and

corpus resources to sublanguages and applications.

Harris, Z. (1968). Mathematical Structures of Language.

Wiley.

Hearst, M. (1992). Automatic acquisition of hyponyms

from a large text corpora. In Proceedings of the 14th

International Conference of Computational Linguis-

tics.

Hearst M., S. H. (1993). Customizing a lexicon to better

suit a computational task. In Proceedings of the ACL

SIGLEX Workshop on Acquisition of Lexical Knowl-

edge from Text.

Maedche A., Pekar V., S. S. (2003). On discovering taxo-

nomic relations from the web. Technical report, Insti-

tute AIFB - University of Karlsruhe, Germany.

Murtagh, F. (2005). Correspondence Analysis and Data

Coding with Java and R. Chapman & Hall.

Murtagh, F. (2007). Ontology from hierarchical structure in

text. Technical report, University of London Egham.

Schutze, H. (1993). Word space. In Advances in Neural

Information Processing Systems 5.

ON THE USE OF CORRESPONDENCE ANALYSIS TO LEARN SEED ONTOLOGIES FROM TEXT

439
