KNOWLEDGE-BASED MINING OF PATTERNS
AND STRUCTURE OF SYMBOLIC MUSIC FILES
Frank Seifert
Department of Computer Science, University of Technology, Str. d. Nationen 62, 09107 Chemnitz, Germany
Keywords: Mining Music Data, Song Detection, Pattern Recognition, Knowledge-Based Music Modelling.
Abstract: To date, there are no systems that can identify symbolic music in a generic way. That is, it should be
possible to associate the countless potential occurrences of a certain song with at least one generic
description. The contribution of this paper is twofold: First, we sketch a generic model for music
representation. Second, we develop a framework that correlates free symbolic piano performances with such
a knowledge base. Based on detected pattern instances, the framework generates hypotheses for higher-level
structures and evaluates them continuously. Thus, one or more hypotheses about the identity of such a
music performance should be delivered and serve as a starting point for further processing stages. Finally,
the framework is tested on a database of symbolic piano music.
1 INTRODUCTION
Imagine you visit a hotel lounge with a piano-player
playing. If you know the performed song in general,
you will probably recognize it, although you may
have never heard the song that way before.
Commonly, such musicians play by ear, that is,
without any score. Thus, an interpretation of the
very same song often differs substantially from one
performance to another. How can we identify such
music automatically? First, we want to give an
overview about related works and how they may fit
to our aim:
So-called audio fingerprinting systems, e.g.
(Mohri, 2007), represent a large corpus of recent
music identification research. These systems abstract
from the technical realization of the very same song
by reducing the representation to salient acoustical
properties. However, music recognition is restricted
to already recorded and preprocessed songs. Even
slight alterations such as common deviations of live
performances are not detected.
More recently, audio fingerprinting is
generalized by proposals, which attempt to correlate
a musical score with possible recordings, e.g.
(Montecchio, 2009). This research is usually
denoted as music synchronization. These approaches
are strongly tied to the score representation. Mainly,
this holds only for classical music, which is often
interpreted newly based on only one existing score.
Due to this dependence, higher musical deviations or
structural modifications are not possible with these
systems.
Some proposals attempt to derive the structure of
a musical piece by finding self-similar segments,
e.g. (Bello, 2009). However, similar music segments
can show a wide range of modifications in a variety
of musical parameters, such as instrumentation,
tempo, dynamics, ornamentation, musical patterns,
and even recording conditions. These approaches are
based on a marginalization of those changes. Thus,
they work only best for musical parts that do not
change too much, such as in classical music.
Another problem is the extraction of high-level
features to describe musical content adequately. One
approach that is based on high-level features uses
chroma indexing for music identification (Miotto,
2008). However, using only one feature is not
sufficient to describe the many facets of musical
changes.
The key idea of this paper is to combine both
ideas of music synchronization and structural
analysis for music identification. Both concepts have
to be extended in order to handle those facets of
music that are usually altered when played by a bar
pianist, such as structural modifications, which
cover arbitrary repetitions of certain parts like
refrains, removal of parts like strophes, addition of
free intros, intermezzi, or endings. Parts of music
can even be combined with different partial or even
full musical entities. Such medleys are played very
358
Seifert F..
KNOWLEDGE-BASED MINING OF PATTERNS AND STRUCTURE OF SYMBOLIC MUSIC FILES .
DOI: 10.5220/0003118103580363
In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2010), pages 358-363
ISBN: 978-989-8425-28-7
Copyright
c
2010 SCITEPRESS (Science and Technology Publications, Lda.)
often at piano bars. But most challenging are
alterations of musical content: The same piece of
music can be played at different styles, e.g. bossa,
swing, or even as a waltz, which usually results in
considerable rhythmic changes. Music can be
reharmonized to make it sound more interesting. For
the same reason, parts of music are often transposed.
Finally, even melody can be changed more or less
by alteration, addition or removal of tones.
2 GENERIC REPRESENTATION
Based on inherent musical knowledge a bar pianist
knows how to play and how to accompany a melody
in a certain style. To simulate the other way around
we have to model music in a generic way that allows
for a high degree of variability. Basis of our model
is an elementary music description - the so-called
lead sheet. A lead sheet contains the melody of a
musical piece and defines harmonic context through
abstract chord symbols. A skilled pianist knows,
how to elaborate this information and present the
music in a certain style, for instance as samba. We
decompose such a representation into a sequence of
patterns with musical meaning, so-called motifs. An
very simple example for the well-known spiritual
“When the saints go marching in” is given in Figure
1:
Figure 1: Patterns of ”When the saints”.
The second pattern is a repetition of the first one.
General rules for identifying patterns involve expert
knowledge in the musical domain and are beyond
the scope of this paper. For computational
approaches see (Pearce, 2008).
Adjacent notes are difference-coded in time and
space, because pattern can be transposed or
stretched in time.
2.1 Structural Coding
The serialization of patterns within a structure is
done by delta-coding again. This time we use the
difference between the first notes of adjacent
patterns in space and time. Applied on “When the
saints” we get the following structure s
1
:
s
1
: {p
1
<0, 1.0> p
1
<0, 1.0> p
2
<4, 2.125> p
3
<0, 2.0> p
4
}
The first value after each pattern represents the
spatial difference in semitones, the second value
denotes the time difference. This note-length-
notation codes a quarter note as 0.25, an eighth as
0.125 and 2.125 means two wholes plus an eighth.
Structure s
1
describes only the melodic content of
“When the saints”. Within our model, an entire
piece of music is represented by a special template.
Such a template is usually associated with one or
more melodic structures, a harmony representation
and additional parameters.
Applied on “When the saints” we get a generic
template t
1
for that song, which consists of the
melodic structure s
1
and a non-detailed chords
representation c
1
. Model components are best
illustrated by a tree-like representation. Edges are
marked by delta-shifts in time and space.

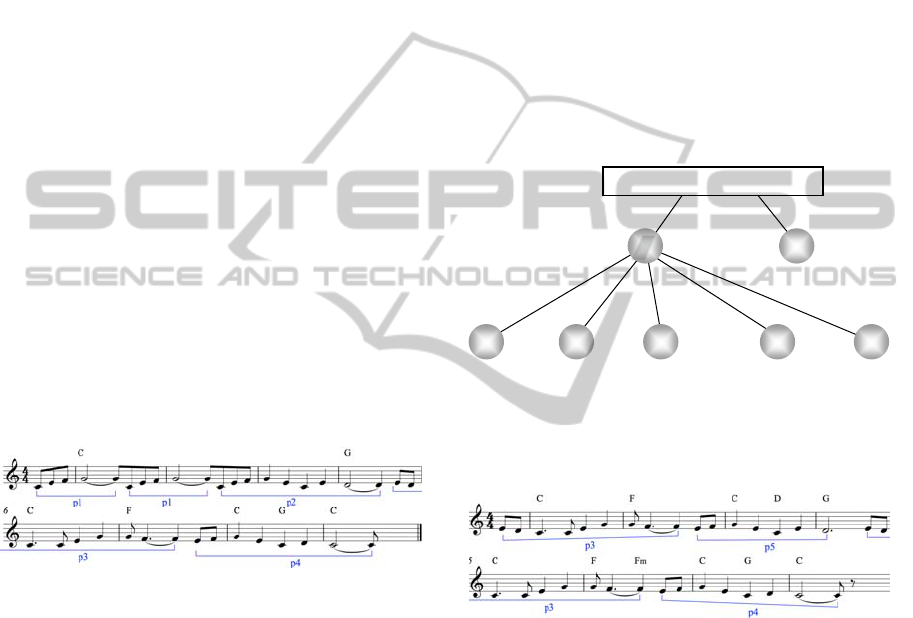

Figure 2: Generic template of ”When the saints”.
The melodic content of Figure 1 is usually
associated with “When the saints”. Actually, this is
only the refrain. The strophe is shown in Figure 3:
Figure 3: Strophe and patterns ”When the saints”.
This strophe could be modeled as structure s
2
:
s
2
: {p
3
<0, 2.0> p
5
<0, 2.0> p
3
<0, 2.0> p
6
}
As you can see, components p
3
and p
4
are reused
again. Now, we can create another structure s
3
,
which consists of s
2
and s
1
. Then, we create a new
template t
2
, which integrates s
3
and a new harmony
structure c
2
. The resulting template t
2
is depicted in
simplified form in Figure 4. Finally, we have got
two generic representations of the song, with and
without strophe. This should reflect real world
scenarios, where both representations can be valid.
By marking structural edges with a meaning tag
(not visualized), we can express common musical
meaning of structures, such as “refrain”.
p
3
t
1
(title: When the saints)
4, 2.125
p
4
t
1
(title: When the saints)
s
1
p
1
p
3
p
4
0, 1.0
c
1
p
1
p
2
0
,
1.0 4
,
2.125
0, 2.0
KNOWLEDGE-BASED MINING OF PATTERNS AND STRUCTURE OF SYMBOLIC MUSIC FILES
359

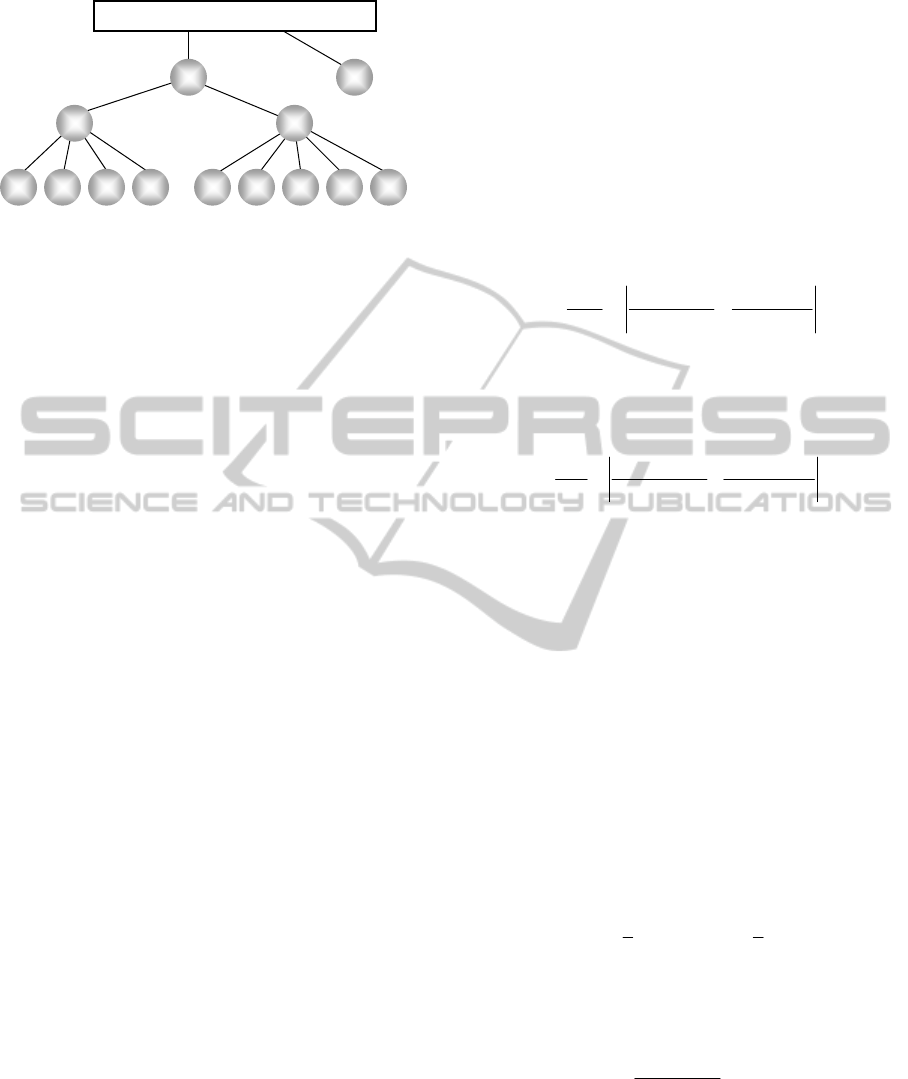

Figure 4: Template of “When the saints“ with strophe.
