UNIVERSAL EXTRA-FUNCTIONAL PROPERTIES REPOSITORY

∗

Model Overview and Implementation

Kamil Je

zek

Department of Computer Science and Engineering, University of West Bohemia Pilsen

Pilsen, Czech Republic

Keywords:

Extra-functional, Repository, Component, Services, Meta-model.

Abstract:

The current Internet is still more used for accessing data through remotely invoked services. Although it

allows rapid development of new systems, it still has some limitations. This paper addresses extra-functional

properties that must be taken into account to develop systems concerning calls of remote services. Since the

services provide general functionality among worldwide applications, their extra-functional properties must be

also generally accessible. Hence this paper targets less explored area of exchanging extra-functional properties

via the Internet. For that reason we propose a model as well as an implementation of a universal repository

that stores and accesses extra-functional properties. Main contribution of such repository is that the services

use common extra-functional properties from one repository and thus different vendors work with the same

and compatible properties.

1 INTRODUCTION

Nowadays software systems still increase in their size

which is still more difﬁcult to manage by traditional

means. Innovating techniques such as component

based programming or Service Oriented Architec-

tures (SOA) tend to prevent creation of monolithic

systems. They typically compose ﬁnal systems from

veriﬁed parts. A fundamental of component program-

ming is to develop a system from pre-existing com-

ponents while SOA tends to let applications invoke

services available via the Internet. An idea of both

techniques is, however, to use pieces of third-party

functionalities.

Although SOA and components are reaching

theirs maturity, there are still issues that prevent users

to fully beneﬁt theirs advantages. First of all, a

user must verify whether services and components are

compatible with the rest of the system. A consider-

able improvement of the veriﬁcation process is tak-

ing extra-functional properties into account. As long

as the veriﬁcation works with extra-functional prop-

erties, the veriﬁcation more closely reaches user ex-

pectations.

∗

This work was supported by the Grant Agency of the

Czech Republic under grant number 201/08/0266 “Meth-

ods and models for consistency veriﬁcation of advanced

component-based applications”.

A lot of approaches have been developed to deal

with extra-functional properties, but some issues have

not been addressed yet. The worldwide sharing of the

services must also consider a worldwide sharing of

extra-functional properties. There are a lot of issues

concerning semantics of extra-functional properties

and theirs values. Obviously, a functionality must re-

main correct among organizations. On the other hand,

extra-functional properties differ in different domains

and contexts – e.g. some values are important in one

domain, but vaguely important in another one. In ad-

dition, once vendors enhance their systems by extra-

functional properties, the properties must be under-

standable by all participating vendors.

1.1 Goal of the Paper

This paper ﬁrst introduces our approach that ad-

dresses several issues concerning worldwide ex-

change of extra-functional properties. Namely we

propose (1) a model that allows to share extra-

functional properties among organizations and (2) a

model that deals with context dependency of extra-

functional properties. We second introduce a tool we

have implemented as a prove of the concept. The tool

aims at improving exchange of extra-functional prop-

erties among worldwide vendors.

The rest of this paper is organized as follows: Sec-

382

Ježek K..

UNIVERSAL EXTRA-FUNCTIONAL PROPERTIES REPOSITORY - Model Overview and Implementation.

DOI: 10.5220/0003118303820385

In Proceedings of the International Conference on Knowledge Management and Information Sharing (KMIS-2010), pages 382-385

ISBN: 978-989-8425-30-0

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

tion 2 ﬁrst overviews our previous work pressented

in rather formal terms and then overviews other ap-

proaches concerning extra-functional properties. Sec-

tion 3 introduces our approach presented as the meta-

model. In Section 3.4 we state some worth reading

details about the implementation.

2 RELATED WORK

This work has been based on more theoretical funda-

mentals we proposed in (Jezek et al., 2010). In that

paper we presented formalization of extra-functional

properties and system of registries that addresses

context-dependency of these properties. Although our

previous research was only for software components,

the approach is not restricted to components and is

ideally suitable also for SOA. A similarity of compo-

nents and SOA is obvious: components communicate

through services that may run in different computa-

tional environment.

A lot of other works create specialized languages

for writing extra-functional properties as an ordi-

nal source code. Let us name NoFun (Franch,

1998) that distinguishes between simple and derived

extra-functional properties, CQML (Aagedal, 2001)

that serves as a complete extra-functional language,

CQML+ (R

ottger and Zschaler, 2003) that explic-

itly takes a runtime environment dependency into

account. Other rather specialized languages are:

HQML (Nahrstedt and Wichadakul, 2001), TADL

(Mohammad and Alagar, 2008), or SLAng (Lamanna

et al., 2003) specialized especially for service level

agreement. An advantage of such approaches is

that they develop an idea of what should an extra-

functional property stands for. On the other hand

they barely target context dependency of values and

exchange of extra-functional properties. Develop-

ing our approach, we consolidate typical features of

extra-functional properties into one general and uni-

ﬁed repository of extra-functional properties.

In a ﬁeld of components, there are some com-

ponent models that concern extra-functional proper-

ties as a part of their models. Let us name: Palladio

(Becker et al., 2009) that targets mainly performance

characteristics, Robocop (Muskens et al., 2005; Bon-

darev et al., 2006) for real-time characteristics, or Pro-

Com (Sentilles et al., 2009). An interesting idea in

ProCom are registries that stores EFPs. The main

reason for introducing registries is to gather attribute

types.

3 EXTRA-FUNCTIONAL

REPOSITORY TOOL

To achieve a comparability of extra-functional prop-

erties (EFPs), they must be uniﬁed. For that reason we

propose a repository that accesses common EFPs via

the Internet. Hence misunderstanding of EFPs mean-

ing is prevented as long as all participating organiza-

tions use EFPs from this uniﬁed repository. In ad-

dition, any third-party components and services may

be compared because they use the properties with the

same semantics.

3.1 Approach Overview

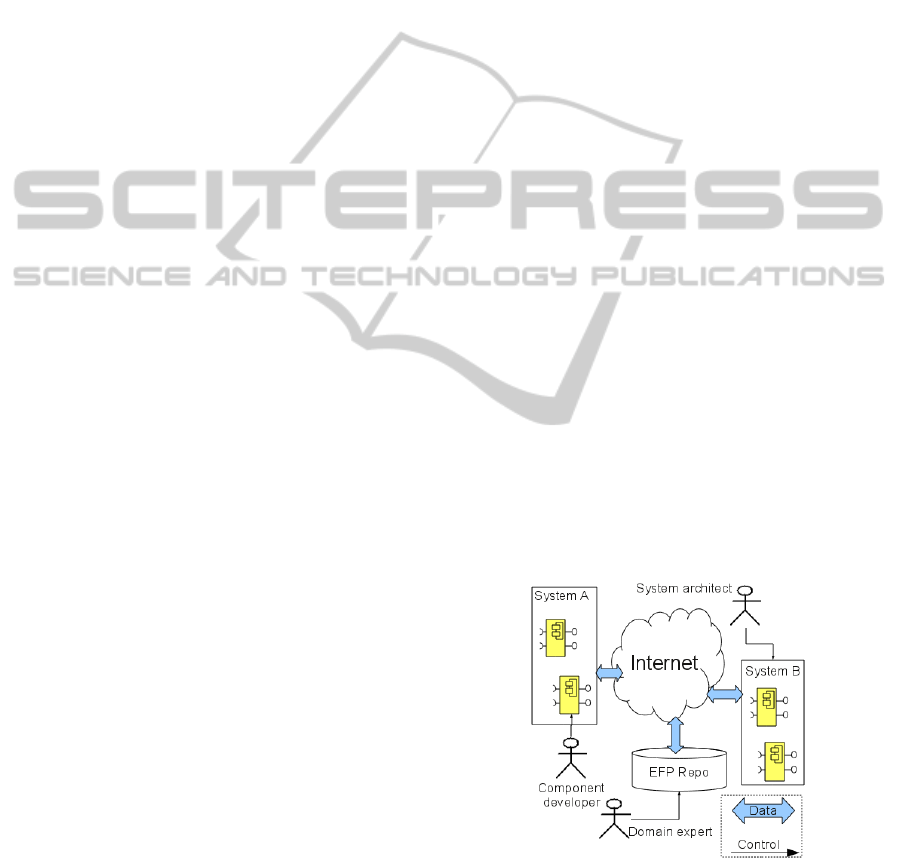

Figure 1 overviews a general mechanism of the ap-

proach. All software parts communicate via the Inter-

net. At this point, we have added a generally acces-

sible repository of EFPs. All systems and their sub-

parts must use only EFPs from the repository. It is

a noticeable improvement that prevents any usage of

incompatible properties. Once the properties are ﬁxed

in the repository they have the same meaning among

worldwide vendors.

Each component or service assigns an EFP via its

name ﬁrst, then concrete deﬁnition is looked up from

the repository when it is needed. It forces vendors to

use the same semantics for properties with the same

names.

3.2 User Roles

Figure 1 furthermore shows three roles of typical

users.

Figure 1: Overview.

There is a domain expert who role is to ﬁll in the

repository. He deﬁnes existence of EFPs and states

their names, domain types and their comparing meth-

ods. Exact structure of EFPs we have already men-

tioned in (Jezek et al., 2010). We assume a per-

UNIVERSAL EXTRA-FUNCTIONAL PROPERTIES REPOSITORY - Model Overview and Implementation

383

domain repository, because there would be probably

impossible to consolidate EFPs through all domains.

We assume a set of domains (e.g. domain of schools,

automotive, libraries) instead.

Another role is a component developer who pre-

pares each component or service. He takes EFPs from

the repository and attaches them to services. Since all

component developers use properties from the same

repository, they attach compatible properties.

Finally, the role of a system architect represents a

user who composes a ﬁnal system (composes compo-

nents or services). He uses EFPs to estimate behavior

of the ﬁnal system. His expectations of the ﬁnal sys-

tem are expressed in terms of the properties from the

repository.

3.3 Meta-model of EFPs Repository

Once extra-functional properties are used in world-

wide applications a heterogeneity of environments

must be taken into account. Addressing this hetero-

geneity we have developed a layered repository of

EFPs. We discus it in formal terms in (Jezek et al.,

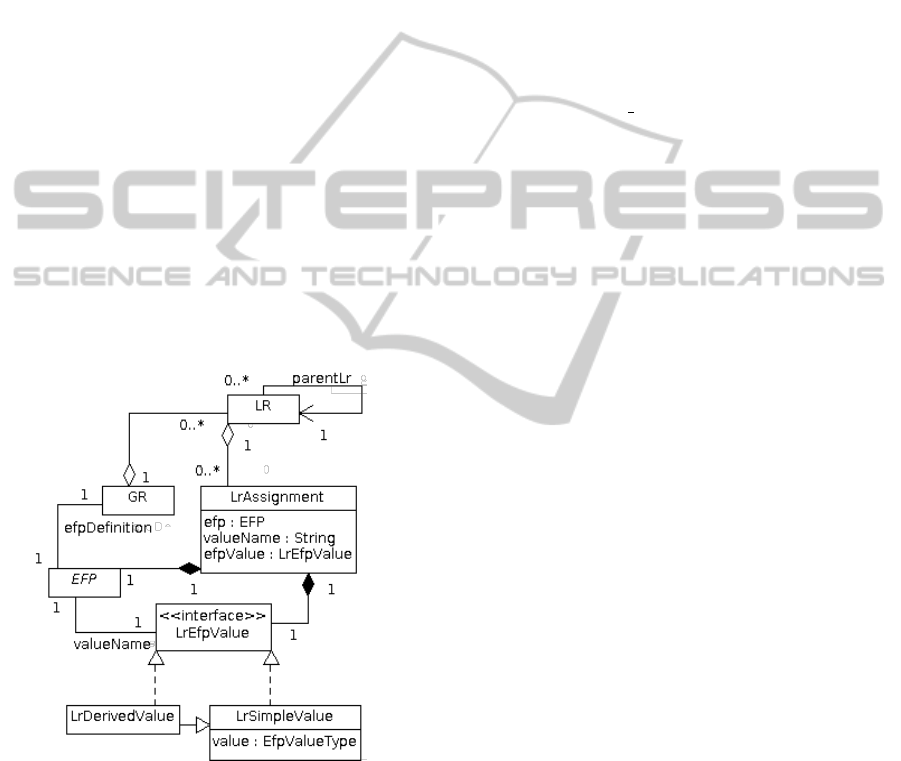

2010). Figure 2 shows an implemented meta-model

of the repository that we call Registry.

Figure 2: Registry.

The class GR represents the top level storage of

EFPs – Global registry (Jezek et al., 2010). It stores

instances of EFPs. For that reason it contains EFPs

that are valid for a whole domain and distinguished

by names. Global registry does not contain concrete

values because they typically differ in different envi-

ronments.

The class LR is called Local registry (Jezek et al.,

2010) and encapsulates context dependent values ad-

dressing the heterogeneity of environments. Each

computational environment (e.g. mobile phones, lap-

tops, desktops, servers) must deﬁne its Local registry

with concrete values.

The class LrAssignment assigns values to EFPs

via names in Local registry. An assignment is a tuple

concerning an EFP, a name and a value (Je

zek, 2010),

which assigns the value to the property by the textural

name.

Considerable beneﬁt of the assignment of values

via textural names is that continuous intervals may

be divided into disjunctive sets of named intervals.

Hence values are considered as the same as long as

they belong to the same interval (e.g. let us assume

a property “response time“ with the named interval

{0;500}ms in Local registry of small portable de-

vices. Then all concrete values as 100ms, 200ms or

300ms are considered as the same because they all

belong to one group).

The other advantage is that this solution encap-

sulates context-dependent values denoted by names.

The names do not change among environments while

concrete values differ. E.g. a value labeled as a “high“

concerns very different numbers for laptop comput-

ers and mobile phones. However a developer think in

more abstract terms (a meaning of “high” is obvious)

rather than depending on concrete numbers.

Finally, two classes LrSimpleValue and

LrDerivedValue denote assigned values for a

simple or a derived property respectively. They are

brieﬂy explained in (Jezek et al., 2010) although their

distinction is not so important for this paper.

3.4 Implementation

As a prove of the concept we have implemented the

repository presented above.

To achieve an overall goal of the work we used

a client-server architecture to allow the accessibility

of the repository via the Internet. The server side ap-

plication is a MySQL database server that has been

selected as a storage of data. We have selected a

database system because it allows to modify access

rights, contains synchronization means, locks and a

lot of other features that are useful for the concur-

rently accessed repository.

The client side application is a Java fat client that

uses JFC Swing to create a graphical user interface.

The client uses JDBC driver to access the remote

database server.

A base skeleton of the application has been cre-

ated from the meta-model in Figure 2 and the business

logic has been added manually.

Let us note that the application is still a proto-

KMIS 2010 - International Conference on Knowledge Management and Information Sharing

384

type that is capable of editing EFPs by a domain ex-

pert via the graphical user interface, however we are

still working on a public interface that would provide

EFPs to other applications via remote sockets.

4 CONCLUSIONS

In this paper we have dealt with components and Ser-

vice Oriented Architecture. We have speciﬁcally tar-

geted exchange of extra-functional properties among

organisations.

We have proposed the universal repository of

extra-functional properties that is accessible via the

Internet. We have introduced an idea of how should

such repository work ﬁrst, then we have introduced

the meta-model based on our previous work. Finally,

we have highlighted some aspects of the implementa-

tion we did as the prototype application.

Although we have developed the prototype ap-

plication, we still have open issues. In the future

we would like to add a public interface that accesses

extra-functional properties to remote systems.

Furthermore, there are some research issues that

have not been addressed yet. The system of Local

registries assumes that each feature assigns values for

all contexts. Unfortunately, in reality a lot of registries

may exist and it would be tedious work to prepare

values for each service and Local registry. A solution

may be functions (v

= f (v

);v

∈ LR

, v

∈ LR

, LR

is Local registry) that re-scale values automatically.

ACKNOWLEDGEMENTS

At this point of the paper, we would like to thank

to students J. Chlad, L. Vl

cek, T. Sojka, J. Ry

sav

L. Kolou

skov

a M. Be

r, M.

Stulc, J.

ab, T.

Pokr

yvka for the implementation of the presented

prototype.

REFERENCES

Aagedal, J. Ø. (2001). Quality of Service Support in Devel-

opment of Distributed Systems. PhD thesis, University

of Oslo.

Becker, S., Koziolek, H., and Reussner, R. (2009). The pal-

ladio component model for model-driven performance

prediction. Journal of Systems and Software, 82(1):3

– 22. Special Issue: Software Performance - Modeling

and Analysis.

Bondarev, E., Chaudron, M. R., and de With, P. H. (2006).

Compositional performance analysis of component-

based systems on heterogeneous multiprocessor plat-

forms. In Proceedings of Euromicro conference on

Software Engineering and Advanced Applications,

pages 81–91. IEEE Computer Society.

Franch, X. (1998). Systematic formulation of non-

functional characteristics of software. In Proceedings

of International Conference on Requirements Engi-

neering (ICRE), pages 174–181.

zek, K. (2010). A complex meta-model for extra-

functional properties concerning common data types

their comparing and binding. In Second World

Congress on Software Engineering (WCSE 2010).

(submitted to review).

Jezek, K., Brada, P., and Stepan, P. (2010). Towards context

independent extra-functional properties descriptor for

components. In Proceedings of the 7th International

Workshop on Formal Engineering approches to Soft-

ware Components and Architectures (FESCA 2010).

Lamanna, D. D., Skene, J., and Emmerich, W. (2003).

Slang: A language for deﬁning service level agree-

ments. Future Trends of Distributed Computing Sys-

tems, IEEE International Workshop, 0:100.

Mohammad, M. and Alagar, V. S. (2008). TADL -

an architecture description language for trustworthy

component-based systems. In ECSA ’08: Proceedings

of the 2nd European conference on Software Architec-

ture, pages 290–297. Springer.

Muskens, J., Chaudron, M. R., and Lukkien, J. J. (2005).

Component-Based Software Development for Embed-

ded Systems, chapter A Component Framework for

Consumer Electronics Middleware, pages 164–184.

Springer Verlag.

Nahrstedt, G. and Wichadakul, Y. (2001). An xmlbased

quality of service enabling language for the web.

ottger, S. and Zschaler, S. (2003). CQML+: Enhance-

ments to CQML. In Bruel, J.-M., editor, Proc. 1st

Int’l Workshop on Quality of Service in Component-

Based Software Engineering, Toulouse, France, pages

43–56. C

epadu

es-

Editions.

Sentilles, S., Stepan, P., Carlson, J., and Crnkovic, I. (2009).

Integration of extra-functional properties in compo-

nent models. 12th International Symposium on Com-

ponent Based Software Engineering (CBSE 2009),

LNCS 5582.

UNIVERSAL EXTRA-FUNCTIONAL PROPERTIES REPOSITORY - Model Overview and Implementation

385
