IMPROVING THE WORKFLOW OF SEMANTIC WEB PORTALS

USING M/R IN CLOUD PLATFORM

Seokchan Yun, Mina Song, Hyun Namgung, Sungkwon Yang, Harshit Kumar and Hong-Gee Kim

Biomedical Knowledge Engineering Lab, Seoul National University, Seoul, Korea

Keywords: Semantic Web Portal, RDF Data Processing, Cloud Computing, M/R.

Abstract: Semantic Web Portals (SWPs) provide web services supporting searching, sharing and exchanging of

information using semantic web techniques. The pre-existing SWP construction workflow based on current

RDF store has limited scalabilities for processing the large volumes of semantic data. In this paper, we

propose M/R (M/R) based modules usable in each step (e.g., data storing, reasoning, and accessing) of the

workflow to reduce overall processing time and cost. The proposed modules lesson burdens of each step by

exploiting an M/R cluster which is easily enlargeable with use of a cloud computing platform.

1 INTRODUCTION

Recently, expanding use of semantic web derives an

evolution of Semantic Web Portals (SWPs) (Lei,

2006). The SWPs are yet in its infancy, and, there

could be several different definitions (Lausen, 2005)

(Staab, 2000). We concentrate on some features of

the SWPs that are based on semantic web

technologies, and support searching, sharing and

exchanging of information (Hartmann, 2003).

Because of the limited scalability of currently

developed semantic web data management systems,

accomplishing the efficient workflow for building a

SWP with a large volume of semantic dataset has

some difficulties (Guo, 2005). There are some recent

research for solving scalability issues that are

embodied with an employment of massive

computation environments like M/R (Dean, 2008),

supercomputers, and parallel computing. But, such

approaches are committed to a specific task only like

a reasoning (Urbani, 2009) (Weaver, 2009).

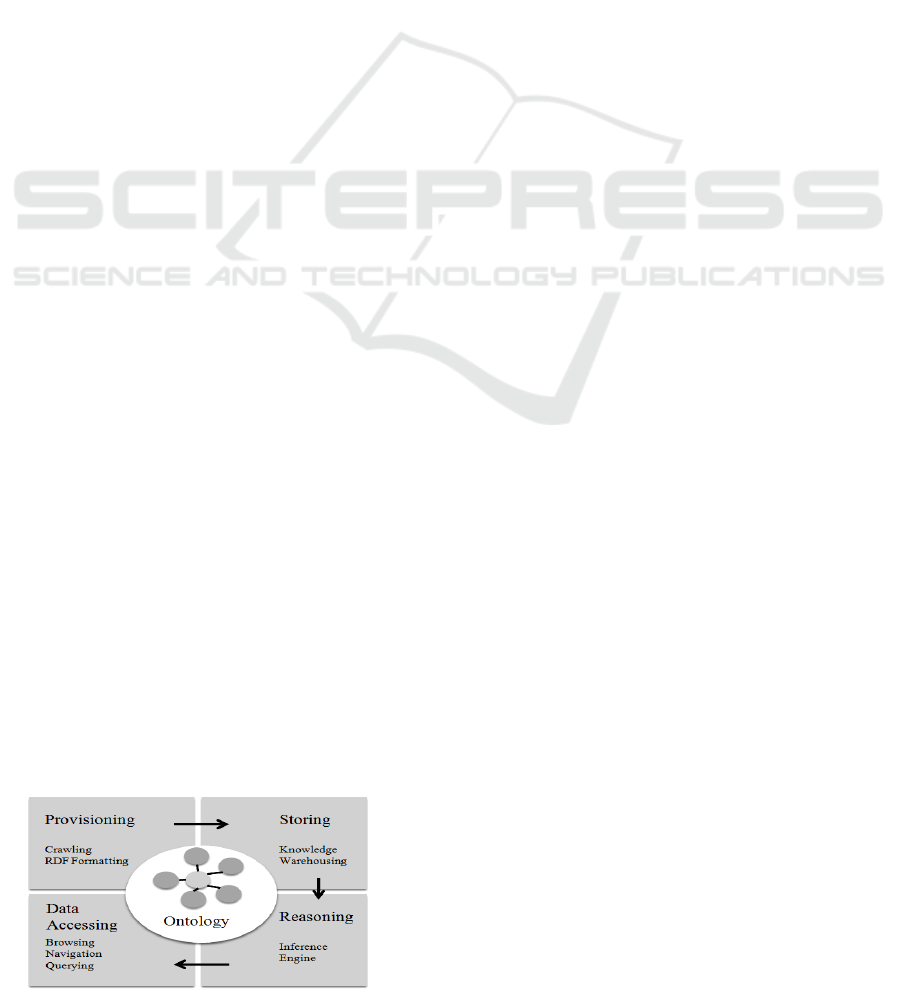

Figure 1: SWP Construction Workflow.

We focus on improving a general workflow of the

SWPs with employment M/R execution environment

which is easily usable with use of a commercial

cloud computing service. Our ongoing project is

devoted to provide improved methods to archive

each step of the workflow. We assume this work

will help creations of SWPs by lessening the

burdens to build them.

2 THE WORKFLOW OF SWPS

Firstly let us depict a general picture of SWPs.

Although there could several different points of view,

we might find a general workflow of them based on

the definition of a SWP as information providing

service based on semantic web technology.

Figure 1 shows usual steps for a SWP

construction. The SWP are equipped with a set of

conceptual basis given through in form of ontology

that provides the background knowledge and

supports the presentation of information with

semantics with in formalism. The workflow for the

construction of SWP has often limited to the size of

a data collection to be serviced. We can assume a

large size of data set that hardly be handled in a

single semantic data store with a real-time.

Between Providing and Storing: During provided

data set (written in RDF/OWL formats) is stored

into data storage, the storage usually creates

indexing structure for each single data unit, e.g.,

485

Yun S., Song M., Namgoong H., Yang S., Kumar H. and Kim H..

IMPROVING THE WORKFLOW OF SEMANTIC WEB PORTALS USING M/R IN CLOUD PLATFORM.

DOI: 10.5220/0003142104850488

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2010), pages 485-488

ISBN: 978-989-8425-29-4

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

RDF triples. The indexing techniques improve the

system's data storing and retrieving capabilities, but

it also increase storing time of the data. Some

benchmarks show that the data storing of several

million triples takes several hours to even days by a

type of RDF storages (Bizer, 2009).

Between Storing and Reasoning: The main

burden of here will be large amount of time

spending for reasoning from the stored data, and,

that could be partially solved by M/R based

Reasoning approaches (Urbani, 2009). The other

point we are focused here is duplication of the same

resource which have different identifier. Large size

of data from distributed sources deteriorates the

situation enlarging reputation rate. The reputation

increases time and complexity of the Reasoning

work.

Between Reasoning and Accessing: The

answering time of current data storages is also quite

insufficient, especially for large size of data set.

Almost every storages sometime fails to deliver an

answer for a quite complex query within a stipulated

response time like few seconds. The late response

time makes the SWPs are barely responsible to

user’s demand within guaranteed stability. The

benchmark also shows that the query time is very

long by the type of RDF storages (Bizer, 2009)

3 FILLING GAPS WITH M/R

In this section, we describe solutions for filling

above gaps through M/R programming of which

nature is proper to pre-processing work on very huge

size of data in the SWP construction work. Also

each proposed modules are developed to solving

problems of data loading, duplication of resource

and late query answering for supporting a real-time

portal service that is equipped with RDF storages.

3.1 Improving Data Storing

When semantic data set are provided, a store takes

them into a pre-processing phrase. Then, it parses

and splits incoming data written as a set of

RDF/OWL statements into atomic data units, RDF

triples which are collections of subject, verb and

object sometimes with the source of the triple

(namely a graph or domain). Data storage stores the

triples with employed index systems, e.g., B tree and

Bitmap, for providing fast accesses on each RDF

triple data.

Providing the data set cannot guarantee the pro-

processed for the storing phrase. Then, randomized

sequences of triple incomings will increase a time

for index construction. Parsing the RDF/OWL

statement is also a reason of late data storing.

Therefore we can be noticed that the time spends of

storing work can be reduced by incoming of

previously parsed and sorted triples in advance.

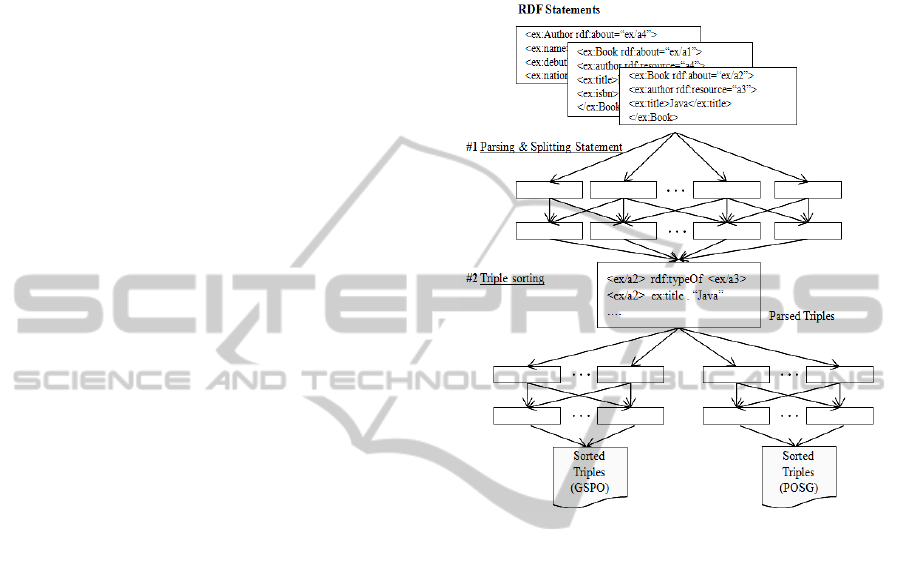

Figure 2: The M/R module for ‘Before Storing’.

Therefore, our first modules will deliver a set of

sorted triple assertions before Storing work. Figure 2

depicts M/R program which fulfils the requirement.

When a set of RDF Statement are provided, the first

M/R job parses each triples and split it into triple

assertions written in a simple expression schema like

N-triple. Then, each Mapper of the second M/R

work takes the spited triples as values of Key-Value

pair. The Key of each triple is decided by the

required sequence of the triples set, for example,

GSPO (Graph-Subject-Predicate-Object). The nature

of the M/R framework makes the Key selection can

deliver the sorted triples in corresponding to the

sequence at the end of execution.

3.2 Improving Data Reasoning

For the Reasoning work, duplications of the same

data resource are increasing an overload of the work.

Various data sources of the service can promises

large service usability and plentiful information, but,

they also accompany with reputations of the same

data (Resource) even if they share the same ontology.

Resource reputations which mean entity

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

486

semantically same with different identifiers are

frequently occurring among the information

resources. Information integration removing the

resource reputations reduces a reasoning overhead

by relieving reputations of data and complexity of

data graph.

Therefore, the second module of our work

supports the information integration based on M/R.

Table 1 includes an example which shows how the

information integration is possible through M/R.

Before execution of M/R, bold-style values are

designated as a key whereas the statements become

values of Key-Value pairs of M/R. Each key for

each statement is marked to support a simple

characteristic based integration strategy (Naumann,

2006). The same data resource holding the same key

which consists of Class and some key features are

sent to the same reducer to be treated as a resource.

Table 1: Key Selection for Information Integration.

Map (Key: ex:name+ ex:debutYear)

<ex:Author rdf:about=“ex/a3”>

<ex:name>Harshit</ex:name>

<ex:debutYear>1988</ex:debutYear >

<ex:nationality>UK</ex:nationality>

</ex:Author >

<ex:Author rdf:about=“ex/a4”>

<ex:name>Harshit</ex:name>

<ex:debutYear>1988</ex:debutYear>

<ex:publish rdf:resource=”ex/a6” />

</ex:Author >

Reduce

<ex:Author rdf:about=“ex/a4”>

<ex:name>Harshit</ex:name>

<ex:debutYear>1988</ex:debutYear>

<ex:nationality>UK</ex:nationality>

<ex:publish rdf:resource=”ex/a6” />

</ex:Author >

<ex:Author rdf:about=“ex/a4”>

<owl:sameAs rdf:resource=“ex/a3” />

</ex:Author >

3.3 Improving Data Accessing

The final gap filling we are dealing with are formed

as query pre-processing. If we consider the query

answering time of current semantic data

management system, actual user accessing need be

directed to an index, or cache server not the data

store. Therefore, this module provides a very fast

SPARQL answer preparation supporting a quick

build of the index server.

The preparation of SPARQL can be invoked by

a seed query which shows reflex a user interface of

SWP. The pre-processing phase takes as input a

queries and generates a collection of answer set

which will serve as an index for seed queries and

also for a set of queries semantically similar to seed

queries, termed as extended query. The execution of

M/R will deliver answer sets for those seed and

extended queries which cover semantic extension of

possible query in a SWP user interface.

We can make the workflow for the answer set

derivation with four M/R executions and a simple

seed query as following:

Select ?title WHERE {

?b rdf:typeof ex:Book

?b ex:title ?title}. )

Each RDF file goes to one mapper; output from

the 1

M/R is a set of triples in turtle format. Let the

set of triples be termed as (1).

T = {t

,….t

} (1)

Each triple t

has turtle format (s,p,o). The output

from 1

M/R goes as input to 2

M/R which

generates C(n,k) number of triples, called as tuples.

The tuple file further goes to 3

M/R that filters and

produces a reduced set of tuples, called as reduced

tuples. The last and 4

M/R partition the reduced set

of tuples and generate partitioned answered sets.

The number of tuples from 2

M/R depends on

the number of triple patters in the WHERE clause of

seed query. If there are k triple patterns in the

WHERE clause of seed query, each t

in T is

concatenated with other (n-1) triples with no

repetition in order, producing a tuple of length k.

This set is termed as (2) and * is a concatenation

operator. This step was carried out to compute join

of tuples.

ktuple

= <ti * tj*…*tk-1> (2)

Furthermore, 3

M/R eliminates unrelated tuples

from T

ktuple

producing a set of proper tuples, let this

set be R

ktuple

. A proper tuple is a one in which

subject (t

) == subject (t

)…==subject (t

) or object

) = subject (t

)… and so on. We call the set R

ktuple

as reduced set because set R

ktuple

has less number of

tuples compared to T

ktuple

When an example seed query has 2 triple

patterns in the WHERE clause, the 2

M/R will

create C(n,2)=n*(n-1)/2 tuples from T. The example

in Figure 2 has n=13, cardinality of T

2tuple

will be 78.

The tuples in set T

2tuple

are further filtered by 3

M/R using the following condition: if subject (t

) ==

subject (t

), which will result in x number of tuples

in R

2tuple

Now that we have a reduced tuple set R

2tuple

, 4

M/R partitions it and indexes each partitioned

answer set based on attributes in the WHERE clause

IMPROVING THE WORKFLOW OF SEMANTIC WEB PORTALS USING M/R IN CLOUD PLATFORM

487

of SPARQL query and semantically similar

attributes. Semantically similar attributes are

generated by the M/R module. Each partitioned

answered set is stored in a separate file with unique

key value for direct access.

4 USE CASE - SEMANTIC MUSIC

SERVICE

This section describes the example of SWP

construction with our proposed M/R execution

modules. We developed a semantic music service

and the data navigator browsing a music metadata

with a FLEX based user interface. When user types

a keyword, it can be accessed in musical entities

such as artist, album and song and some metadata

including artist’s birth day and release date of album

or song as Fig.3.

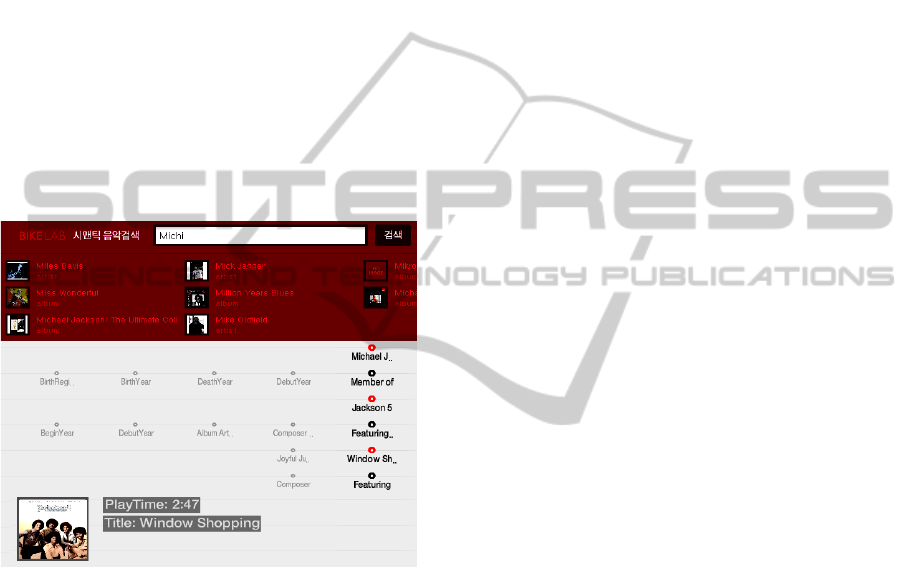

Figure 3: Semantic music service.

In this implementation, we applied only improved

data storing process to reduce processing time of

making RDF triple indexes. Firstly, we gathered a

music database supplied by KBS (Korea

Broadcasting System), an open API crawling from

madiadb.com database and RDF formatted

Musicbrainz dataset. We covered 8 million songs

from MusicBrainz and 1 millon from KBS and

ManiaDB, 0.5 million artist profiles and 1 million

albums including each relationships data.

From these dataset, we made over 10 million

RDF files based on the simple music ontology

(http://wiki.musicontology.com) and generated over

200 million triples using ten Hadoop instances of the

iCube cloud(https://www.icubecloud.com) platform

made by NEXR in South Korea.

In the future, we will implement proposed

modules for helping reasoning and data accessing

steps and evaluate our workflow compared with pre-

existing methods. Also, the other important issues

involving massive computation like pre-raking of

answer set will be dealt with in this project.

ACKNOWLEDGEMENTS

This work was supported in part by MKE & KEIT

through the Development of Independent

Component based Service-Oriented Peta-Scale

Computing Platform Project.

REFERENCES

Lei, Y., Uren, V., Motta, E., 2006. SemSearch: A Search

Engine for the Semantic Web, In proceeding of

European Semantic Conference 2006.

Hartmann, J.; Sure, Y.; Volz, R.; Studer, R., 2003.

Extended OntoWeb.org Portal, OntoWeb Deliverable

6.4

Lausen, H., Ding, Y., Stollberg, M., Fensel, D., Hernández,

R., Han, S., 2005. Semantic web portals: state-of-the-

art survey Export, Journal of Knowledge

Management, Vol. 9, No. 5, 2005.

Staab, S., Angele, J., Decker, S., Erdmann, M., Hotho, A.,

Maedche, A., Schnurr, H., Studer, R., Sure, Y., 2000.

Semantic Community Web Portals. The International

Journal of Computer and Telecommunications

Networking archive. Volume 33, Issue 1-6, 2000.

Bizer, C., Schultz, A., Berlin SPARQL Benchmark, 2009

(BSBM), http://www4.wiwiss.fu-

berlin.de/bizer/BerlinSPARQLBenchmark

Dean, J., Ghemawat, S., 2008. MapReduce: Simplified

data processing on large clusters, Communications of

the ACM, v.51 n.1, January 2008.

Guo, Y., Pan, Z., Heflin., J., 2005. LUBM: A Benchmark

for OWL Knowledge Base Systems, Journal of Web

Semantics 3(2), 2005.

Urbani, J., Kotoulas, S., Oren, E., Harmelen, F., 2009.

Scalable distributed reasoning using MapReduce. In

proceeding of ISWC 2009.

Weaver, J., Hendler, J., 2009. Parallel materialization of

the finite RDFS Closure for Hundreds of Millions of

Triples, International Semantic Web Conference 2009.

Naumann, F., Bilke, A., Bleiholder, J., Weis, M., 2006.

Data fusion in three steps:Resolving schema, tuple,

and value inconsistencies, IEEE Data Eng. Bull., 2006.

KEOD 2010 - International Conference on Knowledge Engineering and Ontology Development

488
