A Multimedia Database Server for Content-Based

Retrieval and Image Mining

Cosmin Stoica Spahiu, Liana Stanescu and Dumitru Dan Burdescu

University of Craiova, Faculty of Automation, Computers and Electronics, Craiova, Romania

Abstract. This article presents a possible extension of a software tool

implemented in C++ that manages multimedia data collections from medical

domain. An element of originality for this database management system is that

it includes a series of algorithms used for extracting visual information from

images (texture and color characteristics) along with classical operations needed

for databases servers. It is also presented a data mining algorithm adapted to the

database system that will be included in a future version.

1 Introduction

The images are an important class of multimedia data. The WWW is one of the

biggest multimedia repositories, including text data, images, video and audio data.

Most of the data type exchanged in real world is images. Although there have been

made efforts for developing search engines, content-based retrieval is rarely

implemented.

The raw data is not always useful. The real advantage is when data mining

techniques can be applied and obtained knowledge. That is why first step is to adapt

the techniques used for images processing.

In order to make the mining technology to be successful, it should be developed

for other types of data, especially for images. The image mining should consider

automatic classification, knowledge extraction, connections between images and other

new patterns. The extension of the data mining in the imagistic field is a natural

extension. It is an interdisciplinary domain that includes artificial vision, patterns

recognition, data mining, automatic learning, databases and artificial intelligence.

More than that, image mining must consider spatial information. The same pattern

might have several interpretations. That is why the mining algorithms for images are

different than the classical ones. An image pattern must be represented in a suggestive

form to the users using some characteristics of images. The information can be

presented at different levels of details: pixel, object, semantic concept, or pattern.

Most of the data mining activities have been made based on the similarity analysis

between a query image and the images from database. There are two categories of

image retrieval techniques: systems that use a text descriptor of the image and

systems that use visual content.

In the first category the images are described based of a text defined by the user.

They are indexed and retrieved based on basic descriptors such as: image size tags,

image type, acquisition date, owner id, keywords, etc. The types of queries that can be

Spahiu C., Stanescu L. and Burdescu D.

A Multimedia Database Server for Content-Based Retrieval and Image Mining.

DOI: 10.5220/0004466001410148

In Proceedings of the 4th International Workshop on Enterprise Systems and Technology (I-WEST 2010), pages 141-148

ISBN: 978-989-8425-44-7

executed are: find images from database that match the following criteria: date of

capture (before 2010), size > 150 KB, and tag “clouds”.

The text descriptors are usually added by a human operator since the automatic

generation is hard to be done without incorporating visual information. It is a process

that is hard to be applied nowadays since the volume of information is high. More

than that, these descriptors are subjective and depend on the users’ perspectives.

When using the second category, the queries that can be executed follow the next

pattern: “find all the images that are most similar with the query image”.

The paper is structured as follows: Section 2 presents content-based retrieval

systems. Section 3 presents an overview of the server, Section 4 presents the image

data mining functionality and Section 5 presents the conclusions.

2 Content-based Retrieval

The Most important aspect in content based retrieval is to find a method to measure

the similitude of the images. The properties needed for methods used to compute the

similitude, are:

- Easy computing

- Correspondence with human reasoning

There are two ways to implement content based retrieval: content-based retrieval for

k-nearest vicinity (retrieves the most k similar images) and domain query (retrieves

all the images that have the similarity between specified ranges). In order to make fast

comparisons of the images, the system has to process off-line the images and to

extract and store the characteristics of the image. For example, the color histograms

describe the colors distribution and they are extracted before executing any content

based query.

The dissimilitude of two images must be a metric that generate small values for

similar images and large value for images that have only few in common. The

performance of such a system is limited by the quality of the images characteristics

[4][8].

The architecture of a content based retrieval system is presented in Figure 1.

a) The content-based region query: this type of query compares the image based on

their color regions. In the first step of the query, the images’ regions are being queried

instead of whole images. The total similitude of two images is computed based of the

distances computed for each region in part.

The content-based retrieval can be improved in quality by adding spatial information

to the query. In this case it is considered both the similitude distances of the

characteristics (texture, color) and the spatial values of the regions.

b) Spatial query of the images. In the last years there have been developed techniques

for spatial indexing that permits to retrieve objects based on the objects positioning.

These researches compare images where there have been already defined regions or

objects, as in Figure 2 [7].

143

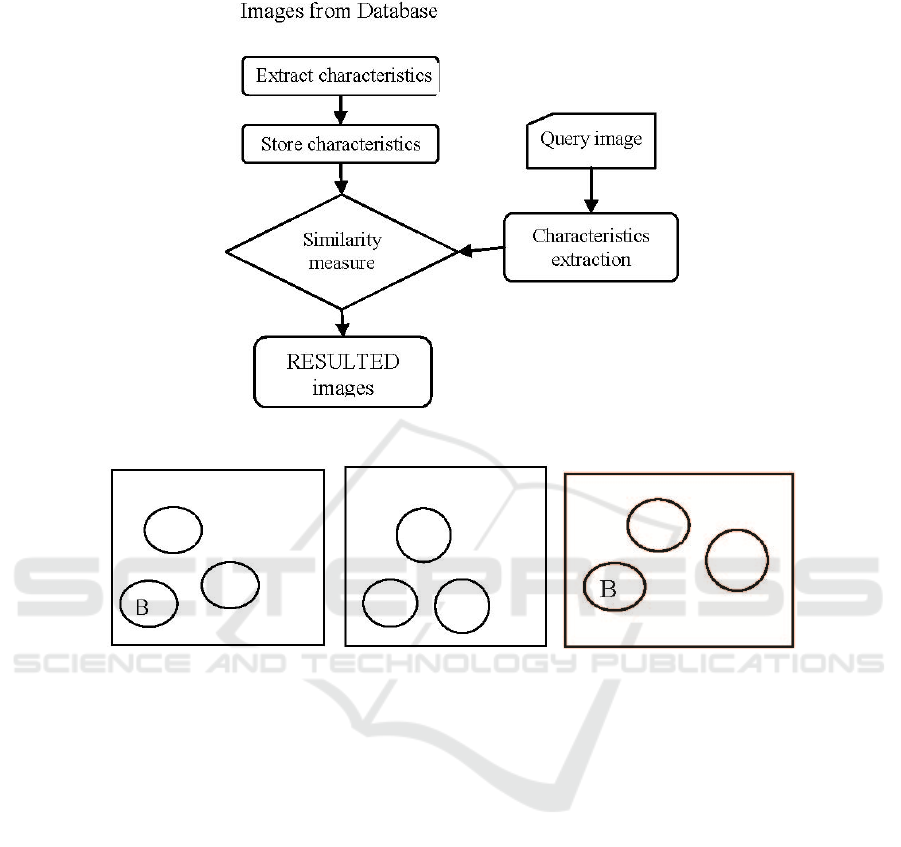

Fig. 1. Architecture of the Content-based retrieval system.

a) Query imag b) A possible relative mach c) An absolute match

Fig. 2. Spatial query of the images.

In order to extract the color regions of the images there have been implemented

the Apriori algorithm proposed by Smith and Chang. For each color region that have

been detected it should be stored the following information:

• Image id

• Region id

• Color set of the image

• Coordinates of the regions

All these information will be used in the content-based image query process.

The spatial information is represented by the minimum rectangle that bounds the

region.

The characteristics that have been used in the proposed system are: color

histogram and texture (extracted using the Gabor method) [9][10].

The similitude between images is computed using histogram intersection and

quadratic distance.

144

3 MMDBMS Overview

The MMDBMS that have been implemented allows database creation, table and

constraints adding (primary key, foreign keys), inserting images and alphanumerical

information, simple text based query and content-based query using color and texture

characteristics. The software tool is easy to be used because it respects the SQL

standard. It does not need advanced informatics knowledge and has the advantage of

low cost. It is a good alternative for a classical database management system (MS

Access, MS SQL Server, Oracle10g Server and Intermedia), which would need higher

costs for database server and for designing applications for content-based retrieval.

Figure 3 presents the general architecture of the MMDBMS [1][2][3].

In the first step any application that uses the server must connect to the database.

This way it will be created a communication channel between them. All commands

and responses will use this channel to send queries requests and receive answers.

The server has two main modules: kernel engine and database files manager.

The kernel engine includes all functions implemented in the server. It is composed

from several sub-modules each of them with specific tasks[1][2]:

The Main Module. It is the module, which manages all communications with the

client. It is the one that receives all queries requests, check what is the type of query

requested, extracts the parameters of the query and calls the specific module to

execute it.

Queries Response Module. After the query is executed, the results will be sent to the

Queries Response Module. It will compact the result using a standard format and then

return it to the client. The client will receive it on the same communication channel

used to send the request.

Select Processing Module. If the main module concludes that is a SELECT SQL

command, it will call the Select Processing module. This module extracts the

parameters from the query and then search in the database files for specific

information. If the query is a SELECT IMAGE query, it will use for comparison the

similitude of characteristics instead equality of parameters.

Characteristics Extraction Module. When the main module receives a SELECT

IMAGE or a UPDATE query which uses an image that is not already in the database

it is needed first to process it.

This module is called to extract the color and texture characteristics of the image. The

data of the results will be used to initialize a variable of IMAGE data type.

Update Processing Module. When the query received from the user is an UPDATE

command, it will be called to execute it.

Delete Processing Module. It is called when the user executes a DELETE command.

The kernel executes only logic deletes. It never executes physical deletes. The

physical deletes are executed only when a “Compact Database” command is sent by

the user.

The second main module is the Database Files Manager. It is the only module that has

access for reads and writes to the files in the database. It is his job to search for

information in the files, to read and write into files and to manage locks over

databases. When a client module request a read form a file it is enabled a read lock for

145

the specific file (that represents a table in the database). All other read requests will be

permitted but no writes will be allowed. If the client module request a write to file, it

will be enabled a write lock. No other requests will be allowed until the lock is

canceled.

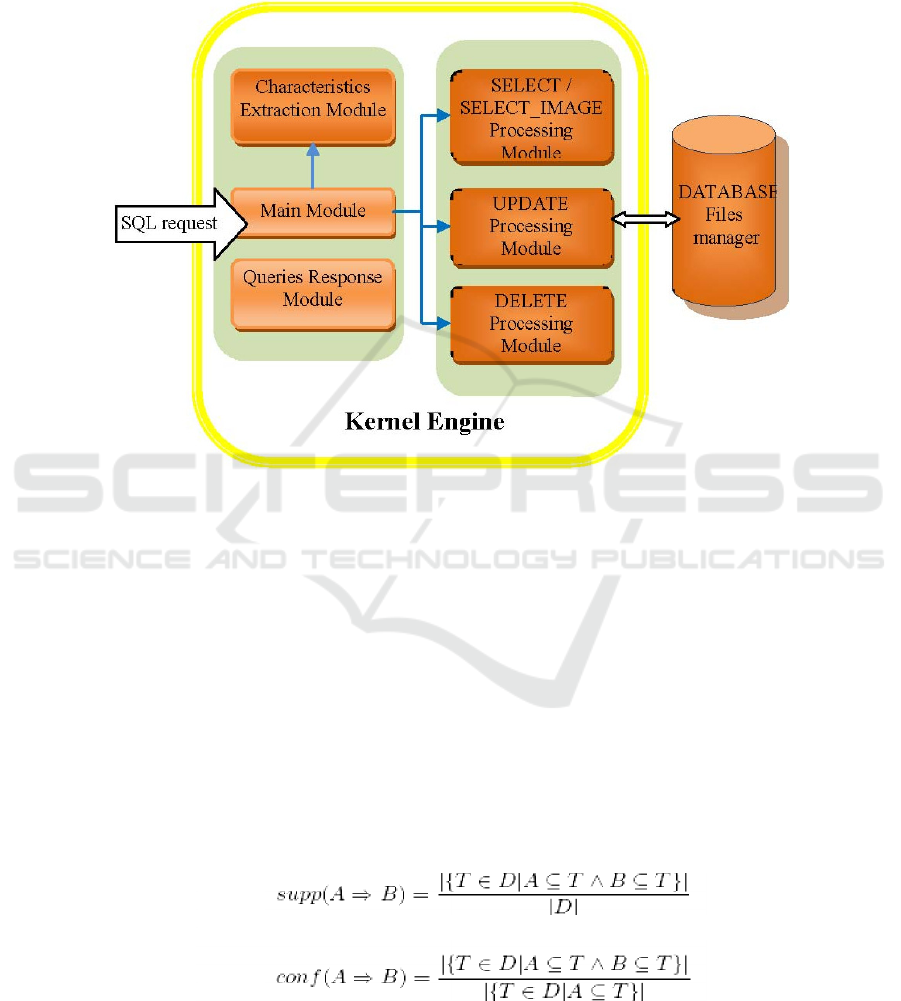

Fig. 3 General architecture of the system.

4 Image Data Mining

The information in raw form is not always useful. The real benefit comes when

“interesting” patterns can be obtained based on the association rules. An association

rule tells us about connections between two or several objects. It is a rule of type A

=> B, where A and B are objects satisfying the condition A ∩ B = Φ.

In order to find specific combinations for objects that appear together in different

associations we have studied the Apriori algorithm. It will be implemented in a future

version of the system.

This algorithm will select the most “interesting” rule, based on two parameters

called support and confidence. The rule A=> B shows that anytime A appears in a

transaction, it is very possible to appear B also.

The support parameter shows the statistic meaning of a rule:

The confidence

arameter shows the stren

th of a rule:

146

The rule probability confidence is defined as conditional probability:

p(B ⊆ T | A ⊆ T).

The association rule can be also between two or several objects (A,B => C) where A,

B, C ⊆ U.

The association rule is stronger as the confidence parameter is higher. This last

parameter specifies the minimum support for frequent objects. All the subsets of

frequent objects are also frequent. An object can be frequent only if it is found to be

frequent in one of the algorithm’s steps.

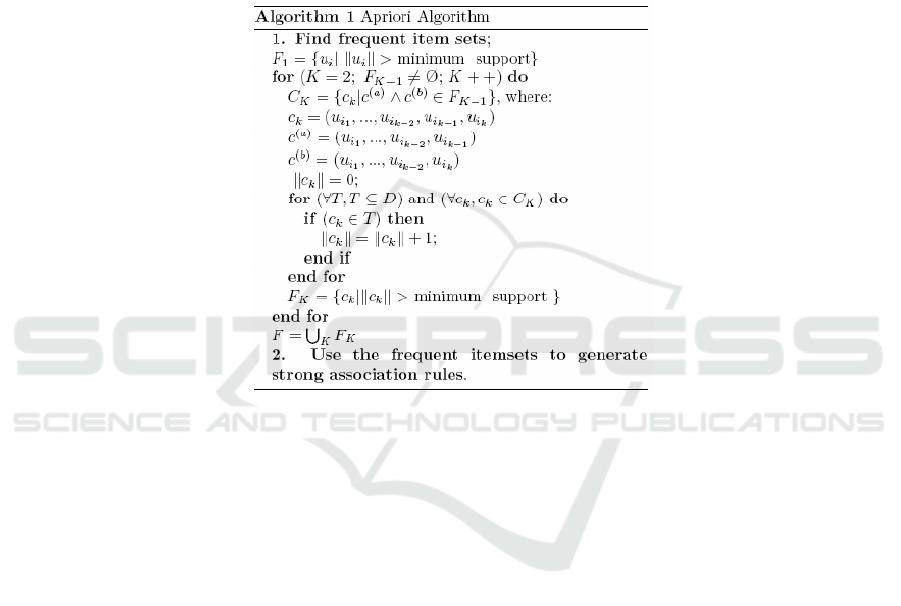

The Apriori algorithm is presented next.

This algorithm will be implemented in order to find different patterns used for

automate classification of the images, based on the diagnosis. The system will be able

to find which part of the extracted features is characteristic for each disease. It will

also be able to say for example which characteristics are connected (used in early

diagnosis for some diaseases).

Because the data volume is higher and higher in the last years it is important to

find efficient algorithms for data mining. The presented algorithm scans the data for

few times depending to the biggest most frequent object. New enhancements can be

added by reducing the number of database parsing and the number of candidates that

were generated.

The version of Apriori algorithm that is based on partitions needs only two parsing

of the database. The database is divided in disjoint partitions, each of them small

enough to fit the memory.

During the first scan, the algorithm reads each partition and finds the most

frequent local objects. During the second parsing the algorithm computes the support

for each frequent local object, from the entire database. If one object is frequent in the

database it must be frequent at least in one of the partitions. That is why to the second

partition there are found the supersets with all the potential frequent sets of objects.

147

5 Conclusions

The paper presents a possible extension of a software tool implemented in C++ that

manages multimedia data collections from medical domain. An element of originality

for this database management system is that along with classical operations for

databases, it includes a series of algorithms used for extracting visual information

from images (texture and color characteristics). It is also presented a data mining

algorithm adapted to the database system that will be included in a future version.

It is created for managing and querying medium sized personal digital collections

that contain both alphanumerical information and digital images (for examples the

ones used in private medical consulting rooms). The software tool allows creating and

deleting databases, creating and deleting tables in databases, updating data in tables

and querying. The user can use several types of data as integer, char, double and

image. There are also implemented the two constraints used in relational model:

primary key and referential integrity.

The advantages of using this intelligent content-based query visual interface are

that the specialist can see images from the medical database that are similar with the

query image taking into consideration the color and texture characteristics. In this way

the specialist can establish a correct medical diagnosis based on imagistic

investigation frequently used nowadays.

The system will include a data mining module that will be used for automate

classification of images and finding “interesting” patterns between characteristics of

the images.

This software can be extended in the following directions:

Adding new types of traditional and multimedia data types (for example video

type or DICOM type - because the main area where this multimedia DBMS is

used it is the medical domain and the DICOM type of data is for storing

alphanumerical information and images existing in a standard DICOM file

provided by a medical device)

Studying and implementing new algorithms for data mining that performs

faster on large image collections.

References

1. Stoica Spahiu C.: A Multimedia Database Server for information storage and querying. In:

Proceedings of 2nd International Symposium on Multimedia – Applications and Processing

(MMAP'09), Vol. 4, (2009), pp. 517 – 522.

2. Stoica Spahiu C., Stanescu L, Burdescu D. D., Brezovan M.: File Storage for a Multimedia

Database Server for Image Retrieval. In: Proceedings of The Fourth International Multi-

Conference on Computing in the Global Information Technology, (2009) pp.35-40

3. Stoica Spahiu C., Mihaescu C., Stanescu L., Burdescu D. D., Brezovan M.: Database

Kernel for Image Retrieval. In: Proceedings of The First International Conference on

Advances in Multimedia, (2009), pp. 169-173

4. Kratochvil M.: The Move to Store Images In the Database (2005).

http://www.oracle.com/technology/products/intermedia/pdf/why_images_in_database.pdf

148

5. Del Bimbo A.: Visual Information Retrieval, Morgan Kaufmann Publishers. San Francisco

USA (2001)

6. Smith J. R.: Integrated Spatial and Feature Image Systems: Retrieval, Compression and

Analysis. PhD. thesis, Graduate School of Arts and Sciences. Columbia University (1997)

7. Gevers T.: Image Search Engines: An Overview. Emerging Topics in Computer Vision.

Prentice Hall (2004)

8. Stanescu L., Burdescu D. D., Brezovan M., Stoica Spahiu C., Ion A.: A New Software Tool

For Managing and Querying the Personal Medical Digital Imagery. In: Proceedings of the

International Conference on Health Informatics, Porto – Portugal: (2009) 199-204

9. Samuel J. Query by example (QBE). http://pages.cs.wisc.edu/~dbbook/openAccess/

thirdEdition/qbe.pdf

10. Query by Example, http://en.wikipedia.org/wiki/Query_by_Example

11. Muller H., Michoux N., Bandon D., Geissbuhler A.: A Review of Content_based Image

Retrieval Systems in Medical Application – Clinical Benefits and Future Directions. Int J

Med Inform 73 (2004)

12. Khoshafian S., Baker A. B.: Multimedia and Imaging Databases. Morgan Kaufmann

Publishers, Inc. San Francisco California (1996)

149
