BINDING FREE ENERGY CALCULATION VIA MOLECULAR

DYNAMICS SIMULATIONS FOR A miRNA:mRNA INTERACTION

G. Paciello, A. Acquaviva, E. Ficarra, M. A. Deriu, A. Grosso and E. Macii

Dep.of Control and Computer Engineering and Dep.of Mechanics, Politecnico di Torino

C.so Duca degli Abruzzi 24, Torino, Italy

Keywords:

miRNA, Molecular dynamics, Thermodynamic integration.

Abstract:

In this paper we present a methodology to evaluate the binding free energy of a miRNA-mRNA complex

through Molecular Dynamics-Thermodynamic Integration simulations. We applied our method on the C −

elegans let-7 miRNA:lin-41 mRNA complex, known to be a validate miRNA:mRNA interaction, in order

to evaluate the energetic stability of the structure. The methodology has been designed to face the various

challenges of nucleic acid simulations and binding free energy computations and to allow an optimal trade-off

between accuracy and computational cost.

1 INTRODUCTION

MicroRNAs (miRNAs) are endogenously produced

21 ÷ 23-nt long riboregulators implicated in the con-

trol of biological processes such as differentiation,

cell proliferation and developmental timing(Bartel,

2004)(Cevec et al., 2008). MiRNAs’ target predic-

tion is an interesting ﬁeld of research widely investi-

gated in the last years. Currently almost all the ex-

isting miRNAs’ target prediction algorithms consider

only general principles based on secondary structure

analyses.

In the present work, we propose a study of the ener-

getic stability of a speciﬁc experimentally validated

interaction(Vella et al., 2004), that is the bound be-

tween C − elegans let-7 miRNA fragment and its

complementary site LCS2 in the 3

′

UTR of the lin-

41 mRNA(Cevec et al., 2008), by calculating their

binding free energy via Molecular Dynamics (MD)-

Thermodynamic Integration (TI) simulations.

The contribution of this work is twofold. First, we

devise a methodology for the computation of the free

energy of this interesting class of RNA strands, also

taking into account the computational costs. Second,

thanks to the MD simulations, we highlighted the rel-

evance of tridimensional structure informations on the

free energy result.

2 MATERIALS AND METHODS

2.1 System Set-up

The original NMR let-7:lin-41 atomic struc-

ture(Cevec et al., 2008) was taken from the Protein

Data Bank (PDB) with accession code 2JXV and

then modiﬁed to better mould the interaction between

miRNA and mRNA pointed out in nature(Vella et al.,

2004).

The secondary structure so obtained is shown in Fig-

ure 1.

Figure 1: let-7 miRNA:lin-41 mRNA modiﬁed model. The

dot represents a wobble base pair.

The modiﬁed complex was solvated in a cubic box

with 12000 TIP4P water molecules to avoid dis-

tortions(Cheatham, 2004) and then its negative net

charge neutralized with 27 sodium ions. The coor-

dinates were optimized via 3 ps steepest descendent

energy minimization, after which an all atom position

restrained simulation for 5 ps under a constant force

of 1000 kJmol

−1

−2

was carried out. All the sim-

ulations were performed using the ffamber94 Force

Field(Cornell et al., 1995) that we integrated in Gro-

318

Paciello G., Acquaviva A., Ficarra E., A. Deriu M., Grosso A. and Macii E..

BINDING FREE ENERGY CALCULATION VIA MOLECULAR DYNAMICS SIMULATIONS FOR A miRNA:mRNA INTERACTION.

DOI: 10.5220/0003167703180321

In Proceedings of the International Conference on Bioinformatics Models, Methods and Algorithms (BIOINFORMATICS-2011), pages 318-321

ISBN: 978-989-8425-36-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

macs 4.0.5 distribution(Van Der Spoel et al., 2005).

2.2 Molecular Dynamics Simulations

A preliminary set of MD simulations was conducted

to check the conformational stability of the molecular

system and to select the best simulation parameters to

adopt in the subsequent free energy simulations. Due

to the well known helix shape modiﬁcations(Pan and

Mackerell, 2003), the ﬁrst and the last nucleotides of

both RNA chains were restrained with a force con-

stant of 1000kJmol

−1

−2

. The temperature was

maintained constant at 310K and all bonds were kept

rigid thanks to the LINCS Algorithm. Non bonded

interactions were calculated using a neighbor list up-

dated every 5 time steps. Cut-off distance for short-

range interactions was set at 1.2nm. Fast Particle-

Mesh Ewald electrostatics (PME) in all the three di-

mensions was used to calculate long-range electro-

static forces. The interpolation order for PME was

set as cubic whereas the relative strength of Ewald-

shifted direct potential at Coulomb distance at 10

−5

A leap-frog algorithm was used for integrating New-

ton’s equations of motion. Trajectory structures were

saved at 0.1ps intervals from a 1ns and a 10ns long

molecular dynamics simulations.

2.3 Free Energy Calculations

Thermodynamic-Integration (TI) approach was used

to calculate the binding free energy. The TI technique

allows to obtain the free energy difference ∆G be-

tween two states of a system, A described by a Hamil-

tonian H(λ = 0) = H

and B deﬁned by a Hamiltonian

H(λ = 1) = H

, by changing from A to B state the in-

teraction parameters that deﬁne the Hamiltonian H as

a function of a coupling parameter λ as showed in Eq.

∆G

= G

− G

dG(λ)

dλ

dλ =

dH(λ)

dλ

(1)

The thermodynamiccycle implemented to achieve the

desired binding free energy value is reported in Figure

2(Lawrenz et al., 2009).

In order to achieve the conditions described by the

thermodynamic cycle, the B state of the system was

opportunely edited during the simulations. At any in-

termediate state the Hamiltonian of the system was

deﬁned by Eq. 2.

H(λ) = (1− λ)H

+ λH

(2)

Regarding Eq. 2, the ensemble averages of the deriva-

tive of the Hamiltonian were calculated via 1ns long

∆G

BIND

= ∆G

− ∆G

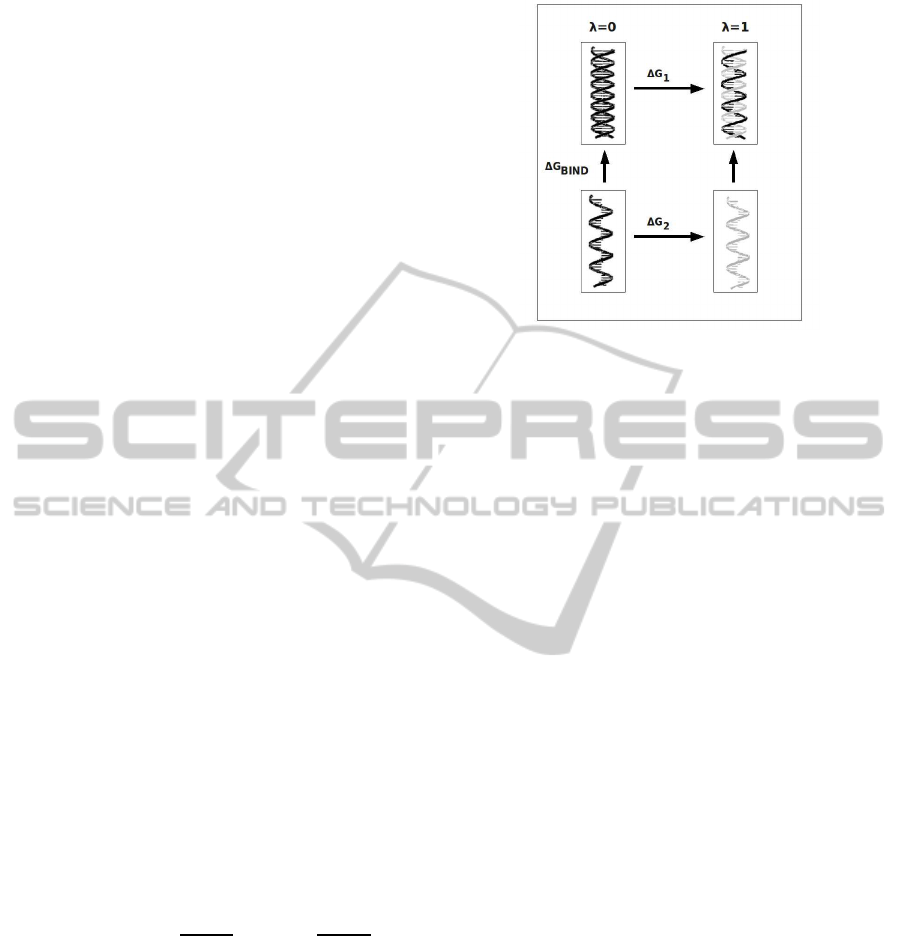

Figure 2: Thermodynamic cycle used in binding free en-

ergy calculations. The two branches of the cycle have to

be considered in order to obtain the free energy of binding

between the ligand, mRNA, and the receptor miRNA.

constrained MD simulations at the constant pressure

of 1atm. The averages of the derivatives, obtained

from the simulations, were then integrated giving rise

to ∆G

(Figure 2) and ∆G

(Figure 2). The binding

free energy was then calculated by subtracting the ﬁrst

quantity to the second as synthesized in Figure 2.

3 RESULTS AND DISCUSSION

3.1 Molecular Dynamics

The stability of let-7:lin-41 complex, known to be

strictly depending on several elements(Cheatham,

2004), was evaluated via the atom positional-RMSD

analysis in the unconstrained MD trajectory struc-

tures from the initial molecular conﬁguration. Let-7

miRNA, called ’Chain A’, showed an average RMSD

value of 0.281nm and a maximum RMSD value of

0.421nm after about 887ps of simulation. Lin-41

mRNA, called ’Chain B’ presents, instead, a higher

RMSD mean value of about 0.389nm, and a remark-

able deviation from the initial trajectory in the ﬁrst

part of the run.

To maintain the original helix shape during the

run the atomic ﬂuctuations of about 30 atoms (one

nucleotide) at the beginning and at the end of the

strands were limited: In this manner the RMSD aver-

age value for Chain A is 0.136nm whereas for Chain

B is 0.167nm. The achieved stability of the complex

was analyzed also via a 10ns long simulation. In this

case the maximum RMSD value obtained is 0.214ns

after 5090ps of running. The choice to adopt re-

BINDING FREE ENERGY CALCULATION VIA MOLECULAR DYNAMICS SIMULATIONS FOR A miRNA:mRNA

INTERACTION

319

(a)

(b)

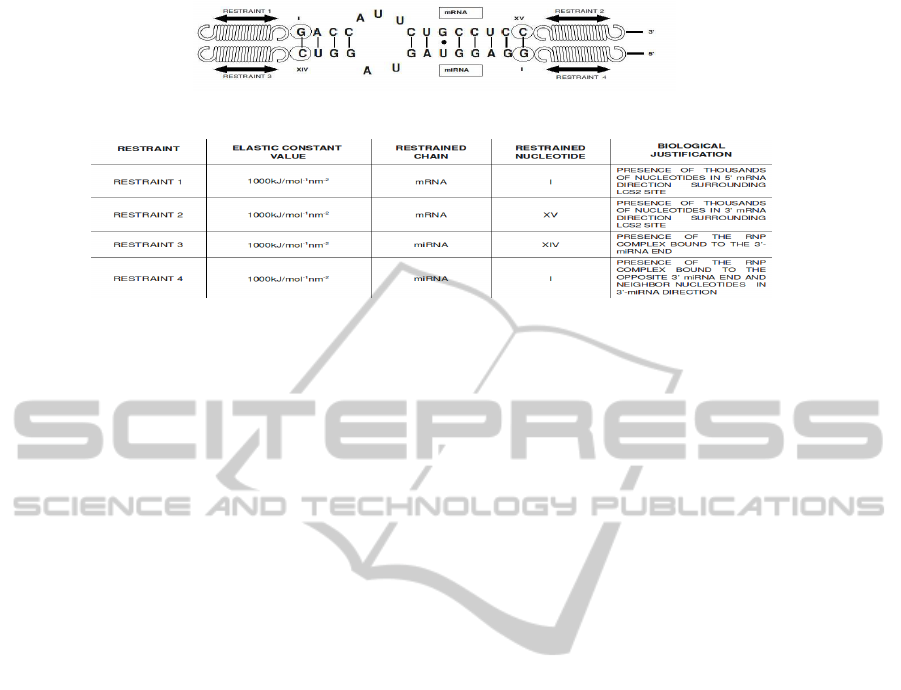

Figure 3: Model and explanation of the molecular system during the constrained simulation. In Subﬁgure (a) is reported a

scheme of the constrained molecular complex and in Subﬁgure (b) the summarize of the restraints applied.

straints, sketched and summarized in Figure 3 (a) and

(b), was considered plausible by taking into account

previous biological researches(Schwarz and Zamore,

2002)(Vella et al., 2004).

3.2 Free Energy Calculations

The binding free energy values were obtained by

starting from a number of lambda set to 11 and by in-

crementing it progressively until (for a ﬁxed number

of lambda) the percentage error of the ensamble aver-

ages of the derivative of the Hamiltonian between two

successive lambda values was inferior to a threshold

set to 4% with respect to the total variation between

λ = 0 and λ = 1.

The criterion was satisﬁed for both ligand and

complex with 60 lambda values. In this sampling

conditions, the free energy for the branch relative to

the complex was equal to 4043, 57kcal/mol whereas

for the ligand it was 3939, 32kcal/mol. As such,

the ﬁnal binding free energy value obtained was

−104, 25kcal/mol. We noticed however that starting

from 51 lambda values the error is clearly reaching

an asintotic behaviour with percentage errors around

2%.

This aspect was further investigated by consider-

ing the accuracy of the free energy results obtained

with respect to the error achieved using 60 lambda

values, for which the threshold error criterion is satis-

ﬁed: We noticed that a very good accuracy is reached

already with 19 lambda, the percentage error is about

7% and a further improvement is obtained with 51

lambda, the error is here about 0.25%.

3.3 Scalability Analysis

In the following we report about the characterization

of the stability of the binding free energy computa-

tions on a Symmetric Multiprocessing (SMP) archi-

tecture, namely a 4+4 Intel(R) Core(TM) i7 CPUs

920 @ 2.67GHz machine. The simulations for var-

ious lambdas were implemented as independent pro-

cesses. The experiments were conducted using the set

up of the TI-MD simulations previously discussed,

but with a length reduced to 5ps since by proﬁling

the short and long simulations we observed the same

characteristics in terms of system resource utilization

(i.e. percentage of memory and cache accesses). We

run 2, 4, 8, 12, 16, 24, 32 and 64 parallel simula-

tions during which the average percentage CPU user

utilization for the processes was recorded by taking

advantage of the command pidstat of the Sysstat util-

ities. We will report here only the obtained CPU user

utilization statistics, because the system utilization for

the processes was found to be negligible. As it is

shown by trace ’I’ of Figure 4, the real trend of the

average CPU utilization for the processes is very dif-

ferent from the ideal one of Figure 4 trace ’II’, ob-

tained by assuming a perfect independence between

processes, that is the simulation time is independent

from the number of lambdas: Even if we increase

the number of simulations and thus the workload im-

posed to the system, the simulation time remains con-

stant until the number of CPU is larger or equal to

the number of processes. Then it increases in a lin-

ear way. Trace ’I’ is far from the ideal behavior, as

the simulation time increases as a function of lambda.

This is mainly due to two effects. The ﬁrst effect is

the impact of memory congestion. Indeed, even if the

processes do not communicate or use shared memory

BIOINFORMATICS 2011 - International Conference on Bioinformatics Models, Methods and Algorithms

320

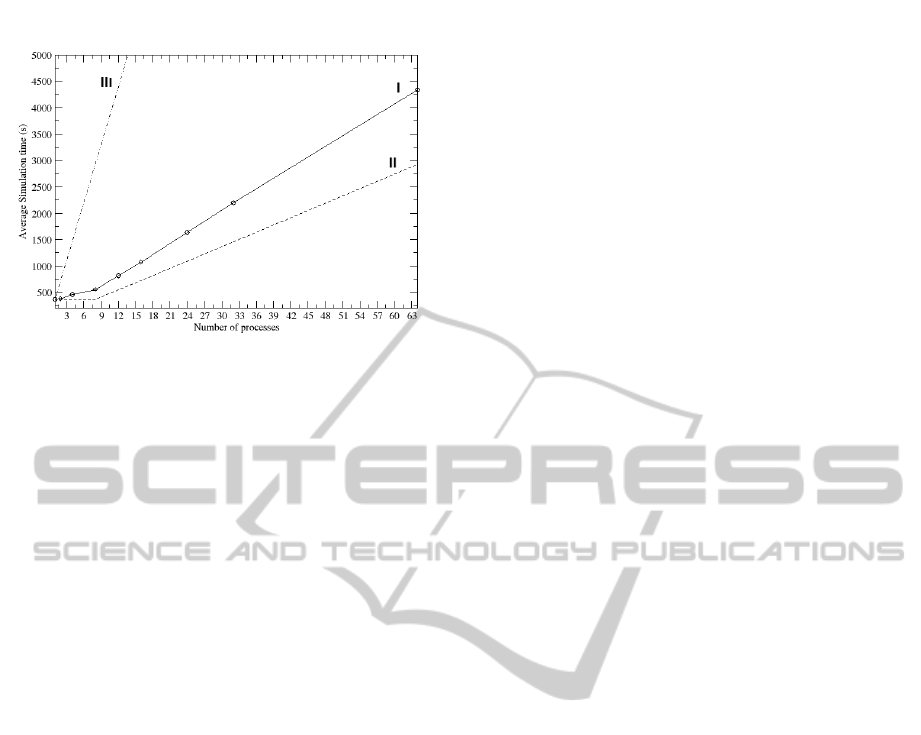

Figure 4: Trend of the simulation time at the increasing

of the running processes. Trace ’I’ and ’II’ are respec-

tively the real and the ideal trend for the simulation time

obtained by running an increasing number of parallel pro-

cesses, whereas trace ’III’ is that relative to an increasing

number of serial processes. The cycles on Trace ’I’ mark

the number of processes for which the test have been made.

regions, there is a considerable contention for access

to the L2 cache and the main memory. The latter

arises when the number of processes overcomes the

number of available CPUs. Indeed, it can be observed

that trace ’I’ is characterized by two different trends.

The ﬁrst one, from 1 to 8 lambda, where only the

memory contention contributes. The second, from 8

to 64 lambda, where the context switch and process

migration overheads are also present, leading to an in-

creasing slope of the curve. The utilization is almost

100% before 8 lambda and decreases after 8 lambda,

where each process has to share the CPU with others.

It is worth nothing however that besides the overhead

discussed, the parallelization is unquestionably more

advantageous with respect to performing serial simu-

lations, whose simulation times are reported in Trace

’III’ of Figure 4. Overall, by putting together the

accuracy results with the computation costs, we can

conclude that a suitable trade-off between computa-

tion and accuracy can be set to 19 lambda.

4 CONCLUSIONS

The methodology presented in this paper has been de-

signed to face the various challenges of nucleic acid

simulations and binding free energy computations.

First, the positioning of the restraints has been deter-

mined to overcome the stability problems due to the

remarkable folding activity and the base pairs open-

ing of the complex. As a results, we were ﬁnally able

to perform MD simulations in stable conditions.

Second, the accuracy of the thermodynamic inte-

gration steps. On this concern, we studied the scala-

bility of the thermodinamic integration to determine a

reasonable trade-off between computation and accu-

racy. We shown that to achieve an error on the bind-

ing free energy computation lower than 4% we need

to perform 60 parallel simulations. On the other side,

a good trade-off between computation and accuracy

is already reached using 19 parallel simulations.

REFERENCES

Bartel, D. P. (2004). MicroRNAs: Genomics, Biogenesis,

Mechanism, and Function. Cell.

Cevec, M., Thibaudeau, C., and Plavec, J. (2008). Soluc-

tione structure of a let-7 miRNA:lin41 mRNA com-

plex from C.elegans. Nucleic Acids Research.

Cheatham, T. E. (2004). Simulation and modelling of nu-

cleic acid structure, dynamics and interactions. Cur-

rent Opinion in Structural Biology.

Cornell, W. D., Cieplak, P., Bayly, C. I., Gould, I. R., Merz,

K. M., Ferguson, D. M., Spellmeyer, D. C., Fox, T.,

Caldwell, J. W., and Kollman, P. A. (1995). A second

generation force ﬁeld for the simulation of proteins,

nucleic acids, and organic molecules. J. Am. Chem.

Soc.

Lawrenz, M., Baron, R., and McCammon, J. A.

(2009). Independent-trajectories thermodynamic-

integration free-energy changes for biomolecular sys-

tem: Determinants of N5HN1 Avian Inﬂuenza Virus

Neuraminidase Inhibition by Peramivir. Journal of

Chemical Theory and Computation.

Pan, Y. and Mackerell, A. D. (2003). Altered structural

ﬂuctuations in duplex RNA versus DNA: a confor-

mational switch involving base pair opening. Nucleic

Acids Research.

Schwarz, D. S. and Zamore, P. D. (2002). Why do miRNAs

live in the miRNP? Genes e Development.

Van Der Spoel, D., Lindahl, E., Hess, B., Groenhof, G.,

Mark, A. E., and Berendsen, H. J. C. (2005). GRO-

MACS: Fast, ﬂexible, and free. Journal of computa-

tional chemistry.

Vella, M. C., Reinert, K., and Slack, F. J. (2004). Ar-

chitecture of a validate microRNA::target interaction.

Chemistry e Biology.

BINDING FREE ENERGY CALCULATION VIA MOLECULAR DYNAMICS SIMULATIONS FOR A miRNA:mRNA

INTERACTION

321
