SECURE AD-HOC ROUTING THROUGH A-CODES

Giovanni Schmid

and Francesco Rossi

High Performance Computing and Networking Institute (ICAR), Naples, Italy

University of Naples Parthenope, Naples, Italy

Keywords:

Message authentication, Secure routing, Ad-hoc wireless networks.

Abstract:

Wireless ad-hoc networks are very attractive in several application domains, but the very nature of these

networks and their cost objectives pose big security challenges, perhaps making them the most difﬁcult net-

working environments to secure. A particular challenging issue is that of secure routing. In this work we

propose to get secure routing for such networks through a special coding technique at the physical layer of

radio communication channels. This approach has the main advantage of being applicable to any routing pro-

tocol, without requiring modiﬁcations to the protocol itself, but with a suitable key management. We illustrate

it for the concrete case of AODV, the standard routing protocol for Low-data-Rate Wireless Personal Area

Networks (LR-WPANs). The resulting analysis seems to indicate that such approach is very promising for

LR-WPANs, both in term of performance and energy efﬁciency.

1 INTRODUCTION

Wireless ad-hoc networks are very attractive for many

applications, but the absence of a ﬁxed infrastructure,

the adaptivity and time-varying shape of their inter-

connection meshes, together with the physical char-

acteristics of the radio channel, combine to create sig-

niﬁcant challenges, perhaps making them the most

difﬁcult networking environments to secure. In addi-

tion, node deviceshave limited capabilities in terms of

computing power, available storage, and power drain,

putting severe limits on the security overhead these

networks can tolerate, something that is of far less

concern with higher bandwidth networks.

A particular challenging issue for wireless ad-hoc

networks is that of designing both secure and efﬁ-

cient routing protocols. The reason for that is twofold.

First, there are a variety of ad-hoc wireless networks

(e.g. sensor networks, vehicular networks) and usage

scenarios (e.g. ambient monitoring, industry control),

so it is impossible to provide a single routing proto-

col ﬁtting each need. Last but not least, the design of

reliable and efﬁcient secure routing protocols for real-

word applications has resulted to be an elusive issue.

These difﬁculties are undoubtedly reﬂected by

current emerging industry standards. The ZigBee Al-

liance

simply adopts the Ad hoc On Demand Distan-

An association of companies founded in 2003 and com-

ce Vector (AODV) routing protocol (Perkins et al.,

2003), which does not provide any authentication

mechanism at all, and is vulnerable to many attacks

(Sanzgiri et al., 2002; Ning and Sun, 2003).

In this work, we propose to secure routing in wire-

less ad-hoc networks through A-coding. The A-code

primitivewas introduced in (Schmid and Rossi, 2010)

to allow for the establishment of authentic public keys

in wireless sensor networks. Here, we exploit A-

coding directly at the physical layer of the radio com-

munication channel, as a low level message authen-

tication processing. This approach turns out in offer-

ing hop-by-hop message authentication to any routing

protocol without requiring modiﬁcation to the proto-

col itself, but just providing appropriate key manage-

ment at the network layer.

We illustrate the A-coding approach for the con-

crete case of AODV, sketching a comparison with

the coding techniques of the IEEE Standard 802.15.4

(IEEE, 2006), which has been adopted by ZigBee for

the speciﬁcations of the medium access control sub-

layer (MAC) and the physical layer (PHY) of the LR-

WPAN protocol stack. The resulting analysis seems

to indicate that such approach is very promising for

LR-WPANs, both in term of performance and energy

efﬁciency.

The rest of the paper is organized as follows. Sec-

mitted in deﬁning the protocol stack for low-data-rate, wire-

less networks (LR-WPANs); http://www.zigbee.org

151

Schmid G. and Rossi F..

SECURE AD-HOC ROUTING THROUGH A-CODES.

DOI: 10.5220/0003313701510156

In Proceedings of the 1st International Conference on Pervasive and Embedded Computing and Communication Systems (PECCS-2011), pages

151-156

ISBN: 978-989-8425-48-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

tion 2 discusses about related work, whilst Section 3

describes the A-code primitive. In Section 4 we show

how to secure AODV thanks to A-coding. Section 5

sketch a comparison with the 802.15.4, and discusses

general A-code key management issues for AODV.

Finally, in Section 6 we draw out our conclusions, and

illustrate our future work.

2 RELATED WORK

Attacks against routing can be realized through a

suitable combination of offensive techniques such

as eavesdropping, identity spooﬁng, and the replay,

modiﬁcation, forgery or deletion of routing control

packets. The adaptive nature of the communica-

tion mesh in ad-hoc networks, along with node’s

constrained resources, compel the adoption of on-

demand routing, which in case of wireless communi-

cations is particularly exposed to such offensive tech-

niques.

Many secure routing protocols for wireless ad-

hoc networks, based on both private-key and public-

key cryptography, have been proposed by the research

community over the last decade, with alternate re-

sults as in (Sanzgiri et al., 2002; Zapata and Asokan,

2002; Papadimitratos and Hass, 2003). Reporting on

such proposals is outside the scope of this work. A

comprehensive survey of secure on-demand routing

is given in (Hu and Perrig, 2004), whilst (Karlof and

Wagner, 2003) describes attacks on sensor network

routing protocols, and introduces some generic coun-

termeasures.

In virtually all cases, strategies have been adopted

to face against node’s constrained resources and

achieve acceptable overheads. Those approaches,

not surprisingly, have often resulted in some secu-

rity weakness or in assumptions that are difﬁcult to

be satisﬁed in practice (Ramachandran and Yasinsac,

2001). For example, in (Sanzgiri et al., 2002; Hu

et al., 2003; Hu et al., 2005) authentication is real-

ized only for routing control packets, exposing data

packets to serious threats. Both SAODV (Zapata and

Asokan, 2002) and ARAN (Sanzgiri et al., 2002) pro-

vide message authenticity only when all intermediate

nodes are trustworthy, which is an overly restrictive

assumption. The TESLA authentication framework

(Perrig et al., 2000) - along with its variant µTESLA

(Perrig et al., 2002), speciﬁcally designed for wire-

less sensor networks, avoid hop-by-hop authentica-

tion by relying on loosely time synchronized network

nodes. However, secure time synchronization has

been demonstrated to be very difﬁcult to achieve, also

on networks with a ﬁxed infrastructure (Menezes, et

al.,1996). Consequently, all the routing protocols

based on such frameworks(e.g. the protocol in SPINS

(Perrig et al., 2002), SEAD (Hu et al., 2003), SEAR

(Zhao et al., 2008)) suffer the same drawback.

Considered together, the above works and expe-

riences seem to indicate that effective secure proto-

cols for ad-hoc routing can only be achieved if hop-

by-hop authentication is guaranteed for all the pack-

ets involved in the protocol. Both LHAP (Zhu et al.,

2003) and HEAP (Akbani et al., 2008) were designed

to offer hop-by-hop authentication for data packet as

well as control packets. LHAP realizes message au-

thentication through one-way hash key chains, and

that turns out in a low efﬁciency in terms of mem-

ory requirements, since long time communications re-

quires long chains. HEAP is a modiﬁed version of the

HMAC algorithm that uses two keys and seems very

efﬁcient for multicast communications. HEAP was

designed to defend against attacks originating from

nodes that are not authenticated members of the net-

work (outsider attacks).

The A-coding approach offers hop-by-hop au-

thentication, too, and in the same security assump-

tions than HEAP. However, it has one main advan-

tage: since hop-by-hop authentication is realized at

the lowest layer of the protocol stack, any protocol

can get its own proper authentication service by just

being coupled with suitable key management, without

any modiﬁcation to the protocol itself.

A-codes are based upon I-codes (Cagalj et al.,

2006) and, like these ones, were introduced to allow

for the establishment of authentic public keys over in-

secure radio channels (Schmid and Rossi, 2010). Dif-

ferently than I-codes, however, A-codes can provide

authentication without user intervention and in the ab-

sence of special, dedicated radio-frequency channels

(integrity channels).

3 THE A-CODE PRIMITIVE

The A-code primitive was introduced in (Schmid and

Rossi, 2010) to allow for the establishment of authen-

tic public keys in wireless sensor networks. It can

operate directly at the physical layer of the protocol

stack, on PPDUs

, offering a “physical coding” al-

ternative to traditional message authentication codes

(MACs).

In A-codes, message integrity is gained through

unidirectional message coding and on-off keying

communication with signal anti-blocking; these are

PPDU stands for PHY Protocol Data Unit, and repre-

sent the message structure managed by the IEEE Standard

802.15.4 (IEEE, 2006) physical (PHY) layer.

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

152

the three components which give rise to Integrity

Codes (Cagalj et al., 2006).

Unidirectional message coding ensures that bit 0

cannot be changed in bit 1. Manchester code is an

example of unidirectional coding scheme; it encodes

each bit 1 as 10 and each bit 0 as 01. If we suppose

that an adversary can only convert a bit 0 into bit 1,

then the receiver will be able to detect forged mes-

sages, since such messages cannot be decoded prop-

erly.

On-off keying (OOK) is a signal modulation tech-

nique such that bit 1 is transmitted as the presence

of a signal, and bit 0 as the absence of a signal for a

known time slice. Signal anti-blocking uses a random

energy signal, so that an adversary cannot annihilate

bits 1 by jamming the signal. Considered together,

on-off keying and signal anti-blocking give a good re-

sistance against attacks based upon jamming and/or

bit-ﬂipping.

I-Codes can also achieve message authentication,

but only through presence awareness. That is, the

receiver needs to be aware of the fact that the re-

ceived signal is on the channel used by an authorized

sender. This requires an infrastructure of authorized

senders located in known positions or, alternatively,

continuously signaling senders on known channels.

Of course, these two conditions are not usually sat-

isﬁed in case of LR-WPANs.

In A-codes, authentication for each single PPDU

is provided by expanding some of its bits into pseudo-

random strings p(n) given by:

p(n) = H(KkH(KkH(....H(KkX

)....)))

= H(Kkp(n− 1)) . (1)

In (1), X

denotes the identiﬁer of node X, H is a

suitable and known cryptographic hash function, n is

an integer related is some way to the number of ex-

panded bits sent so far by node X to the receiver node

Y, and K is a secret key shared between X and Y. The

function H is applied iteratively n times. The receiver

Y will consider a given PPDU authentic only if:

H(Kkp

′

(n− 1)) = p(n) , (2)

for any of the values of n corresponding to one of the

expanded bits in such PPDU. In equation (2) p

′

rep-

resents the pseudo-random string as computed by Y,

whereas - because of the message integrity property

assured by OOK with unidirectional coding and sig-

nal antiblocking - p(n) is the pseudo-random string

issued by X. The ﬁrst member of (2) can be com-

puted by Y as a consequence of its knowledge of H,

K, X

and n. Since the value of n has not to be kept

secret, the synchronization between X and Y can be

easily obtained by sending that value in clear from X

to Y in each PPDU. For efﬁciency and easy of im-

plementation, only a constant, small number of bits

at prescribed off-set positions in each PPDU should

be expanded through (1). Actually, because of the in-

tegrity property of PPDUs, just one single bit could

be expanded for each PPDU; however, noisy chan-

nels could require a slightly greater number of hash

expansions to avoid denial of service conditions.

4 SECURING AODV

In this section we illustrate how to secure the AODV

routing protocol with the A-Code primitive. Our ar-

guments could have been easily exposed for the gen-

eral case of (on-demand) routing protocols, without

any substantial modiﬁcation. However, AODV is one

of the most prominent protocols for ad-hoc wireless

networks, and discussing it explicitly will allow us

to be more speciﬁc in the description of our tech-

nique and to sketch a comparison, in terms of bit rate

throughput, with the modulation techniques provided

for the ZigBee protocol stack.

AODV is based on three standard routing mes-

sages (see Figure 1): route request (RREQ), route

replay (RREP) and route error (RERR). The RREQ

packet is used when a route to a new destination is

needed: the source node broadcasts an RREQ packet

to ﬁnd a route to the destination. The route is made

available by unicasting a RREP packet back to the

originator of the RREQ. Each node receiving the re-

quest caches a route back to the originator of the re-

quest, so that the RREP can be unicast from the desti-

nation along a path to that originator, or likewise from

any intermediate node that is able to satisfy the re-

quest. A RERR message is used when a link break

in an active route is detected, in order to notify other

nodes that some destinations are no longer reachable

by way of the broken link. The format lengths for

RREQ, RREP and RERR messages in AODV are of

24, 20 and 20 bytes, respectively.

We limit our description of A-coding to RREQ

packets, since the other two cases are very similar.

The A-coding workﬂow composes of the following

steps (see Figure 2):

1. The ﬁrst step consists in encapsulating in a source

PPDU the MAC data frame (MPDU) contain-

ing the RREQ packet as its own MAC payload

ﬁeld. We remark that during this phase nor the

RREQ packet is modiﬁed, neither speciﬁc ﬁelds

are required in the MPDU. The output is a PPDU

which has the same structure and similar infor-

mation encoding as prescribed by IEEE Standard

802.15.4, but has a slightly modiﬁed synchro-

SECURE AD-HOC ROUTING THROUGH A-CODES

153

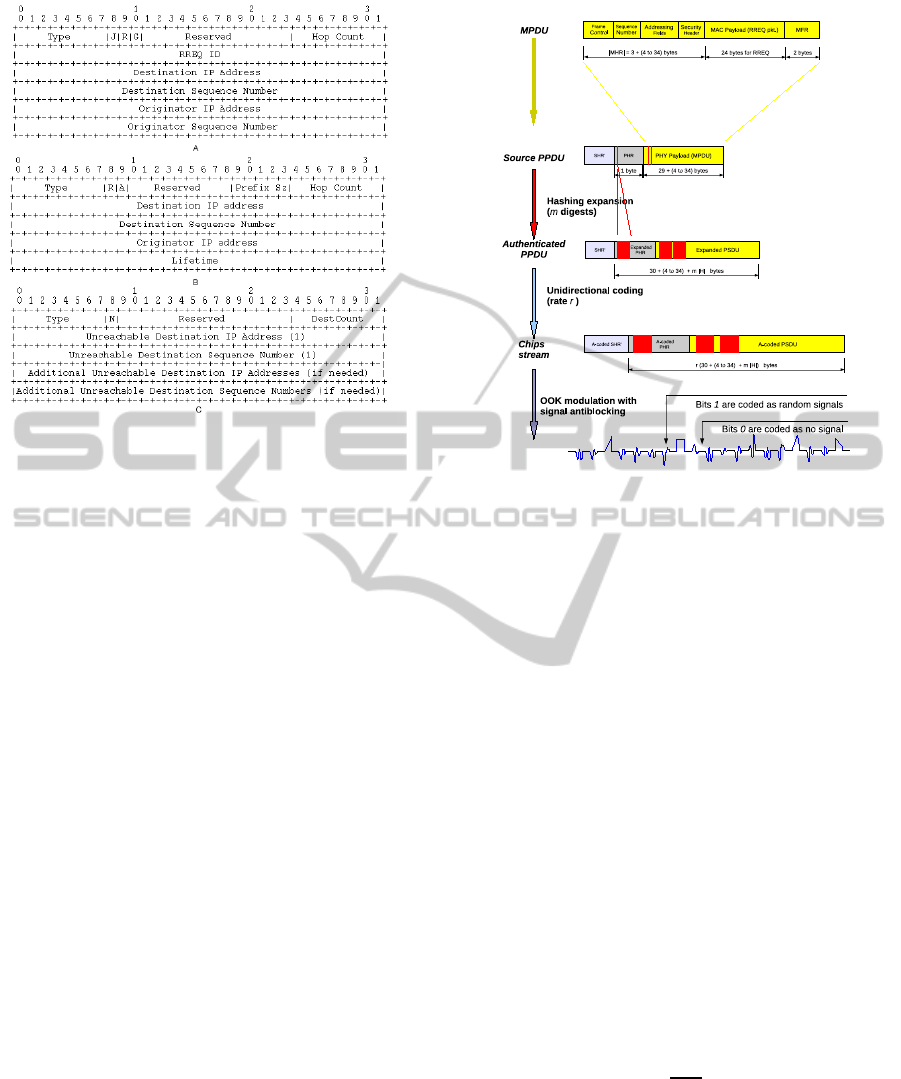

Figure 1: Route Request (RREQ), Route Replay (RREP)

and Route Error (RRER) message formats for AODV.

nization header SHR’, which replaces the IEEE

SHR for transceiver synchronization in A-coding

mode;

2. According to the information encoded in SHR’, m

bits (the ﬁgure shows the case m = 3) at prescribed

offset positions in the source PPDU are expanded

into hash digests of size |H| given by (1). The out-

put of this phase is an “expanded” PPDU which is

m|H| bytes longer than the source PPDU;

3. After the expansion through hash digests, the

PPDU is coded thanks to an unidirectional cod-

ing scheme. For Manchester scheme the rate is

r = 2, but schemes exist such that r ≤ 1.5 ;

4. Finally, the bits constituting the output chip

stream from the previous phase are modulated by

using OOK with signal antiblocking. The length

of the chip stream is given by r(|SHR

′

|+ |PHR|+

|PSDU| +m|H|), where the three ﬁrst addendums

are the lengths of the (modiﬁed) synchronization

header, the PHY header and the PHY payload, re-

spectively.

5 PERFORMANCE AND

SECURITY ISSUES

In order to show the viability of our approach, this

section discusses about performance and security

goals of A-codes. Section 5.1 gives a performance

comparison of A-coding versus the related techniques

encompassed by IEEE Standard 802.15.4, which - as

Figure 2: A-Coding workﬂow for the RREQ packet of

AODV.

we told in the introduction - deﬁnes the medium ac-

cess sublayer (MAC) and physical layer (PHY) spec-

iﬁcations for the LR-WPAN protocol stack. Different

alternatives exist in setting up cryptographic keys in

view of node authentication, which affect the depend-

ability of the network. This issue is brieﬂy discussed

in Section 5.2 for the case of securing AODV through

A-codes.

5.1 A-coding versus IEEE 802.15.4

IEEE PHY layer (IEEE, 2006) uses spread-spectrum

modes of communication to obtain some resilience to

jamming and improved noise immunity. In alterna-

tive to spread spectrum, A-codes use the spreading

technique illustrated in Section 4, so in both cases

it is possible to consider the spread factor (SF), that

is the ratio of the chipstream length to that of its re-

lated source PPDU. The spread factor is a measure

of loss in data throughputs w.r.t. the rates at which a

transceiver can receive and transmit chips. Thus, the

gain factor

γ =

can be used to compare the performance, in term of

data rates, of a given IEEE coding technique (I) ver-

sus the A-coding one (A), assuming that a transceiver

can perform at roughly the same chipstream rates for

I and A. A value γ < 1 indicates that the considered

IEEE technique outperforms A-coding, and vicev-

ersa. Figure 3 reports the value of γ relative to the

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

154

RREQ packet of AODV for all the coding techniques

at the PHY layer (IEEE, 2006). Those values were

computed for a unidirectional code of rate r = 1.5 and

for a number of m = 1, 2, 3 bits subjected to an hash

digest expansion of 128 bits. For the ﬁgures, we as-

sumed for simplicity |SHR| = |SHR

′

|, and |MHR| = 7

(see Section 4).

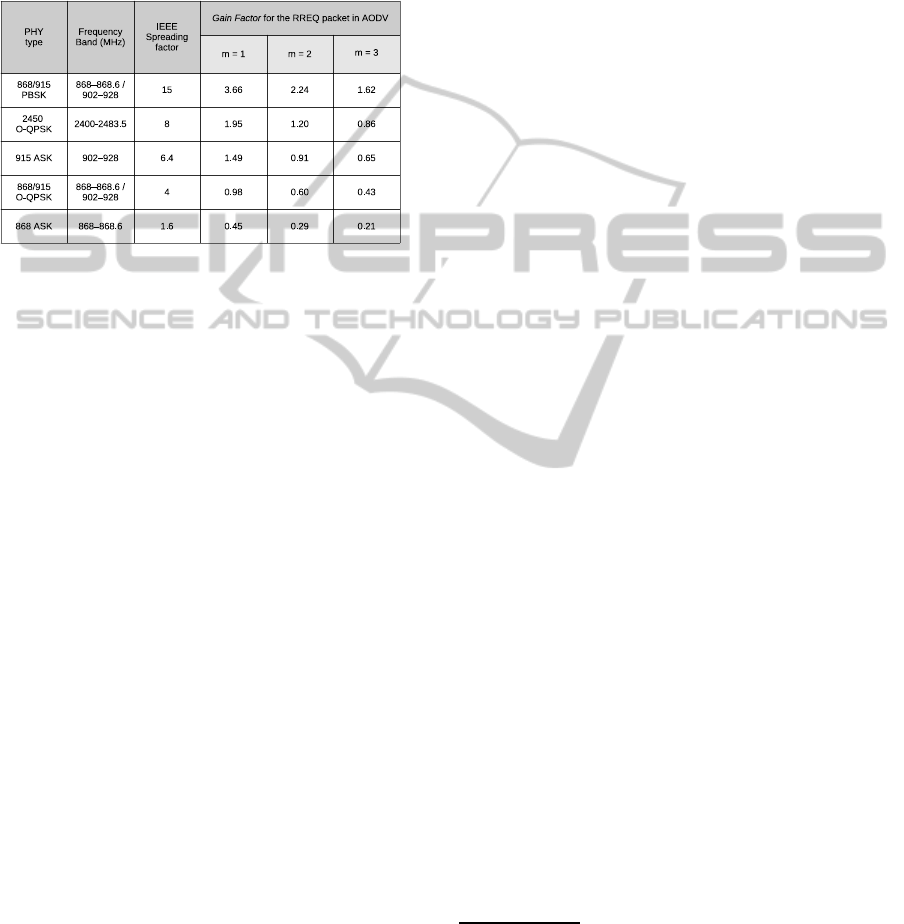

Figure 3: Values of the gain factor γ of A-coding w.r.t.

the coding techniques encompassed by the IEEE Standard

800.15.4 PHY layer.

Figure 3 shows that in many cases A-coding out-

performs spread-spectrum modes of coding. When

that does not occur (as in the case of 868 ASK, be-

cause of its very low spreading factor of 1.6), the

A-coding performance, however, widely falls in the

admissible data-ranges for LR-WPANS. Indeed, the

data rate achieved in the worst case (m = 3) for an

OOK modulation performed at only 300 Kchip/s is of

32.4 Kb/s, an improvement of more than 60% on the

lower bound (20 Kb/s) prescribed by the standard.

On the other hand, OOK transceivers are nowa-

days on the market that support data rates of hun-

dreds of Kb/s. These transceivers are cheap and have

very low power consumptions, because of the sim-

plicity of OOK implementation and the fact that de-

vices can save on transmit power when sending ’0’s

as no signal. As a matter of fact, OOK modula-

tion is emerging as the optimal choice in short-range,

battery-operated wireless applications such as wire-

less sensor networks.

5.2 Key Management

Authentication through A-codes relies ultimately

upon the secret key K (see equation 1), and the way

K is established, shared and managed by the network

nodes relates to the threat model assumed for that net-

work, resulting in different levels of security. As a

general matter of fact, it is unpractical to achieve se-

curity in an absolute sense (if any); rather, the point

is to get a good trade-off between protection, usabil-

ity and performance. Discussing the many proposals

and contributions given in the literature on the issue

of (secret) key set up and management is by far out

the scope of this work. We sketch here just few con-

siderations for the speciﬁc case of AODV, under the

underlying assumption that only outsider attacks are

possible

A very simple possibility is to use the same key

K for all nodes in the network. In this case K plays

the role of a network key, and key management can

be very lightweight by loading a ﬁrst key instance

on each node during the deployment stage, and then

updating it at scheduled times via broadcast commu-

nication. With this scheme, thanks to A-codes each

node in the network has corroborate evidence that a

receiving packet is fresh and was generated by an-

other node in the network

. Moreover, this scheme

implicitly supports multicast communications, which

is the case for any RREQ request and any RERR mes-

sage.

Against the above advantages, this scheme suf-

fers however the following three main drawbacks: (a)

breaking the key may turn out in the compromission

of the entire network; (b) detecting and locating unau-

thorized routing paths and functions can be very dif-

ﬁcult, and; (c) it is very expensive to recover from a

compromission.

Thus, sensitive usage contexts and exposed envi-

ronments require a more complex (and resource con-

suming) key management schema, with one or more

keys for each node. A standard approach is that of

using different kinds of key, each one with its speciﬁc

protection role and its own establishment and man-

agement protocols (Menezes et al., 1996). In all these

cases, the key K in expression (1) should play the role

of a link key in case of unicast communications (as for

RREP packets), and of a group keyin case of multicast

communications (i.e., RREQ and RERR packets). In

the ﬁrst case, an instance for K will be generated and

shared only among two one-hop-neighbouring nodes,

with the scope of authenticating the communication

link between them. In the second case, instead, K will

be shared among a given node X and all its one-hop

neighbours, in order to authenticate the packets from

By the way, the best one can do in facing insider at-

tacks, that is attacks by nodes running malicious code or

adversaries who have stoled the key material, is to provide

for intrusion detection and failure detection.

The parameter n in expression (1) plays a crucial role

here, since it assures that unauthorized nodes cannot per-

form packet relying and replaying.

SECURE AD-HOC ROUTING THROUGH A-CODES

155

6 CONCLUSIONS AND FUTURE

WORK

In this work we propose to secure routing in wireless

ad-hoc networks through A-coding, a special coding

technique which operates directly at the physical layer

of the radio communication channel. A-coding acts

as a low level message authentication processing, and

constitutes an alternative to traditional message au-

thentication codes. A performance comparison of A-

coding versus the related coding techniques encom-

passed by IEEE 802.15.4, the adopted standard for

low-data-rate, wireless networks, shows the effective-

ness of this approach. On the other hand, A-coding

relies on OOK modulation, and OOK transceivers are

nowadays on the market that have very low costs and

power consumptions.

Our future work will be focused on a prototypal

implementation of A-coding as ﬁrmware in a com-

mercial off-the-shelf transceiver, in order to carry out

a testbed for the adoption of this technology.

REFERENCES

Akbani, R., Korkmaz, T., and Raju, G. (2008). HEAP: A

packet authentication scheme for mobile ad-hoc net-

works. Ad Hoc Networks, 6(7).

Cagalj, M., Hubaux, J., Capkun, S., Rengaswamy, R.,

Tsigkogiannis, I., and Srivastava, M. (2006). Integrity

(i) codes: Message integrity protection and authen-

tication over insecure channels. In Proceedings of

the 2006 IEEE Symphosium on Security and Privacy.

IEEE.

Hu, Y., Johnson, D., and Perrig, A. (2003). SEAD: Secure

efﬁcient distance vector routing for mobile wireless ad

hoc networks. Ad Hoc Networks, 1(1).

Hu, Y. and Perrig, A. (2004). A survey of secure wireless

ad hoc routing. Security & Privacy, 2(3).

Hu, Y., Perrig, A., and Johnson, D. (2005). Ariadne: A se-

cure on-demand routing protocol for ad hoc networks.

Wireless Networks, 11(1-2).

IEEE (2006). Std IEEE 802.15.4 - Part 15.4: Wireless

Medium Access Control (MAC) and Physical Layer

(PHY) Speciﬁcations for Low-Rate Wireless Personal

Area Networks (WPANs).

Karlof, C. and Wagner, D. (2003). Secure routing in wire-

less sensor networks: attacks and countermeasures.

Ad Hoc Networks, 1(1-2).

Menezes, A., van Oorschot, P., and Vanstone, S. (1996).

Hanbook of Applied Cryptography. CRC Press.

Ning, P. and Sun, K. (2003). How to misuse AODV: A case

study of insider attacks against mobile ad-hoc routing

protocols. In Information Assurance Workshop 2003.

IEEE.

Papadimitratos, P. and Hass, Z. (2003). Secure routing for

mobile ad hoc networks. Mobile Computing and Com-

munications Review, 7(1).

Perkins, C., Belding-Royer, E., and Das, S. (2003). RFC

3561 - Ad Hoc On Demand Distance Vector (AODV)

Routing. IETF.

Perrig, A., Canetti, R., Tygar, D., and Song, D. (2000). Ef-

ﬁcient authentication and signing of multicast streams

over lossy channels. In Proceedings of the IEEE Sym-

posium on Research in Security and Privacy. IEEE.

Perrig, A., Szewcyzk, R., Tygar, J., Wen, V., and Culler,

D. (2002). SPINS: security protocols for sensor net-

works. Wireless Networks, 8(5).

Ramachandran, P. and Yasinsac, A. (2001). Limitations of

on demand secure routing protocols. In Workshop on

Information Assurance. IEEE.

Sanzgiri, K., Dahill, B., Levine, B., Shields, C., and

Belding-Royer, E. (2002). A secure routing proto-

col for ad hoc networks. In Proceedings of the 10th

IEEE International Conference on Network Protocols.

IEEE.

Schmid, G. and Rossi, F. (2010). A-code: A new crypto

primitive for securing wireless sensor networks. In

Proceedings of the First International Workshop on

Trust management in P2P Systems. Springer.

Zapata, G. and Asokan, N. (2002). Securing ad hoc routing

protocols. In Proceedings of the 1st ACM workshop

on Wireless security. ACM.

Zhao, M., Walker, J., Hu, Y., Perrig, A., and Trappe, W.

(2008). SEAR: A secure efﬁcient ad hoc on demand

routing protocol for wireless networks. In Proceed-

ings of ASIACSS ’08. ACM.

Zhu, S., Xu, S., Setia, S., and Jajodia, S. (2003). LHAP:

a light-weight hop-by-hop authentication protocol for

ad-hoc networks. In Proceedings of the 23rd ICDCS

Workshop. IEEE.

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

156
