REAL TIME FALL DETECTION AND POSE RECOGNITION

IN HOME ENVIRONMENTS

Jerry Aertssen, Maja Rudinac and Pieter P. Jonker

Delft Biorobotics Lab, Delft University of Technology, Delft, The Netherlands

Keywords: Action recognition, Motion detection, Shape descriptors, Home monitoring, Application in elderly care.

Abstract: Falls are one of the major obstacles for independent living of elderly people that can be severally reduced

introducing home monitoring systems that will raise the alarm in the case of emergency. In this paper we

present an inexpensive and fast system for fall detection and dangerous actions monitoring in home

environments. Our system is equipped only with a single camera placed on the ceiling and it performs room

monitoring based on the motion information. After background subtraction, motion information is extracted

using the method of Motion History Images and analysed to detect important actions. We propose to model

actions as the shape deformations of motion history image in time. Every action is defined with the specific

shape parameters taken at several moments in time. Model shapes are extracted in offline analysis and used

for comparison in room monitoring. For testing, we designed a special room in which we monitored in

various environmental conditions a total of four different actions that are dangerous for elderly people:

“walking”, “falling”, “bending” and “collapsing”. Obtained results show that our system can detect

dangerous actions in real time with high recognition rates and achieves better performance comparing to the

state of the art methods that use similar techniques. Results encourage us to implement and test this system

in real hospital environments.

1 INTRODUCTION

The amount of elderly people will strongly increase

during the next decennia. The strong increase of

elderly people has some social effects especially on

healthcare and elderly care. There is a large trend in

the displacement of elderly care from healthcare

institutes to healthcare at home. Prevent care on

elderly is done in order to keep elderly home and

independent as long as possible. Falls in elderly

population are large hazard for their health and

produce high costs for social system as well. Almost

half of the fall incidents occurre in elderly houses

and can be prevented by an adequate monitoring

system. There are lots of different factors that

increase the chance of fall incidents (Kannus et al,

2005

). Because of the decreasing muscle force and

movement speed due to the aging, it is harder to

keep the body balanced. Besides that, the reaction

time decreases which result in reduced ability of

elderly person to judge dangerous situations in time.

Current systems for fall detection and prevention

that are implemented in healthcare are not able to

detect multiple dangerous situations and falls

without the help of extra electronic devices mounted

on the person. And more problems arise when there

are multiple persons inside one room (Close et al,

1999).

The goal of our research is to design an

intelligent camera system able to detect multiple

actions and falls during day and nighttimes using

only one camera. The system must work real time

with the intended goal to implement this technique

into an embedded system. The monitoring system

should be designed in such a way that it warns an

elderly person on the dangerous pose or action that

he or she is performing and to alert the medical

services in the case that actual fall occurs. In this

paper, we propose such a system for action

recognition that uses a webcam mounted on a ceiling

pointing directly down, in order to create a top view

image. In this way cluttered scenes are brought back

to a minimum and there is a clear distinction

between different poses. For testing, we designed a

test room that will simulate house environment for

acquiring our data. The data used for this research is

captured during daytime with different illumination

conditions. In total we observed 4 actions

“Walking”, “Bending”, “Falling” and “Collapsing”

(very slow falling) that were performed by multiple

people differing in size and wearing different

409

Aertssen J., Rudinac M. and P. Jonker P..

REAL TIME FALL DETECTION AND POSE RECOGNITION IN HOME ENVIRONMENTS .

DOI: 10.5220/0003326504090414

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2011), pages 409-414

ISBN: 978-989-8425-47-8

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

clothing in order to create a realistic dataset. In

further text we will describe the methods that we

used to design our system.

In section two we discuss the related work which

already has been done in this field of work. Section

three describes the methods form motion detection

that we used to describe actions. Chapter four

explains how the actual system is working and how

the actions are detected while Chapter five shows

the results and gives the conclusion.

2 RELATED WORK

Several different techniques and systems were

proposed recently that detect dangerous poses or

falls of humans inside a room. Most of those

systems make use of accelerometers which detect

abnormal accelerations and trigger an alarm. One of

the approaches is based on the wearable systems

which are able to detect falls. (Zhang et al, 2006)

uses a non-negative matrix factorization method for

feature extraction. The major advantage of this

method is the accuracy of detecting a fall, but the

major disadvantage is the fact that people have to

wear these devices which results in discomfort. This

might cause that after some time the devices will be

left a side by the user and a fall will not be detected.

Recently, some researchers proposed to detect

falls using camera systems. They use single camera

to analyze moving object by background subtraction.

To detect a fall, the measurements of the length

width ratio of the bounding box are calculated. Their

results show that this approach works well and that it

is able to detect different poses when the camera is

placed sideways (Tao et al, 2005) and (Anderson et

al, 2006). However, such approaches experience a

lot of problems due to occlusions from objects inside

of the room.

Other researchers propose to use 3D cameras in

order to get specific coordinates of the human inside

of the room with respect to the floor (Diraco et al,

2010). This approach proved to have nice results but

because of the use of 3D cameras, it is very

expensive for the healthcare home environment

where you will need multiple cameras to cover all

the rooms. (Nait-Charif and McKenna, 2004)

proposed a system which uses only a single

omnidirectional camera with a wide angle lens

placed on the ceiling. This approach reduces the

cluttering scenes and can be used to detect multiple

objects in the room to define safe regions. Falls were

detected using the ratio between the bounding

ellipses. However the main drawback is that they

are using ratio information which is not sufficient

for multiple pose detection and multiple action

detection that we would like to perform.

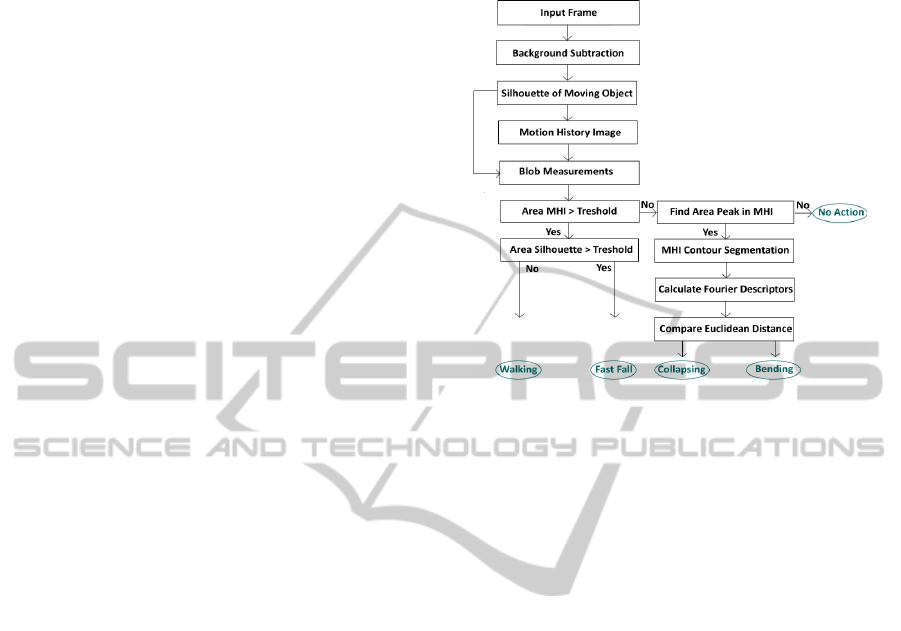

Figure 1: Proposed system for action detection.

3 MOTION DETECTION

We can define actions as the change of the motion in

time. In our method we propose to describe all the

events (or motion changes) belonging to a certain

action using only a single image, which can be

further modelled using a specific shape descriptor.

In that way every action is uniquely described with

its representative shape models. Such a method

requires several steps, and they are explained in

more detail in the next chapters.

3.1 Background Extraction

In order to analyze the action in a certain frame first

step is to detect the motion change by removing the

background information. There are many different

methods to segment the background but the easiest

way is to use Frame Differencing. The major

advantage of this method is its simplicity and fast

computation so it can be applied in real time

applications. Another advantage is that it does not

require any prior processing and it is independent of

the environmental conditions, such as the specific

room type or illumination conditions. However,

motion segmentation using this method is very

coarse and dependant on the shadows in the scene.

To eliminate these effects and acquire more accurate

results we applied Doubled Frame Differencing.

After capturing three successive frames in a video,

two separate difference images (‘t-1’ and ‘t’) and (‘t

VISAPP 2011 - International Conference on Computer Vision Theory and Applications

410

‘ and ‘t+1’) are generated. These difference images

are now binarized and summed up using the “and”

operation. The resulting image is now the binary

Double Difference Image (DDI). In order to further

improve segmentation results, morphological

filtering is performed on the DDI image. The

resulting image is called “Silhouette of moving

object” in further text.

3.2 Motion History Images

Now we need to capture the sequence of motion

change (DDI images) belonging to the one action in

a single image. For that we apply the method of

Motion History Images (MHI) (Bobick and Davis,

2001). Basic idea is to model the motion by

accumulating intensity changes of pixels. Now we

can define the intensity as a function of the temporal

history of motion at that point. The MHI at time t is

calculated according to Equation 1, where D(x,y,t)

represents DDI image at time t and pixel position

(x,y). The variable τ represents the duration of

movement, in consecutive frames, and MHIτ (x,y,t)

temporal history of motion at point (x,y,t) occurring

during the τ frames.

{

(, ,)

max( 0, ( , , 1) 1)

MHI x y t

−−

(, ,) 1fDxyt

Otherwise

i =…

(1)

Resulting MHI is now a scalar valued image where

more recently moved pixels appear brighter as can

be seen on Figure 3. Such MHI is useful for our

application since we only need to know the shape

and location of the motion change, not the direction.

3.3 Area Measurements

During movement the silhouettes generated from the

DDIs are changing. Therefore also the MHI changes

during time. We propose to describe the action by

analyzing this change of the MHI. We focused on

two different measurements, the area change and the

shape change.

In every moment t, we now define and measure

two parameters: the Area of the Individual

Silhouette (from DDI image) and the Area of the

MHI. Since both images are binarized, the area is

calculated as the sum of all positive pixels in that

image. Now we can measure the differences in the

area through time which proves to be very useful for

“fall” and “walking” detection. Detailed explanation

of the detection method follows in the section

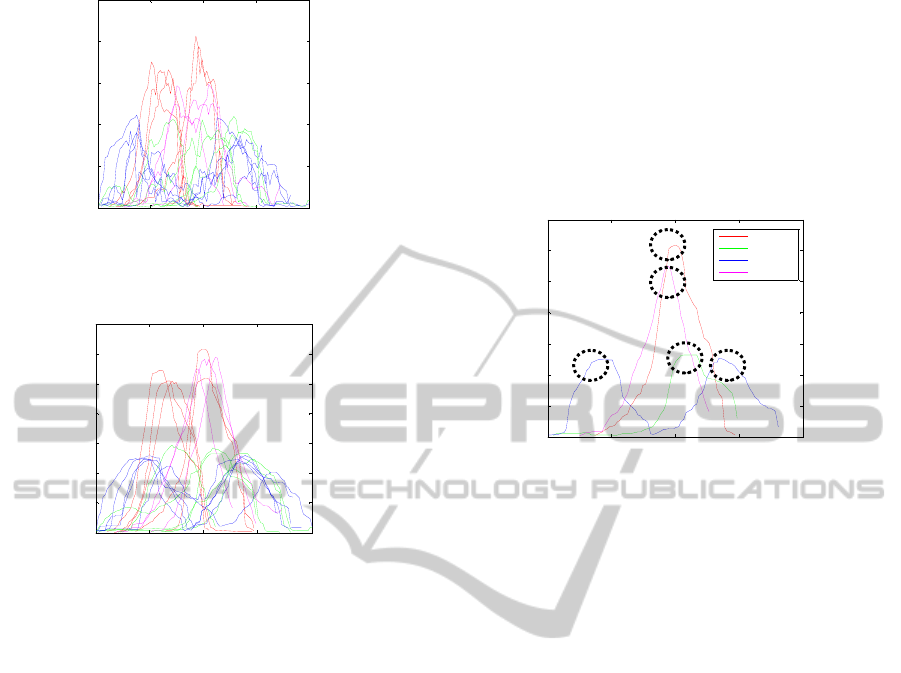

Action recognition. Results of the area changes for

specific actions are presented in Figure 2a and

Figure 2b.

3.4 Shape Measurements

As we already described, we measure the change of

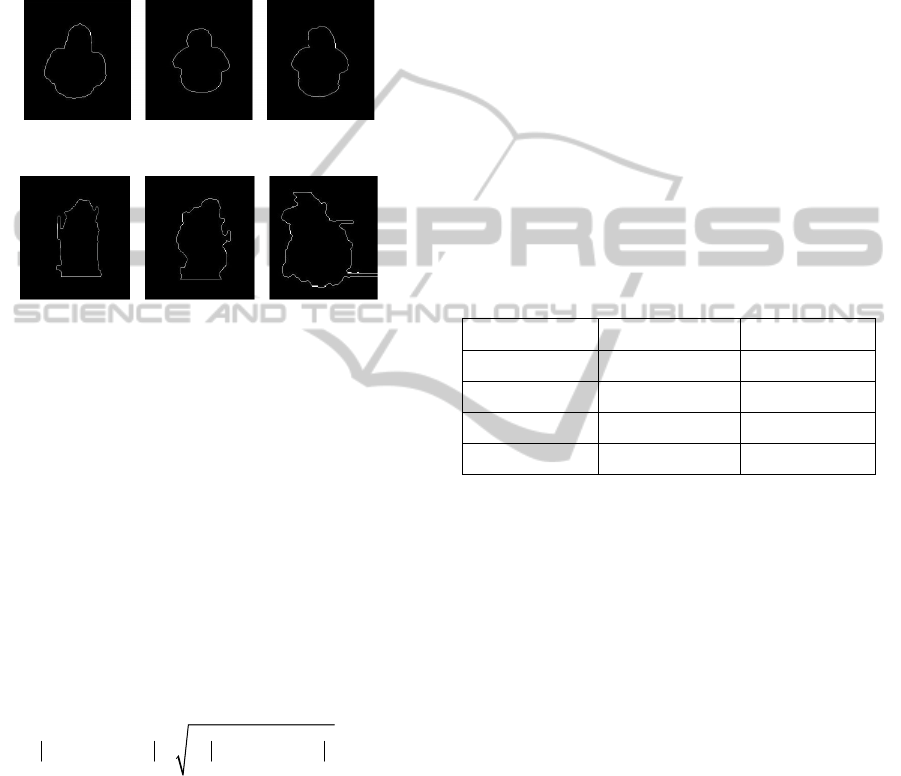

the shape of the MHI. At first a contour of a MHI is

generated, and afterwards described using Fourier

Descriptors. The major advantage of using Fourier

Descriptors is because of their invariance on

translations, rotations and scale. The contour of a

silhouette is described in the frequency domain in

such a way that the lower frequencies describe the

general contour of the silhouette while the higher

frequencies describe the fine detail of the contour. In

our application fine details of the contour are not

useful for global contour discrimination. Therefore

only a subset of the Fourier Descriptors is sufficient

to describe the global contour of the silhouette. This

reduces the dimension of the descriptors and

increases the speed, which is a big advantage for

applying it real time.

For a given contour s(t) which is normalized to N

points, the discrete Fourier transform is given by

Equation (2)

( )e , 0,1,..., 1

jnt

Fst nN

−

⎛⎞

−

⎜⎟

⎝⎠

=−

∑

(2)

This results in a vector of complex numbers where

the magnitude of the descriptors is divided by the

magnitude of the second descriptor in order to apply

scale normalization. This results in:

11 1

, ,...

dd d

FF F

−

⎡

⎤

⎢

⎥

⎢

⎥

⎣

⎦

(3)

Scale invariance is now obtained by dividing the

magnitude values of FDs by the Fd

component.

After that the first descriptor Fd

is discarded since it

only gives information about the position of the

contour and it is not describing the contour itself.

(Zhang and Lu, 2001).

Shape descriptors are used to model the specific

actions by describing the change of the MHI of that

action. Detailed explanation of modelling and

detection of different actions follows in next section.

REAL TIME FALL DETECTION AND POSE RECOGNITION IN HOME ENVIRONMENTS

411

0 50 100 150 200

0.5

1.5

2.5

x 10

Frame Nr

Arrea of the Silouethe

Ac tion trigger peaks



Figure 2a: Change of the “Area of Silhouette” for different

actions in different conditions.

0 50 100 150 200

0.5

1.5

2.5

3.5

x 10

Frame Nr

MHI Area

Action Trigger Peaks

Figure 2b: Change of the “Area of MHI” for different

actions in different conditions where: “Red – falling”;

“Pink – walking“; “Green – collapsing” and “Blue –

bending”.

4 ACTION RECOGNITION

We now combined the methods described in section

3 in order to make a fast, reliable and efficient action

detection system. The scheme of this detection

system can be found in Figure 1.

4.1 Action Triggering

As can be seen in Figure 2, we first apply the

background subtraction using Double Frame

Differencing to obtain the Silhouette of moving

object. Using this image, we now calculate the Area

of the silhouette image and the Area of motion

history image, as explained in previous section.

When a person is performing one of the actions we

want to detect, we can observe a large increase of

both the Area of silhouette and the Area of motion

history image. Once the action is finished this area

will decrease, which results in area peaks of the

silhouette and motion history image. These peaks

define when an action has happened and when to

analyze it and are referred to as Action Trigger

Peaks and are shown in Figure 3.

The Action Trigger Peak is found by subtracting

the Area at time t and time t-1 checking the resulting

value. The positive or negative resulting value

corresponds to an ascending or descending slope, as

defined in Equations 4 and 5.

() ( 1)

() ( )

Area t Area t

Slope t MHI MHI

−

=−

(4)

(1)0& ()0Slope t Slope t Peak t

−

><→=

(5)

Figure 3: The Action Trigger Peaks.

4.2 Fall and Walk Detection

We generated our data in a home environment where

all actions are performed under different

illumination conditions and by multiple people

wearing different clothes. Analyzing the Action

Trigger Peaks of the MHI Area of the different

actions, we observed that the average maximum

“Falling” and “Walking” values exceed the

“Bending” and “Collapsing” values by 20% (Figure

2b) .This is used to define the Area MHI threshold.

Further analyzing the Action Trigger Peaks of the

Area of Silhouettes, we observed that the average

maximum values of “Falling” actions exceed the

average maximum “Walking” value with 15%

(Figure 2a). This is used to define the Area

Silhouette threshold. Combining these two

thresholds we can distinguish between “Walking”

and “Falling”. What is important to notice is that

both of these thresholds are learned from manually

labelled training data by comparing differences in

area values. These thresholds are then applied on

the testing data, to detect the “Fall” and “Walking”

actions.

4.3 Action/Pose Models

Another way to describe a change in the motion

history image is by shape descriptors. We now

model an action using an exact shape of the MHI

that occurs in the peak of that action. For every

0 50 100 150 200

0.5

1.5

2.5

3.5

x 10

Frame Nr

MHI Area

Action Trigger Peaks

Falling

Walking

Bending

Collapsing

VISAPP 2011 - International Conference on Computer Vision Theory and Applications

412

specific action the training data is analyzed and at

the Action Trigger Peak, a contour segmentation is

performed on the MHI. On this contour we calculate

the Fourier descriptors and save them as a model for

the specific action. Examples of such models can be

found in Figure 4, where is clearly visible that same

actions performed by different people in a different

conditions preserve same shape information.

Figure 4a: Models for the action “Bending”.

Figure 4b: Models for the action “Collapsing”.

4.4 Bend and Collapse Detection

For all the actions in the training data, we extracted

the action models in an offline step and formed the

database. In an online step, when we want to detect

certain action, we first search for an Action Trigger

Peak to detect the action culmination. Once it occurs

and the Area value is below the Area MHI threshold

(which eliminates “Walking” or “Falling” actions),

model of that action is extracted using the Fourier

Descriptors. Now to recognize which action it is, we

compare the extracted model (FD

contour

) with all the

models from the database. For comparison the

Euclidian distance is used. As defined in the

Equation (6).

mod mod

contour el contour el

dFDFD FDFD

=−= −

∑

(6)

Since Action Trigger Peak lasts several frames,

for the final classification of an action all the frames

from the specific Action Trigger Peak are compared

with the predefined models. At every frame the

votes for the two best matching models, with the

smallest distance are saved. We now apply the

voting scheme and the model (action) with most

votes is considered as detected.

5 TESTING AND RESULTS

For the purpose of this research we designed a

special testing room, with the web camera mounted

on the ceiling to generate a top view image. We used

this setting since it is independent of the motion

direction angle while providing visibility of the

entire room. We recorded in total 52 movies

containing all the dangerous actions that elderly

person can perform: Walking, Bending, Collapsing

and Falling. All data is recorded in a standard room

during daytime under different illumination

conditions. For the multiple action data another 16

movies were recorded using the same conditions. To

make our testing more robust, we used in total 4

different subjects who all differ in height and wear

different clothes. We trained our data on 5 randomly

selected movies with only single actions (or 10% of

all data) Results are presented for the testing data of

both single and multiple action movies.

Table 1: Single Action Results.

Action Precision Accuracy

Walking 100,00% 100,00%

Falling 100,00% 100,00%

Collapsing 91,67% 95,83%

Bending 91,67% 95,83%

Table 1 shows the results of the data containing

only one single action. The actions “Walking” and

“Falling” are with all the data correctly classified

using only the Area information of the MHI and the

Area of individual Silhouette. The actions

“Collapsing” and “Bending” have a slightly lower

precision and accuracy. Confusion matrix shows that

these two actions are both misclassified with each

other. The reason for misclassification is the fact that

when a human collapses to the ground it sometimes

first bends over which will be classified as bending

and not as collapsing. Even though the bending

action shows some clear models constructed form

the Fourier Descriptors, there is a small chance that

“Bending” and “Collapsing” are misclassified.

In normal daily activity multiple actions can

happen after each other which might make

classification of an action a more challenging task.

Table 2 shows the results of these multiple task. The

results show that the action “Walking followed by

Falling” is classified correctly in all the data. This is

caused by the fact that the calculations of the MHI

Area and the Silhouette Area are very stable and

clearly distinguish from other actions. Combining

the other two action who make use of the models

REAL TIME FALL DETECTION AND POSE RECOGNITION IN HOME ENVIRONMENTS

413

from the Fourier Descriptors, the Precision seems to

drop to 83,33%. This is mainly caused by the fact

that the MHI contour during “Bending” still contains

information of the Walking silhouettes. This extra

information changes the contour of the MHI

contour. This change in contour deteriorates the

results compared with the predefined contours of the

“Bending” en Collapsing actions.

Table 2: Multiple Action Results.

Action Precision Accuracy

Walking -> Fall 100,00% 100,00%

Walking -> Bending 83,33% 91,67%

Bending -> Walking 91,67% 95,83%

Walking - > Bending -> Collapse 83,33% 91,67%

Table 3: Single Action results for (Tao, 2006) method.

Action Precision Accuracy

Walking 80% 88,89%

Falling 75% 85,71%

If we compare our results with the state of the art

we outperform other techniques based on the

bounding box ratio. Table 3 shows the results using

the bounding box ratio principle as used in (Tao et

al, 2005) and (Anderson et al, 2006) on our dataset.

The actions “Walking” and “Falling” are being

detected but with a drop in precision and accuracy,

while the actions “Bending” and “Collapsing”

couldn’t be detected on our dataset at all. Using only

the bounding box ratio proved not to be successful

on our dataset, but since it shows that in some cases

falling and walking can be detected, the combination

of using the bounding box ratio together with our

method can be promising. If we look at the other

methods such as the wearable devices discussed by

(Zhang et al, 2006), we achieve slightly better

performance on a very similar dataset but these

devices have a drawback that patients need to wear

them all the time which is very uncomfortable.

Regarding speed, our system achieves real time

performance.

6 CONCLUSIONS

The research presented in this paper is related to

human fall detection and the detection of different

actions that can be dangerous for elderly people. Our

main goal was to design a system which can work in

real time applications and reduce the implementation

costs by using only one web camera. Our system is

able to detect and distinguish different actions by

using a size and shape information of the motion

history image that characterizes certain action. It

outperforms other methods based on background

subtraction and pose recognition using silhouette

information. It also gives very high fall detection

results, works in real time and is very inexpensive to

implement. For further development we plan to

implement it in an embedded system and test it in

different nursing home environments.

REFERENCES

Anderson, D., Keller, J.M., Skubic, M.; Xi Chen;Zhihai

He, (2006). Recognizing Falls from

Silhouettes. Engineering in Medicine and Biology

Society, EMBS '06, 28th Annual International

Conference of the IEEE , vol., no., pp.6388-6391

Bobick, A. and Davis, J. (2001). The recognition of human

movement using temporal templates. In IEEE

Transactions on Pattern Analysis and Machine

Intelligence, volume23, pages257–267.

Close, J. Ellis, M., Hooper, R., Glucksman, E., Jackson, S.

Swift C. (1999). Prevention of falls in the elderly trial

(PROFET): a randomised controlled trial. Department

of Health Care of the Elderly, Guy's King's, and St

Thomas' School of Medicine, King's College Hospital,

London, UK.

Diraco, G., Leone, A., Siciliano, P. (2010). An active

vision system for fall detection and posture

recognition in elderly healthcare. Design, Automation

& Test in Europe Conference & Exhibition (DATE),

vol., no., pp.1536-1541.

Kannus, P., Sievanen, H., Palvanen, M., Jarvinen, T.,

Parkkari, J. (2005). Prevention of falls and consequent

injuries in elderly people, The Lancet, Volume 366,

Issue 9500, Pages 1885-1893

Nait-Charif, H., McKenna, S.J. (2004). Activity

summarization and fall detection in a supportive home

environment, Pattern Recognition, 2004. Proceedings

of the 17th International Conference on Pattern

Recognition , vol.4, no., pp. 323- 326 .

Tao, J., Turjo, M., Wong, M. F, Wang, M., Tan, Y. P.

(2006). Fall Incidents Detection for Intelligent Video

Surveillance, Information, Communications and

Signal Processing, 2005 Fifth International

Conference on , vol., no., pp.1590-1594.

Zhang, D.S., Lu, J. (2001). Comparative study on shape

retrieval using Fourier descriptors with different

shape signatures, In Proceedings of the International

Conference on Multimedia and Distance Education,

Fargo, ND, USA, pp. 1–9.

Zhang, T., Wang, J., Xuetal, L. (2006). Using wearable

sensor and NMF algorithm to realize ambulatory fall

detection, Lecture Notes in Computer Science,

Advances in Natural Computation, vol. 4222, pp.488-

491.

VISAPP 2011 - International Conference on Computer Vision Theory and Applications

414
