CHARACTERIZING DISTRIBUTED XML PROCESSING

Moving XML Processing from Servers to Networking Nodes

Yoshiyuki Uratani

Graduate School of CS and Systems Engineering, Kyushu Institute of Technology, Iizuka, 820-8502 Fukuoka, Japan

Hiroshi Koide

Faculty of Computer Science of Systems Engineering, Kyushu Institute of Technology, Iizuka, 820-8502 Fukuoka, Japan

Dirceu Cavendish, Yuji Oie

Network Design Research Center, Kyushu Institute of Technology, Iizuka, 820-8502 Fukuoka, Japan

Keywords:

Distributed XML processing, Task scheduling, Pipelining and parallel processing.

Abstract:

This study characterizes distributed XML processing on networking nodes. XML documents are sent from a

client node to a server node through relay nodes, which process the documents before arriving at the server.

When the relay nodes are connected tandem, the XML documents are processed in a pipelining manner.

When the relay nodes are connected parallel, the XML documents are processed in a parallel fashion. Well-

formedness and grammar validation pipelining and parallel processing characterization reveals inherent ad-

vantages of the parallel processing model.

1 INTRODUCTION

XML technology has become ubiquitous on dis-

tributed systems, as it supports loosely coupled in-

terfaces between servers implementing Web Services.

Large XML data documents, requiring processing

at servers, may soon require distributed processing,

for scalability. Recently, distributed XML process-

ing has been proposed and studied from an algorith-

mic point of view for well-formedness, grammar val-

idation, and ﬁltering (Dirceu Cavendish, 2008). In

that work, a Preﬁx Automata SyStem is described,

where (PASS) nodes opportunistically process frag-

ments of an XML document travelling from a client

to a server, as a data stream. PASS nodes can be ar-

ranged into two basic distributed processing models:

pipelining, and parallel model. The problem of al-

locating speciﬁc fragments of an XML document to

PASS nodes, in a pipeline manner,has been addressed

in (Yoshiyuki Uratani, 2009). We leverage their re-

sults into an efﬁcient task allocation method in this

current work. Moreover, the problem of scheduling

tasks on streaming data that follows parallel paths has

been addressed in (Kazumi Yoshinaga, 2008). In that

work, we have also studied the migration of tasks be-

tween nodes depending on network congestion.

In this paper, we evaluate the two distributed

XML processing models - i) pipelining, for XML

data stream processing systems; ii) parallel, for XML

parallel processing systems - with regard to process-

ing efﬁciency, correlating performance with XML

document structure and processing task for well-

formedness and grammar validation tasks. The pa-

per is organized as follows. In section 2, we describe

generic models of XML processing nodes, to be used

in both pipelining and parallel processing. In section

3, we describe a task scheduler used to assign XML

document fragments to XML processing nodes. In

section 4, we describe a PC based prototype system

that implements the distributed XML processing sys-

tem, and characterize XML processing performance

of the pipeline and parallel computation models. In

section 5, we address related work. In section 6, we

summarize our ﬁndings and address research direc-

tions.

Uratani Y., Koide H., Cavendish D. and Oie Y..

CHARACTERIZING DISTRIBUTED XML PROCESSING - Moving XML Processing from Servers to Networking Nodes.

DOI: 10.5220/0003338300410050

In Proceedings of the 7th International Conference on Web Information Systems and Technologies (WEBIST-2011), pages 41-50

ISBN: 978-989-8425-51-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2 XML PROCESSING ELEMENTS

Distributed XML processing requires some basic

functions to be supported:

• Document Partition. The XML document is di-

vided into fragments, to be processed at process-

ing nodes.

• Document Annotation. Each document frag-

ment is annotated with current processing status

upon leaving a processing node.

• Document Merging. Document fragments are

merged so as to preserve the original document

structure.

XML processing nodes support some of these

tasks, according to their role in the distributed XML

system.

2.1 XML Processing Nodes

We abstract the distributed XML processing elements

into four types of nodes: StartNode, RelayNode,

EndNode, and MergeNode. The distributed XML

processing can then be constructed by connecting

these nodes in speciﬁc topologies, such as pipelining

and parallel topologies.

StartNode. StartNode is a source node that ex-

ecutes any pre-processing needed in preparation

for piecewise processing of the XML document.

This node also starts XML document transfer

to relay nodes, for XML processing. We show

components of the StartNode in Figure 1. The

StartNode has one or more threads of the type

Read/SendThread. In Figure 1, StartNode has

three next nodes. The Read/SendThreads each

reads part of an XML document per line, and add

checking and processing information. The check-

ing information is used for tag check processing.

Processing information describes which RelayN-

ode shall process which parts of the XML doc-

ument. Each Read/SendThread reads part of

the document roughly of the same size. Then,

each Read/SendThread sends the processed data

to next nodes. Read/SendThreads run concur-

rently.

RelayNode. RelayNode executes XML process-

ing on parts of an XML document. It is placed as

an intermediate node in paths between the StartN-

ode and the EndNode. We show components of

the RelayNode in Figure 2. The RelayNode has

three types of threads: ReceiveThread, TagCheck-

Thread and SendThread. The ReceiveThread re-

ceives data which contains lines of an XML docu-

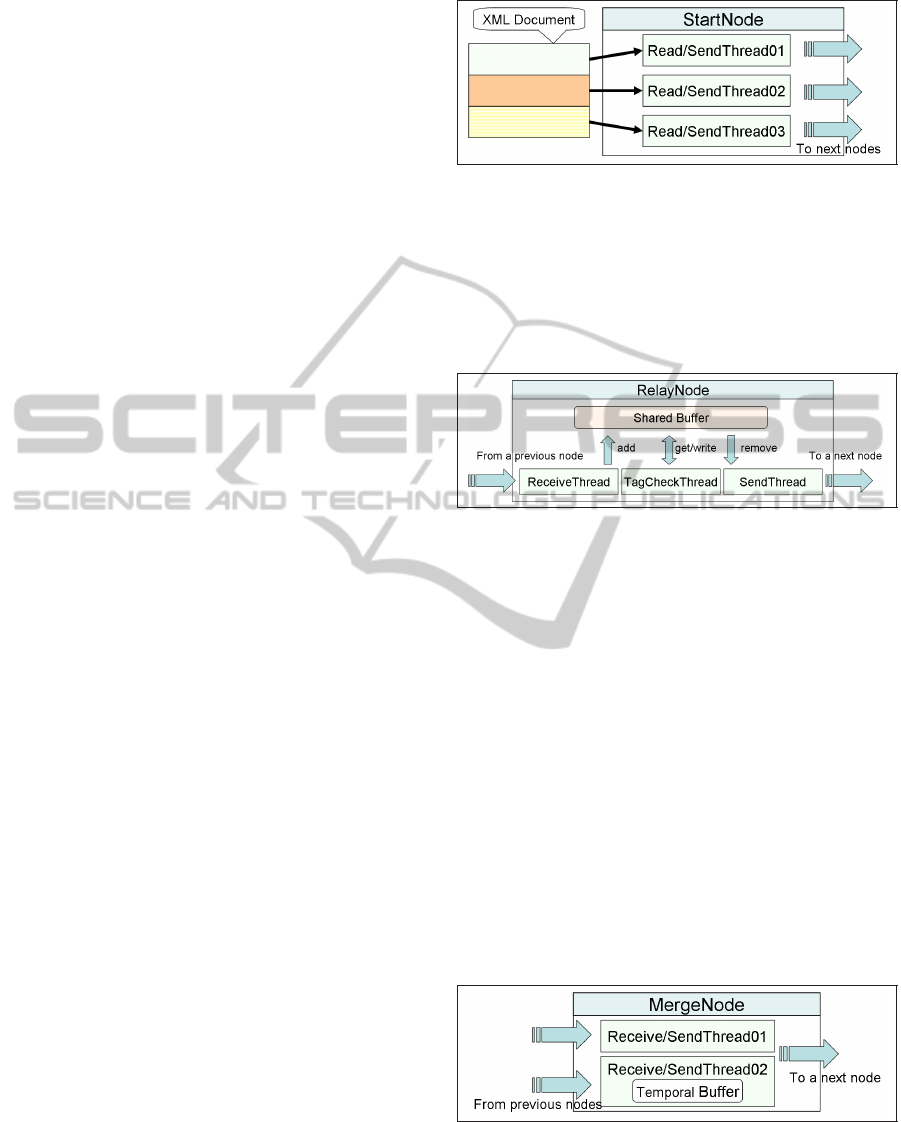

Figure 1: Components of StartNode (three next nodes case).

ment, checking and processing information, stor-

ing the data into a shared buffer. The TagCheck-

Thread attempts to process the data, if the data is

assigned to be processed at the node. SendThread

sequentially sends data to a next node.

Figure 2: Components of RelayNode.

EndNode. EndNode is a destination node, where

XML documents must reach, and have their XML

processing ﬁnished. This node receives data

which contains the XML document, checking in-

formation and processing information, from a par-

ticular previous node. If the tag checking has

not been ﬁnished yet, the EndNode processes

all unchecked tags, in order to complete XML

processing of the entire document. In addi-

tion, the EndNode strips the document from any

overhead information, so as to restore the doc-

ument to its original form. Components of the

EndNode are similar to the RelayNode, except

that the EndNode has DeleteThread instead of

SendThread. The DeleteThread cleans the data

from processing and checking information, and

deletes the data from the shared buffer.

Figure 3: Components of MergeNode (two previous nodes).

MergeNode. The MergeNode receives data from

multiple previous nodes, serializes it, and sends

it to a next node, without performing any XML

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

processing. The MergeNode is used only in par-

allel XML processing topologies. We show a

component of the MergeNode in Figure 3. The

MergeNode has more than one thread of the type

Receive/SendThread. Each thread receives data

from a previous node. The MergeNode fur-

ther sends the data in order, so some threads

may need to wait previous data to be sent be-

fore sending its part of data. For instance, in

Figure 3, Receive/SendThread02 waits until Re-

ceive/SendThread01 ﬁnishes sending its data re-

lated to a previous part of the XML document, be-

fore sending its own data, related to a subsequent

part of the document.

2.1.1 Node Tag Checking Method

XML document processing involves stack data struc-

tures for tag processing. When a node reads a start

tag, it pushes the tag name into a stack. When a

node reads an end tag, it pops a top element from the

stack, and compares the end tag name and the popped

tag name. If both tag names are the same, the tags

match. The XML document is well-formed when all

tags match. In case the pushed and popped tags do

not match, the XML document is declared ill formed.

Checking information is added to the document,

for processing status indication: already matched; un-

matched; or yet to be processed.

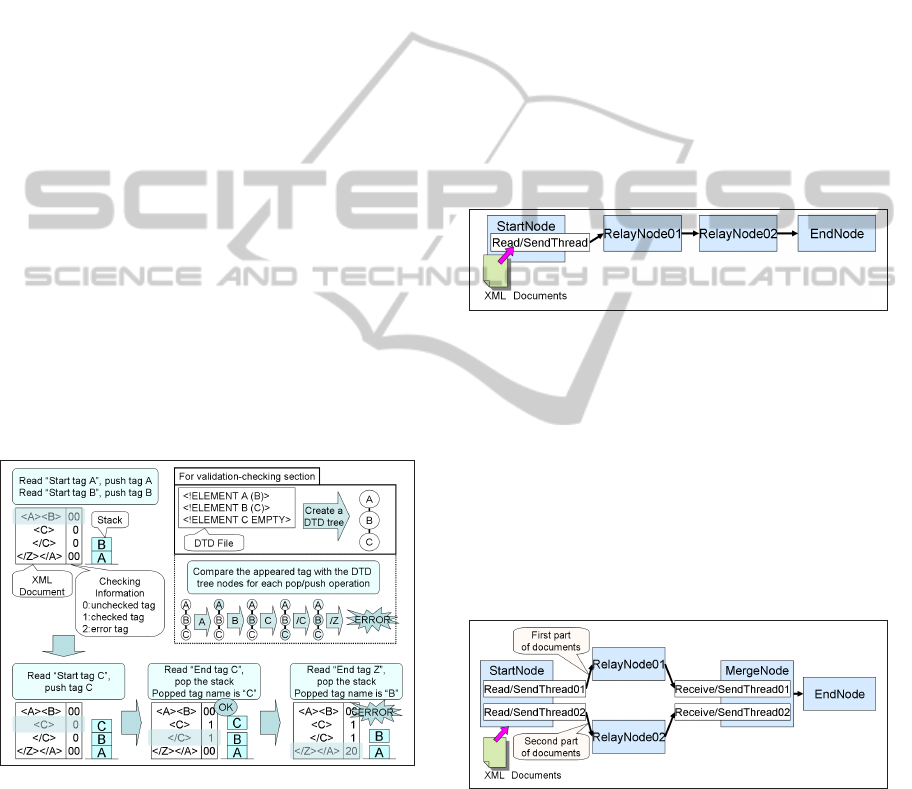

Figure 4: A Node Tag Checking Example.

In Figure 4, we show a simple example for well-

formedness checking and validation checking. When

the distributed XML processing system checks well-

formedness only, the upper right box of the ﬁgure is

not executed. When the distributed XML processing

system also executes grammar validation, each node

processes validation and well-formedness at the same

time. In this case, each processing node has avail-

able DTD (Document Type Deﬁnition) ﬁles for gram-

mar validation, deﬁning the grammar that XML docu-

ments must comply with. Each node executing gram-

mar validation reads DTD ﬁles, and generates gram-

mar rules for validation checking. We represent these

rules as a tree in the ﬁgure. Each processing node

pops/pushes the tags from/to the stack, as represented

in the lower part of Figure 4. If grammar validation

is also executed, the node also consults the grammar

rules, in order to evaluate whether the tag is allowed

to appear at a speciﬁc place in the document, accord-

ing to the grammar.

2.1.2 Node Allocation Patterns

As mentioned earlier, the distributed XML system can

execute two types of distributed processing: pipeline

and parallel processing. We show pipeline processing

in Figure 5, and parallel processing in Figure 6.

Figure 5: Pipelining Processing (two stages instance).

In Figure 5, the distributed system has two stages

pipeline. All data is transferred from StartNode to

EndNode via two RelayNodes. The StartNode reads

the XML document per line, add some information,

and sends the resulting document to the RelayN-

ode01. The RelayNode01 and the RelayNode02 pro-

cess parts of the received data, according to allocation

determined by the scheduler. The EndNode receives

data from the RelayNode02, processes all unchecked

data, and produces the ﬁnal XML processing result.

Figure 6: Parallel Processing (two path instance).

In Figure 6, the distributed system has two routes

from StartNode to EndNode. The route via Re-

layNode01 relays a ﬁrst part of documents, and the

route via RelayNode02 relays a second part of docu-

ments. The RelayNode01 and the RelayNode02 pro-

cess parts of the receiveddata, according to the sched-

uler’s allocation. MergeNode receives data from the

RelayNodes, merges it, and sequentially sends it to

CHARACTERIZING DISTRIBUTED XML PROCESSING - Moving XML Processing from Servers to Networking Nodes

the EndNode. The EndNode receives data from the

MergeNode, processes all unchecked data, and pro-

duces the ﬁnal result. Parallel processing mod-

els have an extra node, the MergeNode, as compared

with the pipeline processing models. Notice that the

MergeNode executes only extra processing overhead,

needed for merging parts of the document, in the par-

allel architecture, not executing any XML processing.

We could also have integrated such merging capabil-

ity to the EndNode, an hence obtaining an exact same

number of nodes between pipeline and parallel mod-

els. We have decided to create a speciﬁc MergeNode

in order to keep the EndNode the same across both ar-

chitectures, and the number of nodes executing XML

processing the same in both processing models.

3 TASK SCHEDULING

Task Scheduling System is a platform for parallel dis-

tributed processing. It is implemented in Java

and is

constructed by several modules, as illustrated in Fig-

ure 7.

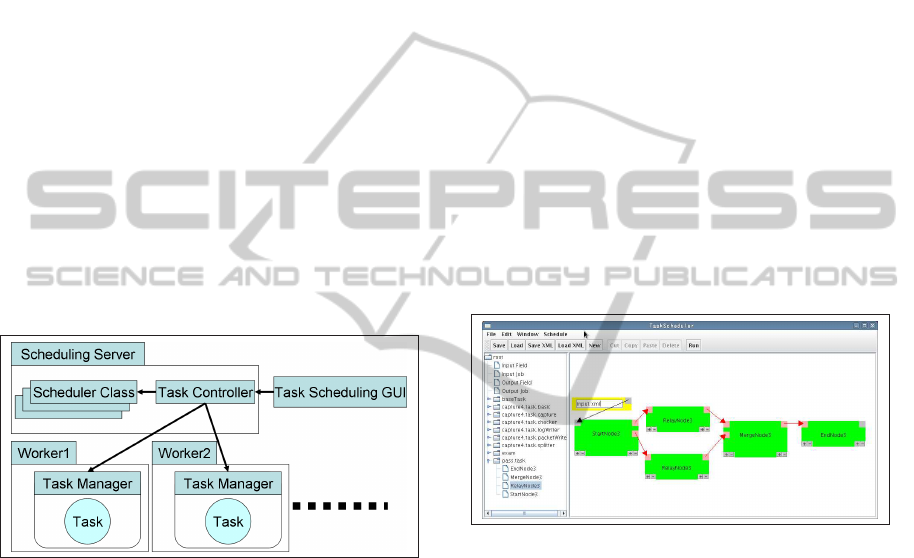

Figure 7: Task Scheduling System.

Task Controller Module. Task Controller

module runs on the scheduler node. This module

allocates tasks to Task Manager Modules, which

run at worker machines, executing them. The

Task Controller implements a scheduler for deci-

sion where tasks should be allocated, and when

they should be executed.

Task Manager Module. The Task Manager

module works on each worker machine. This

module executes tasks assigned by the Task Con-

troller module.

Scheduler Class. Scheduler Class imple-

ments a scheduling algorithm, which decides al-

location of tasks and timing when tasks start.

We can install not only static scheduling algo-

rithms such as (James E. Kelley Jr, 1959) or

(Tarek Hagras, 2004) but also dynamic scheduling

algorithms such as (Kazumi Yoshinaga, 2008) or

(Manimaran G., 1998), before starting distributed

program execution. However, we use a static

scheduling algorithm which assigns all tasks be-

forehand to avoid the affect of scheduling algo-

rithms in this paper. Tasks communicate with

each other via streaming connections in the ex-

periments of this paper (Section 4). The tasks are

allocated to workers by the scheduler beforehand.

Once the tasks start, they will run until the pro-

cessing or all data is ﬁnished. Also the scheduler

does not migrate tasks to other workers, even if

some worker is idle.

Task Scheduling GUI Module. Task

Scheduling GUI is the GUI module front-end of

the Task Scheduling System (Figure 8). We can

easily deﬁne a speciﬁc distributed system and edit

nodes conﬁgurations by using this module. In

Figure 8, boxes represent speciﬁc tasks. Arrows

between boxes represent connections between

tasks. Tasks communicate data such as arguments

and processing results.

Figure 8: A Screenshot of Task Scheduling GUI.

4 DISTRIBUTED XML

CHARACTERIZATION

In this section, we characterize distributed XML well-

formedness and grammar validation processing.

4.1 Experimental Environment

We use a Sun SPARC Enterprise T5440 Server (Or-

acle, 2010) server machine as an experimental envi-

ronment. Server speciﬁcation is described in Table 1.

This server has 4 CPU sockets, a total of 32 cores, and

can concurrently run up to 256 threads. In this server,

we conﬁgure hard disk storage as RAID-0 striping.

We also use Solaris Container, which is an operat-

ing system-level virtualization technology, to imple-

ment distributed XML processing nodes. These vir-

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

Table 1: T5440 Server Speciﬁcation.

CPU

Sun Ultra SPARC



T2 Plus (1.2GHz) × 4

Memory 128G bytes (FB-DIMM)

OS Solaris

JVM Java

1.5.0 17

tual environments are called zones. The zones can

directly communicate with each other by a machine

internal communication mechanism. We illustrate the

structure of the experimental environment in Figure

9. The Solaris Container treats one operating system

as a global zone which is unique in the system. We

can dynamically allocate resources to the zones, such

as CPU cores and memory space. We implement the

scheduler at zone 01. Each RelayNode executes in-

dependently, since the number of CPU cores, 32, is

larger than the number of nodes.

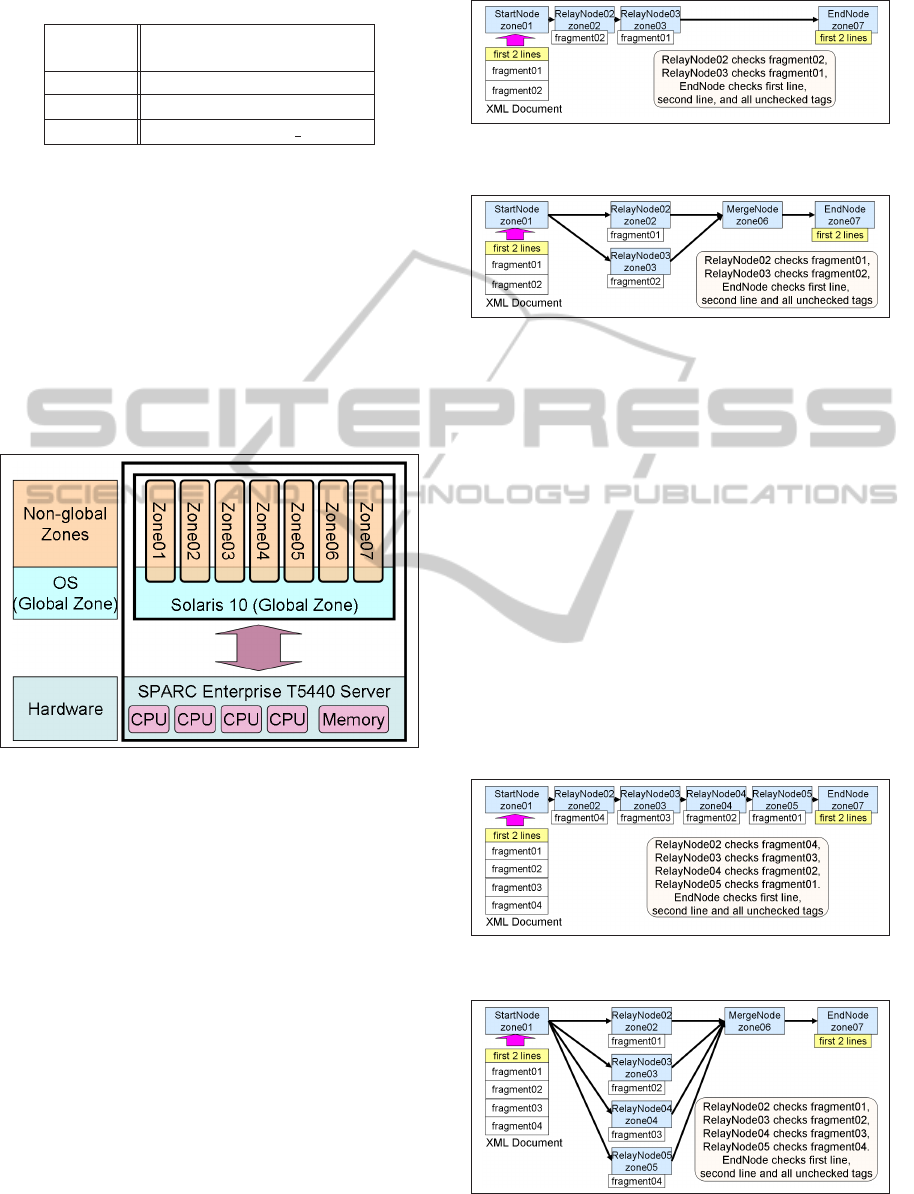

Figure 9: Zones in T5440 Server.

4.2 Node Allocation Patterns

We use several topologies and task allocation pat-

terns, for characterizing distributed XML processing,

within the parallel and pipelining models. We vary

also the number of RelayNodes, within topologies, to

evaluate their impact into processing efﬁciency.

• Two stages pipeline (Figure 10).

• Two path parallelism (Figure 11).

• Four stages pipeline (Figure 12).

• Four path parallelism (Figure 13).

In Figure 10–13, tasks are shown as light shaded

boxes, underneath nodes allocated to process them.

For two RelayNode case, (Figure 10 and 11), we

divide the XML documents into three parts: ﬁrst two

lines, fragment01 and fragment02. The ﬁrst two lines

contain a meta tag and a root tag. In Figure 10,

Figure 10: Two Stages Pipeline.

Figure 11: Two Path Parallelism.

we conﬁgure two stage pipeline topology. Data ﬂow

from StartNode to EndNode via two RelayNodes. Re-

layNode02 is allocated for processing fragment02,

RelayNode03 is allocated for processing fragment01,

and the EndNode is allocated for processing the ﬁrst

two lines, as well as processing all left out unchecked

data. In Figure 11, we conﬁgure two path paral-

lelism. The ﬁrst two lines, fragment01 and related

data ﬂow from StartNode to EndNode via RelayN-

ode01 and MergeNode. Fragment02 and related data

ﬂow from the StartNode to the EndNode via RelayN-

ode02 and the MergeNode. RelayNode02 is allocated

for processing fragment01, RelayNode03 is allocated

for processing fragment02, whereas the EndNode is

allocated for processing the ﬁrst two lines, as well as

processing all left out unchecked data.

Figure 12: Four Stages Pipeline.

Figure 13: Four Path Parallelism.

CHARACTERIZING DISTRIBUTED XML PROCESSING - Moving XML Processing from Servers to Networking Nodes

In four RelayNode case (Figure 12 and 13), we

divide the XML documents into ﬁve parts: ﬁrst two

lines, fragment01, fragment02, fragment03 and frag-

ment04. Figure 12 shows a four stage pipeline topol-

ogy. Data ﬂow from StartNode to EndNode via four

RelayNodes. RelayNodes fragment allocation is as

shown in the ﬁgure. The EndNode is allocated for

processing the ﬁrst two lines, as well as process-

ing all left out unchecked data. Figure 13 shows

four path parallelism topology. The ﬁrst two lines,

fragment01 and related data ﬂow from StartNode to

EndNode via RelayNode02 and MergeNode. Frag-

ment02 and related data ﬂow from the StartNode to

the EndNode via RelayNode03 and the MergeNode.

Fragment03 and related data ﬂow from the StartNode

to the EndNode via RelayNode04 and the MergeN-

ode. Fragment04 and related data ﬂow from the

StartNode to the EndNode via RelayNode05 and the

MergeNode. RelayNodes fragment allocation is as

shown in the ﬁgure. The EndNode is allocated for

processing the ﬁrst two lines, as well as processing all

left out unchecked data. Notice that, even though the

the parallel model has one extra node, the MergeN-

ode, as compared with corresponding pipeline model,

the MergeNode does not perform any XML process-

ing per se. Hence, the number of nodes executing

XML processing is still the same in both models.

4.3 Patterns and XML Document Types

The distributed XML processing system can exe-

cute two types of processing: well-formedness check-

ing, and grammar validation checking of XML docu-

ments. Efﬁciencyof these XML processing tasks may

be related to: processing model, pipelining and paral-

lel; topology, number of processing nodes and their

connectivity; XML document characteristics.

We use different structures of XML documents to

investigate which distributed processing model yields

the most efﬁcient distributed XML processing. For

that purpose, we create seven types of XML docu-

ments, by changing the XML document depth from

shallow to deep while keeping its size almost the

same. We show the XML document characteristics in

Table 2, and their structures in Figure 14. Each XML

document has 10000 tag sets.

We combine four node allocation patterns, two

processing patterns and seven XML document types

to produce 56 types of experiments.

4.4 Performance Indicators

We use two types performance indicators: system per-

formance indicators and node performance indicators.

Table 2: XML Document characteristics.

XML Count of

Width Depth

File size

ﬁle lines [K bytes]

doc01 10002 10000 1 342

doc02 15002 5000 2 347

doc03 17502 2500 4 342

doc04 19902 100 100 343

doc05 19998 4 2500 342

doc06 20000 2 5000 342

doc07 20001 1 10000 342

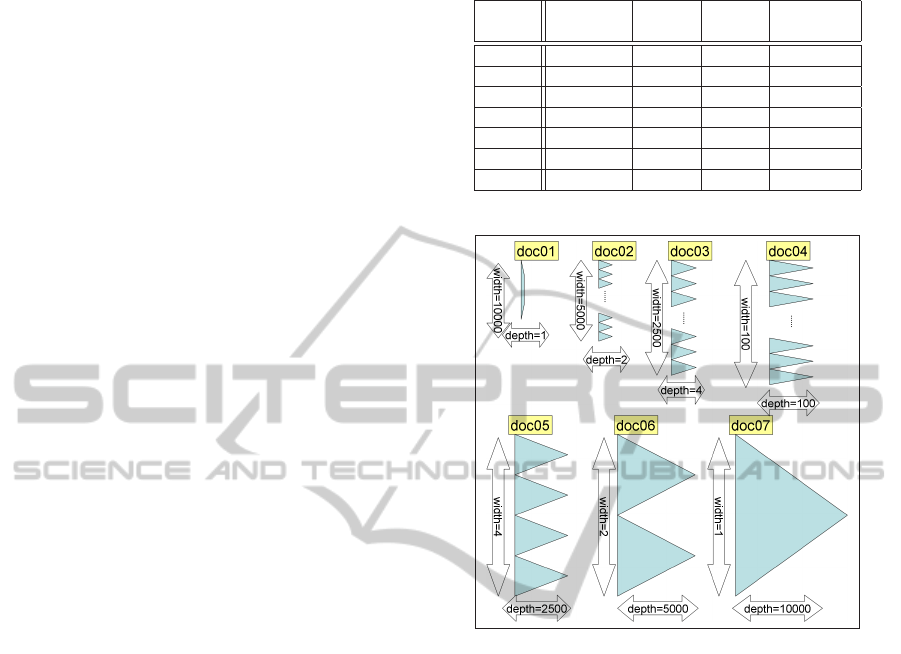

Figure 14: XML Document Structures.

System performance indicators characterize the pro-

cessing of a given XML document. Node perfor-

mance indicators characterize XML processing at a

given processing node. The following performance

indicators are used to characterize distributed XML

processing:

• Job Execution Time. Job execution time is a sys-

tem performance indicator that captures the time

taken by an instance of XML document to get

processed by the distributed XML system in its

entirety. As several nodes are involved in the

processing, the job execution time results to be

the period of time between the last node (typi-

cally EndNode) ﬁnishes its processing, and the

ﬁrst node (typically the StartNode) starts its pro-

cessing. The job execution time is measured for

each XML document type and processing model.

• Node Thread Working Time. Node thread

working time is a node performance indicator that

captures the amount of time each thread of a node

performs work. It does not include thread waiting

time when blocked, such as data receiving wait

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

time. It is deﬁned as the total ﬁle reading time,

data receiving time and data sending time a node

incurs. For instance, in the MergeNode, the node

thread working time is the sum of receiving time

and sending time of each Receive/SendThread.

Assume the MergeNode is connected to two pre-

vious nodes, with two Receive/SendThreads. Fur-

thermore, one Receive/SendThread spends 200

msec for receiving data and sending data, whereas

the other Receive/SendThread spends 300 msec

for receiving data and sending data. In this case,

the node thread working time is 500 msecs, re-

gardless whether the threads run sequentially on

in a parallel manner. We also derive a System

thread working time as a system performance

indicator, as the average of node thread working

time indicators across all nodes of the system.

• Node Active Time. Node active time is a node

performance indicator that captures the amount of

time each node runs. The node active time is de-

ﬁned from the ﬁrst ReceiveThread starts receiving

ﬁrst data until the last SendThread ﬁnishes send-

ing last data in the RelayNode or ﬁnishes docu-

ment processing in the EndNode. Hence, the node

active time may contain waiting time (e.g, wait

time for data receiving, thread blocking time).

Using the same MergeNode example as previ-

ously, assume two threads, one having 200 msec

node thread working time, and another having 300

msec node thread waiting time. If one thread runs

after the other, in a sequential fashion, the node

active time results to be 500 msecs. However, if

both threads run in parallel, the node active time

results to be 300 msecs. We also deﬁne System

active time as a system performance indicator, by

averaging the node active time of all nodes across

the system.

• Node Processing Time. Node processing time

is a node performance indicator that captures the

time taken by a node to execute XML process-

ing only, excluding communication and process-

ing overheads. We also deﬁne System processing

time as a system performance indicator, by aver-

aging node processing time across all nodes of the

system.

• Parallelism Efﬁciency Ratio. Parallelism efﬁ-

ciency ratio is a system performance indicator de-

ﬁned as “system thread working time / system ac-

tive time”.

4.5 Experimental Results

For each experiment type (scheduling allocation and

distributed processing model), we collect perfor-

mance indicators data over seven types of XML doc-

ument instances. Figures 15 and 16 report job ex-

ecution time; Figures 17 and 18 report system ac-

tive time; Figures 19 and 20 report system process-

ing time; Figures 21 and 22 report system paral-

lelism efﬁciency ratio. On all graphs, X axis describes

scheduling and processing models, as well as well-

formedness and grammar validation types of XML

document processing. X axis legend is as follows:

PIP wel: Pipeline and Well-formedness checking.

PAR wel : Parallel and Well-formedness checking.

PIP val : Pipeline and Validation checking.

PAR val : Parallel and Validation checking.

Y axis denotes each performance indicator as av-

eraged over 22 XML document instance processing.

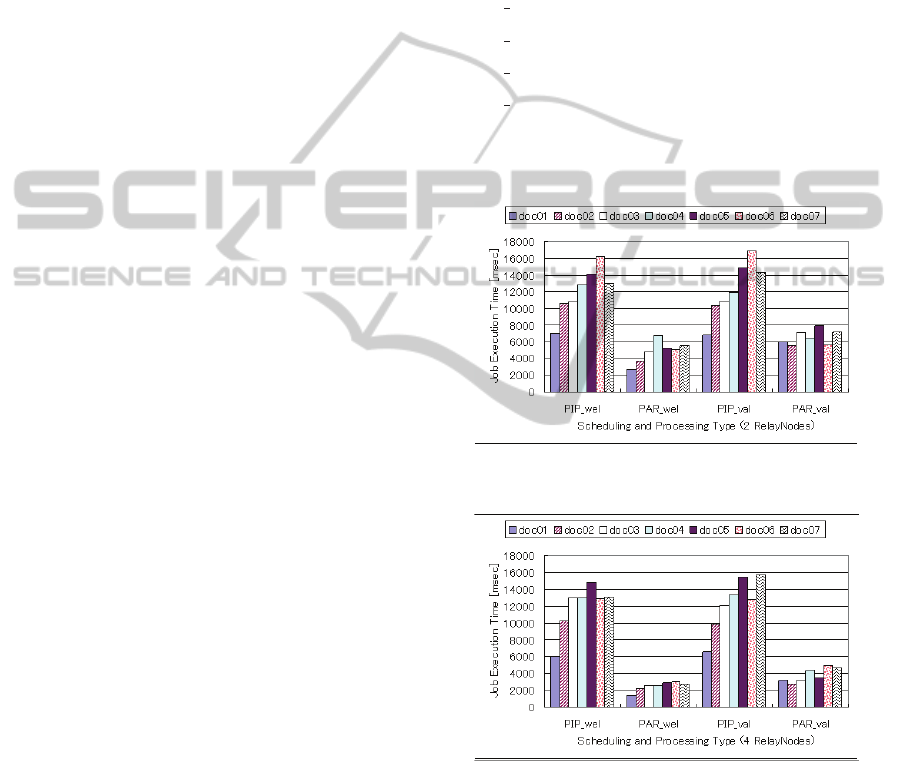

Figure 15: Job Execution Time (Two RelayNodes).

Figure 16: Job Execution Time (Four RelayNodes).

Regarding job execution time (Figures 15 and 16),

parallel processing is faster than pipeline processing

for all docs. Moreover, comparing Figs. 15 with 16,

we see that job execution time speeds up faster with

increasing the number of relay nodes in parallel pro-

cessing than in pipeline processing. In parallel pro-

cessing, StartNode reads concurrently parts of XML

documents and sends them to next nodes. Hence,

each RelayNode receives/processes/sends only part

CHARACTERIZING DISTRIBUTED XML PROCESSING - Moving XML Processing from Servers to Networking Nodes

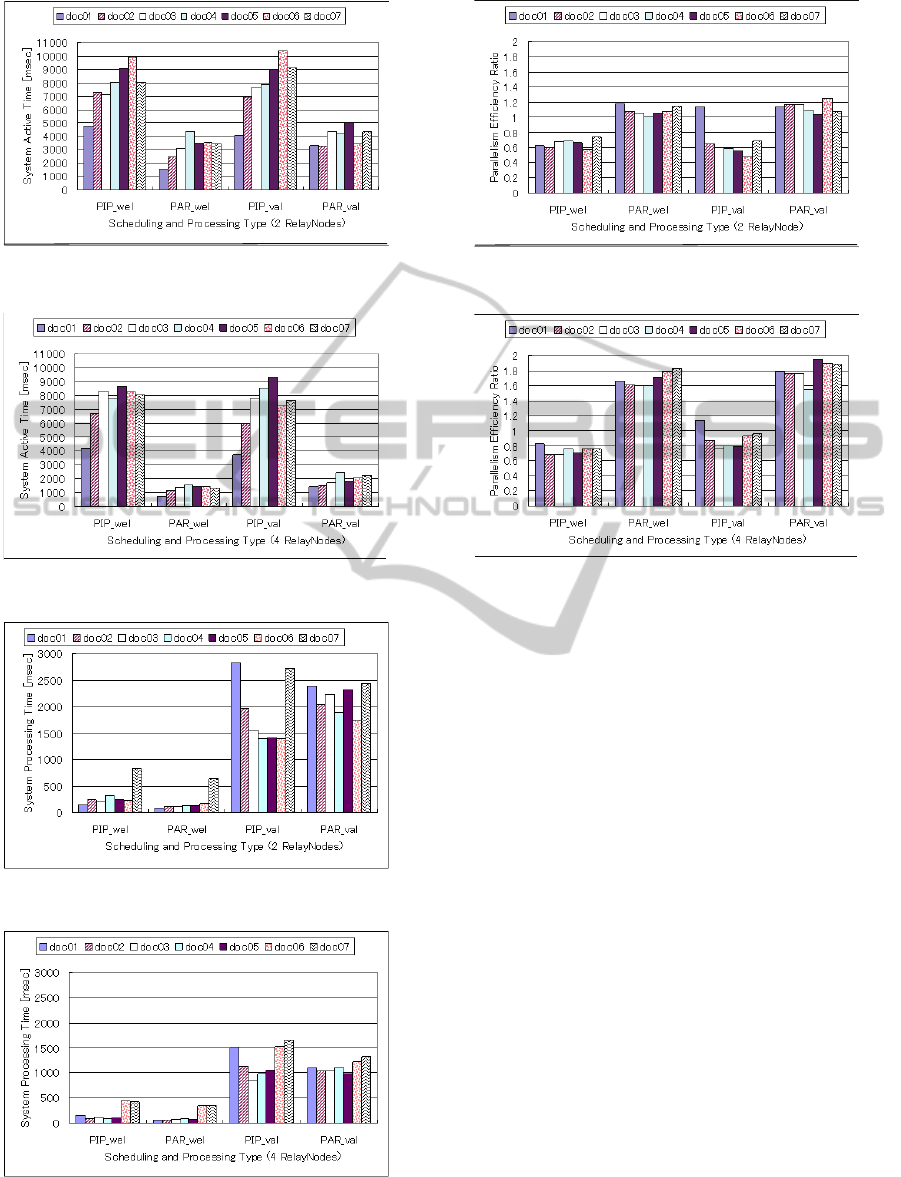

Figure 17: System Active Time (Two RelayNodes).

Figure 18: System Active Time (Four RelayNodes).

Figure 19: System Processing Time (Two RelayNodes).

Figure 20: System Processing Time (Four RelayNodes).

Figure 21: Parallelism Efﬁciency Ratio (Two RelayNodes).

Figure 22: Parallelism Efﬁciency Ratio (Four RelayNodes).

of the XML document. Likewise, MergeNode re-

ceives only part of the XML document at each Re-

ceive/SendThread (Figure 3) and sends them in order

to a next node. Each thread in these nodes run con-

currently, resulting in reduced system active times for

parallel processing in Figs. 17 and 18.

Regarding system active time and document type,

the higher the document depth is, the larger the sys-

tem active time. Grammar validation task is less

sensitive to document depth for parallel processing.

Useless processing is more pronounced at each Re-

layNode for documents with higher depth, because

the RelayNodes are not able to match too many tags

within the document part allocated to them. Hence,

the EndNode is left with a large amount of process-

ing to be done. We may reduce useless processing if

we divide the document conveniently according to the

document structure and grammar checking rules. In

addition, node activity is more sensitive to the number

of RelayNodes in parallel processing than in pipeline

processing. Regarding task complexity, node activity

results are similar in pipeline processing regardless

of the task performed. Parallel processing induces

less node activity if the task is simpler, i.e., for well-

formedness checking. Figure 23 and 24 further show

node active time for each node in the system when

it processes doc01. In these graphs, “SN” means

StartNode, “RN” means RelayNode, “MN” means

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

MergeNode and “EN” means EndNode. Figure 23

shows two RelayNode processing case, and Figure 24

shows four RelayNode processing case. We can see

that the active time of each node is smaller in parallel

as compared with pipeline processing.

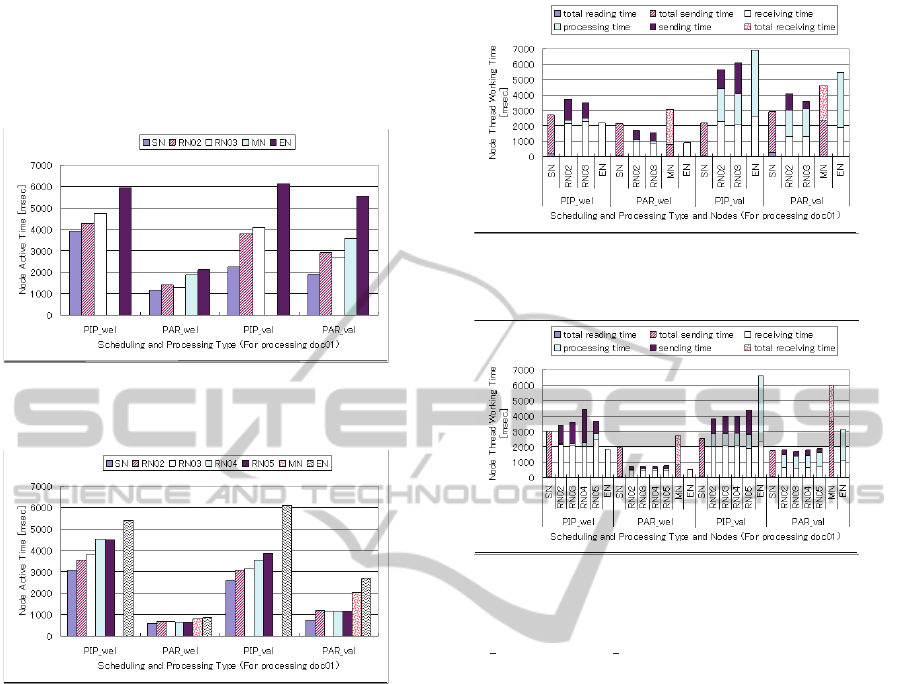

Figure 23: Node Active Time for Processing doc01 (Two

RelayNodes).

Figure 24: Node Active Time for Processing doc01 (Four

RelayNodes).

Processing time is similar for both parallel pro-

cessing and pipeline processing (Figure 19 and 20),

which shows that the extra activity time in the pipeline

processing is due to extra sending/receiving thread

times. In addition, well-formedness checking has less

processing time than validation checking, which is ex-

pected. Also, the average processing time is much

affected by whether we can allocate XML data efﬁ-

ciently or not. Efﬁcient scheduling of XML docu-

ment parts to a given processing model and topology

requires further investigation.

Regarding parallelism efﬁciency ratio (Figures 21

and 22), parallel processing is more efﬁcient than

pipeline in every case, because in parallel case, more

threads are operating concurrently on different parts

of the document.

Figure 25 and 26 show node thread working time

when the system processes doc01 for two and four

RelayNodes, respectively. In these graphs, we can

see that there is more XML processing in valida-

tion than in well-formedness. Moreover, comparing

Figure 25: Node Thread Working Time for Processing

doc01 (Two RelayNodes).

Figure 26: Node Thread Working Time for Processing

doc01 (Four RelayNodes).

PIP val with PAR val, there is more processing at

the EndNode in case of pipelining processing. So

pipelining is less efﬁcient than parallel in distributed

processing XML documents of type 01. This is also

true for other types of documents, whose results are

omitted for space’s sake.

For convenience, we organize our performance

characterization results into a summary Table 3.

5 RELATED WORK

XML parallel processing has been recently addressed

in several papers. (Wei Lu, 2007) proposes a

multi-threaded XML parallel processing model where

threads steal work from each other, in order to sup-

port load balancing among threads. They exem-

plify their approach in a parallelized XML serial-

izer. (Michael R. Head, 2007) focuses on paral-

lel XML parsing, evaluating multi-threaded parsers

performance versus thread communication overhead.

(Michael R. Head, 2009) introduces a parallel pro-

cessing library to support parallel processing of large

XML data sets. They explore speculative execu-

tion parallelism, by decomposing Deterministic Fi-

nite Automata (DFA) processing into DFA plus Non-

CHARACTERIZING DISTRIBUTED XML PROCESSING - Moving XML Processing from Servers to Networking Nodes

Table 3: Distributed XML Processing Characterization Summary.

Two RelayNodes Four RelayNodes RelayNode increase

Pipeline Parallel Pipeline Parallel Pipeline Parallel

Job execution time Parallel is better No change Reduces

System active time

Well-formedness and

validation are similar

Active time of validation

does not depend on

document depth

Similar to two

RelayNode

Smaller than

two

RelayNode

No effect Reduces

System processing

time

Parallel is better Reduces

Parallelism

efﬁciency ratio

Parallel is better Parallel is signiﬁcantly better

Slightly

better

Signiﬁcantly

better

Deterministic Finite Automata (NFA) processing on

symmetric multi-processing systems. To our knowl-

edge, our work is the ﬁrst to evaluate and compare

parallel against pipelining XML distributed process-

ing.

6 CONCLUSIONS

In this paper, we have studied two models of dis-

tributed XML document processing: parallel, and

pipelining. In general, pipeline processing is less efﬁ-

cient, because parts of the document that are not to be

processed at a speciﬁc node needs to be received and

relayed to other nodes, increasing processing over-

head. Regardless the distributed model, efﬁciency

of distributed processing depends on the structure of

the XML document, as well as its partition: a bad

partitioning may result in inefﬁcient processing. Op-

timal partition of XML document for efﬁcient dis-

tributed processing is part of ongoing research. So

far, we have focused on distributed well-formedness

and validation of XML documents. Other XML pro-

cessing, such as ﬁltering and XML transformations.

We are also planning on experimenting with real-

istic distributed XML processing systems, e.g., real

nodes connected via local area network. A future re-

search direction is to process streaming data at relay

nodes (Masayoshi Shimamura, 2010). In such sce-

nario, many web servers, mobile devices, network ap-

pliances, are connected with each other via an intelli-

gent network, which executes streaming data process-

ing on behalf of connected devices.

ACKNOWLEDGEMENTS

Part of this study was supported by a Grant-in-Aid for

Scientiﬁc Research (KAKENHI:18500056).

REFERENCES

Dirceu Cavendish, K. S. C. (2008). Distributed xml pro-

cessing: Theory and applications. Journal of Parallel

and Distributed Computing, 68(8):1054–1069.

James E. Kelley Jr, M. R. W. (1959). Critical-path planning

and scheduling. IRE-AIEE-ACM ’59 (Eastern), pages

160–173.

Kazumi Yoshinaga, Yoshiyuki Uratani, H. K. (2008). Uti-

lizing multi-networks task scheduler for streaming ap-

plications. International Conference on Parallel Pro-

cessing - Workshops, pages 25–30.

Manimaran G., M. C. S. R. (1998). An efﬁcient dy-

namic scheduling algorithm for multiprocessor real-

time systems. IEEE Transactions on Parallel Dis-

tributed System, 9(3):312–319.

Masayoshi Shimamura, Takeshi Ikenaga, M. T. (2010). Ad-

vanced relay nodes for adaptive network services -

concept and prototype experiment. Broadband, Wire-

less Computing, Communication and Applications,

International Conference on, 0:701–707.

Michael R. Head, M. G. (2007). Approaching a paral-

lelized xml parser optimized for multi-core proces-

sors. SOCP’07, pages 17–22.

Michael R. Head, M. G. (2009). Performance enhance-

ment with speculative execution based parallelism

for processing large-scale xml-based application data.

HPDC’09, pages 21–29.

Oracle (2010). Sun SPARC Enterprise T5440 Server.

http://www.oracle.com/us/products/servers-storage/

servers/sparc-enterprise/t-series/031585.htm.

Tarek Hagras, J. J. (2004). A static task scheduling heuris-

tic for homogeneous computing environments. 12th

Euromicro Conference on Parallel, Distributed and

Network-Based Processing (PDP’04), pages 192–

198.

Wei Lu, D. G. (2007). Parallel xml processing by work

stealing. SOCP’07, pages 31–37.

Yoshiyuki Uratani, H. K. (2009). Implementation and

evaluation of a parallel application which processes

streaming data on relay nodes. IEICE Technical Re-

port, 109(228):133–138.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies
