AUTOMATIC GENERATION OF CLOZE QUESTIONS

Mikuláš Gangur

Department of Economics and Quantitative Methods, Faculty of Economics, UWB University

Husova 11, Pilsen, Czech Republic

Keywords: Quiz, LMS Moodle, Cloze question, XML, Automatic generation, XSLT, LaTeX.

Abstract: Teachers need to test their students in the most effective way i.e. they need the check to be as easy as

possible, with a unique test for each student. This paper shows an example of how to generate a unique test

containing cloze questions in a selected LMS. The system of cloze questions consists of a question together

with an answer to it in a single task. We propose cloze questions to be generated in the XML structure. The

creation procedure written in any programming language or in any appropriate environment is the basis of

the generating process. The following items can be used as the procedure inputs - a task with a parameter as

an input value, a problem solving function, or an XML template. The XML templates are the formulas of a

proposed universal question format for the cloze type of questions according to the XML structure. In this

way it is also possible to use other types of questions e.g. numeric or short answer questions. In our example

we used the Matlab system to calculate the results of the given problems created from randomly generated

input parameters (another environment with similar math libraries can be used in the same way). The

randomly generated input parameters of the task are attached to the pattern of the task assignment. These

randomly generated input parameters together with the results (calculated by means of the function solving

given problem) represent the inputs into the generation process according to the chosen template. The

output from this part of the generating process is a file with questions in a universal format. In the next stage

we can translate the generated file with the help of the XSTL transformation rules to the appropriate style of

the selected LMS. The paper shows an example of a translation into the XML Moodle format which is used

for importing questions into the LMS Moodle or a translation into the LaTeX format, which is appropriate

for creating questions in PDF. This format is suitable for creating both a teacher's version (with answers)

and a student's version (without answers) and it even supports the test completion directly in a PDF

document or HTML format suitable for web presentations.

1 INTRODUCTION

Study quizzes are an important part of any e-

learning course. There are two types of quizzes –

learning quizzes and test (exam) quizzes. Every

teacher attempts to create automatic self-tests based

on questions that stimulate practising the desired

topic and contain unique questions for each student.

The questions should also be the so called learning

questions i.e. they should include some instructions

how to solve a given problem. For instance the LMS

Moodle (Moodle, 2007) offers quiz questions with

the Calculated answers, and like this a collection of

input parameters is generated. These parameters are

inserted automatically into the question text and are

unique for each student. Currently it is possible to

enter a prescription (function) in the process of

inputting the parameters to one output (problem

solution). However the above mentioned example

has some limitations. Let’s illustrate what we

consider the main limitations of this question type:

• The collection of input parameters is generated

manually i.e. the possibility of automatic

random generation doesn't exist according to the

given rules or a functional prescription.

• The system doesn't allow the inclusion of some

more difficult functional prescriptions that

would process the requested operations above

input data and, in the same way, it is no possible

to enter some more complicated numerical

calculations (iteration etc.)

• Only one output value can be the answer to this

question type

In the next described approach of the automatic

generation of questions tries to solve the above

264

Gangur M..

AUTOMATIC GENERATION OF CLOZE QUESTIONS.

DOI: 10.5220/0003339102640269

In Proceedings of the 3rd International Conference on Computer Supported Education (CSEDU-2011), pages 264-269

ISBN: 978-989-8425-49-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

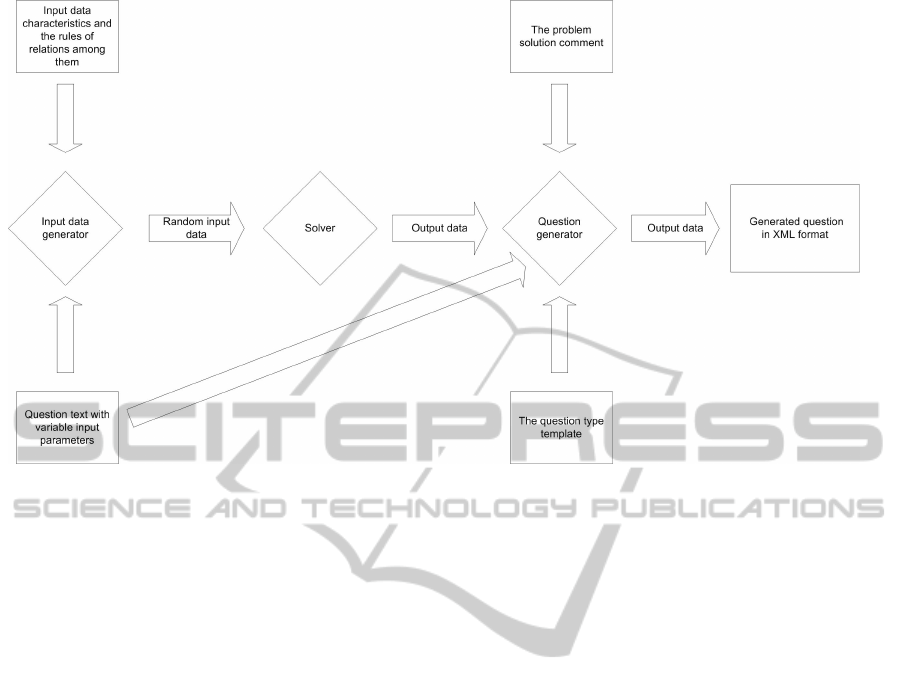

Figure 1: The process of questions generation to XML format (Source: own).

mentioned limitations. The proposed solution

follows the processes published in the technical

report (Fikar, 2007) and (Bakošová, 2007).

There are applications for the automated test

generation, for example Random Test Generator-

PRO (RTG-PRO, 2009) or Test Maestro II (TM-II,

2011). These applications as well as the majority of

Learning Management Systems use the principle of

randomly generated tests from the pool of questions

in the question bank. The preparation of questions

and building of such question bank is a difficult and

time consuming job. The automation and

simplification of this job is not solved in the above

mentioned systems. In the paper we present a

universal principle of the automatic generation of

questions and the use of some particular questions

that require numeric answers, the questions with

short answers and especially the questions with

embedded answers (cloze question). The cloze

questions allow more questions of different types

within one question. We propose such a structure of

questions that has embedded answers (cloze

question). The applied principle simplifies and

streamlines the questions bank building. The outputs

of the procedure can consist in creating the questions

meant for import to the question bank or in creating

a set of randomly selected automatically created

questions for the whole test. Both the outputs can be

generated within the demanded structure suitable for

applied system. The proposed procedure is presented

on an example of the collection questions creating.

These questions are suitable for the import into the

LMS Moodle or into the PDF format as a quiz with

variants both for students (without solution) and for

teachers (with solution).

2 THE PRINCIPLE OF THE

AUTOMATIC GENERATION

OF QUESTIONS

The core of the generating system is a functional

prescription of the solved problem (solver) together

with the input data generator. The solver is a

function with a variable number of the input

parameters depending on a particular problem. The

generator allows automatic generation of “suitable”

input data on the basis of the designated rules. These

rules describe the relations within the input data. The

generator algorithm is often implemented as a

backtrack procedure of the problem solution from

the expected randomly generated problem results

back to input data. The solver and input data

generator can be implemented in any programming

language. The generator output is input data

collection and the output of solver is the collection

of requested output data. The system, proposed in

this way, allows overcoming the above mentioned

limitations.

The data, generated by means of the described

procedure, are used as an input to the question

generator together with the template of the question

text and with the structure (template) of the

AUTOMATIC GENERATION OF CLOZE QUESTIONS

265

universal output XML format. The generator allows

processing a question requiring a numeric answer

(NUM), a question with a short answer (SA) and a

question with a multiple choice answer (MC). The

possibility of processing a question with the

embedded answer is very important. This type of

question can consist of all the 3 above mentioned

question types.

The question generator inserts the generated

input data into the question text and then the

generator inserts this text together with any possible

comments to the template of the requested question

and the output results, calculated by the solver as

answer (problem solution), as well. In case of a

NUM problem the generator inserts the answers only

for one question; in case of a close question it inserts

the answers for more questions. The applied

approach allows to determine more answers for a

NUM question with the level of validity. The output

of the question generator is a XML file in the

universal proposed format that is possible to

transform to the format of the selected LMS by

means of a particular question template.

In the paper the output to the Moodle XML

format is shown. The universal output format is also

suitable for the processing methods that we describe

below as another possibility how to process the

generated document. The whole process is described

in Figure 1.

3 AN EXAMPLE

OF THE GENERATION

PROCESS

First of all let us present an example of a simple

question with a numeric answer, a short answer or a

multiple choice answer. The first input to the whole

generation process is the question text with variable

input parameters. An example of such input text is

shown in the below listing. The variable input

parameters are marked with symbols ## on both

sides. In the given listing variables ##loan##,

##period2## can be found for example.

A property worth $##loan## is sold for

$##advance_payment## down and equal

payments at the ##end_begin## of

##period2## for the next

##number_years## years. Find the

##period4## payment if the interest

rate is

j<low_index>##interest_frequence##</low

_index> = ##ratio##~%.

The input data generator generates the input data

and it sends them to the solver. The output data i.e.

the solution of a problem and the generated input

data are the results of the solver process and they are

the input of the question generator together with the

question type template and the comments on the

problem solution. The result of the question

processing is the universal XML structure of the

final question. The next listing shows the main parts

of one generated question. We can see the main tag

<question>, tag <questiontext> with the question

text and the tag <answer> with a question numeric

answer. The variable input parameters in the

question text were substituted by the values

generated by the input data generator.

<name>

<text>General annuity 10 - 1</text>

</name>

A property worth $19000 is sold for

$1800 down and equal payments at the

beginning of year for the next 5 years.

Find the year payment if the interest

rate is j<low_index>12</low_index> =

3.15 %.</text></questiontext>

....

....

</answer>

....

</question>

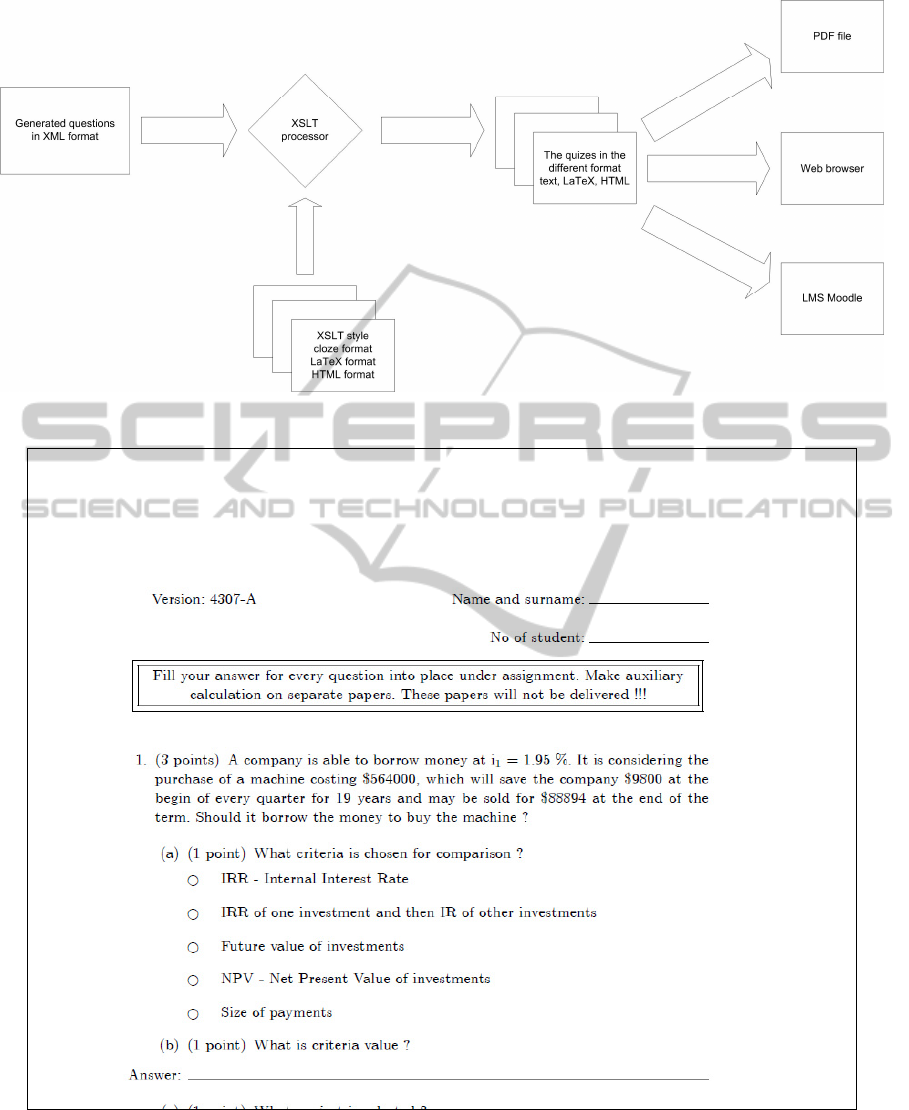

The result of the question generator can be

transformed into the requested output format in the

transformation process with the help of the XSLT

processor and the XSL template file according to the

output format (Kosek, 2007). The next listing shows

one of the possible output formats – Moodle XML

format. The transformation of tag <low_index> to

html tag <sub> is obvious.

<name>

<text> General annuity 10 - 1</text>

</name>

<questiontext><text>A property worth

$19000 is sold for $1800 down and equal

payments at the beginning of year for

the next 5 years. Find the year payment

if the interest rate is

j<sub>12</sub> = 3.15 %.

</text></questiontext>

....

<answer>3660

....

</answer>

....

</question>

CSEDU 2011 - 3rd International Conference on Computer Supported Education

266

4 CLOZE QUESTIONS

Cloze questions in comparison with simple

questions with numeric or short answers consist of

more sub questions of a simple type (numeric, short

answer, multiple choices). The main control

structure of the cloze questions is saved in the main

control file. The following listing shows the

structure of such a file. The file contains the

information about the sub files with the main

question text and with comments. One of the most

important aims of the control file is the question type

determination (numeric, multiple choices, cloze).

<text_file>Example_question.txt

</text_file>

<text_commentary>Example_comment.txt

</text_commentary>

</question>

In contrast with the simple question type (numeric,

multiple choice or short answer) the description of

the embedded answers is a part of the submission

text, too. The below listing shows two embedded

answers. One of them is a multiple choice question

and the second one is a numerical type question.

<subquestion type="multichoice"

id="1"><text>Possibilities.xml</text></

subquestion>

What is criteria value?<subquestion

type="numerical"

id="2"><text></text></subquestion>

The result of the generation process is the text in

the universal XML format proposed by the author.

The listing shows a part of this XML output text.

<question type="cloze" score="3"

name="no">

<name><text>Invest comparison 7b -

1</text></name>

A company is able to borrow money

. . .

</text></questiontext>

. . .

<subquestion type="multichoice"

score="1"><name>

<text>Subquestion 1</text></name>

<questiontext format="html"><text>What

criteria are chosen for comparison?

</text></questiontext>

. . .

<answer fraction="0"><text>IRR -

Internal Interest Rate</text>

</answer>

. . .

</answers>

. . .

</subquestion>

. . .

</subquestions>

</question>

The question in the following example consists of

the main question text and 3 sub questions. Two of

them are multiple choice answers and the last one is

a sub question with a numeric answer with the

calculated value of the criteria. This file in the

proposed XML format is the input for the following

XSLT process that can transform it to a different

requested format. The listing shows an example of

one of such formats - Moodle XML format.

<name><text>Invest comparison 7b -

1</text>

</name>

<text>A company is able to borrow money

. . .

What criteria are chosen for

comparison? {1:MULTICHOICE:~IRR -

Internal Interest Rate#It is too

complicated if we have interest rate of

alternate investment~IRR of one

investment and then IR of other

investments#It is too complicated if we

have interest rate of alternate

investment~Future value of

investments#Future value is not

. . .

length of payments is important, too}

What is criteria value?

{1:NUMERICAL:=122536.8987:0.01}

. . .

</text>

</questiontext>

. . .

</question>

5 THE USE OF OTHER OUTPUT

FORMATS

The proposed universal XML output format allows

transforming the generated questions to different

formats in the following XSLT process (see Fig 2).

We presented an example of the Moodle XML

format. We will carry out the operation with the help

AUTOMATIC GENERATION OF CLOZE QUESTIONS

267

Figure 2: The follow-up transformation of the XML format to other output formats (Source: own).

Figure 3: The final result of XSLT transformation to LaTeX (PDF) format (Source: own).

of a XSL template file for any requested format. We

have just prepared some XSL template files for the

Moodle XML format in Czech and English and for

the LaTeX format (also in Czech and English). The

part of the final result of the LaTeX template use

and the result of the following PDF transformation is

shown in Fig 3.

CSEDU 2011 - 3rd International Conference on Computer Supported Education

268

6 CONCLUSIONS

The above described system for the automatic

generation of exercises introduces a useful tool that

can easily help prepare single exercises but also

complete quizzes in different variants. The

contribution of such a system is a possibility of

using the cloze questions (exercises with embedded

answers), that allow applying more than one

question in one exercise. The proposed universal

XML format allows that the following XSL format

may be transformed to different required formats. In

this way the system output can be used for different

systems and different purposes. As a practical

example two language templates are proposed and

used for the generation of the Moodle XML format

and for the import into the LMS Moodle. In the

same way other two language templates for the

LaTeX quiz format are used and then a final PDF

quiz is generated from this LaTeX output. This quiz

is prepared both as a teacher version (with results)

and a student version.

The proposed XML format uses only restricted

features of QTI (QTI, 2008). The construction of the

described system enables an exchange between the

template of the applied XML format and the

template with the structure of the complex QTI

format. This way the generation of a single question

set in the QTI format is allowed as well as the

generation of whole test in QTI format.

The above described generator was employed for

example in a course of financial mathematics. 120

typified exercises were implemented and, by means

of the generator, 12,000 unique exercises were

prepared for practice in the LMS Moodle.

REFERENCES

Bakošová, M., Fikar, M, Čirka, L., 2007. E-learning in

course on process control. Proceedings of eLearning

Conference and Competition 2007, pp. 191-197,

Hradec Králové 2007, ISBN 978-80-7041-573-3

Fikar, M., 2007. On Automatic Generation of Quizzes

using MATLAB and XML in Control Engineering

Education. Technical Report fik07xml, OIRP UIAM

FCHPT STU, 2007 (on-line) (cit. 2010-10-10)

Available at: http://www.kirp.chtf.stuba.sk/ publica

tion_info.php?id_pub=348

Kosek, J., 2007 XML pro každého.(on-line) (cit. 2007-11-

11) Available at: http://www.kosek.cz/xml/index.html

Moodle, 2007 - A Free, Open Source Course Management

System for Online Learning, (on-line) (cit. 2011-01-

11) Available at: http://moodle.org

RTG-PRO, 2009 Random Test Generator- PRO, (on-line)

(cit. 2011-01-28) Available at: http://www.hirtlesoft

ware.com/p_rtgpro.htm

TM-II, 2011 Test Maestro II Details, (on-line) (cit. 2011-

01-28) Available at: http://www.rredware.com/tmde

tails.htm

QTI, 2008 IMS Question & Test Interoperability

Specification (on-line) (cit. 2011-01-28) Available at:

http://www.imsglobal.org/question/

AUTOMATIC GENERATION OF CLOZE QUESTIONS

269
