(role)CAST: A FRAMEWORK FOR ON-LINE SERVICE TESTING

∗

Guglielmo De Angelis, Antonia Bertolino

ISTI – CNR, Via Moruzzi 1, 56124 Pisa, Italy

Andrea Polini

Computer Science Division, School of Science and Technologies, University of Camerino, 62032 Camerino, Italy

Keywords:

Service oriented architecture, SOA testing, Role based access control, On-line testing.

Abstract:

Engineering of service-oriented systems is still an immature discipline. Traditional software engineering ap-

proaches do not adequately ﬁt development needs arising in this widely adopted paradigm. In particular,

because of dynamic service composition, several engineering activities typically performed off-line (i.e., pre-

deployment) have to be carried on also on-line (i.e., during real usage). In this paper, we present a framework

called (role)CAST which supports an instantiation of the concept of on-line testing of services, for the purpose

of validating their compliance to role-based service access policies.

1 INTRODUCTION

The Service-oriented Architecture (SOA) paradigm

has gained signiﬁcant attention within academia and

companies to which it promises effective and conve-

nient new ways of doing business. As a result several

quite mature technologies are today available to im-

plement SOA solutions, among which Web Services

(WSs) are probably the most widespread. Yet a sim-

ilar degree of maturity is not evident on the method-

ological side where several aspects of SOA develop-

ment need further investigation. In particular it is

necessary to rethink software engineering methodolo-

gies, so to move from the current largely design-time

approach to a mainly run-time model. In this regard,

testing is among the software engineering lifecycle

phases which are the most affected and would cer-

tainly beneﬁt from the possibility of being extended

to run-time.

The application of traditional testing techniques

typically assumes that the tester has quite detailed in-

formation and strong control over the test subject and

its environment. In a SOA context these assumptions

are hardly acceptable: a service under test will typi-

cally interact with other services which are outside of

the tester’s control. Moreover, the presence of mech-

∗

This work has been partially supported by the European

Project FP7 IP 216287: TAS

, and by the European Project

FP7 IP 257178: CHOReOS.

anisms for run-time discovery and binding does not

even permit to foresee, before run-time, who will be

the partner in a service interaction. To overcome the

lack of information and control, which makes off-line

integration testing activities not effective, we propose

to test a service composition within its real execution

context: this is referred to in this paper as on-line

testing. So on-line testing consists of proactive ser-

vice invocations designed by testers, and foresees the

execution of such test invocations on a service while

it is engaged in serving real requests. According to

this deﬁnition we do not consider activities such as

run-time monitoring (Ghezzi and Guinea, 2007) or

“passive testing” (Lee et al., 1997) as on-line testing,

since such approaches limit themselves to passively

observe how the system spontaneously behaves, with-

out triggering any proactive action on the system it-

self.

We are aware though that such an approach poses

big challenges, in terms of costs and potential im-

pact, which may undermine its acceptance. Such

challenges mainly account for possible testing side

effects, in particular when stateful resources are con-

sidered. Nevertheless, in some contexts on-line test-

ing can be regarded as a useful technique to increase

trust among organizations interacting via deployed

services. In this perspective, an encouraging trend is

that the “Future Internet” will be increasingly shaped

by service federations.

De Angelis G., Bertolino A. and Polini A..

(role)CAST: A FRAMEWORK FOR ON-LINE SERVICE TESTING.

DOI: 10.5220/0003340500130018

In Proceedings of the 7th International Conference on Web Information Systems and Technologies (WEBIST-2011), pages 13-18

ISBN: 978-989-8425-51-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

A service federation is a network of services,

possibly belonging to different organizations, which

abide by deﬁned rules (both technical and organi-

zational) to be followed by all federation members

to pursue one or more common goals. In other

words, service federations constitute an organized

world within which rules and mechanisms are put

in place to govern the integration and the interac-

tions among participating services. Appropriate rules

should be established within a federation to make

proﬁt of on-line testing opportunities (Bertolino and

Polini, 2009).

Within a federation resources are usually pro-

tected by means of a combination of access control

policies. Such policies can be speciﬁed on any role,

entity, action, or resource within the federation. In re-

cently developed architectures (Pacyna et al., 2009;

Kellom

aki, 2009) it is possible to dynamically de-

ﬁne and update such access control policies. More-

over, striving for high ﬂexibility, service federations

are pushed to develop access control solutions that

are decentralized and application-independent (Pa-

cyna et al., 2009). For example, the architectural style

of service federations usually keeps the application

speciﬁc logic and the authorization infrastructure as

separated aspects. Thus, the interface of each feder-

ated service is dynamically bound to external services

(e.g. Policy Decision Point – PDP; Policy Enforce-

ment Point – PEP) in order to grant or to deny service

access requests.

In our view, service federations provide a perfect

context for applying on-line testing. Speciﬁcally, we

consider that service federations supporting dynamic

composition and run-time modiﬁcation of the access

control policies could exploit an on-line infrastructure

to proactively test their evolutions. For example, ser-

vices within the federation could have to regularly un-

dergo on-line testing to assess that they (continue to)

comply with their public and manifested access poli-

cies. On the other hand, access control mechanisms

have to be considered in any testing strategy also at

the application level.

This paper presents (role)CAST, a framework

supporting on-line testing in service federations

that includes authentication/authorization/identiﬁca-

tion mechanisms. The paper is organized as follows.

Section 2 presents the (role)CAST framework. Sec-

tion 3 reports experiences from a demo example. Re-

lated works are then summarised in Section 4. Finally,

Section 5 draws some conclusions and opportunities

for future work.

2 FRAMEWORK

In this section we describe the on-line testing frame-

work we have developed within the European project

TAS

, a FP7 project investigating trustful sharing of

personal information

. We ﬁrst outline a high-level

architecture (Section 2.1) that has been conceived

as generic and can be reproduced in any federation;

then we describe its (role)CAST implementation (Sec-

tion 2.2) meant to be compatible with the TAS

refer-

ence instantiation.

2.1 High-level Architecture

To implement the idea of on-line testing we need to

include in the federation a set of testing services that

can pretend being as many service clients with a de-

ﬁned role, thanks to the cooperation of some trusted

parties. In fact, some members of the federation

should be aware of on-line testing activities and sup-

port them through appropriate extensions to the fed-

erated infrastructure. So, for example, given a service

to test and a published policy, the testing service may

interact with the Identity Provider (IdP)

asking for

being recognized as a service that can play the role

deﬁned in the policy.

The high-level architecture we propose is orga-

nized in four main components: the Test Driver, the

Test Robot, the Tester Backport, and the Oracle (see

Figure 1). The Test Driver conﬁgures and runs in-

stances of the Test Robot component for each on-line

testing session. In particular, the Test Driver includes

a test scheduler that activates on-line testing sessions

either in an event-driven way or periodically.

The Test Robot loads the test cases from a reposi-

tory (see Step ). Each test case speciﬁes the service

under test, the remote operation to invoke, and the role

that the Test Robot has to play. As said above, we as-

sume that the IdP collaborates with the Test Robot via

the Tester Backport. The latter is an abstract compo-

nent that extends the interface of a generic IdP ser-

vice. In particular, the IdP delegates the Tester Back-

port to sign role assertions (i.e. declarations that a

given actor can play a given role). The communica-

tion between the Tester Robot and the Tester Back-

port is subject to security issues, as malicious clients

may interfere with the Tester Backport trying to get

signed credential. In Figure 1 at Step ®, we require

that the communication between the Tester Robot and

the Tester Backport is established on a secure SOAP

channel. For example, we assume that on this channel

http://www.tas3.eu/

Simplifying, an IdP is an asserter that provides at-

tributes representing the identity of an entity.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

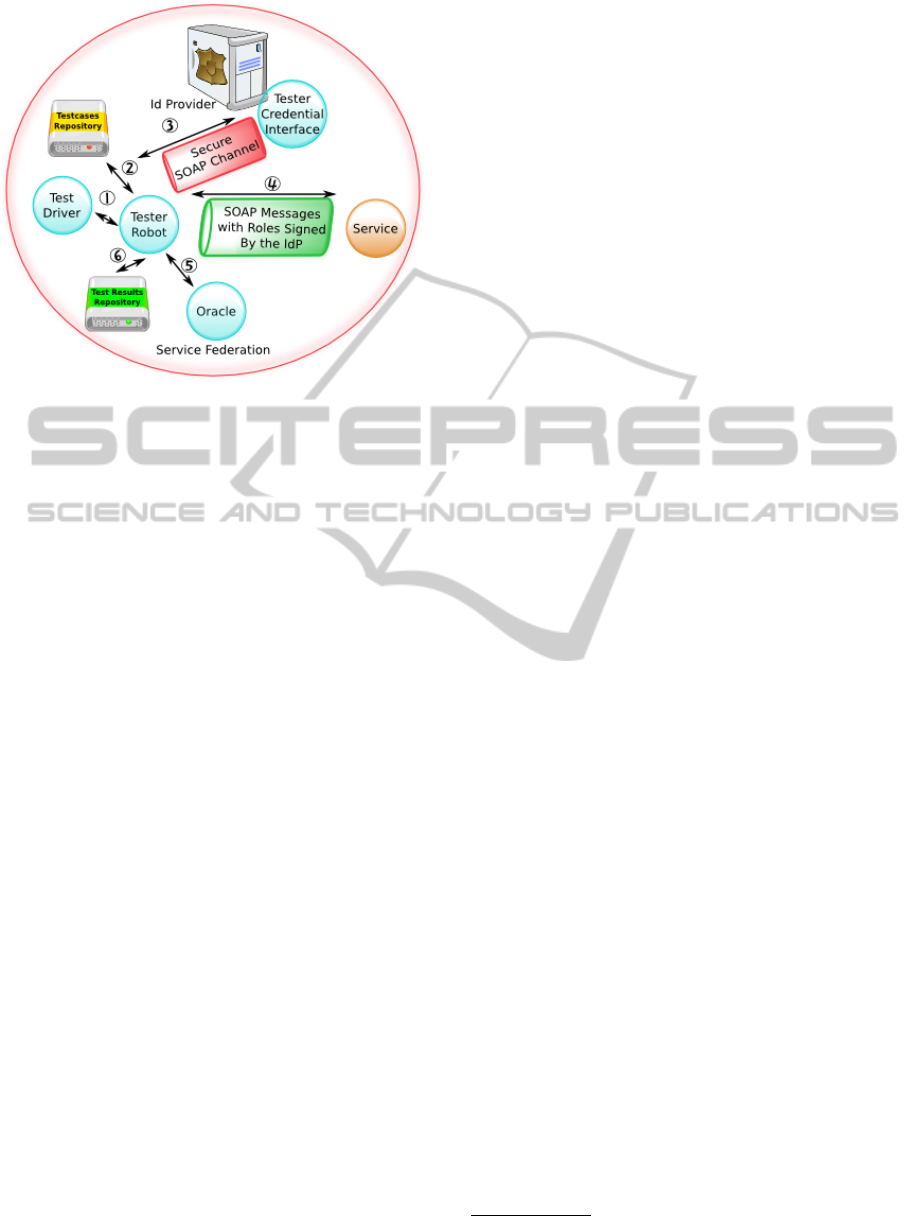

Figure 1: On-line Testing: High-Level Architecture.

the messages are digitally signed, and asymmetrically

encrypted. Once the Tester Robot has collected all

credentials speciﬁed within the test case, it can assem-

ble the SOAP message and send it to the service un-

der test. The SOAP message includes in its header the

IdP-signed role that the tester is playing (see Step ¯).

The response returned by the service under test can be

either a “functionally-correct” message or an error on

the request for a resource (e.g. “access denied” mes-

sage). Thus, it is forwarded to an oracle that checks if

the reply of the service under test actually conforms to

the expected result associated with the test case (see

Step °). A difference between the service reply and

the expected result reveals a mismatch between how

the service access policy is manifested and how this

policy is actually implemented. In Figure 1, the Ora-

cle is an abstract component that deﬁnes the minimal

assumptions we made (partial oracle).

Note that, services might masquerade error mes-

sages for user-friendliness (e.g., they could produce

a “pretty formatted” page). We are assuming that the

service federation is able to unambiguously recognize

“access denied” error messages without the need to

delve into the semantics of the payload of the mes-

sage.

Finally, the results of the test executions are stored

in the Test Results Repository (see Step ±) for possi-

ble further inspection.

The deﬁnition of a meaningful set of test cases,

and of the corresponding pass/fail decisions, certainly

constitutes a complex task which depends on several

factors. In scenarios in which access policies are de-

ﬁned at the business level, and possibly expressed in

natural language, test cases derivation may be man-

ual and the oracle may refer to an ad-hoc repository

that associates test cases with expected results. When

policies are expressed using computer readable for-

mat (e.g., in XACML (Moses, 2005)), the test cases

and expected results can be automatically derived.

Speciﬁcally, with respect to this aspect we pur-

sued two main approaches. On the one hand we de-

veloped a test designer supporting the tester in test

case modeling using UML. The designer uses Model-

driven technologies

in order to automatically trans-

form such test cases into a Test Driver implementing

them. On the other hand, we also support the auto-

mated derivation of a test suite starting by a XACML

2.0 service policy (Bertolino et al., 2010).

2.2 (role)CAST

The (role)CAST

framework (ROLE CompliAnce

Service on-line Testing) is an implementation of the

high-level architecture described above. In particular,

(role)CAST supports on-line testing of access policies

of SOAP services whose roles have been deﬁned by

means of SAML assertions.

SAML is an XML-based framework proposed by

the OASIS Consortium for communicating user au-

thentication, entitlement, and attribute information.

In brief, SAML allows one party to make assertions

regarding the identity, attributes, and entitlements

about a subject. An assertion contains a subject of

the assertion, the conditions used to validate the as-

sertion, and assertion statements (i.e. authentication

statements, attribute statements, authorization deci-

sion statements). In particular attribute statements

usually contain speciﬁc identifying attributes about

the subject.

The API that (role)CAST provides can be used to

program the Tester Robot depicted in Figure 1, with

the planned sequences of test invocations.

Each test invocation is conﬁgured specifying the

URI of the service under test, the payload of the

SOAP body message, the role that the Tester Robot

has to play, and a key that identiﬁes the test case

within the oracle. At each invocation the Tester Robot

logs the result of the test in a repository and returns

the functional message replied by the service under

test.

Service authentication/authorization/identiﬁca-

tion is essential in many service interaction contexts.

In such cases without the possibility of assuming

different client identities the tester will not be able

to make any invocations to functionality for which

speciﬁc roles are required. The (role)CAST API was

designed to be modular and ﬂexible, so that testers

can reuse it as support to authenticating service

http://www.eclipse.org/modeling/

http://labse.isti.cnr.it/tools/rolecast

(role)CAST: A FRAMEWORK FOR ON-LINE SERVICE TESTING

interactions in other testing approaches (Bertolino

et al., 2008) (e.g. functional and non-functional

testing). Speciﬁcally, the payload of the SOAP body

message (i.e. the operation to invoke and its actual

parameters) is part of the conﬁguration of the Tester

Robot. Testers can pack the SOAP payload focusing

on other testing goals and then delegate to (role)CAST

the execution of the invocation of the service under

test.

Composing (role)CAST with other testing frame-

works needs a precise deﬁnition of how the Tester

Robot handles “access denied” errors. Speciﬁcally,

when the Tester Robot catches a remote exception

thrown by the service under test, it is important to un-

derstand if the error was due to a denied access to

the resource, or to other issues. In the ﬁrst case, the

Tester Robot ﬁrst queries the oracle, and then evalu-

ates and logs the test result. In the second case, the

Tester Robot logs that an untractable error was raised

and forwards the exception to upper layers (e.g. the

Tester Robot invoker). The strategy we implemented

in (role)CAST is reported in (Bertolino, 2009).

3 AN APPLICATION EXAMPLE

This section describes an application of (role)CAST to

a demo service federation. This scenario raises pri-

vacy and security concerns, and is one of the demon-

stration scenarios considered in TAS

3.1 Reference Scenario

The EmployabilityNetwork provides on-line access

to an internships management and work placement

system for the students in a University. Speciﬁcally,

this scenario foresees that each department of a Uni-

versity has a Placement Service Coordinator (PSC)

that forwards applications from students to one or

more Placement Provider (PP) looking for a match.

EmployabilityNetwork functioning relies on an on-

line and role-based authorization system. The con-

ﬁgurations, the authorization mechanisms, the autho-

rization policies, the members of the federation and

the roles that each member plays within the federation

can dynamically change during EmployabilityNet-

work lifetime. For example a new PP can join Emplo-

yabilityNetwork, or an existing PP can be discov-

ered and linked by a PSC of a department.

In such a scenario, it is evidently untenable to ar-

gue that each time the authorization infrastructure is

subject to some reconﬁguration, the system Employa-

bilityNetwork should suspend its service in order to

undergo an irremissible integration testing phase. In-

stead, on-line testing can proactively stimulate, and

dynamically validate the services within Employabi-

lityNetwork, trying to anticipate potential integra-

tion errors at run-time. Furthermore, by checking if

the services in EmployabilityNetwork actually be-

have in compliance with their expected speciﬁcations,

on-line testing will increase the trust and the depend-

ability of the whole federation.

Let us consider the WSs ComputerSciencePSC,

BiologyPSC, BitIdeaPP, and the JobCenterPP

belonging to EmployabilityNetwork. Where

ComputerSciencePSC, and BiologyPSC are respec-

tively the PSC of the Computer Science and of the Bi-

ology department; JobCenterPP is a service interface

of a general purpose job-center; while BitIdeaPP is

the interface to the recruiting system of a company

acting in ICT. Each PP accepts requests from a PSC

according with the status of their subscription to the

federation. For example, the PSC of the department

of Computer Science can forward queries to both the

PP, while the subscription of the PSC from the Biol-

ogy department is only valid for querying the generic

JobCenterPP.

When accessing a WS, each service within Em-

ployabilityNetwork must provide the credentials

testifying the roles it is playing. Technically, their

SOAP requests will include within the SOAP header

a SAML assertion in form of WS-Security To-

ken (Monzillo et al., 2006).

3.2 Implementation and Usage

We implemented a running demo that simulates the

scenario described above. We also implemented a

simple module that emulates the functionality of an

IdP service. We do not pretend that such a module

will be used as a real IdP, nevertheless it is able to sign

SAML assertions with the RSA public-key cryptogra-

phy algorithm, and this is enough for our purpose.

We start by devising a set of test cases to be

(periodically or following an event-driven strategy)

executed within EmployabilityNetwork to validate

role-based authorization. Figure 2 depicts the UML-

based design of a test plan for EmployabilityNet-

work. In this case, the abstraction level of the test

context is intentionally high, giving emphasis to both

the role of the services, and the target of the test.

The test plan schedules invocations between the

four WSs. With reference to Figure 2, a UML re-

lation tagged by the term testCase (i.e. a UML

stereotype) speciﬁes the conﬁguration of a test case.

For example, Figure 3 depicts the instantiation of

the tagged values for the test case of a client acting as

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

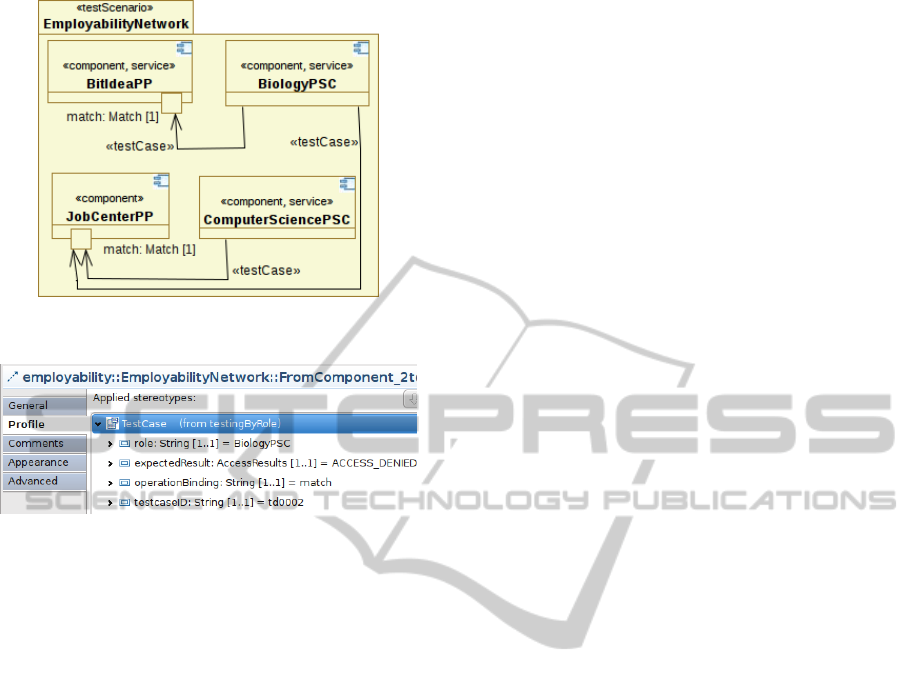

Figure 2: Test Plan for EmployabilityNetwork.

Figure 3: Test Case Conﬁguration for BiologyPSC.

BiologyPSC, that invokes the match operation ex-

ported by the service BitIdeaPP. This test succeeds

if access to the resource is denied. Furthermore, the

tagged values associated with the test scenario sched-

ules that the test plan is periodically executed (e.g.

every 2 hours, or weekly, or other).

A code generator embedded in the UML test cases

designer automatically compiles the test context de-

picted in Figure 2 into an implementation of the Test

Driver component built on (role)CAST. An on-line

testing session over EmployabilityNetwork can be

started executing such generated component. Thus,

the Test Driver acting as a service within Employa-

bilityNetwork, and precisely playing the role of a

BiologyPSC, periodically invokes the other PPs with

requests to access their functionality.

To demonstrate the usefulness of on-line testing,

we played with the EmployabilityNetwork testbed

by injecting malfunctions and verifying if the on-

line test cases could detect these errors. For in-

stance, we injected a bug in the service module of

JobCenterPP that decides whether access requests

should be granted or not (i.e. the PDP). Speciﬁ-

cally, we have modiﬁed such PDP to provide a ran-

dom response between permit or access-denied, to

incoming authorization requests. Thus, for example,

the PDP of JobCenterPP may erroneously recognize

the ComputerSciencePSC tokens as associated to an

unauthorized account. In this case, the service mod-

ule of JobCenterPP that implements the decisions of

the PDP (i.e. the PEP) may deny legitimate service

requests.

The rationale behind this or similar bugs is

twofold: on the one hand the decision process asso-

ciated with management of service accesses (i.e. the

JobCenterPP service) usually relies on a complex

SOA that deals with roles and identities. Thus, this ar-

chitecture style may suffer from integration testing is-

sues related to run-time discovery and binding mech-

anisms.

On the other hand, the credentials themselves

may depend on an external set of conﬁguration data

(i.e. expiration, validity, trustworthiness with re-

spect to the party that assert the role, etc). Such

set may change at runtime and unexpectedly inval-

idate pre-existing conﬁgurations. For example, let

us assume that the access to the services is speciﬁed

and managed according to policies, e.g. written in

XACML (Moses, 2005). A policy conﬂict could oc-

cur whenever an access policy to a service changes in

a way that is not anymore compatible with other au-

thentication or privacy policies. As expected, the on-

line testing session on EmployabilityNetwork re-

vealed the inconsistency due to the injected bug. It is

important to remark that, as discussed in Section 4, all

the inconsistencies were revealed launching designed

test cases in order to validate speciﬁed behaviours

rather than by observing the system behaviour (i.e.

“monitoring”, or “passive testing”), thus anticipating

the detection of potential errors during real service us-

age.

4 RELATED WORK

The very idea of continuing testing after a system

has been released is not new, however while previ-

ous approaches referred to re-test after delivery for

evolving software, for us on-line testing is essential

to carry out useful service integration testing. As

systems become more and more distributed and per-

vasive, several frameworks are being developed for

observing system behaviour during real usage, serv-

ing different purposes, e.g., proﬁling (Elbaum and

Diep, 2005; Orso et al., 2002) or assessing Quality-

of-Service (Raimondi et al., 2008). Nevertheless

such kind of frameworks limit themselves to observe

how the system “spontaneously” behaves, and do not

proactively validate any selected behaviour. This pa-

per is also related to the quite active research thread

on SOA testing. Due to space limitation, for existing

approaches to SOA testing we refer the reader to a re-

cent extensive survey by Canfora and Di Penta (Can-

fora and Di Penta, 2008).

(role)CAST: A FRAMEWORK FOR ON-LINE SERVICE TESTING

5 CONCLUSIONS AND FUTURE

WORK

SOA is characterized by speciﬁcations and technolo-

gies focusing on run-time interaction among software

services. In this paper we argued in favor of on-

line testing. Speciﬁcally, we considered a context in

which on-line testing can more usefully prove its use-

fulness, namely role-based authorization in federated

network services. Along this direction, we proposed

a generic on-line testing framework in which services

are tested with respect to their public access policy.

With respect to our next-future work, we are ex-

perimenting the (role)CAST library within the TAS

project, which targets full-project scale demonstra-

tors in two domains: e-health, and e-employability.

In the longer term, we intend to explore the usage of

(role)CAST as an enabling tool to possibly apply other

on-line testing strategies.

REFERENCES

Bertolino, A., editor (2009). D10.2 : Trustworthiness Archi-

tecture and Proof of Concept. The TAS

Consortium.

Bertolino, A., De Angelis, G., Frantzen, L., and Polini, A.

(2008). The PLASTIC Framework and Tools for Test-

ing Service-Oriented Applications. In Proc. of ISSSE,

volume 5413 of LNCS, pages 106–139. Springer.

Bertolino, A., Lonetti, F., and Marchetti, E. (2010). Sys-

tematic XACML request generation for testing pur-

poses. Software Engineering and Advanced Applica-

tions, Euromicro Conference, 0:3–11.

Bertolino, A. and Polini, A. (2009). SOA test governance:

Enabling service integration testing across organiza-

tion and technology borders. In Proc. of WebTest,

pages 277–286. IEEE CS.

Canfora, G. and Di Penta, M. (2008). Service-Oriented Ar-

chitectures Testing: A Survey. In Proc. of ISSSE, vol-

ume 5413 of LNCS, pages 78–105. Springer.

Elbaum, S. and Diep, M. (2005). Proﬁling deployed soft-

ware: Assessing strategies and testing opportunities.

TSE, 31(4):312–327.

Ghezzi, C. and Guinea, S. (2007). Run-time monitoring in

service-oriented architectures. In Baresi, L. and Di

Nitto, E., editors, Test and Analysis of Web Services,

pages 237–264. Springer.

Kellom

aki, S., editor (2009). D2.1 : TAS

Architecture. The

TAS

Consortium.

Lee, D., Netravali, A., Sabnani, K., Sugla, B., and John, A.

(1997). Passive Testing and Applications to Network

Management. In Proc of ICNP, page 113. IEEE CS.

Monzillo, R., Kaler, C., Nadalin, A., and Hallem-Baker, P.

(2006). Web Services Security : SAML Token Proﬁle

1.1. The OASIS Consortium.

Moses, T. (2005). eXtensible Access Control Markup Lan-

guage Version 2.0. The OASIS Consortium.

Orso, A., Liang, D., Harrold, M., and Lipton, R. (2002).

Gamma system: Continuous evolution of software af-

ter deployment. In Proc. of ISSTA, pages 65–69.

Pacyna, P., Rutkowski, A., Sarma, A., and Takahashi, K.

(2009). Trusted identity for all: Toward interopera-

ble trusted identity management systems. Computer,

42(5):30–32.

Raimondi, F., Skene, J., and Emmerich, W. (2008). Efﬁcient

online monitoring of web-service SLAs. In Proc. of

SIGSOFT FSE, pages 170–180. ACM.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies
