REQUIREMENTS ENGINEERING OF

WEB APPLICATION PRODUCT LINES

Hernán Casalánguida and Juan Eduardo Durán

Facultad de Matemática, Astronomía y Física, Universidad Nacional de Córdoba, Medina Allende s/n, Córdoba, Argentina

Keywords: Web engineering, Requirements engineering, Product line engineering.

Abstract: Application families (AF) are usually developed to reduce time to market and development costs of applica-

tions. Therefore, it is attractive to investigate the development of web AF (WAF) and to have an adequate

requirements engineering (RE) method for WAF. A problem little studied is how to classify use cases (UC)

for rich internet applications (RIA); to give better guidance to the developer we define a taxonomy for RIA

UCs. UCs are described using UML activity diagrams (AD) in some web methods, but the taxonomies for

actions proposed in them can be improved, because there are not enough action classes or they are too

monolithic; for this reason we define a new action classification for RIA ADs. Studying the AD variability

notations, we found a set of requirements for them; we define a notation for ADs satisfying these require-

ments and fulfilling some of them in a better way than in the literature. Non-functional requirements (NFR)

for WAF must be documented. There are some goal-based approaches with variabilities; but they do not

consider the modeling of NFRs and only consider examples for hard goals. We extend the NFR framework

for the description of NFRs adding to it modeling elements for expressing variabilities.

1 INTRODUCTION

In general, AFs when well implemented help enor-

mously reduce time to market and decrease develop-

ment costs of applications. For several business

areas there are many web applications that are

similar, in terms of the functionality they offer; in

addition, a software company could develop several

web applications for a specific business area.

Therefore it is interesting to investigate the

development of WAF. As a first step we consider it

is important to have an adequate RE process for

WAF. To the best of our knowledge the field of

RIA RE has not been properly exploited and we did

not find a paper about RE of RIA families; for this

reason these are topics of study in this work.

A problem little studied is how to classify UC for

RIAs; only WebRE+ (Luna et al., 2010) considers a

stereotype <<RIA specification>> for RIA behav-

iors; and we think that more than one stereotype

should be used for different kinds of RIA behavior.

We have decided to base UC variability modeling on

(Bragança, 2007) and to define a UML profile in

order to have a taxonomy for RIA UCs.

The presence of asynchronous events and

asynchronous requests in a RIA UC introduces

concurrent behaviors in UCs which can lead to too

much scenarios and describing all of them can be

costly; for this reason we think it is more convenient

to describe a RIA UC using a notation with

constructs for concurrency. UML AD notation has

modeling elements for concurrency and was used in

some web approaches that consider RE: UWE (Koch

et al., 2008), OOWS (Valderas, 2004), WebRE+

(Luna et al., 2010). The taxonomies for actions

proposed in these approaches can be improved,

because there are not enough action classes or they

are too monolithic.

There exist some approaches for defining AD

with variabilities (Riebisch et al., 2000, Robak et al.,

2002, Reuys et al., 2006, Bragança, 2007, Korherr

and List, 2007; Schnieders and Weske, 2007,

Razavian and Khosravi, 2008, Heuer et al., 2010),

studying them in depth we found the following

requirements for AD notations with variabilities:

R1: Describe variation points inside an AD.

R2: Avoid the use of stereotypes for variant

elements.

R3: Use cardinality or interval notation for defining

variation points in AD.

R4: Avoid the use of AD elements to represent vari-

418

Casalánguida H. and Durán J..

REQUIREMENTS ENGINEERING OF WEB APPLICATION PRODUCT LINES .

DOI: 10.5220/0003348704180425

In Proceedings of the 7th International Conference on Web Information Systems and Technologies (WEBIST-2011), pages 418-425

ISBN: 978-989-8425-51-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

abilities, and do not clutter AD modeling elements

with variability information.

R5: Provide well-defined and simple specialization

semantics for ADs with variabilities.

R6: Describe dependencies between variants inside

the AD.

R7: Consider data flow variability.

Another problem is the appropriate documenta-tion

of NFRs for WAF. Feature models (FM) - see

(Schobbens et al., 2006) - do not take into account

several aspects in the area of NFR like: the impact of

non-functional qualities on the functional part of a

system, contributions of softgoals to some other

softgoals, correlations between quality goals, argu-

mentations, goal prioritization, evaluation pro-

cedures. The use of aspect-oriented FMs (Kulesza et

al., 2005) improves the situation, because it allows

expressing how a feature for a non-functional quality

affects other features; but the other aspects men-

tioned are not contemplated. Goal-based approaches

with variabilities recently have arisen (Semmak et

al., 2008; António et al., 2009); but they do not deal

with NFRs modeling and only consider case studies

for hard goals.

The objectives of this paper are: to define an AD

notation for capturing variabilities considering

(possibly in a better way) the above requirements; to

define a more detailed taxonomy of actions to give

better guidance to the developer; and the definition

of a NFR notation with variabilities that considers

the facilities in the field of NFR.

We define in Subsect. 2.1 a profile that extends

the UC model for RIAs and in Subsect. 2.2 an action

taxonomy to be used for RIA UCs description. In

Subsect. 2.2 we present an AD with variabilities

notation fulfilling requirements R1 to R7 (some of

them in a better way than in the literature – see Sect.

4). In Sect. 3 we extend the NFR framework (Chung

et al., 2000) adding to it some modeling elements for

variability expression.

2 FUNCTIONAL

REQUIREMENTS

2.1 A Use Case Model for WAF

To maintain the original UML 2.0 UCMs, we only

use from (Bragança, 2007) the additions to UML 2.0

UCMs to model variabilities. A variability annota-

tion is represented as a note to be linked to include

or extend relationships and represents a variability

point with a name, a minimum and a maximum

cardinality and the respective options. The family

UC metamodel presents two new elements used to

annotate variability: Extend-Variability and Include-

Variability (see Fig. 1).

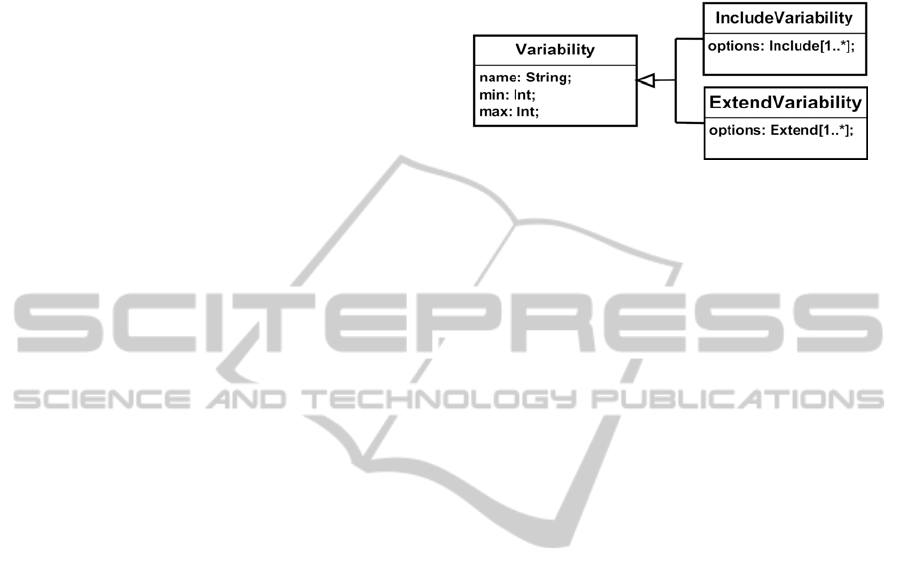

Figure 1: Variability Notation for UC Models.

In addition to use well known UC classes for

Web applications it is necessary to find other classes

of UC that contemplate typical RIA features like

(some of them found in (Wright and Dietrich 2008)):

run-time interface update, auto-suggest, real-time

form validation, hover detail for items of

information.

A job is an execution of one or more operations

(i.e. input validation, information modification, or a

calculation) by the system without user intervention.

A Job support step (JSS) consists of the collection of

inputs, the use of them for the execution of a job,

and the possible presentation to the user of the result

of the job. A content visualization step (CVS) is a

presentation of content (possibly as a consequence to

user inputs and/or search of information).

We consider the following four classes of UC:

1. «Task»: A task consists of a sequence of JSS. A

«task» UC is a UC whose instances are tasks (i.e.

each UC execution performs a task).

2. «Navigation»: A navigation consists of a se-

quence of CVS, possibly decided by a user. A

«navigation» UC is a UC whose instances are

navigations performed by a user (i.e. each UC

execution consists of a navigation).

3. «RIA Navigation»: A RIA navigation involves

one or more CVS taking into account specific RIA

interface features or the execution of asyn-chronous

search (i.e. a search request is made and the system

continues with its execution in-stead of waiting for

the end of the search to continue); in addition some

content visualize-tion steps can be concurrently

performed.

4. «RIA Task»: A RIA task involves one or more

JSS that take into account specific RIA interface

features or the execution of asynchronous jobs (i.e. a

job execution request is made and the sys-tem

continues with its execution instead of wait-ing for

the end of the job to continue); the JSSs can be

REQUIREMENTS ENGINEERING OF WEB APPLICATION PRODUCT LINES

419

concurrently performed. A «RIA task» UC is a UC

whose instances are RIA tasks.

The first two UC stereotypes are taken from

(Casalánguida and Durán, 2009).

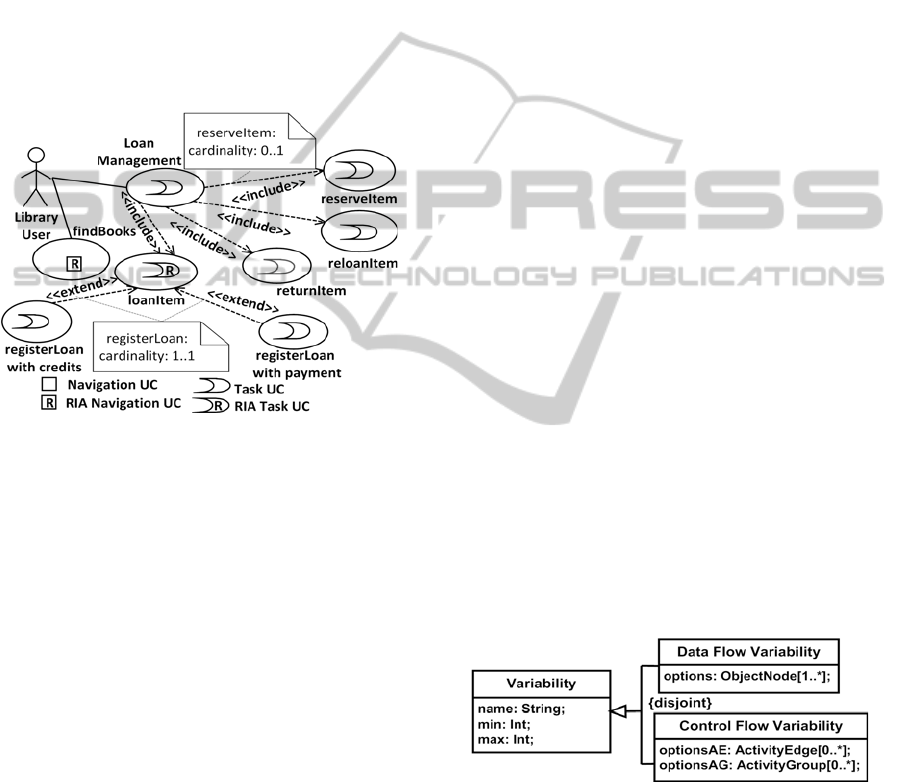

Fig. 2 shows a UCM for an AF of libraries.

There is an includeVariability element saying that

the «task» UC reserveItem is optional. There is an

extendVariability element expressing that the

developer has to choose one between registerLoan

with credits and registerLoan with payment. The UC

findBooks is of stereotype «RIA navigation» because

we decided it will consider autosuggestion and live

search. The UC loanItem is of stereotype «RIA task»

because it uses real time form validation.

Figure 2: UC Model for a Family of Online Libraries.

2.2 Describing Use Cases

We consider the following stereotypes for actions:

 «Search» Actions: they represent database

queries (i.e. relational, object-oriented, XML) or

information retrieval. They could have an input pin

for the parameters needed to make the query and an

output pin for the result of the query.

 «Job»

Actions: they are call behavior actions,

whose activity performs a job. They could have

input pins for the parameters of the job and an

output pin for the result of the job.

 «Input»

Actions: they represent the provision of

an input by an human actor. They could have as

output pins the values provided by the user.

 «Output Request» Actions: they represent the

request by the system for the provision by a human

actor of some inputs.

 «Output Content» Actions: they represent the

system displaying content (for instance, the result of

a job, the result of queries). They could have as

input pins the values to show.

If an action needs to be executed as a transaction,

the stereotype «transaction» must be used. For the

execution of «transaction» actions, the ACID

properties are valid.

To consider control flow variability, we need to

be able to express that a sequence of actions inside

an AD is optional or variant; for this purpose we use

UML activity groups. An ActivityGroup is an

abstract class for defining sets of nodes and edges in

an activity. A VariabilityActivityGroup (VAG) is an

ActivityGroup where grouped nodes and edges

represent the execution of a sequence of actions

inside an activity; in addition, there exists at most

one node in the VAG (which is not a connector

node) that is the destination of an activity edge

which originated outside the VAG. A VAG is

denoted by a dotted line rectangle with a name in the

upper part and the grouped nodes and edges inside.

An ActivityEdge can be optional or variant with

the meaning that the action pointed by the Activity-

Edge will be chosen if the ActivityEdge is chosen.

For data flow variability we need to be able to

express that a data item is optional or variant; for

this purpose, we use from UML 2.0 ObjectNode and

its specializations InputPin and OutputPin.

We propose the use of variability comments that

are assigned to activity edges, to VAGs, and to

object nodes. For this purpose, we add a metaclass

called Variability which is described in Fig. 3. A

control flow variability is a variability that takes into

account activity edges (not leading to final nodes)

and VAGs and a data flow variability is a variability

that considers object nodes. A control flow vari-

ability with interval a..b (min to max), optionsAE

AE and optionsAG AG has the meaning: choose n

arcs in AE and m activity groups in AG where a ≤ n

+ m ≤ b.

Figure 3: Variability Metaclass.

In a variability element there is at least one

option to be chosen.

If a variability involves more than one variant,

then such variants must be preceded by a fork node.

If a variability element has as variants all the

nodes/VAGs following a fork node, we use an

interval near the fork node and not a variability

annotation.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

420

Elements ActivityEdge, VAG and objectNode

not included in variability objects are mandatory.

Fig. 4 shows an AD for a part of a purchase UC

of an electronic commerce AF; this AD contains the

optional VAG called add discount; inside this VAG

there is a variability saying that exactly one of the

actions below the fork must be chosen.

Figure 4: AD for part of Purchase UC.

Fig. 5 shows an example of data flow variability

for the Payment UC.

Figure 5: Data flow variability in Payment UC

Another kind of variability not explained in vari-

ability approaches for AD is business rule vari-

ability: sometimes for a job to be executed a busi-

ness rule must be valid; such a business rule can be

variable among different WAF members. This fact is

expressed with a decision node whose branches

point to the same action and a variability with

cardinality [1..1] is related to all the branches.

Fig. 6 shows an example of business rule vari-

ability in addMember (to a library) UC. There is a

decision node with all conditions leading to the Add

member action, and there is a variability saying that

only one of these conditions must be chosen.

Figure 6: Business Rules in addMember UC.

In Fig. 7 metaclasses for dependency constraints

(DC) are presented. A variant consists of a vari-

ability name and of either an objectNode or an Ac-

tivityEdge or a VAG or a UC. A DC can be of type

excludes (denoted with a left-right arrow) or

requires (denoted with a left arrow) and has a name.

We have two kinds of DCs:

 DC involving variants of an AD: Such DCs have

a dependent, which can be a control flow vari-ant or

an ObjectNode. The dependent depends on a non-

empty set of variants inside the AD (obtained by

navigating the roles in and depend-ence on of the

corresponding metaassociations)

 DC involving an AD variant and a UC variant:

Such DC has a dependent that is a control flow

variant. The dependent depends on a UC variant

(obtained through navigating the roles in and

dependence on of the corresponding meta-

asociations). For instance: an AD for the UC

loanBook contains an optional action called Check

for Reserved Item and there is a DC of type requires

between the action Check for Reserve Item and the

UC reserveItem.

In Fig. 4 there is an example of a DC called A of

type requires between calculate bonus points action

and send mail with bonus details action.

Fig. 5 provides an example of two DC of type

requires: one called B between outputPin debit card

data and action check debit card data, and the other

called A between outputPin credit card data and

action check credit card data.

Now we describe a specialization algorithm for

ADs. Assume that decisions of variants according to

compile time variabilities have been taken and DCs

are respected; the specialization of an AD is another

AD obtained by applying the following rules:

REQUIREMENTS ENGINEERING OF WEB APPLICATION PRODUCT LINES

421

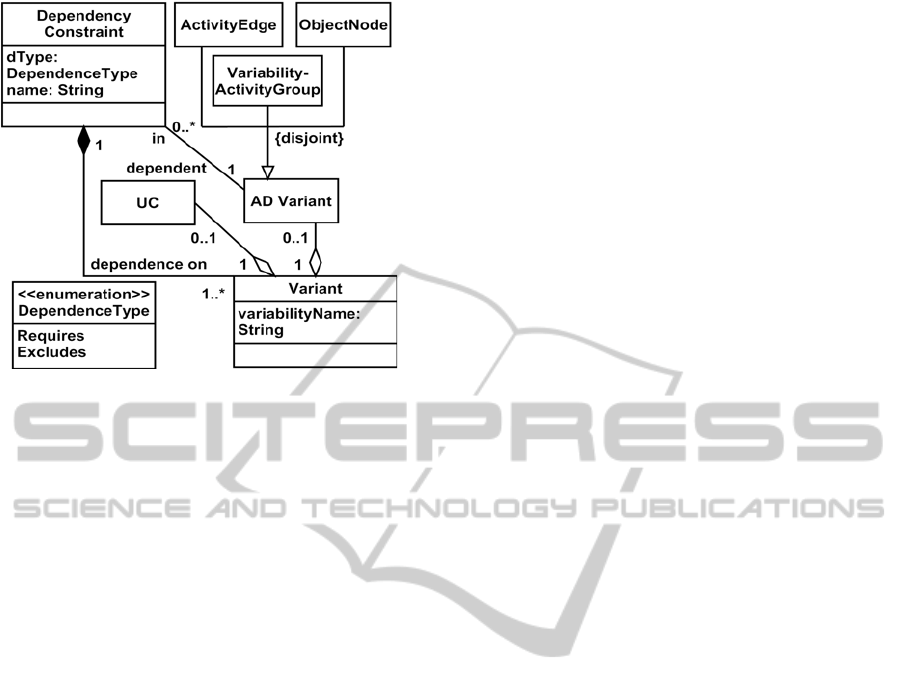

Figure 7: Metaclasses for DC Modeling.

1. If a variability involves only one variant, then the

variant is deleted from the AD if this variant has not

been chosen. Next, remove the variability.

2. If a control flow variability takes into account

more than one variant, then each variant that has not

been chosen is deleted from the AD. After that,

delete nodes fork and join of the variability if only

one activity edge points to the join node of the

variability. Next, remove the variability.

3. If a data flow variability considers more than one

variant, then each variant that has not been chosen is

deleted from the AD. Next, remove the variability.

4. For a business rule variability each activityEdge

variant that has not been chosen is deleted from the

AD. Next, remove the variability.

By space reasons, it is not explained in detail how to

delete a variant. The idea is to remove the variant

element in case of being a VAG or an object node,

and to remove both the variant element and the

action pointed by it in case of being an

ActivityEdge. In addition, it may be necessary to

remove some arcs leading to or going out of the

variant element in case of being a VAG or an object

node). In several cases it is necessary to replace the

elements deleted by an activityEdge.

In case of nesting of some control flow vari-

abilities, rule 3 is systematically applied from outer

to inner levels of nesting.

Within a UC description actions with stereotype

«include» are activity behavior actions that represent

the execution of an included UC. The name of an

«include» action is a name of an included UC,

whose description is externally made to the

including UC with an AD.

Each extension UC is described with an AD. For

each extension UC, extension rules are defined

which consist of the following parts:

 Base UC: name of the extended UC.

 Condition: condition that must hold for the in-

sertion of the extension UC.

 Extension Points: this is a list of extension point

descriptions, specifying the places in the UC’s AD

where the UC extension execution is inserted; a

place can be before or after a specific action

occurrence. An extension point descript-tion has the

following syntax: (after | before) (action name |

extension point name). An action name is used if the

action occurs only once in the base UC’s AD;

otherwise an extension point name is used.

Each extension point name is added as the value of a

tagged value named extension point name, which is

assigned to the arrow leading to the desired activity

occurrence in the base UC’s AD.

In an AF all the extension point names should be

unique (i.e. the same extension point name cannot be

used in different UCs or in different action occur-

rences within a base UC’s AD).

3 NON-FUNCTIONAL

REQUIREMENTS

The NFR framework (Chung et al., 2000) presents

softgoals and their relationships inside softgoal

interdependency graphs (SIG). The modeling el-

ements of a SIG are softgoals - that can be: NFR

softgoals, operatinalizing softgoals (OS), or claims -

and contributions - that can be: AND-decomposi-

tion, OR-decomposition, degree of contribution -

MAKE (++), HELP (+), HURT (-), BREAK (--).

To be able to describe SIGs of an AF that will be

specialized to application SIGs respecting the NFR

framework, we define a metamodel called NFRV

(see Fig. 8) that extends the NFR framework to take

into account variabilities.

A OS or a NFR softgoal may participate in one

or more variabilities. A Variability element has a

name and a cardinality given by two integers called

min and max.

We define the following variability constraints:

A NFR-softgoal or OS cannot have two variabilities

with the same name. If two softgoals (NFR or OS)

have a common variability, then they are offspring

of the same father.

It is not possible to define a variability for a

subset of softgoals of an AND/OR decomposition,

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

422

because all possible softgoals of an AND or OR

decomposition must be present on any family

member to satisfy the decomposition; if we allow to

choose a proper subset of the decomposition’s

softgoals for a product line member, then the

semantics of AND/OR decompositions is not

respected. For this reason, we define new kinds of

decompositions for supporting variabilities:

 ANDVariability: One or more variabilities com-

prise the components of the decomposition and all

the softgoals chosen according to such variabilities

are necessary to achieve the father of the

decomposition.

 ORVariability: One or more variabilities com-

prise the components of the decomposition and at

least one of the softgoals chosen according to such

variabilities is necessary to achieve the father of the

decomposition.

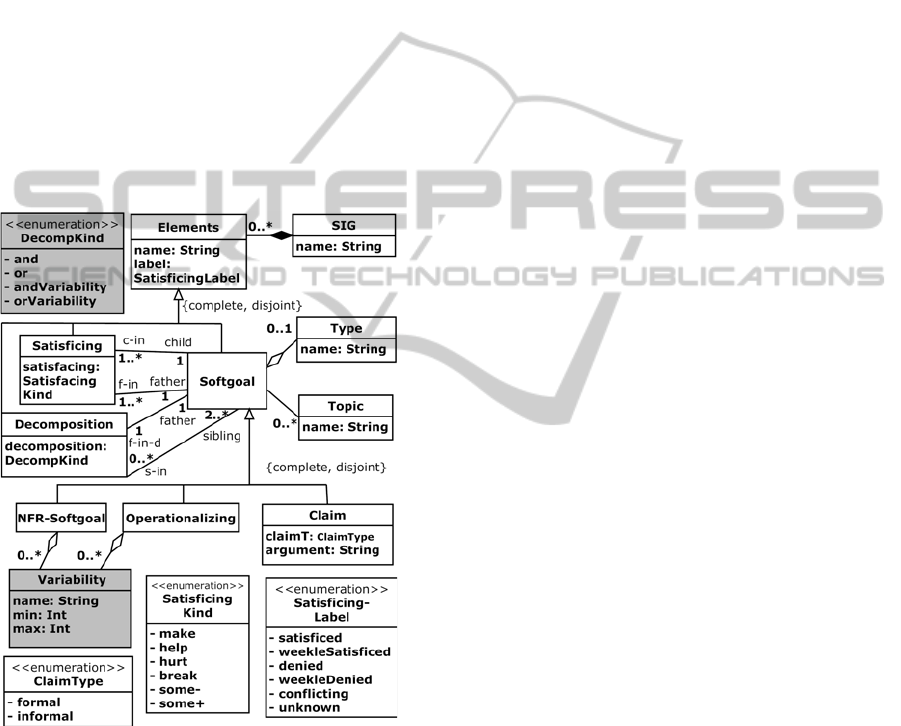

Figure 8: NFRV Metamodel.

A variability is represented with a UML annota-

tion for variant softgoals. An ANDVariability el-

ement is represented in the same way as an AND

decomposition. An OrVariability element is repre-

sented in the same way as an OR decomposition. If

in a variability V with cardinality [0..1] participates

only one softgoal that participates only in V, then

this softgoal is called optional and is represented

putting a question mark inside the softgoal cloud. If

there is one variability with cardinality a..b

comprising all the members of an ANDVariability or

ORVariability, then omit the variability annotation

and instead put “[a..b]” near the decomposition.

The graph formed by a softgoal S and its de-

scendants (contributions and softgoals) in the SIG is

denoted by DG(S). The set obtained by removing

from DG(S) all the DG(T) such that T is a

descendant of S and T contributes to a softgoal

outside of DG(S) is denoted by DGO(S). Assume

that decisions of variants according to variabilities

have been taken. The specialization of a SIG NFRV

is a SIG obtained by applying the following rules:

 If a softgoal S is optional, and S has not been

chosen, then the relations of S with its parents and

DGO(S) are deleted.

 If an ANDVariability with father F contains a

variability V, then remove V and for each vari-ant M

of V that has not been chosen delete the relation

between F and M and DGO(M). The selected

variants are offspring of F and are related to it via an

AND decomposition.

 If an ORVariability with father F contains a

variability V, then remove V and for each vari-ant M

of V that has not been chosen delete the relation

between F and M and

DGO(M). The selected

variants are offspring of F and are related to it via an

OR decomposition.

 If V is a variability with its variants contributing

in some degree to a father softgoal F, then remove V

and for each variant M of V that has not been

chosen delete the relation between F and M and

DGO(M).

Fig. 9 Shows a SIG NFRV for usability. This

softgoal is decomposed using an AND-Variability

into Errors, Efficiency and Learnability using a vari-

ability of cardinality 2..3 (i.e. at least two of the

three softgoals must be chosen in specialization

time). The OS Show related data and Use site maps

are optional, and can be selected or not when

Efficiency is chosen. The mandatory OS Use help is

decomposed using an ORVariability into OS Help

general index, Help tips and Help Agent. Help tips

and Help agent is a group of variant softgoals with

cardinality 1..1 (i.e. one of them will be chosen in

specialization time). The optional OS Suggest fields

also contribute to Use help.

4 RELATED WORK

WebRE+ (Luna et al. 2010) uses the stereotypes

«Search» (for querying contents), «Browse» (for

navigation), «UIAction» (for actions performed by

REQUIREMENTS ENGINEERING OF WEB APPLICATION PRODUCT LINES

423

the user in a «UIElement») and «userTransaction»

(for actions involving a transaction operation). In

contrast with our approach, WebRE+ activities

performed by the user are not separated from activ-

ities performed by the system (for instance «Search»

and «UserTransaction» activities need the involve-

ment of both the user and of the system); in addition

a «userTransaction» activity may be very complex

and could be decomposed into smaller ones.

Figure 9: SIG with Variabilities for Usability.

In OOWS (Valderas 2004) the stereotypes

«search» (for actions performing information

search),

«function» (for actions executing function-

ality), «output» (for output interaction points), and

«input» (for input interaction points) are considered.

Table 1 shows the stereotypes for AD provided

by our work and related approaches. Our approach

permits to express WebRE+ stereotypes for content

visualization steps (CVS) and «User Transaction»

by using some distinct stereotyped actions.

Table 1: Stereotypes for ADs in Web Methods.

Objective WebRE+ OOWS Our work

CVS

without

Browse Input,

output

Input,

Output content,

Output request

CVS with

Search Input,

Search,

output

Input, Search,

Output content,

Output request

Activity

with a

transaction

User

Trans-

action

Input,

Output,

Function,

Search.

Input,

Output Content,

Output request,

Search, Job,

Transaction

Input UIAction Input Input

Input

request

- output output request

Output

content

- output Output content

transaction - - Transaction

In WebRE+ (Luna et al. 2010) a UC can be of

stereotypes «Navigation», «WebProcess» or «RIA

Specification» (for a behavior involving RIA specif-

ic features). The first two stereotypes are covered in

our work by the «Navigation» and «Task» stereo-

types and the third is contemplated by our «RIA

navigation» and «RIA task» stereotypes.

Table 2 provides a comparison of AD notations

for variability management w.r.t. the requirements

from R3 to R7 (presented in the introduction).

Below we justify the results in detail.

Table 2: comparison of AD with variabilities notations.

R3 R4 R5 R6 R7

Bragança. no no no no no

Heuer et al. good reg+ good good no

Razavian,

Khosravi

reg no no no good

Korherr

and List

no no reg no no

Schnieders

and Weske

no no no no good

Robak et al. no no no no no

Our work very

good

very

good

very

good

very

good

very

good

R3: full use of cardinalities for variabilities: only in

(Heuer et al., 2010) and our work. In contrast to our

work in (Heuer et al., 2010) this information is

captured by Boolean expressions outside the AD.

R4: do not use AD elements to represent vari-

abilities: only in (Riebisch et al., 2000; Heuer et al.,

2010) and our work. From these approaches only our

work does not put variability information in AD

elements.

R5: presentation of some specialization rules: in

(Schnieders and Weske, 2007; Heuer et al., 2010)

and our work. For an exhaustive specialization

algorithm we only found (Heuer et al., 2010) and our

work. Do not use other notations in the special-

ization algorithm: only in our work ((Heuer et al.,

2010) uses Petri nets).

R6: use of DCs: in (Heuer et al., 2010) and our

work. In contrast to our work (Heuer et al., 2010) is

more restricted in the kind of DC that can be

expressed (variants represent sets of actions) and

DCs are defined outside the AD by means of

Boolean expressions.

R7: Use of data flow variability: only in (Razavian

and Khosravi, 2008; Schnieders and Weske, 2007)

and our work. Use of cardinalities in data flow

variabilities and do not use stereotypes in data flow

variabilities: only in our work.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

424

5 CONCLUSIONS

In this paper we presented a RE method for WAF

considering both RIA and Web 1.0 applications.

UML tools can be used for drawing ADs and

UCMs for WAFs, because our extensive use of

variability annotations.

Our notation for AD variability management

satisfies all the requirements stated in the introduc-

tion and permits to express both data flow and

control flow variabilities.

We proposed the documentation of business rule

variability in ADs; we did not find papers consider-

ing this for ADs. In addition, we considered a more

complete treatment of DCs in ADs than in the

literature. Furthermore, because of the use of

annotations to model variabilities the documentation

of data flow variabilities is simpler than in the

approaches found in the literature.

Our method has been tested by considering parts

of an electronic commerce WAF and of an online

library WAF. Such examples are representative of

data intensive Web 1.0 or RIA WAFs.

We defined the specialization algorithms taking

preservation of syntactic correctness into account. In

the future we plan to check for the AD specialization

algorithm the preservation of behavioral correctness.

In addition we plan to continue validating our RE

process with other interesting RIA families.

REFERENCES

António, S., Araújo, J., Silva C., 2009. Adapting the i*

Framework for Software Product Lines. In: ER’09.

LNCS 5833, pp. 286-295, Springer-Verlag.

Bragança, A., 2007. Methodological Approaches and

Techniques for Model Driven Development of Soft-

ware Product Lines. PHD-Thesis, Universidade do

Minho, Escola de Engenharia.

Casalánguida, H., Durán, J., 2009. Modelado Orientado a

Aspectos de Navegación para Aplicaciones Web

basado en UML. In IEEE Latin America Transactions,

Vol. 7, N° 1, pp 92—100.

Chung, L., Nixon, B., Yu, E., Mylopoulos, J., 2000. Non

functional Requirements in Software Engineering.

Kluwer Academic Publisher, Boston.

Heuer, A., Budnik, Ch., Konrad, S., Lauenroth, K., Pohl,

K., 2010. Formal Definition of Syntax and Semantics

for Documenting Variability in Activity Diagrams. In

SPLC’10. LNCS 6287, pp 62--76.

Koch, N., Knapp, A., Zhang, G. Baumeister, H., 2008.

UML-Based Web Engineering. An Approach Based

on Standards. In Web Engineering: Modelling and

Implementing Web Applications, Human Computer

Interaction Series, Springer, pp. 157--191.

Korherr, B., List, B., 2007. A UML 2 Profile for

Variability Models and their Dependency to Business

Processes. In DEXA´07, pp 829--834.

Kulesza, U. García, A., Bleasby, F., Lucena, C., 2005.

Instantiating and Customizing Product Line

Architectures using Aspects and Crosscutting Feature

Models. In EA’05, Workshop on Early Aspects.

Luna, E., R., Escalona, M., J., Rossi, G., 2010. A

Requirements Metamodel for Rich Internet

Applications. In ICSOFT 2010.

Razavian, M., Khosravi, R., 2008. Modeling Variability in

Business Process Models Using UML. In 5

Intl.

Conf. on Inf. Technology: New Generations, pp 82-87.

Riebisch, M., Böllert, K., Streitferdt, D., Franczyk, B.,

2000. Extending the UML to Model System Families.

In IDPT 2000, Integrated Design and Process

Technology. Society for Design and Process Science.

Robak, S., Franczyk, B., Politowicz, K., 2002. Extending

the UML for Modelling Variability for System

Families. In Intl. Journal of Appl. Math. Comput.

Science, Vol.12, No.2, pp 285–298.

Schnieders, A. and Weske, M., 2007. Activity Diagram

Based Process Family Architectures for Enterprise

Application Families. In: Enterprise Interoperability

2007, Part II, pp 67—76.

Schobbens, P., Heymans, P., Trigaux, J., 2006. Feature

Diagrams: a Survey and a Formal Semantics. In

RE’06, pp 139—148.

Semmak, F., Gnaho, C., Laleau, R., 2008. Extended

KAOS to Support Variability for Goal Oriented

Requirements Reuse. In MoDISE-EUS'08, Vol. 341 of

CEUR Workshop Proceedings, pp 22-33.

Valderas, P., 2004. A requirements engineering approach

for the development of web applications. PHD-thesis,

Departamento de Sistemas Informáticos y

Computación, Universidad Politécnica de Valencia.

Wright, J., Dietrich, J., 2008. Requirements for Rich

Internet Application Design Methodologies. In

WISE´08, LNCS 5175, Springer, pp 106—119.

REQUIREMENTS ENGINEERING OF WEB APPLICATION PRODUCT LINES

425
