PROTECTING THE PHYSICAL BOUNDARIES OF VIRTUAL

MACHINES IN CLOUD COMPUTING

Ethan Hadar

CA Technologies,16 Shenkar, Herzelia, Israel

Keywords: Access control, Agile architecture, Cloud computing, Cloud security.

Abstract: Cloud computing is currently focused on providing utility computing, such as storage and computing power,

and Software as a Service (SaaS.) However, use of these offerings in an enterprise environment requires

security compliance to be enforced on managed servers deployed in the cloud in order to prevent un-

authorized administration of deployed images. This requirement may apply to the initial deployment,

upgrades, or any physical roaming due to the virtualization of the cloud. This paper presents a conceptual

reference architecture, that defines a set of conceptual components that are responsible for intercepting calls,

managing administrative commands, controlling roaming and portability, and providing enterprise

compliance needs. It inherently supports delegation of the enforcing policies, and consequently it provides a

scalable solution.

1 INTRODUCTION

Cloud computing is one of the latest paradigms in

computing technology, gaining considerable

popularity within the past year. Cloud computing

consists of next-generation datacenters providing

reliable “on-demand” and “pay-per-use” services

(Weiss, 2007; Wikipedia, 2009). This paradigm has

implications for application providers who usually

develop secured solutions for internal deployment

(local) or within enterprise datacenters (near), rather

than using remote web-services of third-party

datacenters (far).

An example of a complex deployment topology

in a cloud environment is a far deployment of web

servers, load balancers and front end interfaces in an

external public cloud, while the application database

remains local. A complex topology like this is often

mandated when regulations or contracts require that

data be stored on premises. Such cases require

secure communication between the local database

and the remote front end, as well as typical

enterprise security policies and credentials for the

remote front end.

An example is a transient workload system that

offloads some jobs that do not contain sensitive

information to a public cloud. However, these jobs

executed on a public Infrastructure as a Service

(IaaS) domain may participate in an overall business

transaction and are consequently part of a workflow

with business logic that must be protected within the

enterprise firewall. In a further complication, part of

the business transaction might involve a service

offered by a third party, such as identity validation,

that is utilized as Software as a Service (SaaS) and is

not part of the consumer infrastructure. In such a

case, the third-party service must be monitored as

well, and be part of a secured end-to-end transaction.

This highlights a third aspect of cloud security: the

way in which transactions must be secured may vary

as loads shift from cloud to cloud.

Virtualization technologies (Vouk, 2008)

introduce a new set of identity, access and auditing

problems that could hamper the adoption of cloud

computing. These technologies increase the risk of

security exposure in several ways, one of which is

the Protecting the physical boundaries of virtual

machines. Since A Virtual Host (VH) image can be

deployed and run on many possible physical

machines. In some cases (such as legal, governance

or privacy) there is a need to restrict geographical

locations of the deployed VH.

There is a gap between the cloud offerings and

the required secure solution. A compelling

characteristic of the cloud paradigm is the power of

abstraction, which frees consumers from concern

with the physical management of the underlying

infrastructure, but the absence of limitations on the

665

Hadar E..

PROTECTING THE PHYSICAL BOUNDARIES OF VIRTUAL MACHINES IN CLOUD COMPUTING.

DOI: 10.5220/0003358306650670

In Proceedings of the 1st International Conference on Cloud Computing and Services Science (CLOSER-2011), pages 665-670

ISBN: 978-989-8425-52-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

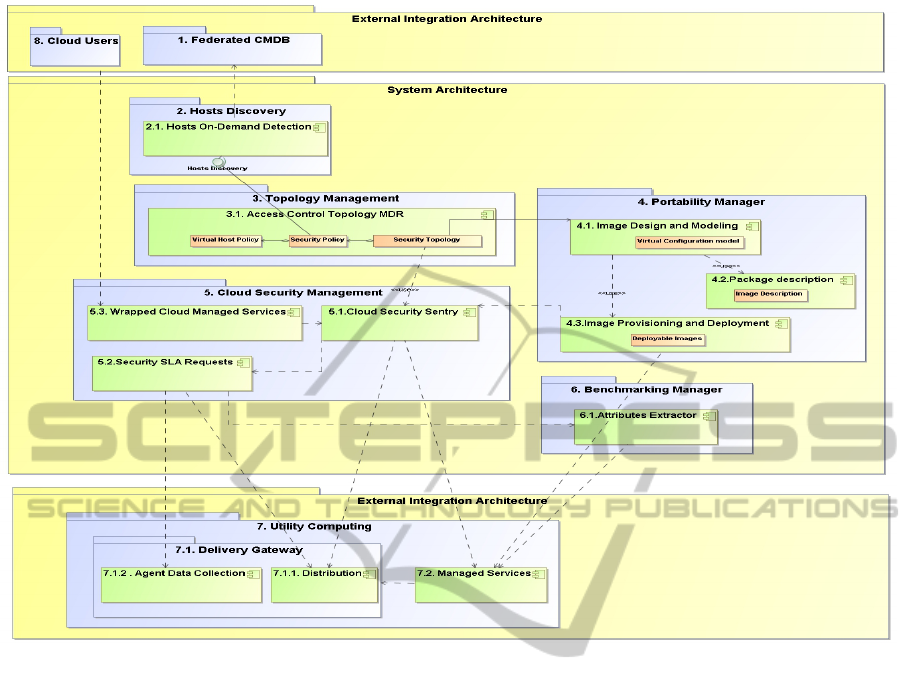

Figure F-1: Access Control Reference Architecture for Cloud Computing.

physical server hosting the customer’s sensitive data,

in some cases, conflicts with privacy and other

regulations. In these cases, failover and backup of

data must occur within prescribed geographic limits,

and the data must be secured according to law within

restricted, typically national, boundaries. Even more

stringent regulations, such as those typical of

banking and other financial activities, can require

full transparency into the system structure to prove

that the sensitive data is secured with a known set of

technologies, and the location of the data is clearly

circumscribed to a limited zone. Healthcare privacy

regulations present similar requirements

An adaptation layer that wraps the cloud

offering, restricts roaming, and protects physical

boundaries is one means of providing transparency

and control while seamlessly connecting the cloud to

the common enterprise IT environment.

This paper proposes a conceptual solution for

Access Control in the form of a security

enforcement layer and architecture stack for cloud

computing. The solution is expressed as a reference

architecture that employs the C3A architecture

methodology (Hadar and Silberam, 2008) to

aggregate security needs into conceptual

components, as well as to define the dependency and

utilization of such abstract modules.

Section 2 of this paper details the conceptual

architecture components. Section 3 discusses and

concludes this study’s observations and provides

some future directions.

2 ACCESS CONTROL

REFERENCE ARCHITECTURE

FOR CLOUD COMPUTING

Figure F-1 details an architectural blueprint for

Access Control and Cloud computing adaptation

layer, using the C3A architecture methodology

(Hadar and Silberam, 2008). The responsibilities,

and thus the requirements for the solution, are

contained within separate components. In the

detailed description below, we present part of the

components that are relevant to the protecting the

physical boundaries of virtual machines problem

CLOSER 2011 - International Conference on Cloud Computing and Services Science

666

with brief indications on other components for

contextual framework purposes.

1. Strategic Federated CMDB (Configuration

Management Database), records the planned

and authorized configuration of the system and

tracks the updated and synchronized (with the

real infrastructure) servers that are discovered

and reconciled with existing information from

the federated repositories.

2. Hosts discovery is linked to Federated CMDB

web services and can extract a list of hosts

according to criteria. Hosts On-Demand

discovery sends requests to the comparable

Federated CMDB. Security managers can use it

to select specific IT sectors or groups.

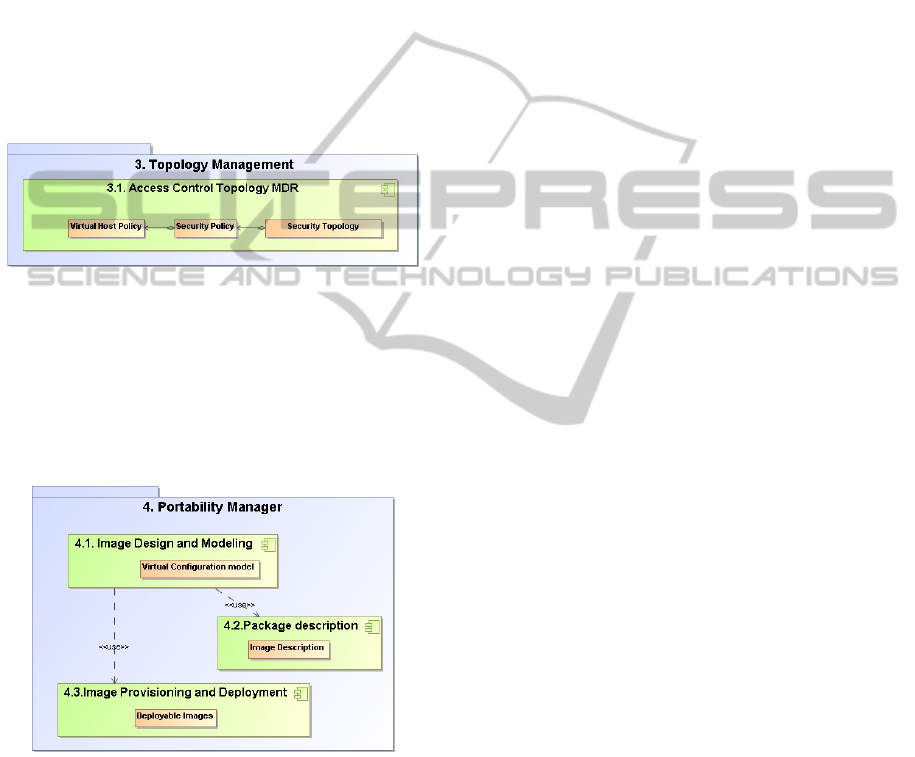

Figure F-2: Topology Management component.

3. Topology Management (Figure F-2) triggers

request to detect a list of specific hosts as

needed.

Portability Manager transfers deployed images

across virtual domains or provisions new images on

the utility computing vendors sites (Figure F-3).

Figure F-3: Portability Manager.

3.1. Image Design and Modeling defines a

virtual configuration model of packaged

entities. It updates the Package Description

component with added definitions on

upgrades and changes.

3.2. Package Description generates specific

vendor packaging instructions and

configuration descriptions by using vendor

defined description files, such as the

Amazon Machine Image description file

(Amazon web, 2009) used by the Amazon

Elastic Cloud (EC2) service.

4. Image Provisioning and Deployment Manager

deploys and manages the integrity of the Access

Control Agents installed on a host image

deployed in the cloud

5. Cloud Security Management - Figure F-4

5.1. Cloud Security Sentry provides a managed

guarded-call pattern that intercepts calls

intended for the existing published

Management Services of the cloud vendor.

The guarded call prohibits the direct

activation of the cloud web services and

prevents a non-authorized access. Even

though in this context we refer to the

protection of accessing servers (and hosts),

intercepting web calls in a well-known

pattern, and the sentry can also wrap any

external call to Platform as a Service

(PaaS), or Software as a Service (SaaS).

Call protection that interrupts the natural

transaction, inevitably slows down system

performance, but security has its price, as

do regulatory requirements, high-

availability, redundancy, and any other non-

functional needs of a solution. The sentry

only intercepts administrative calls that

modify the system deployment, which may

be a insignificant relative to the overall

performance when deploying a full image,

or a major interuption if the payload is a

small policy file. The same rule applies to

PaaS and SaaS, where the payload size

transmission and the regular call overhead,

relative to the call interception. The cloud

environment is web-services based, over

WAN, and by definition, is considerably

slower than regular on-premise, LAN

solutions. In our Access Control

implementation, receiving the credentials

for an operation while intercepting kernel

calls does not exceed 5% of the CPU

consumption on the supported platforms.

However, in the case of WAN and web-

services, one must consider network latency

on the overall calls, which depends on the

network configuration. Still, only

administration calls are intercepted, which

are not frequent for privileged users. For

regular SaaS applications, a different

solution is employed, beyond the scope of

this paper, known as federated security.

Thus, the managed aspects of the cloud are

PROTECTING THE PHYSICAL BOUNDARIES OF VIRTUAL MACHINES IN CLOUD COMPUTING

667

enforced, either from calls originating from

within the customer’s enterprise sites or

from any other external location. It provides

transient security entitlements to the

Provisioning and Benchmarking

components and enables these components

to access the cloud for changing images.

Moreover, it intercepts security policy

distribution that is activated directly from

the topology component.

5.2. Security SLA Requestor sets metrics and

mediates requests for delegating the need to

deploy Access Control policies within the

cloud. It can (1) forward and monitor

requests for access policy, (2) insert

restrictions on moving the physical location

of images, and (3) produce reports and

monitoring information. In order to provide

capabilities to limit and control the

Managed Services of the cloud, it uses the

Attributes Extractor component to extract

the data from the cloud and thus provides

limitations on the roaming capabilities. It

uses the Agent Data Collection component

for retrieving reports and monitoring data,

and the Distribution component for

propagating security enforcement requests

to the cloud vendor.

5.3. Wrapped Cloud Managed Services

component provides the same functions of

the managed services of the cloud.

However, they are wrapped with security

parameters for preventing un-authorized

administration calls; thus they serve as

interception guards.

Figure F-4: Cloud Access Security Manager.

5.4. Benchmarking Manager Contains the

Attributes Extractor that extracts and

displays all the non-functional

characteristics of the utility computing

offerings for furtherer evaluation. In the

case of Access Control, in order to provide

limitations on the roaming capabilities, the

information that is required is the virtual

host name, id: MAC addresses or other

strong identifiers and VM configuration

(network interfaces, external disks, and its

Input/Output ports).

6. Utility Computing (Figure F-5)

6.1. Delivery Gateway is deployed within the

cloud vendor’s site, and is able to accept

and delegate the need for enforcements of

policies on physical servers and virtual

hosts supporting the cloud. The Distribution

component is responsible for receiving and

delegating the Access Control policy. It

propagates them to internal enforcement

agents that monitor the operating systems

and applications that run the cloud

virtualization software. The Agent Data

Collection component is able to collect

internal reporting information about the

system’s status, and delegate this

information to the cloud consumers.

6.2. Managed Services is the vendor’s

proprietary services that provide

interactions with the utility computing

solutions.

Figure F-5: Utility Computing.

7. Cloud Users are the regular administrators of

the IT enterprise infrastructure that interact with

the cloud using the supervised services. This

component includes Single-Sign-On

capabilities, as well as Identity and Access

Management (such as LDAP).

3 DISCUSSION AND

CONCLUSIONS

As presented in this conceptual paper, the collection

of the abstract components encapsulates the needs

and possible solution to overcome security gaps in

the cloud offerings.

The reference architecture defines the

components’ stack for handling security

interceptions (enforcement) of the managed web

services; limitations on image roaming and

portability; delegation of enforcement needs to the

underlying cloud core, and aggregated reports. This

CLOSER 2011 - International Conference on Cloud Computing and Services Science

668

set of requirements, when added to the cloud

offerings, enables to use the cloud as if it were

deployed within a local datacenter.

Consider the example in which an enterprise

implements a store front on a public cloud but keeps

the backend database for the store front in their

datacenter. In this simple example, the datacenter

administrator is faced with several security

problems. In the reference architecture these issues

are addressed. The architectural definition of the

solution is to deploy the front-end of the shop on a

public cloud, and the sensitive data as well as the

application financial processing servers on the local

enterprise datacenter. High-availability and transient

(on-demand) scalability requirements define a

minimum of a 3 front-end server cluster, 2

application servers, and 2 replicated database

servers. The maximum allowed provisioned servers

are 15 for the front-end, 5 for application logic, and

during known heavy usage periods (holidays), to add

another single replicated database.

According to this architecture definition, the

Strategic Federated CMDB will contain the planned

structure of 3 front-end servers mounted to be

deployed on Amazon EC2 cloud, 2 application and 2

database servers will be deployed as virtual guests

on a VMWare host within the internal datacenter.

All these images (VMWare guest and server, and

Amazon Image) are configured according to the

Package Description component, after being

designed in the Image Design and Modeling

component.

Since scaling up and down is part of the cloud

promise (dynamic, on demand scaling), we can

define transient conditions of the applications based

on adaptation needs of the solution (number of

concurrent connections, averaged transactions

performance latency, shoppers peaks, etc.). These

are inherently part of the strategy definition,

containing the adaptation configuration parameters,

managed by the Deployment and Change

management tools, rather than CMDB. The

discovery tools that will detect the added servers,

can compare it to the stable minimum strategy and

the approved deviations, and will indicate the

difference as allowed, as long as they are within the

above boundaries. It can even show the differences

on the same view (planned vs. actual).

The security policy rules are:

1. Deployment administration policy:

1.1. The provisioning of this application can

only be conducted by the authorized Image

Provisioning and Deployment Manager

only.

2. Cloud roaming policy:

2.1. The front-end servers cannot be deployed

in Europe due to privacy regulation

limitations.

3. Datacenter co-existence policy:

3.1. The database servers cannot be deployed

on machines that contain the company

employees’ salary database server.

3.2. The application and the database must

reside on separate physical servers,

namely, each component of the solution

must be on another hardware.

4. Sizing and scaling policy:

4.1. The front-end provisioning is bounded

between 3 and 15 servers

4.2. The Application servers provisioning is

bounded between 2 and 5 servers

4.3. The Application servers provisioning is

bounded between 2 and 3 servers

according to dates attached to the policy.

5. Secured communication policy:

5.1.

The application servers can only respond

to incoming requests from the front-end

servers.

The policies are defined and maintained in the

Virtual Host policy (3.1, 3.2, 4.2, 4.3, 5.1), and the

cloud Security Distributed Policy (1.1, 2.1, 4.1)

within the Topology Management component.

Accordingly, the Topology component dispatches

these separate policies to the Security Sentry and

Image Design components.

The Cloud Security Sentry intercepts any

management call to Utility computing that does not

originated from the Image Provisioning and

Deployment component.

The Managed Services component contains

accordingly specific application security

provisioning policy (1.1, 4.1) that enables the

provisioning and un-provisioning of images on the

public cloud, governed by the Security Sentry. Thus,

change function calls will be activated only if they

are within the policy boundary. The exact amount of

provisioned machines is maintained in the Topology

MDR, which receives the correct status of the

system from the federated reconciled CMDB.

The Image Provisioning and Deployment

component manages the internal datacenter as well,

where each of the deployed servers has an

enforcement access control agent installed. This

agent receives the co-existence (3.1, 3.2), sizing

(4.2, 4.3) and communication (5.1) policy, bundled

with other access control policies, hardening the

operating systems (out of scope for this paper).

PROTECTING THE PHYSICAL BOUNDARIES OF VIRTUAL MACHINES IN CLOUD COMPUTING

669

In terms of Cloud Roaming (2.1) of the front-end

parts of the application, the cloud Security Sentry

component delegates the policy to the Security SLA

Requests component, which in turn, sends the policy

to the Distribution component. This triggers a

request for the cloud provider, which follows the

instructions, and report back to the adaptation layer

via the Agent Data Collection.

The modular structure enables additional

integrations, such as federated security management

over a grid. Delegating the security requests from

the services supplier is done in a “supply chain

management” approach. Consequently, This

delegation enables to structure a network of

managed access control units, in different areas of

the globe, over different datacenters.

This adaptation layer abstracts the understanding

of cloud security management from the IT users,

enabling them to pursue their regular working

practices as well as simplifying cloud management

security aspects.

The reference architecture presented here may be

replaced by any implementation components that

provide a technological solution to these design

specifications. It is aimed at structuring an

adaptation layer, extending the cloud offerings to a

secured one. Aggregating the needs into the

conceptual high-level components by means of

architecture design defines the future context for

specific implementations.

Future evolution of this conceptual layer will

involve its practical integration with enterprise IT

management tools, such as Access Control tools,

Identity Management, and CMDB as well as with

Cloud vendors such as Amazon, Google, or

Microsoft.

REFERENCES

Amazon Elastic Compute Cloud (2009), Web Site:

http://aws.amazon.com/ec2, last accessed on March 5,

2010.

Hadar, E. and Silberman, G (2008): Agile architecture

methodology: Long term strategy interleaved with

short term tactics. In: Proceedings of the International

Conference on Object Oriented Programming,

Systems, Languages and Applications (OOPSLA),

Nashville, US.

Vouk, M.A.(2008): Cloud computing - issues, research

and implementations. In: Proceedings of the ITI 2008

30th International Conference on Information

Technology Interfaces, Cavtat, Croatia.

Weiss, A (2007), Computing in the clouds. netWorker

11(4) (2007) 16-25

CLOSER 2011 - International Conference on Cloud Computing and Services Science

670
