SCENE DATA SYNCHRONIZATION IN SORT-FIRST RENDERING

SYSTEM FOR LARGE DYNAMIC SCENES

He Bing and Wang Yangzihao

State Key Laboratory of Virtual Reality Technology and Systems, Beihang University, Beijing, China

Keywords:

Scene data synchronization, Cluster parallel rendering, Sort-ﬁrst, Dynamic scenes.

Abstract:

In this paper we built a cluster-based sort-ﬁrst rendering system. Unlike previous sort-ﬁrst rendering systems

for static scenes, ours can cope with large dynamic scenes with massive data. A set of strategies are designed

and implemented to give solutions for scene data synchronization in our system. The experimental results

show that our system maintains favorable data consistency for dynamic scenes and is highly scalable with

solid improvement of rendering performance. Using 16 computing nodes, our system can achieve interactive

visualization result in the test physical simulation scene which contains 10,000 moving rigid-body models and

building models with massive geometric and texture data.

1 INTRODUCTION

With the development of graphics hardware, visual-

ization applications with massive data sets are made

possible using cluster-based parallel rendering. Based

on where the sort from object-space to screen space

occurs, there are three parallel rendering architec-

tures: sort-ﬁrst, sort-last and sort-middle. With low

communication cost and the advantage of frame-to-

frame coherence, sort-ﬁrst has been the most widely

studied and used architecture of parallel rendering. It

is highly scalable and is particularly suitable for clus-

ter implementation.

During the past decades, several sort-ﬁrst ren-

dering systems are developed and applied to various

applications(Mueller, 1995) (Samanta et al., 1999)

(Samanta et al., 2000) (Humphreys et al., 2001)

(Humphreys et al., 2002). However, sort-ﬁrst render-

ing strategy with large dynamic scenes remains an un-

solved problem. It is mainly due to the difﬁculty of

keeping the consistency of the moving object’s status

(position, velocity, etc.) among each rendering node.

One of the key issues in solving this problem is scene

data synchronization.

In this paper, we build a multi-thread sort-ﬁrst ren-

dering system with physical computing module and

implemented a set of methods on scene management

and scene data synchronization to cope with massive

dynamic data sets. Using our strategy, we achieved

interactive visualization result in a scene which con-

tains more than 10,000 moving rigid-body models

and building models with massive geometric and tex-

ture data.

2 RELATED WORK

A comprehensive survey on cluster-based parallel

rendering goes beyond the scope of this paper. See

(Pajarola, 2008) and (Staadt et al., 2008). In this sec-

tion, we will focus on sort-ﬁrst architecture and scene

data synchronization issue.

Molnar et al. have classiﬁed parallel rendering

based on where the visibility sort occurs into sort-

ﬁrst, sort-last and sort-middle in(Molnar et al., 1994).

In sort-ﬁrst architecture, little intervene is done to

graphic pipeline. Mueller (Mueller, 1995) has pointed

out that in the sort-ﬁrst architecture, the screen is par-

titioned into non-overlapping tiles (usually with rect-

angular shapes) and the rendering nodes are responsi-

ble for all the rendering computation that affects their

respective screen regions. According to the frame-to-

frame coherence, the network overhead is minimized.

Data synchronization is a fundamental issue in

distributed systems. Several sort-ﬁrst rendering sys-

tems have developed their own scene data synchro-

nization strategies. In Samanta’s retained mode ren-

dering system for static scenes(Samanta et al., 1999),

because the client and all the servers read the same 3D

scene graph from disk and store it entirely in memory,

there is no data synchronization requirement. In im-

207

Bing H. and Yangzihao W..

SCENE DATA SYNCHRONIZATION IN SORT-FIRST RENDERING SYSTEM FOR LARGE DYNAMIC SCENES.

DOI: 10.5220/0003363002070210

In Proceedings of the International Conference on Computer Graphics Theory and Applications (GRAPP-2011), pages 207-210

ISBN: 978-989-8425-45-4

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

mediate mode system such as WireGL(Humphreys

et al., 2001) and Molnar’s ﬁrst sort-ﬁrst rendering

system(Molnar et al., 1994), scene data synchroniza-

tion is mainly pixel redistribution between each two

frames during the rendering of static scenes. In the

rendering of dynamic scenes though, scene data syn-

chronization becomes more difﬁcult due to the reason

that several parameters of the moving objects (trans-

formation matrix, velocity, acceleration et al.) are

needed to be synchronized between each two frames.

As far as we know, works on this speciﬁc topic are

rare.

3 OVERVIEW

The prototype sort-ﬁrst parallel rendering system we

have built is composed by a single display and a clus-

ter of computing nodes connected by 1000M band-

width local area network. Logically, we divided the

PC clusters into three groups: controlling node, com-

puting node and image composition node.

A controlling node is in charge of the scene data

synchronization, task decomposition and load balanc-

ing. It controls the running of the whole system. A

computing node performs all the computing tasks.

There are two kinds of computing nodes: rendering

node and physical computing node. Note the clas-

siﬁcation is conceptual, in our system, every com-

puting machine contains one pair of rendering node

and physical computing node at the same time. The

rendering node renders the scene within a given sub

frustum assigned by the controlling node, the physical

computing node performs the collision detection and

response within a spatial region assigned by the con-

trolling node. The image composition node receives

all resulting images from the computing nodes and

composes them into the ﬁnal result.

For each frame, the controlling node ﬁrst performs

task decomposition for rendering nodes and physi-

cal computing nodes respectively according to load

information received from the latest frame. Then it

collects the collision detection/response results from

each physical computing node and generates update

information which will then be sent back to each com-

puting machine along with the rendering and physi-

cal computing tasks. The physical computing nodes

and the rendering nodes perform their tasks. Differ-

ent rendering results are sent to the image compo-

sition node and the collision detection/response re-

sults are sent back to the controlling node along with

load information such as rendering time and primitive

counts.

Client1 Client2 Client3 ClientN

…

LAN

Controlling Server

LAN

Image Composition Machine

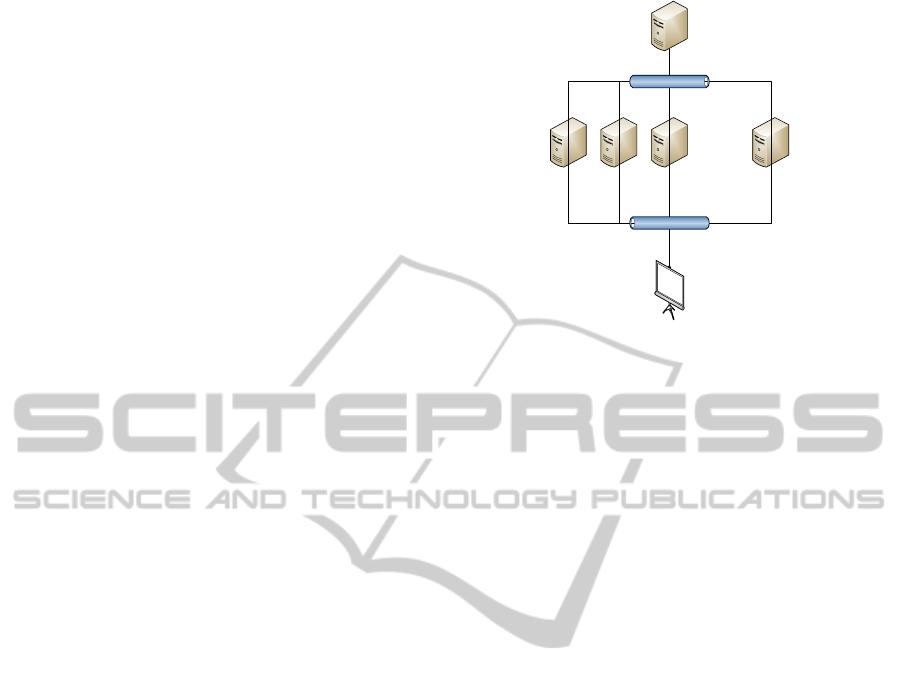

Figure 1: Topology structure of our sort-ﬁrst parallel ren-

dering system.

4 SCENE DATA

SYNCHRONIZATION

Alan Chalmers and Erik Reinhard (Chalmers and

Reinhard, 1998) pointed out that in a distributed sys-

tem, the option to maintain sequential consistency is

an expensive one. Therefore, the weak consistency

technique is proposed to improve the performance.

Using this technique, the local cache will stay incon-

sistent until the application process orders the data

manager to repair the inconsistency. We built our

scene data synchronization strategy on the base of

weak consistency. We use a frame-rate control strat-

egy to guarantee that each rendering node has ac-

cess to the updated data of moving objects in the

scene. To resolve the conﬂicts of octree update and

scene rendering in multi-thread environment, we use

a double-buffering approach. Finally, a strategy us-

ing overlapped octree region is proposed to avoid data

inconsistency during the collision detection/response

phase.

In parallel rendering system for dynamic scenes,

real-time communication of updated objects infor-

mation among each computing nodes is the key is-

sue. It is difﬁcult to send updated objects informa-

tion to the rendering node which will render them in

the next frame before the rendering node starts to ac-

quire the information. To solve this problem, we set

up two time systems in our prototype system. Ren-

dering nodes compute object’s transformation matrix

using interpolation from its rendering time t

, orig-

inal position, velocity and acceleration stored in an

object information list. The physical simulation time

is ahead of rendering time by φ seconds. Physical

computing nodes use this period of time to process

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

208

data pre-processing and objects information update.

φ adaptively changes during the rendering process,

guarantee that every rendering node can get access to

the updated data of moving objects.

If t

runs ahead of t

, data inconsistency of ob-

jects in different neighboring rendering nodes will

be caused. To prevent such situation, we propose a

duplex frame-rate control method, using both time

control and frame number synchronization. In our

method, physical computing nodes and rendering

nodes receive instructions from both the controlling

node and the image composition node to maintain a

smooth frame rate. As shown in ﬁgure 2, the simula-

tion and rendering starts together when all computing

nodes in the clusters have connected to both the con-

trolling node and the image composition node. Each

physical computing node sends different updated ob-

jects information to controlling node according to dif-

ferent task distribution. After the data processing,

the controlling node sends the information to object

information list on each rendering node. Each ren-

dering node renders different part of the result image

with an unique frame number according to its unique

task distribution, then sends the image to the compo-

sition node, when images from all rendering nodes

with the same frame number are received by the im-

age composition node, rendering nodes can start the

rendering of the next frame. A frame-rate control pro-

gram runs on each rendering node turns the rendering

thread to sleep when t

− t

< φ for a shot period of

time: (φ − (t

− t

)). This strategy minimizes the cou-

pling between rendering nodes and physical comput-

ing nodes and gives us the convenience of generat-

ing different task distribution for rendering nodes and

physical computing nodes.


Composition

Node

Controlling

Node

Computing

Nodes

Request

Permission of

Rendering Next Frame

Rendering Tasks and

Physical Computing Tasks

Sub Images

Simulation time and

rendering time too close,

Start Frame-rate Control

Figure 2: The Frame-Rate Control Strategy.

Due to the reason that our division of physical

computing node and rendering node is only concep-

tual, one machine with multi-core CPUs can be both

the physical computing node and the rendering node

to take the advantage of parallel power. If we use

one set of octree for both objects information update

and octree traverse for rendering, a read/write con-

ﬂict might be caused. We proposed a special double-

buffering approach as our memory optimization strat-

egy. We use two set of octrees pointed to a single data

set, one is in charge of objects information update and

the other is in charge of octree traverse for model ren-

dering. Two octrees switch their tasks every frame.

Thus we get a good balance between data delay and

data inconsistency. Experiments show that by using

this strategy, no read/write conﬂict is caused during

the running of the system.

According to the physical computing task distri-

bution, each physical computing node only processes

physical simulation in a sub-region of the whole

scene. Objects on the boundaries of the sub-region

may collide with objects from other sub-regions, due

to the missing of objects information from other

regions, such collisions would be mistakenly over-

looked by the physical computing node. The solution

is to use an overlapped octree region for each physical

computing node. Information of the objects in over-

lapped regions is stored in every octree node which

contains these regions. We add a data preprocessing

program at the controlling node to remove the redun-

dant collision information caused by overlapped oc-

tree regions.

5 IMPLEMENTATIONS AND

RESULTS

We implemented our prototype system using 18 com-

puters with Intel Core(TM)2 Quad CPU and Nvidia

GTX 260 GPU. One computer serves as the control-

ling node, one computer serves as the image compo-

sition node, all other 16 computers serve as both the

rendering node and the physical computing node.

We set up two dynamic scenes with automatic

camera tracking (see ﬁgure 3). The left one is the

explosion scene of 10,000 rigid objects and the left

one is 10,000 moving objects ﬂying among buildings

of Tianjin Jiefang Southern Road. To test the scal-

ability of our system, we run our system with 4, 8,

and 16 computing nodes respectively. From the ﬁg-

ure 4 we can conclude that our system has improved

the rendering performance with the increasing num-

ber of computing nodes used in the system. Though

with too many computing nodes, the overload from

network may balance out the performance improve-

ment.

Figure 5 shows the effectiveness of our scene data

synchronization strategy. Without our scene data syn-

chronization strategy, the right ﬁgure has an artifact in

the composition result caused by data inconsistency.

In the left ﬁgure, we use our scene data synchroniza-

tion to completely eliminate the scene data inconsis-

tency.

SCENE DATA SYNCHRONIZATION IN SORT-FIRST RENDERING SYSTEM FOR LARGE DYNAMIC SCENES

209

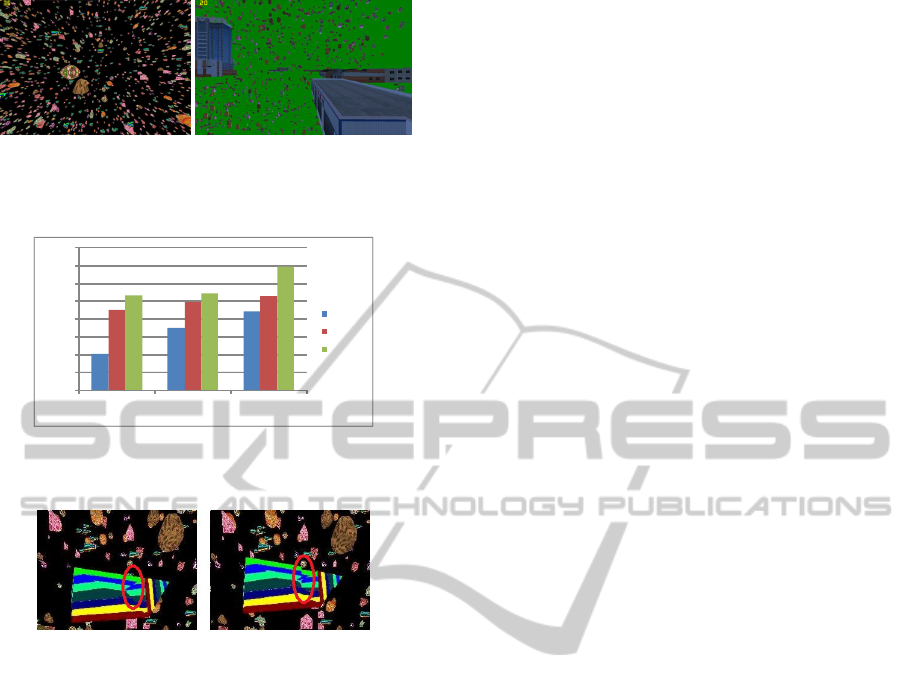

Figure 3: Left: Objects explosion scene (36 f ps, with

876,267 primitives); Right: City model scene (20 f ps, with

1,485,218 primitives).

4 Computing

Nodes

8 Computing

Nodes

16 Computing

Nodes

Frames Per Second

Min FPS

Avg FPS

Max FPS

Figure 4: FPS Comparison of our experimental scene with

4, 8, and 16 computing nodes.

Figure 5: Two frames(partial) at the same rendering time

with(left) and without(right) scene data synchronization

strategy.

6 CONCLUSIONS

We designed and implemented a cluster-based sort-

ﬁrst parallel rendering system which is capable of ren-

dering large dynamic scenes with massive data. We

focus on scene data synchronization strategy based

on the weak consistency technique. To improve the

overall performance of the cluster-based parallel ren-

dering system, we proposed a set of algorithms to ac-

quire scene data synchronization in the rendering of

dynamic scenes with massive data. Experiments show

that our system has good scalability and the strategies

we proposed can effectively keep the scene data con-

sistency with interactive frame rate.

For future work we are interested in improving the

performance of the parallel rendering system by trans-

porting some of the scene data synchronization, scene

management and load balancing algorithms to GPU

Clusters. Future cluster-based parallel rendering sys-

tems should support both static scenes and dynamic

scenes, they should also be a hybrid of cluster parallel

and GPU parallel.

REFERENCES

Chalmers, A. and Reinhard, E. (1998). Parallel and dis-

tributed photo-realistic rendering. In Philosophy of

Mind: Classical and Contemporary Readings. Oxford

and, pages 608–633. University Press.

Humphreys, G., Eldridge, M., Buck, I., Stoll, G., Everett,

M., and Hanrahan, P. (2001). Wiregl: a scalable

graphics system for clusters. In SIGGRAPH ’01: Pro-

ceedings of the 28th annual conference on Computer

graphics and interactive techniques, pages 129–140,

New York, NY, USA. ACM.

Humphreys, G., Houston, M., Ng, R., Frank, R., Ah-

ern, S., Kirchner, P. D., and Klosowski, J. T. (2002).

Chromium: a stream-processing framework for inter-

active rendering on clusters. In SIGGRAPH ’02: Pro-

ceedings of the 29th annual conference on Computer

graphics and interactive techniques, pages 693–702,

New York, NY, USA. ACM.

Molnar, S., Cox, M., Ellsworth, D., and Fuchs, H. (1994).

A sorting classiﬁcation of parallel rendering. IEEE

Computer Graphics and Applications, 14:23–32.

Mueller, C. (1995). The sort-ﬁrst rendering architecture for

high-performance graphics. In I3D ’95: Proceedings

of the 1995 symposium on Interactive 3D graphics,

pages 75–ff., New York, NY, USA. ACM.

Pajarola, R. (2008). Cluster parallel rendering. In SIG-

GRAPH Asia ’08: ACM SIGGRAPH ASIA 2008

courses, pages 1–12, New York, NY, USA. ACM.

Samanta, R., Funkhouser, T., Li, K., and Singh, J. P. (2000).

Hybrid sort-ﬁrst and sort-last parallel rendering with a

cluster of pcs. In HWWS ’00: Proceedings of the ACM

SIGGRAPH/EUROGRAPHICS workshop on Graph-

ics hardware, pages 97–108, New York, NY, USA.

ACM.

Samanta, R., Zheng, J., Funkhouser, T., Li, K., and Singh,

J. P. (1999). Load balancing for multi-projector ren-

dering systems. In HWWS ’99: Proceedings of

the ACM SIGGRAPH/EUROGRAPHICS workshop on

Graphics hardware, pages 107–116, New York, NY,

USA. ACM.

Staadt, O. G., Walker, J., Nuber, C., and Hamann, B. (2008).

A survey and performance analysis of software plat-

forms for interactive cluster-based multi-screen ren-

dering. In SIGGRAPH Asia ’08: ACM SIGGRAPH

ASIA 2008 courses, pages 1–10, New York, NY, USA.

ACM.

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

210
