TOWARDS A SECURE ADDRESS SPACE SEPARATION FOR LOW

POWER SENSOR NODES

Oliver Stecklina, Peter Langend¨orfer

IHP, Im Technologiepark 25, 15236 Frankfurt (Oder), Germany

Hannes Menzel

Distributed Systems/Operating Systems Group, Brandenburg University of Technology, Cottbus, Germany

Keywords:

Wireless sensor node, Microcontroller, Virtualization, Memory protection, Security, Isolation, Operating sys-

tem.

Abstract:

Wireless sensor networks are becoming more and more considered for application in real world systems such

as automation control, critical infrastructure protection and the like. By going wireless these systems are no

longer to be protected by fences and walls but need to take into account security of all their components. In

this paper we discuss two alternatives for implementing isolation on a Micro Controller Unit (MCU). The ﬁrst

one is a pure software solution, i.e. a Hypervisor which comes with a reasonable performance penalty when

applied for 16-bit RISC processor cores such as the TI MSP430. Since it is a pure software solution it can

be applied to existing MCUs without any hardware modiﬁcation. Our second approach is to use a Memory

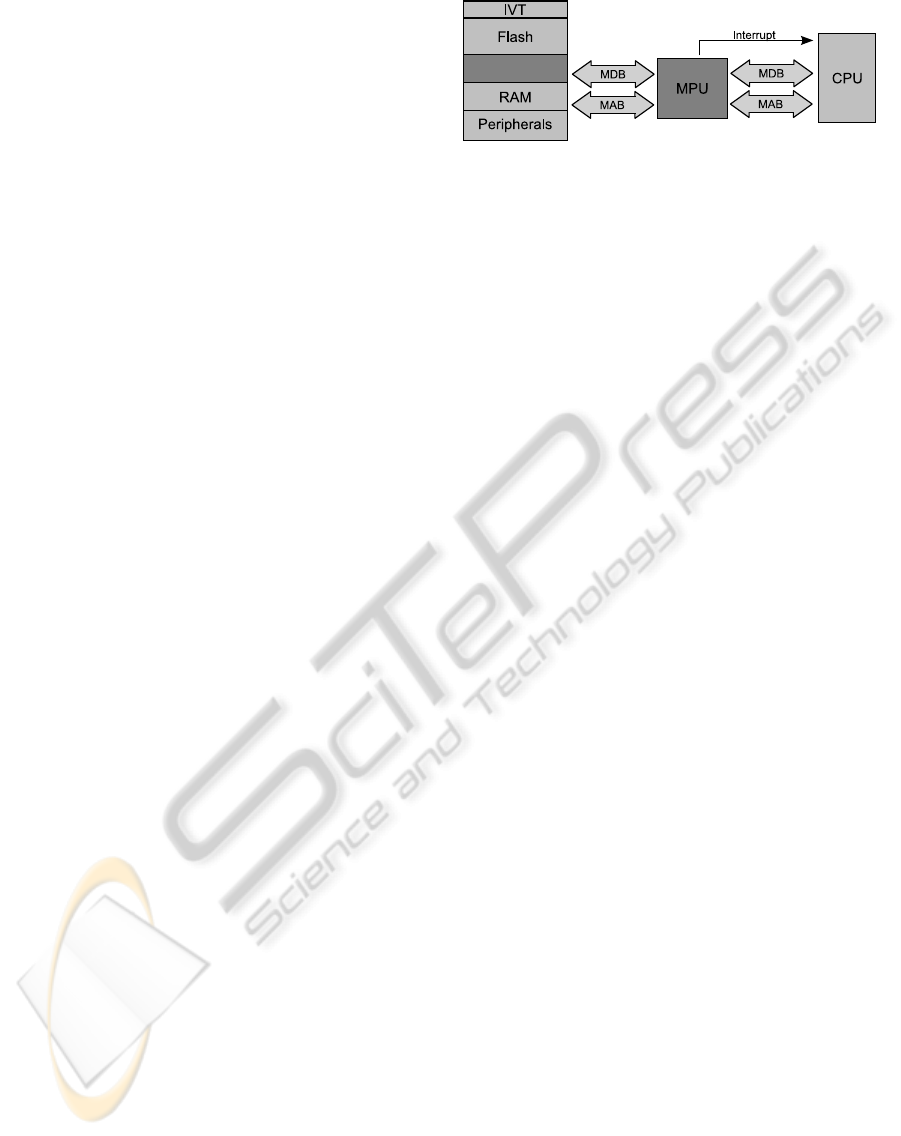

Protection Unit (MPU) realized in hardware, which is placed between the processing core and the resources of

the sensor node. The MPU especially supports ﬁne-grained isolation of the sensor node software and further

reduces the performance penalty compared to the pure software solution.

1 INTRODUCTION

Wireless Sensor Network (WSN)s are becoming

rapidly adapted for real life application scenarios e.g.

in the area of automation control or telemedicine.

This type of application scenarios require a high level

of dependability and safety. Both features cannot be

guaranteed if the security of the WSN cannot be en-

sured. While in the last years there was signiﬁcant

research effort on network security for WSNs only

very few approaches have been focusing on improv-

ing the security of individual nodes. Worm attacks

like Stuxnet have impressivly demonstrated that au-

tomation control systems are a potential target of ma-

licious attacks. In addition the work published in

(Francillon and Castelluccia, 2008) has shown that

sensor nodes can be compromised by harmful code

such as worms.

In the single address space of a low power MCU, a

simple code modiﬁcation can completely compromise

the system’s security. We argue that the enforcement

of high security levels is only possible by introduc-

ing a secure isolation of components. The code size

of a single component has to be as small as possible

to reduce the impact of a vulnerability. We present

two separation concepts for low power MCUs, which

allow the execution of software in isolated compart-

ments. Beyond this we present a performance assess-

ment that clearly indicates that both concepts are fea-

sible from a performance point of view. Our approach

inserts an additional layer between the software and

the resources of a sensor node. As a pure software so-

lution the isolation is enforcedby a Hypervisor,which

checks any memory access generated by the software

during its operation. Similar memory checks are done

by a MPU in our hardware-base approach. Further-

more the MPU supports a ﬁne-grained separation of

components to guarantee a high security level.

The rest of this paper is structured as follows.

Section 2 introduces vertical and horizontal isolation

techniques. These well known techniques stem form

resource rich computer systems, but in section 3 we

explain how these techniques can be used to improve

the security of sensor nodes. In Section 4 we review

some related work. The selected papers address a

secure and dependable isolation of software entities

512

Stecklina O., Langendörfer P. and Menzel H. (2011).

TOWARDS A SECURE ADDRESS SPACE SEPARATION FOR LOW POWER SENSOR NODES.

In Proceedings of the 1st International Conference on Pervasive and Embedded Computing and Communication Systems, pages 512-517

DOI: 10.5220/0003364505120517

 SciTePress

as well as state of the art virtualization concepts for

WSNs. Finally the paper concludes with a short sum-

mary.

2 ISOLATION CONCEPTS

Isolation in the context of operating systems denotes

the property that a certain software entity can access

only those resources, which are assigned to itself. By

the term software entity we mean a task, may be a

scheduled computation (Cha et al., 2007), or an event-

driven function (Levis et al., 2004), produced by a

hardware interrupt. To guarantee security isolation

has to ensure that the separation is still effective in

case that a software entity is running malicious code.

In this section we will introduce classic isolation con-

cepts. They are mainly realized and used on resource

rich systems, but known to be very effective.

2.1 Horizontal Isolation

To enforce a secure separation of processes distin-

guished capabilities are required. Commodity operat-

ing systems realize a horizontal separation by using a

supervisor and an user mode. While in the supervisor

mode all system resources are accessible, in the user

mode access is limited to resources assigned to a cer-

tain process. Resources assigned to a process running

in the user mode are managed by activities running in

the supervisor mode. User mode activities cannot ex-

tend or modify their own access and execution rights

for any of the system resources. This separation of

capabilities is known as a type of horizontal isolation.

A trend in modern systems is running multiple op-

erating systems on a single computer system by using

a Hypervisor. A Hypervisor is a layer between the

software and the resources of a modern computer. So,

it decouples the operating system from the hardware.

Hence, operating systems are running in a virtualized

environment. Hypervisor techniques can be differen-

tiated in full and para-virtualization. A full virtualiza-

tion does not require any modiﬁcation to a guest sys-

tem (Bellard, 2005), but without specialized hardware

features its implementation is difﬁcult and often inef-

ﬁcient. I contrast to this para-virtualization uses few

code modiﬁcations to prepare a guest system for vir-

tualization. The XEN system uses this approach for

running guest systems in a secure and efﬁcient man-

ner (Barham et al., 2003).

The virtualization concept supports a secure sepa-

ration of software components and is already used in

many application scenarios to setup high secure, de-

pendable and robust systems.

2.2 Vertical Isolation

Vertical isolation enforces that a process is capable to

operate unrestricted on its resources and in addition

that foreign resources are invisible to it or protected

form it. In a commodity operating systems this type

of isolation is realized by protection keys, paging or

segmentation.

The protection key scheme was introduced with

the IBM360 system (IBM, 1964). It partitions the

system memory in regions with a ﬁxed size and as-

signs a single key to every region. If a process gener-

ates a memory access the key currently stored in the

CPU status register is compared with the key assigned

to the memory region. If the two keys are equal the

access is granted otherwise a protection exception is

triggered. It is a quite simple and effective scheme,

but it does not support shared regions and does not

check memory accesses generated by an instruction

fetch. A more elaborated approach for address sepa-

ration is the use of translation schemes as done when

paging or segmentation are employed. These schemes

translate a virtual address into a physical one by using

translation maps. The concepts support shared mem-

ory and checks all memory accesses. But they require

memory for storing the translation maps and a priv-

ileged mode for modifying these maps. Thus, these

approaches cannot be used for on resource constraint

sensor nodes.

The effectivity of a vertical isolation depends on

the size of the isolated software entity. There are a

number of approaches for supporting programmers

to separate their applications. An approach to par-

tition an application into an untrusted and a trusted

section is proposed in (Kilpatrick, 2003). The exe-

cution of privileged operations and private data are

isolated from the untrusted part of the application.

For achieving more acceptance (Brumley and Song,

2004) proposes an automatic incorporation of such a

vertical isolation into source code. We are convinced

that these approaches are also suitable for improving

the security of a sensor node.

3 ADDRESS SPACE SEPARATION

ON SENSOR NODES

The address space of low power MCUs is shared

among all software entities and does not support any

isolation concepts. For safety aspects a secure isola-

tion can be realizable by using a type-safe program-

ming language or by employing type-checks at run-

time. But in the context of security, where malicious

code will not follow such a protection scheme, the en-

TOWARDS A SECURE ADDRESS SPACE SEPARATION FOR LOW POWER SENSOR NODES

513

forcement has to be more strict and effective. In this

section we will introduce two alternative horizontal

isolation concepts i.e. a MSP430 Virtualization Envi-

ronment for the MSP430 MCU and a Memory Protec-

tion Unit (MPU) - to enforce security on low power

sensor nodes.

3.1 MSP430 Virtualization

Environment

Virtualization is a pure software solution and decou-

ples the software from the physical hardware. Thus, it

enables a secure isolation of software entities. Due to

the simple architecture of low power MCUs we have

to emulate all guest operations in a full virtualization

environment. This is done by the Hypervisor that has

an exclusive access to the node’s hardware. The virtu-

alized software gets only a logical view onto the phys-

ical system resources.

The memory footprint and the performance of the

Hypervisor is deﬁned by the number and the complex-

ity of the emulated instruction set. We use a 16-bit

MSP430 from Texas Instruments (TI) as basic archi-

tecture. The MSP430 is widely used in various sen-

sor nodes and has a simple RISC architecture. Its in-

struction set consists of only 27 basic operations and

supports only two instruction formats. In contrast to

this Atmel’s ATmega has about 120 operations and

the SPARC V8, as a well-known RISC architecture,

supports 72 basic operations. Furthermore the sim-

ple von-Neumann architecture of the MSP430 sim-

pliﬁes relocating of a guest system. The MSP430 has

a static memory, in which resources are mapped to

ﬁxed places into the 16-bit address space. During

emulation the addressed resources can be efﬁciently

identiﬁed by substracting the relocation offset.

We use a MSP430X CPU (CPUX) for running the

Hypervisor. The CPUX is fully compatible to the 16-

bit version, but has an extended address space of 20-

bits. As shown in ﬁgure 1, we store the virtualized 16-

bit guest systems in the upper memory. The lower 16-

bit address space is used by the Hypervisor. The avail-

able memory is shared among the Hypervisor and the

guest systems. A guest system gets a dedicated mem-

ory section, where its stack and heap as well as its

virtualized CPU and peripheral registers are stored.

Any access to the memory and to peripheral registers

generated by the guest system is controlled by the Hy-

pervisor. IO resources are also emulated by the Hy-

pervisor. A guest access is passed via the peripheral

registers inside the guest memory.

The instruction emulation of our virtualization

environment has ﬁve execution stages: instructions

fetch (IF), instruction decode (ID), memory access

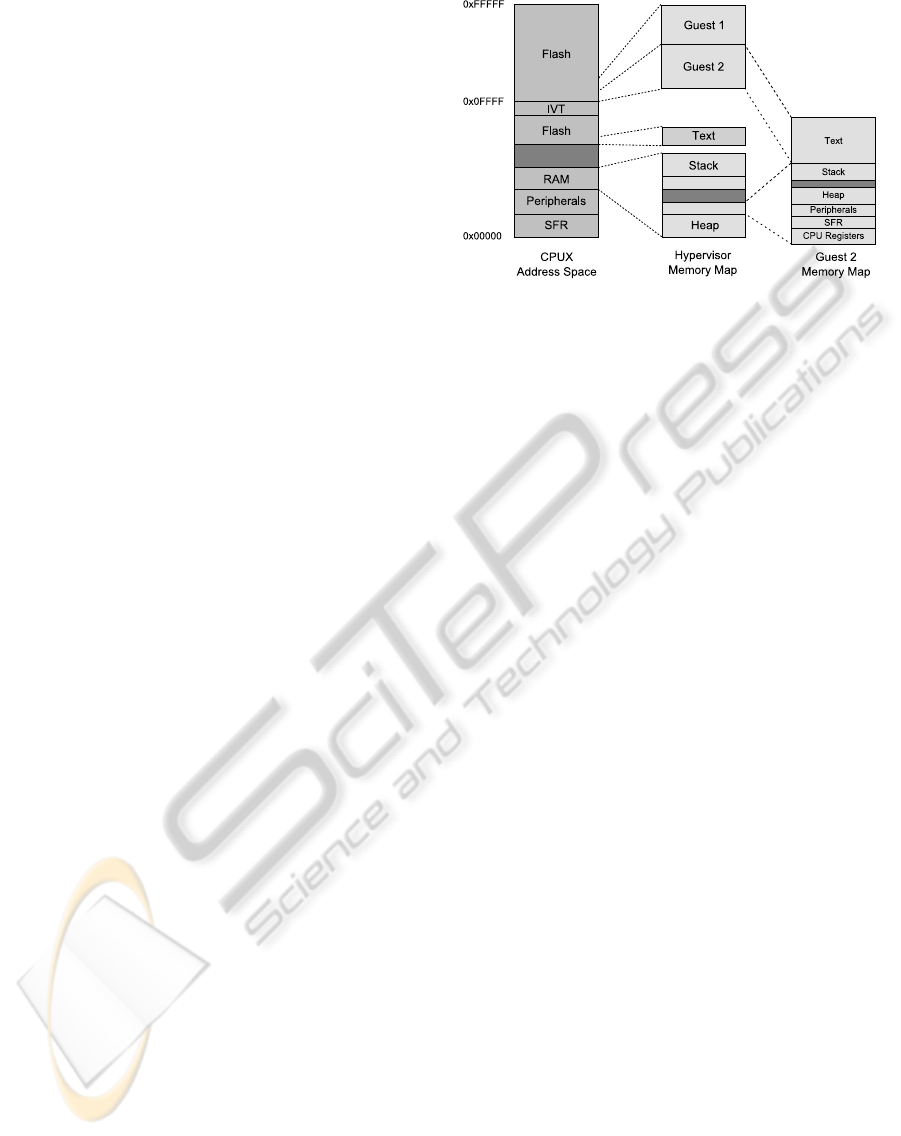

Figure 1: Address space of the MSP430 virtualization en-

vironment on a CPUX as host system. Guest systems are

stored in the upper memory and are mapped into lower 16-

bit address space by the Hypervisor at runtime.

(MEM), execution (EX) and write back (WB). The

memory is accessed in stages IF, MEM and WB. Be-

fore executing a stage the used addresses are checked

by the Hypervisor to ensure that they are located in the

guest’s memory region. In case of an access violation

the guest state has to be rolled back to the operation’s

start. Therefore all data will be stored in shadow reg-

isters and writing into CPU registers in the guest’s

memory is delayed until the address used in the WB

stage is validated by the Hypervisor. The ID and EX

stages can be executed by the Hypervisor without any

restriction. In case of an access violation a guest in-

terrupt is triggered. We use a non-maskable interrupt,

so that the guest system has to handle it or it will be

reseted.

Due to the emulation of all operations the perfor-

mance of the virtualized system is much slower than

the one of the native system. At the current develop-

ment state of our Hypervisor we can only provide a

performance estimation. We are convinced that our

emulation needs between two or six operations max-

imum per execution stage. The MSP430 needs up

to six clock cycles for executing a complex opera-

tion. That means that in a worst case a emulation

of a complete operation takes up to 180 clock cycles.

But we are sure that in the average case the overhead

will be much smaller, in particular when the number

of simple instruction is a signiﬁcant part of the em-

ulated code. Furthermore the execution speed can be

increased by using a higher clock rate for the host sys-

tem. Nevertheless on a CPUX the energy consump-

tion will be slightly higher.

Beyond optimization and higher clock rates the

performance can be signiﬁcantly improved by using

para-virtualization. Similar to QEMU small pieces of

guest code will be translated and stored in cache (Bel-

lard, 2005). While emulating the same code again the

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

514

cached block can be used. Due to the scarce memory

resources of a MCU the cache size is quite limited.

But this limitation can be neglected for sensor node

applications with good locality or by using external

memory as an additional code cache.

3.2 Hardware-based Fine-grained

Isolation of Software Entities

A virtualization environment makes primarily sense

for the execution of commodity operating systems.

But this coarse-grained separation is unpractically for

many sensor node applications and causes an inap-

propriate overhead. A ﬁne-grained separation with an

equal security levelbecomes feasible by extending the

MCU with a hardware MPU. By taking the charac-

teristics of sensor node applications into account the

design of such a MPU can be simpliﬁed.

We propose an MPU that is tailor made for sensor

nodes. It will support up to 16 EIDs and partitions the

memory in up to 128 segments with a variable size

with a minimal size of 2

and a maximal size of and

. An Entity IDentiﬁer (EID) is similar to a pro-

cess identiﬁer and is used to address the correspond-

ing software entity. In contrast to a ﬁxed segment size

a variable one increases the complexity of the corre-

sponding MPU, but allows for ﬁne-tuned isolation of

resources.

The maximal allowed number of EIDs and the

maximal allowed number of memory segments is a

trade-off between MPU complexity and system ﬂex-

ibility. The memory segments are described by seg-

ment descriptors, which are stored inside the MPU. A

descriptor contains the base address, the size and the

permission rights for its corresponding memory seg-

ment. The permission rights are described by the 4-bit

EID and the 3-bit access type (read, write, execute).

Furthermore the descriptor has a shared memory in-

dication bit. If this bit is set the EID points into an ar-

ray of group descriptors. A group descriptor deﬁnes a

group of software entities sharing a piece of memory.

The MPU, see ﬁgure 2, is designed as an external

component and is placed between the processing core

and the node’s resources. Any memory access gener-

ated by a software entity is passed by the Memory Ad-

dress Bus (MAB) to the MPU. Whenever the mem-

ory is accessed the MPU determines the addressed

memory segment and compares the access type and

the EID with access rights stored for this segment. If

they are equal the data is transfered via the Memory

Data Bus (MDB) to the processing core. In case of a

mismatch the access is denied and an access violation

interrupt is signaled to the processing core.

Our approach does not require a privileged level

Figure 2: Integration of a hardware MPU as a component

between the sensor node resources and the processing core.

Any memory access is validated by monitoring the MAB.

Access violations are signaled via an interrupt to the pro-

cessing core.

like a supervisor mode. All software entities operate

on the same privilege level. The current EID is stored

in a MPU register and can be modiﬁed via a mem-

ory mapped interface. Writing a new EID into the

ensure that in the next instruction a jump into a mem-

ory segment of the selected entity follows. Otherwise

the following instruction causes an access violation.

In addition to this we are supporting an unprivileged

two-step segment initialization process. In the ﬁrst

step, at compile time, the resources are assigned to

the entities and in a second step, at boot time, the seg-

ment descriptors are passed to the MPU via a mem-

ory mapped conﬁguration interface. To protect the

system against an unintended or malicious reconﬁgu-

ration this interface should be write protected for all

software entities after completing the boot process. A

looser conﬁguration is possible, but will reduce the

system’s security.

We realized the MPU in our co-simulation frame-

work. The framework consists of the MSPsim (Eriks-

son et al., 2008) plus a SystemC environment. The

MPU is implemented in SystemC and the MSPsim

operates as a stimuli generator. Our co-simulation

simpliﬁes the developing process, but operates on a

higher abstraction level. We can use it to get a be-

havioral description of the system to validate our ap-

proach. Furthermore we can estimate the required re-

sources and get a rough performance estimation. The

simulation results have shown that the most expensive

component of the MPU is the segment lookup logic.

Currently we analyze two different lookup strategies:

a time consuming sequential search and a power con-

suming parallel search. We have already prooved that

using a cache a segment lookup can be done in a sin-

gle clock cycle, so that the processing core has not to

be stalled.

Our MPU is designed to support small pieces of

memory to make a ﬁne-grained separation of soft-

ware possible. But such a setup requires the integra-

tion of various context switches among the isolated

compartments. We support this by a C-to-C source

TOWARDS A SECURE ADDRESS SPACE SEPARATION FOR LOW POWER SENSOR NODES

515

code translation process. We propose to implement a

translation scheme similar to the approach presented

in (Brumley and Song, 2004). In that scheme a pro-

grammer has to annotate security contexts by using C-

macros and the switching code and the Inter Process

Communication (IPC) is automatically generated by

an afterburner. Furthermore we propose here a con-

cept of an afterburner that can separate a well-deﬁned

software without any user annotation. The isolation

boundaries would be aligned at the object ﬁle inter-

face. A well-deﬁned software object is offering only

a minimized public interface and wraps the private

data. As shown in ﬁgure 3, the afterburner isolates

every object as a software entity and replaces a func-

tion call by a context switch and an IPC. This makes a

secure and ﬁne-grained separation of a complex soft-

ware system feasible.

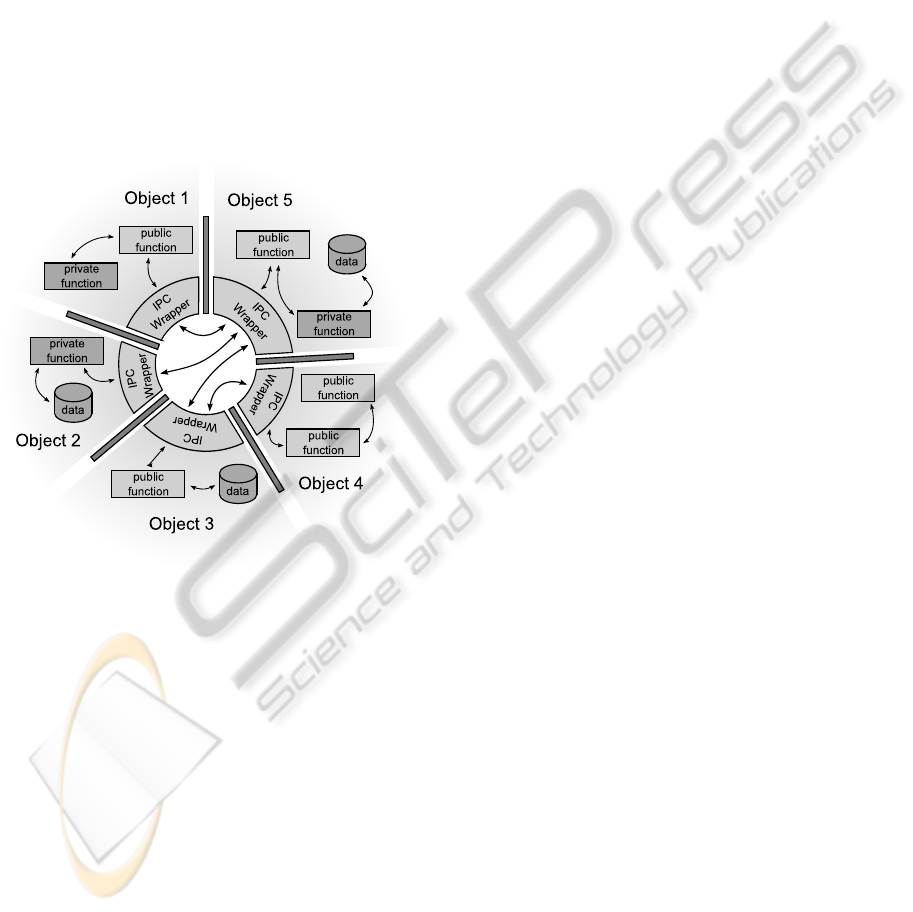

Figure 3: Fine-grained separation of software entities by en-

capsulating objects in different address spaces and replacing

a cross-object function call by a context switch and an IPC.

4 RELATED WORK

In this section we will discuss related work. Most

sensor node attacks exploit the simple node architec-

ture with its single address space. Due to the un-

restricted access to resources any successful attack

compromises the whole system. The lack of restric-

tions can be used to construct malicious code by itself.

The authors of (Francillon and Castelluccia, 2008)

demonstrates how a return oriented programming at-

tack can be used to annul the isolation of the data and

the code section of the Harvard architecture. They use

existing code and tricky reordering to execute an un-

controlled update process.

The authors of (Francillon et al., 2009) present a

approach to block any kind of stack smashing attacks

by a small performance penalty. But the solution re-

quires a hardware extension and does not check any

memory accesses. In (Lopriore, 2008) a pure hard-

ware approach is presented that checks memory ac-

cesses generated by a software entity. The proposed

solution partitions the node’s memory in blocks with a

ﬁxed size and is mainly aimed at conﬁning the conse-

quences of programming errors. The authors of (Ku-

mar et al., 2007) present a hardware extension for an

AVR MCU that modiﬁes the instruction set to check

memory accesses during store operations and to in-

tegrate return stack protection. The solution is also

focused on software dependability. Security aspects

are not addressed.

Virtualization for achieving a higher level of ro-

bustness, dependability and safety is used by various

approaches. In (Stilkerich et al., 2010) a JVM-based

solution is presented, in which the node’s software is

written in Java. KESO, an ahead-of-time compiler, is

used to generate the C code (Thomm et al., 2010). It

provides a software-based memory protection by sep-

arating software entities in isolated JVMs. A virtual

machine for TinyOS is presented in (Levis and Culler,

2002). It provides the execution of portable pieces of

code. The VM has a very small instruction set that

ensures a small memory footprint. But the solution

is focused on portability, security aspects are not ad-

dressed. A similar approach is presented in (M¨uller

et al., 2007). It uses an extensible byte-code language

that is Turing complete. Security aspects are also out

of the scope of that paper.

5 CONCLUSIONS

In this paper we have investigated the idea of using

horizontal isolation between software entities and re-

sources of resource restricted devices such as embed-

ded systems and sensor nodes. We have presented

two concepts for realizing such a separation. The

ﬁrst concept we investigated is the realization of a

Hypervisor for a MCU, which is implemented as an

intermediate layer between the processing core and

the resources of the device. We have done a high

level performance assessment which clearly indicates

the feasibility of this approach. i.e. the performance

penalty is about factor four in the worst case i.e. for

the most complex instructions. This approach is espe-

cially interesting since it requires no modiﬁcations on

the existing hardware and is fully transparent to the

programmer. The second concept requires an exten-

sion of a MCU, by a Memory Protection Unit (MPU).

This MPU is intercepting all memory accesses and

checks whether or not the currently executed task may

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

516

read/write from/to the speciﬁed address. We have

partly implemented our MPU in a co-simulation en-

vironment. There we could prove that the memory

access veriﬁcation can be done within a single clock

cycle, i.e. that this protection scheme can be applied

without performance penalty.

Beside the isolation of software entities their vir-

tualization can improve the robustness of the whole

system against denial of service attacks. The Hyper-

visor is fairly scheduling the virtualized systems so

that the affected instance can capture only a piece of

the available computing time. The attack is limited on

the affected virtualized system and in case of an dis-

tributed and well-deﬁned system design critical ser-

vices can be still available.

Our approach is still work in progress so that we

are not able to completely validate our concept and

providing sophisticated measurement results. But our

performance assessments clearly indicate that hori-

zontal isolation is a valid concept to improve the se-

curity and by that reliability of MCUs.

ACKNOWLEDGEMENTS

The research leading to these results has received

funding from the European Community’s Seventh

Framework Program (FP7/2007-2013) under grant

agreement No.258754.

REFERENCES

Barham, P., Dragovic, B., Fraser, K., Hand, S., Harris, T.,

Ho, A., Neugebauer, R., Pratt, I., and Warﬁeld, A.

(2003). Xen and the art of virtualization. In SOSP

’03: Proceedings of the nineteenth ACM symposium

on Operating systems principles, pages 164–177, New

York, NY, USA. ACM.

Bellard, F. (2005). Qemu, a fast and portable dynamic trans-

lator. In ATEC ’05: Proceedings of the annual confer-

ence on USENIX Annual Technical Conference, pages

41–41, Berkeley, CA, USA. USENIX Association.

Brumley, D. and Song, D. X. (2004). Privtrans: Automat-

ically partitioning programs for privilege separation.

In USENIX Security Symposium, pages 57–72.

Cha, H., Choi, S., Jung, I., Kim, H., Shin, H., Yoo, J.,

and Yoon, C. (2007). RETOS: resilient, expandable,

and threaded operating system for wireless sensor net-

works. In IPSN ’07: Proceedings of the 6th interna-

tional conference on Information processing in sen-

sor networks, pages 148–157, New York, NY, USA.

ACM.

Eriksson, J., Dunkels, A., Finne, N.,

Osterlind, F., Voigt,

T., and Tsiftes, N. (2008). Demo abstract: MSPsim

- an extensible simulator for MSP430-equipped sen-

sor boards. In Proceedings of the 5th European Con-

ference on Wireless Sensor Networks (EWSN 2008),

Bologna, Italy.

Francillon, A. and Castelluccia, C. (2008). Code injec-

tion attacks on harvard-architecture devices. In CCS

’08: Proceedings of the 15th ACM conference on

Computer and communications security, pages 15–26,

New York, NY, USA. ACM.

Francillon, A., Perito, D., and Castelluccia, C. (2009). De-

fending embedded systems against control ﬂow at-

tacks. In SecuCode ’09: Proceedings of the ﬁrst

ACMworkshop on Secure execution of untrusted code,

pages 19–26, New York, NY, USA. ACM.

IBM (1964). IBM system/360 principles of operation. IBM

Press.

Kilpatrick, D. (2003). Privman: A Library for Partitioning

Applications. In USENIX Annual Technical Confer-

ence, FREENIX Track, pages 273–284.

Kumar, R., Singhania, A., Castner, A., Kohler, E., and

Srivastava, M. (2007). A system for coarse grained

memory protection in tiny embedded processors. In

DAC ’07: Proceedings of the 44th annual Design Au-

tomation Conference, pages 218–223, New York, NY,

USA. ACM.

Levis, P. and Culler, D. (2002). Mat´e: a tiny virtual ma-

chine for sensor networks. In ASPLOS-X: Proceed-

ings of the 10th international conference on Archi-

tectural support for programming languages and op-

erating systems, pages 85–95, New York, NY, USA.

ACM.

Levis, P., Madden, S., Polastre, J., Szewczyk, R., Woo, A.,

Gay, D., Hill, J., Welsh, M., Brewer, E., and Culler,

D. (2004). TinyOS: An operating system for sensor

networks. In in Ambient Intelligence. Springer Verlag.

Lopriore, L. (2008). Hardware/Compiler Memory Protec-

tion in Sensor Nodes. International Journal of Com-

munications, Network and System Sciences, 1(3):235–

240.

M¨uller, R., Alonso, G., and Kossmann, D. (2007). A virtual

machine for sensor networks. In EuroSys ’07: Pro-

ceedings of the 2nd ACM SIGOPS/EuroSys European

Conference on Computer Systems 2007, pages 145–

158, New York, NY, USA. ACM.

Stilkerich, M., Lohmann, D., and Schr¨oder-Preikschat, W.

(2010). Memory protection at option. In CARS ’10:

Proceedings of the 1st Workshop on Critical Automo-

tive applications, pages 17–20, New York, NY, USA.

ACM.

Thomm, I., Stilkerich, M., Wawersich, C., and Schr¨oder-

Preikschat, W. (2010). Keso: an open-source multi-

jvm for deeply embedded systems. In Proceedings of

the 8th International Workshop on Java Technologies

for Real-Time and Embedded Systems, JTRES ’10,

pages 109–119, New York, NY, USA. ACM.

TOWARDS A SECURE ADDRESS SPACE SEPARATION FOR LOW POWER SENSOR NODES

517
