A COLLABORATIVE RESOURCE-BASED CLOUD

ARCHITECTURE FOR FREIGHT LOGISTICS

Bill Karakostas

Centre for HCI Design, School of Informatics, City University, London, U.K.

Takis Katsoulakos

Inlecom Ltd., Rotherfield, U.K.

Keywords: REST services, Web oriented architecture, Collaborative cloud, Single window.

Abstract: Collaborative Cloud is the set of Cloud infrastructure, processes and standards, that allows companies to

expose data and information as virtual resources, and manage them in collaboration with their partners and

customers. The concept of Collaborative Cloud is realised with technologies such as global identifiers, data

oriented services and content based messaging. The paper illustrates the application of Collaborative Cloud

to a shipping logistics business to government (B2G) scenario called Single Window.

1 INTRODUCTION

In today’s IT, the Cloud is better known as a

paradigm for utilising distributed computing

resources to meet elastic demand (Armbrust et al,

2010).

A less well understood application of Cloud is as

a tool for collaboration between organisations

through the sharing of Cloud based resources. The

Cloud, thanks to its elastic capacity allows

companies to share resources while controlling what

and with whom it will be shared, at the same time

without worrying about the up or down-scaling of

the shared resources availability, as this is taken care

by the Cloud infrastructure.

Sharing of resources first requires the ability to

locate them. Unlike with older Web based

collaboration approaches, in Cloud based

collaboration, shared resources do not ‘live’ in a

particular Web address or server, i.e. their location is

virtualised. Thus, resources need to be referenced in

a location independent way, using methods such as

universal identifiers (UUIDs) and symbolic URIS

that do not necessarily resolve to a network address .

In this paper we consider the problem of

independent entities (business organisations and

government authorities) that use the collaborative

Cloud to carry out business transactions. Previously,

such business to business (B2B) and business to

government (B2G) interactions were described using

sequences (or choreographies) of message

exchanges. Messages are typically described in an

XML based language such as OASIS ebXML, while

the choreographies of messages in a web service

language such as BPEL. Such approaches however,

requires tight integration between the two

transacting parties, in the sense that the different

parties not only must agree on the messages that will

be exchanged, but also on the sequence of such

exchanges.

Our approach has been influenced by web based

architectural concepts and styles such as WOA

(Hinchcliff, 2008) and REST (Fielding, 2000).

In the remaining of this paper we illustrate our

collaborative Cloud approach, by first introducing its

main concepts and features. Next, we demonstrate

the application of the approach in a transport

logistics Business to Government (B2G) scenario

called Single Window. Finally, we analyse the cost

and other benefits of the proposed approach and

identify areas for future research.

141

Karakostas B. and Katsoulakos T..

A COLLABORATIVE RESOURCE-BASED CLOUD ARCHITECTURE FOR FREIGHT LOGISTICS.

DOI: 10.5220/0003372301410144

In Proceedings of the 1st International Conference on Cloud Computing and Services Science (CLOSER-2011), pages 141-144

ISBN: 978-989-8425-52-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2 CONCEPTS AND FEATURES

OF THE COLLABORATIVE

CLOUD

Cloud has recently started to move from its original

purpose as a vehicle for sharing computing resources

to a platform for collaboration. For example, Cloud

as a technology for supply chain management has

started to emerge in many industries (Gardner,

2009).

The Collaborative Cloud shares its foundations

with other service computing paradigms such as

REST (Fielding, 2000) and WOA (Hinchcliff,

2008). Both REST and WOA put emphasis on

services as resources not as computation.

2.1 Accessing and Manipulating

Resources on the Cloud

To be uniquely identifiable, Cloud resources have

globally unique identifiers (UUIDs). A resource

factory is responsible for generating a UUID upon

request from a client to create a resource. Below is a

UUID for a business resource of type Shipping

Notice

ShippingNotice6E09886B-DC6E-439F-82D1-

7C83746352B

As proposed by the REST approach, resource

representations can be manipulated using standard

HTTP commands. In short, the HTTP set of

operations: PUT, DELETE, POST, GET is used for

retrieving and manipulating resource information.

Resources can be updated using HTTP POST

commands and created using PUT. The following

HTTP operation updates the property Estimated

Time of Arrival (ETA) for a resource of type

shipping notice with unique

identifier:

ShippingNotice6E09886B-DC6E-439F-82D1-

7C83746352B

POST ShippingNotice6E09886B-DC6E-439F-

82D1-7C83746352B?{“ETA” :

{“21/1/10:21:40”}

The above operation may require authorisation;

if the client was not authorised, a

‘not authorised

error (like HTTP 401) would be produced upon

issuing the above command.

3 APPLYING THE

COLLABORATIVE CLOUD TO

SINGLE WINDOW

Logistics companies are tasked with transporting

shipments (cargo) between locations by air, sea or

land. Movements of vehicles and cargo are restricted

by international and national rules and legislations

that specify the documents that need to be submitted

at the different legs of the journey depending on the

type of cargo, arrival and departure points and so on.

The single Window concept refers to the ability

of a logistics company to submit a single document

regarding a voyage, to a single authority that

receives information, either on paper or

electronically, disseminates this information to all

relevant governmental authorities, and co-ordinates

interactions. The traditional approach to the

International Trade Single Window has been to think

of it as a centralised IT application, capable of

accepting single submissions from industry users

and then distributing them to all Government

agencies concerned. This would be in conformance

with UN/CEFACT Recommendation 33 on Single

Windows (UN/CEFACT, 2004).

However, there are several practical problems

with this approach, especially in countries where

already many different systems are in existence. The

cost of integrating such systems is likely to be

greater than the resulting benefits. There are also

technical obstacles with the timing of submissions

relative to the availability of data, and the sheer

scope and transaction volumes. Also, reporting

regulations change quite frequently, making the

updating a centralised system a daunting task.

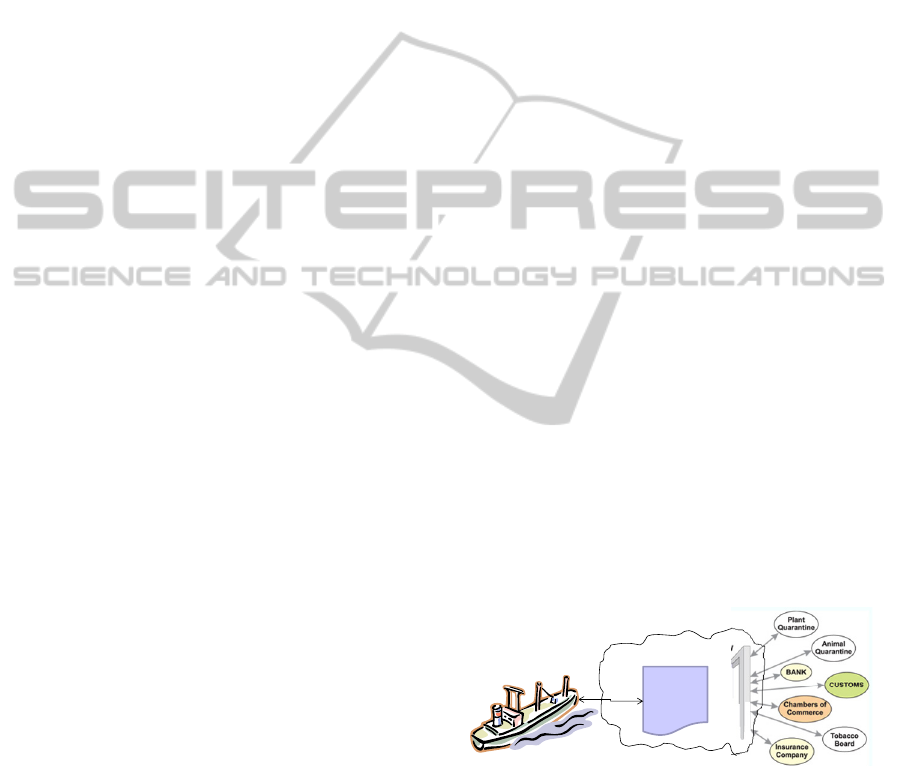

Figure 1: Cloud for single window concept.
