A CLOUD ARCHITECTURE FOR BIOINFORMATICS

WORKFLOWS

Hugo Saldanha, Edward Ribeiro, Maristela Holanda, Aleteia Araujo

Genaina Rodrigues, Maria Emilia Walter, Jo˜ao Carlos Setubal and Alberto D´avila

Department of Computer Science, University of Brasilia, Brasilia, Brazil

Virginia Bioinformatics Institute, Blacksburg, U.S.A.

Institute Oswaldo Cruz, FIOCRUZ, Rio de Janeiro, Brazil

Keywords:

Cloud architecture, Bioinformatics workﬂow, High-throughput genome sequencing.

Abstract:

Cloud computing has emerged as a promising platform for large scale data intensive scientiﬁc research, i.e.,

processing tasks that use hundreds of hours of CPU time and petabytes of data storage. Despite being object

of current research, efforts are mainly based on MapReduce in order to have processing performed in clouds.

This article describes the BioNimbus project, which aims to deﬁne an architecture and to create a framework

for easy and ﬂexible integration and support for distributed execution of bioinformatics tools in a cloud envi-

ronment, not only tied to the MapReduce paradigm. As a result, we leverage cloud elasticity, fault tolerance

and, at the same time, signiﬁcantly improve the storage capacity and execution time of bioinformatics tasks,

mainly of large scale genome sequencing projects.

1 INTRODUCTION

Cloud computing has emerged as a promising plat-

form for large scale data intensive computation. Its

ability to provide a ﬂexible and on-demand comput-

ing infrastructure with large scalability enables the

distribution of the processing among a large number

of computing nodes, that considerably reduces the ex-

ecution time due to task parallelization.

Certain types of scientiﬁc workﬂows need to

produce and analyze an enormous amount of data,

frequently with the addition of complex calcula-

tions. Bioinformatics area is a proeminent exam-

ple of such domain. Improvements in the tech-

niques of genome sequencing due to the new gen-

eration high-throughput sequencing machines (Illu-

mina, 2010) produce a large volume of data, order

gigabytes, that must be analyzed in a sequencing

project (Benson et al., 2009).

Cloud computing is interesting to both academia

and industry communities, mainly because it reduces

costs associated to the management of hardware and

software resources in an out-sourced and pay-per-use

basis. A cloud environment can successfully provide

resources for these bioinformatics requirements. In

fact, some projects, such as Cloudburst(Schatz, 2009)

and Crossbow (Langmead et al., 2009), have taken ad-

vantage of cloud computing environments. However,

these projects have only addressed parts of the bioin-

formatics workﬂow. A more generic and ﬂexible ap-

proach is needed if non trivial workﬂows are to be

applied to cloud environments.

In this context, this paper proposes a service ori-

ented cloud architecture to be used for bioinformatics

tasks, specially in workﬂows in the context of high-

throughput genome sequencing projects. We believe

that this environment can deal with the enormous

amount of data produced by those projects. Besides,

this work in progress has the objectives of improving

usability and to use commodity hardware. Therefore,

a large number of biologists and organizations, espe-

cially in developing countries, will be able to share

their computational resources and to easily use cloud-

based technology in their projects.

This paper is organized as follows. First, in Sec-

tion 2 we brieﬂy describe the characteristics of high-

throughput genome sequencing projects. Section 3

shows how cloud computing has been applied in such

projects. In Section 4 we propose a cloud-based ar-

chitecture for bioinformatics workﬂows, stressing our

contributions. Finally, in Section 5, we conclude and

point the next steps.

477

Saldanha H., Ribeiro E., Holanda M., Araujo A., Rodrigues G., Emilia Walter M., Carlos Setubal J. and Dávila A..

A CLOUD ARCHITECTURE FOR BIOINFORMATICS WORKFLOWS.

DOI: 10.5220/0003394004770483

In Proceedings of the 1st International Conference on Cloud Computing and Services Science (CLOSER-2011), pages 477-483

ISBN: 978-989-8425-52-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2 HIGH-THROUGHPUT

GENOME SEQUECING

PROJECTS

Sequencing is the task of discovering the bases (ade-

nine, cytosine, guanine and thymine) forming the

DNA (chromosomes) of one or more organisms.

Then, in a very general view, a genome sequencing

project is developed by a team composed of biolo-

gists, in the molecular biology laboratories, and com-

puter scientists, in computer laboratories, with the ob-

jective of reconstructing the DNA of the studied or-

ganism(s), since the automatic sequencing machines

can not sequence large fragments of DNA.

A bioinformatics workﬂow (pipeline) for large

scale genome sequence project can be divided into

two or three phases, depending on the objectives of

a particular project: assembly, mapping, and annota-

tion (Figure 1), where the output of each phase is the

input of the next one. A workﬂow can be constructed

with the phases: assembly and annotation, mapping

and annotation or assembly, mapping and annotation.

A large number of short sequences of DNA are

produced by the automatic sequencers and trans-

formed into strings having letters in the alphabet Σ =

{A, C, G, T}, corresponding to the four DNA bases.

This is done in the biology laboratories. The fol-

lowing tasks are done in the bioinformatics labora-

tory. The assembly phase groups fragments of DNA

sharing similar extremities, in order to reconstruct the

original DNA sequence. Files conataining contigs

(a group composed of two or more fragments repre-

sented by a sequence obtained by the consensus of

its fragments), singlets (fragments that could not be

grouped) and other auxiliary ﬁles are the output of this

phase. The mapping phase identiﬁes the localizations

of the short sequences inside a reference genome, and

possibly generates groups containing one or more se-

quences. The last step, annotation, aims to discover

biological functions to the groups constructed in the

previous phases, comparing its sequences with other

sequences already stores in databases of proteins and

non-coding RNAs, or try to identify unknown genes

and non-coding RNAs, among other functions.

DNA sequecing has seen great improvements

since the rise of new technologies developed by Illu-

mina (Illumina, 2010), Applied Biosystems (Biosys-

tems, 2010) and 454 Life Sciences (Sciences, 2010).

This next-generation of high-throughput sequenc-

ing machines is capable of sequencing millions of

short sequences of DNA called reads from the target

genome in a single run. Each of these reads contain

from 25 base-pairs up to hundreds of them.

The repetitive execution of a large volume of in-

terdependent tools, besides management tasks of data

ﬂow, turn workﬂows excessively complex and time

consuming. Management software of workﬂows has

the following operational requirements:

• High throughput: the system should be able

to handle large datasets, complex data analysis

workﬂows and large numbers of jobs requiring

long periods of processing time.

• Ease-of-use: well designed GUI that makes the

workﬂow easy and intuitive to use by non-experts

end-users.

• Flexibility: make it ease to include new and up-

dated tools in the workﬂow, so that the system

presents modularity and ﬂexibility;

• Modularity: it should be easy for the operator

to track changes in biological databases and its

affected parts of the workﬂow so that it can re-

execute only the affected parts with minimal re-

dundancy.

There are a number of workﬂow systems publicly

available as Cyrille2 (Cyr, 2008) and Taverna (Hull

et al., 2006). Each workﬂow provides complementary

sets of features, but to the best of our knowledge, none

of them is designed for a cloud-based environment.

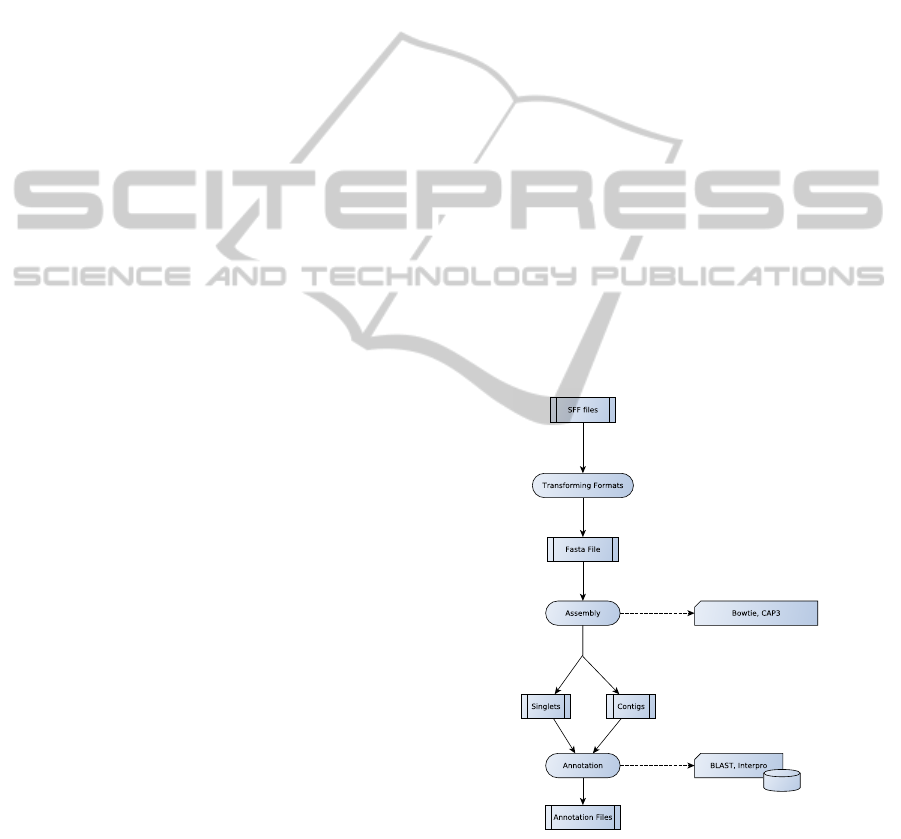

Figure 1: An example of a bioinformatics workﬂow with

assembly and annotation phases.

Now we discuss two examples to show the amount

of data that must be analysed in genomeprojects. (Fil-

ichkin et al., 2010) worked with approximately 271

million of 32 base-pairs reads sequenced using the Il-

lumina technology. They mapped the reads of a small

CLOSER 2011 - International Conference on Cloud Computing and Services Science

478

genome (about 120M base-pairs) to the Arabidopsis

thaliana genome, in order to identify alternativesplic-

ing. In order to ﬁnd alternative splicing in the hu-

man genome, two groups of researchers (Sultan et al.,

2008; Pan et al., 2008) mapped about 15 millions of

reads to the whole human genome, which consists of

approximately 3 Gb of information only in this map-

ping phase.

In summary, after the generation of enormous

amounts of sequence data by the automatic se-

quencers, these short reads must be analysed using

many different bioinformatics techniques that are ex-

tremely computer resources consuming, for example,

comparison of genomes of closely related species, de-

tection of genomic variations among human chromo-

somes, identiﬁcation of differentialy expressed genes

and ﬁnding new alternative splicing of genes.

3 CLOUD COMPUTING FOR

BIOINFORMATICS

In this section we ﬁrst present main characteristics of

cloud computing and after we describe related works

of clouds and bioinformatics.

3.1 Cloud Computing Technologies

A large cloud computing ecosystem consisting of

technologies and service providers creates a complex

environment that provides a plethora of choices for its

users. Thus, proposing an architecture for the cloud

computing environment that encompasses all possi-

bilities without losing its generality has imposed a

great deal of efforts to researchers.

The ﬁrst problem is the cloud deﬁnition itself. As

one tries to establish its own deﬁnition of cloud, of-

ten just one or few aspects are focused, making it

not complete for other cases. Gonzalez et al. (Gon-

zalez et al., 2009) try to address this situation, gather-

ing different deﬁnitions, in hope that commonalities

could be found. The conclusion is that there is not

any deﬁnition yet, but it is possible to characterize the

mininum requirements for a cloud environment: scal-

ability, pay-per-use utility model and virtualization.

Usually, the cloud computing environment is pre-

sented as a stack, where every layer encompasses a

type of service. There are three layers that are de-

ﬁned when a cloud stack: Infrastructure-as-a-Service

(IaaS), Platform-as-a-Service (PaaS) and Software-

as-a-Service (SaaS) (Gonzalez et al., 2009; Lenk

et al., 2009; Hayes, 2008).

A known programming model for cloud comput-

ing is the Map-Reduce (Dean and Ghemawat, 2010),

developed by Google. Microsoft Dryad is a gener-

alization of the Map-Reduce data ﬂow framework.

This model is ubiquitous and has been increasingly

used in the academic community and industry through

its most famous open source implementation, called

Hadoop (White, 2009). In this model, processing is

divided into two phases: map and reduce. During the

map phase, key-value pairs are computed from the in-

put ﬁles. Then, these data are shufﬂed, sorted and

automatically grouped by the key. Finally, in the re-

duce phase, all values grouped by a key are processed

together, producing an output. In spite of its popular-

ity, Hadoop’s Map-Reduce has a number of limiting

factors as the following:

• Map-Reduce model is inﬂexible in that all the pro-

cessing needs to be divided into two steps, e.g., a

Map and a Reduce step. The consequences of this

approach are two fold: when the processing is rel-

atively simple, one of the steps (usually reduce) is

unnecessary, but it still needs to be performed by

the framework generating more overhead and in-

creasing the total execution time. Secondly, com-

plex processing may require more than one Map-

Reduce job, and this further increases the com-

plexity of the task.

• Hadoop Map-Reduce cannot leverage hardware

heterogeneity and, therefore, make use of a lim-

ited set of task scheduling algorithms among com-

puting nodes;

• The Map-Reduce framework stores all its inter-

mediate results on disk, increasing the total exe-

cution time;

• The shufﬂe/sort step is always executed even

when it is not necessary;

• Map-Reduce is essentially a batch style model of

computing, in spite of current work that aims to

adapt it to interactive execution (Ekanayake et al.,

2010).

In spite of these limitations, Map-Reduce has a

simple distributed programming model and leverages

the use of commodity hardware so we hope to provide

a cloud architecture that can be able to seamless inte-

grate with Map-Reduce, but also ﬁll the gap left by

the Map-Reduce model of computation, that is, to al-

low more ﬂexible and efﬁcient models of distributed

execution.

3.2 Bioinformatics Cloud Applications

and Related Work

Applications like Cloudburst (Schatz, 2009) and

Crossbow (Langmead et al., 2009) are examples of

A CLOUD ARCHITECTURE FOR BIOINFORMATICS WORKFLOWS

479

bioinformatics tools that run in the cloud environ-

ment, using Hadoop’s Map-Reduce. Cloudburst is

a parallel Map-Reduce algorithm optimized for map-

ping high-throughputgenome sequence reads to other

reference genomes, using a variety of biological anal-

yses. Crossbow is a Hadoop-based software tool that

combines a sequence aligner and a SNP caller us-

ing the Map-Reduce model to parallelize the pro-

cessing of inputs in large scale. Both applications

are allowed to run either on a private cloud or on a

public cloud like Amazon’s Elastic Compute Cloud

(EC2) (Inc, 2008) computing service. Microsoft’s

Dryad and Azure were also applied for bioinformatics

applications (Qiu et al., 2009), signiﬁcantly increas-

ing their performance.

In this direction, some efforts have been made

to provide an easy-to-use architecture that facilitates

researchers to compose and execute applications in

bioinformatics workﬂows. One example is the inte-

gration (Wang et al., 2009) of Hadoop’s Map-Reduce

implementation with Kepler (Altintas et al., 2004), a

scientiﬁc workﬂow management system. The middle-

ware Hydra (Ogasawara et al., 2009) has been used to

achieve data parallelism in bioinformatics cloud ap-

plications coupled to provenance facilities (Coutinho

et al., 2010). Although these applications use the

cloud computing power, they are aimed at solving

speciﬁc bioinformatics problems, not trying to be

a complete solution to the applicability of complex

workﬂows in the cloud.

4 A CLOUD ARCHITECTURE

FOR BIOINFORMATICS

WORKFLOWS

Two of the examples cited in sub-section 3.2 are pri-

marily based on Hadoop to solve their speciﬁc tasks,

and this represents a trend in cloud based systems.

Cloud computing is an alternative feasible for other

problems in bioinformatics. In this section, we pro-

pose BioNimbus, a cloud architecture that allows the

parallel execution of algorithms and efﬁcient strate-

gies for storage of genome datasets. Our architecture

(Figure 2) occupies the PaaS layer of the cloud stack

and the architecture itself is composed by controllers

that allow the provisioning and execution of bioinfor-

matics applications in a distributed and ﬂexible way.

Our design is centered on a Service Oriented Ar-

chitecture (SOA) where each bioinformatics appli-

cation as BLAST (Altschul et al., 1990) or Inter-

pro (Mulder et al., 2007), for example, can be made

available as a web service. In fact, bioinformatics

workﬂows as Biomoby (Wilkinson and Links, 2002)

already use SOAP based web services for remote ex-

ecution of bioinformatics tools. But we opted for

RESTful Web Services (Richardson and Ruby, 2007)

because it eliminates much of the complexity of de-

veloping and maintaining distributed SOAP services

and providing more ﬂexible interfaces based on URL

and HTTP verbs as GET, PUT, DELETE and POST.

Each service will have a logical identiﬁer that is

mapped to one or more instances of services.

From top down, the ﬁrst layer is the entry point to

user access, and it provides both an interactive web

frontend, as well as a, RESTful endpoint so that this

layer allows the user to interact with the cloud ser-

vices from both an interactive or programmatic inter-

face. The second layer is the core of our architec-

ture, and it is composed of a set of controllers, namely

the Service Manager, Monitoring Manager, Job/Task

Manager, and Resource Manager. It is important to

note that we are designing the pluggable interfaces so

that more managers can be added to the core engine.

The roles of each manager are deﬁned as follows:

• Service Controller: responsible for service regis-

tration, conﬁguration, discovery, monitoring and

invocation;

• Job/Task Controller: responsible for instantiation

of jobs and tasks on worker machines;

• Provisioning Controller: responsible for the allo-

cation of idle machines and load balancing among

multiple instances of service, and increasing or

decreasing the number of instances of a particu-

lar service, as it becomes more or less requested;

• Monitoring Controller: responsible for collecting

statistics about the health and status of machines

in the cloud.

The next layer is the Infrastructure-as-a-Service

(IaaS), that includes the local execution of tools, as

well as, the Hadoop suite and virtualization environ-

ment where the software stack is executed.

The data generated by each instance will be per-

sisted in a distributed storage as HDFS or Cassan-

dra, which automatically replicates and balance data

across machines. Each manager has a embedded

HTTP server that allows the user to invoke actions

by the means of a RESTful API. One of the chal-

lenges of this architecture is to enable service compo-

sition in a quick and intuitive way, allowing the cre-

ation of optimized work in a data ﬂow processing in

large scale. Finally, each Instance Worker actually ex-

ecutes and monitors the individual executions of data

intensive tasks as running BLAST on a large dataset

in each single host. As with Map-Reduce and Dryad,

re-execution is used to cope with failures of individual

CLOSER 2011 - International Conference on Cloud Computing and Services Science

480

nodes. We also hope to enable the auto-provisioning

and composability of such tools in a intuitive manner.

Graphical User Interface

MAP−REDUCE

HADOOP

HBASE

HDFS

Local Service

PaaS

IaaS

Middleware

Job/Task Manager

Service Manager

(Peer−to−Peer)

Resource Manager

Monitoring Manager

Java Virtual Machine

Operating System

Virtual Machine

Figure 2: A cloud architecture for bioinformatics work-

ﬂows.

Our architecture is composed by a set of indepen-

dent components that communicate through the net-

work to provide and consume services. This poses

two main challenges: ﬁrstly, we need to avoid single

points of failure, so our architecture is based on Peer-

to-Peer(P2P) technology, particularly the use of an

implementation of the Kademlia (Stoica et al., 2003),

so that services can discover one another and route

messages in a totally decentralized way. Distributed

Hash Tables (DHTs) like Chord (Stoica et al., 2003)

and Kademlia (Maymounkov and Mazieres, 2002)

proved to be appropriate for the deployment of re-

silient cloud services, as evidenced by Amazon’s Dy-

namo system (DeCandia et al., 2007) and Apache

Cassandra (Lakshman and Malik, 2009). Another

reason to use a DHT is to enable the communication

between data centers, a requirement of modern cloud

computing environments. Our architecture should in-

tegrate seamless with Hadoop tools (HDFS, HBase,

Zookeeper and Map-Reduce) as well as with other

cloud-friendly storage systems like Apache Cassan-

dra, for example.

The following scenario details a possible use of

the proposed architecture as depicted in Figure 3:

1. The user logins on the web frontend;

2. The user performs a look up of the services to

be executed (Bowtie and BLAST) in the Service

Controller;

3. The user uploads a set of fasta ﬁles to the dis-

tributed ﬁle system;

4. The user dispatches the job where the ﬁrst task

runs Bowtie followed by the execution of BLAST

on the resulting ﬁles to the Job/Task Controller;

5. The Job/Task Controller validates both the input

format ﬁle and the service availability and addi-

tional parameters passed informed;

6. The Job/Task Controller contact the Provisioning

Controller that allocates a set of idle machines

according to load, CPU, and storage capacities,

scheduling a machine for each input ﬁle;

7. Each ﬁle is submitted to a single machine where it

is processed by Bowtie and the results are stored

on a distributed ﬁle system;

8. As soon as each output ﬁle is produced by Bowtie,

the BLAST is executed on the same machine so

that it can take advantage of data locality;

9. The results of Bowtie and BLAST execution are

stored on a distributed ﬁle system as well as log

and statistics ﬁles;

10. The user is able to inspect and retrieve the data

ﬁles produced by the execution of the two tools,

Bowtie and BLAST;

The execution ﬂow just illustrated enables to com-

pose and execute cloud services that may or may not

include map-reduce jobs in an interactiveand intuitive

manner. We believe that future cloud services should

enable this to be used in a bioinformatics context.

5 CONCLUSIONS

In this paper we described our current work towards

a distributed, resilient, cloud-based architecture to be

used in bioinformatics workﬂows. In spite of its

native integration with Hadoop’s Map-Reduce, we

are starting to explore other cloud based program-

ming models and how they can be inﬂuenced by

the unique requirements of large scale sequencing

genome projects.

The ultimate goal of this project is to enable the

management of bioinformatics tools in a cloud based

environment, but its architecture is being conceived

in such a way that different models in IaaS and PaaS

could be integrated to it in a straightforward manner.

We plan to investigate storage backends as Hadoop’s

HBase and Cassandra as better alternatives to store

biological data in a consistent, replicated, and fault

tolerant way in the cloud.

A CLOUD ARCHITECTURE FOR BIOINFORMATICS WORKFLOWS

481

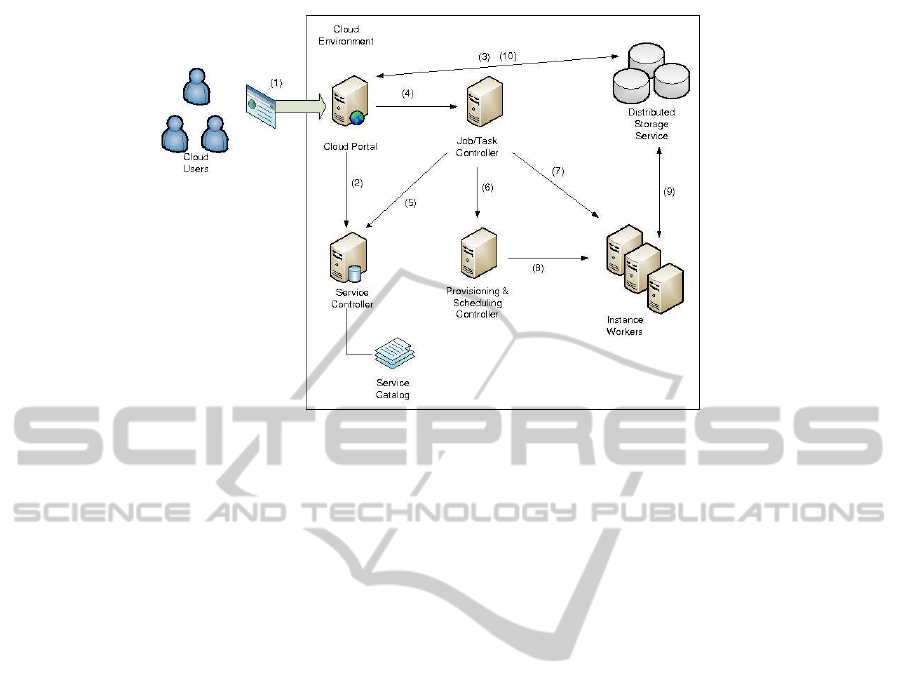

Figure 3: The ﬂow of execution of a bioinformatics application in the proposed cloud architecture.

Next, we plan to implement our BioNimbus cloud

using a Peer-to-Peer plaform based on Kademlia, pro-

pose an efﬁcient data storage for sequences produced

by high-throughput automatic sequencer and for the

results of the execution of Bowtie and BLAST. Be-

sides, we plan to investigate how workﬂows of bioin-

formatics could be efﬁciently used in our cloud.

REFERENCES

(2008). High-throughput bioinformatics with the Cyrille2

pipeline system. BMC bioinformatics, 9(1):96+.

Altintas, I., Berkley, C., Jaeger, E., Jones, M., Ludascher,

B., and Mock, S. (2004). Kepler: An extensible sys-

tem for design and execution of scientiﬁc workﬂows.

In Proceedings of the 16th International Conference

on Scientiﬁc and Statistical Database Management,

pages 423–, Washington, DC, USA. IEEE Computer

Society.

Altschul, S. F., Gish, W., Miller, W., Myers, E. W., and

Lipman, D. J. (1990). Basic local alignment search

tool. Journal of molecular biology, 215(3):403–410.

Benson, D. A., Karsch-Mizrachi, I., Lipman, D. J., Ostell,

J., and Sayers, E. W. (2009). GenBank. Nucleic acids

research, 37(Database issue):D26–31.

Biosystems, A. (2010). Applied Biosystems.

http://www.appliedbiosystems.com.

Coutinho, F., Ogasawara, E., de Oliveira, D., Braganholo,

V., Lima, A. A. B., D´avila, A. M. R., and Mattoso,

M. (2010). Data parallelism in bioinformatics work-

ﬂows using hydra. In Proceedings of the 19th ACM

International Symposium on High Performance Dis-

tributed Computing, HPDC ’10, pages 507–515, New

York, NY, USA. ACM.

Dean, J. and Ghemawat, S. (2010). Mapreduce: A ﬂexible

data processing tool. Communications of the ACM,

53(1):72–77.

DeCandia, G., Hastorun, D., Jampani, M., Kakulapati,

G., Lakshman, A., Pilchin, A., Sivasubramanian, S.,

Vosshall, P., and Vogels, W. (2007). Dynamo: Ama-

zon’s highly available key-value store. SIGOPS Oper.

Syst. Rev., 41(6):205–220.

Ekanayake, J., Li, H., Zhang, B., Gunarathne, T., Bae, S.-

H., Qiu, J., and Fox, G. (2010). Twister: A Runtime

for Iterative MapReduce.

Filichkin, S. A., Priest, H. D., Givan, S. A., Shen, R.,

Bryant, D. W., Fox, S. E., Wong, W., and Mockler,

T. C. (2010). Genome-wide mapping of alternative

splicing in arabidopsis thaliana. Genome Research,

20(1):45–58.

Gonzalez, L. M. V., Rodero-Merino, L., Caceres, J., and

Lindner, M. (2009). A break in the clouds: towards a

cloud deﬁnition. SIGCOMM Computer Communica-

tion Review, 39(1):50–55.

Hayes, B. (2008). Cloud computing. Communications of

the ACM, 51:9–11.

Hull, D., Wolstencroft, K., Stevens, R., Goble, C., Pocock,

M., Li, P., and Oinn, T. (2006). Taverna: a tool for

building and running workﬂows of services. Nucleic

Acids Research, 34(Web Server issue):729–732.

Illumina (2010). Illumina Inc. http://www.illumina.com.

Inc, A. (2008). Amazon Elastic Compute

Cloud (Amazon EC2). Amazon Inc.,

http://aws.amazon.com/ec2/#pricing.

Lakshman, A. and Malik, P. (2009). Cassandra: structured

storage system on a p2p network. In Proceedings of

the 28th ACM symposium on Principles of distributed

computing, PODC ’09, pages 5–5, New York, NY,

USA. ACM.

CLOSER 2011 - International Conference on Cloud Computing and Services Science

482

Langmead, B., Schatz, M. C., Lin, J., Pop, M., and

Salzberg, S. (2009). Searching for snps with cloud

computing. Genome Biology, 10(11):R134+.

Lenk, A., Klems, M., Nimis, J., Tai, S., and Sandholm,

T. (2009). What’s inside the cloud? an architectural

map of the cloud landscape. In Proceedings of the

2009 ICSE Workshop on Software Engineering Chal-

lenges of Cloud Computing, CLOUD ’09, pages 23–

31, Washington, DC, USA. IEEE Computer Society.

Maymounkov, P. and Mazieres, D. (2002). Kademlia: A

peer-to-peer information system based on the xor met-

ric. In Proceedings of the 1st International Workshop

on Peer-to Peer Systems, IPTPS ’02.

Mulder, N. J., Apweiler, R., Attwood, T. K., Bairoch, A.,

Bateman, A., Binns, D., Bork, P., Buillard, V., Cerutti,

L., Copley, R. R., Courcelle, E., Das, U., Daugh-

erty, L., Dibley, M., Finn, R. D., Fleischmann, W.,

Gough, J., Haft, D. H., Hulo, N., Hunter, S., Kahn, D.,

Kanapin, A., Kejariwal, A., Labarga, A., Langendijk-

Genevaux, P. S., Lonsdale, D., Lopez, R., Letunic, I.,

Madera, M., Maslen, J., McAnulla, C., McDowall, J.,

Mistry, J., Mitchell, A., Nikolskaya, A. N., Orchard,

S. E., Orengo, C. A., Petryszak, R., Selengut, J. D.,

Sigrist, C. J. A., Thomas, P. D., Valentin, F., Wil-

son, D., Wu, C. H., and Yeats, C. (2007). New de-

velopments in the interpro database. Nucleic Acids

Research, 35(Database-Issue):224–228.

Ogasawara, E., de Oliveira, D., Chirigati, F., Barbosa, C. E.,

Elias, R., Braganholo, V., Coutinho, A., and Mattoso,

M. (2009). Exploring many task computing in sci-

entiﬁc workﬂows. In Proceedings of the 2nd Work-

shop on Many-Task Computing on Grids and Super-

computers, MTAGS ’09, pages 2:1–2:10, New York,

NY, USA. ACM.

Pan, Q., Lee, O. S. L. J., Frey, B. J., and Blencowe,

B. J. (2008). Deep surveying of alternative

splicing complexity in the human transcriptome

by high-throughput sequencing. Nature Genetics,

40(12):1413–1415.

Qiu, X., Ekanayake, J., Beason, S., Gunarathne, T., Fox, G.,

Barga, R., and Gannon, D. (2009). Cloud technologies

for bioinformatics applications. In Proceedings of the

2nd Workshop on Many-Task Computing on Grids and

Supercomputers, MTAGS ’09, pages 6:1–6:10, New

York, NY, USA. ACM.

Richardson, L. and Ruby, S. (2007). Restful Web Services.

O’Reilly Media, Inc., 1 edition.

Schatz, M. C. (2009). Cloudburst: highly sensitive read

mapping with mapreduce. BMC Bioinformatics,

25(11):1363–1369.

Sciences, . L. (2010). 454 Life Sciences.

http://www.454.com.

Stoica, I., Morris, R., Liben-Nowell, D., Karger, D. R.,

Kaashoek, M. F., Dabek, F., and Balakrishnan, H.

(2003). Chord: a scalable peer-to-peer lookup proto-

col for internet applications. IEEE/ACM Trans. Netw.,

11(1):17–32.

Sultan, M., Schulz, M. H., Richard, H., Magen, A., Klin-

genhoff, A., Scherf, M., Seifert, M., Borodina, T.,

Soldatov, A., Schmidt, D. P. D., O’Keeffe, S., Haas,

S., Vingron, M., Lehrach, H., and Yaspo, M. L.

(2008). A global view of gene activity and alternative

splicing by deep sequencing of the human transcrip-

tome. Science, 321(5891):956–960.

Wang, J., Crawl, D., and Altintas, I. (2009). Kepler

+ hadoop: a general architecture facilitating data-

intensive applications in scientiﬁc workﬂow systems.

In Proceedings of the 4th Workshop on Workﬂows in

Support of Large-Scale Science, WORKS ’09, pages

12:1–12:8, New York, NY, USA. ACM.

White, T. (2009). Hadoop: The Deﬁnitive Guide. O’Reilly,

ﬁrst edition edition.

Wilkinson, M. D. and Links, M. (2002). BioMOBY: an

open source biological web services proposal. Brief-

ings in Bioinformatics, 3(4):331–341.

A CLOUD ARCHITECTURE FOR BIOINFORMATICS WORKFLOWS

483
