A DYNAMIC JOIN-LEAVE MULTI-PURPOSE SCHEME FOR RFID

INFRASTRUCTURE

Iuon-Chang Lin

Department of Management Information Systems, National Chung Hsing University, Taichung, Taiwan

Rui-Kun Luo, Shih-Chang Tsaur

Department of Computer Science and Information Engineering, Asia University, Taichung, Taiwan

Keywords:

RFID, Security, Dynamic join-leave, Multi-purpose.

Abstract:

Previously, a multi-purpose RFID tag needs one purpose stored one key in the tag and server, otherwise there

will be security issues. In this paper, we propose a scheme for multi-purpose RFID tags. In this scheme,

user can dynamic join-and-leave the purposes in multiple applications. Moreover, just authorized tags can be

accessed. Our scheme is capable of applying multi-purpose tags, and we just need to store one key in a tag.

Our approach will not cause the large computations of the database.

1 INTRODUCTION

In our daily life identiﬁcation is a very common thing.

For instance, the sale of things we will use the bar-

codes record number of goods. We pick up the money

use the smart cards record of personal data. Com-

pared with barcodesand smart cards, Radio frequency

identiﬁcation (RFID) can read a large number of tags

simultaneously. And RFID can read the far distance

object, does not to be in the line of vision.

RFID system contains three parts: tag, reader and

back-end server. Reader sends RF signals to the tag,

tag returns information for the reader sent to the host

computer to do the follow-up treatment. Tag radio

frequency identiﬁcation systems are the information

carriers, tag consist of antenna and chip. Pursuant

to tag the different power supply, tag can be for ac-

tive tag, passive tag, semi-passive tag. Active tag and

semi-passive tag containing a battery, passive tag is

not inside the battery. Tag based on the frequency can

be divided into low frequency (LF), high frequency

(HF), Ultra high frequency (UHF), microwave. RFID

reader and RFID tag through the antenna for wireless

communications, to tag identiﬁcation code and data

memory read or write.

General RFID usually only used in a functional. It

is only certiﬁed reader can interrogated tags. For ex-

ample, campus system only campus system’s reader

can be interrogated tags, transport system only trans-

port system’s reader can be interrogated tags, bank

system only bank system’s reader can be interrogated

tags. Campus System tag in the transport system

cannot be certiﬁed, since the tag system on campus

only campus system of authentication key (Weis et al.,

2004; Ohkubo et al., 2003; Molnar and Wagner, 2004;

Avoine et al., 2006; Feldhofer et al., 2004; Menezes

et al., 1997; Dimitriou, 2005). To store other system’s

key will have to increase memory capacity. Kaya et

al. presented by the use of public key approach (Kaya

et al., 2009), can solve the key problem of key too

many, use this approach tag only store one key. How-

ever, we found that the use of public key approach

will be the key issue of sharing. For example, the

tag will be use on campus system and transport sys-

tem. Campus systems and transport systems to share

their own private key to agreement a public key. This

would cause to reveal secrets. In our proposed, we

suggest a scheme that tag only storage the authorized

applications secret. Our approach will not cause the

large compute of the database. And we promise the

safety and the protection of.

2 KAYA ET AL.’S

MULTI-PURPOSE SCHEME

This section we will propose Kaya et al.’s multi-

purpose scheme and its weaknesses.

Nations Deﬁnition.

• Ticket: E

(RID + ReaderLocation +

537

Lin I., Luo R. and Tsaur S..

A DYNAMIC JOIN-LEAVE MULTI-PURPOSE SCHEME FOR RFID INFRASTRUCTURE.

DOI: 10.5220/0003404205370540

In Proceedings of the 1st International Conference on Pervasive and Embedded Computing and Communication Systems (LOCSUE-2011), pages

537-540

ISBN: 978-989-8425-48-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

TicketIssuanceTime).

• Nonce: A random number serves as a challenge

• Response: E

(Nonce).

• Credential: E

pub

(Ticket + TID + Nonce +

(Nonce)).

• RID: Reader ID.

• TID: Tag ID.

• S: A secret key used by back-end server to gener-

ate (encrypt) and decrypt Ticket.

• R: Key shared between the reader and the back-

end server.

• pub: Public key of back-end server.

• priv: Private key of back-end server.

Tag

Reader

Locaon

Server

Backend

Server

3. Ticket

1.Ticket Request

5. Response 4. Nonce6. Credential

2. Ticket

7. Credential

8. Tag Data

Secure Internetwork

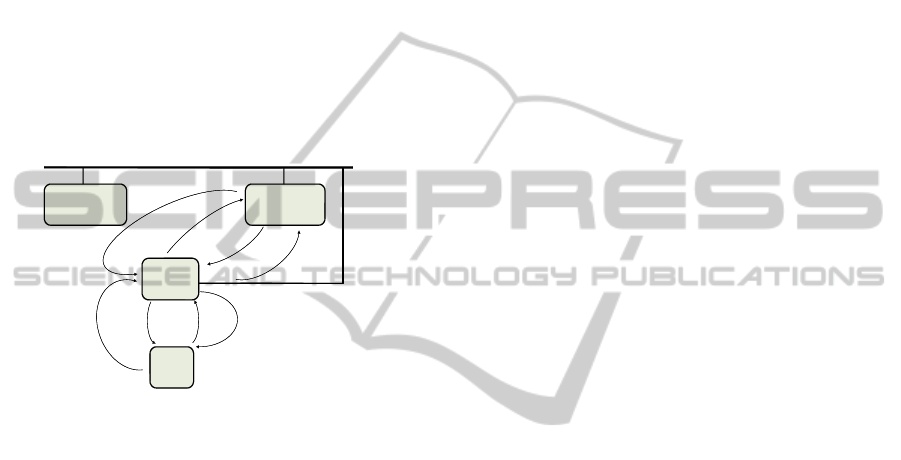

Figure 1: Kaya et al.’s scheme for multi-purpose architec-

ture.

Communications Steps.

Step 1 : Request Ticket (Reader → Back-end server)

: First reader sends a Ticket requests for back-

end server.

Step 2 : Ticket (Back-end server → Reader) : Back-

end server sends a message Ticket to reader.

Step 3 : Ticket (Reader → Tag) : Reader sends

Ticket to tag.

Step 4 : Nonce (Tag → Reader) : Tag receives

the Ticket from reader and sends a Nonce to

reader.

Step 5 : Response (Reader → Tag) : Reader receives

the Nonce and then sends a response to tag.

Step 6 : Credential (Tag → Reader) : Tag receives

Response and encrypts its Ticket , TID. Then

tag sends Credential to the reader.

Step 7 : Credential (Reader → Back-end server) :

Reader sends Credential to back-end server.

Step 8 : Tag data (Back-end server → Reader) :

Back-end server receives Credential and ver-

iﬁes Ticket. If Ticket is authorized by server,

server sends the tag data to reader.

Cryptographic Operations Performed by the

Back-end Server of the Protocol.

Step 1 : D

priv

(Credential) = D

priv

pub

(Ticket +

TID + Nonce + E

(Nonce))) = Ticket +

TID+ Nonce+ E

(Nonce).

Step 2 : D

(Ticket) = D

(RID +

ReaderLocation + TicketIssuanceTime)) =

RID + ReaderLocation +

TicketIssuanceTime.

Step 3 : Look for R from the server and check if

(Nonce)) == Nonce obtained in Step

However, the scheme proposed by Kaya et al. and

previous other authors scheme have a weaknesses.

Their proposed scheme cannot dynamically join and

leave. In Kaya et al. scheme, they assume the back-

end servers are trusted in their model, and the back-

end servers share the same public key and private key.

This was not scalable. If an attacker adds this groups

to obtain the private key, the system will be collapse.

All message can be decrypted. Otherwise, if back-

end servers store different private keys. When a new

purpose is added to the groups, in the public key en-

cryption algorithms all of the public key must be re-

newed. Tags should not select the application the tags

want to add. Since a new application join and tags use

new public key encrypt messages. All of the back-end

servers also decrypt messages.

3 OUR PROPOSED SCHEME

This section we will propose a dynamic join and leave

scheme for multi-purpose RFID infrastructure.

Abbreviations Symbols Deﬁnition.

• LS : Location server.

• BS : Back-end server.

• CA : Certiﬁcation authority.

• R : Reader.

• T : Tag.

Nations Deﬁnition.

• Ticket: E

(RID + ReaderLocation +

TicketIssuanceTime).

• Nonce: A random number serves as a chal-

lenge.

• Response: E

(Nonce).

• Credential: E

(Ticket + TID + Nonce +

(Nonce)).

• RID: Reader ID.

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

538

• TID: Tag ID.

• S: A secret key used by back-end server to

generate (encrypt) and decrypt Ticket.

• K: A secret key used by tags to generate (en-

crypt) and decrypt Credential.

• R: Key shared between the reader and the

server.

• X: A random number.

• r: A random number.

• B: Registers number used by tags, store in tags

and CA.

• H(∗): Hash function.

• Key generation: CA registers their purposes

tag. K and r to encrypt B. B using function

generated, B = ΠH(K

k r), where B, r, are

stored in tag.

• Some step at the tag: Tag selects a key K. U

generates, U = B × X + K. Then sends U,

Credential, R to the back-end server to de-

crypt.

• Authentication: Back-end server, using the

private key as long as the K declassiﬁed

(Credential), veriﬁes the accuracy of

Credential on the line.

Tag

Reader

Server

Locaon

Server

Backend

Server

 Register Tag

 Key to the Registration

3. Ticket

1.Ticket Request

5. Response 4. Nonce6. Credential,

U, r

2. Ticket

7. Credential,

U, r

8. Tag Data

Secure Internetwork

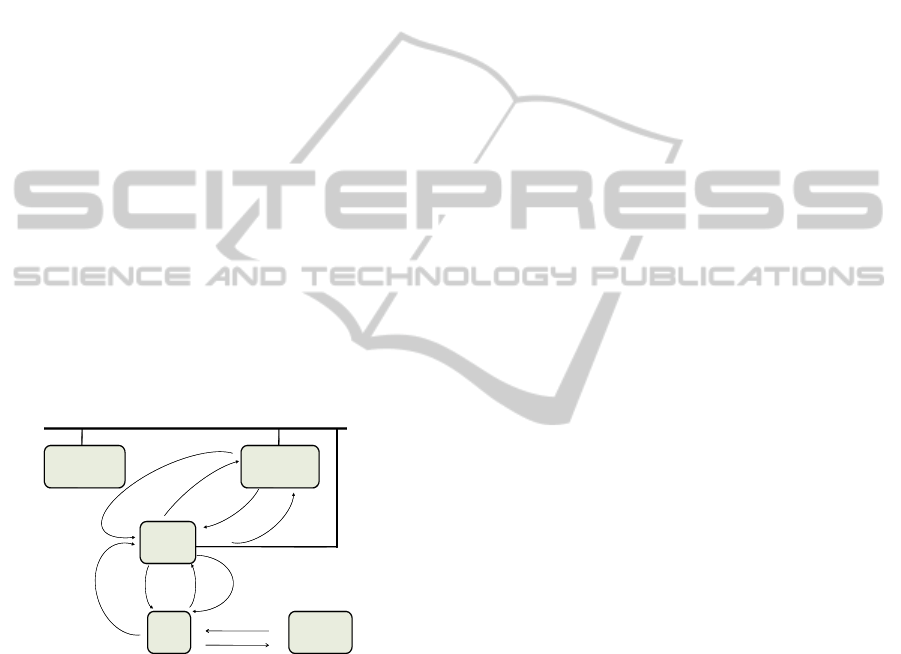

Figure 2: Our scheme.

Assumptions.

The protocol assumes that there are trusted location

servers that can either track the readers or locate them

when asked by the back-end server. Tag stores B, r.

Reader stores R. back-end server stores S, R, K.

Before communications, tag must be registered

with the CA. CA would tag purpose for registration

to the corresponding purpose of the communications

group owned password B.

Communications Step.

Step 1 : Request Ticket (R → BS) : First reader sends

a Ticket request to back-end server.

Step 2 : Ticket (BS → R) : Back-end server sends a

message Ticket to reader.

Step 3 : Ticket (R → T) : Reader sends Ticket to tag.

Step 4 : Nonce (T → R) : Tag receives the Ticket

from reader and sends a Nonce to reader.

Step 5 : Response (R → T) : Reader receives the

Nonce and then responds to tag.

Step 6 : Credential (T → R) : Tag receives the

Response and use K encrypts Ticket, TID,

Nonce, E

(Nonce) as Credential. Then tag

sends Credential, U, r to the reader.

Step 7 : Credential (R → BS) : Reader sends

Credential, U, r to back-end server.

Step 8 : Tag data (BS → R) : Back-end server re-

ceives Credential, U, r and computes K = U

mod H(K

k r) to verify K. If K is autho-

rized by back-end server, then back-end server

sends tag data to reader.

Cryptographic Operations Performed by the

Back-end Server of the Protocol.

Step 1 : Compute K = U mod H(K

k r).

Step 2 : D

(Credential) =D

(Ticket + TID +

Nonce+E

(Nonce))) = Ticket + TID +

Nonce+E

(Nonce).

Step 3 : D

(Ticket) =D

(RID +

ReaderLocation + TicketIssuanceTime)) =

RID + ReaderLocation +

TicketIssuanceTime.

Step 4 : Look for R from the server and check if

(Nonce)) == Nonce obtained in Step

4 DISCUSSIONS

In this section, we analyze security of our protocol

against impersonation, replay, tracking, and Dynamic

Join-Leave.

4.1 Impersonation Attacks

A security RFID architecture should not have the fake

reader or tag. A malicious reader cannot imperson-

ate another reader and get access to information per-

taining to a tag, since there is a secure and authen-

ticated channel between the reader and the back-end

server. And the impersonate tags cannot authenticate

the reader and the back-end server, since no tag id

is sent in clear text. Tag id is encrypted within the

Credential with symmetric key of the CA.

A DYNAMIC JOIN-LEAVE MULTI-PURPOSE SCHEME FOR RFID INFRASTRUCTURE

539

4.2 Replay Attacks

A reader can use the same Credential repeatedly

authentication until the measurement time expires.

Ways to prevent the replay attacks are measurement

time of location that serves as a timestamp and ran-

dom nonce values that change in every tag query.

In the proposed scheme the reader id contain in

Credential. The illegitimate reader cannot eavesdrop

and use a credential intended for another reader. And

the channels between reader and back-end server are

secure, only legitimate reader can authenticate.

4.3 Traceability

If tag id is sent in clear text or the tag responds to the

reader’s queries always in the same way, an attacker

can track the tags by the message. In the proposed

scheme the tag id is encrypted in Credential. The tag

id and the credential are both with random nonce. So

tag id and the responds to the reader’s queries change

in every time. Reader cannot track the tags by the

message.

4.4 Dynamic Join-leave

The schemes proposed by Kaya et al. and previ-

ous other author have a weaknesses. Their proposed

scheme cannot dynamically join and leave. In Kaya

et al. scheme, they assume the back-end servers are

trusted in their model, and the back-end servers share

the same public key and private key. This was not

scalable. If an attacker is added to this groups to ob-

tain the private key, the system will collapse. All mes-

sages can be decrypted. Otherwise, back-end servers

store different private keys. When a new purpose is

added to the groups, in the public key encryption al-

gorithms all of the public key must be renewed. Tags

should not select the application the tags want to add.

Since a new application joins and tags use new a pub-

lic key to encrypt messages. All of the back-end

servers also decrypt messages.

However, in our scheme. We use mod function to

solve key management of Kaya et al.’s scheme. Our

scheme use CA the trust server register all tags keys

U. When server will authentication a tag, and server

computes K = U mod H(K

k r) to verify K. If K is

authorized by back-end server, then back-end server

sends tag data to reader. So in our scheme, authenti-

cation key can dynamically join-and-leave.

The security comparisons among Kaya et al.’s

scheme and our scheme are listed in Table 1.

Table 1: The security scheme comparison among Kaya et

al.

Security Kaya et al.’s scheme Our scheme

Impersonation attacks  

Replay attacks  

Traceability  

Dynamic Join-Leave × 

5 CONCLUSIONS

The proposed scheme presents an application on

multi-purpose scheme. In accordance with the needs

of tag dynamically add and remove different applica-

tions. While the U.S. may lead to, other than Kaya et

al.’s scheme more computing schemes, however, our

scheme can solve the disadvantage that the user can

not add and remove. Furthermore, our scheme is also

able to satisfy all the security requirements of Kaya et

al.’s scheme.

REFERENCES

Avoine, G., Dysli, E., and Oechslin, P., 2006. Reducing

time complexity in RFID systems. Lecture Notes in

Computer Science - Selected Areas in Cryptography

2006, 3897:291–306.

Dimitriou, T., 2005. A lightweight RFID protocol to pro-

tect against traceability and cloning attacks. In Pro-

ceedings of IEEE First International Conference on

Security and Privacy for Emerging Areas in Commu-

nications Networks, pages 59–66, Athens, Greece.

Feldhofer, M., Dominikus, S., and Wolkerstorfer, J., 2004.

Strong authentication for RFID systems using the

AES algorithm. Lecture Notes in Computer Science

- Cryptographic Hardware and Embedded Systems -

CHES 2004, 3156:357–370.

Kaya, S. V., Savas¸, E., Levi, A., and Erc¸etin, O., 2009.

Public key cryptography based privacy preserving

multi-context RFID infrastructure. Ad Hoc Networks,

7:136–152.

Menezes, A., van Oorschot, P., and Vanstone, S., 1997.

Handbook of Applied Cryptography.

Molnar, D. and Wagner, D., 2004. Privacy and security

in library RFID: Issues, practices, and architectures.

In Proceedings of 11th ACM conference on Computer

and communications security, pages 210–219, Wash-

ington, DC, USA.

Ohkubo, M., Suzuki, K., and Kinoshita, S., 2003. Cryp-

tographic approach to privacy-friendly tags. In RFID

Privacy Workshop.

Weis, S. A., Sarma, S. E., Rivest, R. L., and Engels, D. W.,

2004. Security and privacy, aspects of low-cost ra-

dio frequency identiﬁcation systems. Lecture Notes in

Computer Science - Security in Pervasive Computing

2003, 2802:50–59.

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

540
