SEMANTICALLY ENHANCING MULTIMEDIA

DATA WAREHOUSES

Using Ontologies as Part of the Metadata

Andrei Vanea and Rodica Potolea

Technical University of Cluj-Napoca, Computer Science Department, 28 Gh. Baritiu Street, Cluj-Napoca, Romania

Keywords: Data warehouse, Semantic, Metadata, Ontology, Business intelligence.

Abstract: Data warehouses are versatile systems capable of storing and processing large quantities of data. They are

most suited for aggregating and reporting. The data managed by these systems vary from simple, numeric

data, to more complex, multimedia data. One of the domains in which multimedia data is intensively

produced is medicine. We present a method for semantically enhancing the metadata stored in a medical

multimedia data warehouse. This semantically rich environment will gain in autonomy, reducing the

dependence on human intervention to resolve new, unforeseen queries. Furthermore, the use of the semantic

relations defined in the ontology allows the system to speed up the execution of a query, by computing the

results of new, unforeseen queries, from the fact data already stored in the data warehouse.

1 INTRODUCTION

Large quantities of data are being produced daily in

every domain, creating storage problems for

business and organizations. A related issue is the

time needed to process the data stored.

Data warehouses are systems mostly used to

structure, store and process historical data. The data

is usually numerical (Vassiliadis, 1998), symbolic

(textual) (Diday, 2003) and recently multimedia

(Mbarki, 2004). A particularity of the last decade is

the significant increase of quantity and quality of

multimedia data. As a result, specific issues related

to storing, processing and knowledge extraction

from such data have arisen. Data warehouses

provide preprocessed and aggregated data. They also

store a large amount of metadata (Object

Management Group, 2003), which is used to offer

information on the system and data.

In this article we present a method for

semantically enhancing the metadata repository, by

using an ontology based technique. We consider that

adding semantics to the data warehouse provides a

higher level of independence to the system. Thus it

will be able to automatically solve tasks that are

usually the responsibility of the data warehouse

administrator. Such tasks mainly refer to the user

queries, which are new to the system (i.e. they have

not been considered at the design time).

The rest of the article is organized as follows. In

Section 2 we briefly present similar intelligent

systems, which deal with data management and

information extraction. Section 3 describes the

general system structure, as well as our particular

implementation and the data handled by it. Section 4

presents the way in which we used the semantic

metadata. In Section 5 we present experimental

results and, finally, Section 6 presents a summary of

our work and some conclusions.

2 RELATED WORK

Many researchers are studying data warehouses.

Although the technology of data warehouses which

store and process numerical data is considered to be

mature, there is always room for improvement.

In recent years, the interest for data warehouses

which focus on data types other then the classical

numeric type has increased. In (Mahboubi, 2009) a

data warehouse model for complex data (text files

images, data bases, sounds) is presented. The semi-

structured format of these objects is captured via

XML files, which are parsed and validated against a

requirements pattern. A medical multimedia data

163

Vanea A. and Potolea R..

SEMANTICALLY ENHANCING MULTIMEDIA DATA WAREHOUSES - Using Ontologies as Part of the Metadata.

DOI: 10.5220/0003434701630168

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 163-168

ISBN: 978-989-8425-53-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

warehouse containing image data and symbolic data

and focused on ECG signal recordings is detailed in

(Arigon, 2007).

Semantically enhanced data warehouses have

been also taken into consideration. In (Pardillo,

2008), the authors propose a method to semantically

translate conceptual models into their platform

specific counter parts, by using an OLAP algebra. In

(Xie, 2007) a data warehouse which has two

ontologies has been built; one for the specific

business terms and one for the technical terms,

specific to the aggregation and knowledge extraction

tools. This requires a one-time collaboration

between the business experts and data warehouse

designers, to produce a mapping between the two

ontologies. As a result, whenever a new query is

requested by the business analysts, the warehouse

administrator can quickly create the appropriate data

mart, without the need of long and repetitive

meetings between the two expert teams. In (Nebot,

2010) the authors propose an ETL tool for extracting

semantically annotated data into fact tables.

Medical ontologies have been intensively

researched and developed in the later years. This

resulted in a large number of ontologies dealing with

different sub domains (Freitas, 2009) and/or serving

specific purposes (Rubin, 2007). A data

warehousing system which uses semantic data to aid

in the diagnosis process of mitral valve prolapse is

described in (Podgorelec, 2009).

3 THE STRUCTURE OF THE

MULTIMEDIA WAREHOUSE

In today’s medicine the physicians benefit from

heterogeneous data sources, which provide different

types of data. Images and sounds are intensively

used in order to better asses the health state of a

patient. The data is produced in large quantities, and

at very fast rates. The abundance of data increases

the probability that quality information can be

produced. This is possible only if new, specialized

data management methods are designed and

developed. Powerful tools are required mainly

because humans are not able to efficiently process

large amounts of data. Therefore, intelligent systems

that manage such large quantities of data are helpful

in assisting physicians in the decision process.

Based on this premise, we designed and built a

medical multimedia data warehouse. The purpose of

this system is to manage both classical and

multimedia (medical) data in such a manner that

meaningful medical information can be efficiently

produced (fast and easy).

In order to aid them in the diagnosis decision

process, the medical physicians need a particular

piece of information at the moment they are

examining the patient. Therefore, an issue which we

must address, due to the medical nature of the

system, is the speed of query processing.

3.1 General Description

We propose a five section structure (Figure 1): ETL

tools section, Warehouse, Semantic metadata,

Processing and Metadata Maintenance and Query

processor.

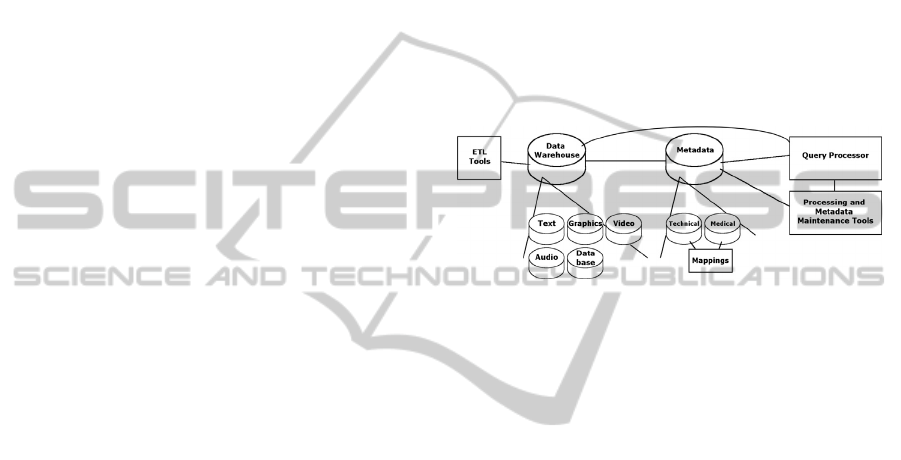

Figure 1: The structure of a multimedia data warehouse.

The ETL Tools Section handles the acquisition,

cleaning and transforming of raw data. The

Warehouse Section stores the data handled by the

system: custom format data, raw data and

aggregated data. The Semantic Metadata Section is a

special repository which stores both classical

metadata and semantically enhanced metadata. The

later metadata type is used to provide machine

understandable information on the data being stored

and the domain in which the system is being

deployed. The Processing and Metadata

Maintenance Section provides tools for data

processing and manipulation and tools for CRUD

operations on the metadata. The Query Processor

Section provides tools for understanding the users

query and tools for computing the query result.

3.2 Implementation

A multimedia data warehouse needs to offer support

for heterogeneous types of data: numeric and

symbolic data, text files, image and sounds.

Multimedia data is often semi-structured or non-

structured. Therefore, it is difficult to extract

structured data from it. To overcome this problem

we decided to use XML to store the unstructured or

semi-structured data extracted from the multimedia

files. XML is useful in this situation because of its

ability to model semi-structured data.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

164

Using the proposed model, we built a Medical

Multimedia Data Warehouse, which we deployed in

the field of pneumology. The system deals at this

time with three data types: symbolic (textual),

numeric and graphic (images). Symbolic and

numeric data are used to store information on the

patient, such as identification data and physical

and/or medical features. Images are used to store

information on spirometry tests performed by the

patients. At this time, our system deals only with the

exhaling part of the tests.

XML files containing information on the patient

and on the spirometry tests, as well as images

containing spirometry test results are loaded by the

ETL tools. These data are transformed and loaded

into custom internal XML files. These internal files

store information on each patient, their tests and

results, such as physical features at the moment of

each test. The internal files are stored in a staging

area, in the Data Warehouse Section.

The images present graph data which model the

flow air being exhaled by the patient. Different

medical relevant features are extracted from the

images: Peak Expiratory Flow (PEF), Normal Peak

Expiratory Flow (NPEF), Forced Expiratory Flow at

25%, 50%, 75% and 25-75% (FEF25, FEF50,

FEF75 and FEF25-75 respectively), Normal Forced

Expiratory Flow at 25%, 50%, 75% and 25-75%

(NFEF25, NFEF50, NFEF75 and NFEF25-75

respectively), Forced Vital Capacity (FVC), Normal

Forced Vital Capacity (NFVC), Flow-Volume Line

(FV line), Forced Expiratory Volume in one second

(FEV1), Normal Forced Expiratory Volume in one

second (NFEV1). The normal indicators represent

values obtained by healthy patients, with the same

physical features.

The internal files are processed and the resulted

information is stored in fact tables. Facts are

computed in two ways. First, the classical numeric

form, in which particular data is aggregated. The

second manner is by creating images similar to the

ones stored in the warehouse, but with aggregated

multimedia features.

4 THE SEMANTIC METADATA

MODEL

In particular situations, dimensional hierarchies

cannot be used in order to provide the level of

granularity desired by the medical specialist. Such a

situation occurs when sets of low level features

which determine high level features are disjoint.

As an example, consider the diagnosis

dimension. Each diagnosis depends on a specific

subset of medical test set. Unfortunately, the subsets

differ from diagnosis to diagnosis. In our case, the

restriction diagnosis depends on the following tests:

fvc, fev1. The small air ways obstruction diagnosis

however, is set based on the following tests: fvc,

fef25, fef50, fef75, fef2575. These two subsets are

not disjoint, as they have some tests in common.

Therefore, drill-down, from diagnosis to tests, is not

easily achievable using the classical hierarchies.

We propose an ontology driven metadata in

order to overcome this difficulty. By providing the

system with semantically enhanced metadata, it will

gain in autonomy.

4.1 Query Analysis

We started by formalizing medical queries to

identify concepts which are of interest for the

domain expert and describe them in technical terms

in the metadata (i.e. the ontology). The relevance of

the step is provided by the semantic metadata which

aids the querying process via matching domain

expert and technical terms. By analyzing use cases,

we identified the relevant domain cases, and

extracted their general template, such as:

select the [minimum | mean | maximum

| most frequent] value of feature F

for the [males | females | patients]

with [feature

= value

{and feature

= value

}]

A special case of query deals with the “age”

feature. This is because the age affects both the

diagnostic and statistical assessment. Therefore, the

age appears twice in the query.

4.2 The Ontology

The ontology provides structured information about

the real world model. Moreover, it ensures a

mapping between the specific domain (medical in

our case) and technical elements used by the system.

Its main roles are: to model the specific domain in

which the system is deployed, to provide mappings

from that domain to the technical data and to create

a more flexible environment for query submission.

The first role is to define relations and provide

support for all the entities identified in the previous

section. The first entity (i.e. class) we need to

address is the “patient”. All the other entities are in

some specific way linked to the patient therefore, it

is arguably the most important entity in the entire

SEMANTICALLY ENHANCING MULTIMEDIA DATA WAREHOUSES - Using Ontologies as Part of the Metadata

165

ontology. The full list of entities, together with their

instances is presented bellow:

 medical_test: spirometry_test;

 physical_feature: date_of_birth, gender, race,

height, weight.

 medical_result: pef, fvc, fev1, fef25, fef50,

fef75, fef2575;

 graph: flow_volume, volume_time

 diagnosis: normal, restriction, obstruction,

small_air_ways_obstruction, mixed;

The current version of our ontology contains two

types of inter-class relations. These relations are:

“has_a”, which depicts the fact that an instance of a

class is the owner or beneficiary of an instance of

some other class; “influenced_by”, which depicts the

fact that an instance of a class is defined by a

complete set of instances of other classes.

Using these two relations, we define the

following structure:

patient has_a physical_feature

patient has_a medical_test

medical_test has_a medical_result

medical_test has_a graph

medical_test has_a diagnosis

diagnosis influenced_by medical_result

Another feature which is present in the ontology

is the data type of the concept (numerical, textual or

Boolean). We have also added a property which

defines a numerical concept as a set. This allows the

system to treat numerical concepts as sets, using set

theory to compute query results. A concept can be

viewed as a “continuous_set”, “discrete_set” or

“not_a_set”. For example, the age is defined as

“discrete_set”. We present in Section 5 a case in

which this property is proven to be useful.

The second role of the ontology is to provide a

link to the technical terms, reducing the dependency

on the Data Warehouse Administrator, when new,

unforeseen queries are formulated. To do so, we

designed a special relation in the ontology. The

relation is called “mapping” and maps one domain

specific entity, in this case medicine, to a technical

domain entity. This technical entity is relevant to the

data warehouse designer or developer administrator,

rather than to the warehouse user. By providing this

technical mapping, the system can automatically

resolve some unforeseen task, which could by time

consuming if the data warehouse administrator

would have had to solve. A more detailed

description on how the mapping works is given in

Section 4.3.

The third role is to add greater flexibility to the

method in which the query is formulated by the

medical specialists. Very often, in medicine,

physicians encounter multiple names or specific

multiple terms, which refer to the same medical

entity or concept. In order to make the medical

physician feel more comfortable when working with

the medical data warehouse, we decided to use

synonymy. By allowing synonyms into the ontology,

the system could collaborate with other systems

which work on similar ontologies. This enables

information exchange between two heterogeneous

(medical) systems. More precisely, our medical

system can exchange data or even information, with

other medical systems, deployed in other hospitals,

in order to retrieve meaningful information to aid the

physician in the decision making process.

Concepts and terms which are defined as

synonyms can be collected from both the physicians

and other medical ontologies, such as Foundational

Model of Anatomy or Disease Ontology. Medical

ontologies are often developed by different

organizations, model distinct medical sub-domains

and do not follow a standardized structure or a name

convention. Therefore, defining synonyms does not

limit the expressiveness of physicians to a particular

implementation of an ontology.

4.3 Term Mapping

By term mapping we refer to the process which links

two terms, or concepts, from different domains. In

the most general form, this process translates a

business concept into a technical concept, which

could be in some way handled and processed by the

system. In the case of our specific implementation of

the system, the mapping is done for the medical

specific terms and the technical terms, which are of

relevance from the informational system’s point of

view. Term mapping provides a direct correlation

between the real world model and the technical one.

The ontology provides semantic annotations

about a particular domain. These annotations are

computer readable. The purpose of the term

mapping is to extend these semantic annotations to

the technical terms. By doing this, the system can

automatically determine which technical concepts

handled by it should be computed or accessed in

order to provide a meaningful and correct answer to

the query inputted by the user. In our particular case,

a medical physician will input a query using domain

specific terms and the system will infer the class of

the terms, existing relations among them and also

the correspondence to the concepts used by the

system in order to model the real world scenarios.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

166

We implemented the mapping for our system by

using the internal format in which we store the data.

Each XML file corresponds to a patient. Therefore,

the concept of “patient” described in the ontology is

mapped to the root element of the XML file. When a

new type of query containing a reference to one or

several patients will be submitted, the system will

infer that it has to access the root elements of the

XML files that are in the staging area of the data

warehouse. All the mappings are expressed in a

similar way, using XML tags from the staging area

files. Ideally, every medical (domain) concept

present in the ontology should have a corresponding

XML tag, i.e. a mapping with a technical term.

Although our particular implementation is done

using XML tags (i.e. the internal data format) the

mappings can also be formulated between the

concepts in the ontology and attributes from any

type of database.

Multimedia concepts are dealt with in a similar

way. Atomic multimedia concepts, such as lines,

curves or any pixel sets bound to each other by a

common feature, can be mapped either to a field in

the internal format, or to a tool which directly

extracts these concepts from the multimedia file.

When a query is submitted, the system will try to

identify the concepts contained by the query and

present in the ontology. If this step is successfully

done, it will identify the technical concepts mapped

to the domain concepts found in the query. Next it

will search for a fact table which contains the

information needed to answer the query; that is, a

table which stores aggregated data derived of the

technical terms. If a corresponding fact table exists,

the system will return the aggregated data which

answers the query; if not, the system will check the

synonyms of the concepts present in the query.

Based on every possible combination of concepts

and their synonyms, corresponding fact tables are

searched for and the aggregated data stored in the

tables are checked to see if the answer the query. If

the system still does not find a suitable fact table

from which it can produce the result, it tries to infer

the domain relations. This is done by determining

based on the “influenced_by” relation, the concepts

which are influencing the ones specified in the

query. After determining these concepts, the whole

process of finding a corresponding fact table is

repeated until a valid fact table is found, or until

there are no more fact tables to check or influencing

(lower level) concepts.

5 EXPERIMENTAL RESULTS

All the concepts and techniques presented in the

previous sections are implemented in an

experimental system. We present some of our

results, to better illustrate the functionality of the

proposed method. The first example illustrates the

method in which the system parses a query and then

computes the result based on the semantic metadata

available and data already stored in fact tables.

The query in the first example is the following:

select the number of patients in the

age group of 10 to 25 and with the

diagnosis restriction

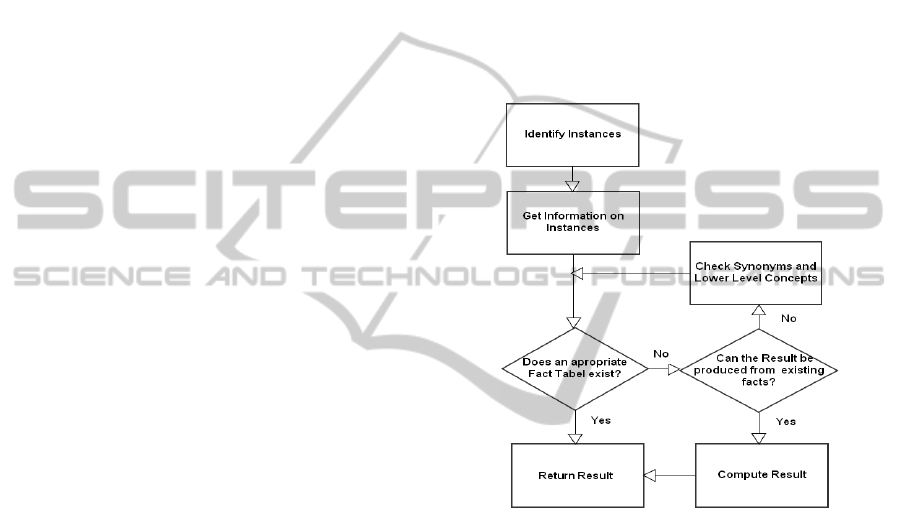

Figure 2: Query resolving steps.

Figure 2 presents the flow for resolving the

query. First, the system identifies the instances in the

query, which are specified in the ontology, i.e. “age”

and “restriction”. Second, the classes and the

corresponding data types are identified: “age” is a

numerical “physical_feature” and “restriction” is a

string “diagnosis”. Next, the system checks if an

existing fact table stores aggregated data referencing

the two classes. In our particular case the system

found such a fact table, though a valid fact to answer

the query was inexistent. By examining the stored

facts which reference the “restriction” diagnosis, the

system identified that there where two facts which

could be used in order to respond to the query. The

two facts stored the number of patients for the age

group of 10 to 19 and 20 to 25 respectively. “Age” is

a “discrete_set”, therefore the union of 10-19 and

20-25 results in the age group of 10-25. The

response was computed by adding the two measures.

The second query example shows how a query

SEMANTICALLY ENHANCING MULTIMEDIA DATA WAREHOUSES - Using Ontologies as Part of the Metadata

167

on graphical data is resolved:

select the mean flow-volume curve

for patients with the age of 23 and

the diagnosis obstruction

As with the first query, the system identified the

instances, classes and types present in the second

query. The “flow-volume curve” was identified as a

multimedia feature (“graph”). Based on the “graph”

mapping available in the ontology, the system

retrieved all the graph data for patients of age 23

who have been diagnosed with obstruction. The

graphs where scaled to a common dimension and the

mean graph was computed.

6 CONCLUSIONS

Data warehouse technology can be of great value in

many domains. One such domain is medicine. This

particular field also benefits from semantic web

technologies, as numerous academic and industry

researchers have developed different ontologies.

In this article we presented a general multimedia

data warehouse model, with a semantically enhanced

metadata repository. The enhancement was achieved

by developing an ontology which models part of a

sub-domain in medicine (pneumology). Based on

semantic annotations which map the specific terms

to the technical terms, the system becomes more

dynamic and gains autonomy, as it no longer needs

administrator’s intervention.

The advantages of our method are twofold. First,

it is adapted to work with multimedia files and data,

by breaking larger multimedia “objects” into sets of

smaller ones. Second, the majority of unforeseen

queries can be resolved by the system, if the

ontology is properly built. This is achieved by using

proper semantic annotations like the type of a

concept or instance, synonyms and “influenced_by”

relations. The use of synonyms allows the system to

communicate with heterogeneous medical systems,

making information sharing a relatively simple task.

For future work we plan to extend the mappings

to the multimedia data extraction tools, defining a

set of semantic annotations that allow the system to

work with a larger number of multimedia “objects”.

We also plan to improve the methods with which the

system computes the results of a query from existing

fact data.

ACKNOWLEDGEMENTS

The work is supported by the project "Doctoral

studies in engineering sciences for the development

of knowledge based society - SIDOC” contract no.

POSDRU/88/1.5/S/60078, project co-funded by the

European Social Fund through the Regional

Operational Human Resources Program 2007-2013.

REFERENCES

Vassiliadis, P., 1998. Modeling Multidimensional

Databases, Cubes and Cube Operations. In

Proceedings of the 10th SSDBM Conference IEEE

Computer Society.

Diday, E., Esposito, F., 2003. An introduction to symbolic

data analysis and the SODAS software. In Journal

Intelligent Data Analysis, Volume 7, December 2003,

IOS Press Amsterdam, The Netherlands.

Mbarki, M., Dupuy, C. S., 2004. A Conceptual Modeling

of Multimedia Documents. In Proceedings of IADIS

International Conference WWW/Internet 2004 IEEE

Computer Society Press.

Object Management Group, 2003. Common Warehouse

Metamodel (CWM) Specification.

Mahboubi, H., Ralaivao, J. C., Loudcher, S., Boussaid, O.,

Bentayeb, F., Darmont, J., 2009. X-WACoDa: An

XML-based approach for Warehousing and Analyzing

Complex Data. In Advances in Data Warehousing and

Mining, IGI Publishing.

Arigon, A. M., Miquel, M., Tchounikine, A., 2007.

Multimedia data warehouses: a multiversion model

and a medical application. In Multimedia Tools and

Applications, Springer.

Pardillo, J., Mazón, J. N., Trujillo, J., 2008. Bridging the

Semantic Gap in OLAP Model: Platform-independent

Queries. In Proceedings ACM 11th International

Workshop on Data Warehousing and OLAP, ACM.

Xie, G., Yang, Y., Liu, S., Qiu, Z., Pan, Y., Zhou, X.,

2007. EIAW: Towards a Business-friendly Data

Warehouse Using Semantic Web Technologies. In

Proceedings of The Semantic Web, 6th International

Semantic Web Conference, 2nd Asian Semantic Web

Conference, Springer-Verlag.

Freitas, F., Schulz, S., Moraes, E., 2009. Survey of current

Terminologies and Ontologies in Biology and

Medicine. In Electronic Journal of Communication,

Information & Innovation in Health, Institute of

Communication and Scientific and Technological

Information in Health.

Rubin, D. L., Shah, N. H., Noy, N. F., 2007. Biomedical

ontologies: a functional perspective. In Briefings in

Bioinformatics. Volume 9, 75-90, Oxford University

Press.

Nebot, V., Berlanga, R., 2010. Building Data Warehouses

with Semantic Data. In Proceedings of the 2010

EDBT/ICDT Workshops, ACM.

Podgorelec, V., Grasic, B., Pavlic, L., 2009. Medical

diagnostic process optimization through the semantic

integration of data resources. In Computer Methods

and Programs in Biomedicine Volume 95, Issue 2,

Supplement 1, August 2009, Pages S55-S67, Elsevier.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

168
