A CASE STUDY: INTEGRATING A GAME

APPLICATION-DRIVEN APPROACH AND SOCIAL

COLLABORATIONS INTO SOFTWARE ENGINEERING

EDUCATION

Weifeng Xu and Stephen Frezza

Department of Computer and Information Science, Gannon University, 109 University Square, Erie, PA, U.S.A.

Keywords: e-Learning, Software Engineering, Undergraduate Education, Game Development, Social Collaboration,

Curriculum Design, Case Study.

Abstract: Teaching software engineering to undergraduate students is a challenge task. Students are expected to

understand both technical and social aspects of software engineering. This paper presents a complete case

study of a hybrid approach that systematically combines a game application-driven approach and social

collaborations into the software engineering curriculum at the undergraduate level. The case study consists

of 1) proposing a new curriculum design process, 2) identifying a set of software engineering principles,

practices, and online collaborative learning tools by following the design process, 3) proposing a semester-

long game project, 4) integrating the principles, practices, and the collaborative learning tools into the game

development process and 5) delivering the principles, practices, and tools to students during the game

devolvement. The results of the case study, including analysis of the related project documentation and

students’ feedback indicate that adopting the games app-driven approach motivate students to learn in

teams, help transferring knowledge effectively between instructors and students and facilitate achieving the

student learning objectives.

1 INTRODUCTION

Teaching software engineering through game

application (app) development has become more

popular in recent years. The key benefit of

introducing game development into software

engineering curricula is to motivate students.

Claypool (2005, p. 123) presents initial work

towards the goal of more effective software

engineering education, describing the implementation

of a game-centric software engineering course. The

focus was on modules that allow for a hands-on

practice of software engineering theory, where the

sum of the modules culminates in a working

computer game that clearly illustrates successful

software engineering practices and provides students

with particular satisfaction of a complete and useful

development effort. An alternative to Claypool’s

approach is one that divides the software engineering

into learning modules, Cagiltay (2007, p. 405)

emphasizes the outcomes of the courses, e.g., focuses

on improving students’ abilities in four areas:

problem solving, the application of previously

learned knowledge, the use of independent learning

and learning by doing.

Some educational researchers focus on teaching

specific topics within software engineering. For

example, Paul and Fu-Shing (2008, p. 1) (2007, p.

237) present an approach for teaching design patterns

that emphasizes object-orientation and pattern

integration. They present a case study centered on

EEClone, an arcade-style computer game

implemented in Java. Students analyzed various

design patterns within EEClone and learned how to

apply design patterns in their own game software.

Other researchers use games to teach languages and

project management through game development (Joe

and Amber, 2008, p. 250) (Yan, 2009, p. 969) (Wolz

and Carey, 2007, p. 322).

Although a game-based approach for teaching

software engineering is appealing, several main

problems pertain to designing and delivering a course

inclusive of app-driven development (Ragan, Frezza,

& Cannell, 2009, pp. T1A-3):

 Social Aspects

: Developing software systems

is a complex socio-technical activity. The

Xu W. and Frezza S..

A CASE STUDY: INTEGRATING A GAME APPLICATION-DRIVEN APPROACH AND SOCIAL COLLABORATIONS INTO SOFTWARE ENGINEERING

EDUCATION.

DOI: 10.5220/0003445300230032

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 23-32

ISBN: 978-989-8425-56-0

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

social interactions and collaborations among

each team member can enrich a learning

process. More specifically, we need to

understand whether we are able to integrate

online collaboration tools in software

engineering education, and how these tools

help students understand software engineering

process.

 Pedagogical Aspects

: Need for a systematical

way to help faculty members to design a

game-based software engineering curriculum.

i.e., How to assure that the appropriate

computing and engineering learning

objectives are covered and achieved in the

game development? How to derive and

implement the course content based on

software engineering disciplines? How to

evaluate students’ performance in terms of

these disciplines?

 Case Study

: The educational research to date

lacks a complete case study, including an

executable game and online documentations,

for illustrating a game-based approach, how it

addressed desired software engineering

principles, good practices, as well as how

collaboration tools were integrated into the

course(s) and curriculum.

The objectives of the research are to: 1)

systematically propose a hybrid approach which

combines a game app-driven process and social

collaborations for designing a software engineering

course curriculum for undergraduate students; 2)

explain each element of design process in details via

a case study, particularly how the course content is

derived from student learning objectives; 3)

demonstrate how the key concepts, principles, the

best practices of software engineering, and

collaborative tools are covered and applied during the

game development, and 4) publish the key artifacts of

the case study online as references for other faculty

members.

The rest of the paper is organized as follows:

Section 2 describes the game app-driven curriculum

design process; Section 3 demonstrates a complete

case study using game app-driven process and these

collaborative tools and Section 4 concludes the paper

and discusses some possible future work.

2 HYBIRD CURRICULUM

DESIGN PROCESS

The curriculum design is an important quality aspect

of the course content delivery. For comparison

purpose, this section describes the difference

between the traditional and the hybrid curriculum

design processes. The hybrid approach is the

integration of a game-app driven and the social

collaborative approach.

2.1 Traditional Curriculum Design

Traditionally curriculum design has focused on the

transferring of discrete pieces of information, i.e.,

facts, disciplines, and formulas, from instructors to

students (Dick and Carey, 2000). Because the

information is considered important in its own right,

the traditional curriculum designers often build the

outcomes-based curriculum based on these

knowledge segments. More specifically, in a

traditional design process, instructors outline the

objectives of the course, derive the expected

program outcomes through the student learning

objectives of the course and check if these objectives

are achieved by comparing the actual outcomes to

the expected outcomes. Figure 1

shows the overall

traditional course design process.

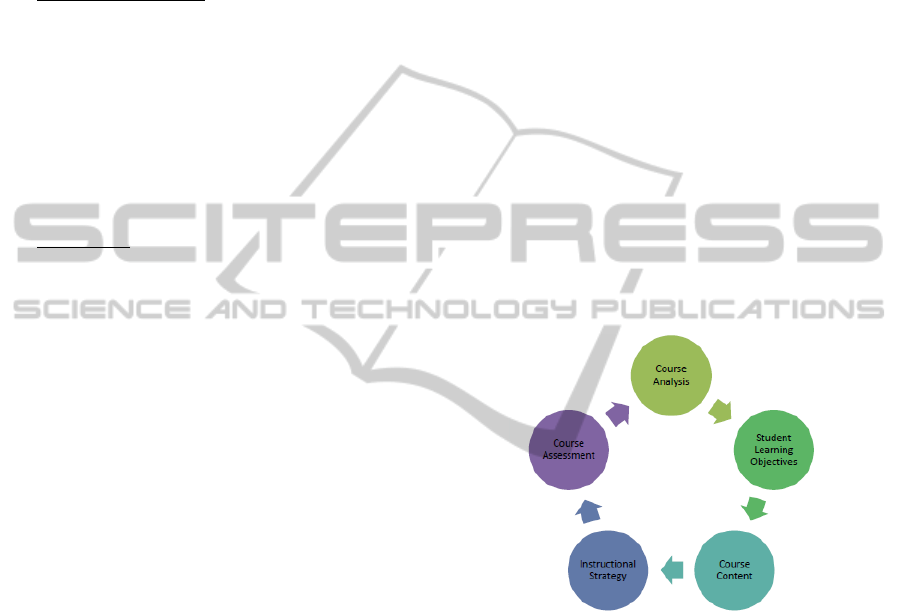

Figure 1: Traditional curriculum design process.

For example, the process for designing software

engineering curriculum is comprised of the following

five elements:

 Course analysis: Studying course materials,

analyzing and understanding the

characteristics of software engineering, and

identifying potential audiences.

 Student learning objectives: Identifying key

concept of software engineering and

outlining the learning objectives of the

course, i.e., defining the accomplishment

students are able to achieve by the end of the

course.

 Course content: Developing the course

materials that will be delivered to students

and assemble the course. It requires

determining the course content suitable for

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

undergraduate students, implementing and

assembling the content.

 Instructional strategy: Determining the best

approach that an instructor may take to

achieve learning objectives. Instructors can

create learning environments and specify the

nature of the activity in which some key

concepts can be implemented.

 Course assessment: Evaluating if these

learning objectives, i.e., the outcomes of the

teaching and learning, have been met and

providing feedback to students. The course

assessment results also help the course

analysis.

2.2 Game App-Driven Course Design

The game app-driven approach for designing

software engineering curriculum is a different way of

organizing the elements in the traditional course

design approach.

Figure 2: Game app-driven approach curriculum design

process.

As shown in Figure 2, the instructional strategy is

located in the center of the design cycle, i.e., the

game is a platform and driving force for knowledge

transmitting. The rest of four elements are driven by

the game development and also have impacts on how

game should be designed.

The game app-driven approach is not a passive

knowledge transmission. The outcomes of the course

are reflected in the results of the interactions between

instructional strategy and these elements, whereas the

adapting of games is the key realization of the

instructional design. For example, one of the

objectives of the course is to let students demonstrate

the understanding of the iterative development

process. The objective requires: 1) the game should

be feasible to be designed, implemented, and

delivered in multiple iterations; 2) instructors should

design several project milestones and deliveries so

that students can experience incremental

development.

Designing a game story that fits the educational

context of software engineering is the main concern

for game app-driven approach. Instructors need to

answer questions similar to those listed in Table 1 in

terms of course analysis, student learning objectives,

course content, and course assessment. For instance,

before adopting the game-based approach, both

instructors and students should be technically ready

for the approach. The questions arise as:

1) Are

instructors confident in teaching game development

in software engineering? 2) What are the

backgrounds of the students who take the course? 3)

Are those students ready for developing games?

Failure to answer these questions may fail adopting

the approach.

2.3 Social Collaborations

Developing software systems is a complex socio-

technical activity. The game app-driven approach

covers the technical aspect of software engineering.

However, successfully developing a software system

needs the collaborative work, e.g., idea discussion

and knowledge sharing, in a development team.

Building social collaborations into software

engineering complements the game app-driven

approach as the social collaboration plays a vital role

in predicting the success of software system

(Meneely, Williams, Snipes, and Osbourne, 2008, p.

13).

In current undergraduate education, faculty

members propose team-based projects mainly for

helping students to comprehend software

engineering principles and experience good software

engineering practice. The social aspect of software

engineering is often overlooked.

Social collaboration crosscuts all elements of

curriculum design process. For example, in course

analysis, the social aspect of the software

engineering needs to be identified, and thus

understanding the social factors has impacts on

software projects is considered as one of the student

learning objectives. Naturally, project managements

and collaboration tools will be part of the course

content due to the team-based project. Finally, the

team-based collaboration and performance should be

evaluated as a part of the course assessment.

In the new proposed hybrid approach, we focus

on the team-based learning process rather than the

projects itself. We assume students will achieve the

desirable learning objectives and build quality

software system if they follow the well-designed

learning process. The team-based learning approach

has become an increasing valuable methodology as

A CASE STUDY: INTEGRATING A GAME APPLICATION-DRIVEN APPROACH AND SOCIAL

COLLABORATIONS INTO SOFTWARE ENGINEERING EDUCATION

social interactions of the team can enrich a learning

process. In team-based learning, students work in

groups on problem-based projects. More

specifically, a group of students take a problem from

instructors, apply it to a real life situation with these

projects, and present the solutions. These students

will be collaboratively engaged in analysis, design,

problem solving, decision making, and investigative

activities to accomplish the project

We are interested in identifying and adopting

some free online collaboration methods and tools for

the software engineering course. One of the

approaches is to use existing online social networks,

such as email, texting, discussion boards, Wiki,

Facebook, etc. These existing social services can be

integrated into the game development activities to

facilitate the development processes. In addition, we

try to find some online management tools to manage

software development processes, intermediate

products, and documentations.

3 GANNONOPOLY: A CASE

STUDY

In this section, a game story, named Gannonopoly, is

proposed to serve as the core of the hybrid approach.

The social aspect of software engineering, mainly

includes project management and team

collaboration, crosscuts the whole game

development process. Each question listed in Table

1 and issue mentioned in section 2.3 will be

addressed in the case study. Those answers are

organized in the corresponding subsections.

3.1 Game Story

For the game app-driven approach, the game story

serves as the platform and the driving force to

achieve the desirable learning objectives. Thus it is

essential that a suitable game story is developed so

that instructors can create learning environments and

specify the nature of the development activities in

which the key concepts and learning objectives of

the course can be implemented. (Ragan, Frezza, &

Cannell, 2009, pp. T1A-2)

A suitable story can be found by combining the

landmarks of the University with the very successful

Monopoly™ game story. This has the advantage of

familiarizing players with the landmarks located on

and surrounding our campus. Anyone that is

interested in or associated with Gannon University,

including prospective, current, and former students,

faculty, and staff will enjoy playing our game. Thus

Gannonopoly became the Gannon University

electronic version of the classic board game of

Monopoly™. The objective of Gannonopoly is to

become the wealthiest player through the buying,

renting, and selling of various properties. The game

can be played on any computer with two to eight

human players.

The Gannonopoly has a game ‘board’ in which

Gannon properties and other spaces are depicted.

These spaces include jail, go to jail, student parking,

tuition raise, etc. For example, players begin on the

space marked "Go" and are awarded a $200 salary

Table 1: Questions for designing games.

Elements Questions

Course

Analysis

What is the nature o

software engineering?

Does the game development approach reflect the concept of the computer science and engineering?

Are instructors confident in teaching game development in software engineering?

What are the backgrounds of the students who take the course? Are those students ready for

developing games?

What are the constraints to use game app-driven approach?

Student

learning

objectives

Any principles and concepts can be covered in the game development, such as software process,

software development lifecycles, the phases and activities of a lifecycle, and the artifacts (documents

and code) created in each phase of a lifecycle?

Any management issues can be covered in the game development, including issues of project

planning tools and diagram, team organization, human factor, and risk analysis?

Course Content

How to map student learning objectives to the course content? i.e., How to implement the student

learning objectives in the game?

Are course content consistent in the game development process?

Any constraints we have to meet in the game development process? For instance, time constraints,

resource constraints, and technology constraints.

Course

Assessment

How to assess the objectives of the course?

What are the outcomes of the course?

How to evaluate students’ performance? If students work in the team, how to evaluate each

individual?

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

each time that they pass over this space. Chance and

community chest cards present a random movement

or monetary action for the current player. The "Go to

Jail" space sends a player directly to a jail. A player

can get out of the jail by rolling doubles on any of

their next three turns or by paying a fine of $50.

The game also contains two animated dice that

determine the distance to advance the current

player’s token. When a given token lands on a

property that is able to be purchased, a screen

appears asking the player if he or she wants to

purchase the property. If the property cannot be

purchased, it must be rented from the player that

owns it.

The game ends when one player becomes

bankrupt, or runs completely out of money. You are

declared bankrupt if you owe more than you can pay

either to another player or to the bank on your current

turn. At the end of the game, each player's

accumulated money and property (valued at 50% of

their purchase price). These two amounts are then

summed for each player to determine the winner.

The richest player wins!

3.2 Course Analysis

The nature of software engineering is twofold:

software engineering as a computing discipline and

software engineering as an engineering discipline.

The nature means and aims of software engineering

are summarized in Table 2 (Wang, and Patel, 2000,

p. 10). Table 2 indicates 1) As both an engineering

and as a computing discipline, students need to

understand life cycle methods, such as specification,

design, implementation, and evolution; and 2) As an

engineering discipline, students additionally need to

understand standards (e.g., designing and coding

standards), engineering tools, etc. The nature of

software engineering requires students master

necessary documenting and programming skill for

developing large-scale software. In the proposed

game-app driven approach, these principles, life

cycle methods, and engineering approaches need to

incorporate into the development of Gannonopoly.

There are other issues need to be addressed to

apply the game-app driven approach to the course

curriculum design. For example, what is the

experience of both instructors and students with

game development technology? Some issues need to

be addressed before implementing the course:

 Are instructors ready to learn designing games?

Some preliminary studies show the compelling

results of teaching game in software engineering

(Baker, Navarro, and Hoek, 2005, p. 3), we eager

to learn game developing skills and to know

how to systematically incorporate the game

Table 2: Nature of software engineering.

Nature Means Aims

A computing

discipline

Life cycle methods:

- specification

- design

- implementation

- evolution

Document and

Programming

engineering

discipline

Engineering approaches:

- standards

- methodologies

- tools

- processes

- organizational methods

- management methods

- quality assurance systems

Large-scale

software

systematically incorporate the game developing into

software engineering course.

 Do instructors plan to use a game engine to

develop the Gannonopoly? Students do not have

to use a game engine to develop the game. They

may choose to develop the game using other

objective-oriented languages, such as Java, and

C++. However, developing the game from scratch

is not an ideal approach to introduce the

computing and engineering principles to students

as software engineering is not only about

programming. Some game engines are available,

including PyGame™ for Python, XNA™ for

.NET, JGame™ for Java, Gamemaker™ for C++,

etc. These game engines can provide instant

results for demonstration purpose.

 Which game engine fits to the course and the

Gannonopoly game? As junior undergraduate

students don’t have much real-world

programming experience and almost never

systematically done any semester-long project

before, we choose Gamemaker™ as the game

engine for developing the Gannonopoly. The key

features of using Gamemaker™ include easy to

learn drag-and-drop actions, built-in C++ style

programming language for advanced developers,

good tutorial, large community supports, etc.

 Is the scope deliverable in one semester? We

expect that the game, or partial game, will be

developed by the end of the semester. It is mainly

determined by the problem domain and scope of

the Gannonopoly. As the game is a Gannon

university version of monopoly game, the

problem domain of the project is relatively easy

to understand. Once the problem domain is

understood, the scope of the game can be easily

determined during the requirements.

 How are existing online social networks able to

enrich students learning process? For choosing

appropriate collaborative tools for students, the

anticipated results need to be defined or

estimated.

A CASE STUDY: INTEGRATING A GAME APPLICATION-DRIVEN APPROACH AND SOCIAL

COLLABORATIONS INTO SOFTWARE ENGINEERING EDUCATION

Table 3: Software Engineering Student learning objectives.

Levels Student learning objectives

Knowledge

List software engineering life cycle methods and engineering approaches for software

engineering.

Identify basic steps and good

ractice for specifying requirements, designing systems, and

implementing systems.

Outline software engineering methodologies, processes, management methods, and methods

for system quality assurance.

Comprehension

Illustrate the activities involved in software requirement engineering, software development,

testing and evolution.

Differentiate different software process models, software engineering methodologies,

management methods, and propose of quality assurance plan.

Application

Demonstrate choosing appropriate develop methodologies, tools, process models, and other

engineering disciplines for developing different type of projects.

Apply UML to specify software requirements and design for small problems.

Analysis and Synthesis

Propose a game project plan with other team membe

s, including a game story, a team

organization, and a project schedule.

Research the feasibility of developing the game.

Develop software requirement, design documents, and other related artifacts for the proposed

game using software engineering approaches mentioned above.

Create and demonstrate the game in the class.

Evaluation

Evaluate the quality of the game.

Recommend future improvements.

Social interactions and

collaborations

Understand the social factors have impacts on software engineering.

Understand the social interactions and collaborations tools can be used for facilitating the

software engineering process and improving the productivities.

Be able to choose appropriate online collaboration tools for each activity in the development

process.

Be able to demonstrate how to use the online collaboration tools.

3.3 Student Learning Objectives

Student learning objectives can be derived from the

software engineering means and aims listed in Table

2 and the social aspect of software engineering. We

use Bloom's Taxonomy (Bloom, Engehart, Furst,

and Krathwohl, 1956) to write student learning

objectives.

Bloom's Taxonomy is a classification of learning

objectives within education. There are six levels in

the taxonomy, moving through the lowest order

processes to the highest: knowledge, comprehension,

application, analysis, synthesis, and evaluation. By

applying verb wheel based on Bloom’s taxonomy,

we derive the student learning objectives and list in

Table 3.

The software engineering student learning

objectives indicate that intellectual tasks at the

knowledge, comprehension, and application level are

generally considered less cognitively demanding than

tasks at the levels of analysis, synthesis, and

evaluation. The latter three are considered as the

higher levels of Bloom’s taxonomy, and the first

three are the foundation of higher level learning. To

reach these levels, students need to be equipped with

high level critical thinking, creative thinking, and

problem solving skills. In the case study, only the

higher levels of Bloom’s taxonomy are involved the

game development.

3.4 Course Content

The course content is organized to support the

achievement of the student learning objectives. We

use Gannonopoly as the running case to demonstrate

the course implementation. Due to time and resource

constraints, only main disciplines will be covered

during the development of the game. These

disciplines include requirements specification,

design, implementation, software quality assurance,

collaboration tools, software processes, and

management methods.

3.4.1 Requirements

Requirements elicitation and requirements

specification are two critical tasks in the

requirements engineering. While developing

Gannonopoly, students should be able to practice the

techniques to capture and document requirements.

More specifically, during the requirement phase,

students are instructed to write a game story, define

problems, organize a development team, estimate

the resource, make up a reasonable schedule, adopt a

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

use case approach to derive functional features, and

document the results in IEEE format. As the results,

the functions of the system are described in Table 4.

The complete artifacts of Gannonopoly can be

accessed at http://code.google.com/p/gannonopoly/.

Table 4: Functional features of Gannonopoly.

Functional Features

An interactive game board trigge

ing different

movements shall be the main basis for the entire

game.

The system shall simulate the rolling of two dice

through animation.

Multiple players shall be able to play the game.

A "scoring" mechanism shall be used for keepin

track of the money held by each player.

A deed management mechanism should be used for

keeping track of properties owned by each player.

The system shall save, exit, and reload the game

from its current position.

It is worth mentioning that although the use case

approach is an effective requirement elicitation

technique for many types of projects, students may

experience difficulties to specify the behaviors of

games that heavily reply on detecting and response to

the external events of the system. Event-response

tables are a convenient way to collect these event and

response information (Wang and Patel, 2000, p. 1).

The event-response tables can be organized based on

use cases. For example, the following event-response

table describes all of the possible events that are

associated with the player setup screen (i.e.,

functional feature 3). The screen allows players to

choose the number of players and their desired player

tokens. The definition of tokens is defined in the

glossary as different markers that players can choose

from to represent them during the game. Note that

due to the space limit, only partial of the events is

shown in the table.

Table 5: Event-response table for player setup.

Event System State Response

User clicks

"New

Game"

utto

Welcome screen is

displayed

1.Player setup

screen is

displayed

User clicks

"+" button

Player setup screen is

displayed and number of

players is currently less

than 8

1. Number of

players is

increased by 1

2. Number of

tokens is

increased by 1

User clicks

"+" button

Player setup screen is

displayed and number of

layers is currently at 8

1. Nothing

happens

… … …

User clicks

on token

Player setup screen is

displayed and the icon is

unlocked

1. Nothing

happens

3.4.2 Design and Implementatioin

During the game design, students are expected to

answer following questions:

 Is there a generic application architecture

that can be used as a template for

Gannonopoly?

 How to decompose the system into to sub-

systems or components?

 How to organize these sub-systems or

components?

 What architectural style or model is

appropriate for Gannonopoly?

 How should the architecture design be

documented?

After searching for the solutions, students figure

out an event-process system architecture design is a

good fit for designing the game. The system

architecture diagram of the Gannonopoly is shown in

Figure 3. It describes the main components of the

game system and how they interact with one another.

The figure shows that Gannonopoly consists of three

major system components. The property management

system that allows the user to choose to buy, rent,

and view their properties, the banking money system

keeps tracking of the amount of money possessed by

each player, and the player positioning system allows

the player token to move, land, pass over, and view

the information for the current space.

Figure 3: Gannonopoly system architecture.

Note that other components are also shown in the

system architecture diagram, such as the triggered

event, user command, file system, and screen display.

However, these are not exactly implemented

distinctly in the code since they are supported by the

Gamemaker™ engine. As part of the design process,

students should be able to identify and use those

reusable modules.

During the implementation, some software

engineering principles should be covered as well,

including:

A CASE STUDY: INTEGRATING A GAME APPLICATION-DRIVEN APPROACH AND SOCIAL

COLLABORATIONS INTO SOFTWARE ENGINEERING EDUCATION

 Object-orientation: Gamemaker™ requires

creating instances before defining any events

and action. The events and action are

corresponding to the events and response in

event-response tables. Students are expected

to understand the traceability between the

tables and implementation in Gamemaker™.

 Standards

: Coding standard needs to be

applied for consistent coding style.

 Reusability

: Code reusability is an important

issue during implementation. Students learn

how to find reusable library online and

realize reusable code save their time and

improve the system quality.

3.4.3 Iterative Development, Management

and Colloration Tools

Iterative development is so fundamental that we

intend to adopt the interactive approach to develop

Gannonopoly. The game specification, design, and

implementation are broken down into a series of

increments that are each developed in turn. The main

benefit of using iterative development is to avoid

project failure by monitoring the project progress

constantly. At least three iterations need to be

delivered, e.g., before the midterm, after the spring

break, and the final version. We label these iterations

as iteration 1, 2, and 3, respectively. For the

demonstration purpose, only three iterations of the

main menu and the game board are listed from

Figure 4 to Figure 9.

Figure 4: Iteration 1 main

menu.

Figure 5: Iteration 1game

board.

Figure 6: Iteration 2 main

menu.

Figure 7: Iteration 2 game

board.

Figure 8: Iteration 3 main

menu.

Figure 9: Iteration 3 game

board.

The iterative development relies on good project

managements and online collaboration tools. One of

the teaching goals of software engineering is to allow

students to be aware of and experience various

project management issues, including team

management, process management, product

management, configuration management, etc.

Furthermore, we expect students to know how to

utilize management and collaboration tools to smooth

the development process, increase the productivity,

and improve the software quality. These tools used in

the development of Gannonopoly are described in

Table 6.

Table 6: Management tools used in Gannonopoly.

Name Management Purpose

Google

Calendar

Team Scheduling meetings,

iteration deadlines,

other project-related

events

Google

Wave and

Google Talk

Team Real-time

communication and

collaboration between

participating team

members

Google Code Product Hosting project,

including file

downloads

Issue

tracking

Process,

product

Tracking issues, such

as requirements

gathering, designing,

implementation, bugs,

etc.

Wiki Product,

process

Wiki documentation,

including

requirements, design,

testing documentation,

and source

TortoiseSV

Configuratio

Version an

iteration

management

During the development, students are advised to

use Google Project Hosting (http://code.google.com/

hosting/) to manage their projects. Project Hosting on

Google Code provides a free collaborative

development environment for open source projects,

which is an integrated tool of member management,

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

version control, wiki, code repository, and issue

management. Note that although other professional

management tools are available in the department,

such as JIRA (http://www.atlassian.com/software/

jira/), we use Google Project Hosting mainly because

it is a free and light-weighted tool.

3.4.4 Course Assessment

Course assessment for the game app-driven

approach is threefold: 1) evaluating the team

performance by examining if all the course content

has been experienced by the team; 2) evaluating

individual’s performance by peer-evaluation; and 3)

studying students’ feedback.

Software engineering is a social engineering, thus

we expect students to work as a team interactively

and collaboratively. In the game app-driven

approach, Gannonopoly is a platform for students

experimenting all software engineering principles

and good practices. Therefore, only one grade will be

assigned to the each artifact of Gannonopoly

developed by the team. These artifacts include all

documentations and iterations developed based on

computational and engineering disciplines.

The individual’s performance is determined by

each student’s personal report. The items need to be

included in the report are listed in Table 7.

The essential of the project report is a

reinforcement of the computing and engineering

principles in the course content. The case study

shows that the quality of the personal reports well

reflects each individual’s performance in the team.

The list of sample personal reports can be found

http://perceval.gannon.edu/xu001/teaching/2010sprin

g/cis315/project/stu_report/. The peer evaluation

mainly reflects each team member’s contribution and

collaboration in the semester-long project.

Table 7: Student personal report items.

Items Descriptions

Introductio

The

ackground of the game,

including motivation and the game

story

Requirement The features of the games

Desig

The architecture of the game

Project

management

The issues related to project

management, including tools

students have used

Results Screenshots

Discussio

What you have learned? What would

you like to change if you restart the

project

Peer evaluatio

Team member/self evaluatio

The study of students’ feedback is another way to

assess if the objectives of the software engineering

have been archived. Our online evaluation system

(Mak & Frezza, 2006, pp. M5G-14) supports

anonymous collection of faculty and student

feedback based on the student learning objectives.

The collected information from this iteration of the

course will be used for analysis and improvement of

the next course offering.

4 CONCLUSIONS AND FUTURE

WORK

This paper presents a case study to systematically

demonstrate a hybrid approach combining game

app-driven approach and social collaborations into

undergraduate software engineering education. In

the approach, a new curriculum design process is

proposed, in which a game is the center element of

the process. The social interactions and

collaborations crosscut all activities of the software

development processes.

In the case study, the Gannonopoly game project

is identified as a platform and driven force to help

students understand the key software engineering

principles and good practices. The key principles are

derived from both computing and engineering

disciplines, and will be implemented in course

content based on the new curriculum design process.

The goal of the game app-driven approach is to

deliver the course content through the game

development in a systematic way.

Essentially, the game app-driven approach for

software engineering curriculum design is

comprised of three components: 1) a component for

systematically identifying key software engineering

concept by instructors, 2) a project-based learning

method for students, and 3) a “fun factor” component

to motivate students. The social concern

complements the game app-driven approach as social

interactions and collaborations are the important

factors to predicate the success of software projects.

Several online collaborations tools are chosen to

enforce the concept of the social interactions and to

facilitate the development process.

We compare the new approach (implemented in

Spring 2010) to the traditional way of teaching

software engineering (Spring 2009). Two teams were

formed in each semester. Each team consisted of 3-4

students. The results of the case study are

encouraging. We list some observations here:

 Student involvements. Due to the “fun

factor” of the game, students have spent

average 50% more time on the project. On

the other hand, peer pressures motivate other

A CASE STUDY: INTEGRATING A GAME APPLICATION-DRIVEN APPROACH AND SOCIAL

COLLABORATIONS INTO SOFTWARE ENGINEERING EDUCATION

students to work hard to achieve the final

goal.

 Software process. All the development

processes are documented online. It is good

indication that student follows software

development process.

 Product qualities. The final product,

including an executable game, all online

documentations, and user manual, indicates

students understand the key principles of

computing and engineering and are capable

of adopting these principles and practices to

develop large-scale software products. These

are the ultimate goals of the software

engineering course.

 Faculty interactions. Although we focus on

the interactions and collaborations between

students, the online collaboration tools also

facilitate faculty members to provide

consistent feedbacks during the development.

For example, faculty members can make

comments on each wiki page.

The future work is related to our observations in

the class. Some interesting questions have arisen

during the teaching: 1) how students pick up their

team numbers? i.e., are grades or performance the

factors when students pick up their team number? As

we allow students to form their own team, it seems

students more comfortable work with someone they

already known, regardless performance in other

classes. Does it have any impacts on leaning

objectives? 2) How to measure the results of

collaborative leaning? Students heavily rely on Wiki

for documenting requirements, design, and testing

plan. It can be seen as a collaborative leaning process

for undergraduate students. Is there any way to

measure the effectiveness of collaborative leaning

and improve the collaborative leaning process? 3)

How Google wave can be used in software

engineering education? Students have tried to use

Google wave to communicate and collaboratively

develop documents. More study can be done to

evaluate the impact of use the new technology.

REFERENCES

Baker, A., Navarro, E, and Hoek, A., 2005, ‘An

Experimental Card Game for Teaching Software

Engineering Processes’, Journal of Systems and

Software special issue, 75:1-2, pp. 3–16, 2005.

Beane, J., 1991, ‘The Middle School: The Natural Home

of the Integrated Curriculum’, Educational Leadership

49(2), pp. 9-13.

Bloom, B, Englehart, M., Furst, E, Hill, W, and

Krathwohl, D., 1956, ‘The Taxonomy of Educational

Objectives, the Classification of Educational Goals’,

Handbook I: Cognitive Domain.

Cagilta, E, Nergiz, 2007, ‘Teaching Software Engineering

by Means of Computer-Game Development:

Challenges and Opportunities’, British Journal of

Educational Technology, Vol.38, Issue 3, pp, 405-415.

Claypool, L., and Claypool, M., 2005, ‘Teaching software,

engineering through game design’, In Proceedings of

the 10th Annual SIGCSE Conference on Innovation

and Technology, in Computer Science Education,

Monte de Caparica, Portugal, pp. 123-127.

Dick, W., and Carey, J., 2000, ‘The Systematic Design of

Instruction’, New York: Addison-Wesley.

Halla, K, and Moirao, D., 2000, ‘A Guide to Writing

Better Objectives for the Cognitive Domain’,

http://cstep.csumb.edu/Obj_tutorial/ Accessed May 20,

2010.

Joe, L., Amber, S., 2008, ‘Teaching game programming

using XNA’, In Proceedings of the 13th annual

conference on Innovation and technology in computer

science education, Madrid, Spain, pp. 250-254.

Mak, F. and Frezza, S., 2006, ‘Collection, Maintenance,

and Validation of a Set of Effective Objective

Evidence,’ in Proceedings of the International

Conference on Engineering Education 2006 (ICEE),

San Juan, PR, pp. M5G-12 – M5G-17.

Meneely, A., Williams, L., Snipes, W., and Osbourne, J.,

2008, ‘Predicting Failures with Developer Networks

and Social Network Analysis’, In proceeding of the

ACM SIGSOFT Foundations of Software

Engineering (FSE), Atlanta, GA, pp. 13-23.

Paul, G., 2007, ‘Computer games as motivation for design

patterns’, In Proceedings of the 38th SIGCSE technical

symposium on Computer science education,

Covington, Kentucky, USA, pp. 223 - 237 .

Paul, G., and Fu-Shing, S., 2008, ‘Teaching Design

Patterns through Computer Game Development’,

Journal on Educational Resources in Computing

(JERIC), vol. 8 n.1, p.1-22, 2008.

Ragan, E., Frezza, S., and, Cannell, J., 2009, ‘Product-

Based Learning in Software Engineering Education’,

ASEE/IEEE Frontiers in Education Conference,

San Antonio, Texas, USA, pp. T1A-1-T1A-6.

Wang, Y. and Patel, D, 2000, ‘Comparative Software

Engineering: Review and Perspectives’, Annals of

Software Engineering, Springer, vol.10, pp. 1-10.

Wiegers, K., 2003, ‘See You in Court’, Software

Development 11(1), pp. 36-40.

Wolz, U., Pulimood, S., 2007, ‘An integrated approach to

project management through classic CS III and video

game development’, In Proceedings of the 38th

SIGCSE technical symposium on Computer science

education, Kentucky, USA, pp. 322-326.

Yan, L., 2009, ‘Teaching Object-Oriented Programming

with Games’, In Processings of the sixth International

Conference on Information Technology: New

Generations, Las Vegas, NV, pp. 969-974.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems
