METERING THE CLOUD PROVIDERS

Fahad Abdel Kader

Technical University of Kaiserslautern, Kaiserslautern, Germany

Keywords: Cloud metering, Cloud computing, Verification of cloud bill, Architecture of cloud meter, Functioning of

automated metering, Metering algorithm.

Abstract: Cloud computing has recently emerged as a modified computing platform, which offers a variety of services

for different level of users. At the moment, such services are offered at very low prices, but as the concept

of cloud computing will find more adopters, a real market will emerge. At that point in time it will be

critical for the customers to verify the bills that they receive from their cloud provider. Therefore, there is a

need to not only verify the correctness of the bill but also that the whole process should be real time and

automated. An automated cloud metering solution is presented in this paper. The idea is to design a meter

which monitors the respective activities as defined in the terms of SLA and generates a bill accordingly.

This generated bill will then be automatically compared with the cloud provider’s bill for any errors. This

position paper describes the architectural design of the cloud meter and functioning of the automated meter,

and then concludes with the information about the future work.

1 INTRODUCTION

Traditional grids and data centers have recently

evolved into cloud computing with an economical

pricing model, based on the utilization of resources.

With the introduction of friendly user interface,

cloud computing allows the users to deploy their

application on a highly scalable, available and fault

tolerant platform, hosted by the cloud providers

(Cloud Providers, 2010). Cloud computing major

reason of success is the economic model associated

with it, i.e. “Pay as You Go (

Cloud economic model,

2010)”. The users are only billed for the amount of

the service used, rather than paying for the whole

package. An SLA is an electronically (sometimes

paper based) signed agreement between the user and

the cloud provider for the service the user is

interested in and thus billing is done accordingly

(EC2, 2011) (Azure, 2011). But there is no method

till writing of this paper, which allows the user to

independently verify the bill being sent by cloud

provider for services usage.

Metering is a widely applied concept for

measuring the volume used of any utility. Meters are

being constantly used in our daily life such as

electric, water and gas meters. These utility meters

not only help to measure the usage of utility but also

helps the consumer to have the confidence that the

amount he has been billed is correct. It is a human

nature that when money involves in any sort of

activity, the trust line becomes thin. He wants to

make sure that he is not being cheated or fooled.

The development of the Internet has bridged the

path to the new information era and with the advent

of cloud computing, we are now moving one step

forward towards making computing as a utility.

Cloud computing offers different services (Lizhe,

Gregor, et.al., 2008) to users, among which some of

the famous ones are: Infrastructure as a Service

(IaaS), Platform as a Service (PaaS) and Software as

a Service (SaaS). These services are offered at very

attractive prices and allow the organizations/users to

reduce their cost on purchasing computing hardware,

software and then later maintaining them. The cloud

computing also leverages the users from worrying

about investing in the up-gradation of their systems

at some regular time intervals.

To enjoy any of the service offered by the cloud

provider, the customer formally e-signs the contract

defined in terms of the SLAs with the service

provider. The SLA basically specifies contractual

commitments of the provider on which services will

be offered to the customer. The committed quality

level of a service is specified in a set of Service

Level Objectives (SLOs) in the form of service

metrics, threshold values, and tolerances

(Telemanagement Forum, 2011). Billing by the

525

Abdel Kader F..

METERING THE CLOUD PROVIDERS.

DOI: 10.5220/0003449605250528

In Proceedings of the 1st International Conference on Cloud Computing and Services Science (CLOSER-2011), pages 525-528

ISBN: 978-989-8425-52-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

Figure 1: Cloud Meter Architecture.

cloud providers for the usage of services are done on

the terms finalized in the SLA.

This paper talks about the design of a cloud

meter that can be used by the user to independently

and automatically very the bill being sent by the

provider. By using this cloud meter the user will

then have the confidence that they are being billed

only for the resources they have used. In case the

cloud provider fails to meet any terms mentioned in

the contract, the penalties could also be identified

and then verified automatically.

2 RELATED WORK

Industry as well as academia have done research or

developed some products for monitoring SLA

compliance. However, most of these approaches are

narrowed to some specific services, e.g., web

services, or a certain set of SLA parameters, e.g.,

availability, round-trip time, and response time

(Daidalos, 2004), (Hasan, Stiller, B., 2007), (Keller,

A., Ludwig, H., 2003) (SSSC). The IBM’s Web

Service Level Agreement (WSLA) Framework gives

a general concept for the SLA management and

mainly focuses on web services (Keller, A., Ludwig,

H., 2003). The SLA management lifecycle by IBM

comprises of five stages: negotiation and

establishment, deployment, measurement and

monitoring, corrective management action, and

termination (Keller, A., Ludwig, H., 2003). The

functionality needed for these various stages is

implemented as WSLA services, which interact

across different domains.

However, these monitoring approaches and tools

cannot be applied to the cloud computing because

cloud computing doesn’t give access to underlying

hardware. Only a virtual OS is the interface, which

is hosted on a hypervisor. And thus this

virtualization layer hides all underlying information

of the hardware from the interacting user. Although

some companies (Monitoring), have launched

commercial monitoring service for cloud computing

but these monitoring software are mostly restricted

to monitor certain features of cloud providers.

However need of a general 3rd party automated

metering tool to monitor cloud providers in an

independent manner are still missing.

3 ARCHITECTURAL DESIGN OF

CLOUD METER

Fig.1 depicts the cloud metering architecture having

the Metering Unit as a major component, which

consists of sets of automated meters. The automated

meters may or may not interact with each other for

conducting a particular metering. The Metering Unit

implements the Meter Algorithm for a particular

metering application. A meter algorithm is a

technical description of rules signed in the SLA.

A metering process requires at least two types of

input: SLAs (the regular SLA signed at the

beginning of a contract. Additionally if some special

CLOSER 2011 - International Conference on Cloud Computing and Services Science

526

Figure 2: Automated Meter’s Internal Architecture.

package is offered by the provider during the age of

contract for some special service then this SLA also

becomes the part of an input. It is not necessary that

this special package covers all the areas of the

signed regular SLA, therefore this is considered as

an additional input only at the time it is offered.

Beside the above two mentioned SLAs, if some

other external service(s) being used then it’s SLA is

also considered as an input for the metering unit)

and secondly the monitored information (provided

by the Resource Set monitored information).

Monitored information describes what actually

happens, whereas SLA describes expected

situations. The metering unit then evaluates these

data using the automated meters.

The result of this metering process is the bill

generated by combing all the metering units. This

generated bill is then automatically compared with

the cloud provider’s bill and is checked for any

difference in the two bills. In case of any difference,

a bill containing the areas of differences is

generated. For transparent metering of the cloud

providers, none of the components has to be

installed on the cloud provider’s servers. But for

different service layers of cloud computing, the

cloud meter component placements and monitoring

methods vary. But these placement techniques and

monitoring methods are not discussed in this paper.

4 INTERNAL ARCHITECTURE

OF AN AUTOMATED METER

As described, a metering unit contains a set of

automated meters and it implements the meter

algorithm for a particular application. This means

that automated meters have the task to execute the

metering algorithm. In order to reduce

implementation complexity and to achieve

modularity, the following assumptions are made in

designing the architecture of an automated meter:

• A metering Unit deals with a set of SLAs.

Without the loss of generality each automated meter

is assumed to be responsible for a particular SLA.

• Each SLA contains a set of conditions linked by

a logical expression. Hence, the result of the

evaluation of each condition as well as the

evaluation of the logical expression linking all the

conditions determine the compliance of relevant

monitored data with a SLA.

The approach developed here proposes the following

common metering algorithm:

1. Interpret and apply valid monitoring policies

during the metering.

2. Interpret the assigned SLA Specification, for

which the automated meter is responsible.

3. Retrieve relevant monitored resource usage data.

4. Evaluate monitored data whether they meet SLA

conditions. Evaluate the logical expression linking

METERING THE CLOUD PROVIDERS

527

all SLA conditions and accordingly calculate the

cost.

5. Generate a bill as a result of the evaluation.

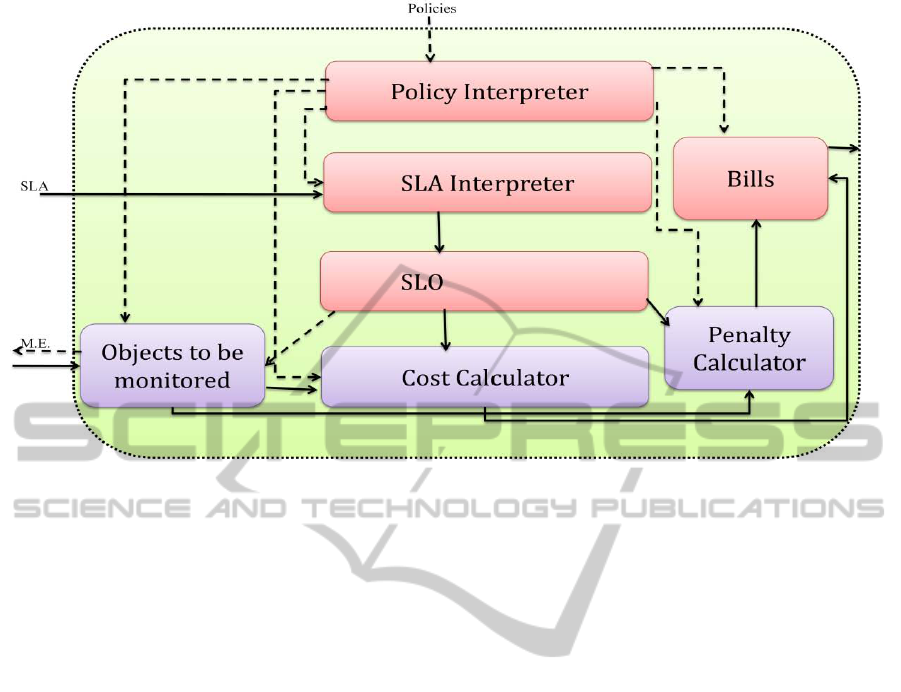

Fig.2 shows the architecture of the automated meter

to execute the proposed meter algorithm. The

Policies Interpreter (PI) takes policy decisions and

configures other components based on metering

policies. The SLA Interpreter retrieves the SLA

assigned to the meter based on the configuration

information from PI. The SLA interpreter; then

generates the SLOs and cost calculator. Cost

calculator takes the relevant monitored resource

usage data and then generates the relevant usage bill

from it. The SLO determines whether there is a

violation of the SLA based on the result of

monitored data. In case of any violation, the

respective penalty cost is calculated by the penalty

cost calculator and the cost is then added to the bill.

The final bill is then sent to the bill generator.

5 CONCLUSIONS

An architectural design step for metering the service

usage on cloud providers has been completed. Since

different layers of services offered by cloud

computing have different user interfaces, therefore

different monitoring techniques are being currently

studied and are in final stages of designing the

monitoring block. Implementation of the metering

unit will then be started immediately and as a first

step the SLA interpreter will be made. The ultimate

goal is to have a framework for automated metering

of different service layers offered by cloud

computing giving users the confidence that they are

not being overbilled.

REFERENCES

Cloud Providers, 2010. https://groups.google.com/

group/cloud-computing/web/list-of-cloud-platforms-

providers-and-enablers?hl=en&pli=1

Cloud economic model, 2010. http://technology.inc.

com/hardware/articles/200805/cloud.html

Telemanagement Forum, 2011. SLA Management

Handbook, Release 3. GB917

Daidalos, 2004. A4C Framework Design Specification.

Deliverable D341

Hasan, Stiller, B., 2007. Auditing Architecture for SLA

Violation Detection in QoS-Supporting Mobile

Internet. IST Mobile and Wireless Comm. Summit,

Vol. 1. Aveiro, Portugal

Keller, A., Ludwig, H., 2003. The WSLA Framework:

Specifying and Monitoring Service Level Agreements

for Web Services. Journal of Network and Systems

Management, Vol. 11, Issue 1

Monitoring, http://www.monitortools.com/cloud/

SSSC (Softek Storage Solutions Corporation). SOFTEK

EnView: Datasheet.

EC2, 2011. http://aws.amazon.com/ec2/#pricing

Azure, 2011. http://www.microsoft.com/windowsazure/

pricing/default.aspx

Lizhe, Gregor et al., 2008. Cloud Computing: a

Perspective Study. Proceedings of the Grid Computing

Environments (GCE) workshop. Held at the Austin

Civic Center: Austin, Texas.

CLOSER 2011 - International Conference on Cloud Computing and Services Science

528
