NETWORK PLANNING OF A VOIP-CABLE PBX

The Use of Data Proﬁling Techniques for an Efﬁcient Network Planning

Igor Ruiz-Agundez, Yoseba K. Penya and Pablo G. Bringas

DeustoTech, Deusto Institute of Technology, University of Deusto, Bilbao, Basque Country, Spain

Keywords:

Clustering algorithms, Network planning, VoIP services.

Abstract:

Network planning presents a number of difﬁculties and risks but performed in an optimal way may turn

beneﬁcial. In this work we address a new way of achieving optimal network planning for Voice over IP

(VoIP) services by using historical data to proﬁle service usage. We show how to obtain a sound set of service

use clusters based on calling behaviours by applying a Simple Expectation Maximisation (EM) algorithm.

We successfully evaluate this methodology with real data and extract useful knowledge that can result in an

improved network planning. Finally, we discuss the application of this method to other network services.

1 INTRODUCTION

Network planning aims at ensuring that a new net-

work or service meets the needs of both the subscriber

and the operator. These needs are sometimes in oppo-

sition, so that achieving a fair balance is not a trivial

task. Traditionally, network administrators have used

different methodologiesto cope with this problem, in-

cluding three steps: topological design, network syn-

thesis, and network realisation. Each step must con-

sider the dimensionality of user requirements to ad-

dress problems such as peak-hour trafﬁc and network

resources consumption. In addition, the requirements

of users change, and so decisions related to network

planning must be approached iteratively.

In addition, every user within a company or an or-

ganisation presents unique needs. If there is a large

number of users, it is hardly feasible to meet each of

their individual requirements. Given this drawback,

network administrators have traditionally used data

proﬁles to group user requirements as well as pos-

sible. More speciﬁcally, a user is characterised in

terms of one or more data proﬁles that describe her

behaviour from different perspectives. This grouping

process is traditionally performed by means of expert

knowledge using a specialised method (Snasel et al.,

2010).

Data proﬁling has been used to assign categories

to data, develop quality metrics, assess risks, and vi-

sualise data, among other uses. Speciﬁcally, we use

data proﬁling to extract knowledge that will facilitate

decision-making in efﬁcient network planning.

Among the services of the emerging convergence

networks, Voice over Internet Protocol (VoIP) tech-

nology enables the transmission of audio data over an

all-IP network. Still, as with more traditional tech-

nologies, VoIP also requires a network planning pro-

cess. This process aims at guaranteeing that the sub-

scribers, end-users, and operators of VoIP meet cer-

tain communication requirements.

In this study, we put forward the use of cluster-

ing algorithms to proﬁle the behaviours of VoIP users.

Since we do not know the number of clusters a partic-

ular algorithm may require, we use the Simple Expec-

tation Maximisation (EM) algorithm because it pro-

vides different numbers of proﬁles.

Against this background, the contribution of this

paper is three-fold. First, we introduce the use of the

EM algorithm to proﬁle users’ Call Detail Records

(CDRs). Second, we evaluate this methodology for

efﬁcient network planning in the context of VoIP ser-

vices within an organisational context. Finally, we

discuss the proposed methodology and the possibility

to apply it to other network services.

The remainder of this paper is organized as fol-

lows. Section 2 introduces the use EM algorithm.

Section 3 illustrates empirical experiments and their

results. Section 4 concludes the study and proposes

avenues for future work.

Ruiz-Agundez I., K. Penya Y. and G. Bringas P..

NETWORK PLANNING OF A VOIP-CABLE PBX - The Use of Data Proﬁling Techniques for an Efﬁcient Network Planning.

DOI: 10.5220/0003451400850088

In Proceedings of the International Conference on Data Communication Networking and Optical Communication System (DCNET-2011), pages 85-88

ISBN: 978-989-8425-69-0

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2 SIMPLE EXPECTATION

MAXIMISATION (EM)

ALGORITHM

One of the main problems in data clustering algo-

rithms lays on determining the number of clusters in a

data set. This quantity is labelled as k, and its value is

often ambiguous and depends on the application do-

main and the expert consulted. This optimal value

k should strike a fair balance between the maximum

compression of the data, which implies the use of a

single cluster, and maximum accuracy, which is ob-

tained by assigning a cluster to every data point (Kim,

2009).

There are several ways of determining the optimal

number of clusters (Sugar and James, 2003). We can

determine k manually by trying different values and

analysing the results of the clustering algorithm un-

til it is considered valid. This method, however, is

normally used when an expert has an initial approxi-

mation of the existing number of clusters.

As we do not know the number of clusters into

which our data set is divided, we employ the second

method. Further, we use the EM algorithm, as it sup-

ports nominal, binary, empty nominal, and numeric

attributes as well as allows us to manage missing data

or unary attributes. This attribute types support that

our data will be correctly processed (Keim and Hin-

neburg, 1999). Additionally, we decided to use this

algorithm because, to our knowledge, it best ﬁts our

dataset as the results give a better knowledge repre-

sentation, which is presented in Section 3.1. EM sup-

ports all of the attribute types we are working with,

and it also identiﬁes the number of clusters into which

the dataset set must be divided. We also consid-

ered the proximity measure (i.e., how similar two data

points are) and the clustering criterion (i.e., the cost

function) of this algorithm for calculations.

3 EXPERIMENT AND RESULTS

3.1 VoIP Data

We obtained our experiment data from the Asterisk

PBX database records in a corporation. The data cor-

responds to all of the CDRs recorded in 2008, which

comprise more than 700,000 entries.

These records are produced when two or more

participants communicate over a partial or complete

Internet-based voice connection. The call is normally

initiated by one of the participants (i.e., the call ini-

tiator) and is received by one or more participants

(i.e., call recipients). The call can be IP to IP, Pub-

lic Switched Telephone Network (PSTN) to IP, IP to

PSTN, mobile to IP or any other possible combina-

tion. In each case, the resulting CDR reﬂects the na-

ture of the call and provides all the details on it.

For the sake of simplicity and due to our limited

computational capabilities, we reduced the dataset to

one month (October) with 48,849. To address data

privacy concerns, all conﬁdential information was

made anonymous, guaranteeing the rights of users un-

der compliance with the existing laws.

3.2 Interpretation of the Results

The amount of clusters is deﬁned by the results of the

used clustering algorithm; the result was 10 different

clusters. This amount of clusters is, in itself, highly

representative, as it groups the CDRs and tells us how

many different behaviours or requirements appear in

the population of users. In other words, this number

speciﬁes the number of data proﬁles we are dealing

with. With this information, we can already extract

some useful conclusions.

If we are the service provider, we can modify the

network infrastructure depending on the requirements

of each proﬁle. We can also predict network and

infrastructure consumption. If we are the network

administrator of the end-user’s PBX corporation, we

can negotiate service-level agreements (SLA) with the

provider that best ﬁt the requirements of each pro-

ﬁle. The end-users should beneﬁt from the quality im-

provements obtained by such measures taken by both

the provider and the corporation’s network adminis-

trator.

We can also perform a deeper analysis of the ﬁnal

results of the clustering. As previously mentioned,

the output of these algorithms must be interpreted to

extract added-value information for the current do-

main area. The ﬁrst step in this interpretation con-

sists of bringing the clustering algorithm results into a

comprehensible format for analysis. We prefer visual

data representation because it is a valuable method

for intuitively analysing large amounts of data (Nocke

et al., 2004). There are many clustering analysis visu-

alisation methods, such as the rectangular view, the

ThemeRiver technique and the Scatter Plot Matrix,

among others (Chi, 2000). The second step is to inter-

pret this representation with an expert in the domain

area of the VoIP. This step should provide new infor-

mation about the dataset and help us to infer conclu-

sions regarding efﬁcient network planning.

For representation, we chose the Scatter Plot Ma-

trix because it is a visualisation method (Nocke et al.,

2004) that has been proven to be reliable, and it can

DCNET 2011 - International Conference on Data Communication Networking

be applied to our dataset domain area. The dots in the

Plot Matrix represent the centroid values of a certain

cluster, and the axis and the dot colours represent the

attributes that are plotted. In this visualisation tech-

nique, we selected one attribute for axis(x), one at-

tribute for axis(y) and one attribute for class(colour).

It is worth mentioning that attributes can be pre-

sented using more than one of these variables to ob-

tain clearer information.

Among all the possible attribute visualisation

combinations, we decided to focus on the hour that

a call is established. We chose this attribute for four

reasons. First, the hour indicates when calls are made,

which helps us to detect peak demands so that better

network planning can be performed. Second, some

pricing schemes apply different price functions de-

pending on when the service is used (e.g., morning

or afternoon); with this information, we can negoti-

ate better service level agreements with our providers

(Chang and Petr, 2001). Third, the network adminis-

trator can see when a possible bottleneck may appear;

this information can help improve the quality of ser-

vice (QoS). Fourth, both the provider and the end-user

network administrator can balance their network and

infrastructure loads depending on hourly demand.

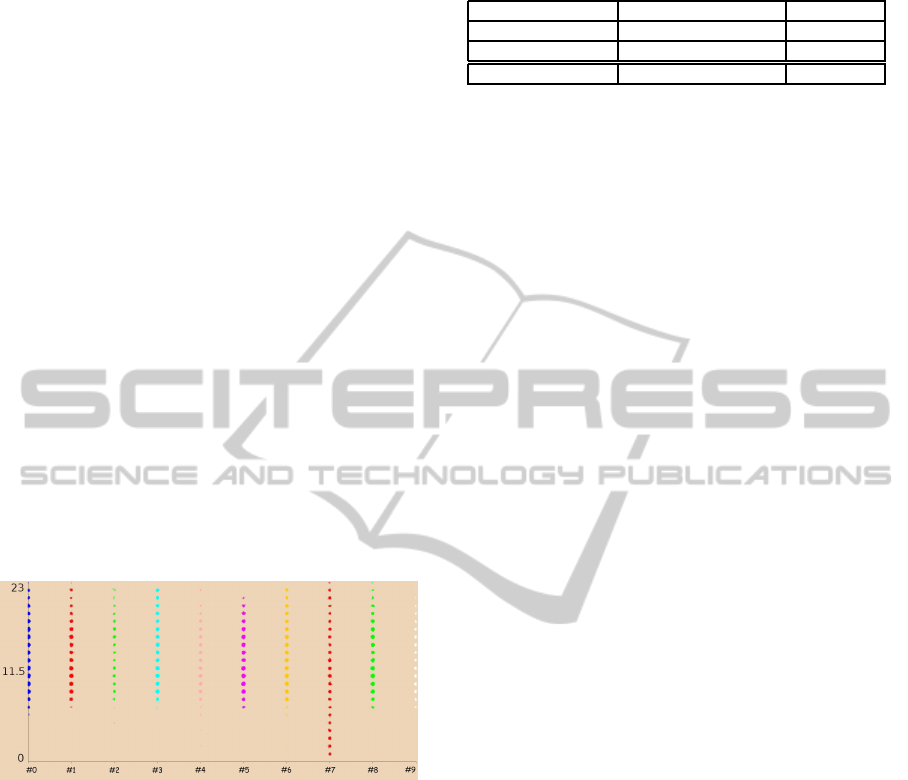

Figure 1: Clustering results. Axis(x) = Cluster. Axis(y) =

Hour. Class(colour) = Cluster.

Figure 1 shows the clustering results. The

cluster attribute appears both in terms of axis(x)

and class(colour) to improve the readability of the

graphic. The hour attribute corresponds to the mo-

ment a call starts. We can handle the call time in terms

of hour for each data proﬁle. All clusters have entries

ranging from 07.00 to 22.00. This time range corre-

sponds to the university’s opening times. However,

cluster #7 presents entries all day, corresponding to

special types of terminals, such as servers, modems

and alarm systems. The calls related to the CDRs of

this cluster may require special supervision to prevent

call abuse. This information is also useful for mod-

elling the normal behaviour of users and to anticipate

the time of calls. We consider cluster #7 to be excep-

tionally different from the rest.

Table 1: Most relevant cluster instance percentages.

Cluster(s) Number of instances Percentage

Cluster #7 1846 3.78%

Remaining clusters 47003 96.22%

Total 48849 100%

Almost all of the data proﬁles show that users

made their calls during working hours, and only one

data proﬁle had calls throughout the day. Table 1

shows the percentage of instances of the most rele-

vant cluster in terms of instance number.

This information could also be operated by the

VoIP provider to improve the support systems. Infor-

mation to prevent congestion may be inferred, mar-

keting strategies shall be planned to offer special of-

fers to the customers or infrastructure could be reor-

ganised to improve efﬁciency.

In this case, we were thus able to propose an im-

provement for network planning. Currently, the cor-

poration owns thirty channels in a primary trunk line

with a time-based pricing scheme in which the calls

are charged according to the time of call. The cor-

poration should negotiate a call pricing scheme based

on workday call times for 96.22% (or all but one) of

their channels and a ﬂat-rate pricing scheme for the

remaining outgoing line. With this measure, the costs

of PSTN calls should decrease for the end-user cor-

poration. Table 2 presents best-case results following

this network planning improvement. This maximum

saving supposes that all calls of cluster #7 are redi-

rected through the ﬂat-rate channel. As the cost per

instance may vary, we simulated savings with X = 10

and Y = 9, obtaining a ﬁnal savings of 35,074 mone-

tary units, as shown in Table 2.

4 CONCLUSIONS AND FUTURE

WORK

In this work, we have proposed a data proﬁling

methodology for VoIP data for network planning.

This methodology uses a clustering algorithm to pro-

cess VoIP data records. The experiment shows that

the proposed methodology is able to present knowl-

edge in a highly comprehensible format. The possi-

bility to accurately replicate this knowledge extrac-

tion methodology makes the proposed approach quite

promising. We have used the EM algorithm to pro-

cess our data records. This clustering algorithm deter-

mines the number of clusters into which the dataset is

to be divided, and it splits the samples among them.

The results of the experiment demonstrate that it is

possible to conduct data proﬁling using clustering al-

gorithms. Indeed, the used clustering algorithm is one

NETWORK PLANNING OF A VOIP-CABLE PBX - The Use of Data Profiling Techniques for an Efficient Network

Planning

Table 2: Maximum possible savings through network planning improvements.

Current situation With our network planning improvement

Channels with a time-based pricing scheme 30 29

Channels with a ﬂat-rate pricing scheme - 1

Cost per instance for a time-based pricing scheme X X

Cost with a time-based pricing scheme per instance - Y

Cost

48849

× 30X

47003

× 29X + 1846 ×Y

Saving

48849

× 30X −

47003

× 29X + 1846 ×Y

Saving for X = 10 and Y = 9 monetary units 35074

of the most widely applied algorithms. We could have

used other clustering algorithms and compared the re-

sults. The incremental clustering method is, however,

the only one that with our data generates an explicit

knowledge representation model that describes clus-

tering in such a way that it can be easily visualised

and understood (Witten and Frank, 2005).

We could have also incremented the granularity

of the data, splitting the date attribute by year, month

and day. Nevertheless, since the dataset in the exper-

iment corresponded to one month, this criterion did

not affect the results. We did not study whether or not

the attributes are interdependent. Thus, for this ex-

periment, all of the attributes were treated as covari-

ant; additionally, Bayesian-network-based algorithms

(Ruiz-Agundez et al., 2010b) may assist in the study

of such dependencies.

We have proposed an improvement in network

planning that could result in savings regarding tele-

phone calls. The change consisted of adopting a ﬂat-

rate pricing scheme for one of the telephone channels

(i.e., trunk lines) for a set of calls that would be more

expensive with a time-based pricing scheme. We have

contributed to improving the resource management

and the service tarifﬁng of the experiment corpora-

tion, further, this methodology could be generalised

to any size corporation as the service usage data can

always be clustered.

Finally, it is worth highlighting that the most ex-

citing result of the proposed methodology is, in our

opinion, the ability to produce highly representative

results that could generate a high level of knowl-

edge. The beneﬁts and possible applications of such a

methodology include: (i) user behaviour modelling,

(ii) fraud detection through anomalous behaviour

analysis (Ruiz-Agundez et al., 2010a), (iii) technical

and economical implications (e.g. network planning),

and (iv) pricing scheme modelling (Falkner et al.,

2009).

Future work includes analysis of clustered data

for use as training data for classiﬁcation algorithms.

These algorithms should allow us to predict the val-

ues of certain attributes. For example, we should be

able to predict within a given probability a call’s du-

ration or the channel used to route the call given its

source and destination.

REFERENCES

Chang, X. and Petr, D. (2001). A survey of pricing for inte-

grated service networks. Computer communications,

24(18):1808–1818.

Chi, E. (2000). A taxonomy of visualization techniques

using the data state reference model. In Proc. of the

IEEE Symposium on Information Visualization, pages

69–75.

Falkner, M., Devetsikiotis, M., and Lambadaris, I. (2009).

An overview of pricing concepts for broadband IP net-

works. IEEE Communications Surveys, 3(2):2–13.

Keim, D. and Hinneburg, A. (1999). Clustering techniques

for large data sets from the past to the future. In Tu-

torial notes of the ﬁfth ACM SIGKDD international

conference on Knowledge discovery and data mining,

pages 141–181. ACM.

Kim, W. (2009). Survey topic: Parallel Clustering Algo-

rithms. http://www.cs.gsu.edu/∼wkim/index ﬁles/

annotbib.pdf.

Nocke, T., Schumann, H., and Bohm, U. (2004). Methods

for the visualization of clustered climate data. Com-

putational Statistics, 19(1):75–94.

Ruiz-Agundez, I., Penya, Y. K., and Bringas, P. G. (2010a).

Fraud detection for voice over ip services on next-

generation networks. In Samarati, P., editor, Proceed-

ings of the 4th Workshop in Information Security The-

ory and Practices (WISTP 2010), LNCS 6033, pages

199–212, Passau, Germany. IFIP International Feder-

ation for Information Processing 2010, Springer.

Ruiz-Agundez, I., Penya, Y. K., and Bringas, P. G. (2010b).

Optimal bayesian network design for efﬁcient intru-

sion detection. In Proceedings of the 3rd International

Conference on Human System Interaction (HSI 2010),

pages 444–451, Rzeszow, Poland. IEEE.

Snasel, V., Abraham, A., Owais, S., Platos, J., and Kromer,

P. (2010). User Proﬁles Modeling in Information

Retrieval Systems. Emergent Web Intelligence: Ad-

vanced Information Retrieval, page 169.

Sugar, C. and James, G. (2003). Finding the Number of

Clusters in a Dataset. Journal of the American Statis-

tical Association, 98(463):750–763.

Witten, I. H. and Frank, E. (2005). Data mining. Practical

machine learning tools and techniques. Diane Cerra.

DCNET 2011 - International Conference on Data Communication Networking
